| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75" |
| Description_ASC |
APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC |
APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25" BEYOND MAXIMUM |
| Description_ASC |
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1" of rear lift over stock |
| Description_ASC |
Ships in Multiple Boxes |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 5 SUSPENSION SYSTEM W BILLET UCA |
| Description_INV |
05-UP TACO STAGE 5 SUSPENSION SYS BILLET |
| Description_EXT |
2005-2015 TACOMA 0-3.5" LIFT/16-UP 0-2.75" LIFT STAGE 5 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
Vehicle specific tuned front and rear shocks for superior shock damping and control |
| Description_FAB |
Adjustable coilovers provide 0-3.5" (05-15 models) or 0-2.75" (16-UP models) of lift height |
| Description_FAB |
Extended Travel coilovers matched with ICON UCA provides increased front droop travel |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts |
| Description_FAB |
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB |
FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB |
Bolt-on system means no cutting or welding necessary for install |
| Description_TLE |

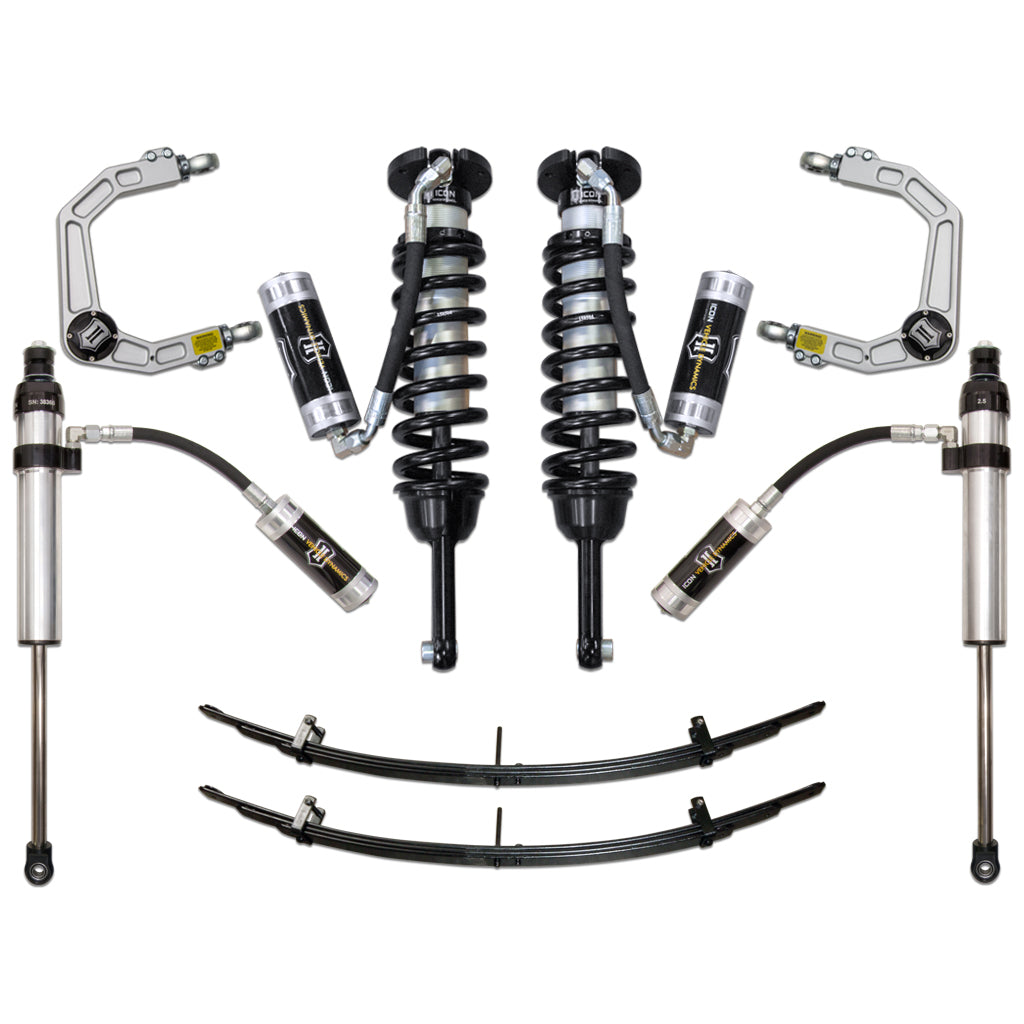

ICON 05-15 Tacoma 0-3.5" / 16-Up 0-2.75" - Stage 5 Suspension System, Billet UCA |
| Description_MKT |
ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5" Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle ΓÇ£feel" through the range of travel. These coilovers are also height adjustable from 0-3.5" of lift on 2005-2015 or 0-2.75" on 2016-UP models allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, ICON extended travel coilovers add increased droop travel to the front suspension. ICON 2.5 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-UP Toyota Tacoma 4WD/PreRunner Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_MKT |
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_SHO |
STG 5 SUSP SYSTEM |
| Description_TRA |
ICON 05-15 Tacoma 0-3.5" / 16-Up 0-2.75" - Stage 5 Suspension System, Billet UCA, K53005 |
| OEM Wheels & Tires Fitment |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Title |
05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 5 SUSPENSION SYSTEM W BILLET UCA |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
138.0000 |
