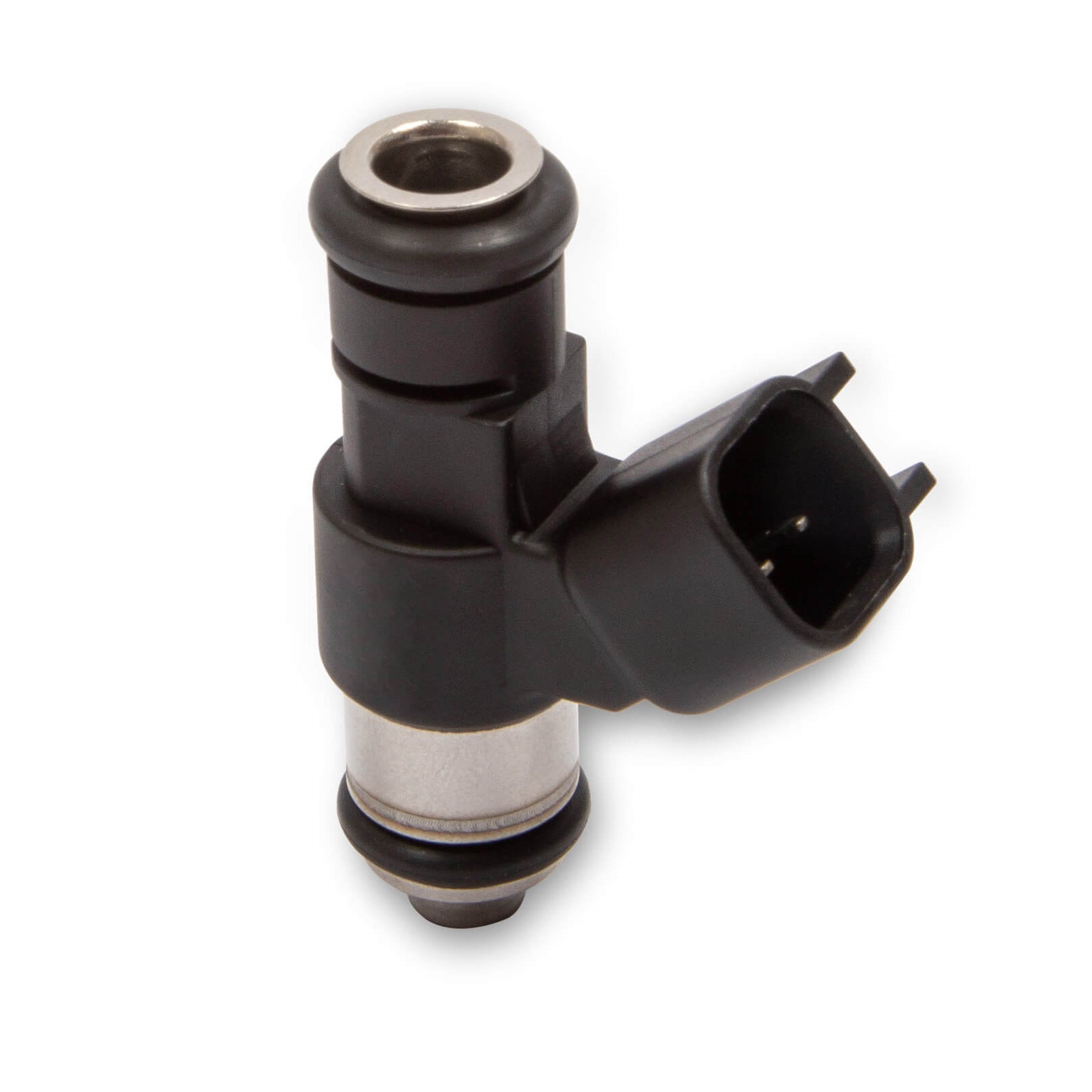

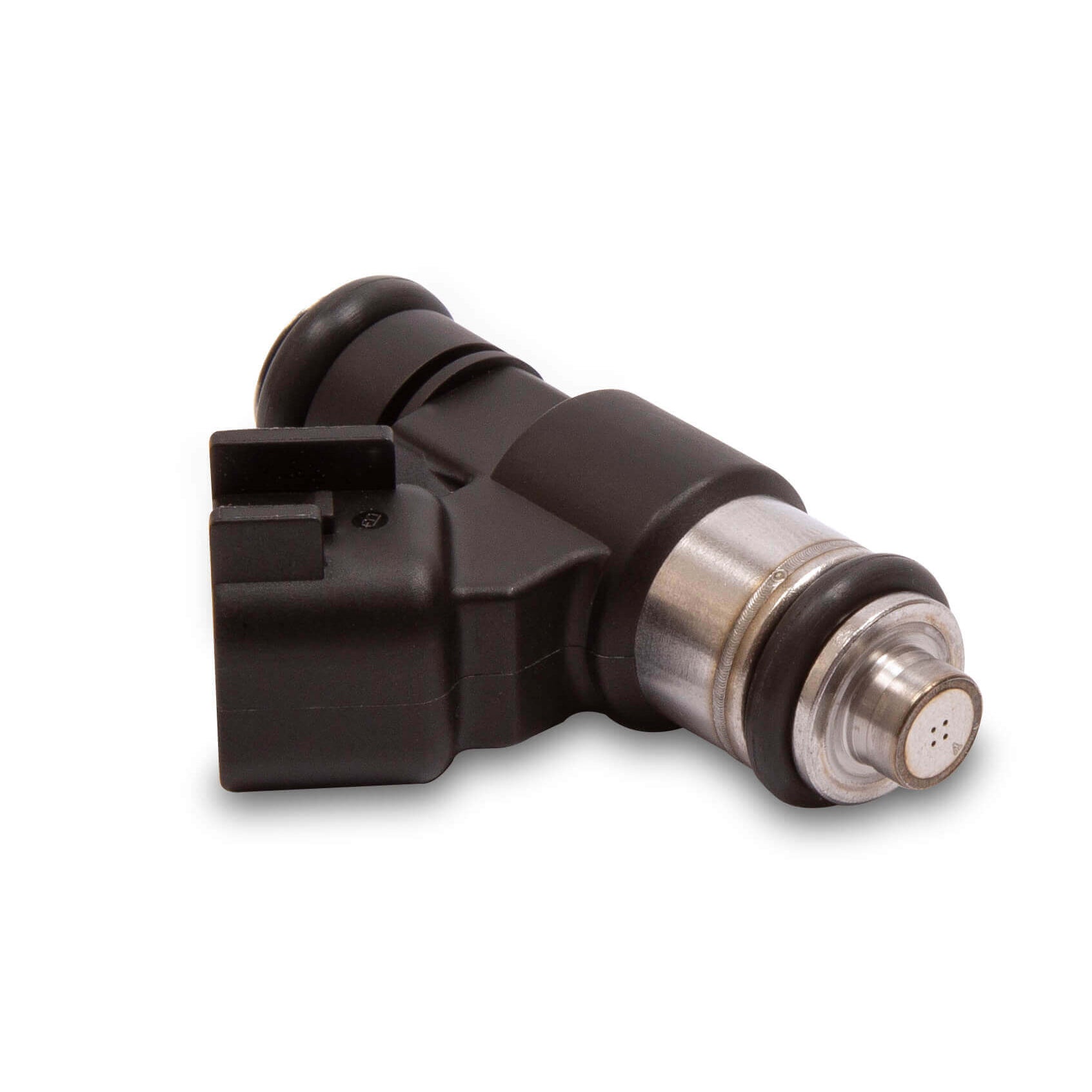

Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Specifications:
| Description_DEF |
Fuel Injector |
| Description_EXT |
Terminator X Flow Matched Fuel Injector Set; 220 lbs./hr.; High Impedance; Qty. 8; |
| Description_DES |

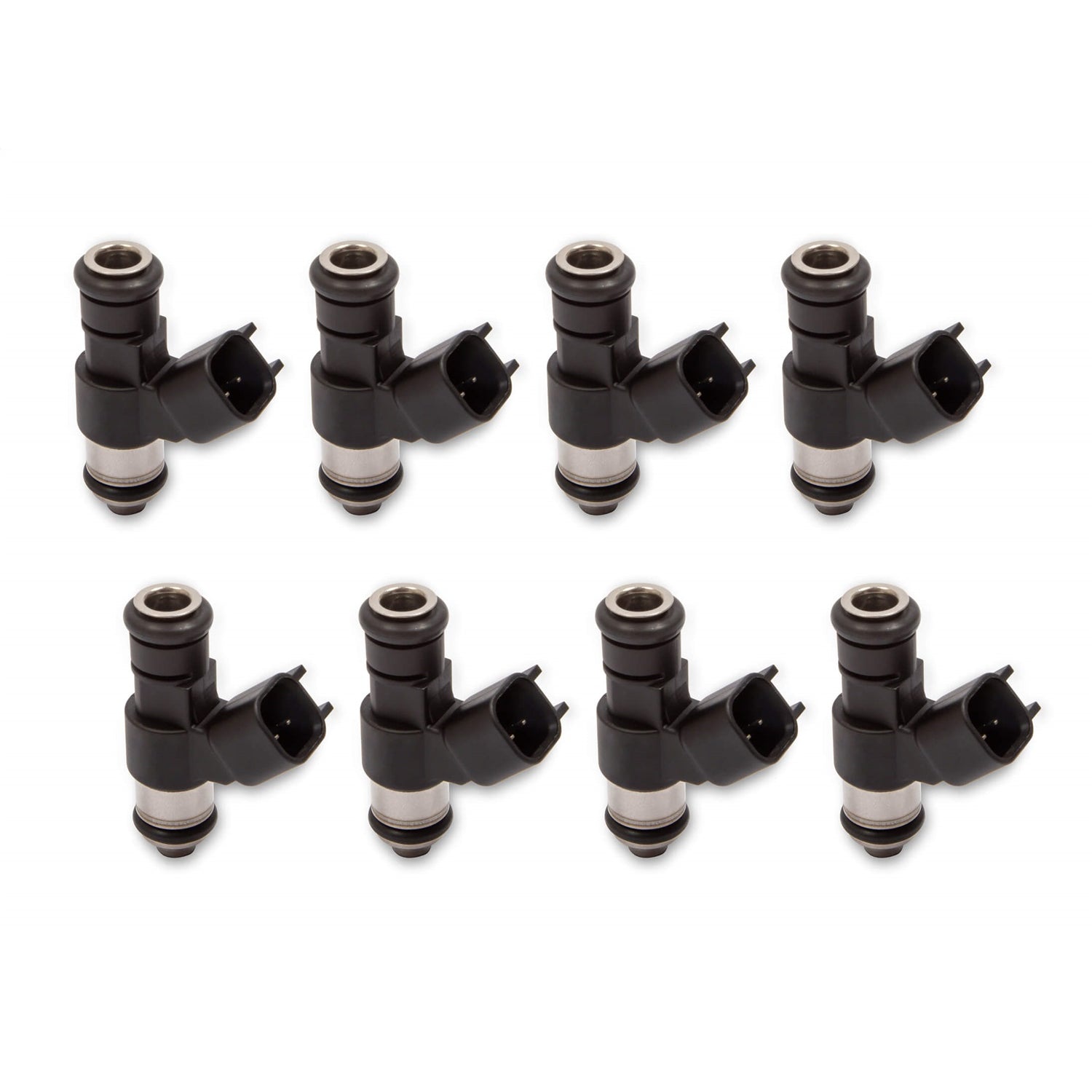

Flow Matched 220PPH Fuel Injector Kit - Eight Pack |
| Description_INV |
KIT- FUEL INJECTOR 220 PPH, 8 PK, FM |
| Description_MKT |
Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers. |
| Description_SHO |
Fuel Injector |
| Description_FAB |
PICO/EV6 style performance injectors - Set of 8 |
| Description_FAB |
Dynamic Flow Matched within 1% |
| Description_FAB |
High impedance for use with saturated drivers |
| Description_FAB |
Rated injector flow from 42lb/hr to 120lb/hr for a wide array of applications, at 60psi base pressure, 220lb/hr injectors rated at 43psi base pressure |
| Description_FAB |
40mm o-ring to o-ring length |
| Description_FAB |
Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9 |
| Description_FAB |
Injector Off Time provided in the Holley EFI software |
| Body Length |
1.85" |
| Brand |
Holley EFI |
| Body Diameter |
0.650 |
| Emission Code |
3, 4 |
| Fuel Type |
E-85, Gasoline, Methanol |
| Impedance |
High (12.2 Ohm) |
| O-Ring to O-Ring |
1.421 |
| Product Type |
Fuel Injector |
| Sale Category |
Air and Fuel Delivery |
| Warning |
California Proposition 65 |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Body Style |
EV6 |
| Connector Series |
USCAR - EV6 |
| Rated Injector Flow |
220 lb/hr |
| Length |
2.3500 |
| Width |
5.4000 |
| Height |
8.8000 |
| Weight |
0.7400 |
