Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Specifications:
| Description_ASC |
These injectors are rated at 43psi base fuel pressure. High Base Fuel Pressure is not recommended. |
| Description_DEF |
Fuel Injector |
| Description_EXT |
Terminator X Fuel Injector Set; 220 lbs./hr.; High Impedance; Qty. 8; |
| Description_DES |

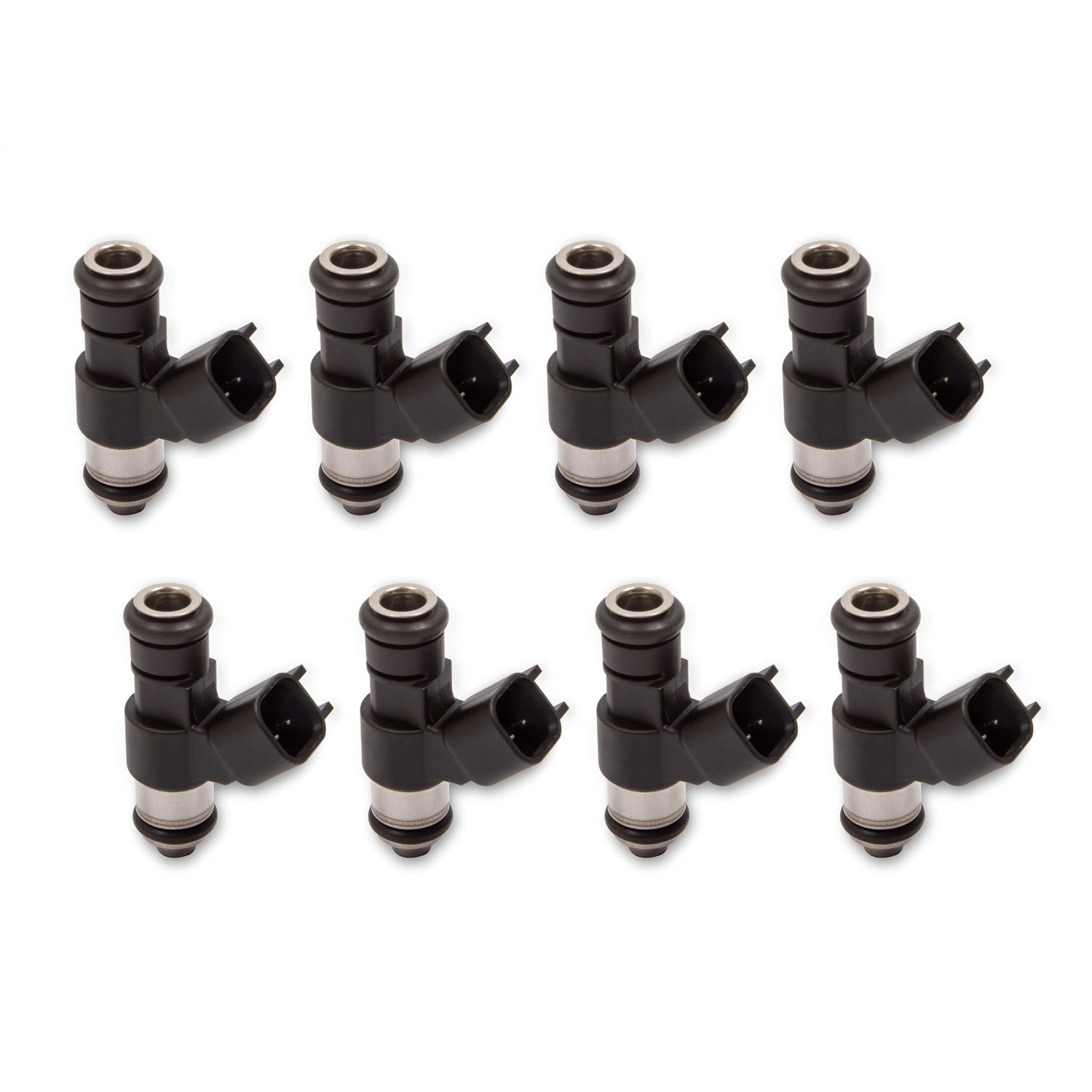

Holley Terminator X Fuel Injectors - Set of Eight |
| Description_FAB |
PICO/EV6 style performance injectors - sold individually or set of 8 |
| Description_FAB |
High impedance for use with saturated drivers |
| Description_FAB |
Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure. |
| Description_FAB |
USCAR injector connector |
| Description_FAB |
40mm o-ring to o-ring length |
| Description_FAB |
Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9 |
| Description_FAB |
Methanol compatible - for use in extreme horsepower applications |
| Description_KEY |
holley; fuel injector; fi parts; Bosch style injectors; EV1; racing injectors; jetronic; minitimer |
| Description_SHO |
Fuel Injector |
| Description_INV |
KIT- FUEL INJECTOR 220 PPH, EIGHT PACK |
| Description_MKT |
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers. |
| Brand |
Holley EFI |
| Rated Injector Flow |
220 lb/hr |
| Body Length |
1.85" |
| Body Style |
EV6 |
| Impedance |
High (12.2 Ohm) |
| Warning |
California Proposition 65 |
| WARNING CA Proposition 65 |
Yes |
| Connector Series |
USCAR - EV6 |
| O-Ring to O-Ring |
1.421 |
| Sale Category |
Air and Fuel Delivery |
| Fuel Rate |
220 lbs./hr |
| Emission Code |
3, 4 |
| Fuel Type |
E-85, Gasoline, Methanol |
| Product Type |
Fuel Injector |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Body Diameter |
0.650 |
| Length |
3.2500 |
| Width |
3.3000 |
| Height |
6.0500 |
| Weight |
0.5900 |
