Holley 12-134 In-Tank Retrofit Fuel Module 525 Lph Return Style

2 sold in last 8 days
Holley
ds_BBVL_12-134
Fuel Pump Module Assembly
$1,338.14
customers are viewing this product
Crown Automotive 5003855AA Fuel Pumps and Related Components
Crown Automotive 5003855AA Fuel Pumps and Related Components
$333.45
Holley 12-133 In-Tank Retrofit Fuel Module- Returnless Style
Holley 12-133 In-Tank Retrofit Fuel Module- Returnless Style
$1,291.99
Holley 12-134 In-Tank Retrofit Fuel Module 525 Lph Return Style
Details

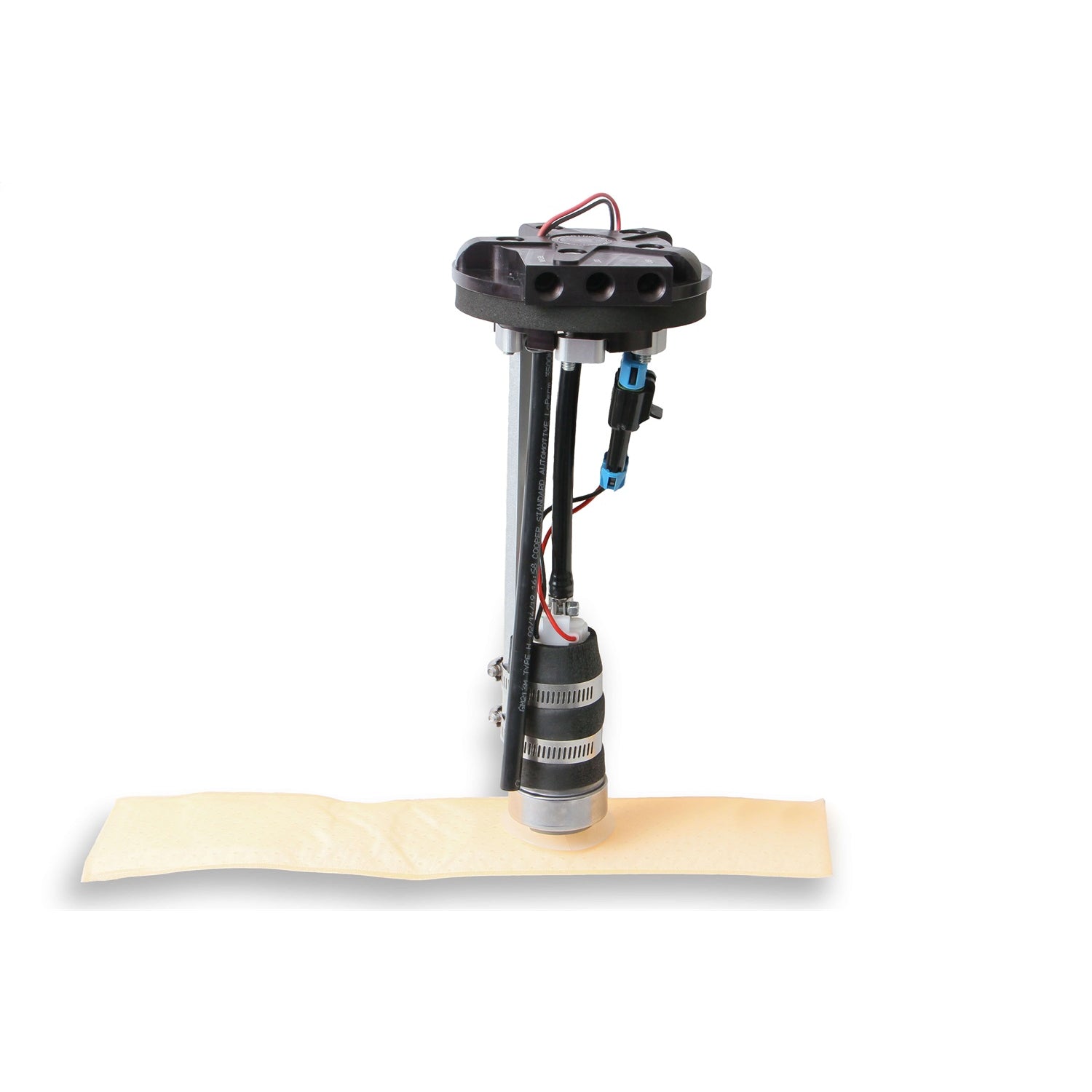

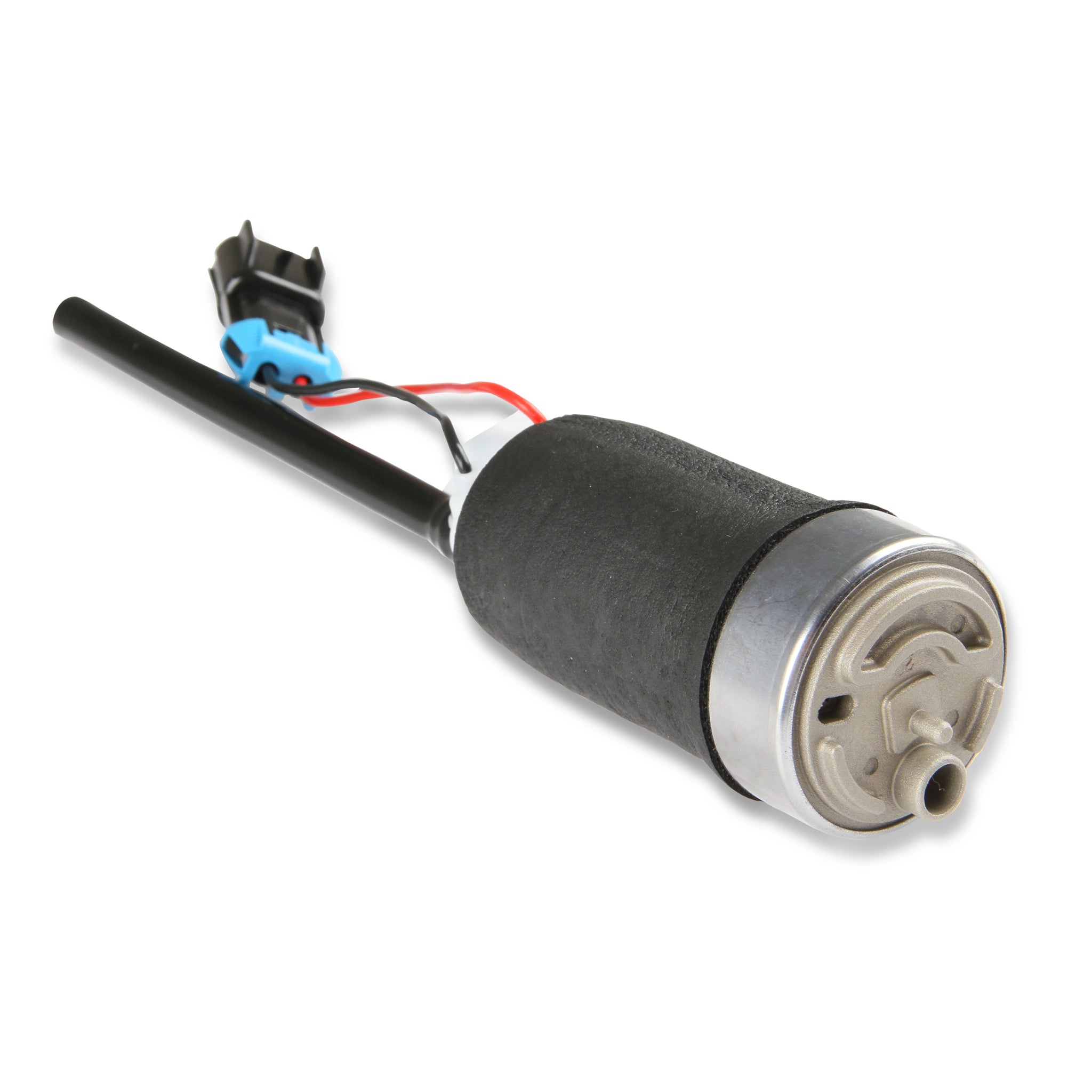

The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump. Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holleys innovative clamping system and integrated fuel pump makes it easy. Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

Specifications:

Description_ASC It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
Description_DEF Fuel Pump Module Assembly
Description_DES Holley In-Tank RetroFit Fuel Module 525 LPH Return Style
Description_INV IN-TANK RETRO-FIT FUEL MODULE 525 LPH
Description_EXT 525 LPH Drop-In Retrofit EFI Fuel System w/Hydramat Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Description_FAB Retrofit Fuel Module 525 LPH- Return Style
Description_FAB Installs in any fuel tank from 7.5" to 12" deep to fit a wide variety of applications

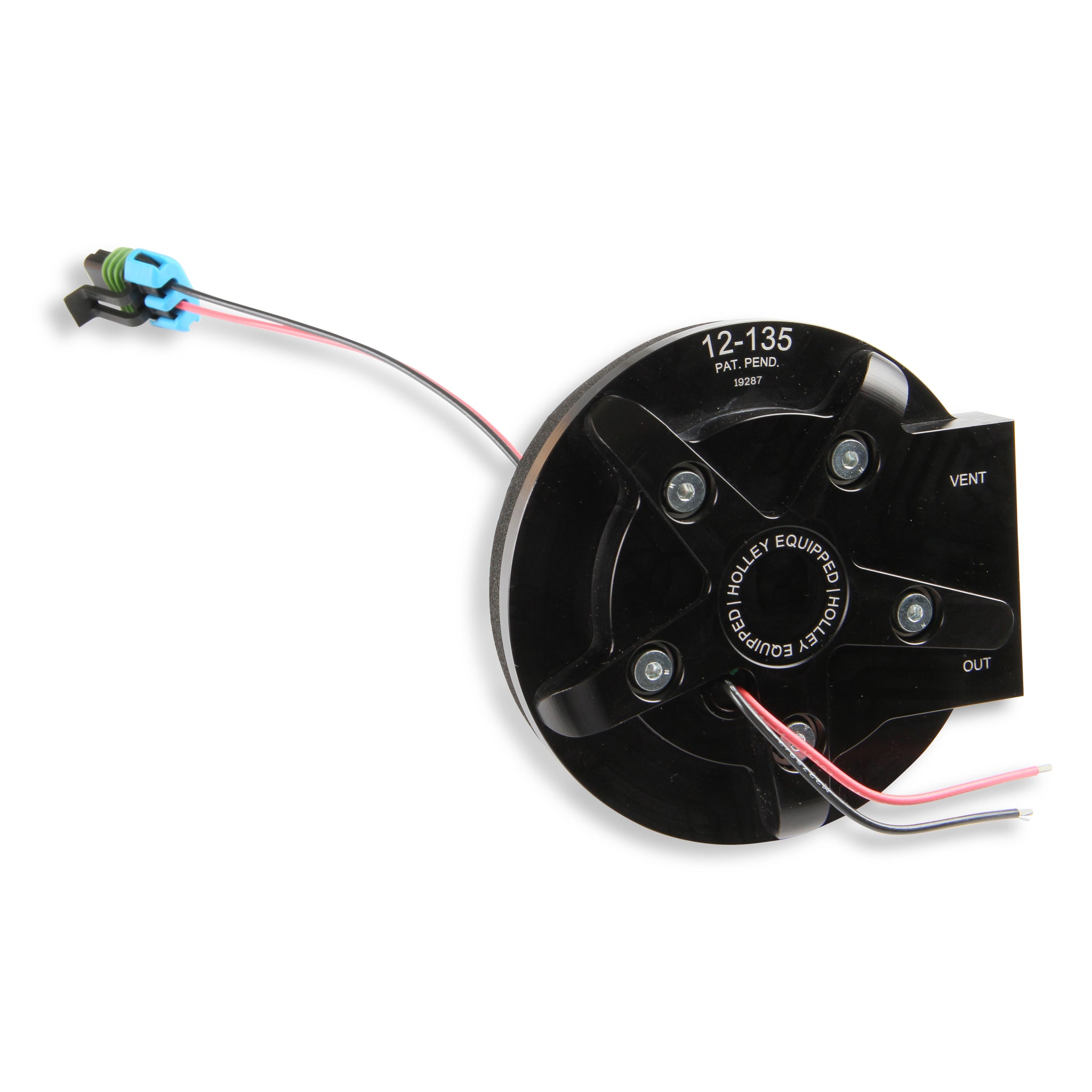

Description_FAB The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

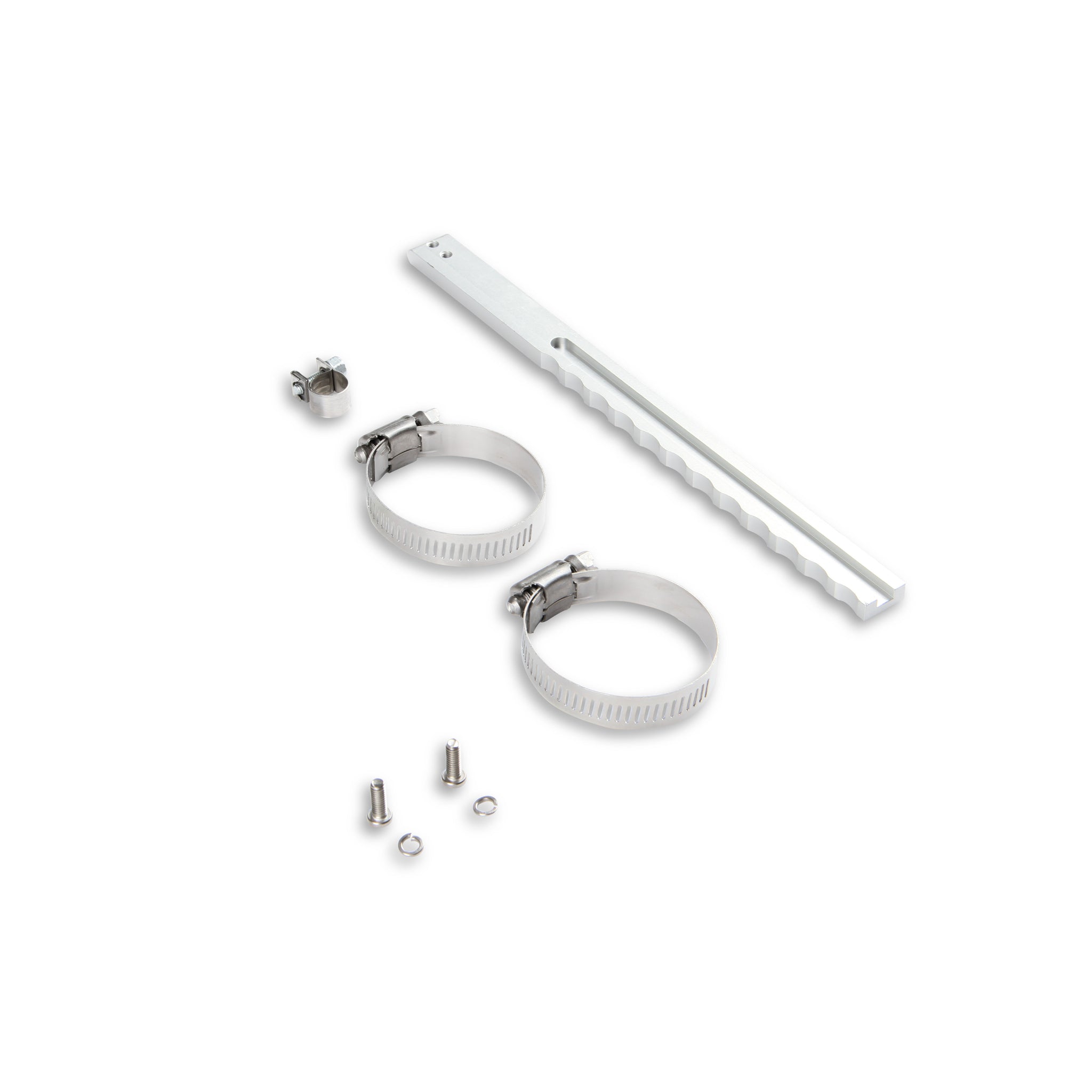

Description_FAB The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
Description_FAB The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

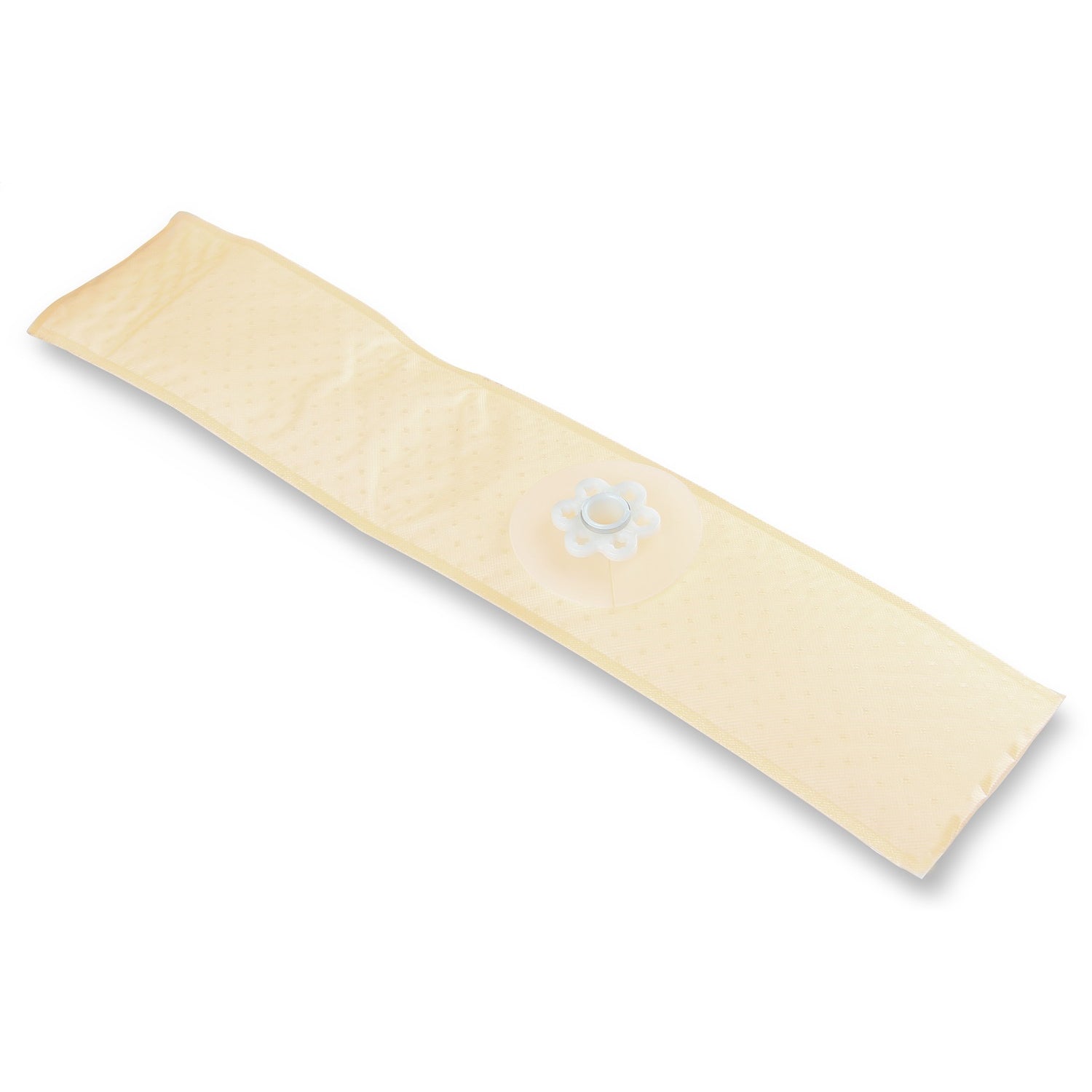

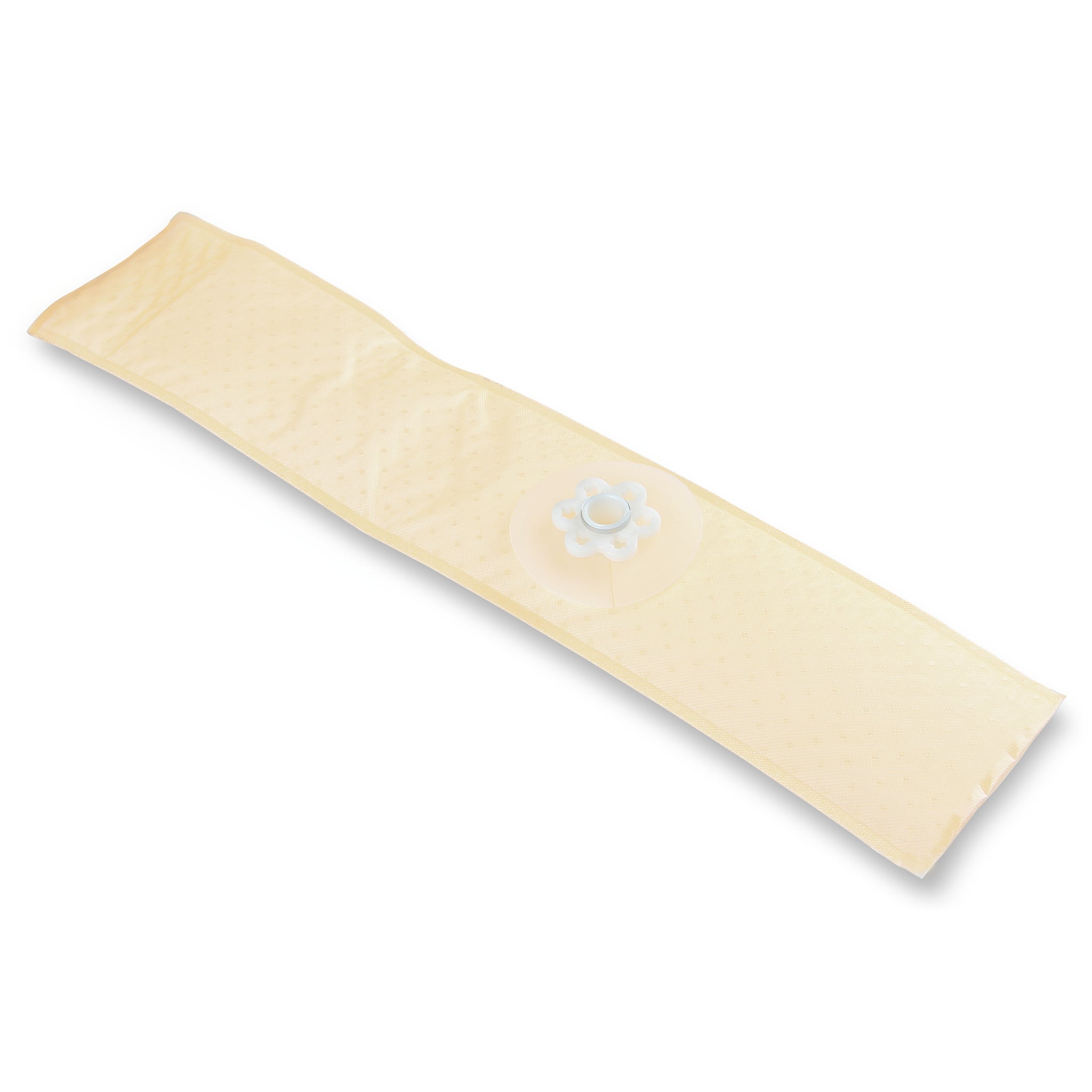

Description_FAB Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3" x 15" HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions that you might encoun
Description_FAB Black anodized aluminum construction for corrosion resistance and long lasting good looks
Description_FAB ┬╝" NPT ports for a wide variety of plumbing options
Description_FAB Optional roll over valve available
Description_MKT The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump. Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holleys innovative clamping system and integrated fuel pump makes it easy. Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Description_KEY Fuel tank; drop in; efi fuel; fuel pump; efi fuel pump; convert; in-tank;
Description_SHO FuelPmpModAssy
Emission Code 3, 5
Minimum Fuel Tank Depth 7.5 Inches
Fuel Type E85, Gasoline
Free Flow LPH 525
Material Billet Aluminum
NPT Thread 1/4 NPT
Application Universal
Brand Holley
WARNING CA Proposition 65 No
Product Type Fuel Pump Module
Warranty Limited 90 Day
Length 6.3000
Width 6.4000
Height 14.4000
Weight 3.1500
