Holley 12-133 In-Tank Retrofit Fuel Module- Returnless Style

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_12-133

Stock:

Product Code: Fuel Pump Module Assembly

$1,291.99

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 12-133 In-Tank Retrofit Fuel Module- Returnless Style

Details
Reviews

Details

Are you interested in an EFI retrofit kit, but just can't get past the complication of the fuel system Holley is proud to introduce their Universal In-Tank Retrofit Fuel Modules! Available in return and returnless versions, you can rest assured Holley has the solution you need for your EFI fuel pump woes.

Specifications:

Description_ASC	It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
Description_DEF	Fuel Pump Module Assembly
Description_DES	Holley In-Tank RetroFit Fuel Module- Returnless Style
Description_KEY	Fuel tank; drop in; efi fuel; fuel pump; efi fuel pump; convert; in-tank;
Description_MKT	Are you interested in an EFI retrofit kit, but just can't get past the complication of the fuel system? Holley is proud to introduce their Universal In-Tank Retrofit Fuel Modules! Available in return and returnless versions, you can rest assured Holley has the solution you need for your EFI fuel pump woes.

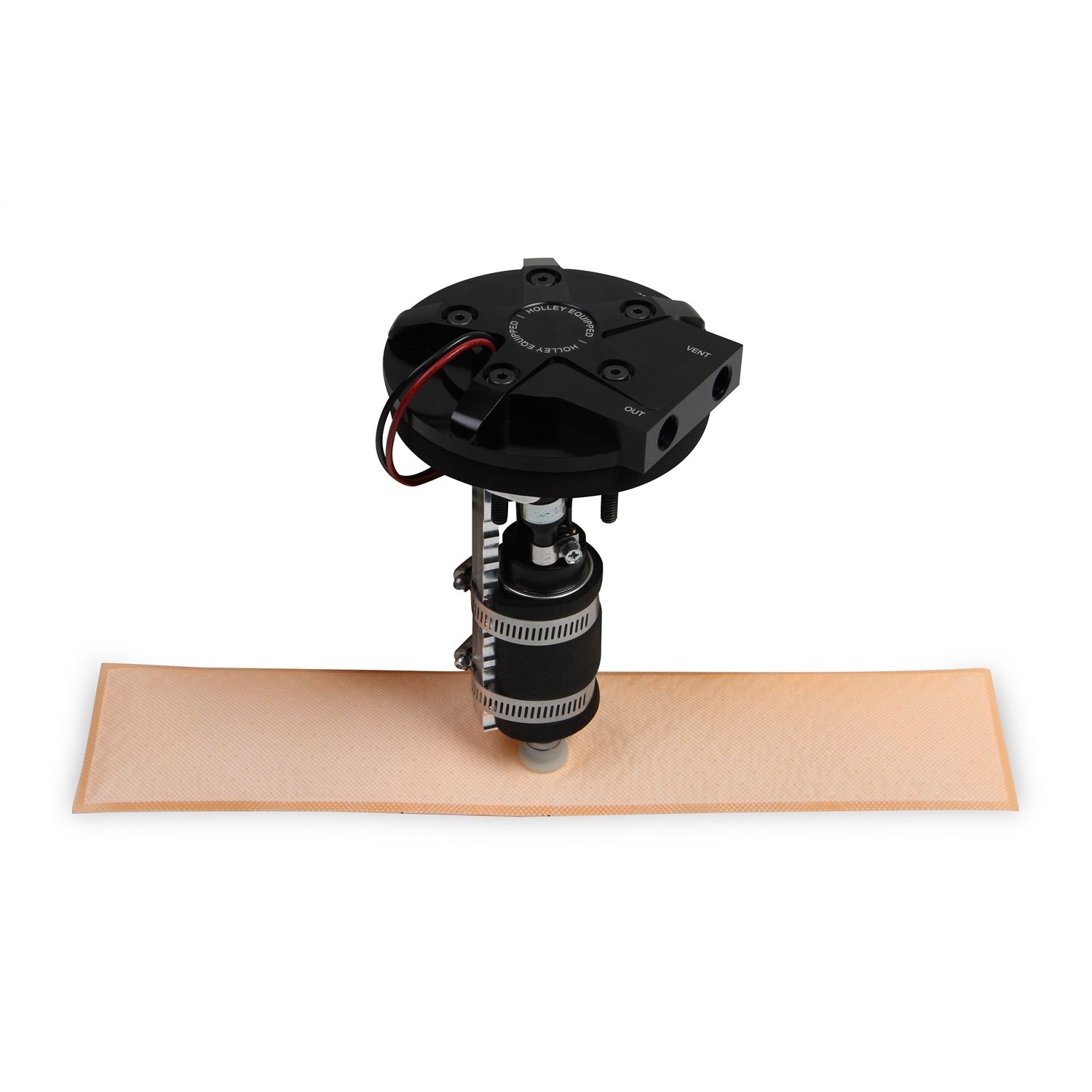

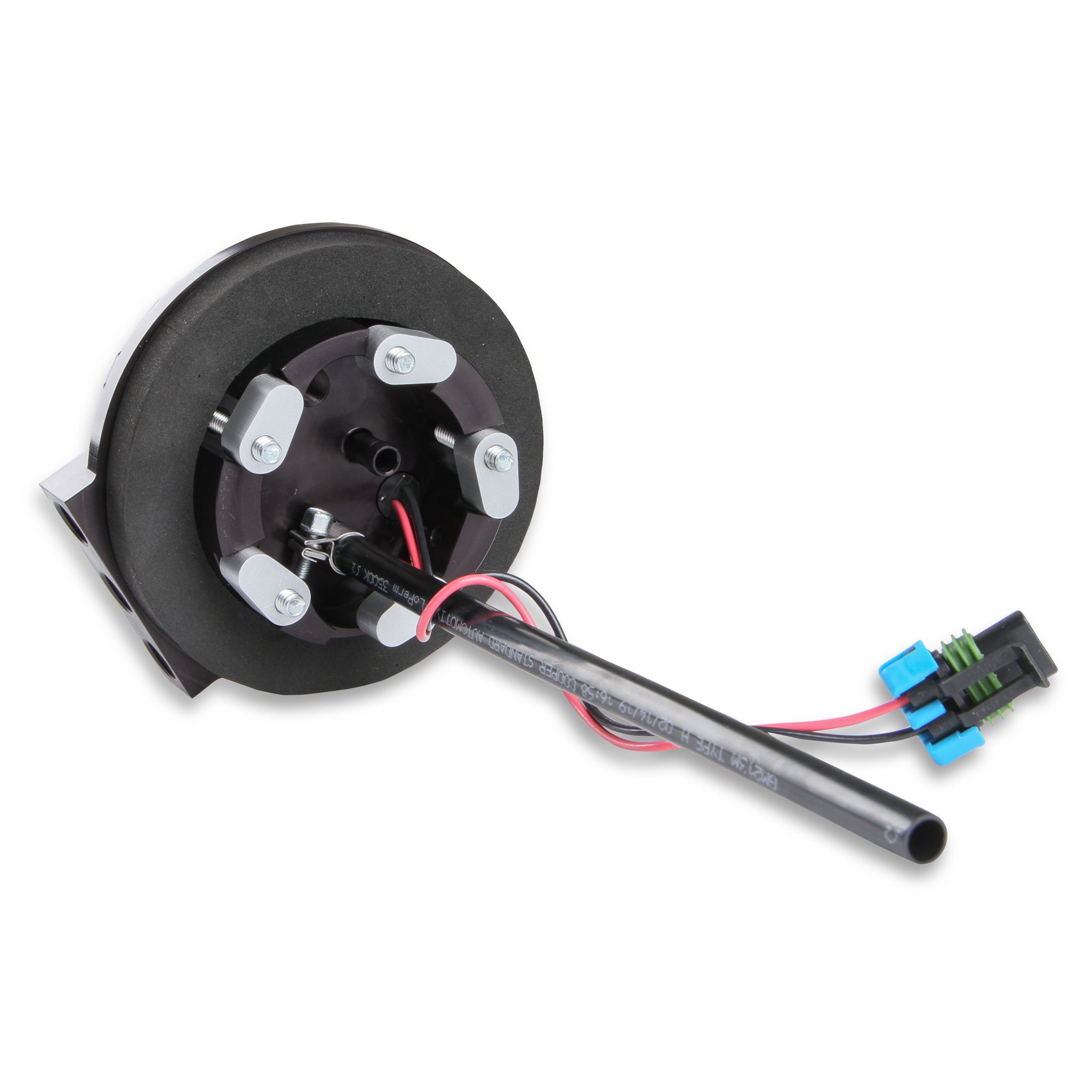

Description_MKT	Now you can convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle!
Description_MKT	Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Description_FAB	The easiest way to convert your vehicle to an in-tank, EFI fuel system
Description_FAB	Installs in any fuel tank from 8" to 12" deep to fit a wide variety of applications
Description_FAB	The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

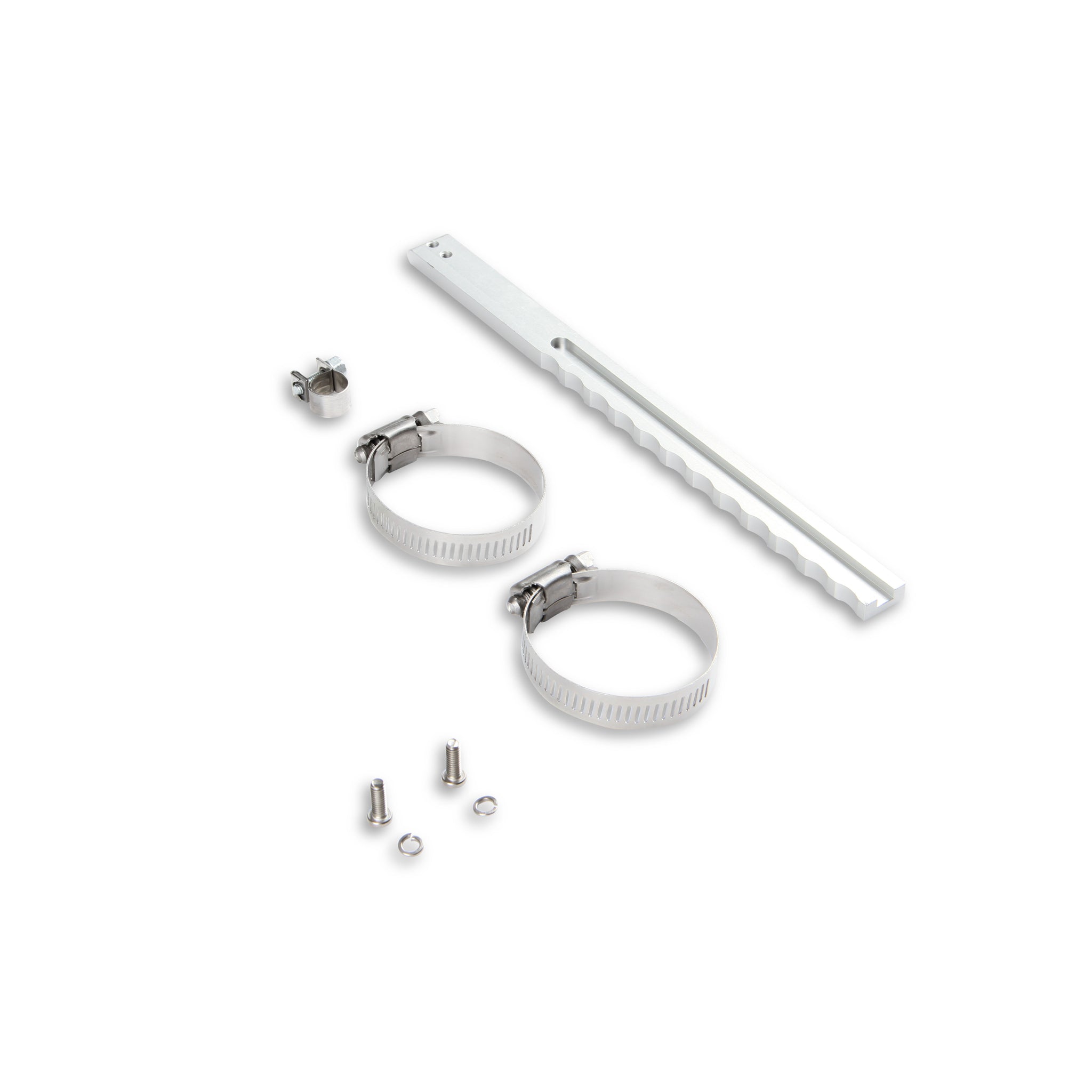

Description_FAB	The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
Description_FAB	The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

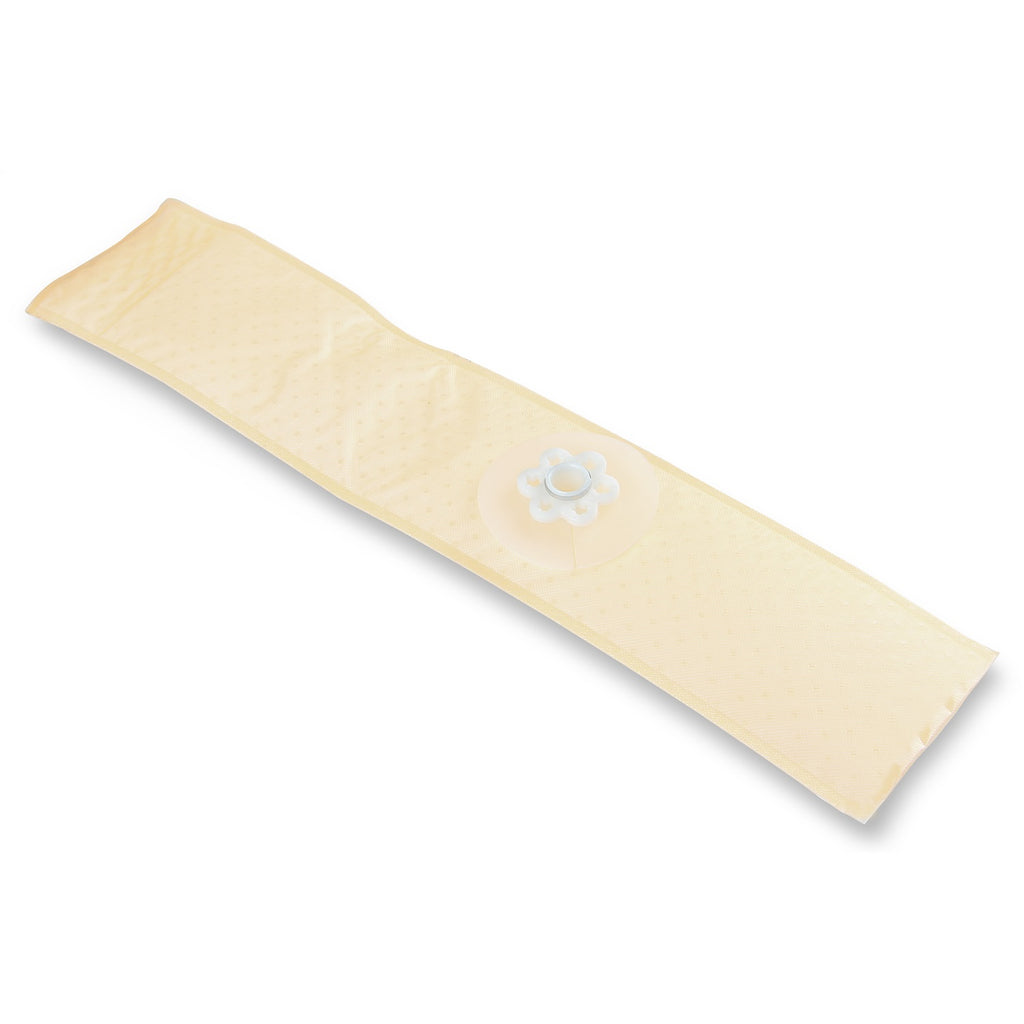

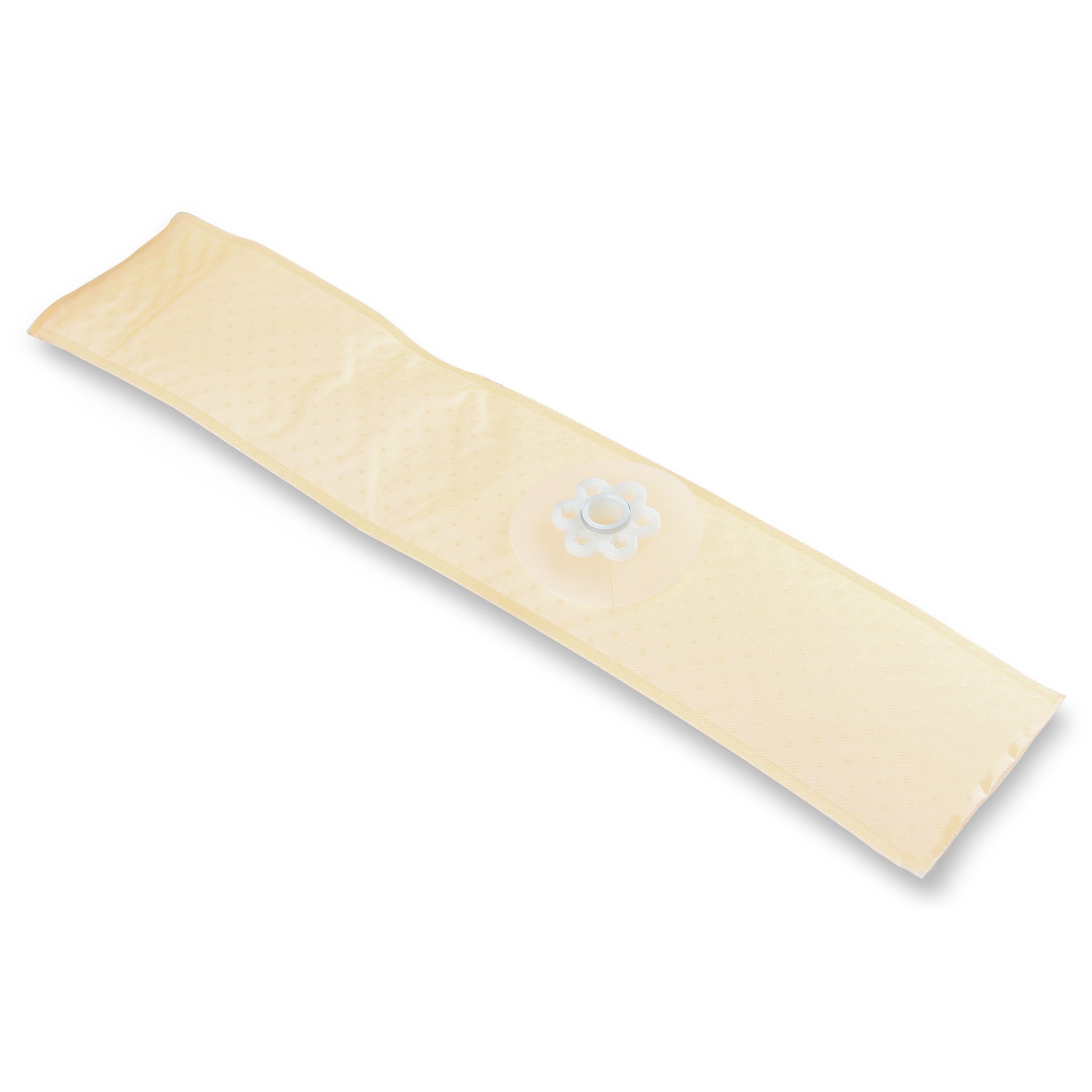

Description_FAB	Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3" x 15" HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions that you might encoun
Description_FAB	Black anodized aluminum construction for corrosion resistance and long lasting good looks
Description_FAB	┬╝" NPT ports for a wide variety of plumbing options
Description_FAB	Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
Description_FAB	Optional roll over valve available

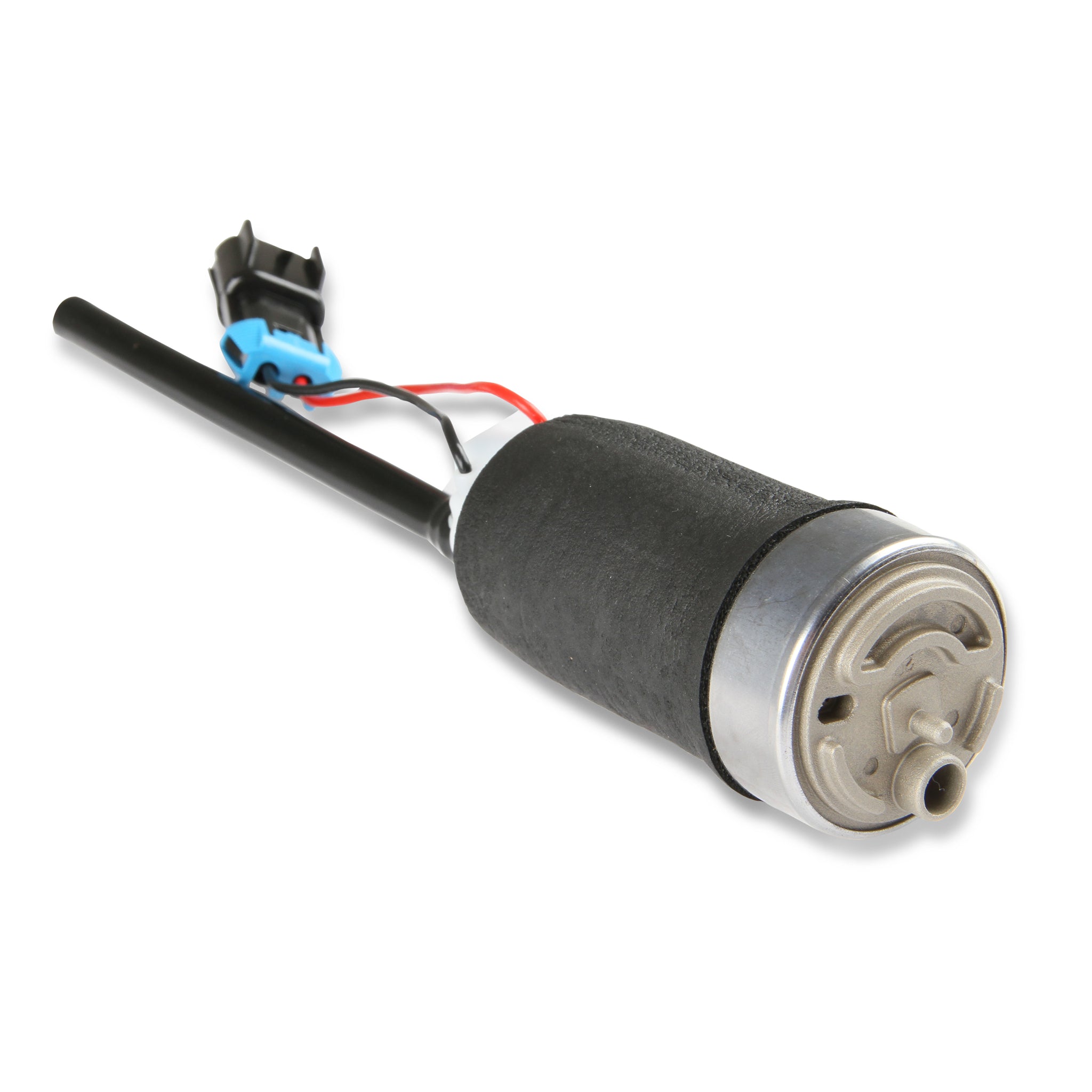

Description_FAB	Two different fuel pumps are available to match your requirements - 255LPH or 450LPH for both return and returnless style systems
Description_FAB	Eliminates the need for a return line and conventional fuel pressure regulator. Thus, simplifying your installation
Description_FAB	Includes an internal fuel pressure regulator preset at 60 psi for a wide variety of applications. No return line required!
Description_EXT	450 LPH Returnless Drop-In Retrofit EFI Fuel System w/Hydramat Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Description_INV	IN-TANK RETRO-FIT FUEL MODULE 450 LPH RE
Description_SHO	FuelPmpModAssy
Brand	Holley
Clearance Category	Air and Fuel Delivery
Sale Category	Air and Fuel Delivery
Thread Size	1/4NPT
WARNING CA Proposition 65	No
Diameter (in.)	4.800 in.
Discount Percentage	26-50%
Emission Code	3, 5
Free Flow LPH	450
Fuel Type	E85, Gasoline
Minimum Fuel Tank Depth	8 Inches
Product Type	Fuel Pump Module
Warranty	Limited 90 Day
Material	Billet Aluminum
Fully Open	450
Application	Universal
NPT Thread	1/4 NPT
Length	4.3000
Width	6.3000
Height	19.3000
Weight	3.5500
