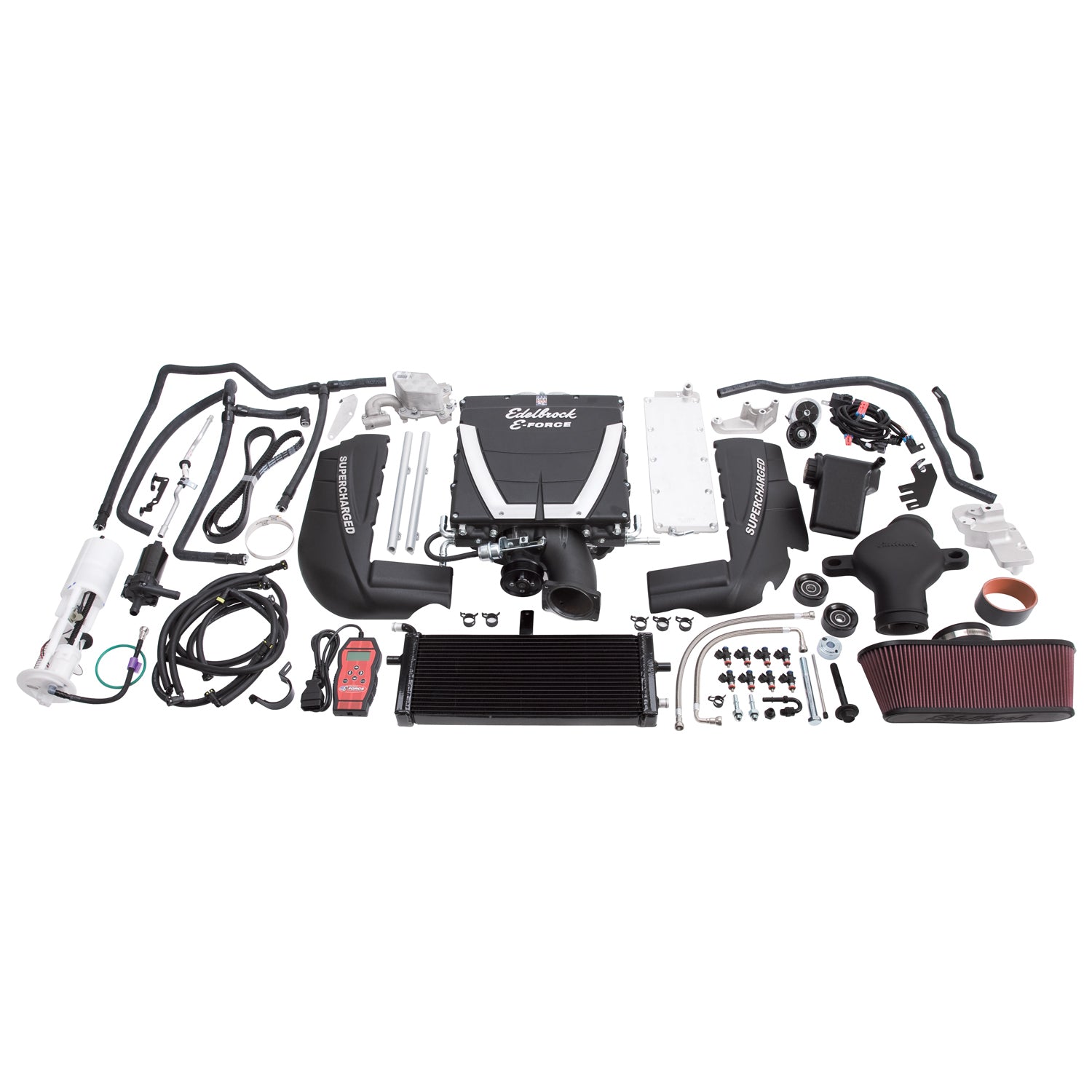

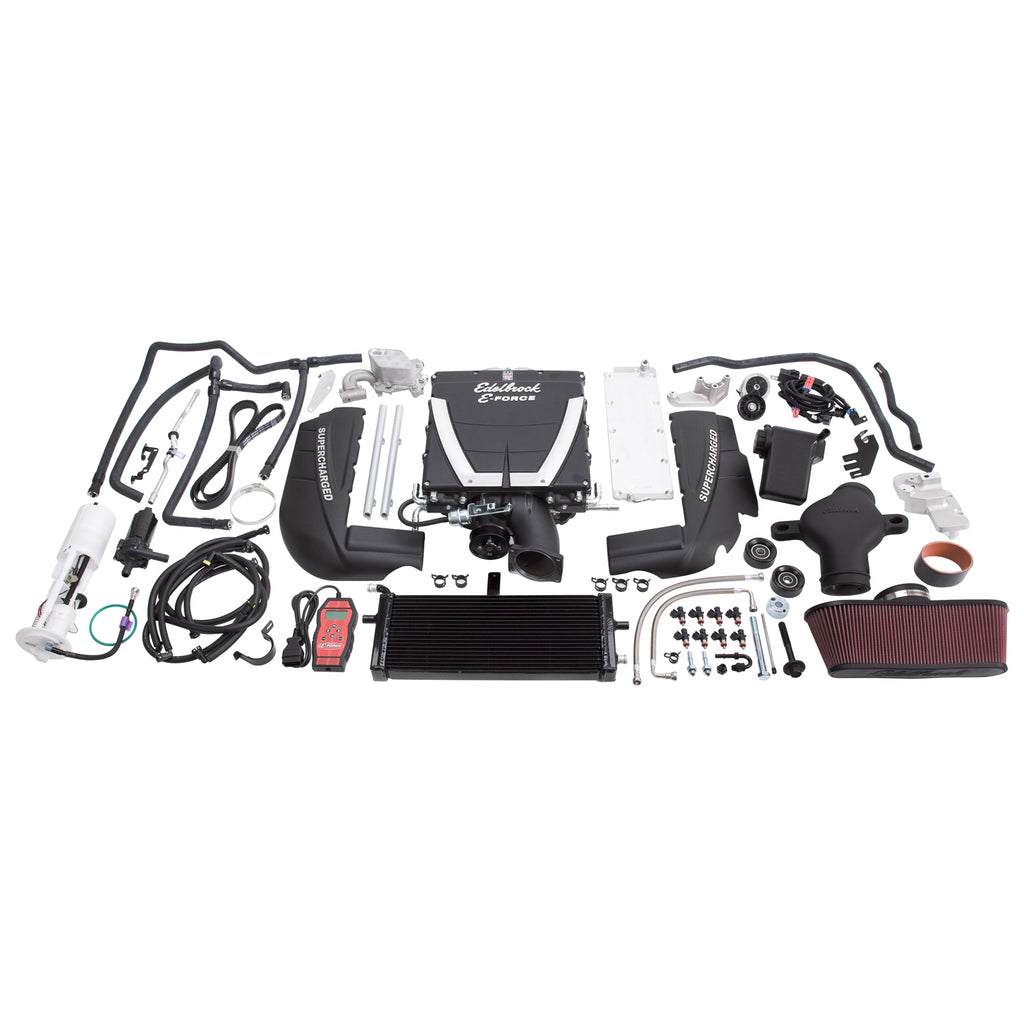

The Edelbrock supercharger stage 2 street/strip system part #1575 is for use with 2010-13 Chevy Corvette Grand Sports with Dry Sump increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1575 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Stage 2 street/strip system part #1575 is for your 2010-13 LS3 Grand Sport Corvette w/ Dry Sump. This kit produces 599 horsepower and 547 ft-lbs of torque. |
| Description_INV |
Edelbrock supercharger #1575 |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stg 2 SC #1575 For 10-13 Corvette Grand Sport LS3-Dry Sump W/ Tune |
| Description_MKT |
The Edelbrock supercharger stage 2 street/strip system part #1575 is for use with 2010-13 Chevy Corvette Grand Sports with Dry Sump increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1575 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Calibration |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Vehicle Model |
Corvette |
| Mounting Hardware Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Bracket Included |
Yes |
| Finish |
Black Powder Coated |
| Oil Capacity |
150 |
| Maximum Horsepower |
599 |
| System Type |
Stage 2 - Street/Strip System |
| Pulley Belt Width |
6-Rib |
| Hose Included |
Yes |
| Quantity |
Kit |
| Rotor Type |
Eaton TVS 2300 |
| Maximum Pressure Reading |
7.5 |
| Center Housing Cooling Type |
Intercooler |
| Fuel Injector Type |
52 |
| Housing Material |
Cast Aluminum |
| Air Filter Included |
Yes |
| Outside Pulley Diameter |
3.5 |
| Universal Or Specific Fit |
Specific |
| Tensioner Included |
Yes |
| Maximum Boost Pressure |
7.5 |
| Internal Step Up |
Yes |
| Maximum Torque |
547 |
| Gasket Or Seal Included |
Yes |
| Length |
26.0000 |
| Width |
50.0000 |
| Height |
40.0000 |
| Weight |
186.0000 |
