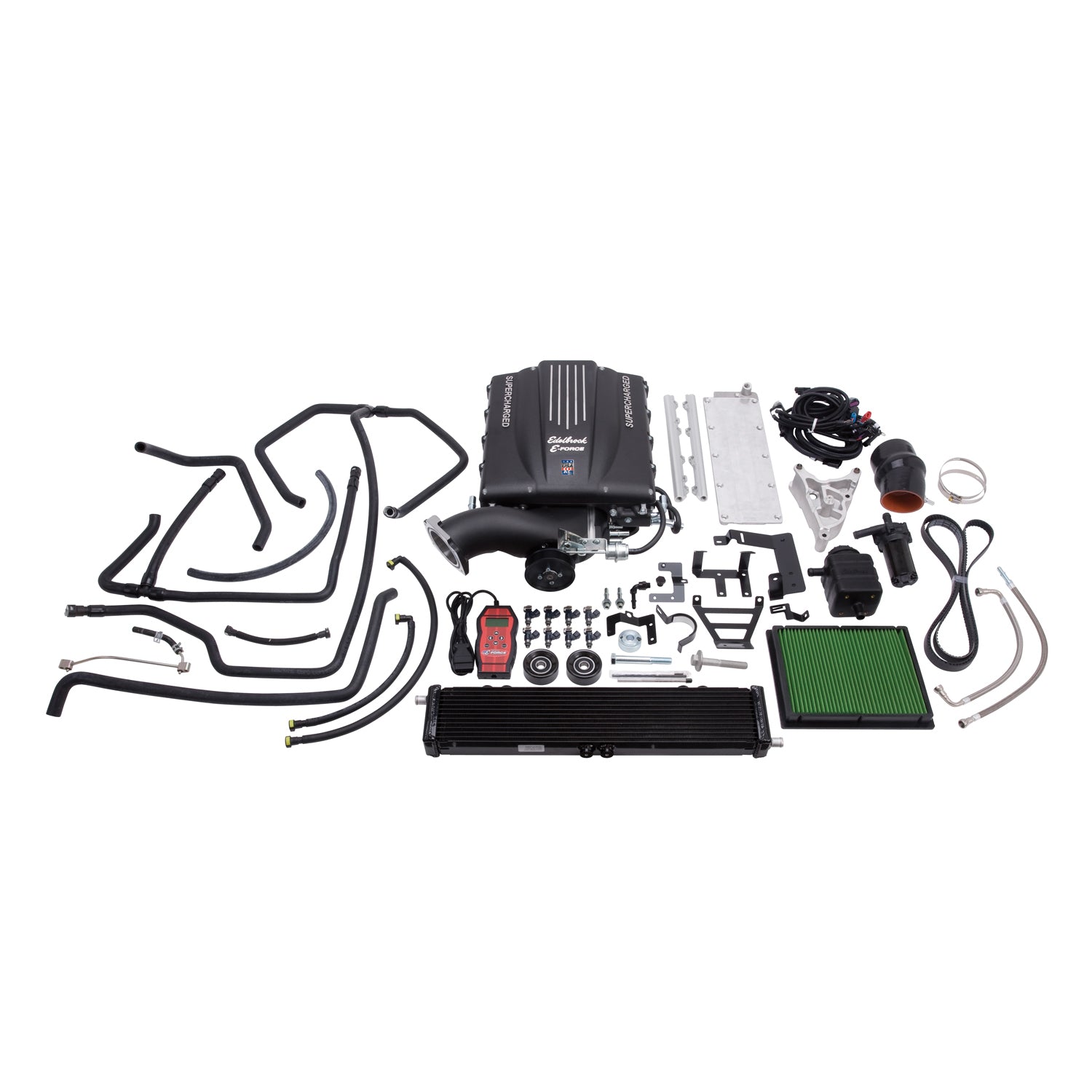

The Edelbrock supercharger Stage 1 Street System part #1564 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1564 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #1564 |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #1564 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #1564 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1564 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #1564 For 2007-14 Tahoe/Suburban/Yukon 5.3L W/ Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| System Type |
Stage 1 - Street System |
| Mounting Hardware Included |
Yes |
| Fuel Injector Type |
42 |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Escalade ESV |
| Rotor Type |
Eaton TVS 2300 |
| Finish |
Black Powder Coated |
| Mounting Bracket Included |
Yes |
| Maximum Torque |
390RW |
| Internal Step Up |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Maximum Boost Pressure |
6 |
| Universal Or Specific Fit |
Specific |
| Housing Material |
Cast Aluminum |
| Pulley Belt Width |
6-Rib |
| Quantity |
Kit |
| Outside Pulley Diameter |
4.125 |
| Maximum Pressure Reading |
6 |
| Air Filter Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Oil Capacity |
150 |
| Calibration |
Yes |
| Hose Included |
Yes |
| Maximum Horsepower |
384RW |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
