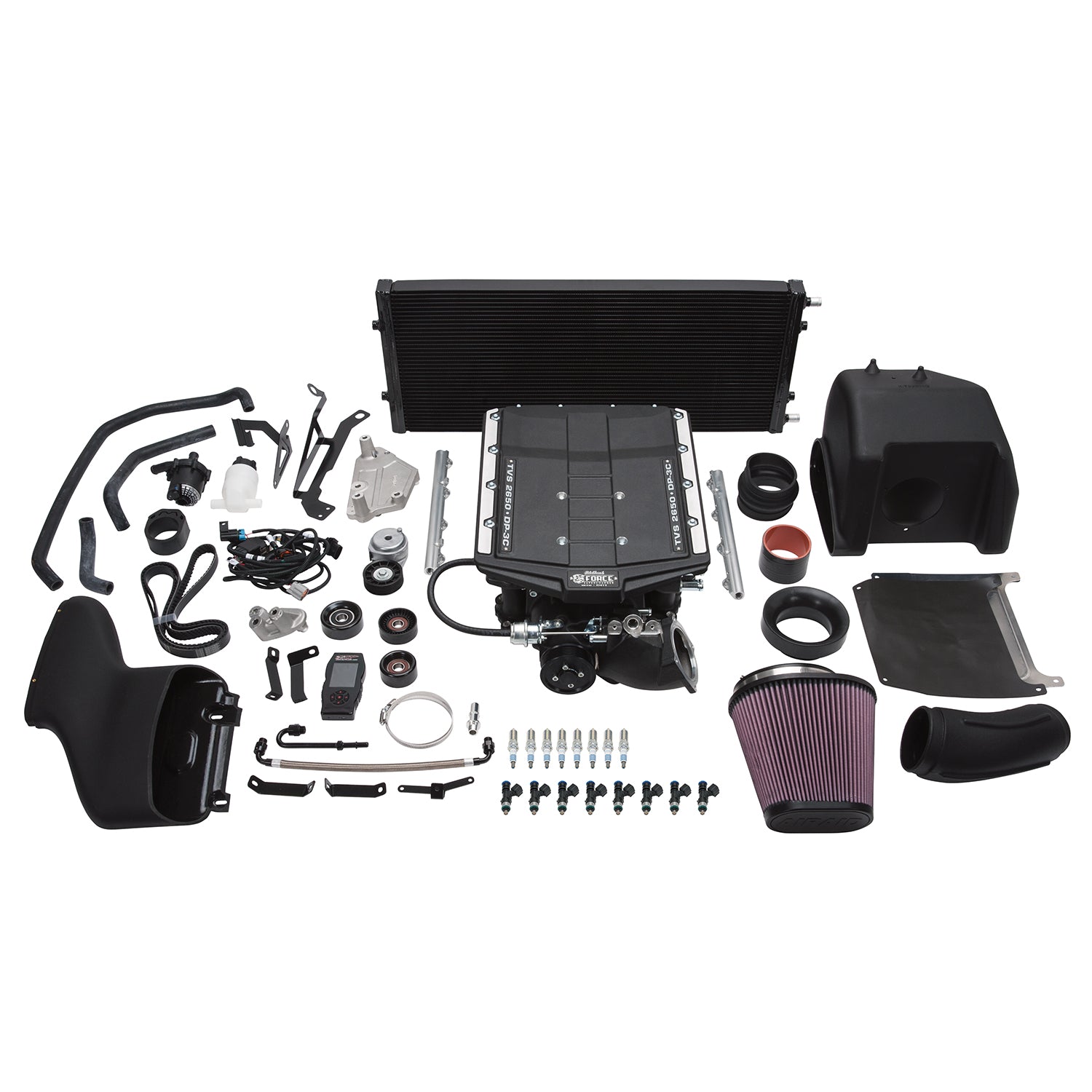

The Edelbrock supercharger Stage 1 Street System part #1557 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1557 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Ford:Modular Coyote 4V:302 (5.0L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #1557 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels. |
| Description_INV |
Edelbrock supercharger #1557 |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #1557 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1557 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #1557 For 2015-17 Ford F-150 Coyote 5.0L 4V W/ Tune |
| Hose Included |
Yes |
| Housing Material |
Cast Aluminum |
| Oil Capacity |
150 |
| Quantity |
Kit |
| Outside Pulley Diameter |
3.5 |
| Center Housing Cooling Type |
Intercooler |
| Maximum Pressure Reading |
15.5 |
| Maximum Horsepower |
533RW |
| Calibration |
Yes |
| Maximum Boost Pressure |
15.5 |
| Fuel Injector Type |
50 |
| Pulley Belt Width |
6-Rib |
| Vehicle Model |
F-150 |
| Maximum Torque |
482RW |
| System Type |
Stage 1 - Street System |
| Mounting Hardware Included |
Yes |
| Internal Step Up |
Yes |
| Gasket Or Seal Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Finish |
Black Powder Coated |
| Mounting Bracket Included |
Yes |
| Rotor Type |
Eaton TVS 2650 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Harmonic Balancer Diameter |
Stock |
| Length |
15.0000 |
| Width |
15.0000 |
| Height |
28.0000 |
| Weight |
82.0000 |
