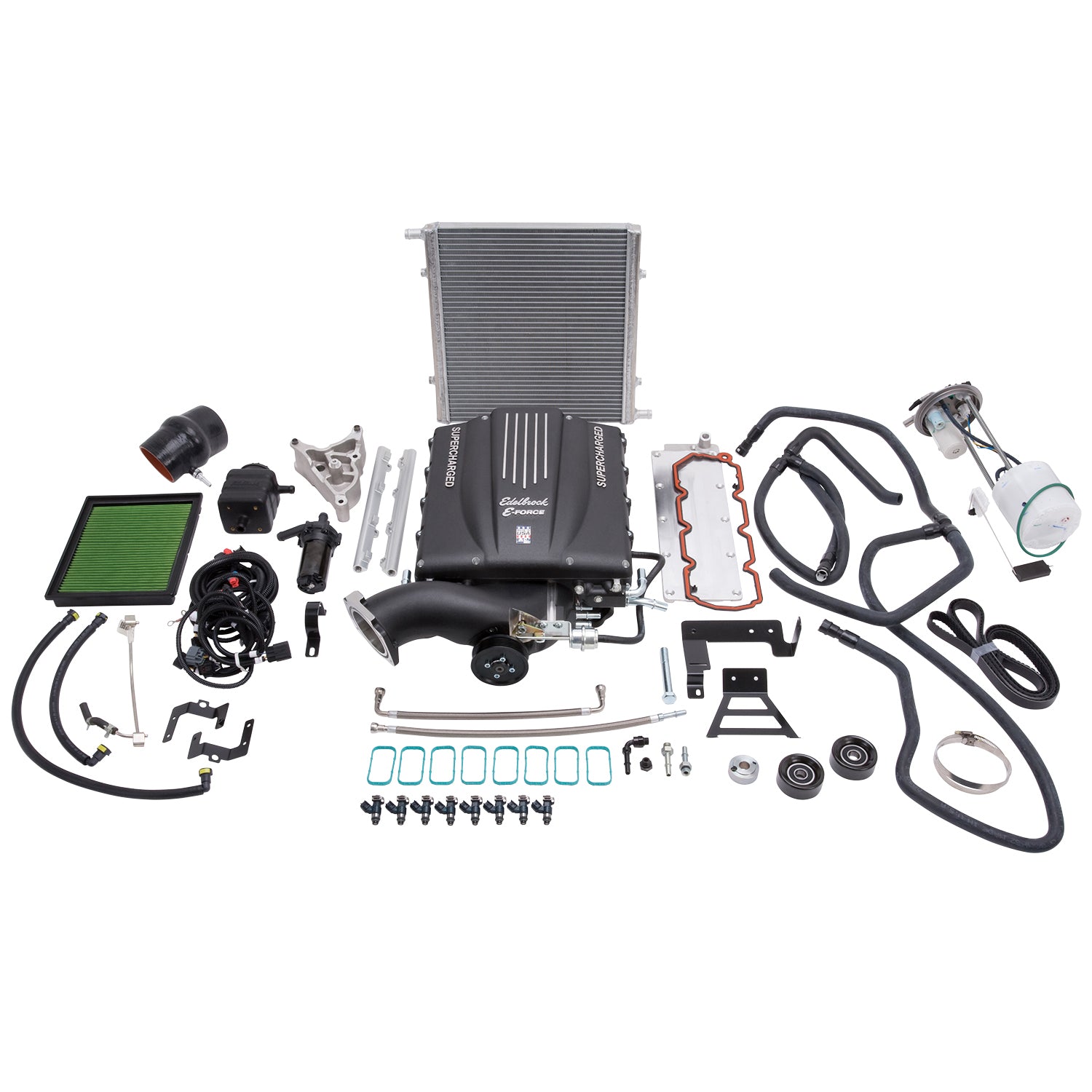

The Edelbrock supercharger Stage 1 Street System part #15600 for 2007-10 Silverado and Sierra HD 2500 increases the performance of your 6.0L Gen IV engine to 424 horsepower and 431 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LC9:364 (6.0L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #15600 |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #15600 for 2007-10 Silverado and Sierra HD 2500 increases the performance of your 6.0L Gen IV engine to 424 horsepower and 431 ft-lbs of torque at the rear wheels |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #15600 07-10 Silverado/Sierra 2500 HD 6.0L W/O Tune |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #15600 for 2007-10 Silverado and Sierra HD 2500 increases the performance of your 6.0L Gen IV engine to 424 horsepower and 431 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Housing Material |
Cast Aluminum |
| Calibration |
No |
| Pulley Belt Width |
6-Rib |
| Finish |
Black Powder Coated |
| Universal Or Specific Fit |
Specific |
| Air Filter Included |
Yes |
| Mounting Bracket Included |
Yes |
| Vehicle Model |
Sierra HD 2500 |
| Mounting Hardware Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| System Type |
Stage 1 - Street System |
| Center Housing Cooling Type |
Intercooler |
| Outside Pulley Diameter |
3.75 |
| Oil Capacity |
150 |
| Hose Included |
Yes |
| Quantity |
Kit |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Internal Step Up |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Fuel Injector Type |
42 |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
179.0000 |
