As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 SBC - 13 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

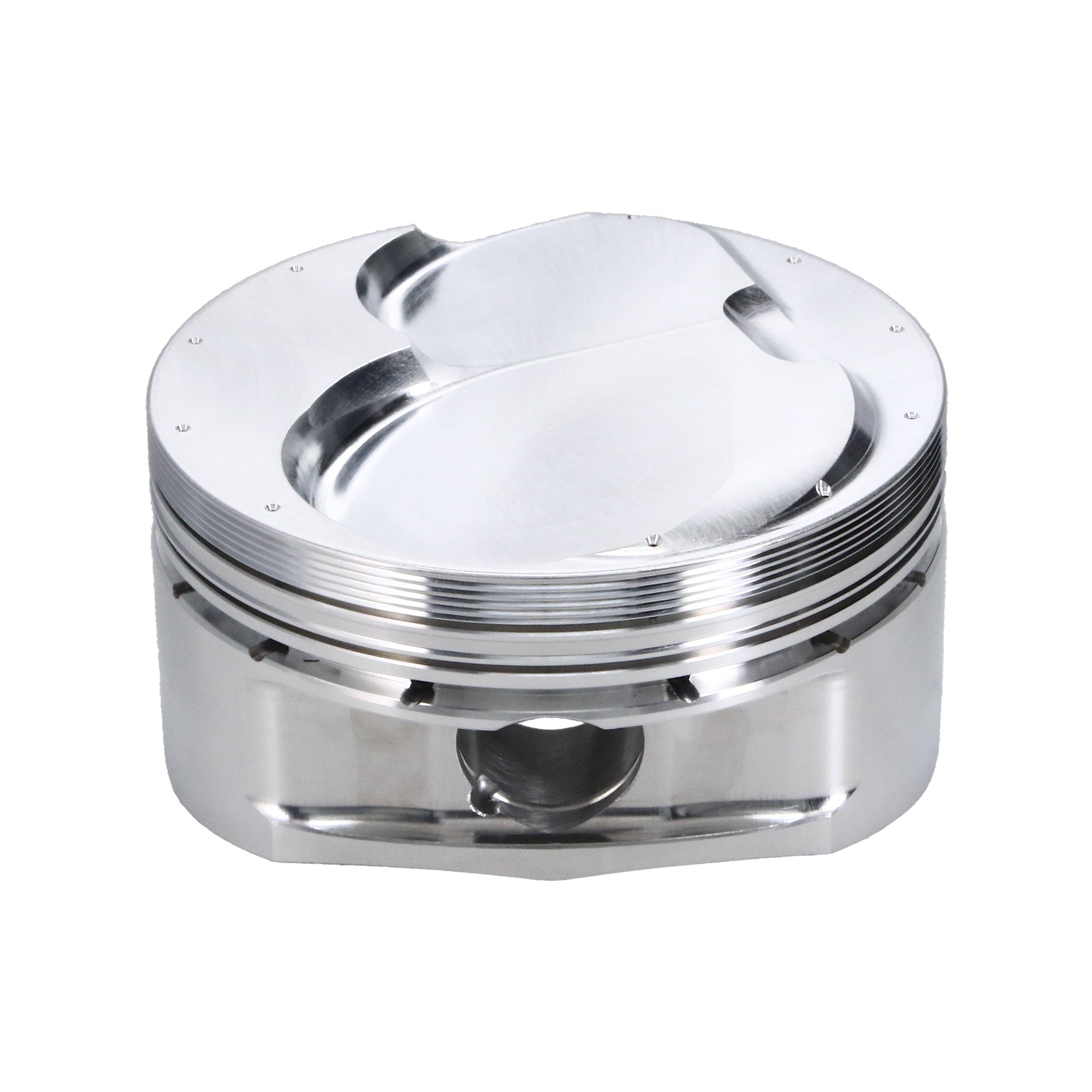

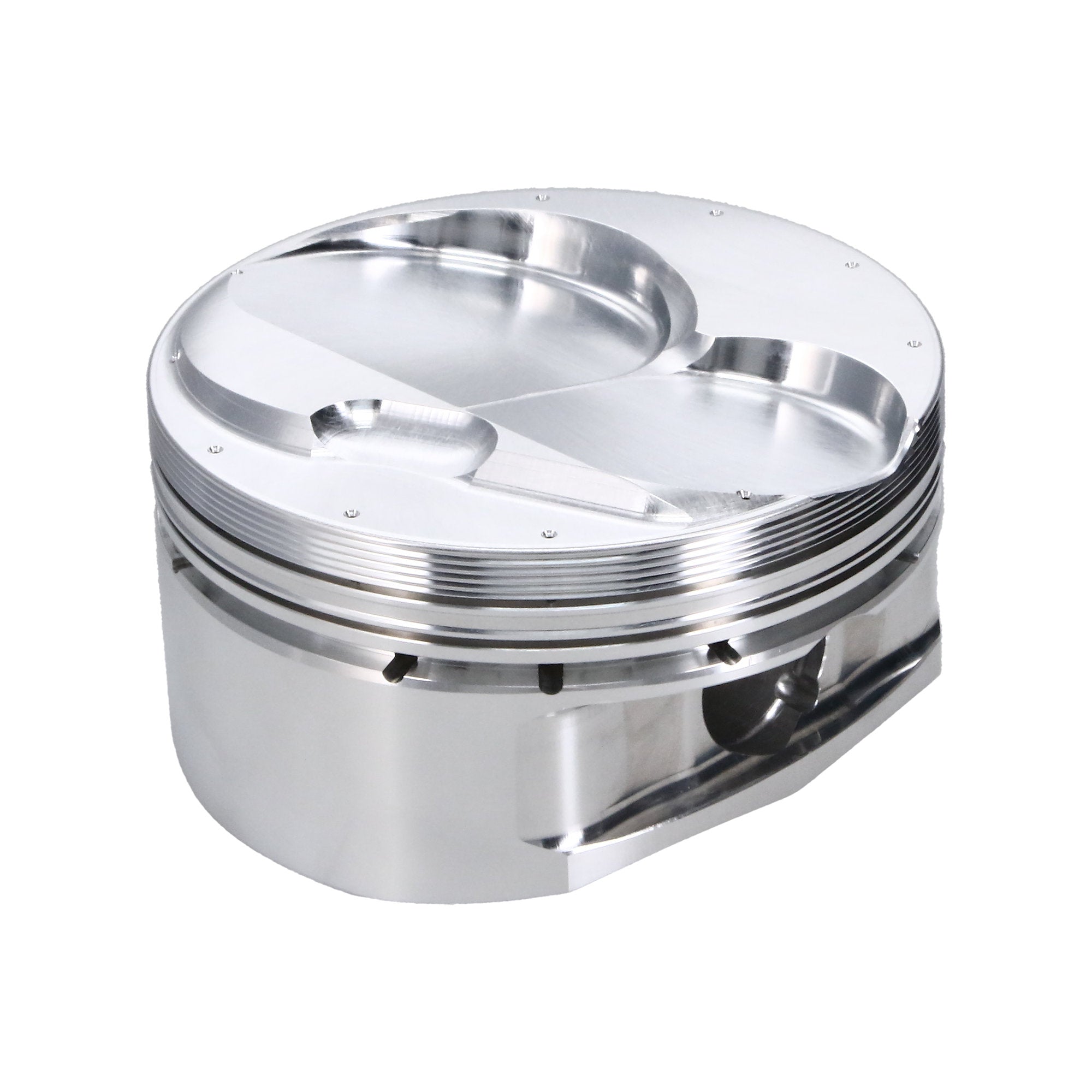

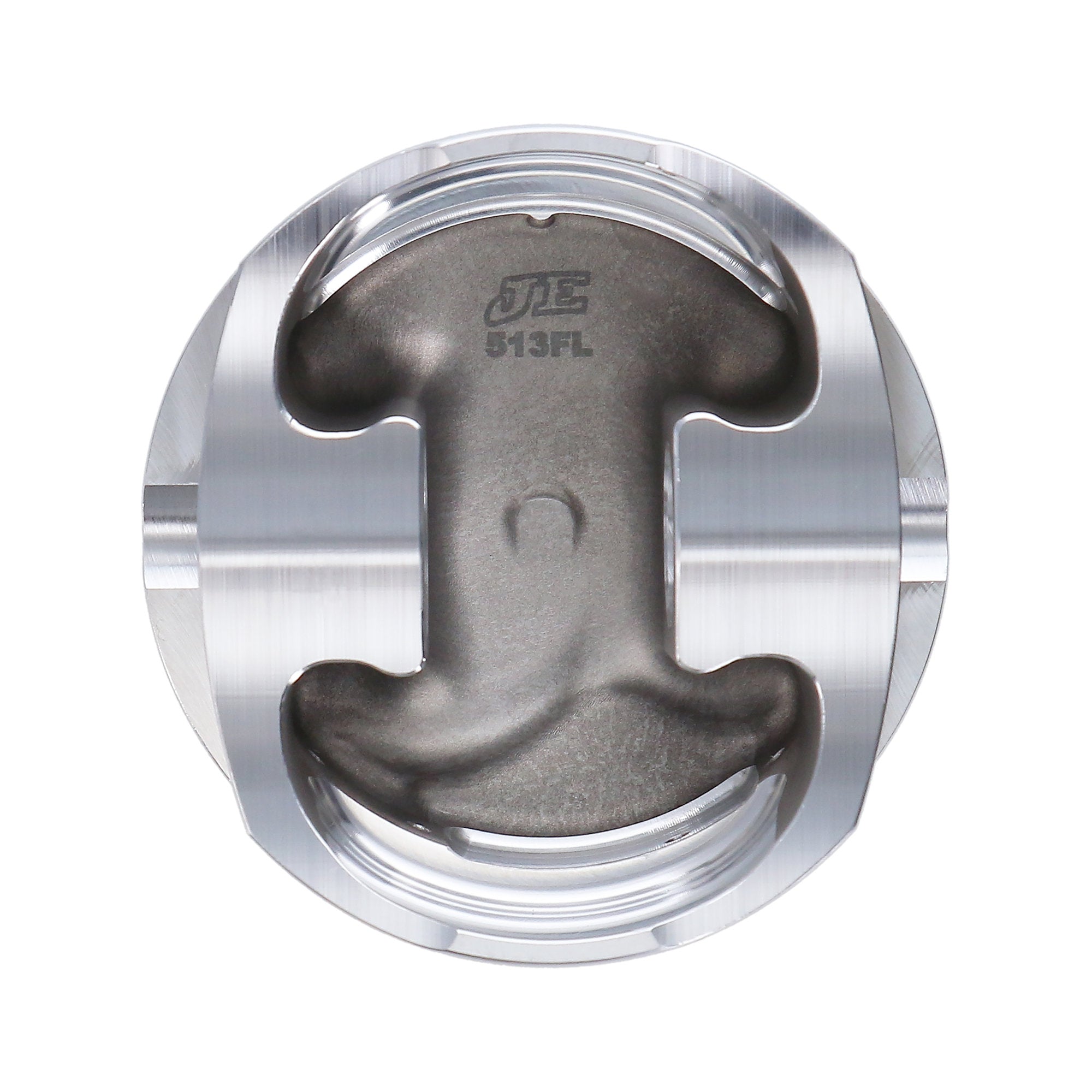

Piston Set, 2618, Dome, 4.130 Bore, 1.000 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400 SBC - 13, 4.130 Bore, Dome, Set of 8 |
| Piston Pin Length |
2.750 |
| Piston Pin Wall Thickness |
0.170 |
| Make - Web |
Chevrolet |
| Engine |
Small Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Material |
9310 |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.130 in. Bore - 1.000 in. CH, -3.50 CC |
| Wrist Pin Wall Thickness |
0.170 |
| Wrist Pin Outer Diameter |
0.927 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Piston Volume |
-3.50 |
| Add-On |
927-2750-17-93C |
| Title |
JE Pistons - Chevrolet, Small Block, 4.130 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Out of Stock Message |
Call for Availibility |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.130 |
| Compression Height |
1.000 |
| Product Market |
Domestic |
| Wrist Pin Length |
2.750 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Engine - Web |
Small Block |
| Piston Quantity |
8 |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
