As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

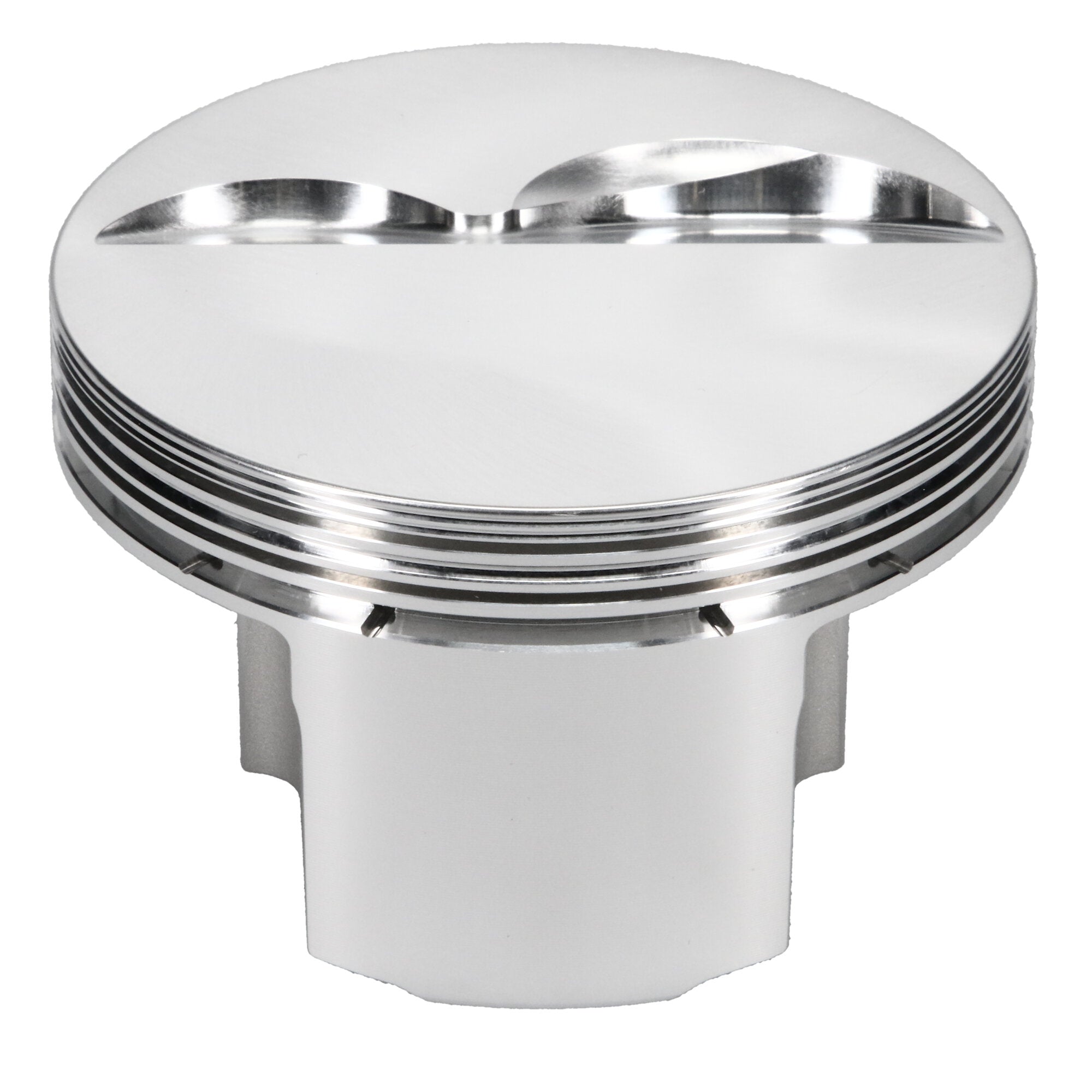

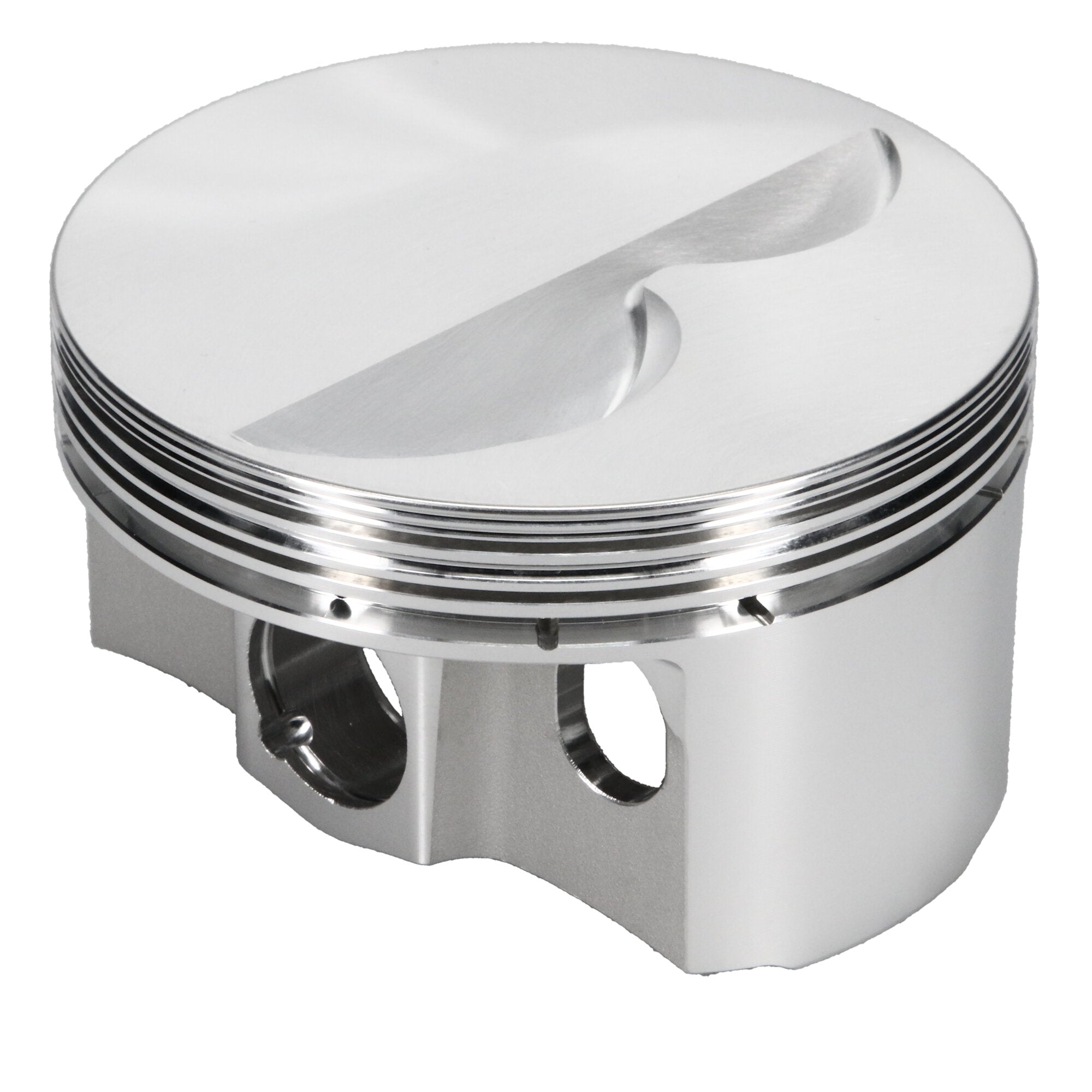

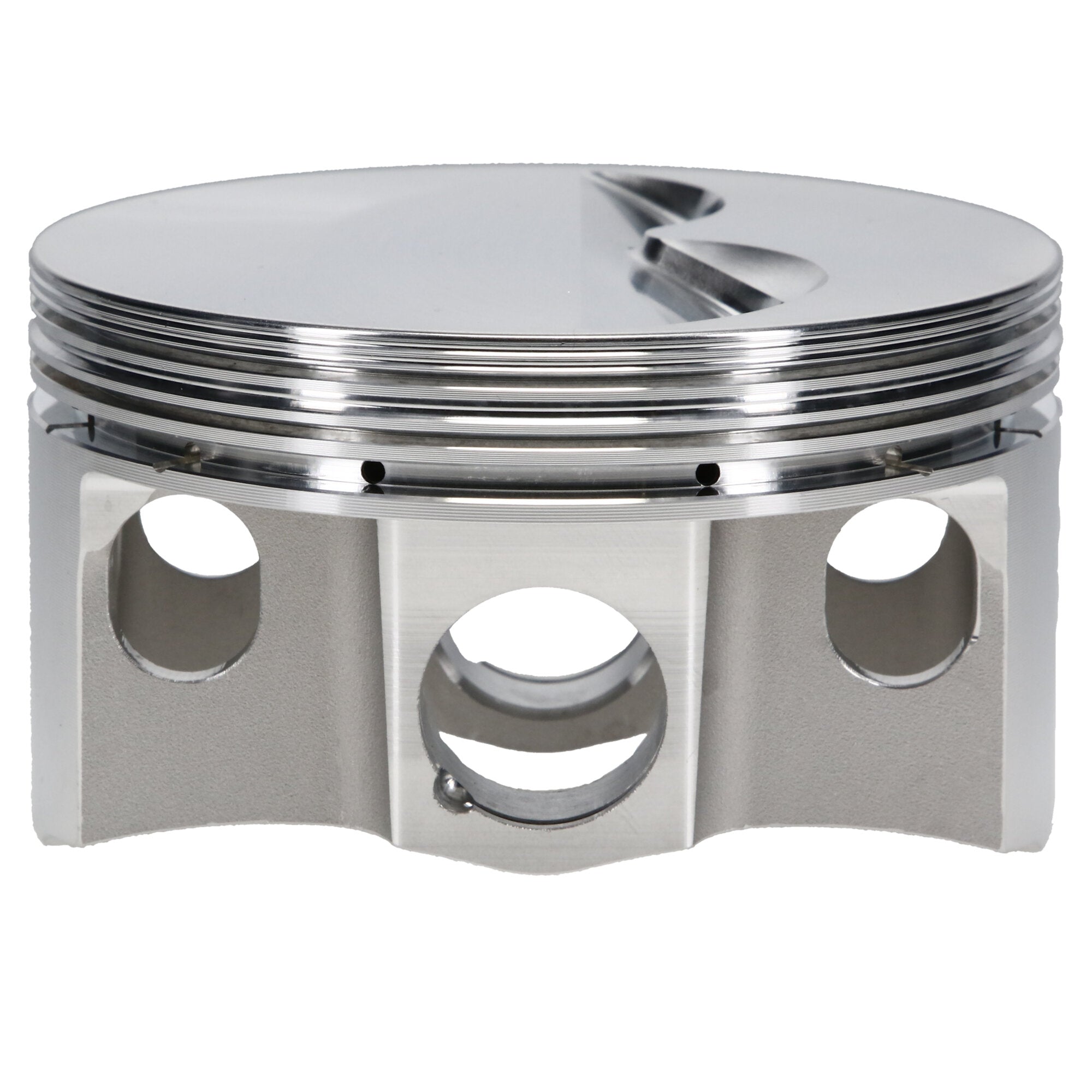

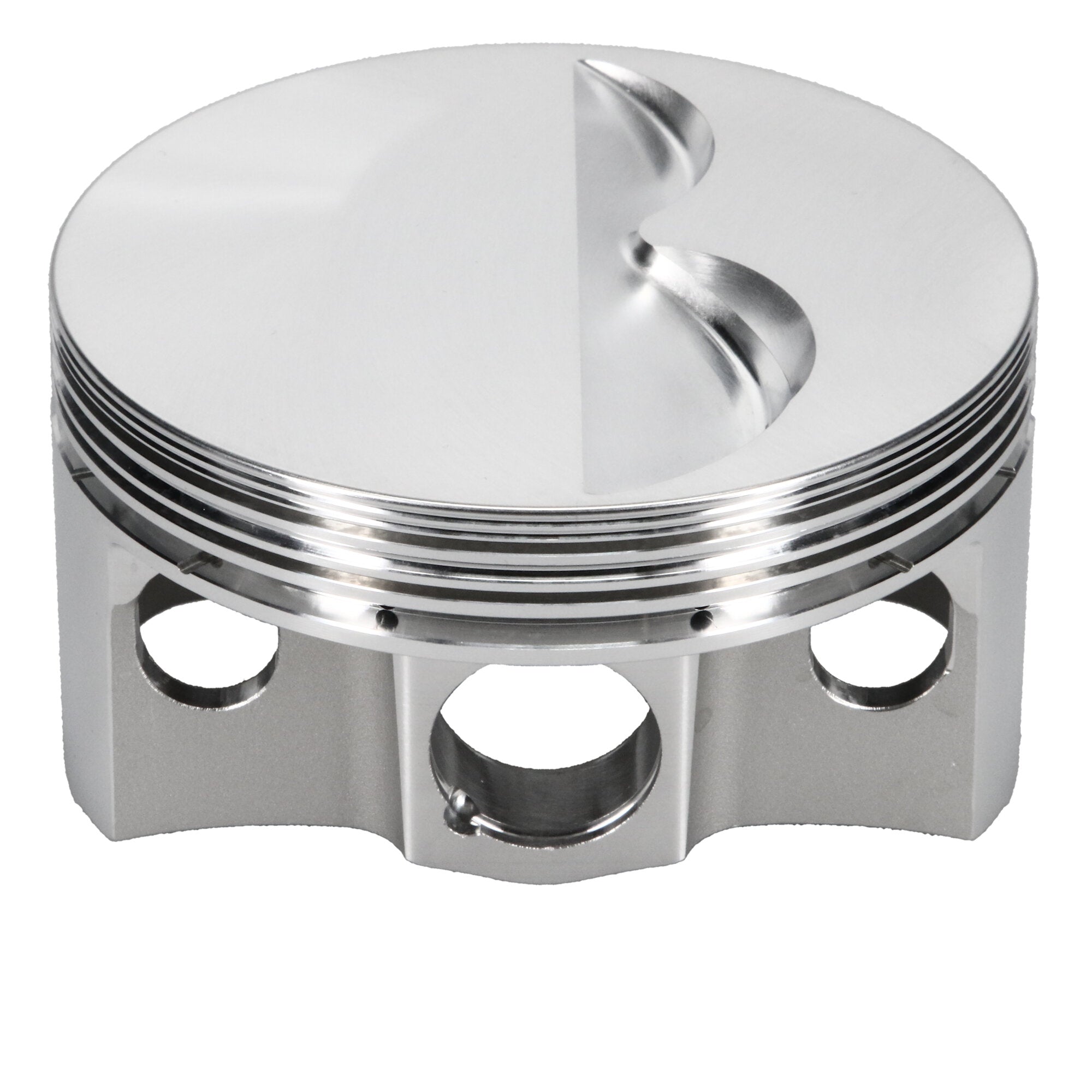

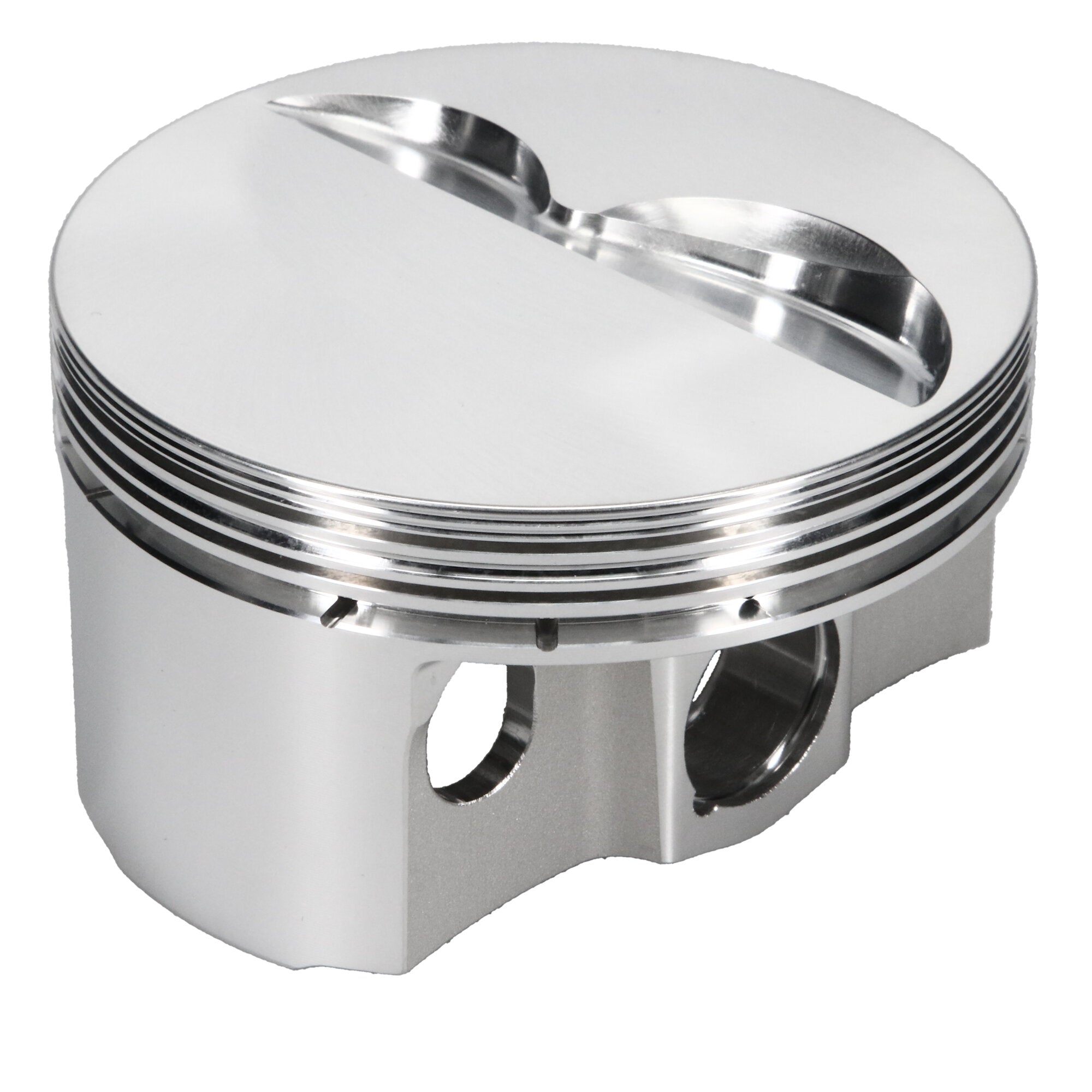

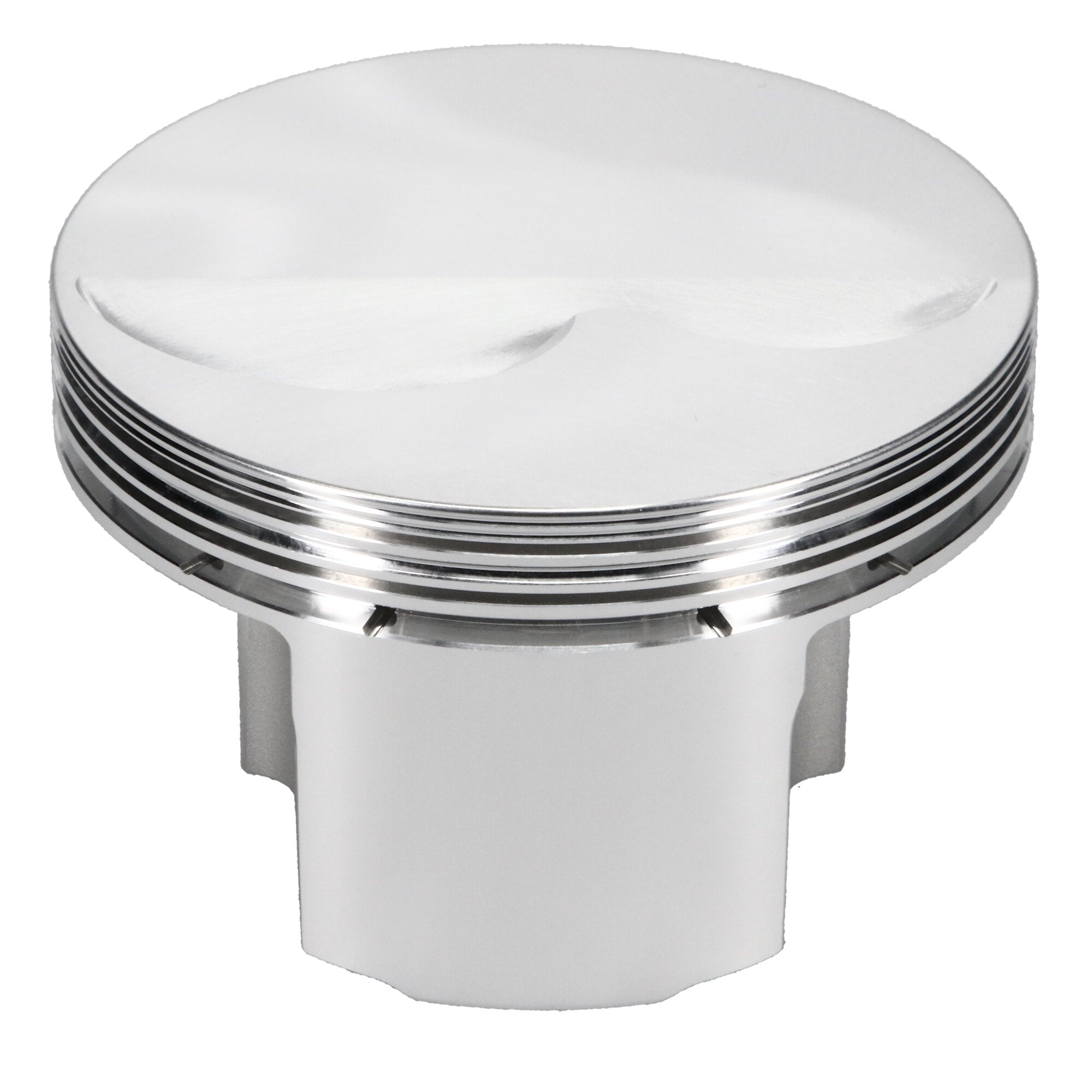

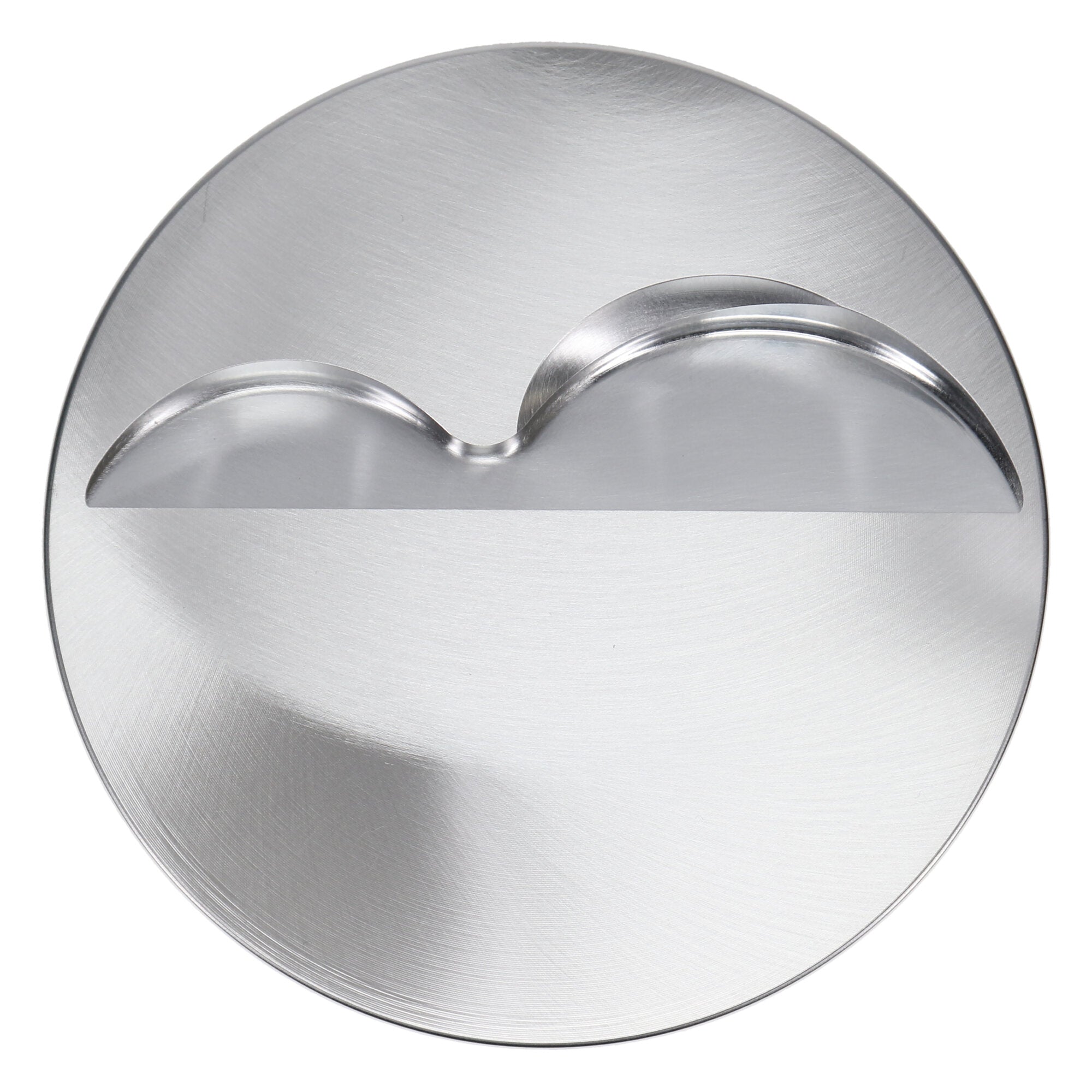

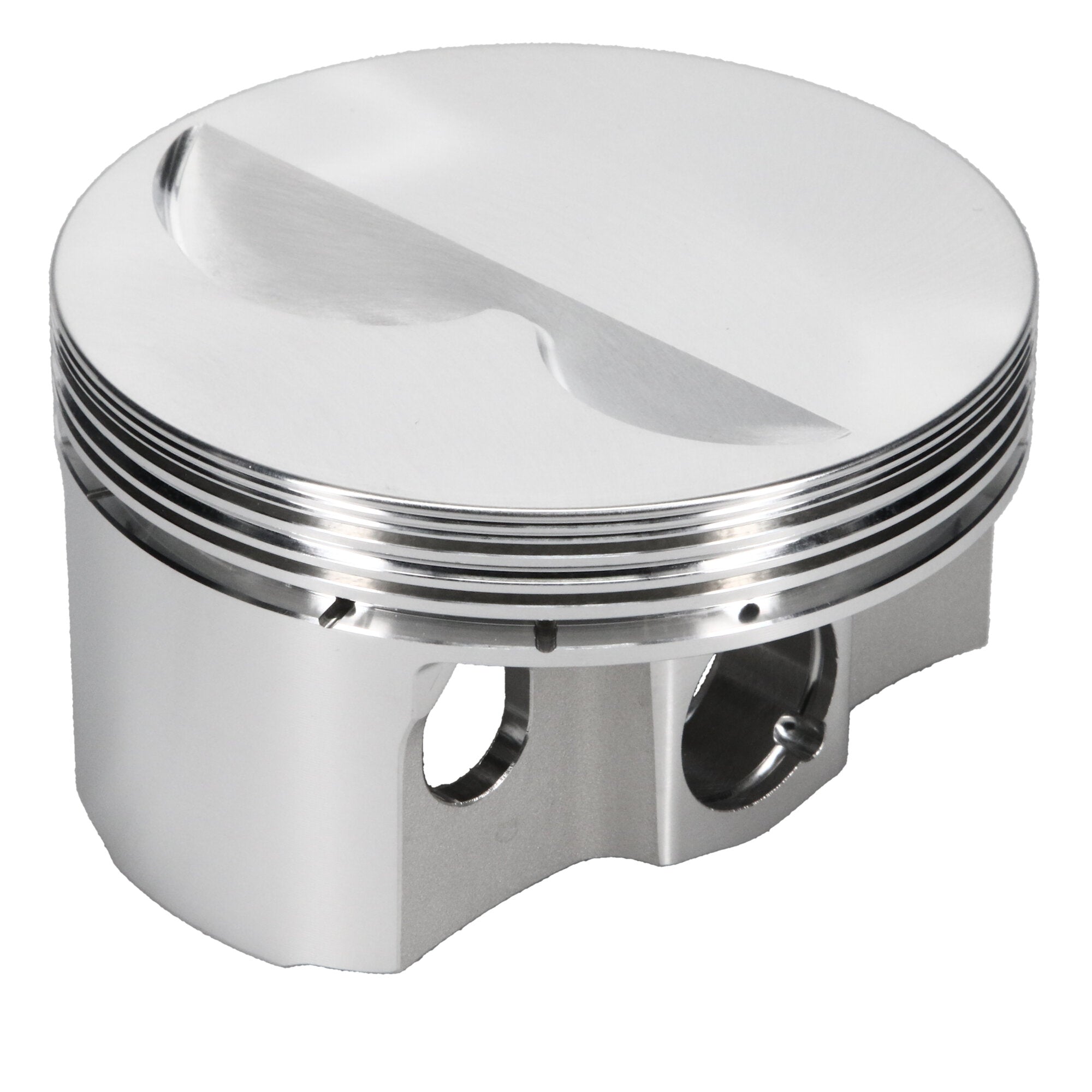

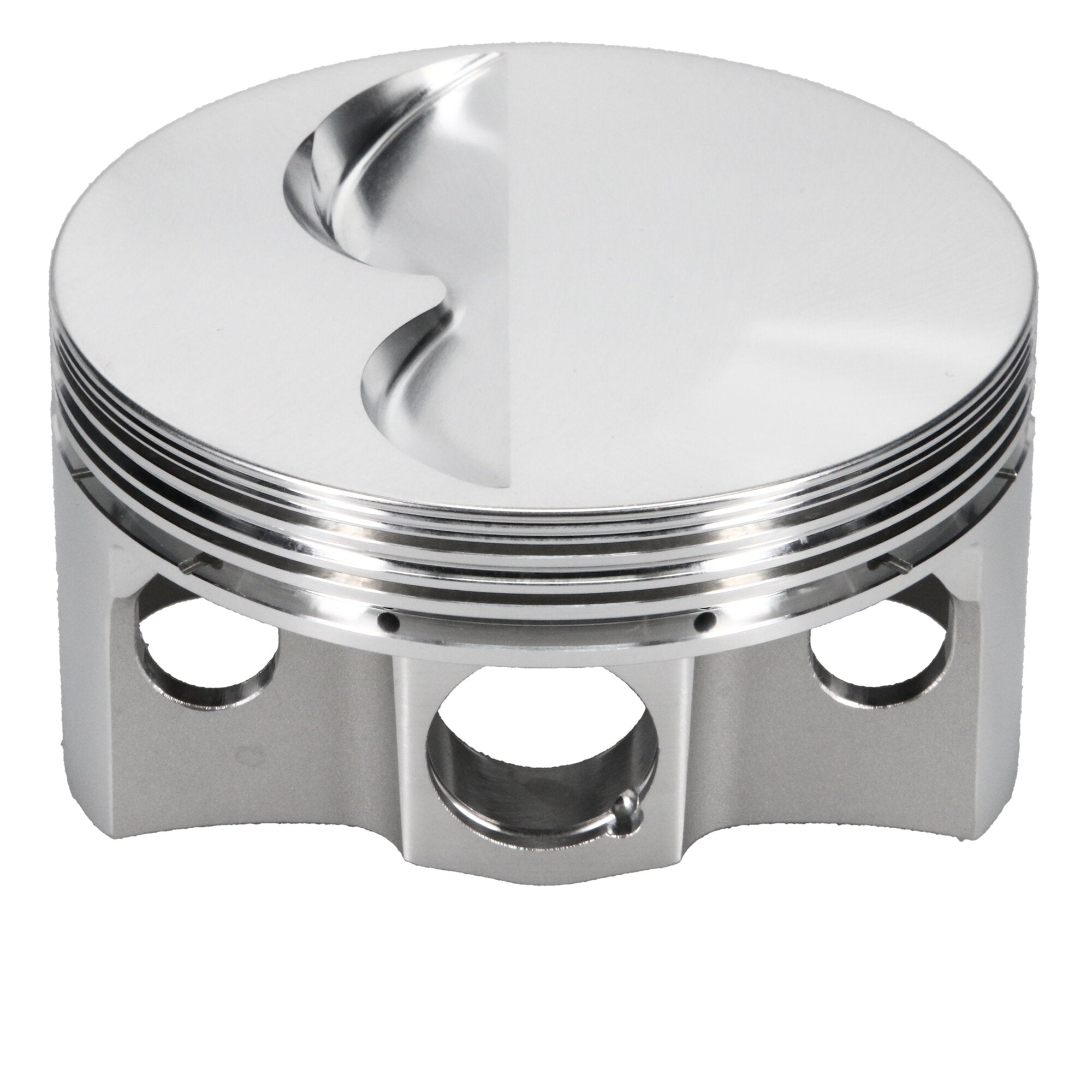

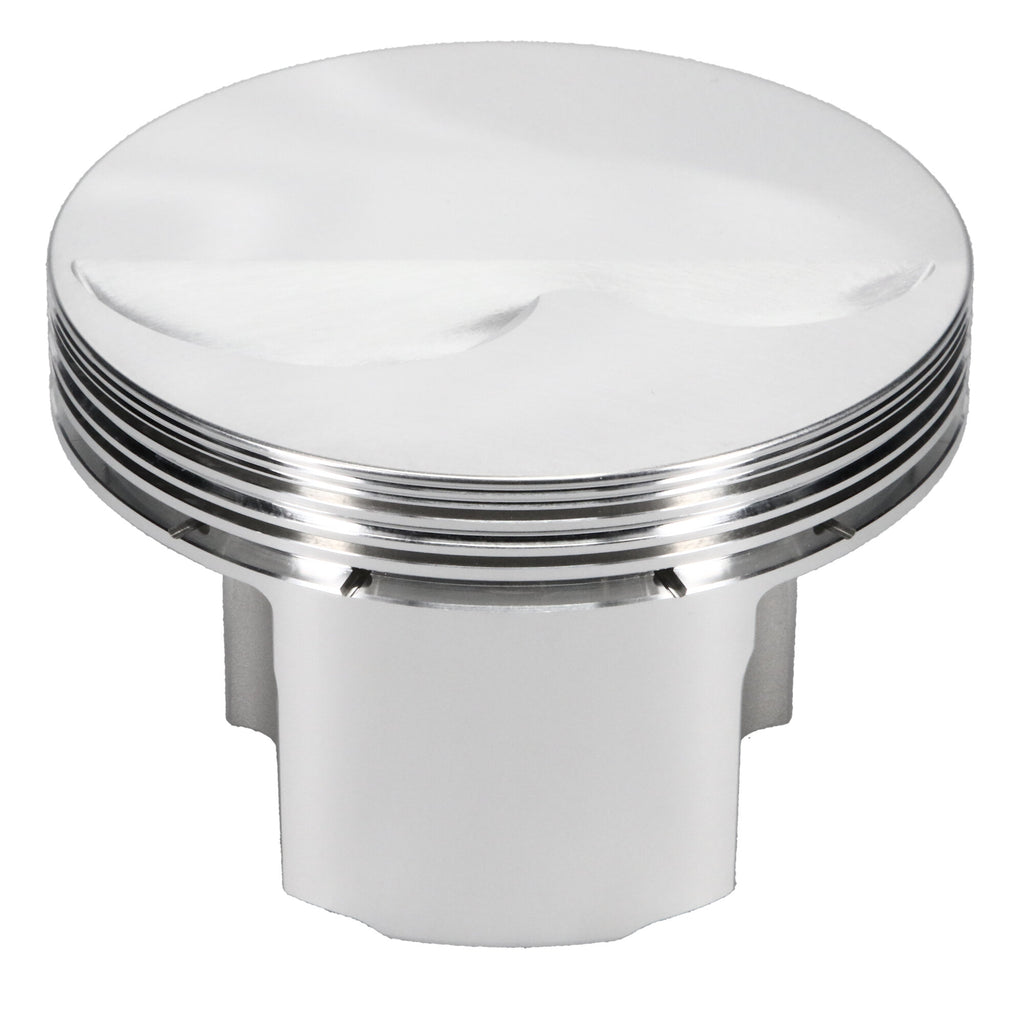

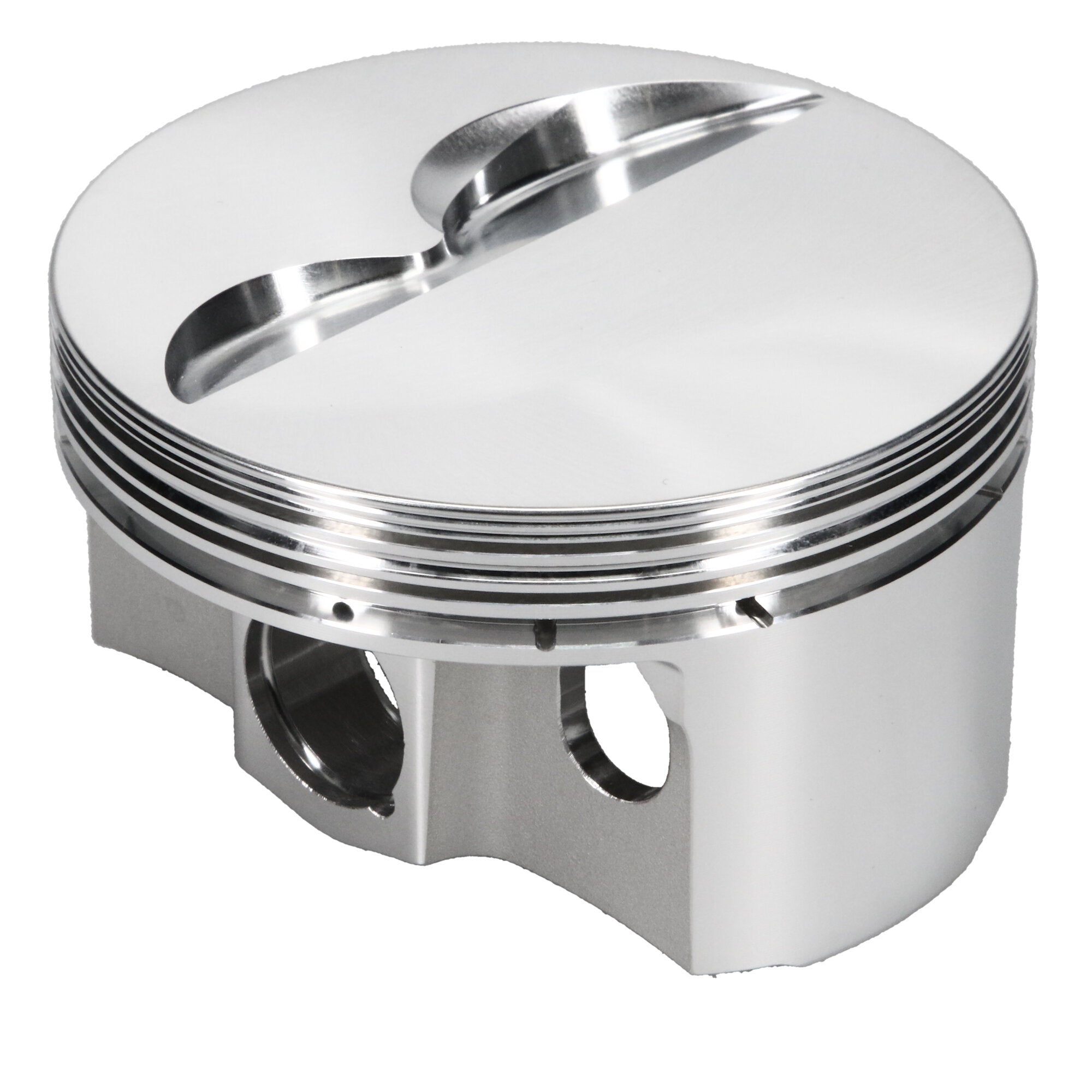

Piston Set, 2618, Flat Top, 4.050 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.050 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

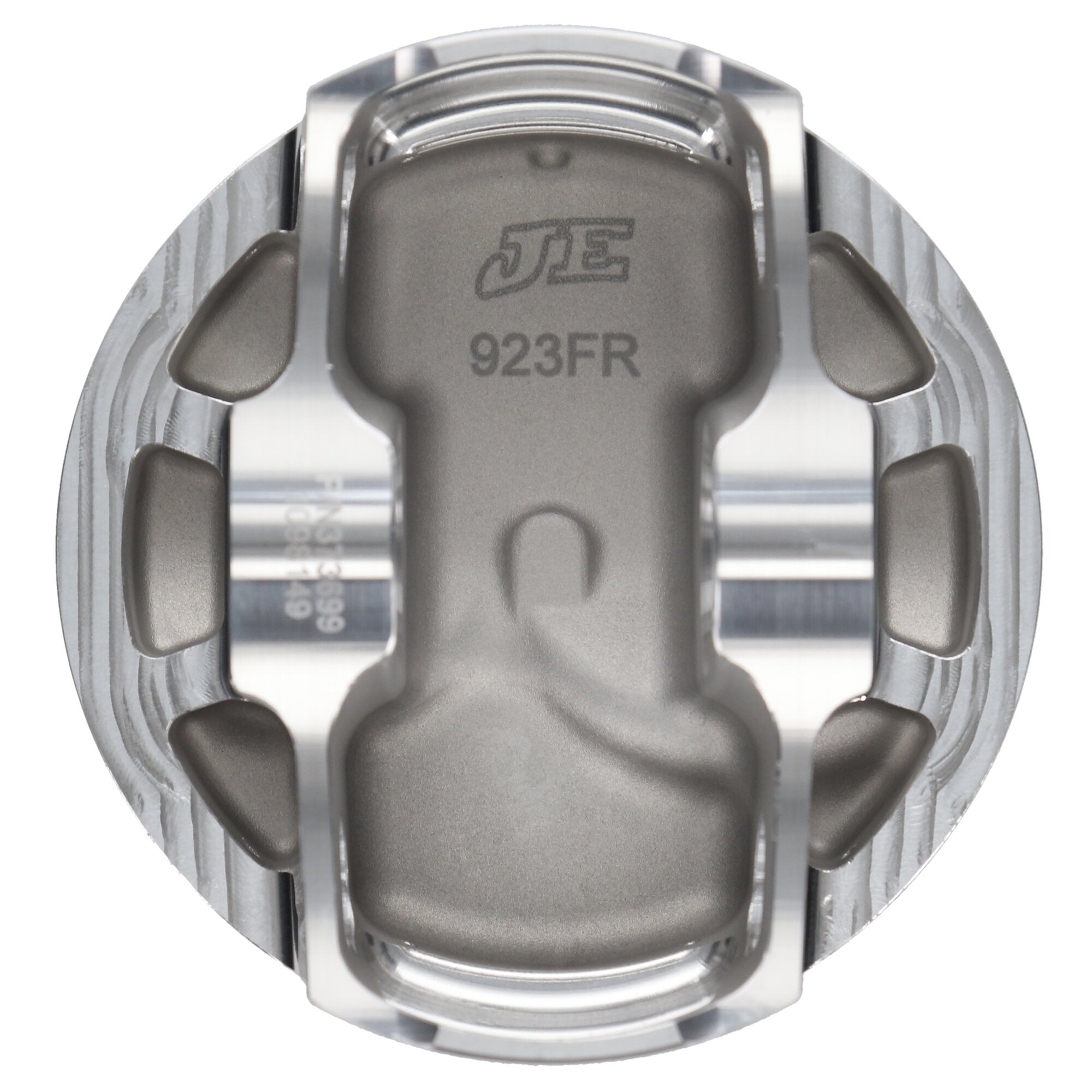

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.050 Bore, Flat, Set of 8 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Pin Material |
5115 |
| Piston Volume |
-3.80 |
| Compression Height |
1.560 |
| Wrist Pin Wall Thickness |
0.150 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.050 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Product Market |
Domestic |
| Piston Average Weight |
390 |
| Piston Quantity |
8 |
| Bore Diameter |
4.050 |
| Top Compression Ring Thickness |
0.0430 |
| Oil Ring Thickness |
0.1181 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
No |
| Make |
CHEVROLET |
| Add-On |
927-073-MW |
| Prop 65 Yes/No |
Yes |
| Engine |
Small Block |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
No |
| Add-On |
927-2250-15-51C |
| Industry |
Automotive |
| Add-On |
JG7708-4040-5 |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.050 in. Bore - 1.560 in. CH, -3.80 CC |
| Second Compression Ring Thickness |
0.0430 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Material |
2618 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
