As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet BBC SR20 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

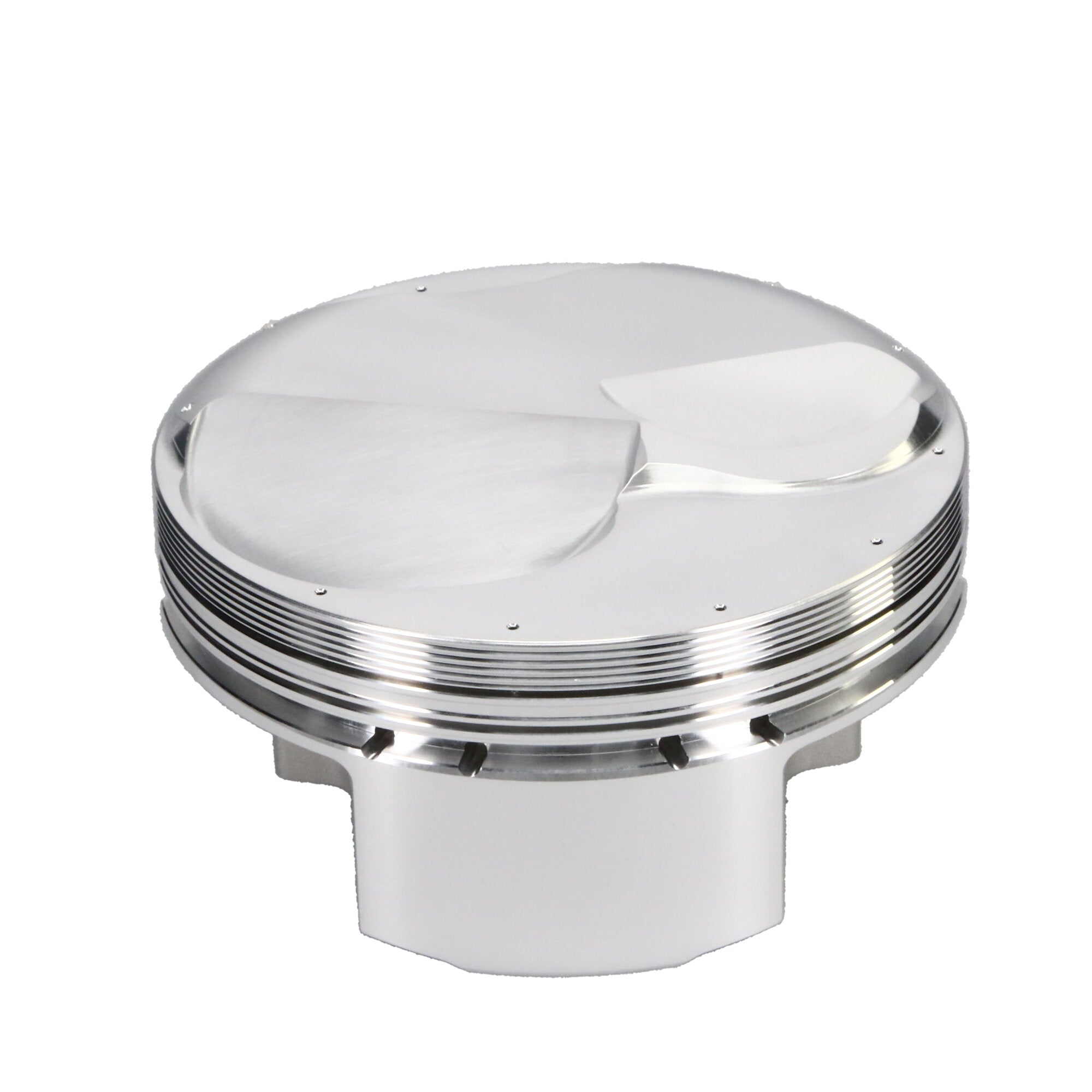

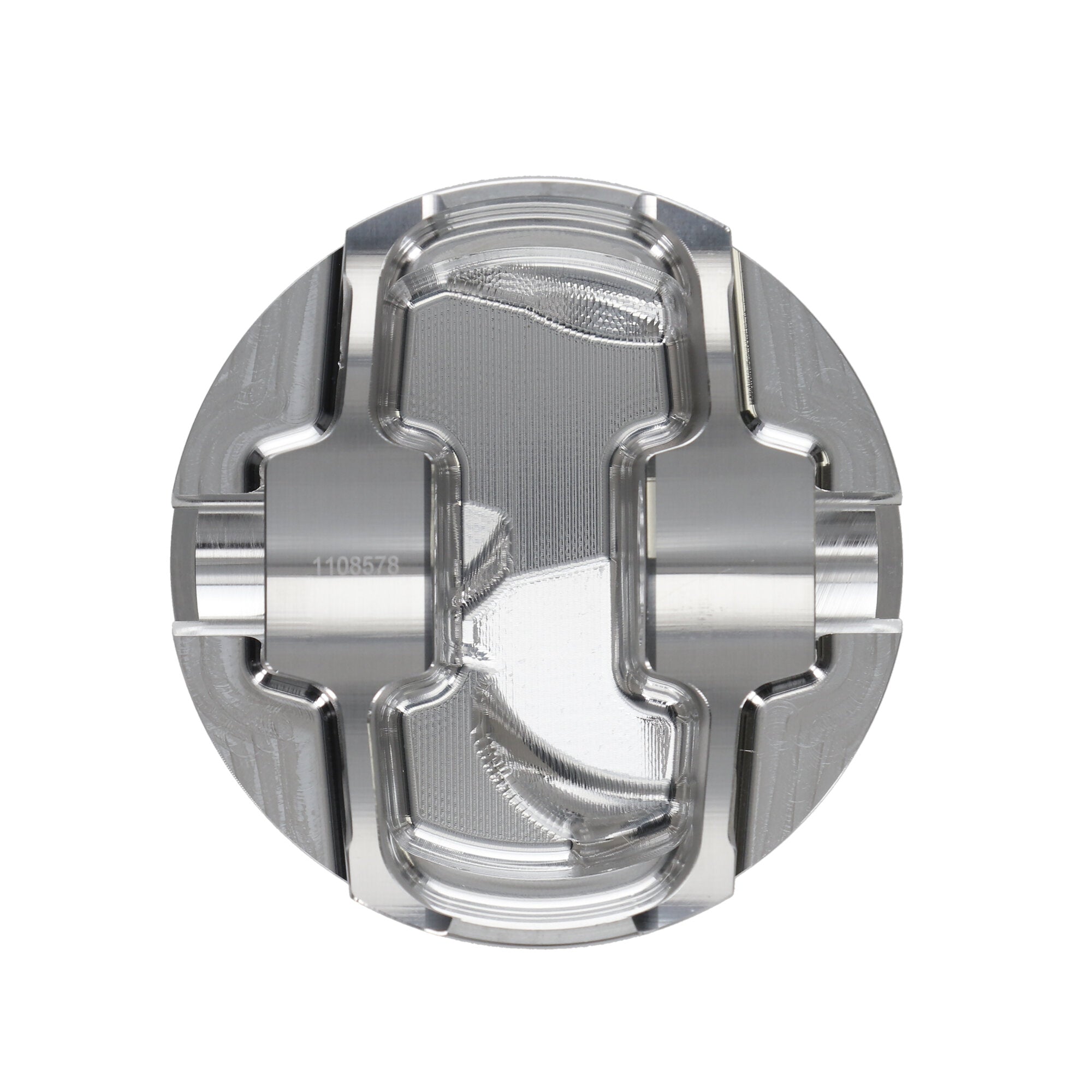

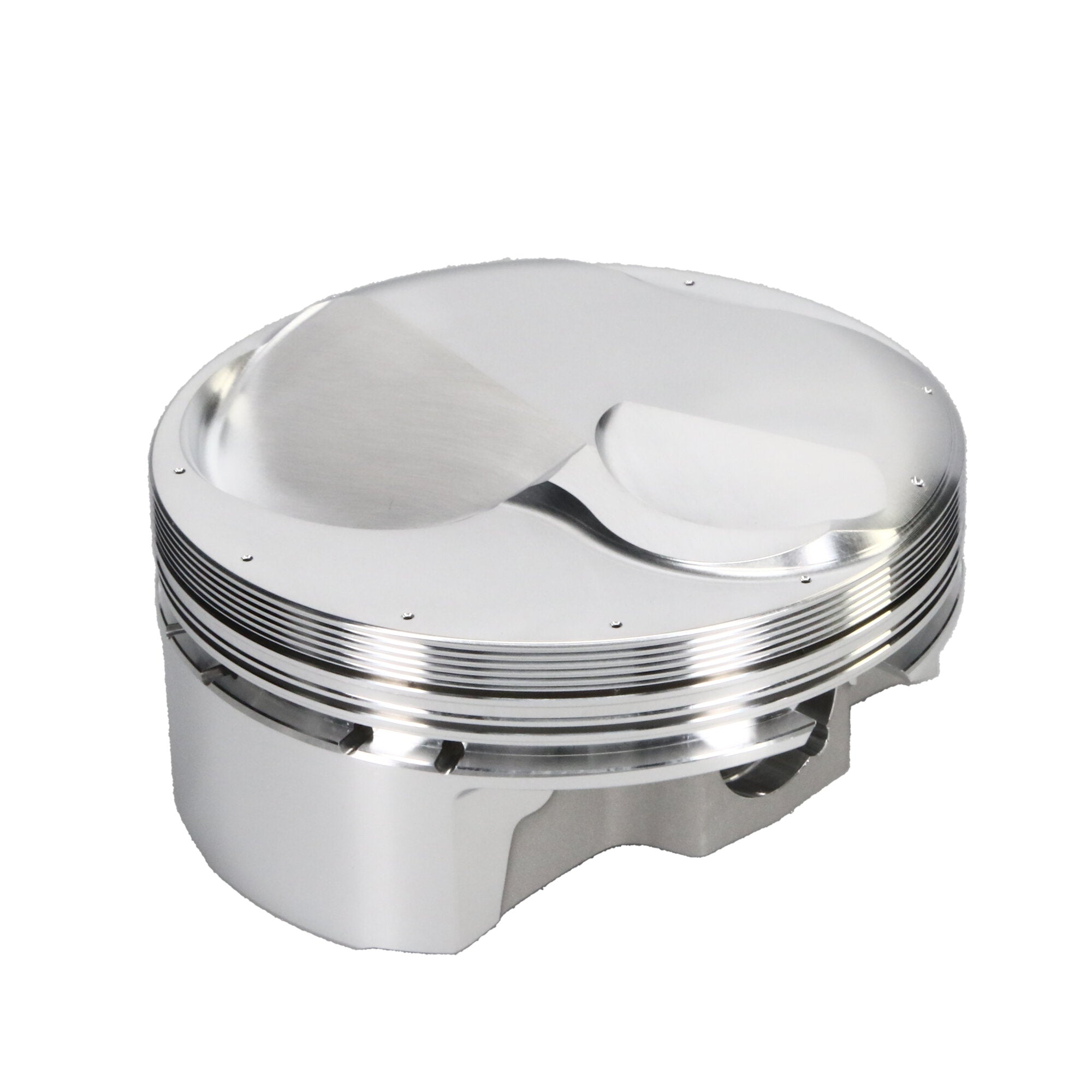

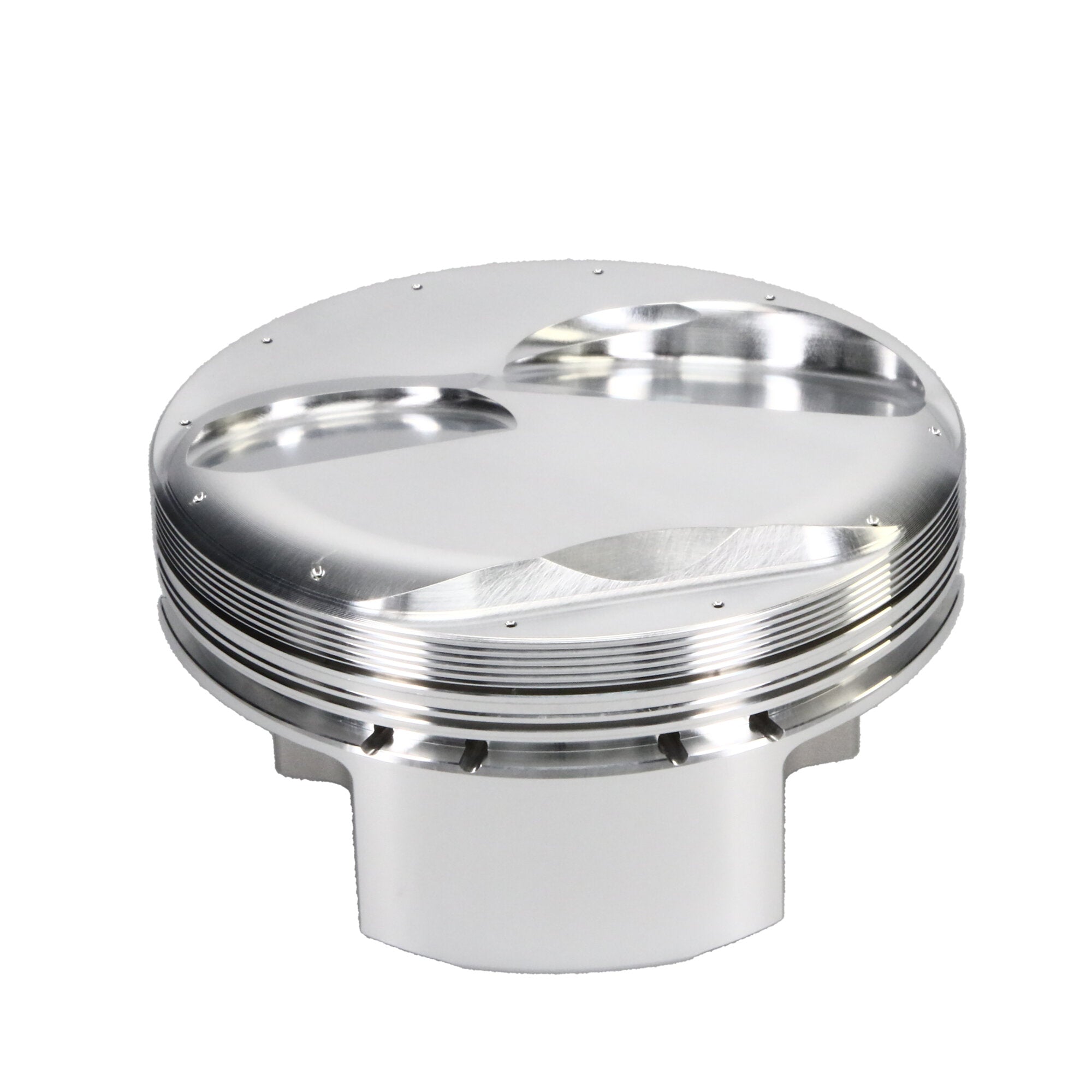

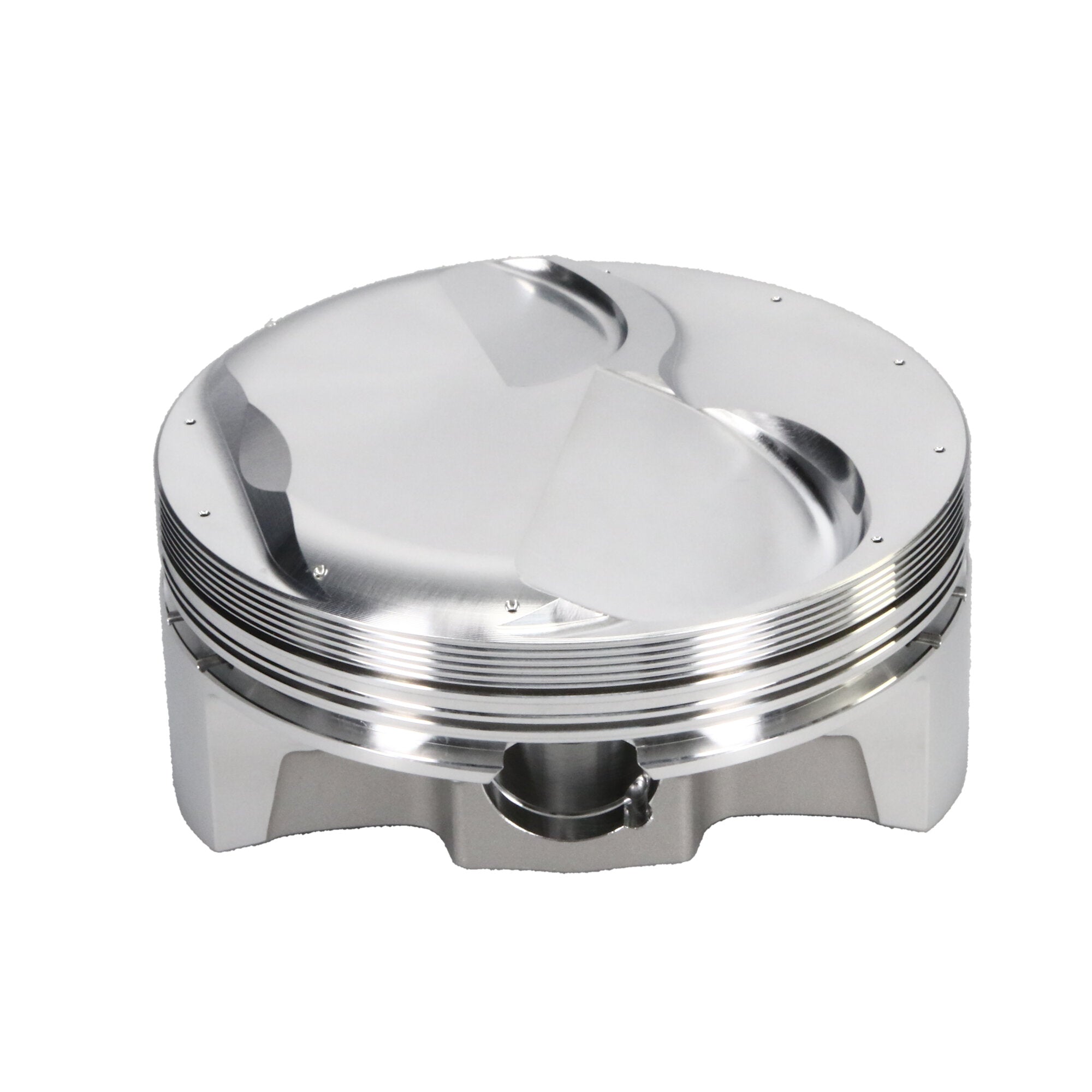

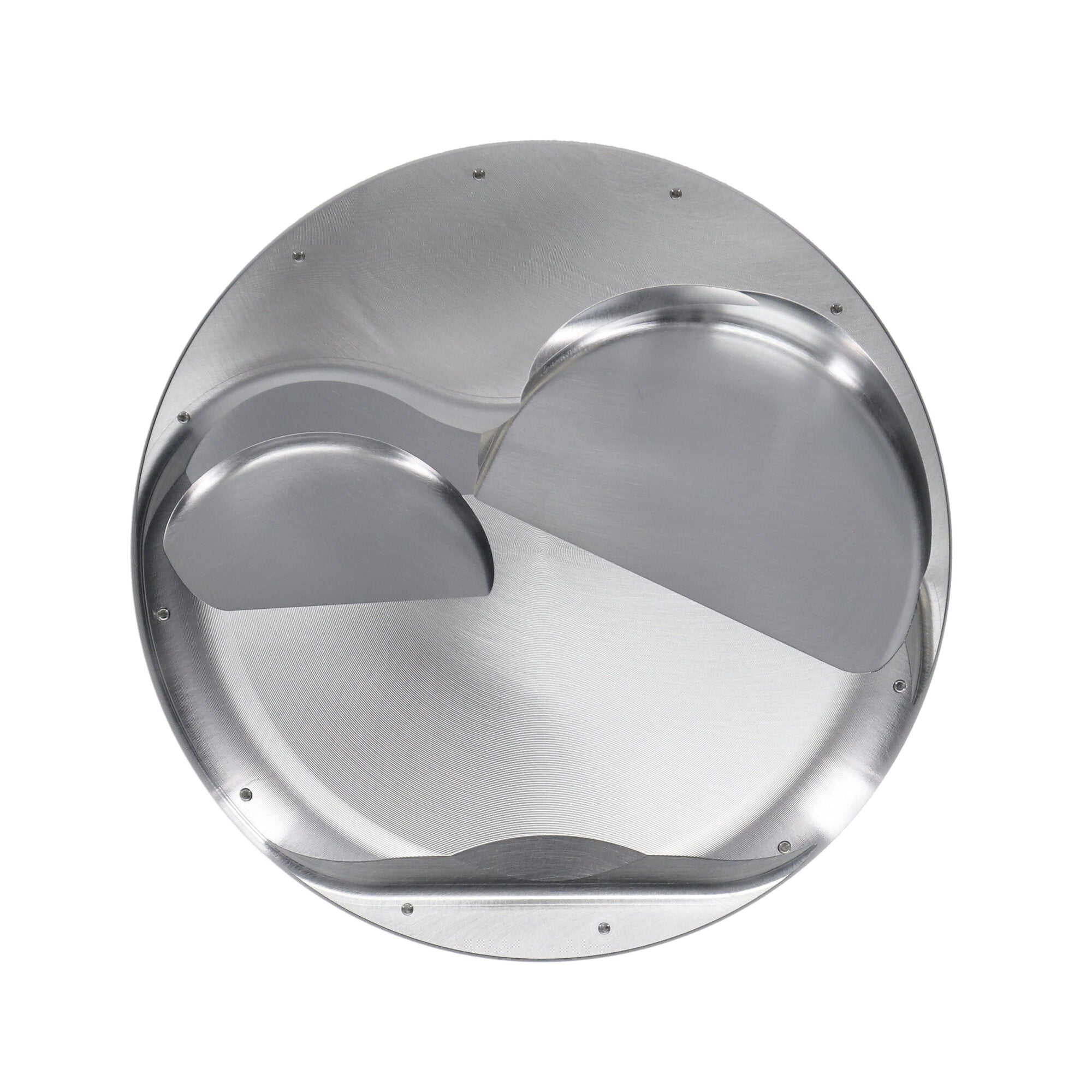

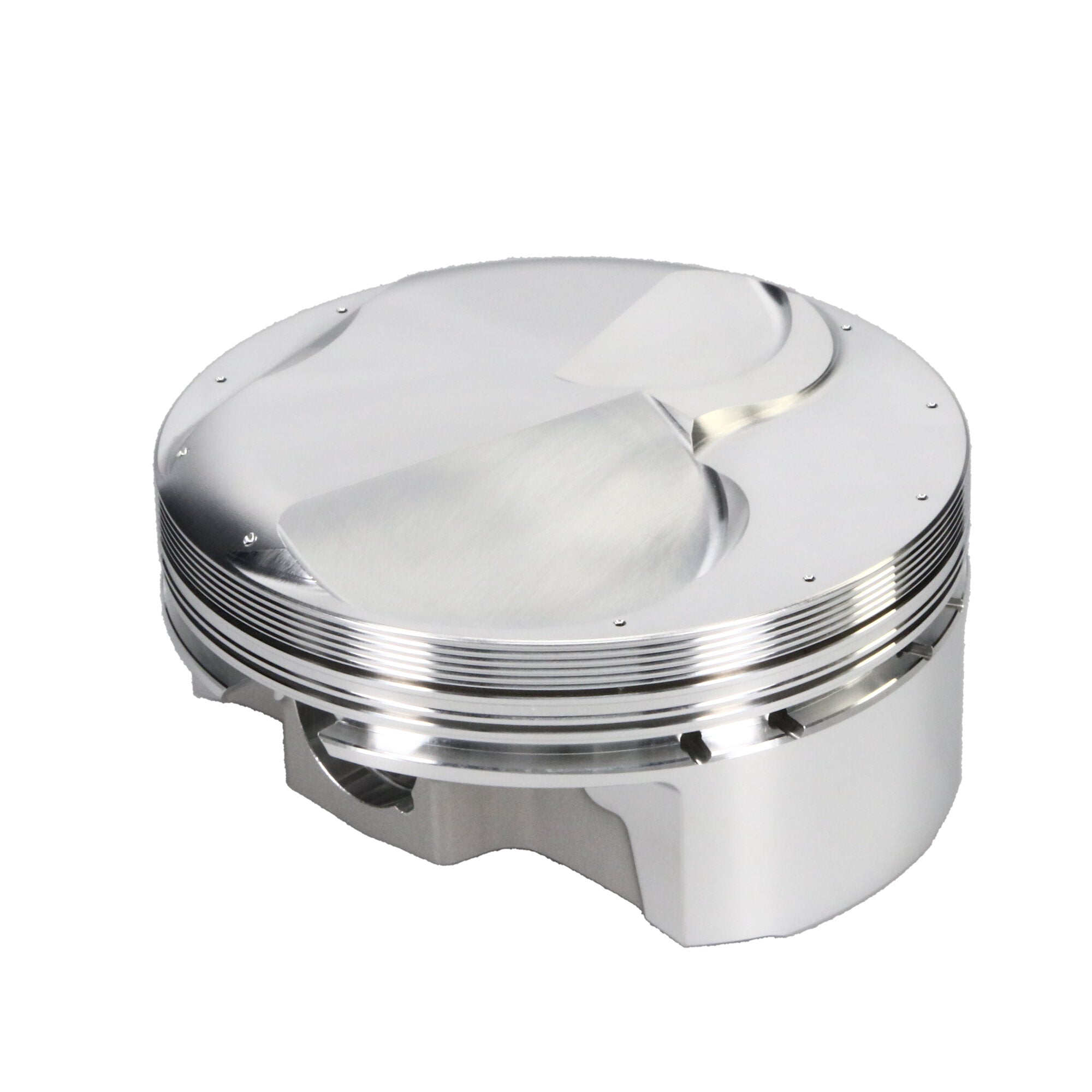

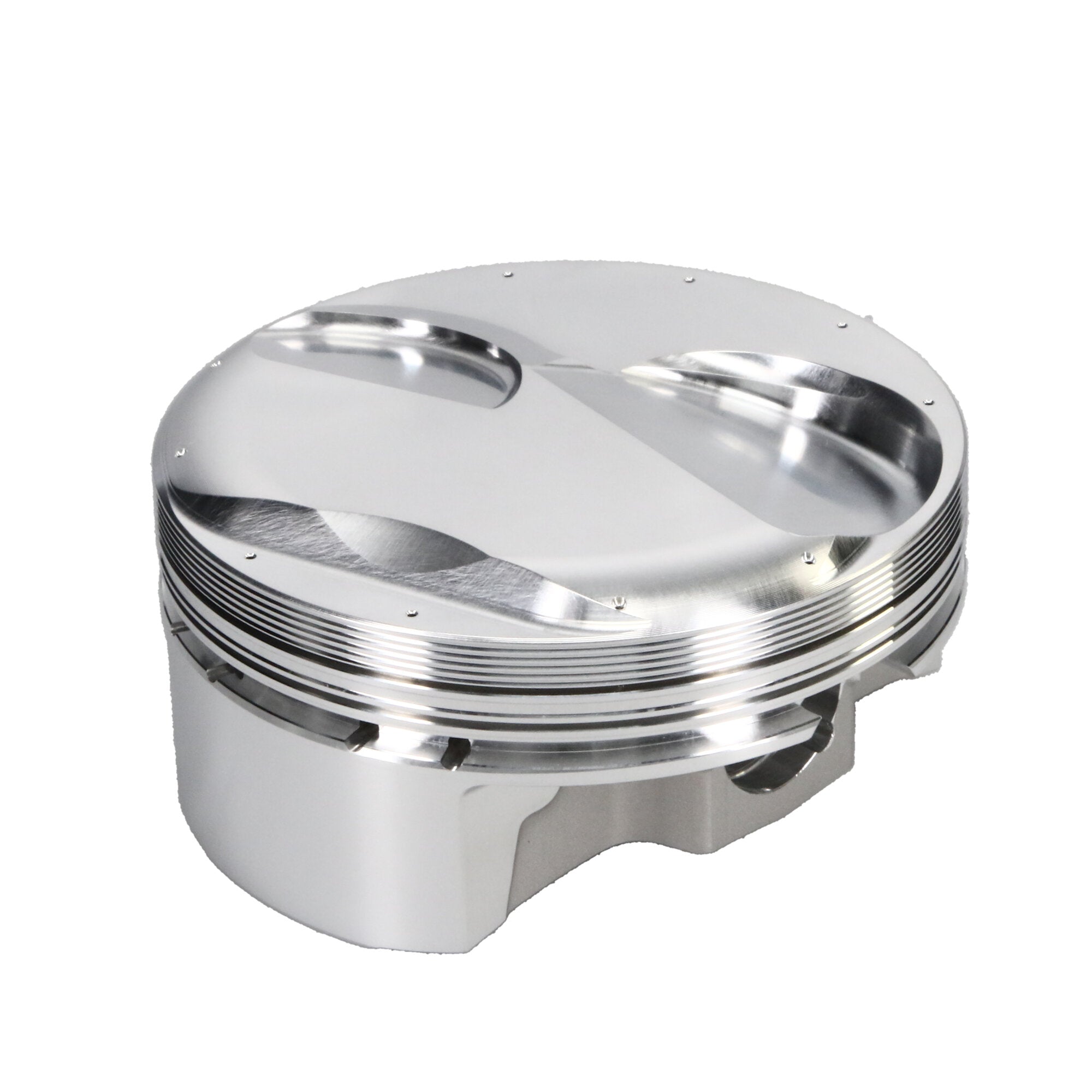

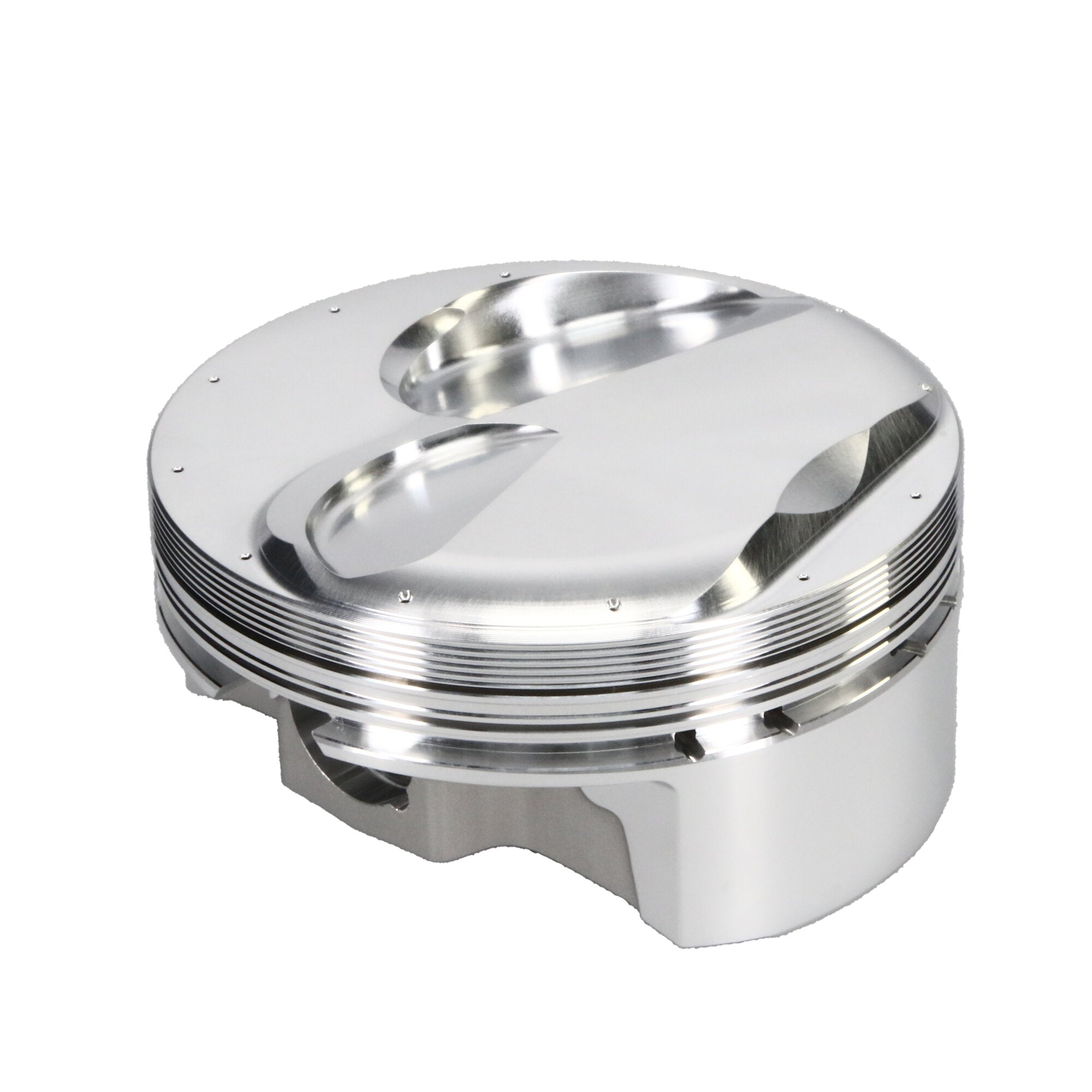

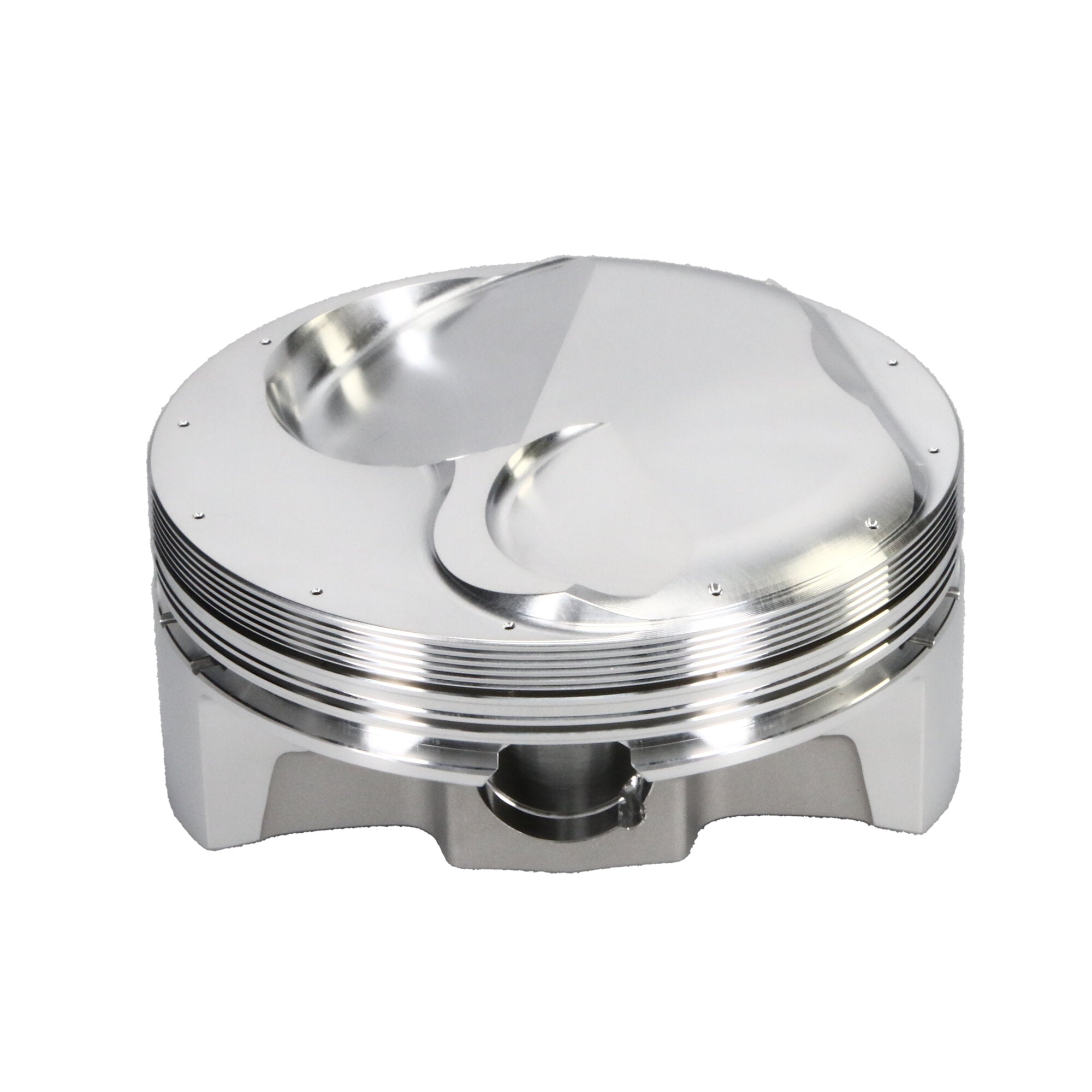

Piston Set, 2618, Dome, 4.600 Bore, 1.120 CD, 0.990 Pin Dia, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet BBC SR20, 4.600 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Compression Height |
1.120 |
| Industry |
Automotive |
| Piston Volume |
18.00 |
| Engine - Web |
Big Block |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Piston Material |
2618 |
| Piston Pin Material |
H13 |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.600 |
| Wrist Pin Length |
2.750 |
| Piston Pin Outside Diameter |
0.990 |
| Product Market |
Domestic |
| Piston Quantity |
8 |
| Make |
CHEVROLET |
| Piston Pin Wall Thickness |
0.230 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.230 |
| Piston Series |
JE Pistons |
| Piston Pin Length |
2.750 |
| Out of Stock Message |
Call for Availibility |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.120 in. CH, 18.00 CC |
| Engine |
Big Block |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-2750-23-TSC |
| Prop 65 (C, R or CR) |
CR |
| Piston Head Type |
Dome |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
H13 Tool Steel Alloy |
| Make - Web |
Chevrolet |
| Engine Type |
ICE |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
16.0000 |
