As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

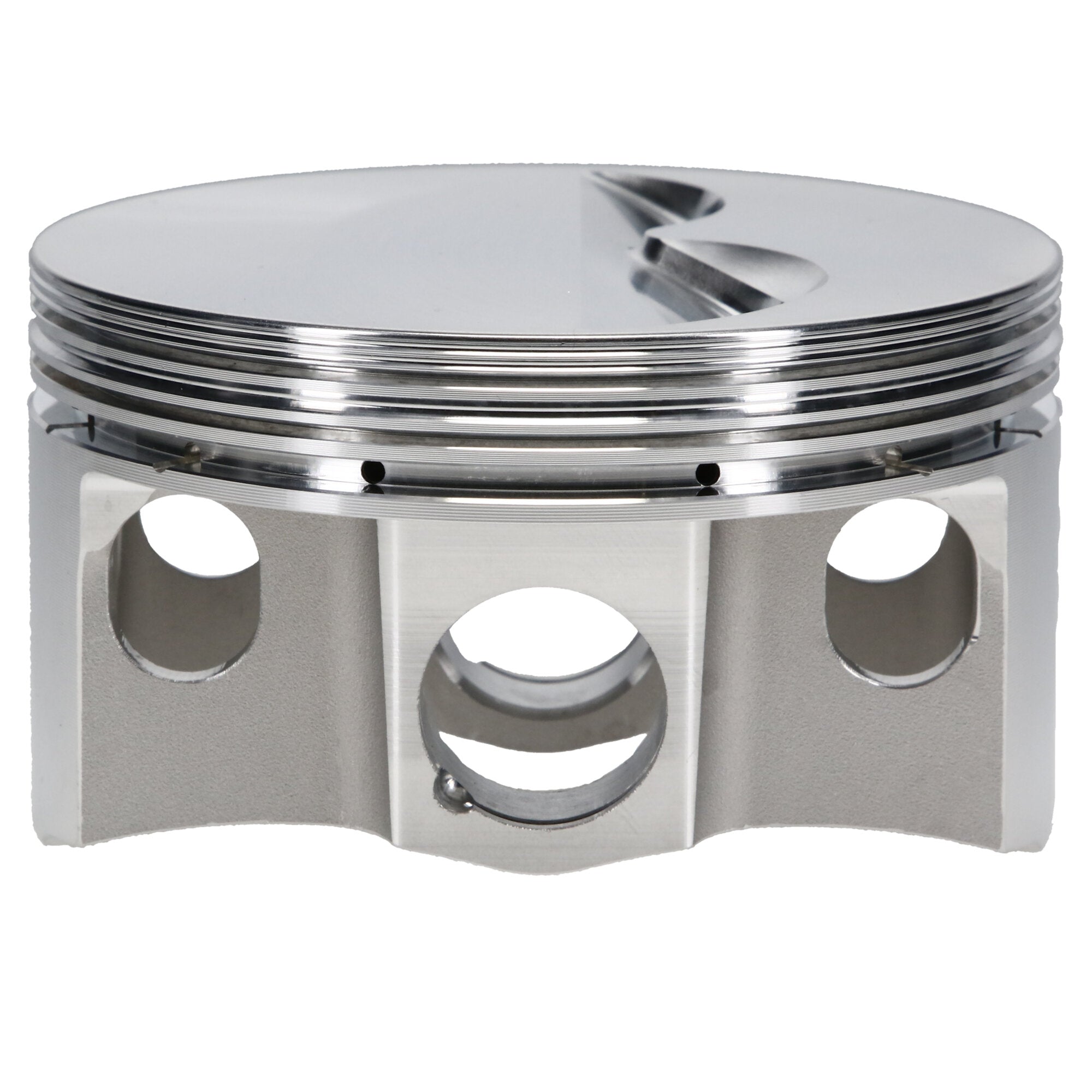

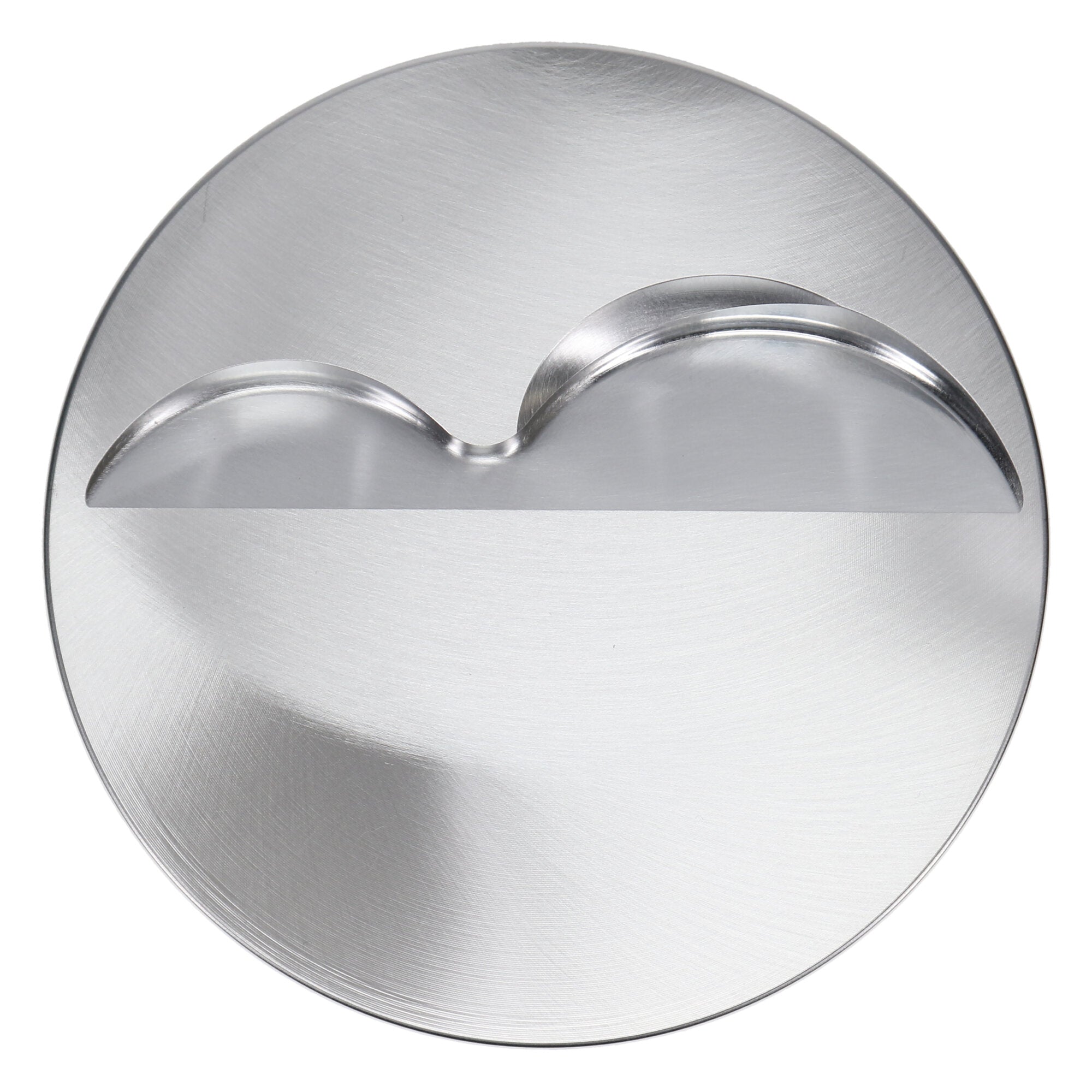

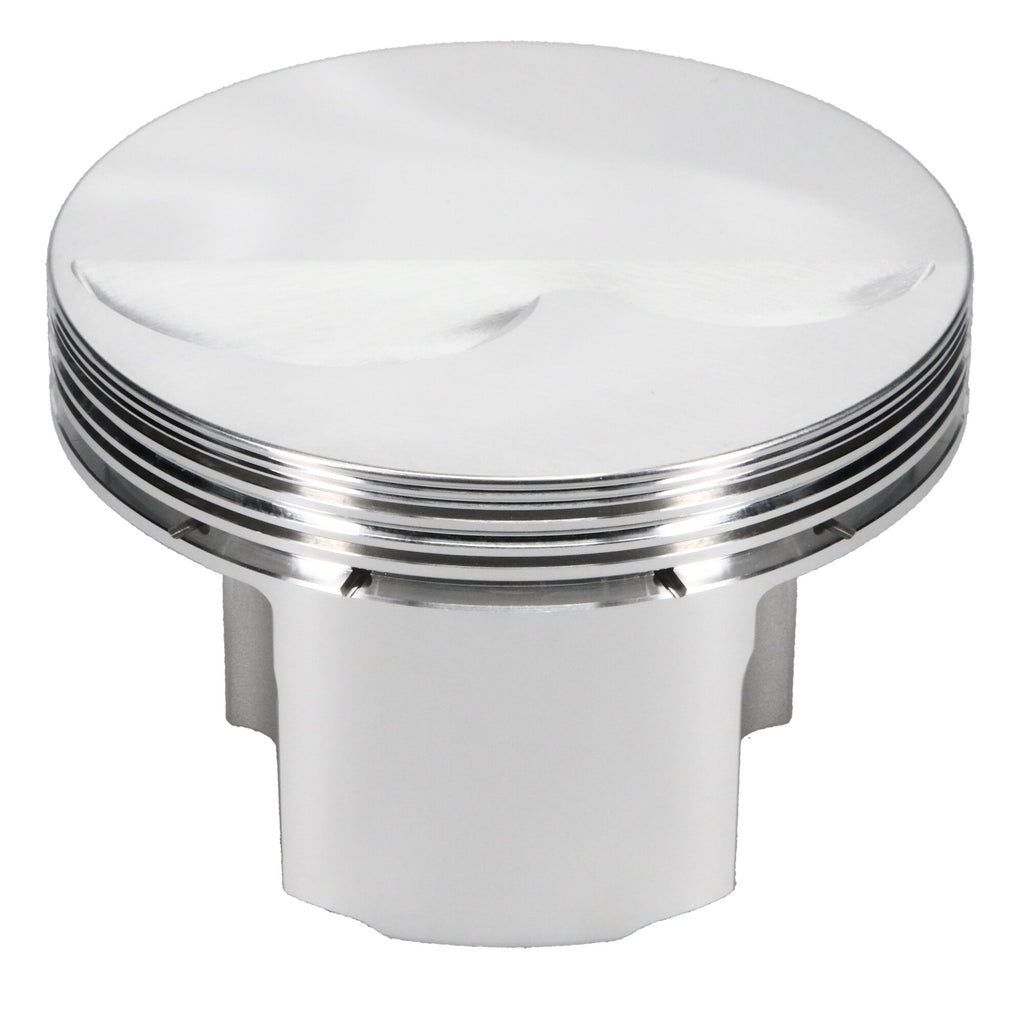

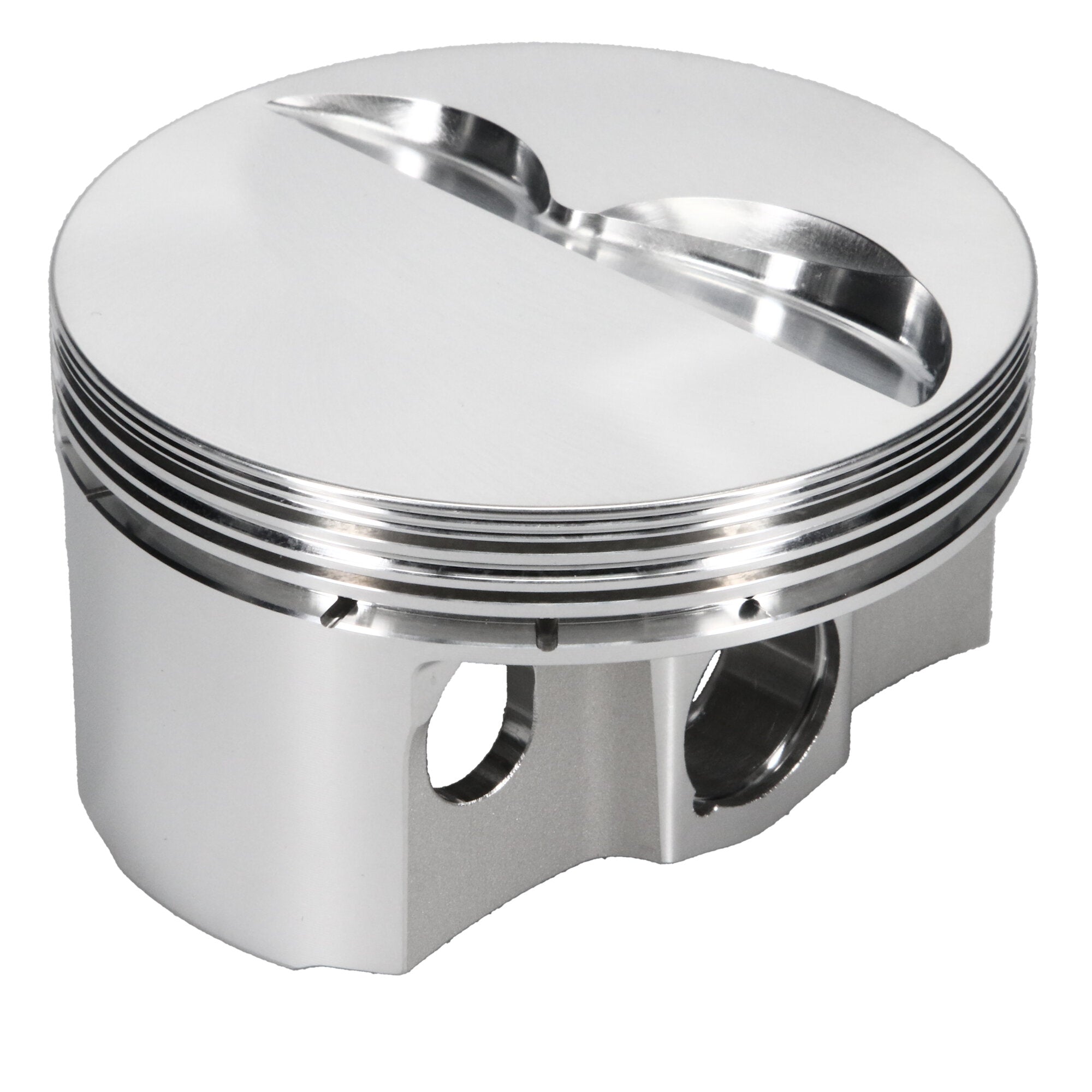

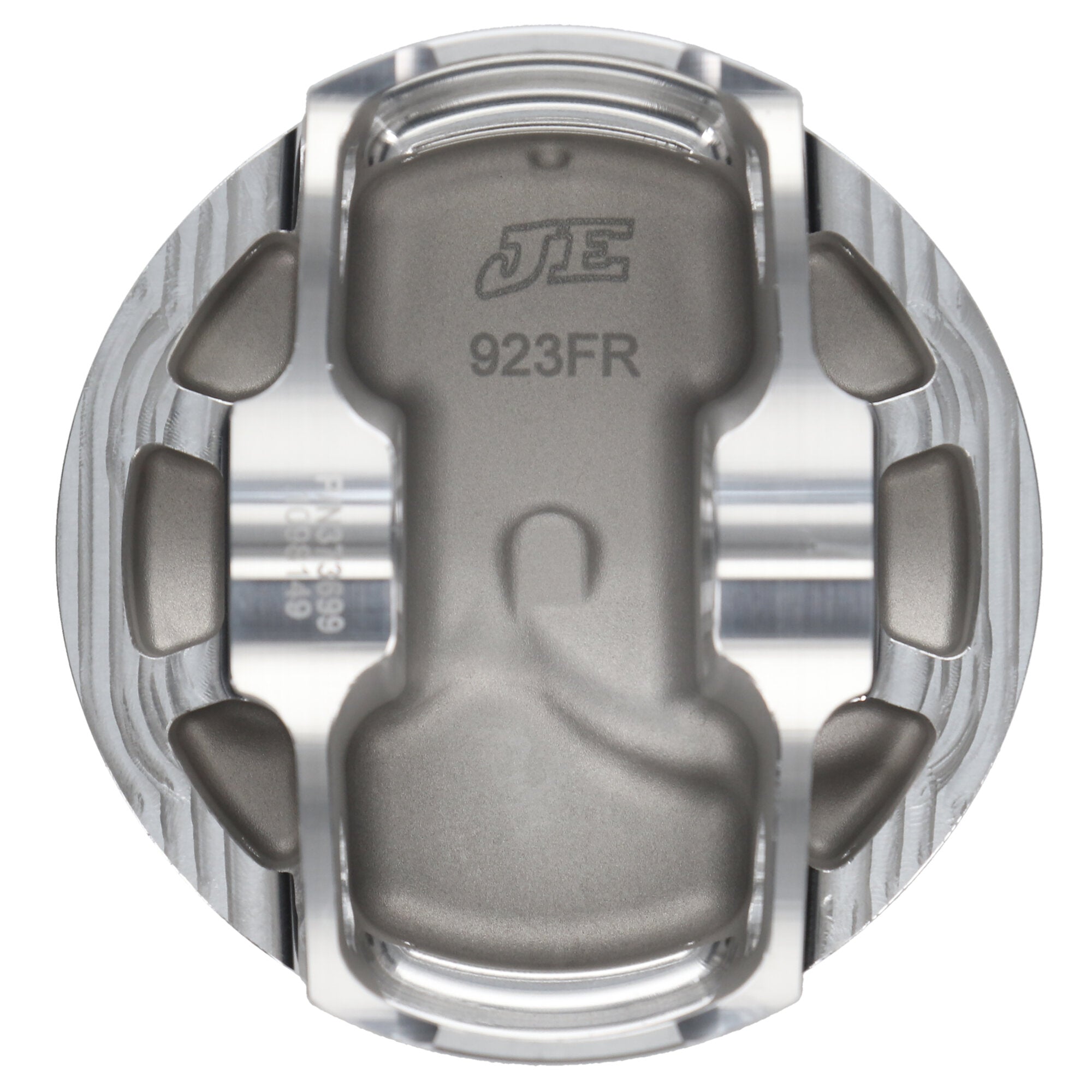

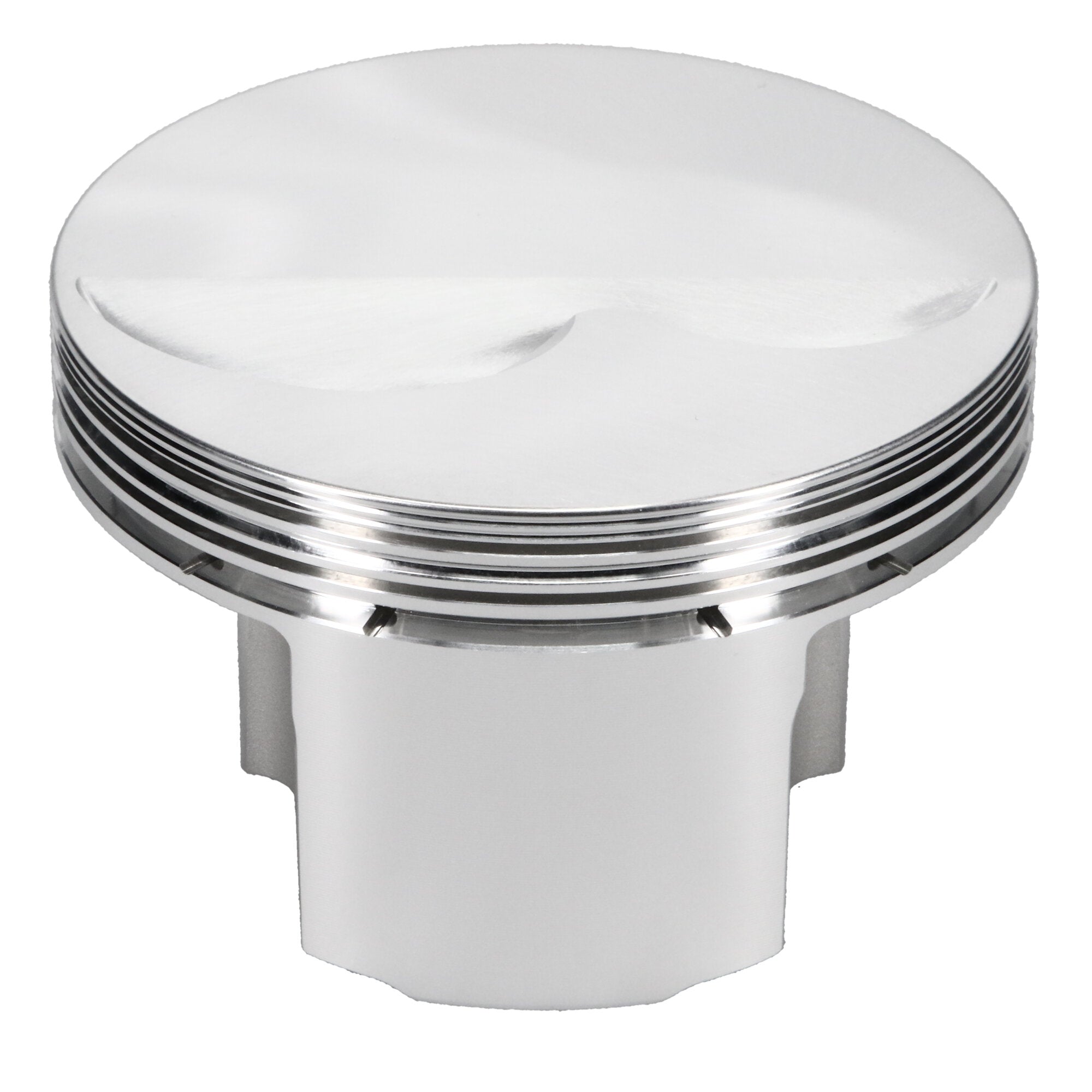

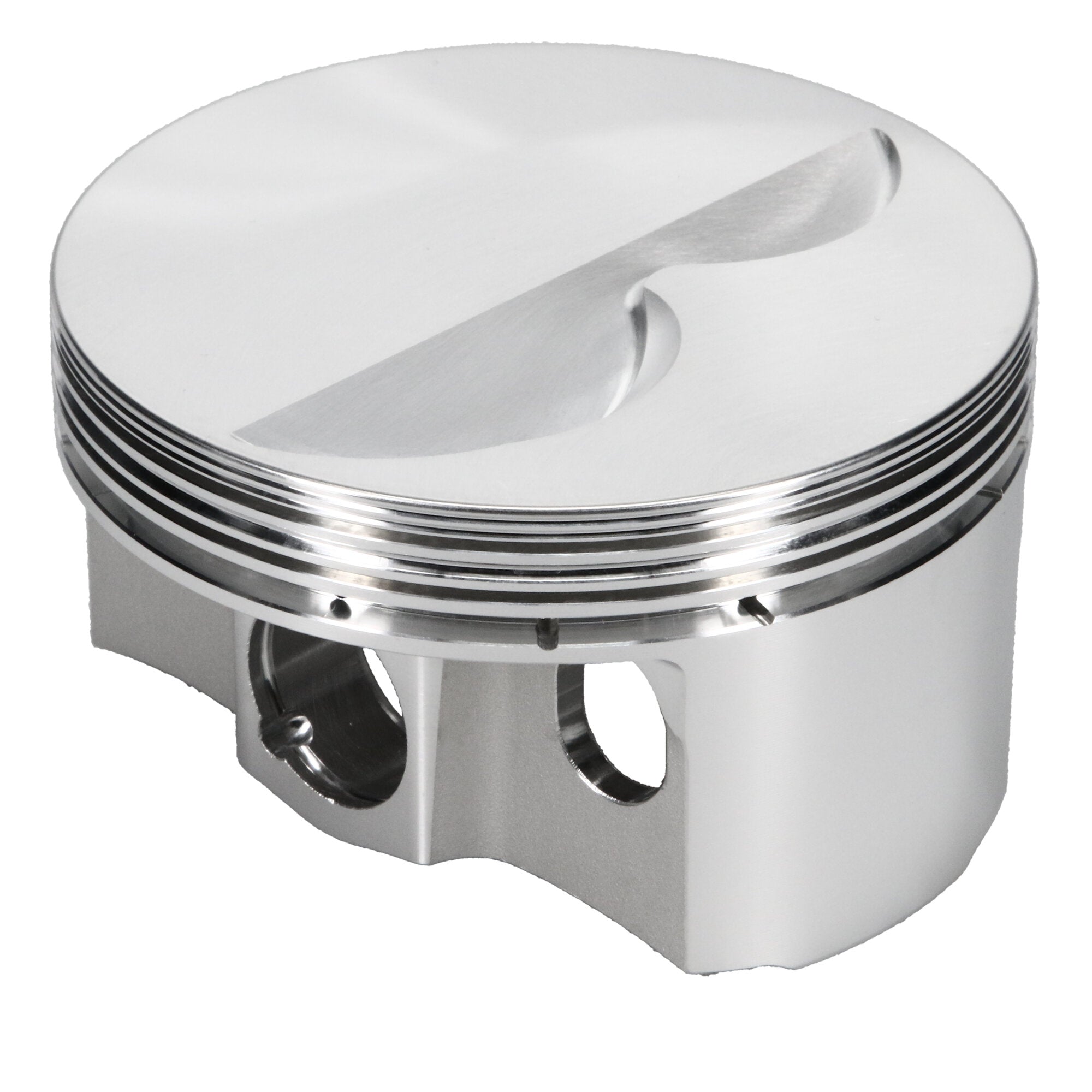

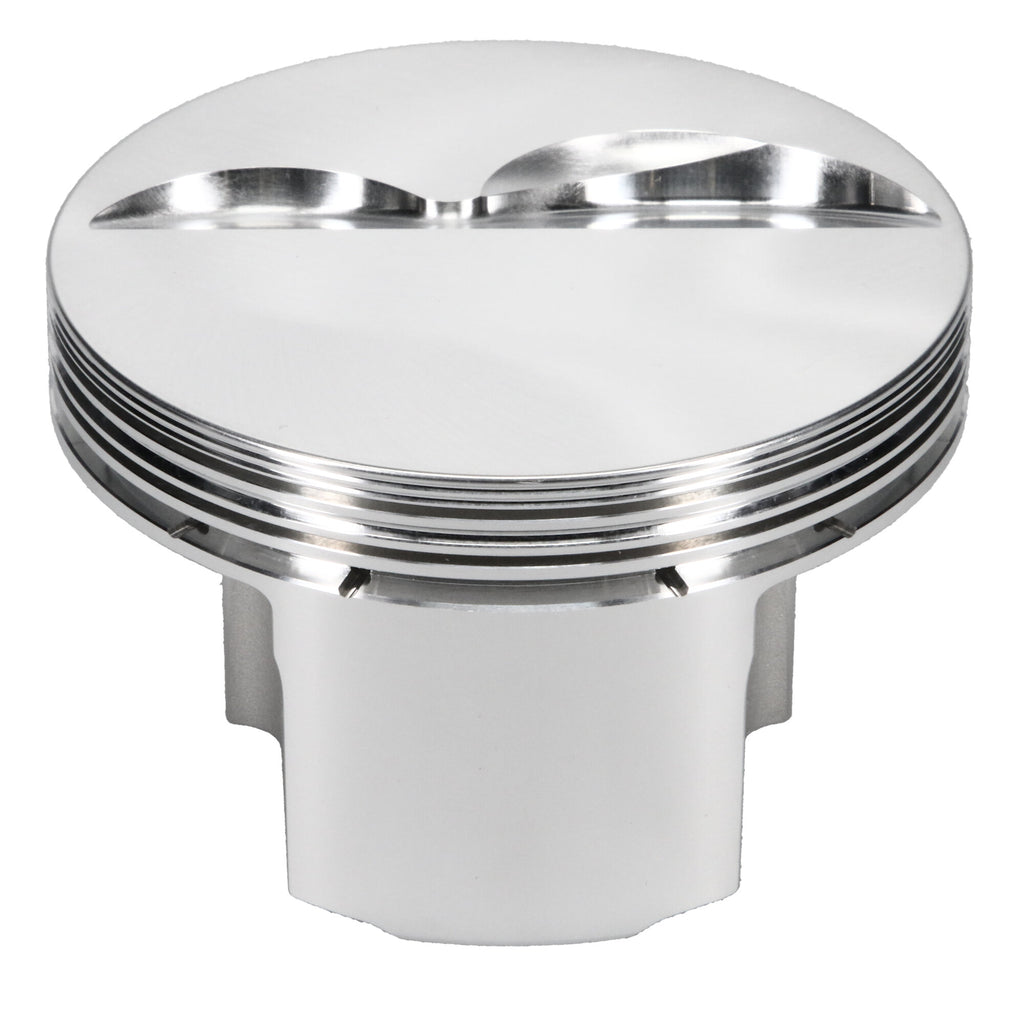

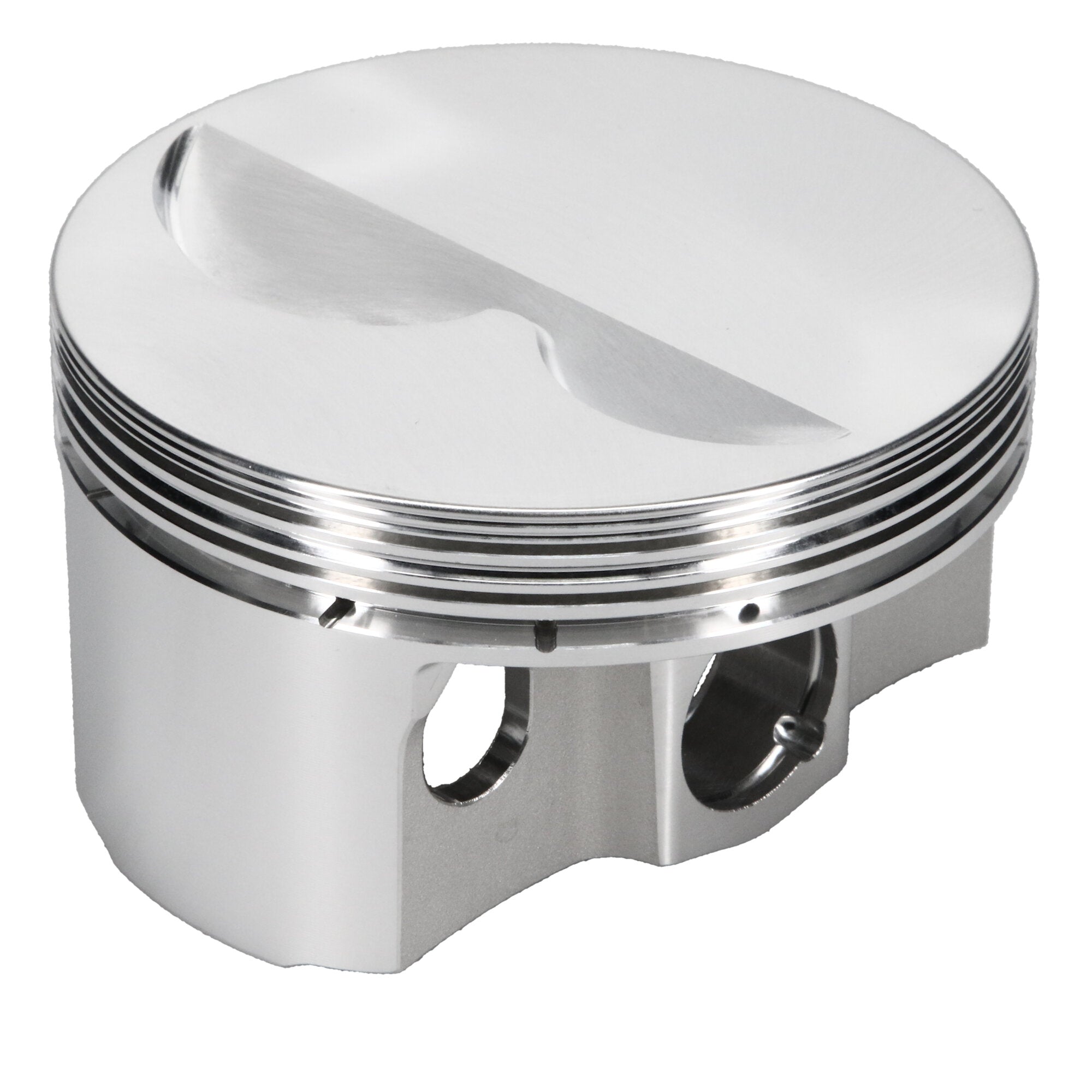

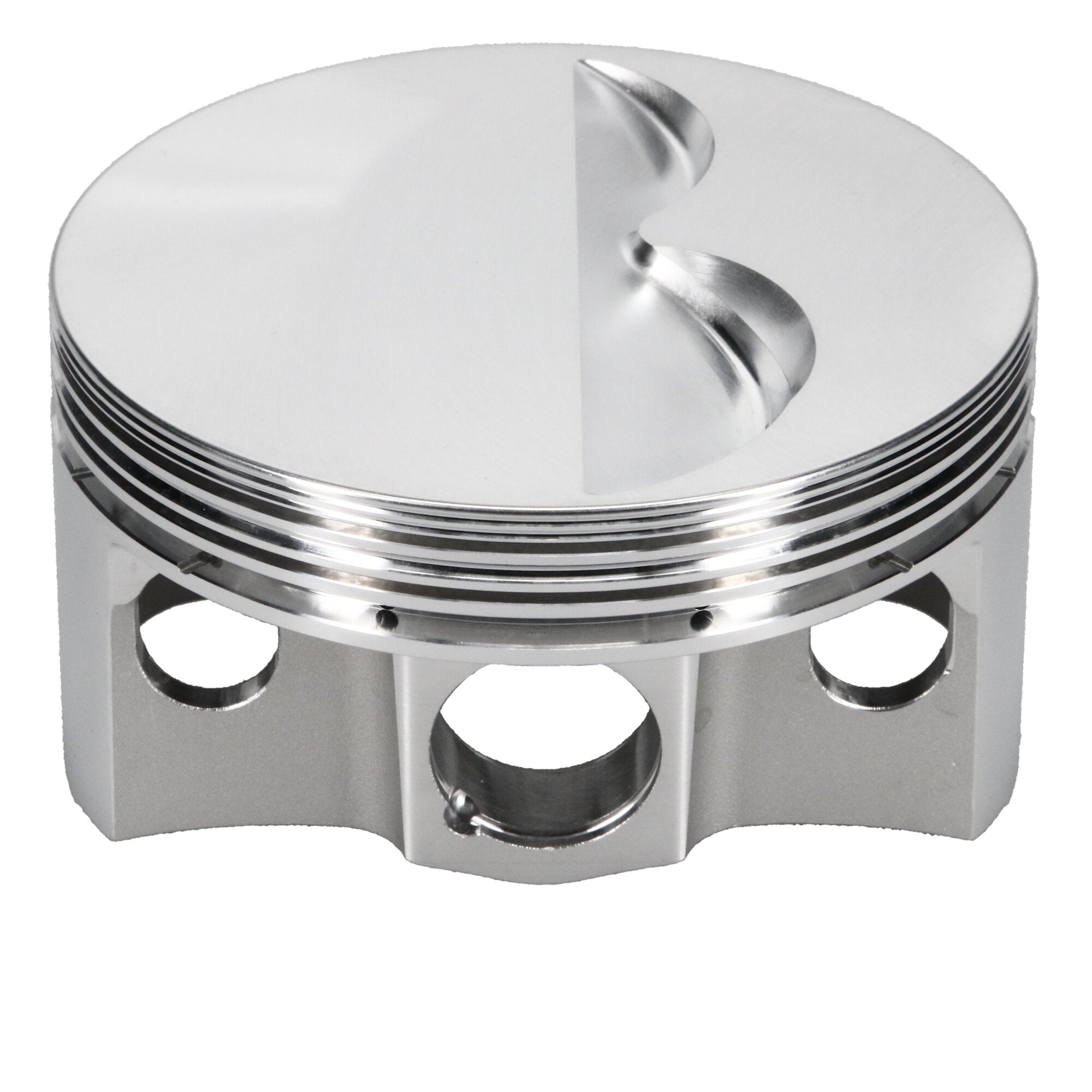

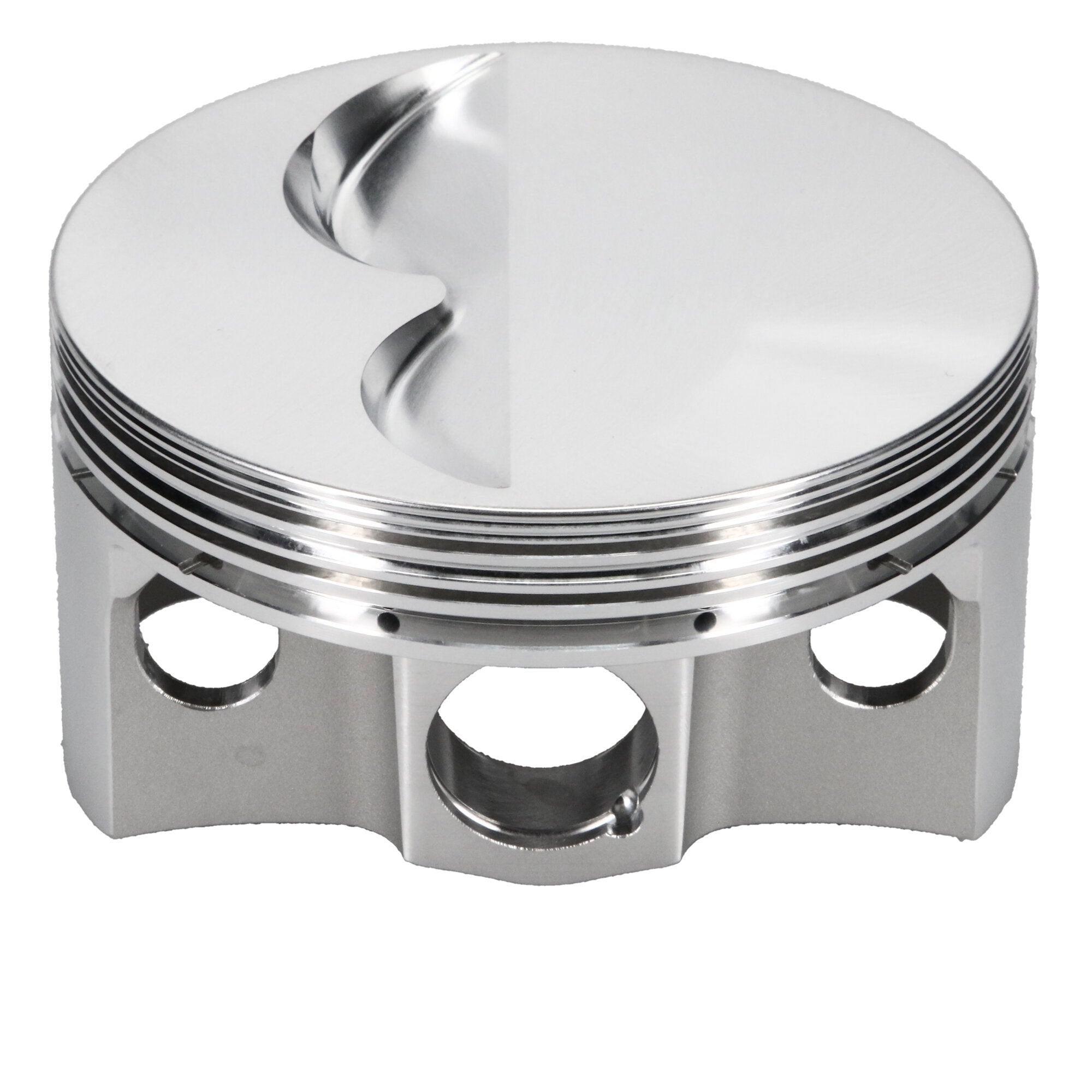

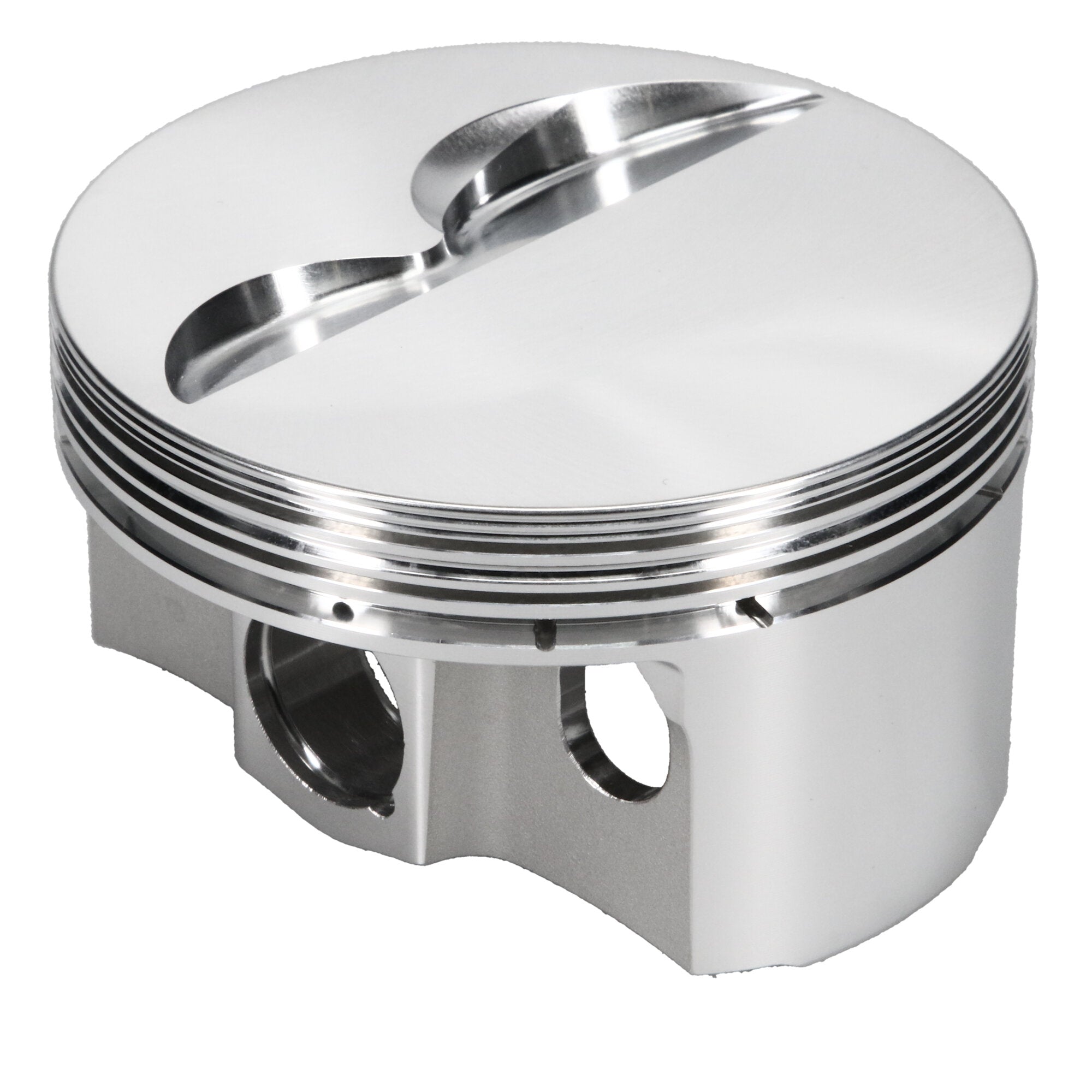

Piston Set, 2618, Flat Top, 4.045 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.045 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 350, 4.045 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Forging Type |
FSR |
| Ringset Included |
No |
| Engine Type |
ICE |
| Piston Head Type |
Flat |
| Title |
JE Pistons - Chevrolet, Small Block, 4.045 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Small Block |
| Top Compression Ring Thickness |
0.0430 |
| Piston Average Weight |
387 |
| Oil Ring Thickness |
0.1181 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Make |
CHEVROLET |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Add-On |
JG7708-4040-5 |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.250 |
| Product Market |
Domestic |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-073-MW |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.045 |
| Piston Material |
2618 |
| Piston Pin Material |
5115 |
| Compression Height |
1.560 |
| Piston Quantity |
8 |
| Piston Volume |
-3.80 |
| Industry |
Automotive |
| Add-On |
927-2250-15-51C |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
No |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.045 in. Bore - 1.560 in. CH, -3.80 CC |
| Second Compression Ring Thickness |
0.0430 |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
