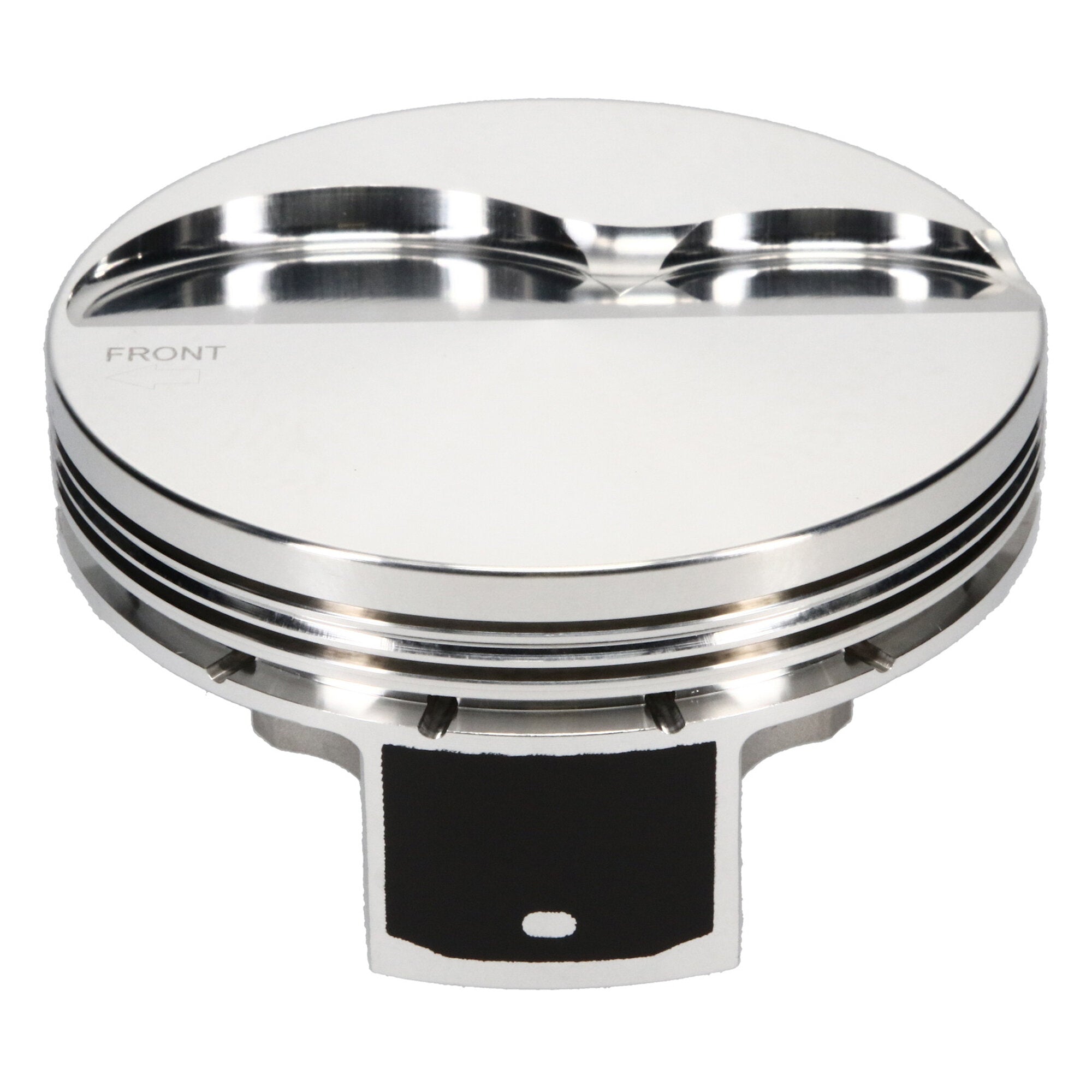

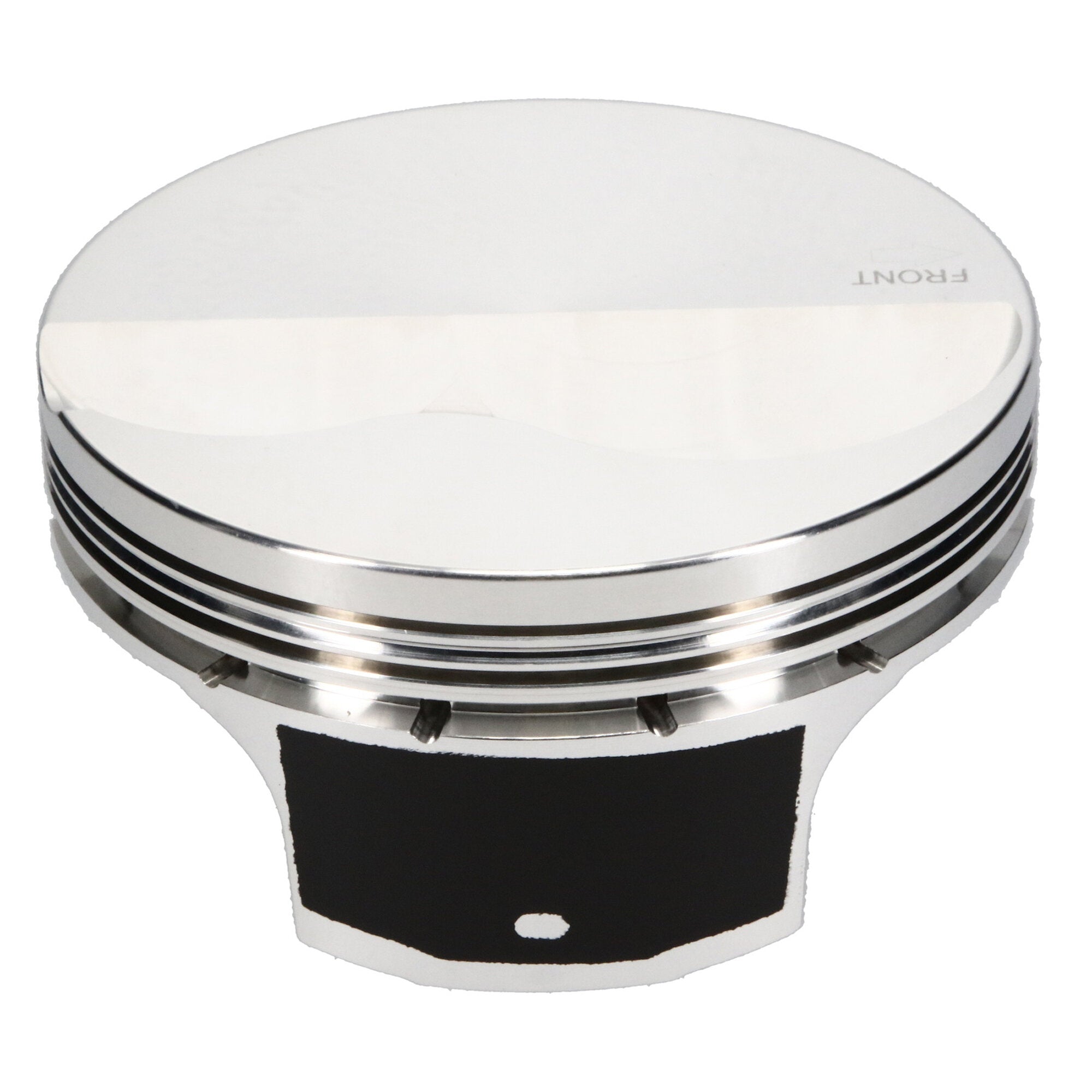

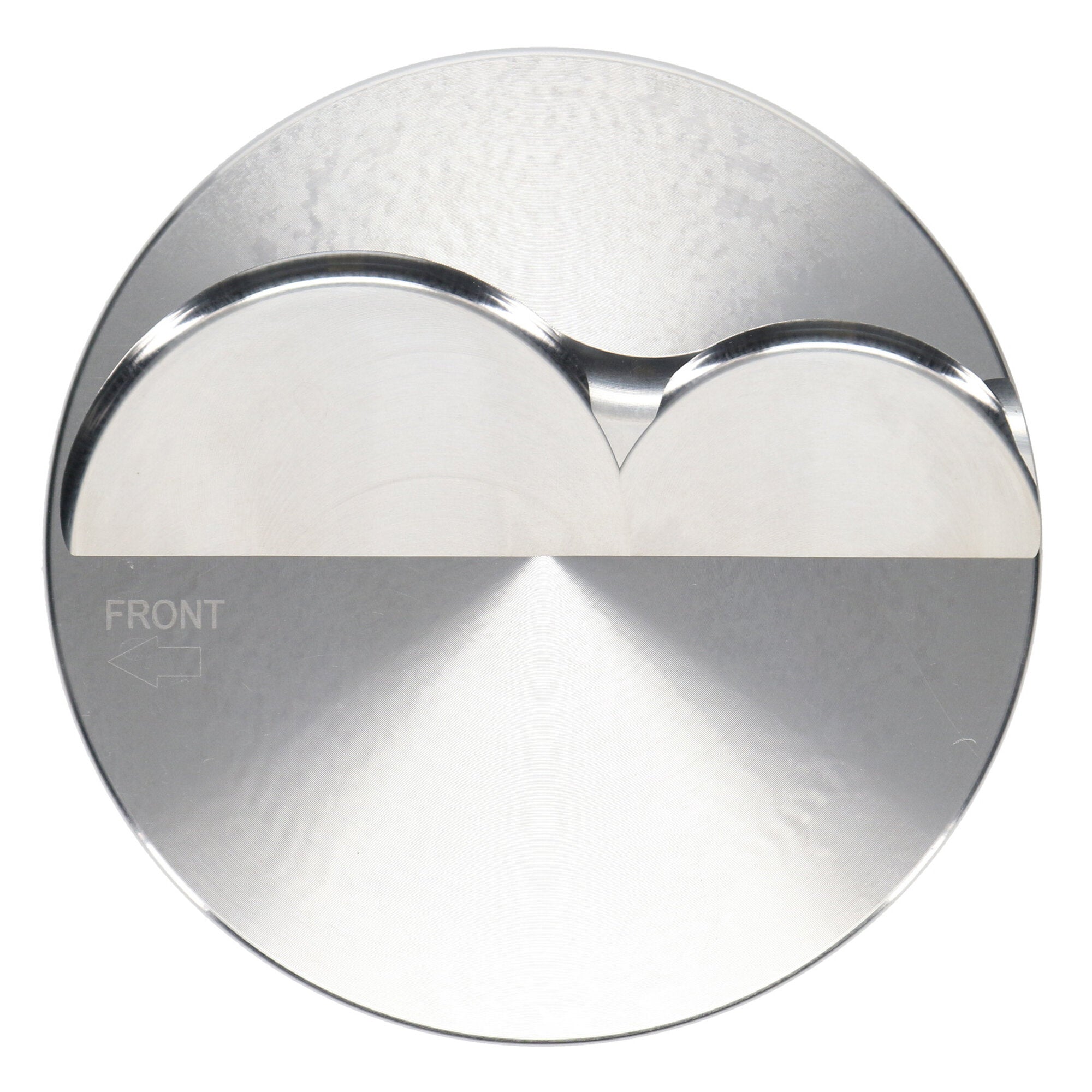

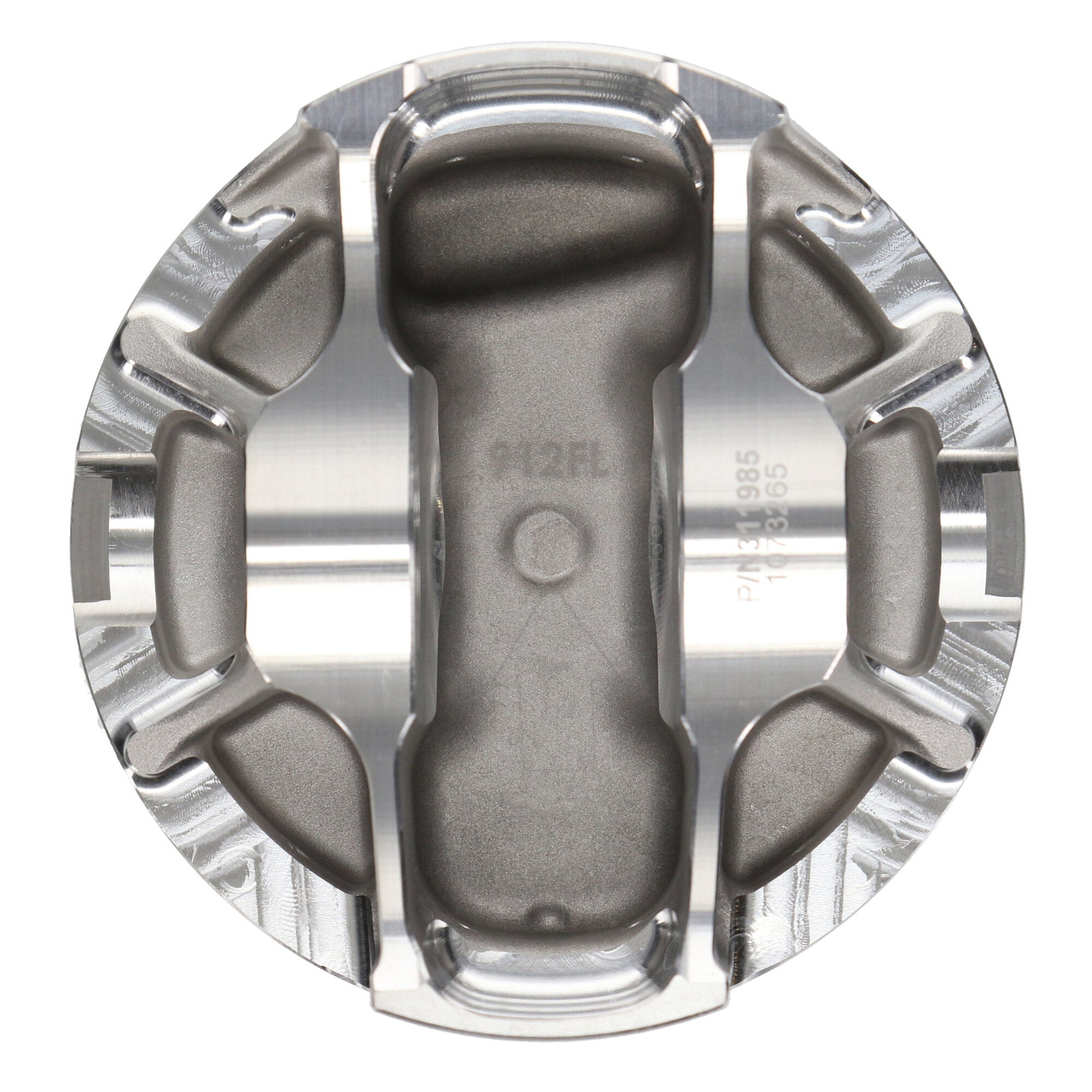

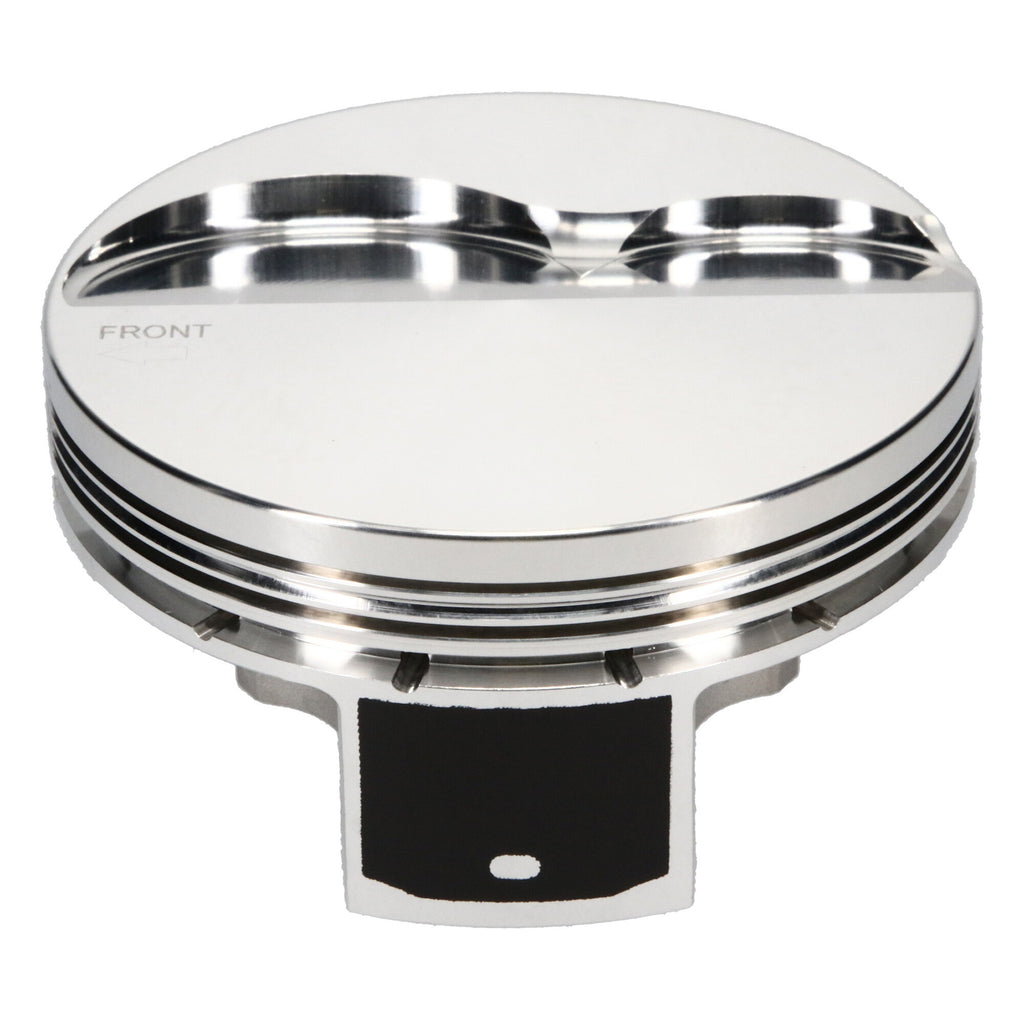

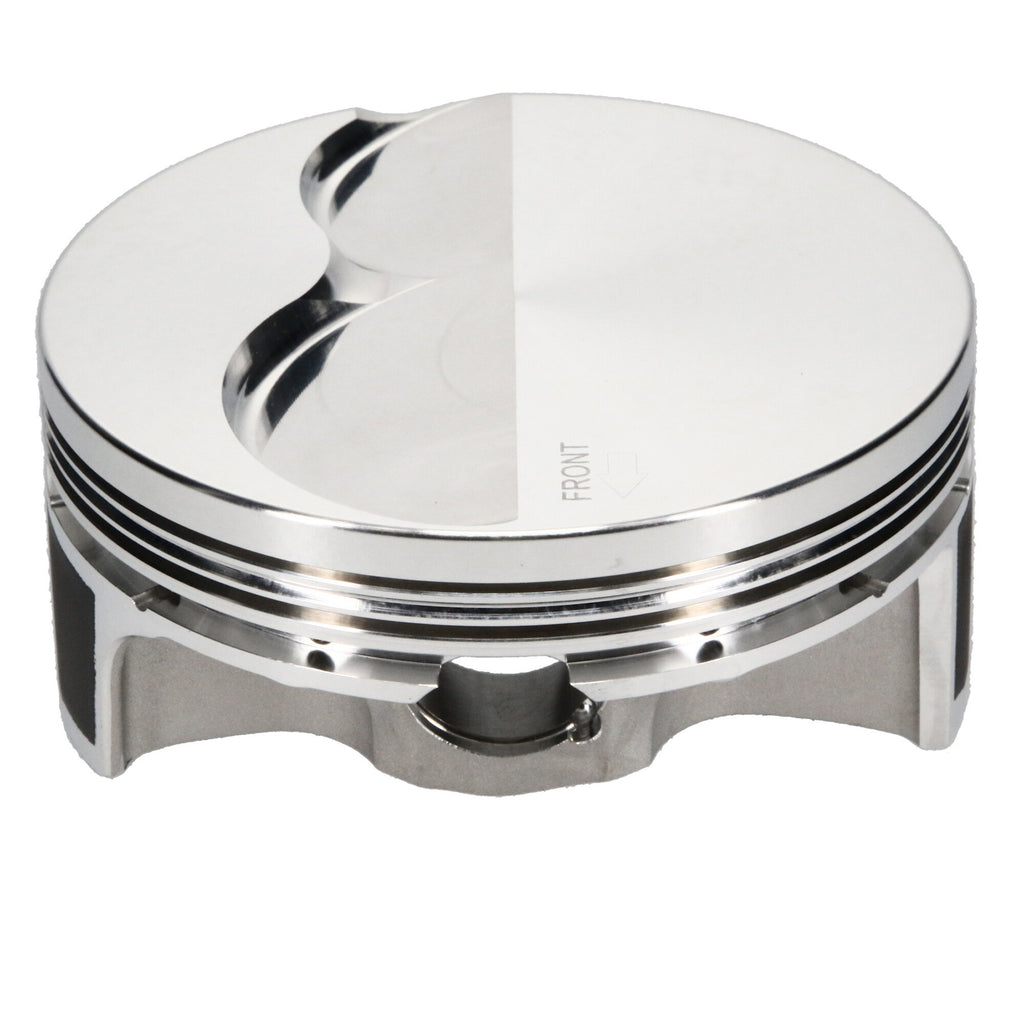

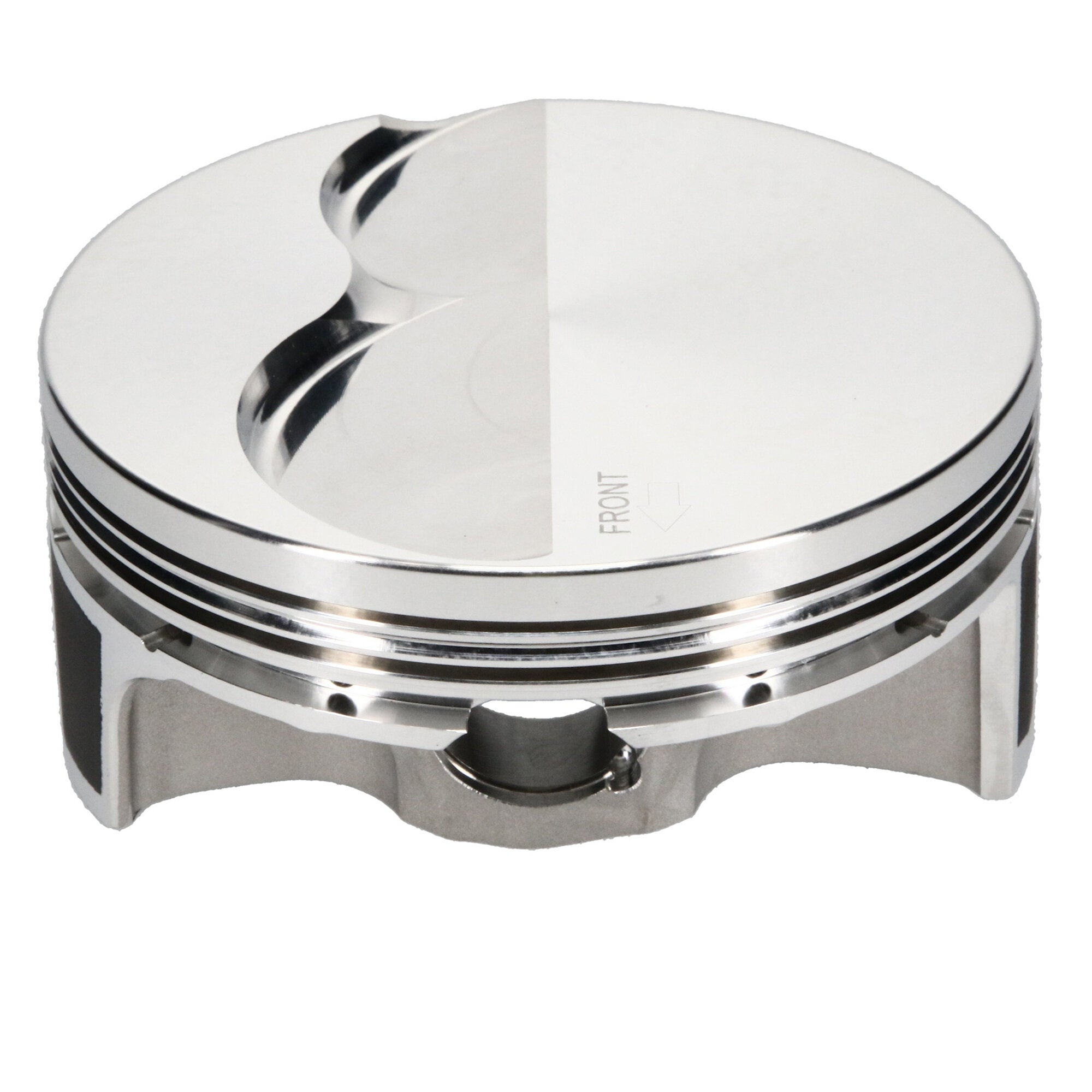

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Flat Top, 4.130 Bore, 1.050 CD, 0.927 Pin Dia, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet LS, 4.130 Bore, Flat Top, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Wrist Pin Wall Thickness |
0.170 |
| Piston Pin Outside Diameter |
0.927 |
| Engine Type |
ICE |
| Compression Height |
1.050 |
| Piston Pin Wall Thickness |
0.170 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
LS Gen III/IV |
| Piston Pin Material |
5115 |
| Title |
SRP Pro 4032 - Chevrolet, LS Gen III/IV, 4.130 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Bore Diameter |
4.130 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-5.00 |
| Piston Head Type |
Flat Top |
| Title - Web |
SRP Pro 4032 Chevrolet LS Gen III/IV Piston Kit - 4.130 in. Bore - 1.050 in. CH, -5.00 CC |
| Piston Series |
SRP Pro 4032 |
| Piston Material |
2618 |
| Add-On |
927-2250-17-51C |
| Out of Stock Message |
Call for Availibility |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Make - Web |
Chevrolet |
| Engine |
LS Gen III/IV |
| Piston Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
13.0000 |
