As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K24 with K20A Head |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

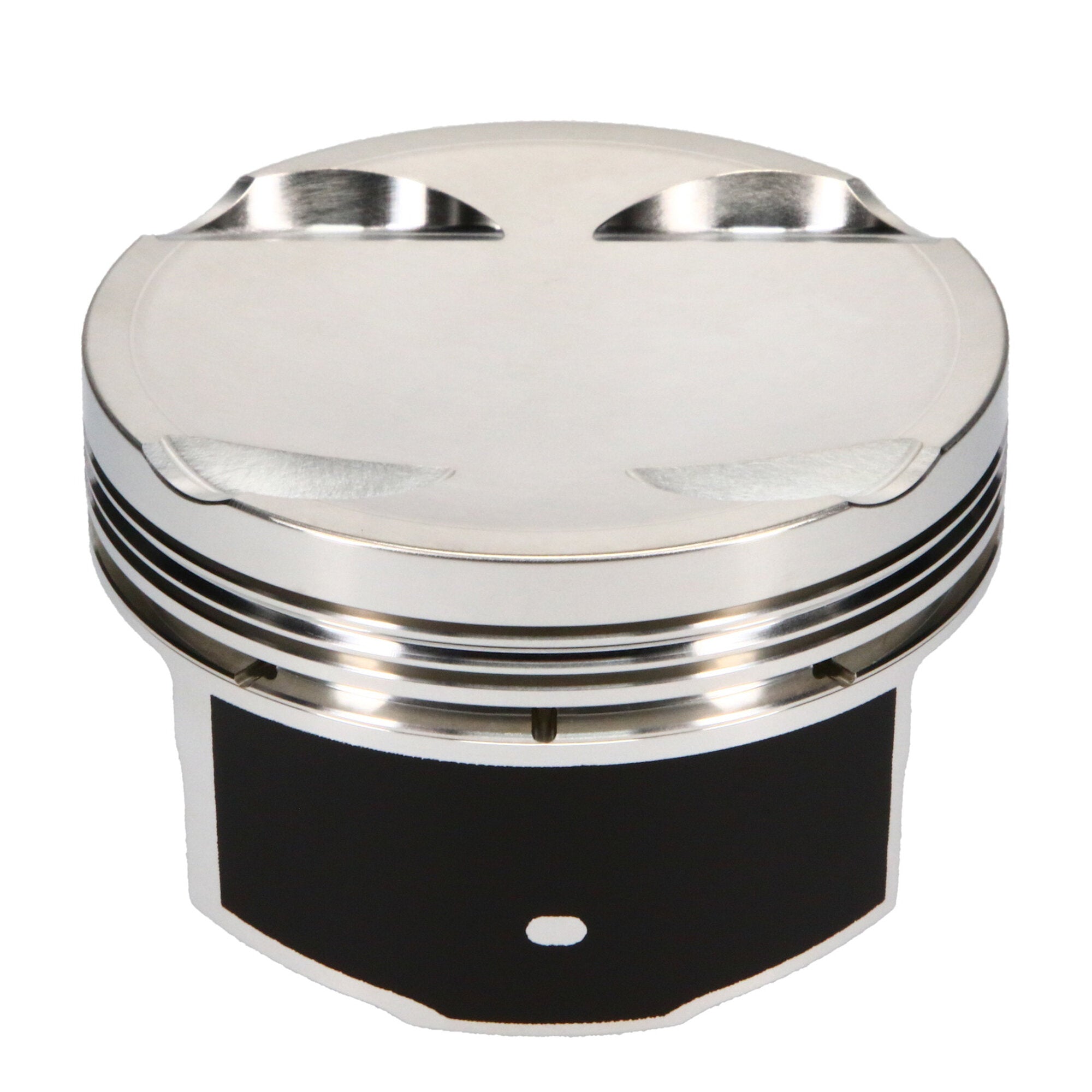

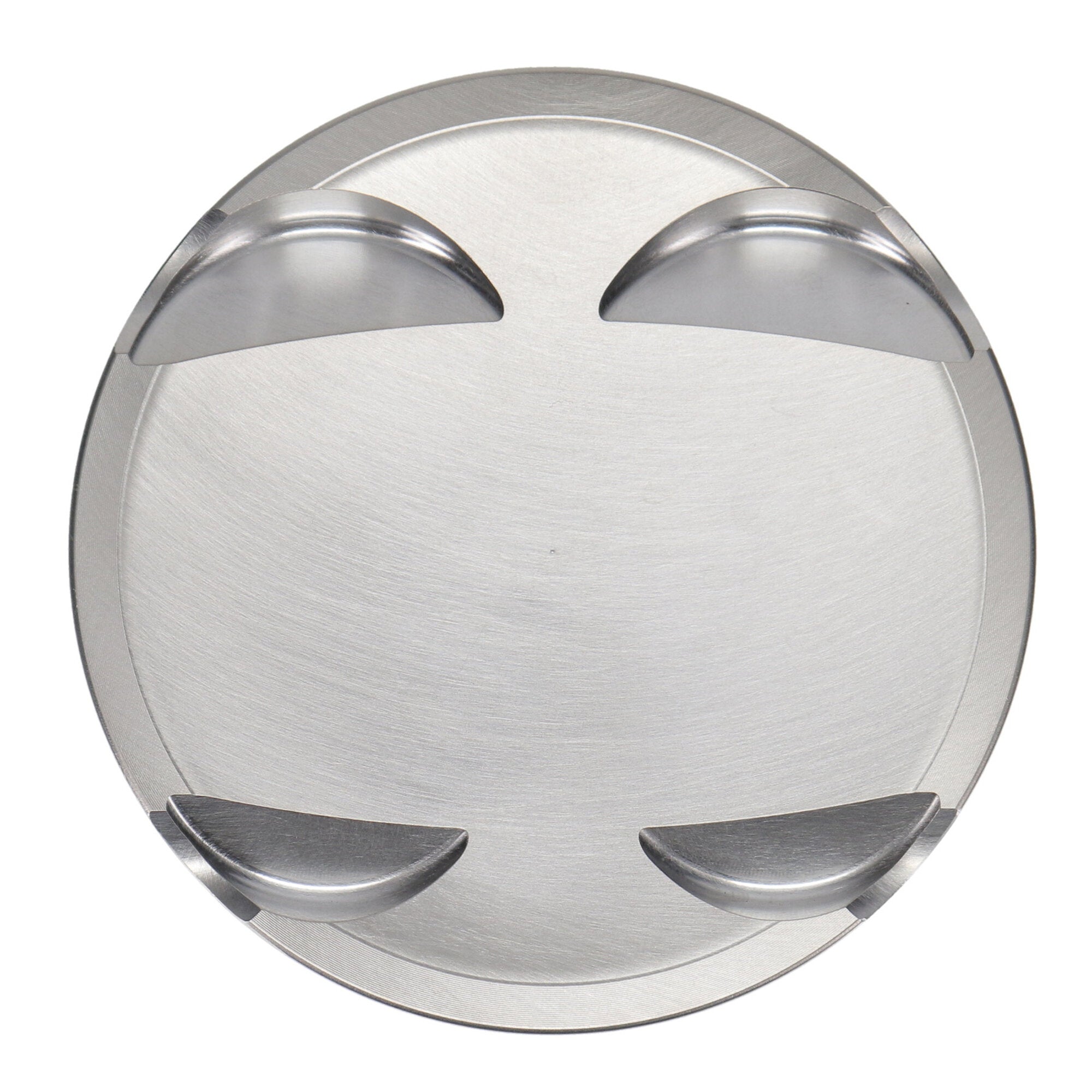

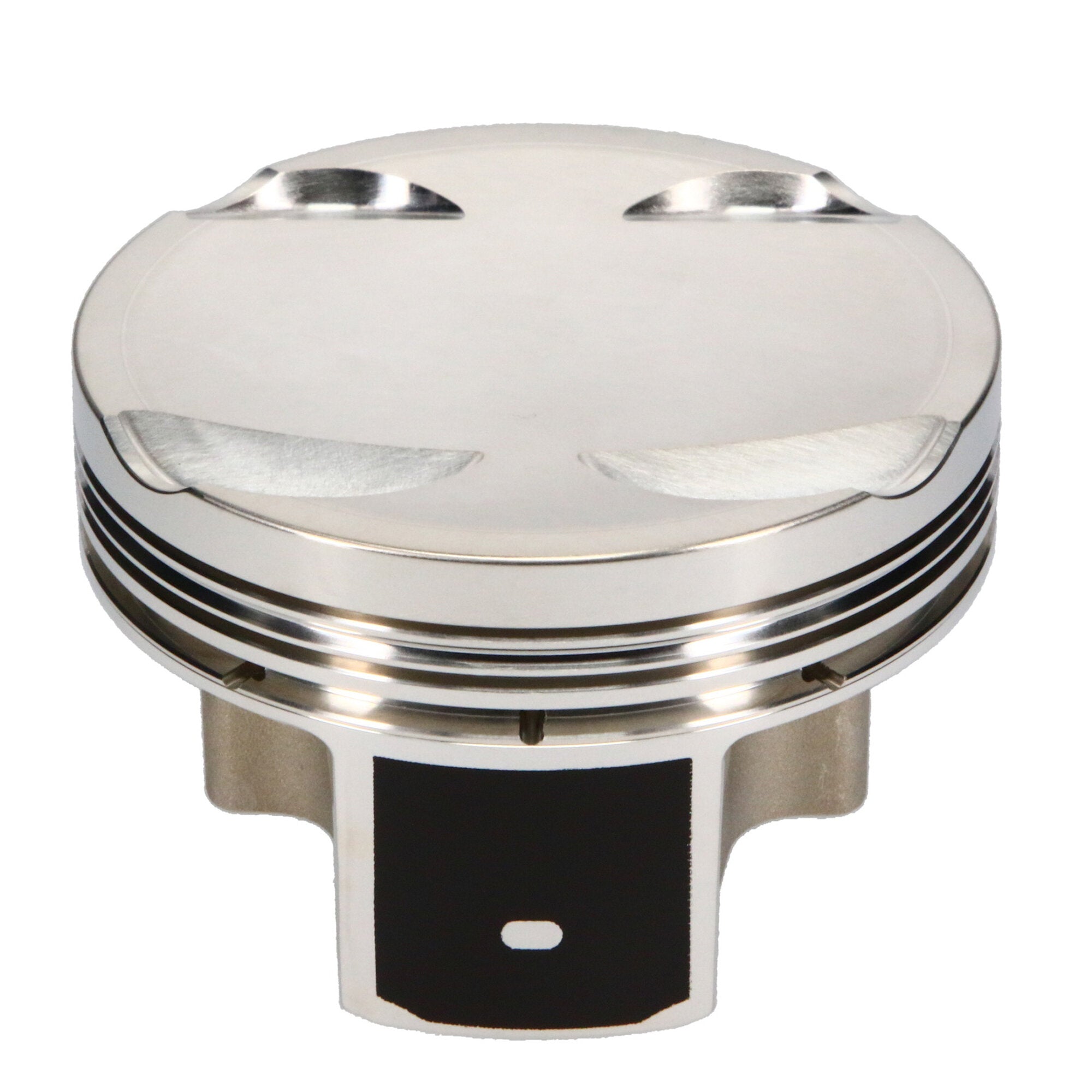

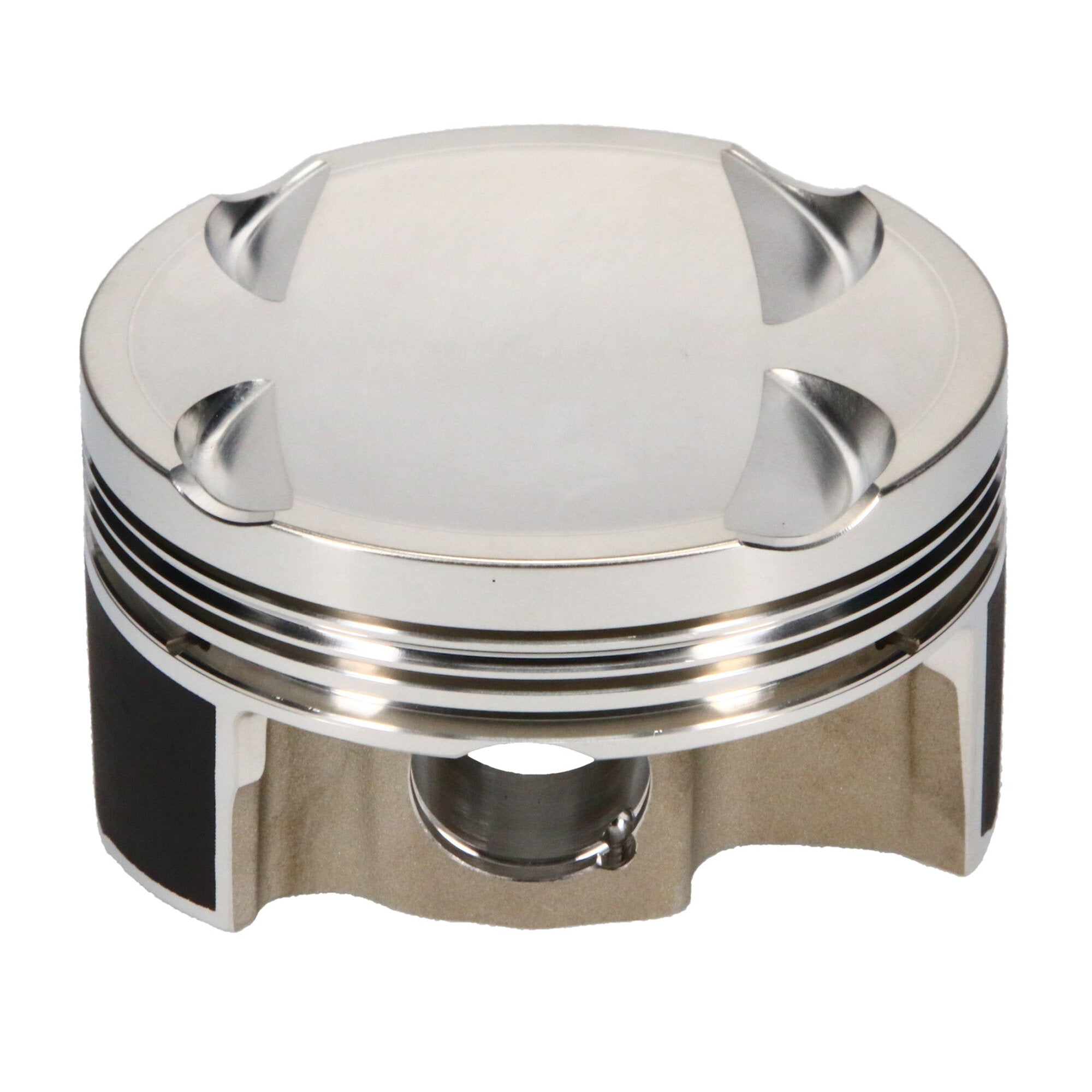

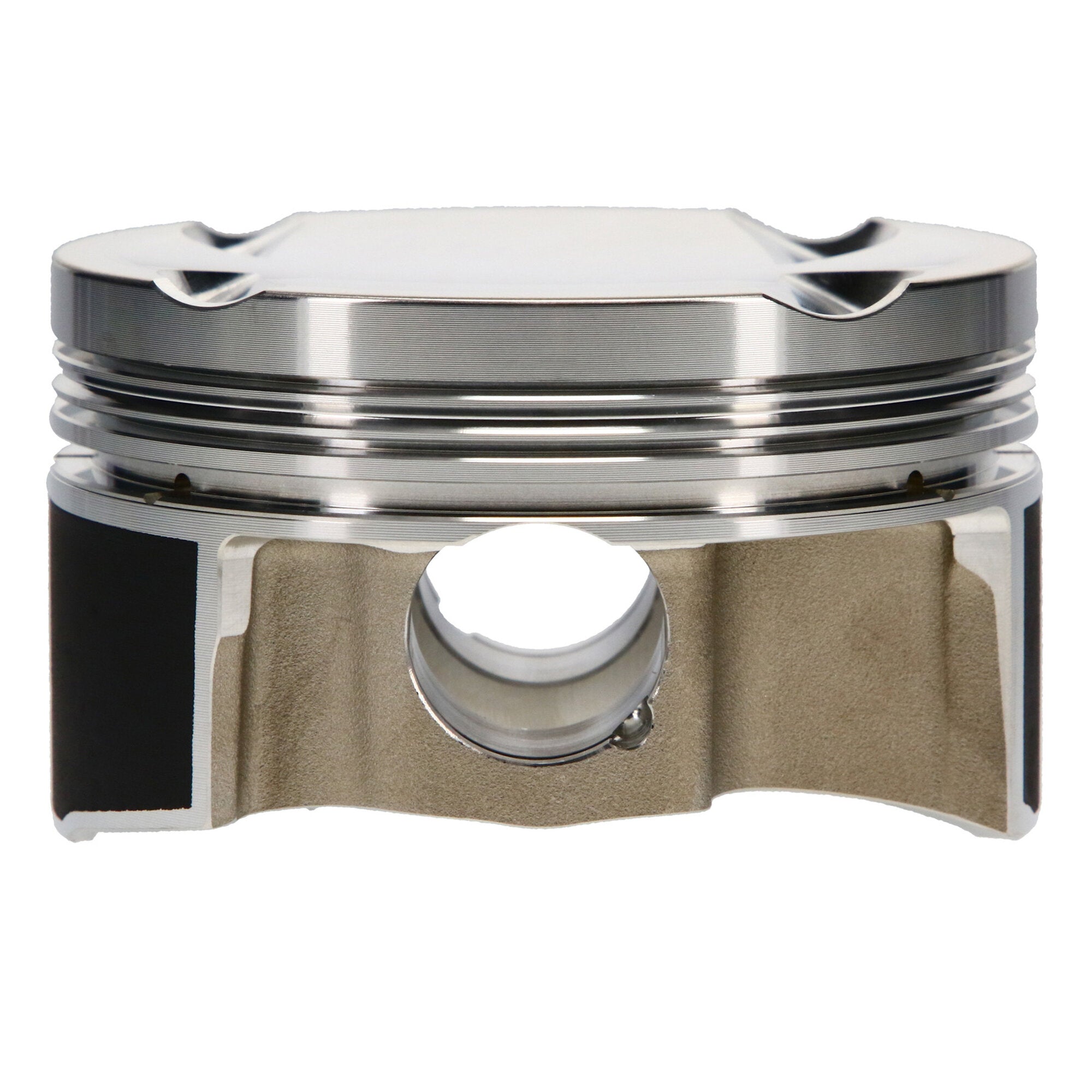

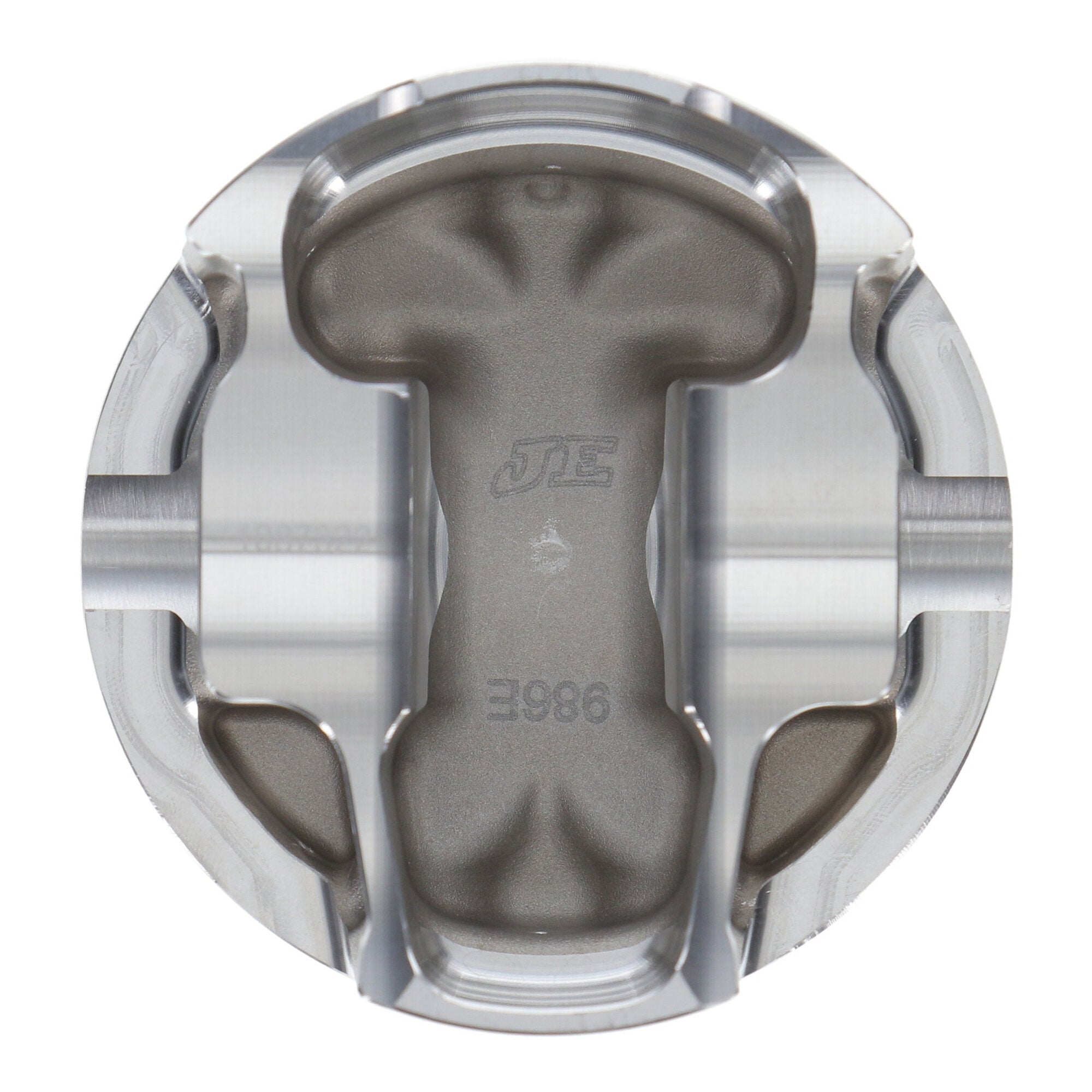

Piston Set, 2618, Inv Dome/Dish, 3.445 Bore, 1.176 CD, 0.866 Pin, Set of 4. |
| Description_EXT |
JE, Honda, K Series, 3.445 in. Bore, 10.25:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda K24, 87.50 Bore, Dish, Set of 4 |
| Compression Height |
1.176 |
| Wrist Pin Outer Diameter |
0.866 |
| Cylinder Head |
K20 |
| Title |
JE Pistons - Honda, K Series, 87.50 mm Bore, Piston Kit |
| Engine - Web |
K Series |
| Bore Diameter |
87.50 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Material |
2618 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Outside Diameter |
0.866 |
| Product Market |
Sport Compact |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Pin Wall Thickness |
0.180 |
| Make |
HONDA |
| Add-On |
JG1001-3445 |
| Piston Quantity |
4 |
| Add-On |
866-2250-18-51C |
| Add-On |
866-063-MW |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Title - Web |
JE Pistons Honda K Series Piston Kit - 87.50 mm Bore - 1.176 in. CH, -8.10 CC |
| Piston Series |
JE Pistons |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-8.10 |
| Engine |
K SERIES |
| Second Compression Ring Thickness |
0.0480 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Make - Web |
Honda |
| Piston Pin Material |
5115 |
| Piston Pin Length |
2.250 |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Ringset Included |
Yes |
| Piston Head Type |
Dish |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
