As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DES |

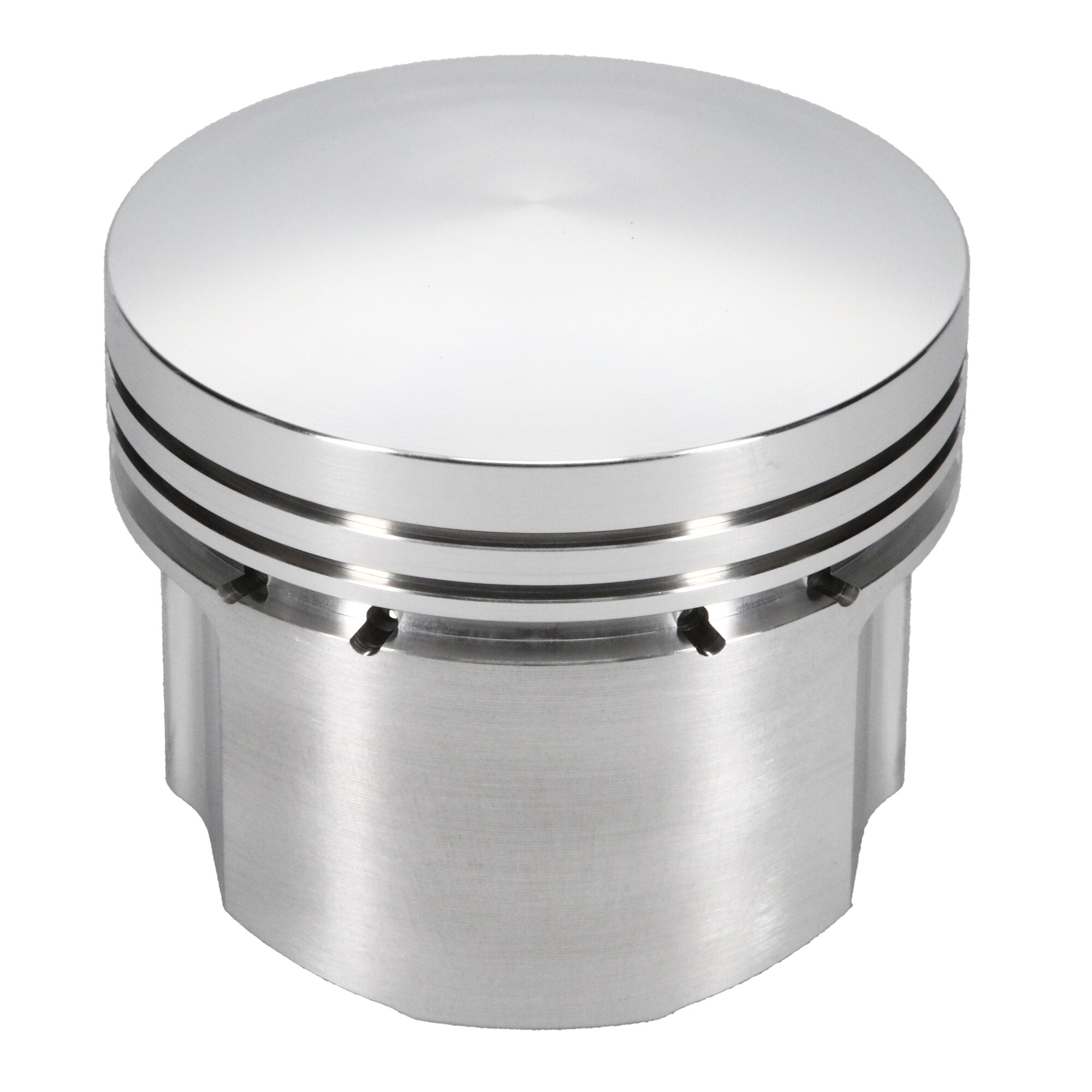

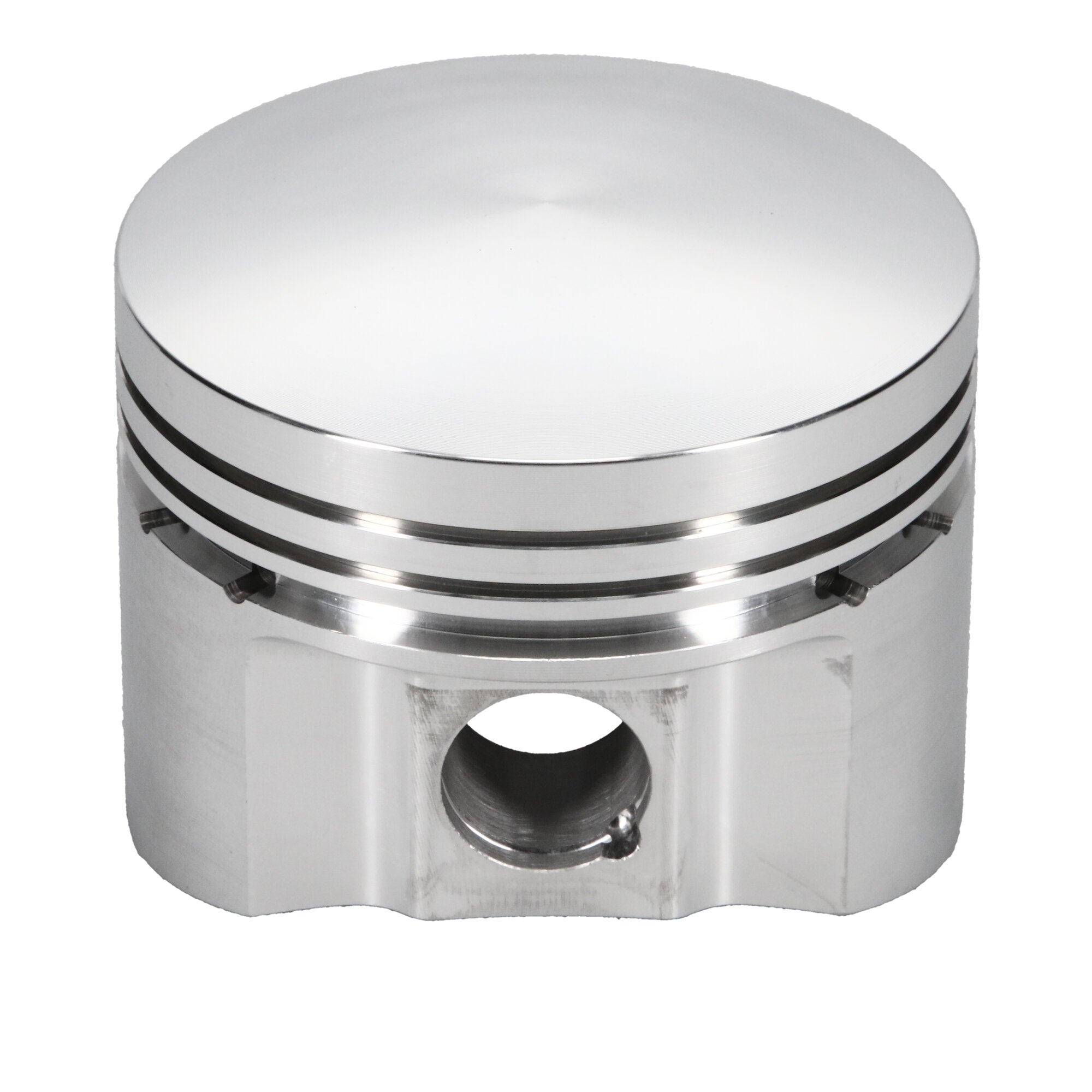

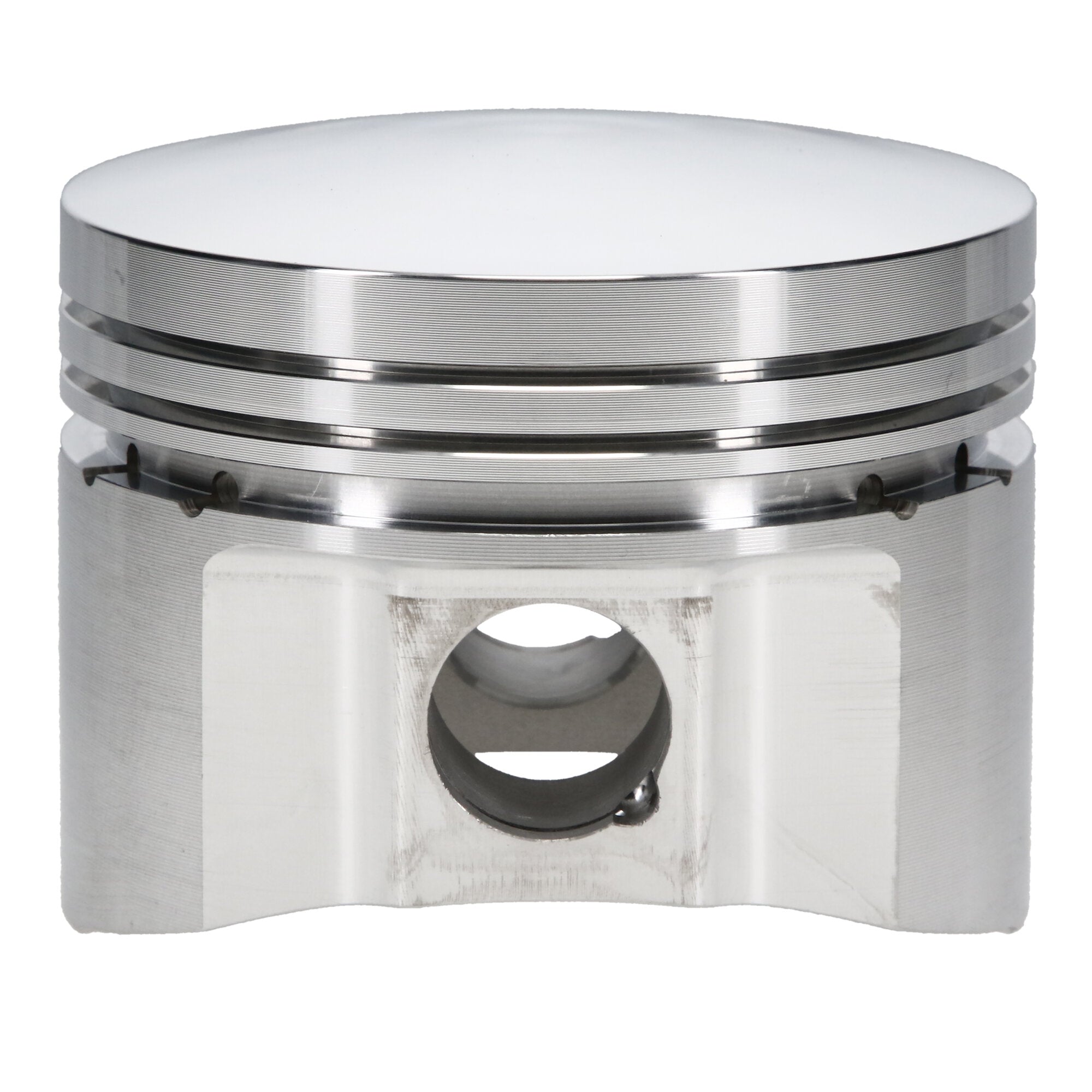

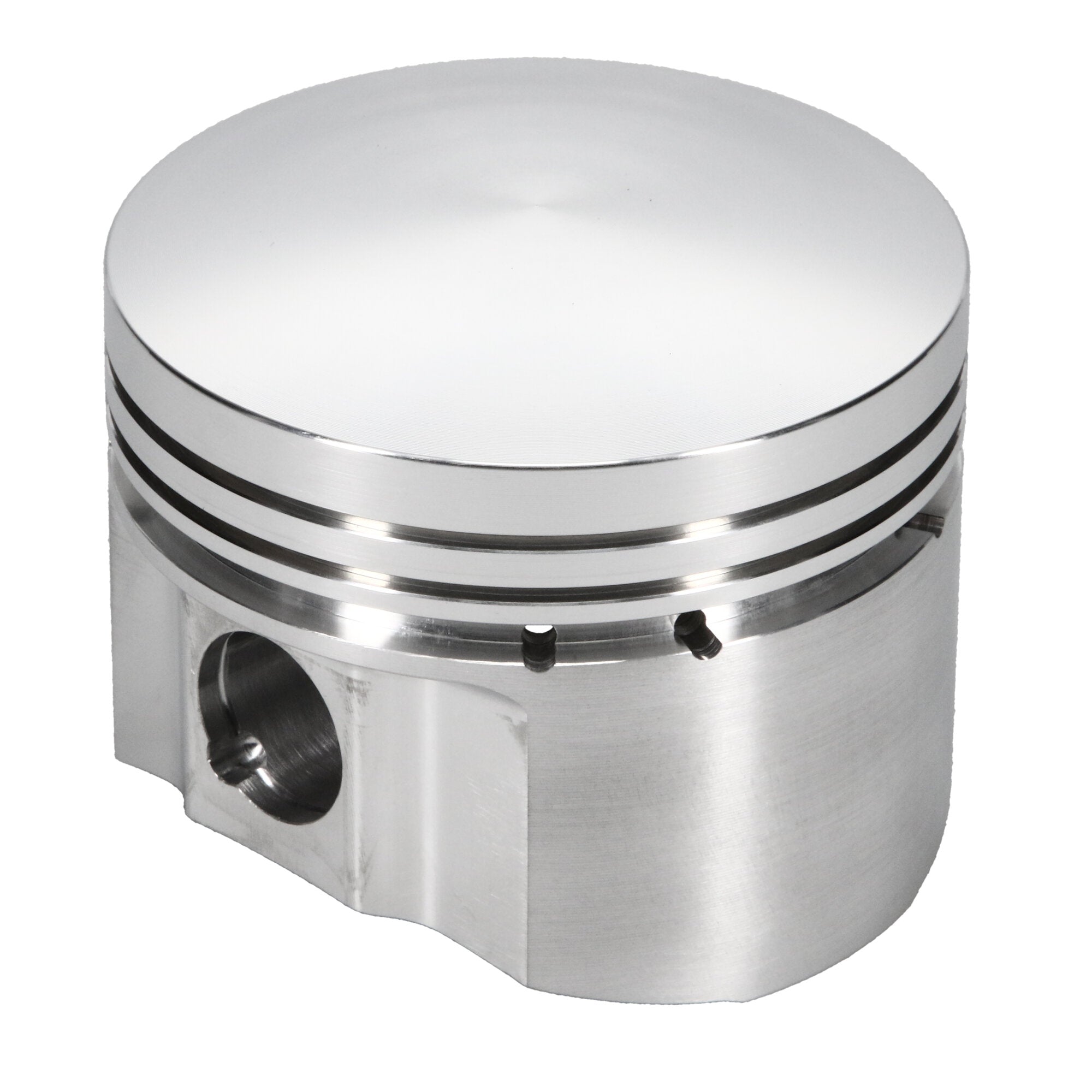

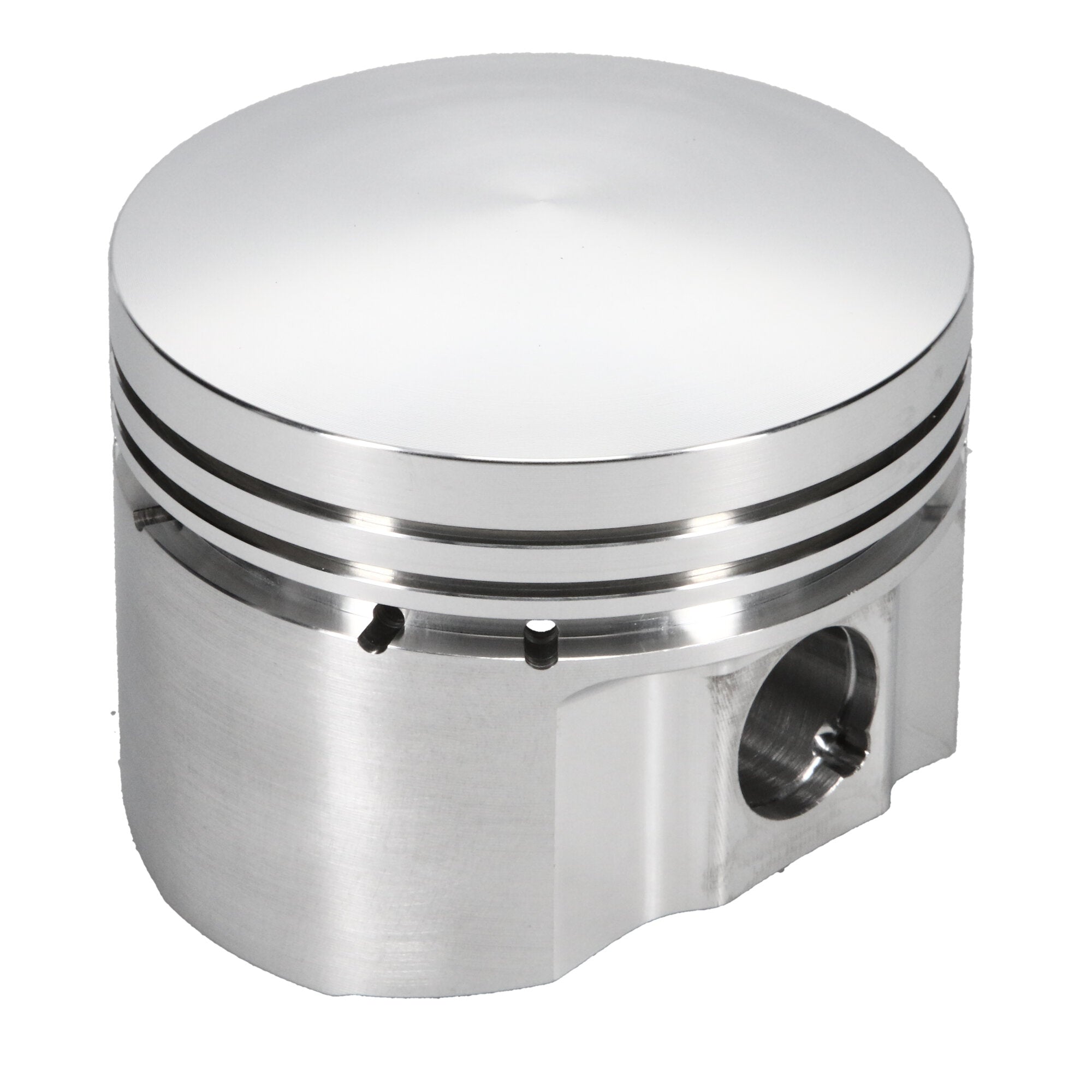

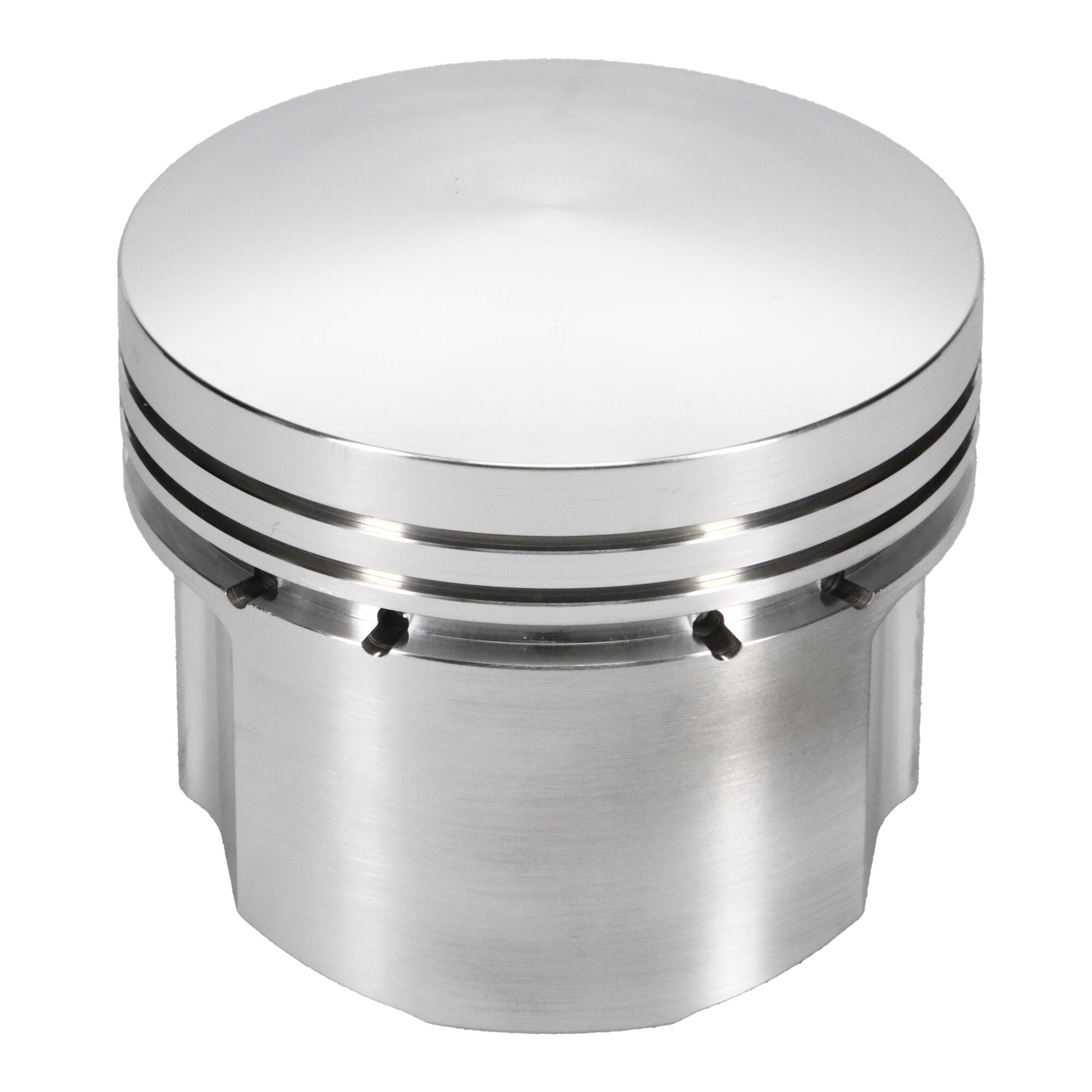

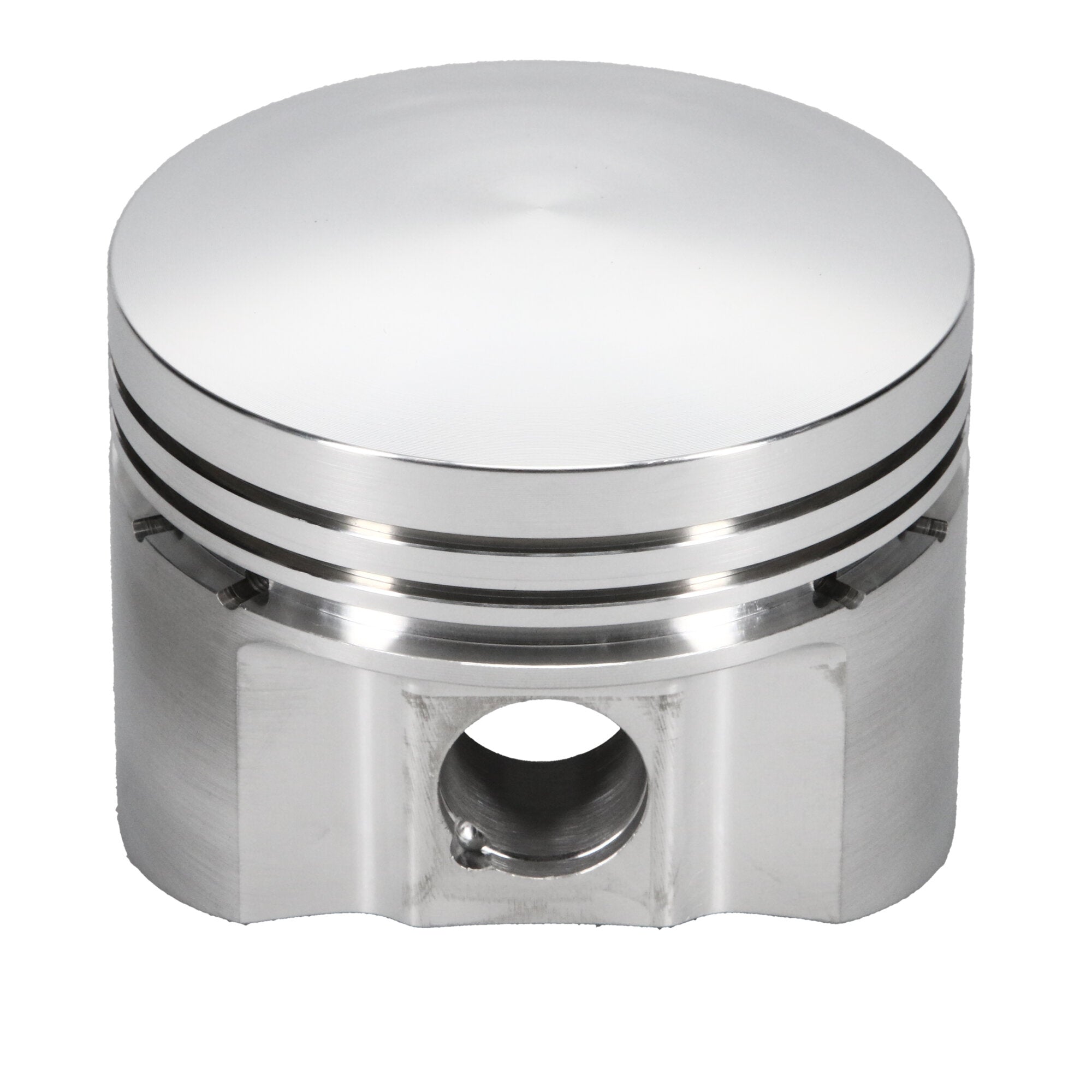

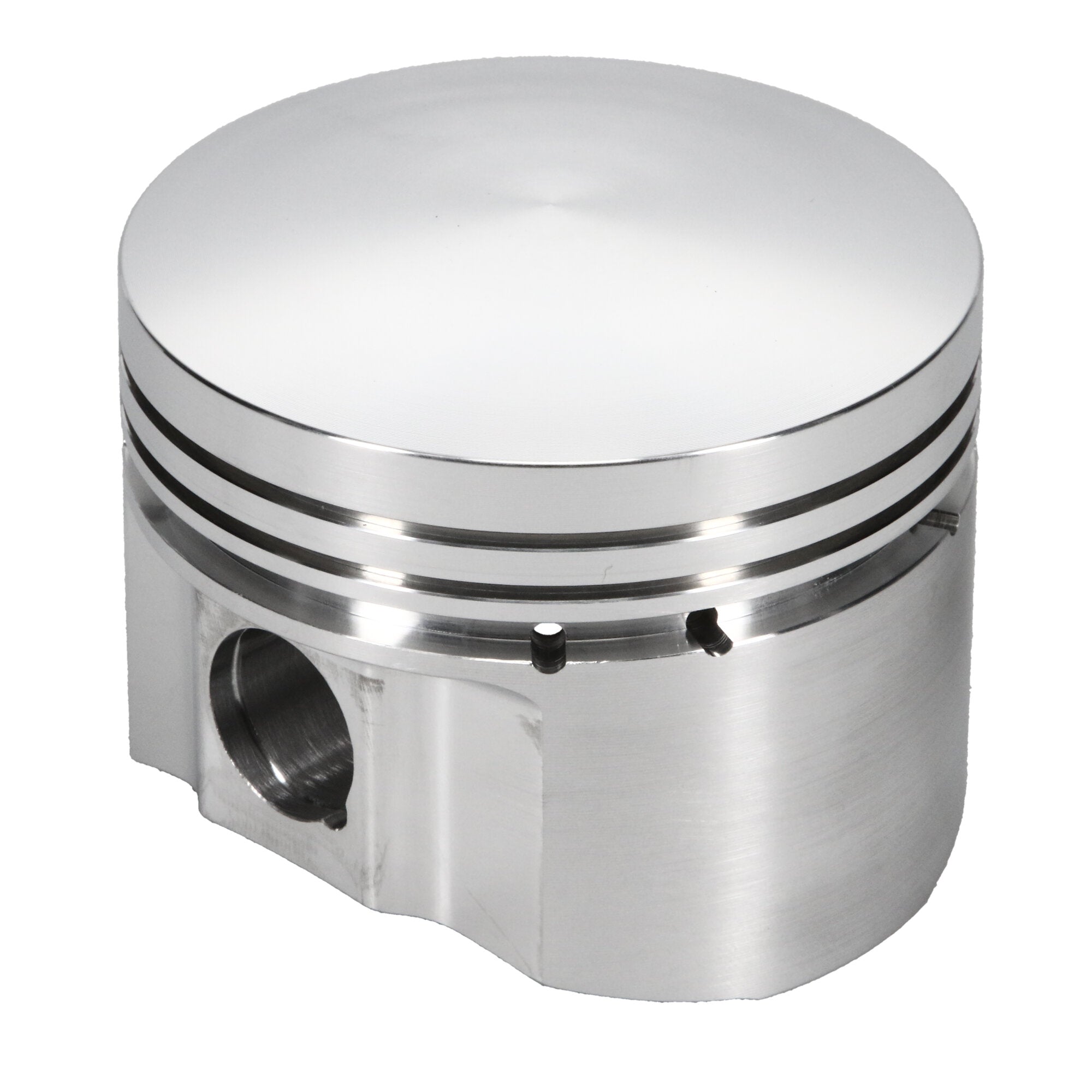

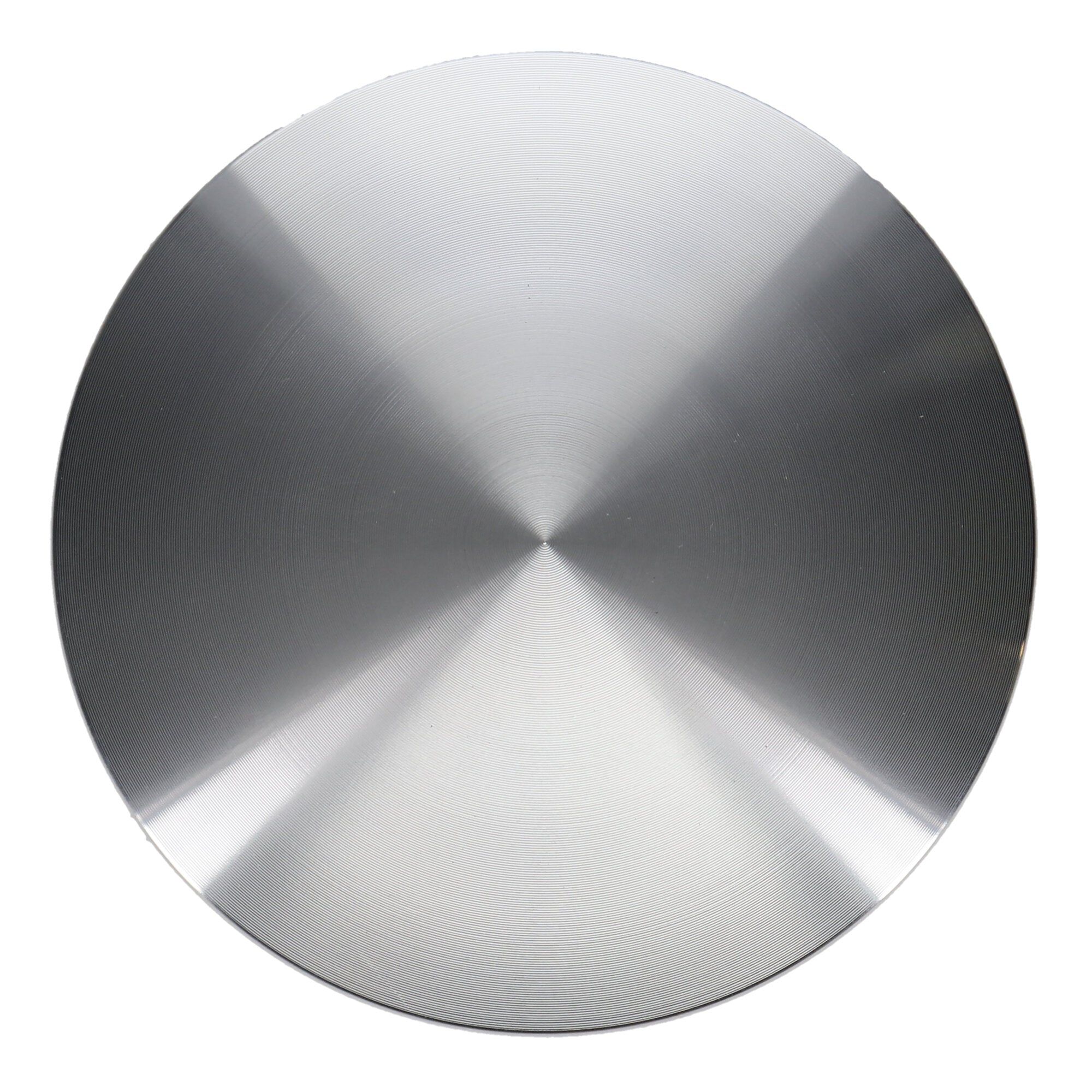

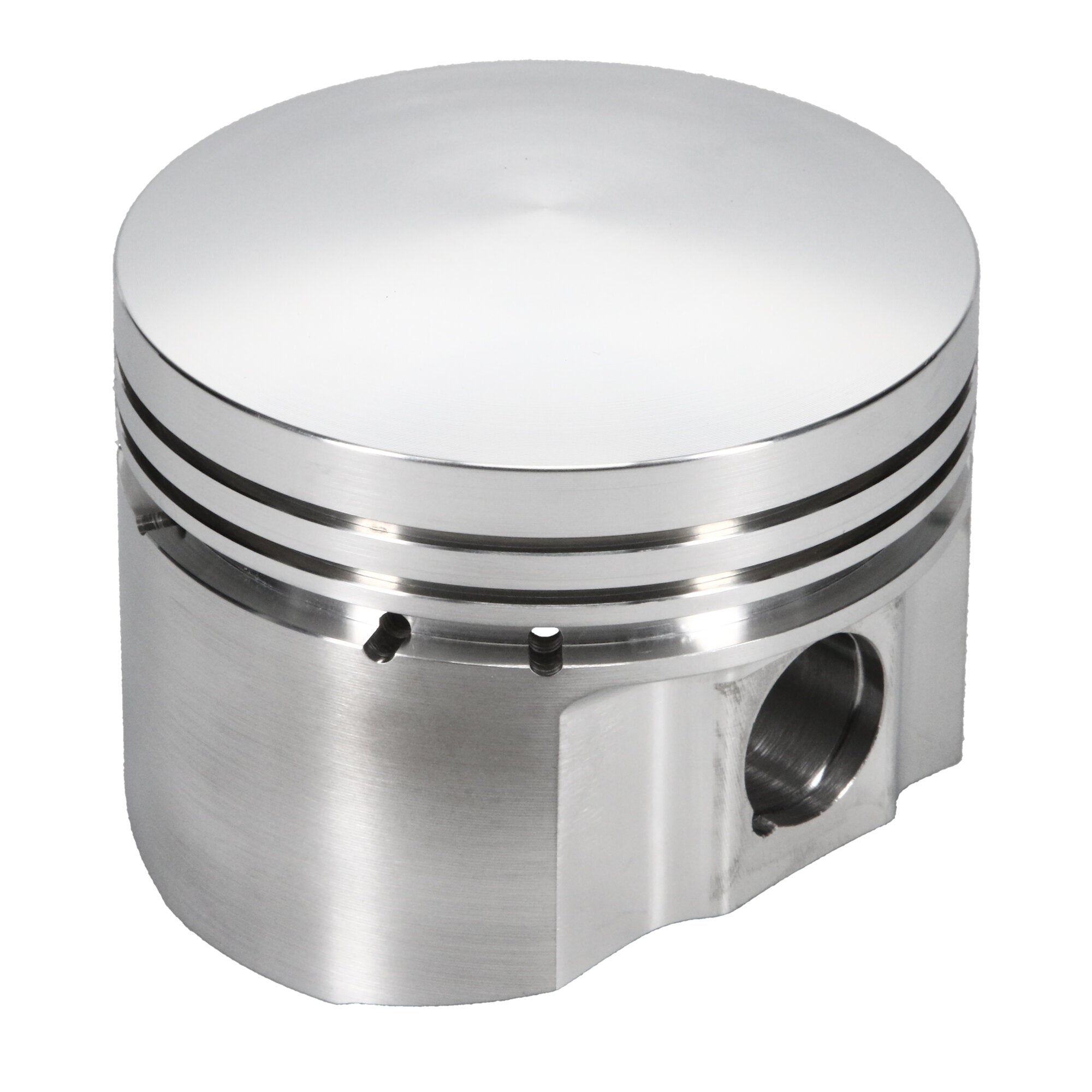

Piston Set, 4032, Dome, 3.342 Bore, 1.374 CD, 0.750 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Flathead, 3.342 in. Bore, 1.374 CD, Dome, 8 Cyl. Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.342 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Top Compression Ring Thickness |
0.5950 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.140 |
| Bore Diameter |
3.342 |
| Compression Height |
1.374 |
| Piston Quantity |
8 |
| Cylinder Head |
FLATHEAD |
| Piston Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.750 |
| Piston Material |
4032 |
| Make |
FORD |
| Title |
JE Pistons - Ford, Flathead, 3.342 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.750 |
| Ring Set Included |
Yes |
| Engine - Web |
Flathead |
| Add-On |
750-2500-14-51C |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
748-050-MW |
| Piston Volume |
0.00 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Add-On |
J641F8-3346 |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Ford |
| Wrist Pin Length |
2.500 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.342 in. Bore - 1.374 in. CH, 0.00 CC |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.500 |
| Engine |
FLATHEAD |
| Ringset Included |
Yes |
| Second Compression Ring Thickness |
0.5950 |
| Oil Ring Thickness |
0.159 |
| Forging Type |
Round |
| Engine Type |
ICE |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
