As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 6.2L Modular |
| Description_DES |

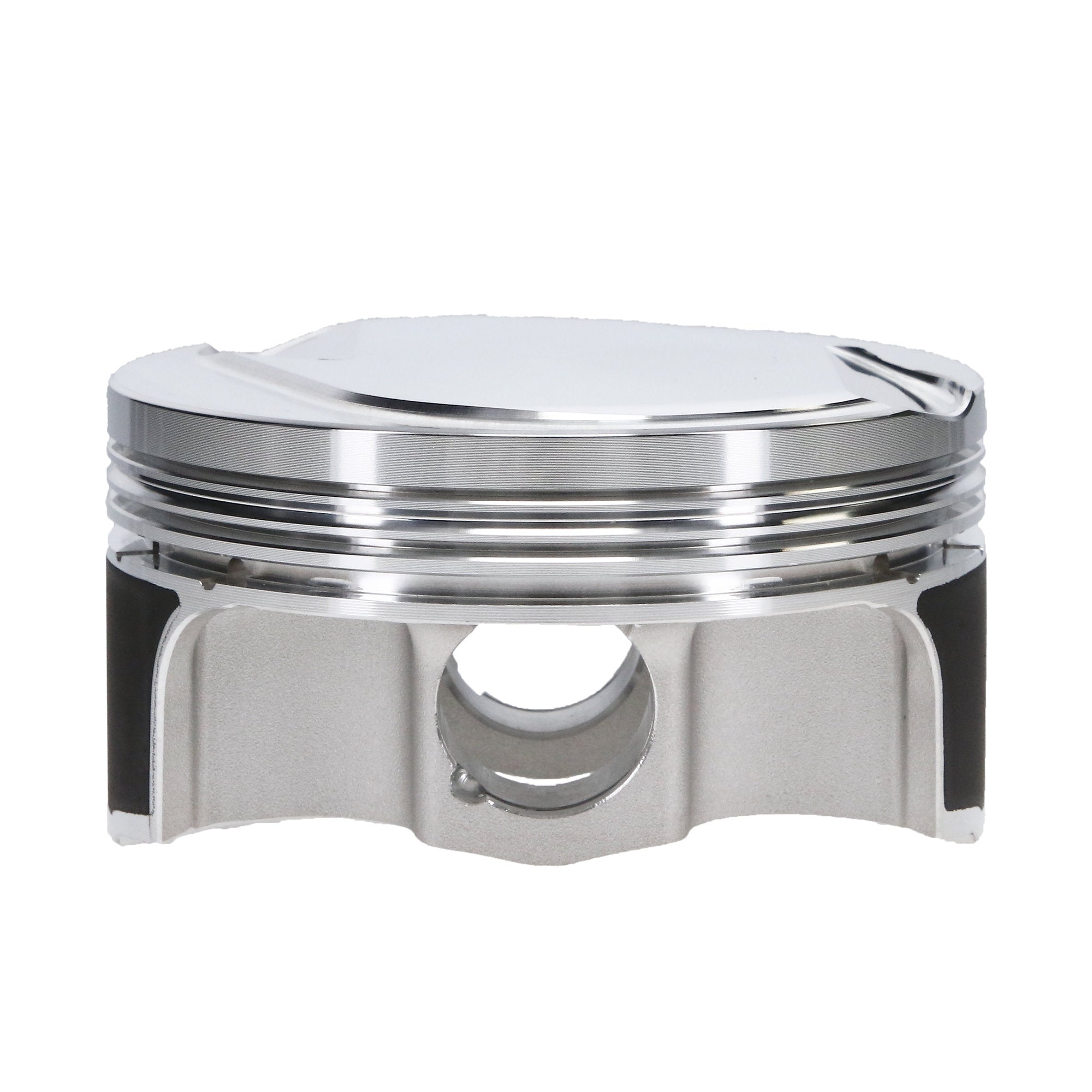

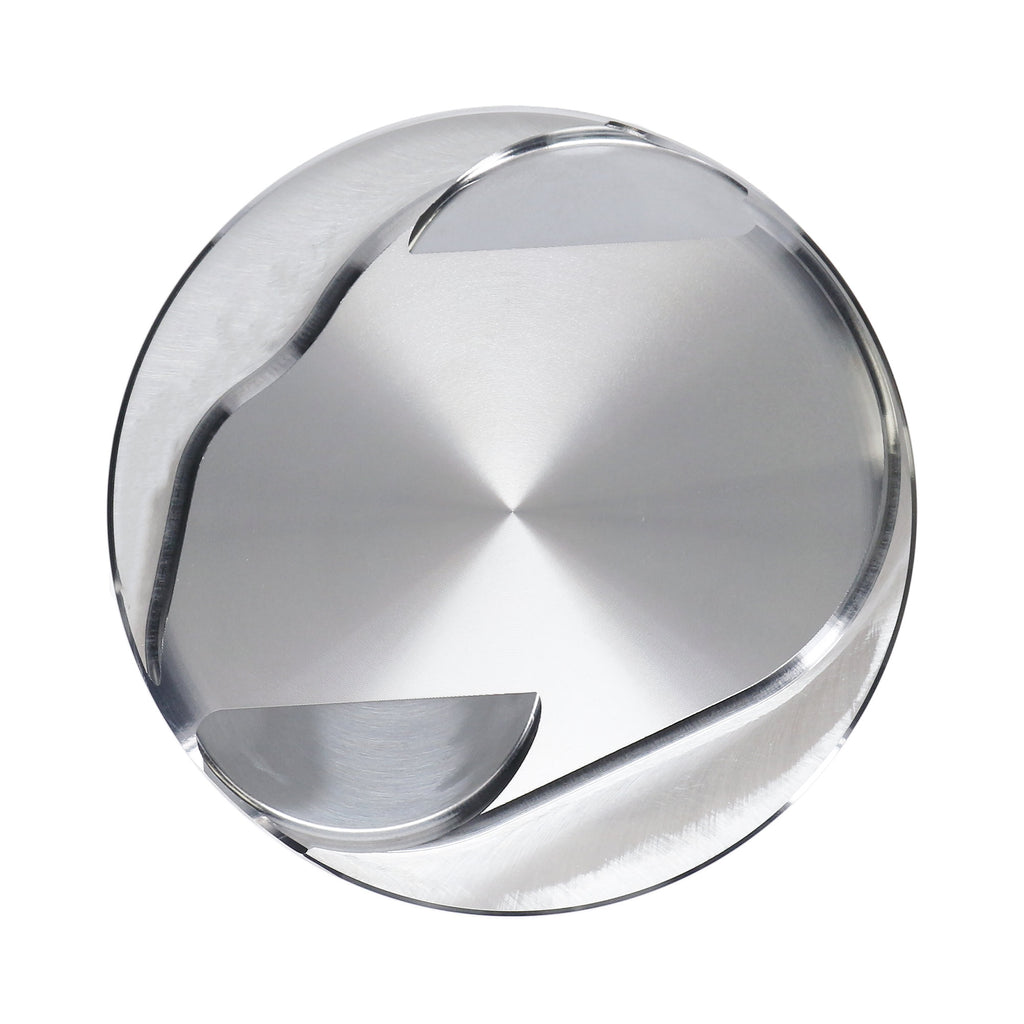

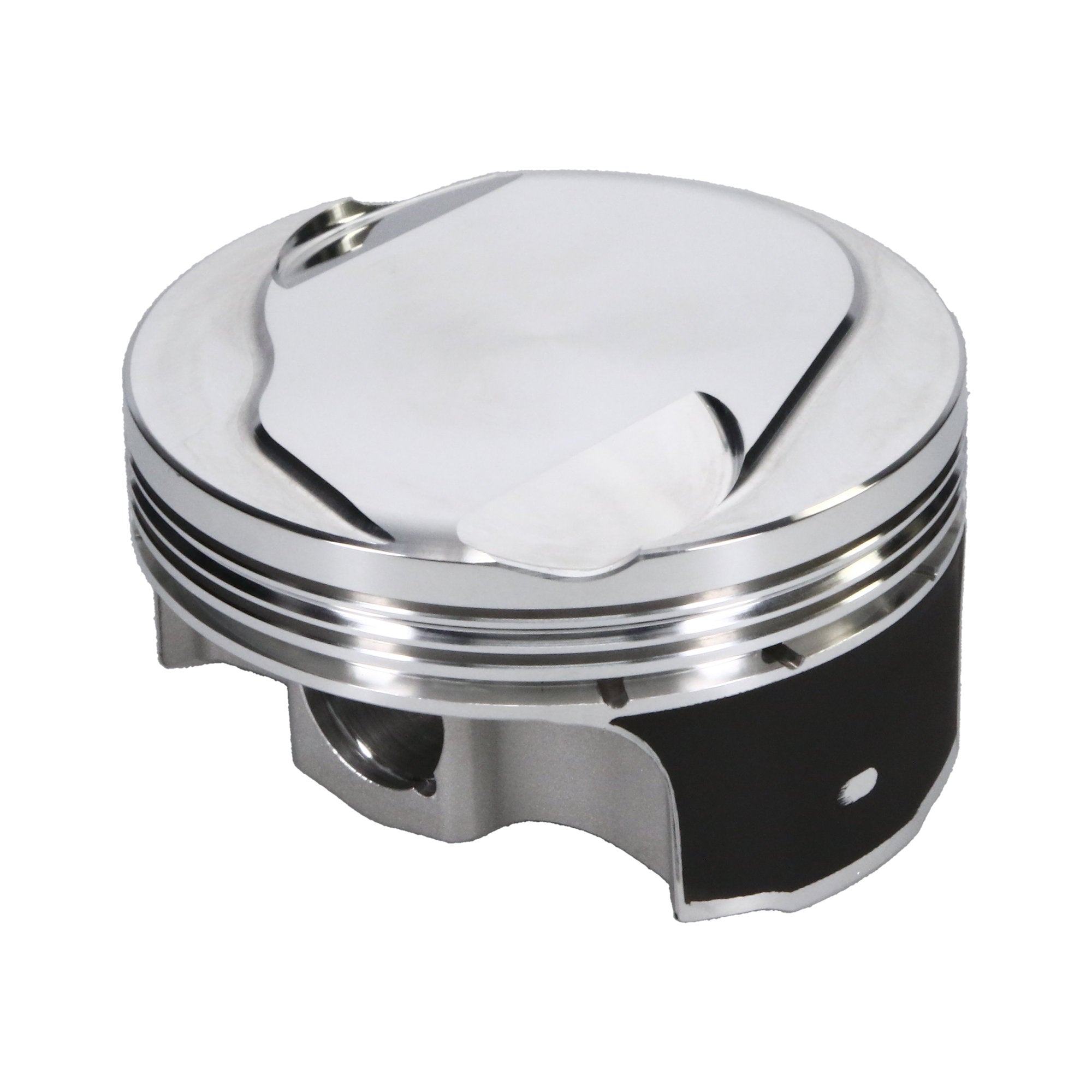

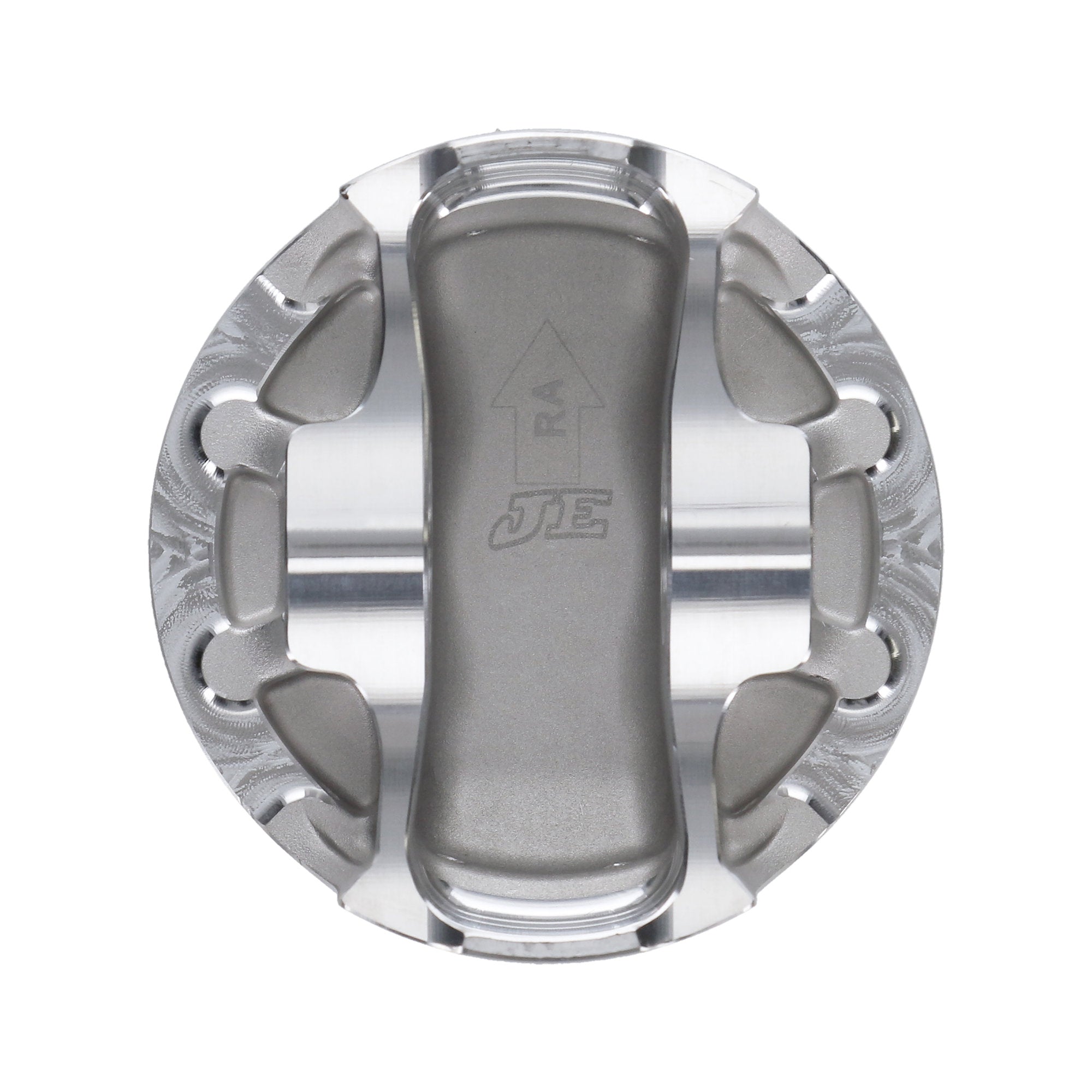

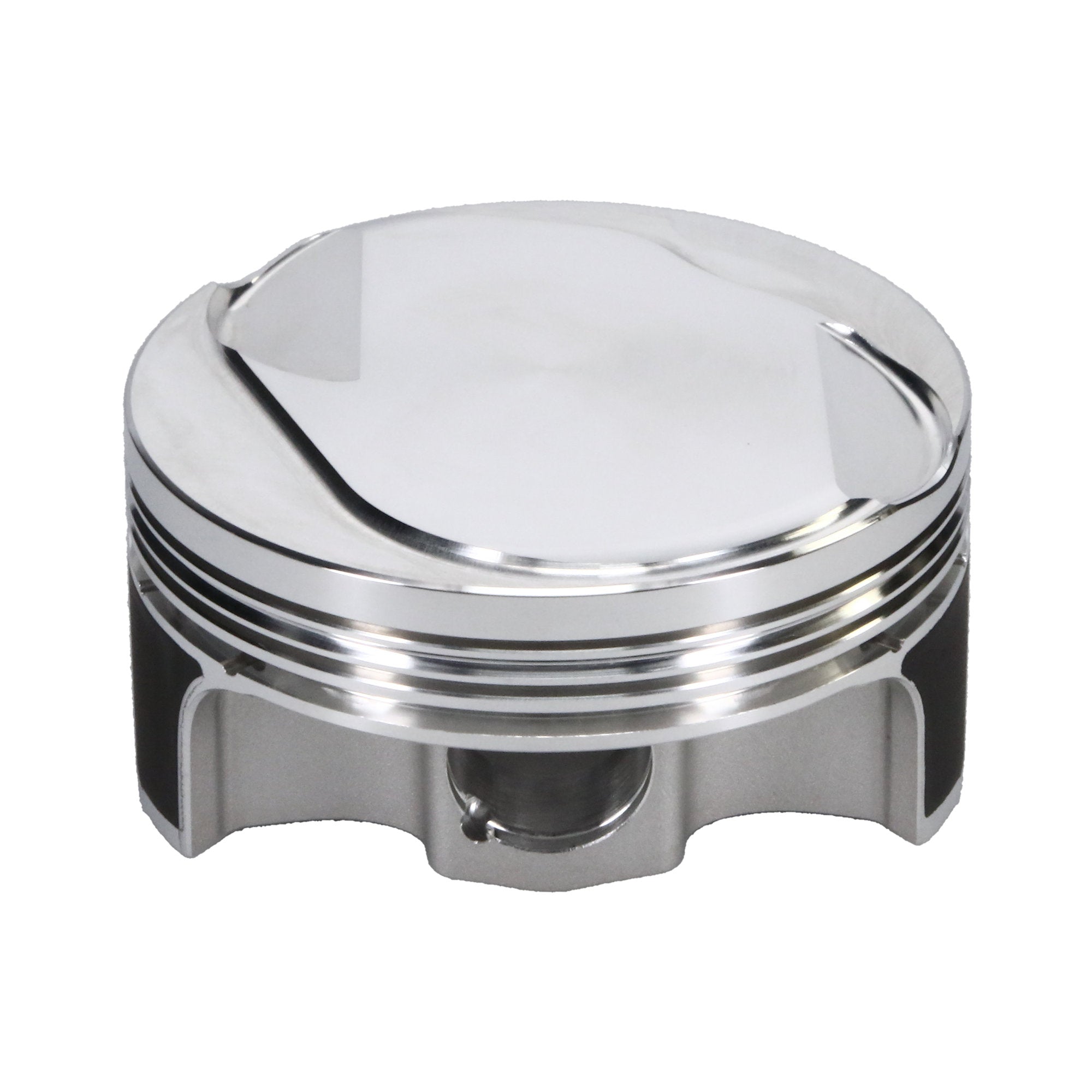

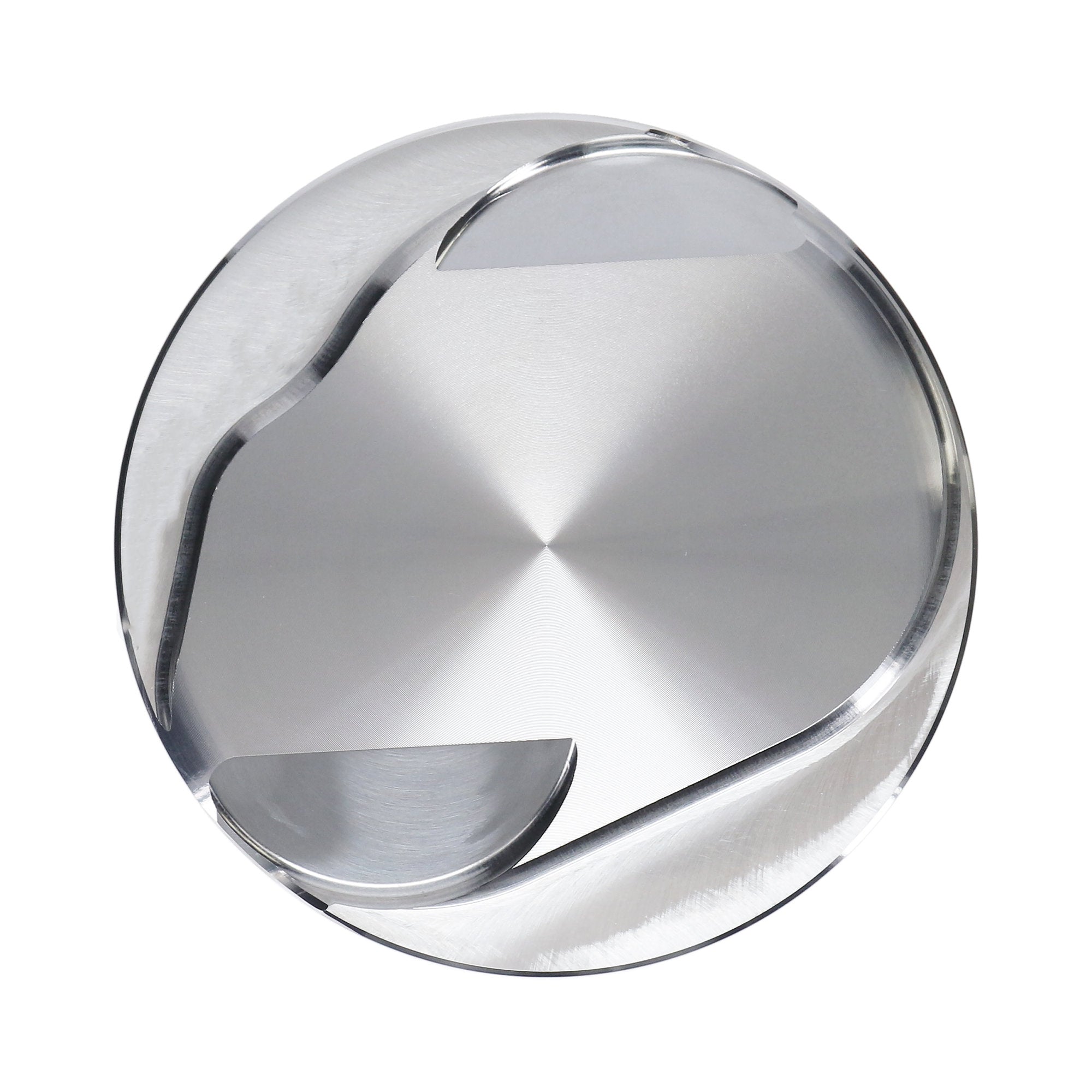

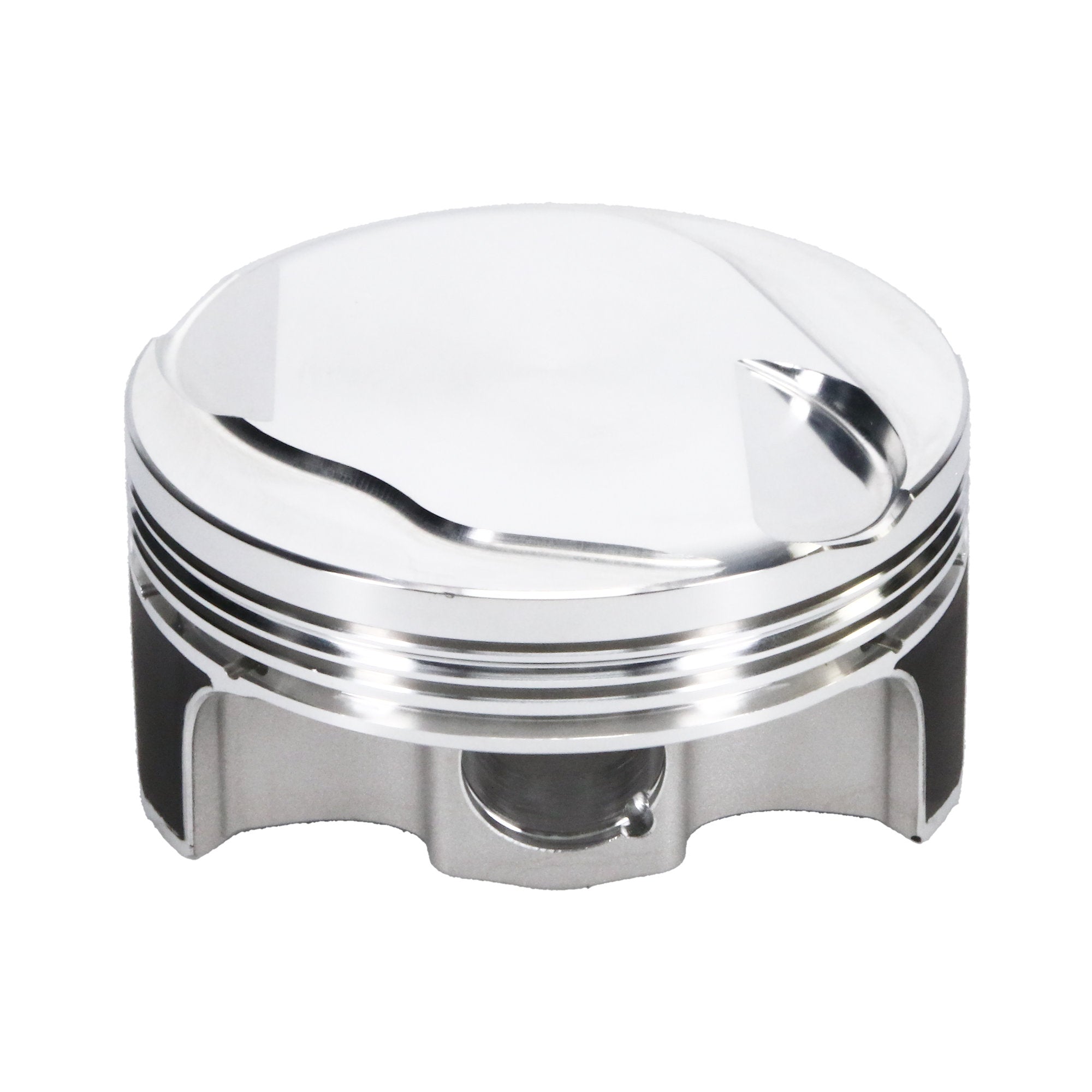

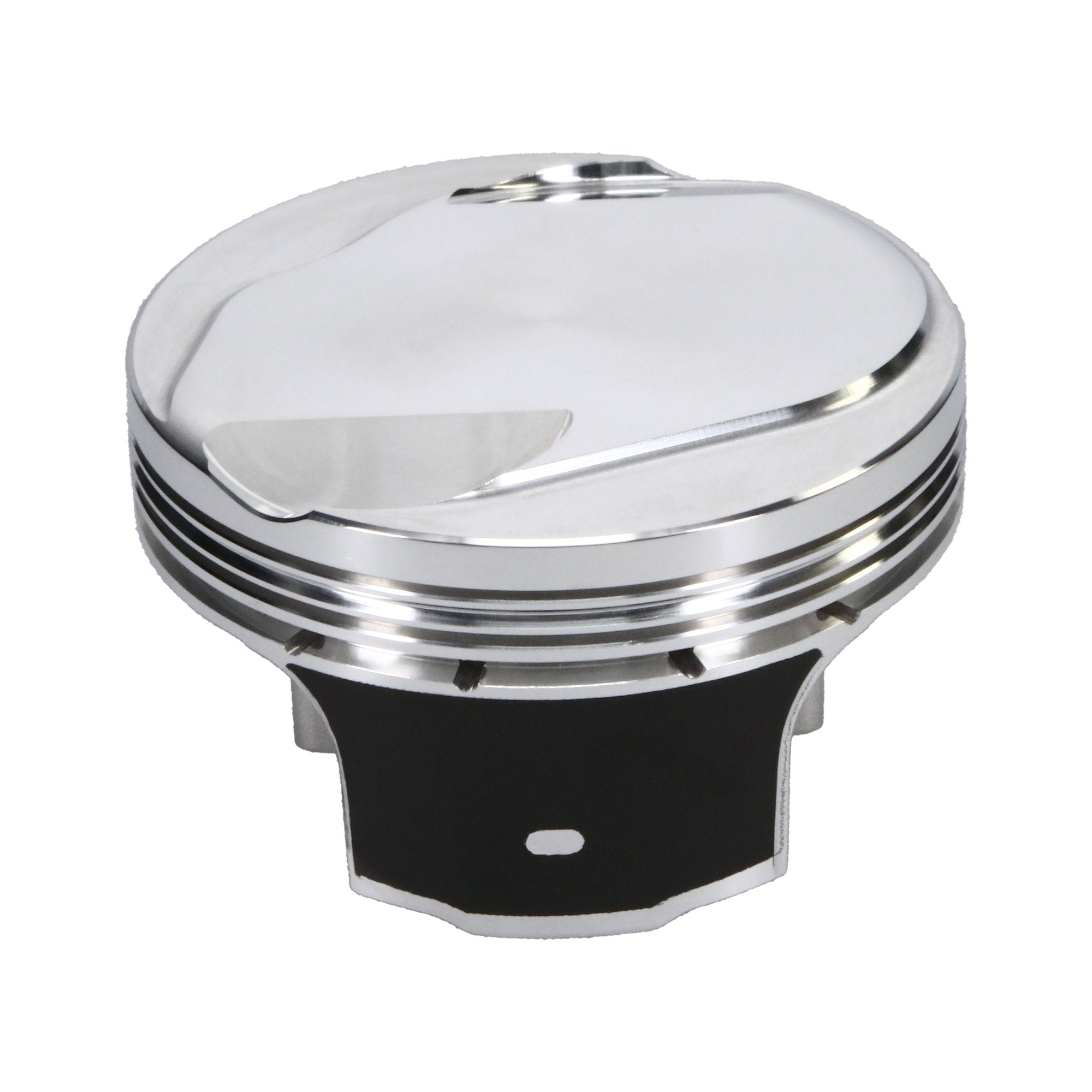

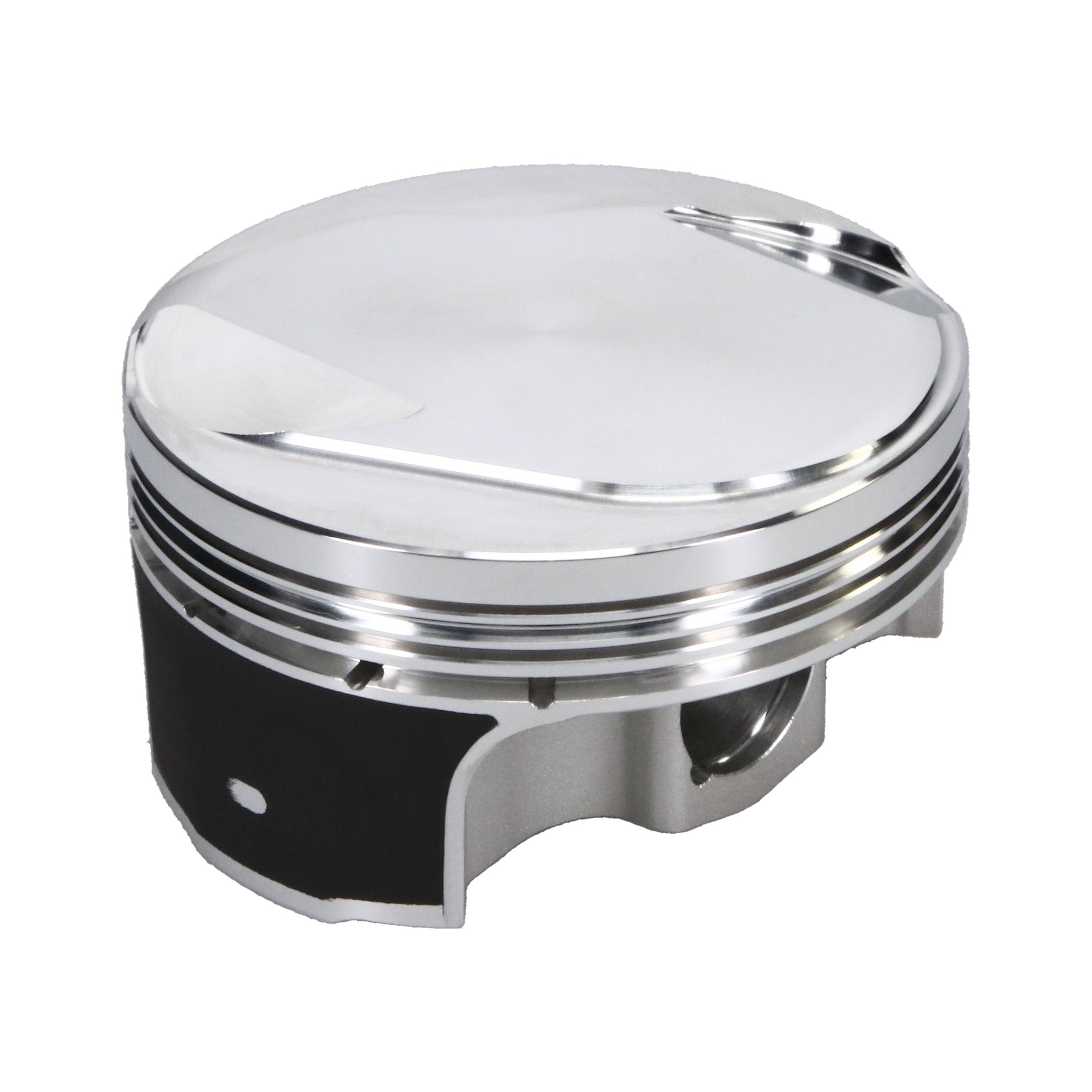

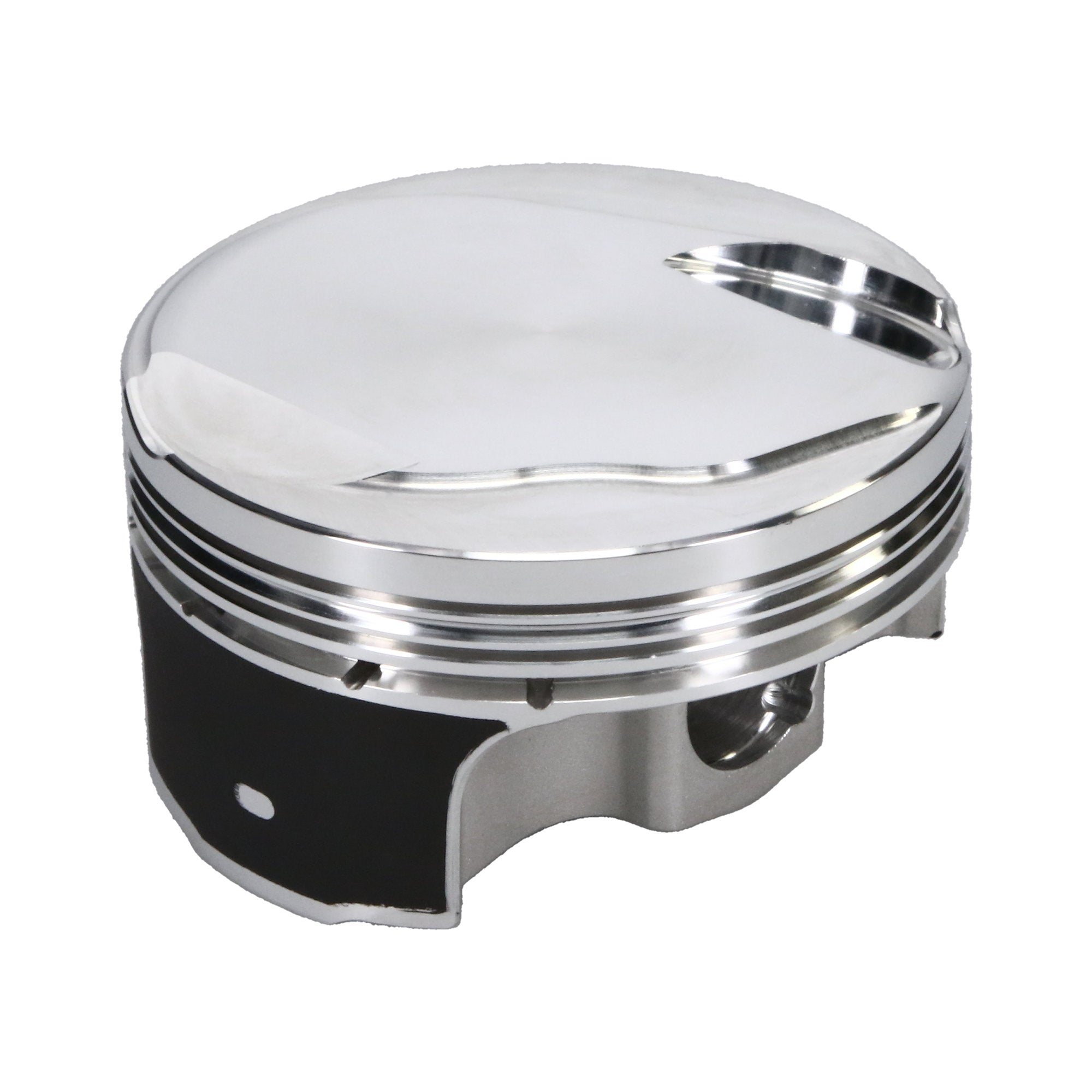

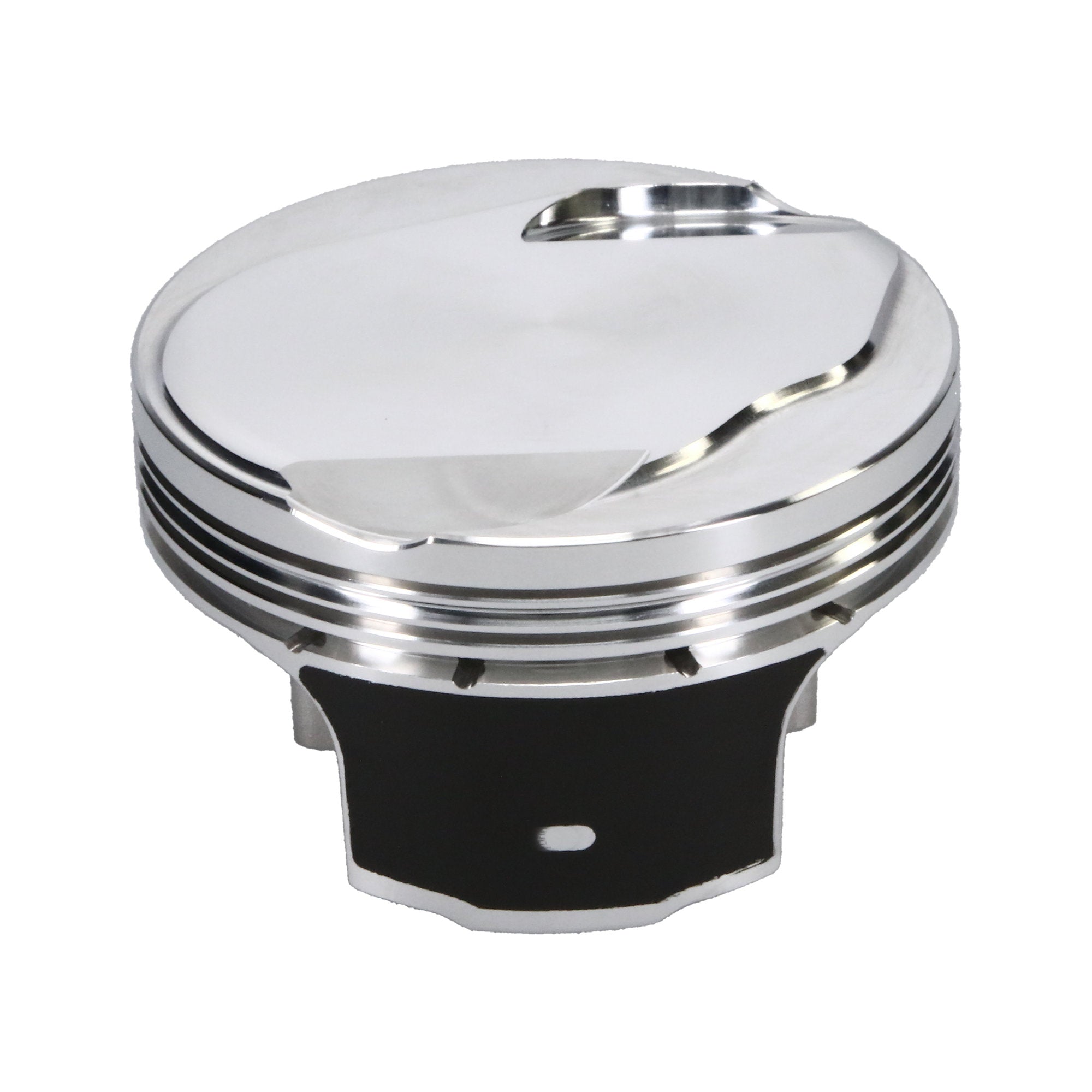

Piston Set, 2618, Inv Dome/Dish, 4.016 Bore, 1.310 CD, 0.945 Pin Dia, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 6.2L Modular, 4.016 Bore, Inv Dome/Dish, Set of 8 |
| Piston Material |
2618 |
| Piston Volume |
-6.40 |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Ford Modular Piston Kit - 4.016 in. Bore - 1.310 in. CH, -6.40 CC |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Modular |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Industry |
Automotive |
| Piston Pin Wall Thickness |
0.150 |
| Out of Stock Message |
Call for Availibility |
| Piston Pin Length |
2.250 |
| Add-On |
945-2250-15-51C |
| Piston Series |
JE Pistons |
| Product Type |
Engine Piston Kit |
| Engine - Web |
Modular |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Quantity |
8 |
| Make |
FORD |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title |
JE Pistons - Ford, Modular, 4.016 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Piston Head Type |
Inv Dome/Dish |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Compression Height |
1.310 |
| Piston Pin Outside Diameter |
0.945 |
| Bore Diameter |
4.016 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.945 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
16.0000 |
