As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar 6.4L Gen III Hemi Apache |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

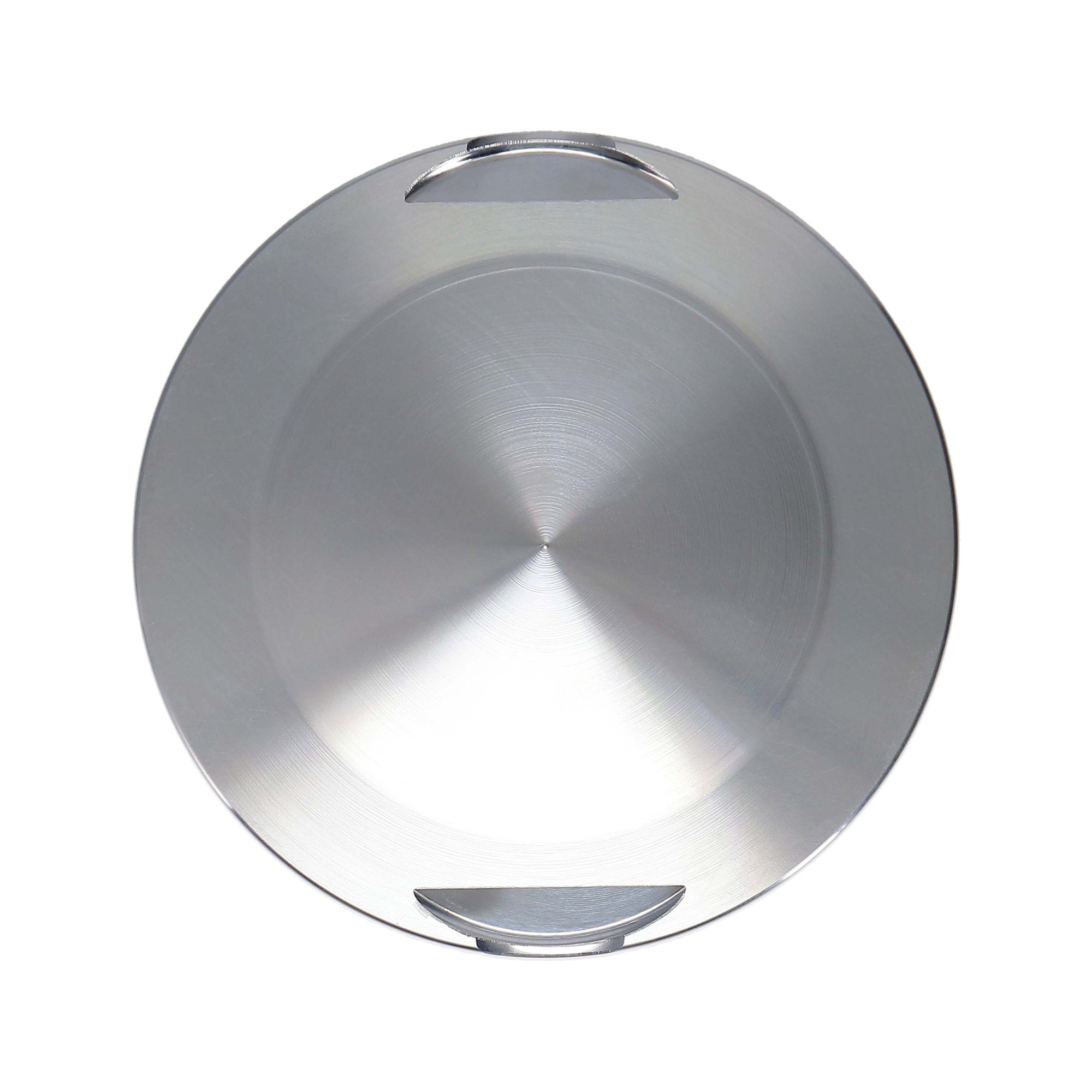

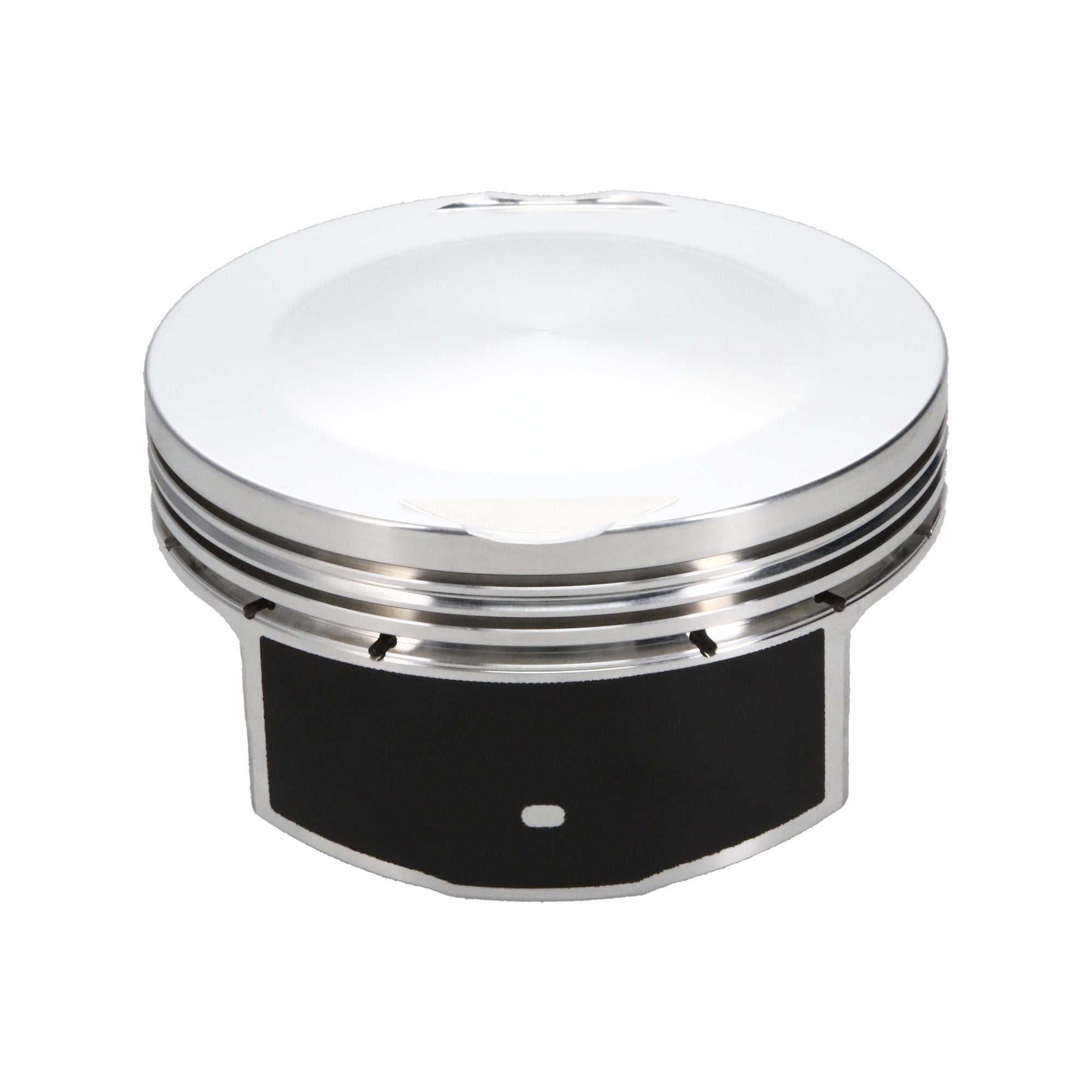

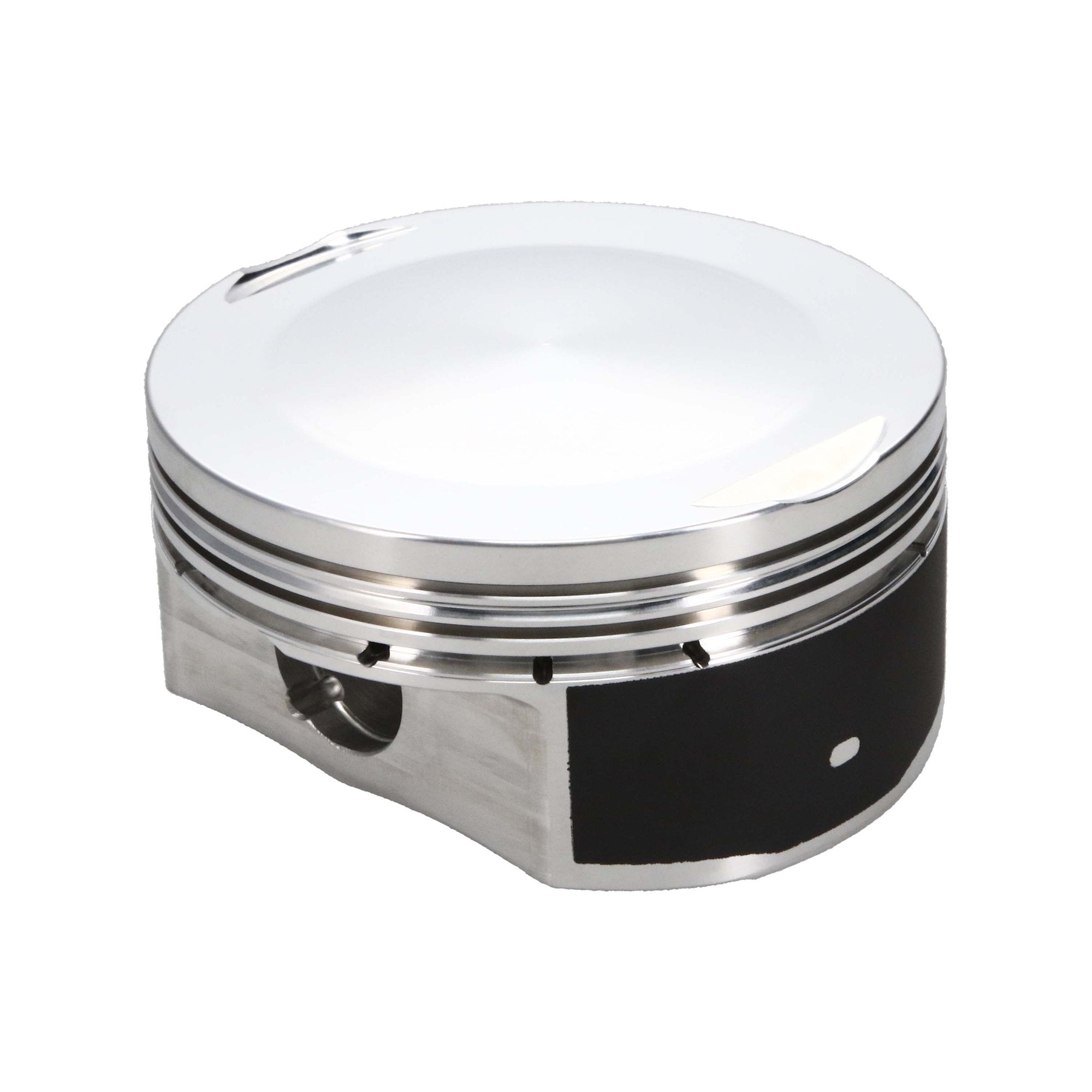

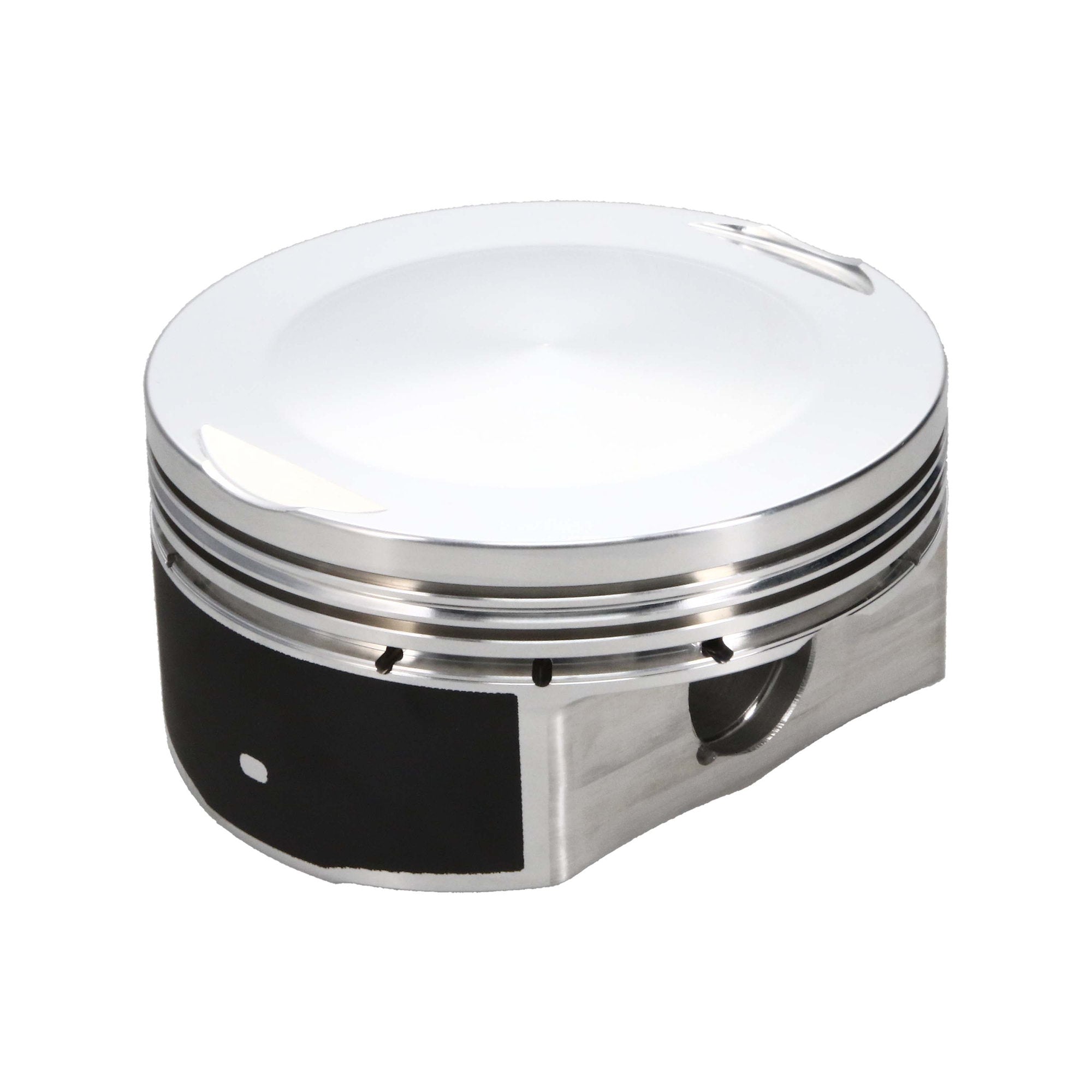

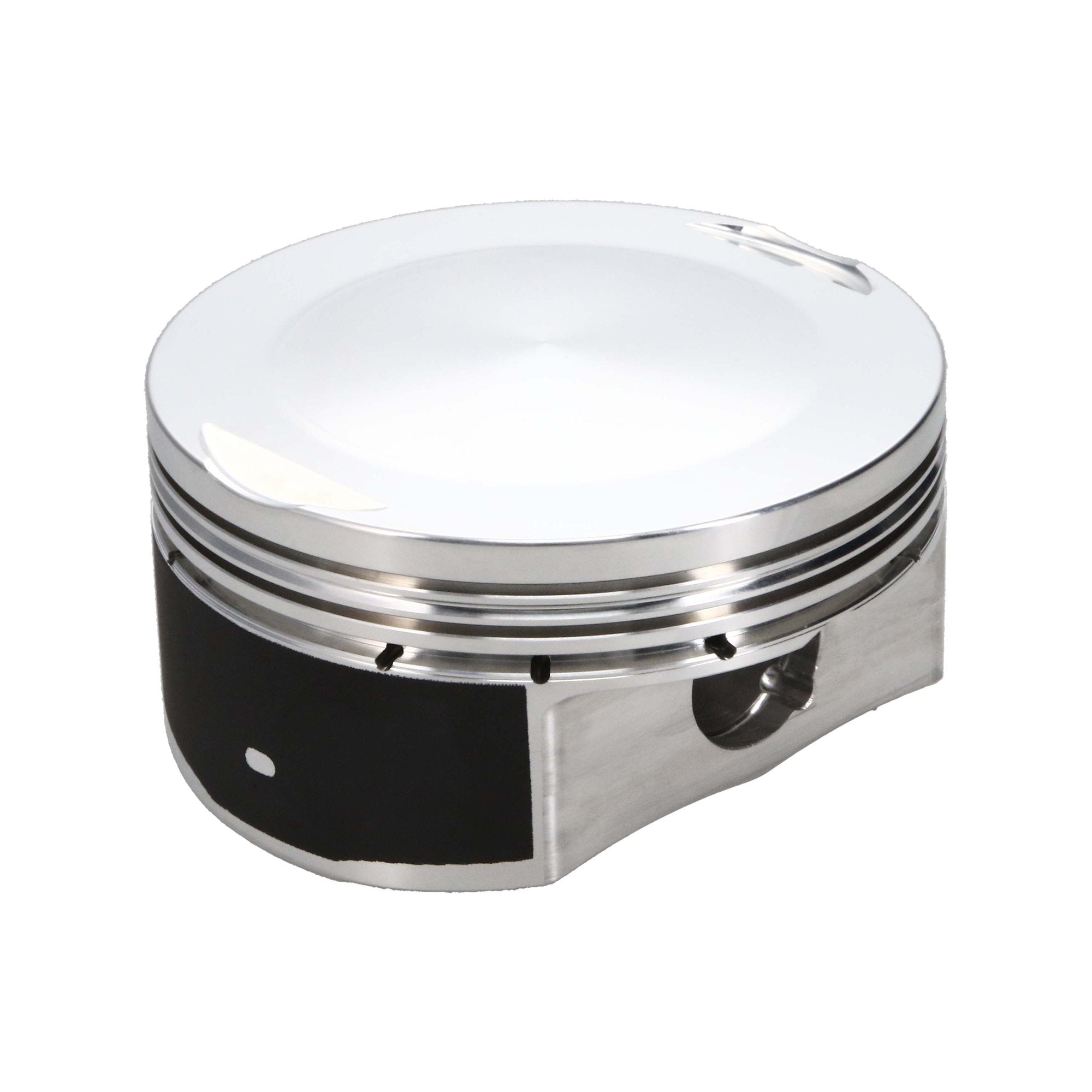

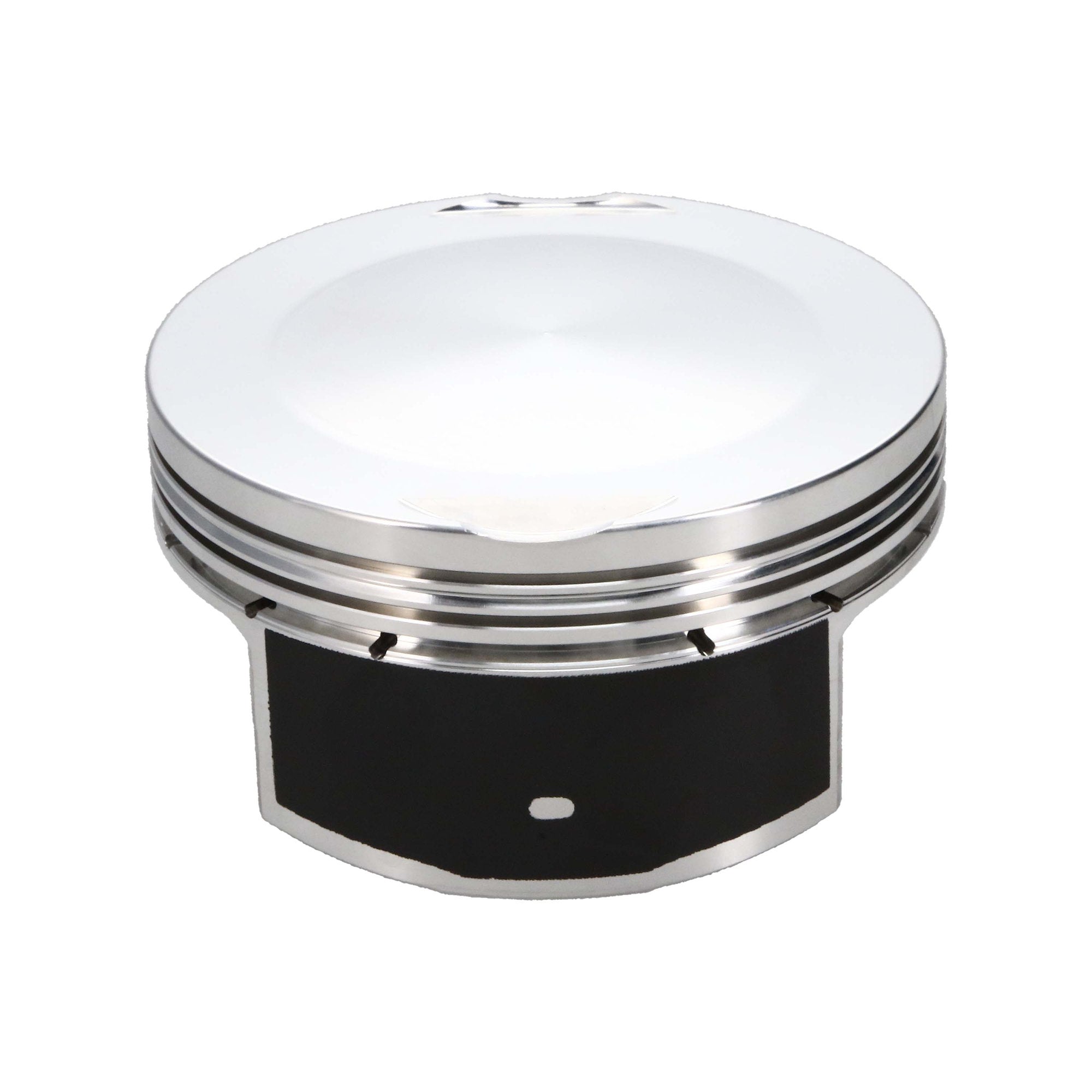

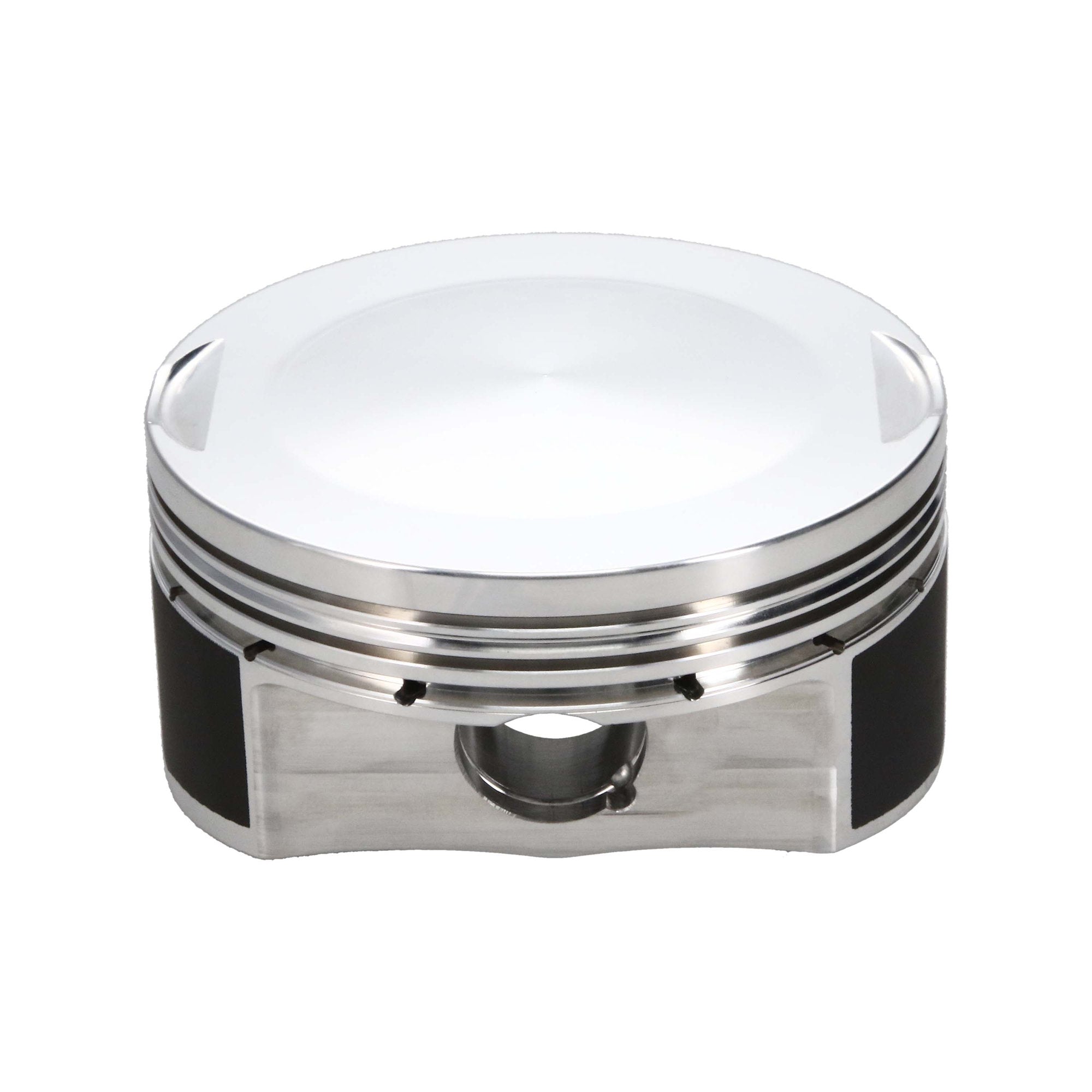

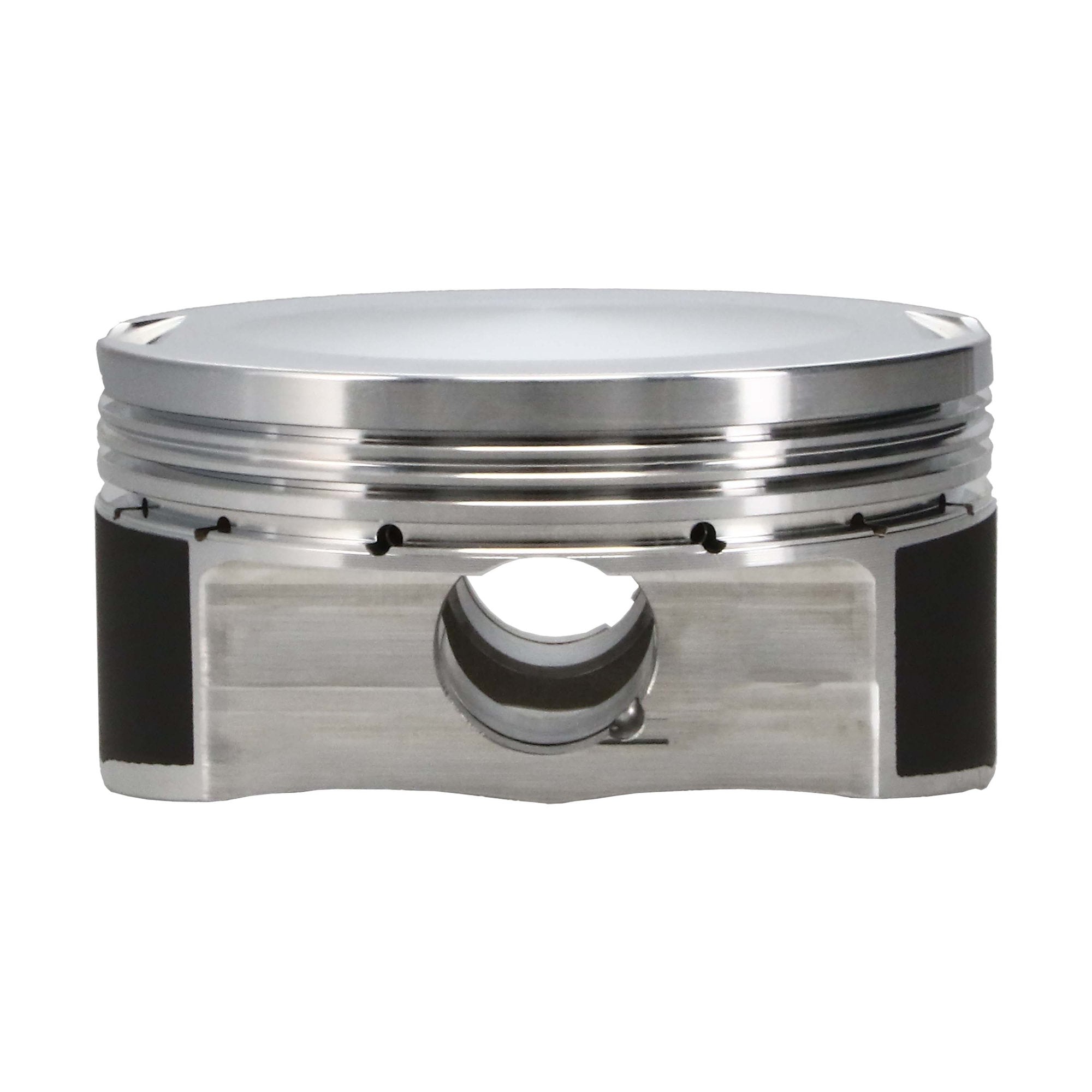

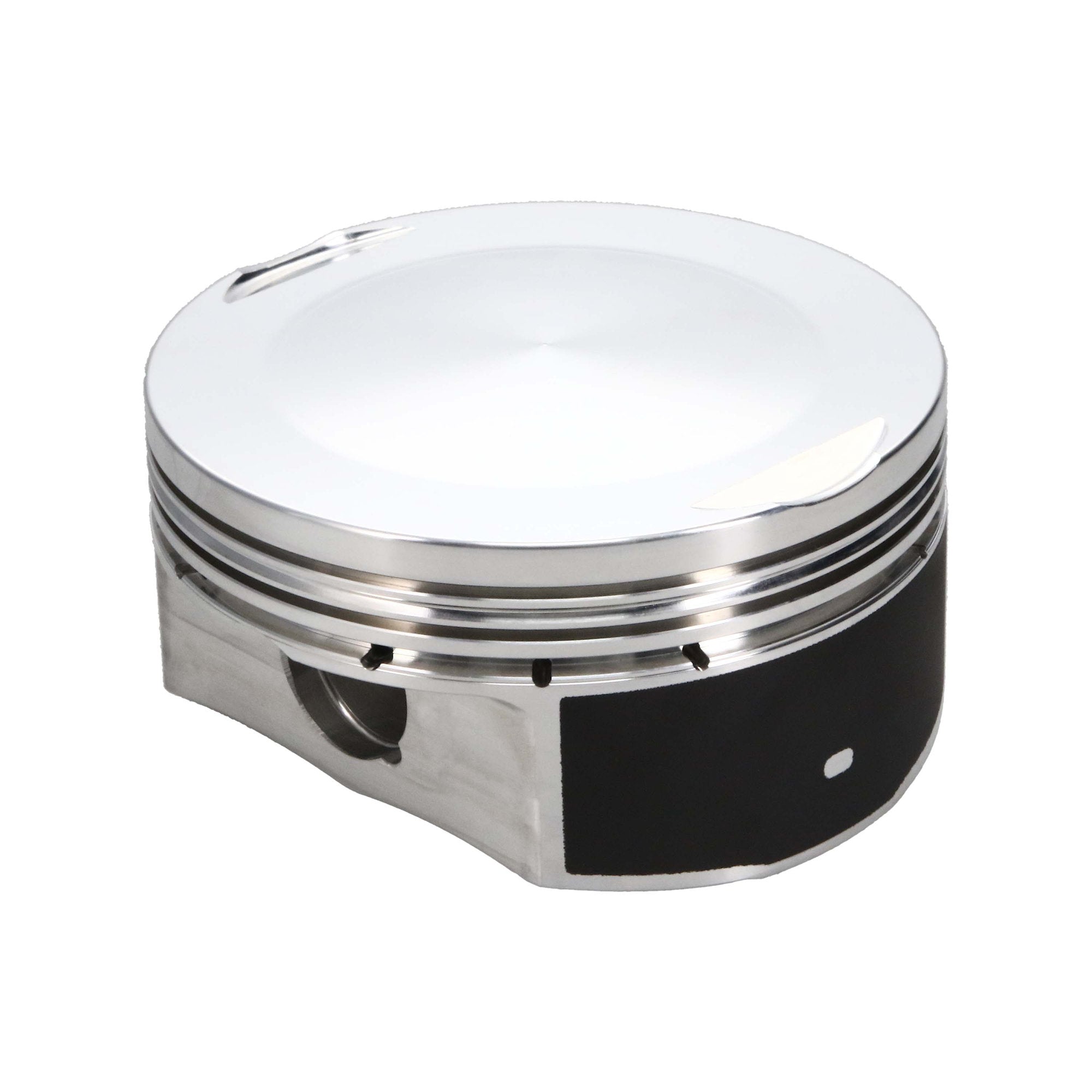

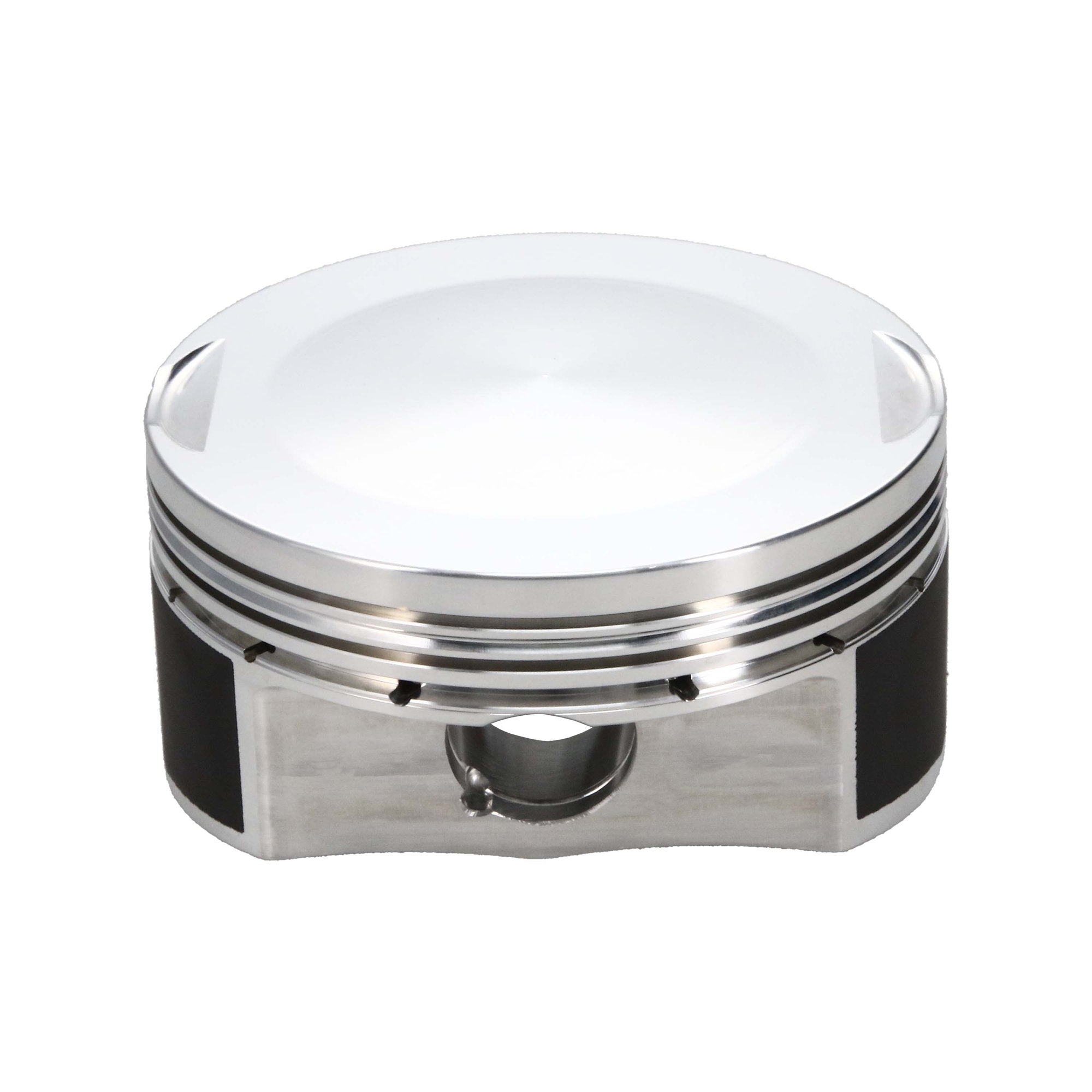

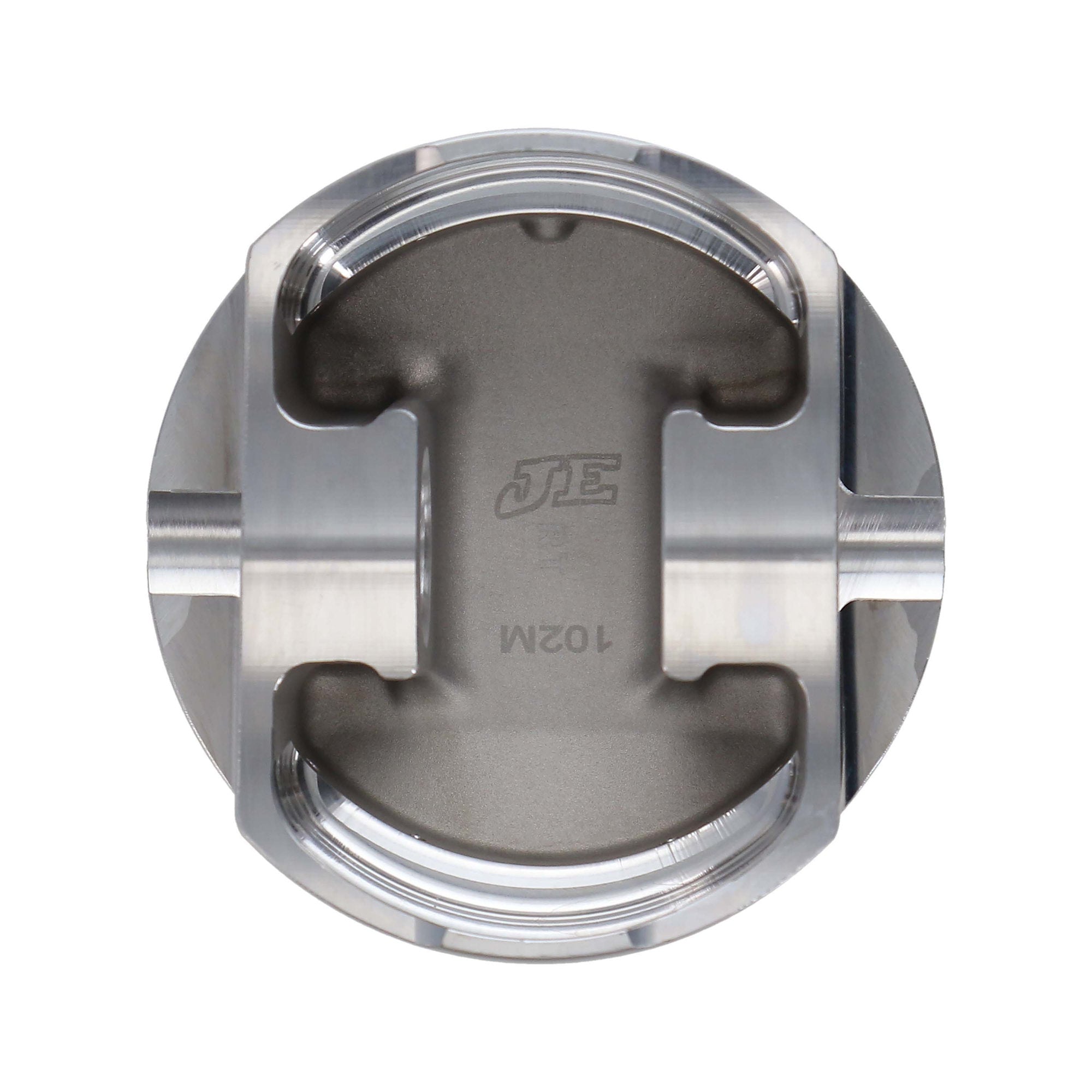

Piston Set, 2618, Dome, 4.100 Bore, 1.210 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Mopar, Gen 3 Hemi, 4.100 in. Bore, 1.210 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 6.4L Gen 3 Hemi Apache, 4.100 Bore, Dome, Set of 8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Top Compression Ring Thickness |
0.0600 |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-2500-20-93C |
| Title - Web |
JE Pistons Mopar Gen 3 Hemi Piston Kit - 4.100 in. Bore - 1.210 in. CH, 3.80 CC |
| Bore Diameter |
4.100 |
| Out of Stock Message |
Call for Availability |
| Product Market |
Domestic |
| Add-On |
JG6108-4104-0 |
| Add-On |
927-073-MW |
| Compression Height |
1.210 |
| Piston Average Weight |
442 |
| Industry |
Automotive |
| Title |
JE Pistons - Mopar, Gen 3 Hemi, 4.100 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0600 |
| Make - Web |
Mopar |
| Engine - Web |
Gen 3 Hemi |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Ring Set Included |
No |
| Wrist Pin Length |
2.500 |
| Oil Ring Thickness |
0.0995 |
| Piston Pin Length |
2.500 |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
6.4L APACHE HEMI |
| Piston Volume |
3.80 |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.200 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Make |
MOPAR |
| Piston Pin Material |
9310 |
| Ringset Included |
No |
| Engine |
GEN 3 HEMI |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Wrist Pin Wall Thickness |
0.200 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
