As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ferrari 2.4L 246 V6 2V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

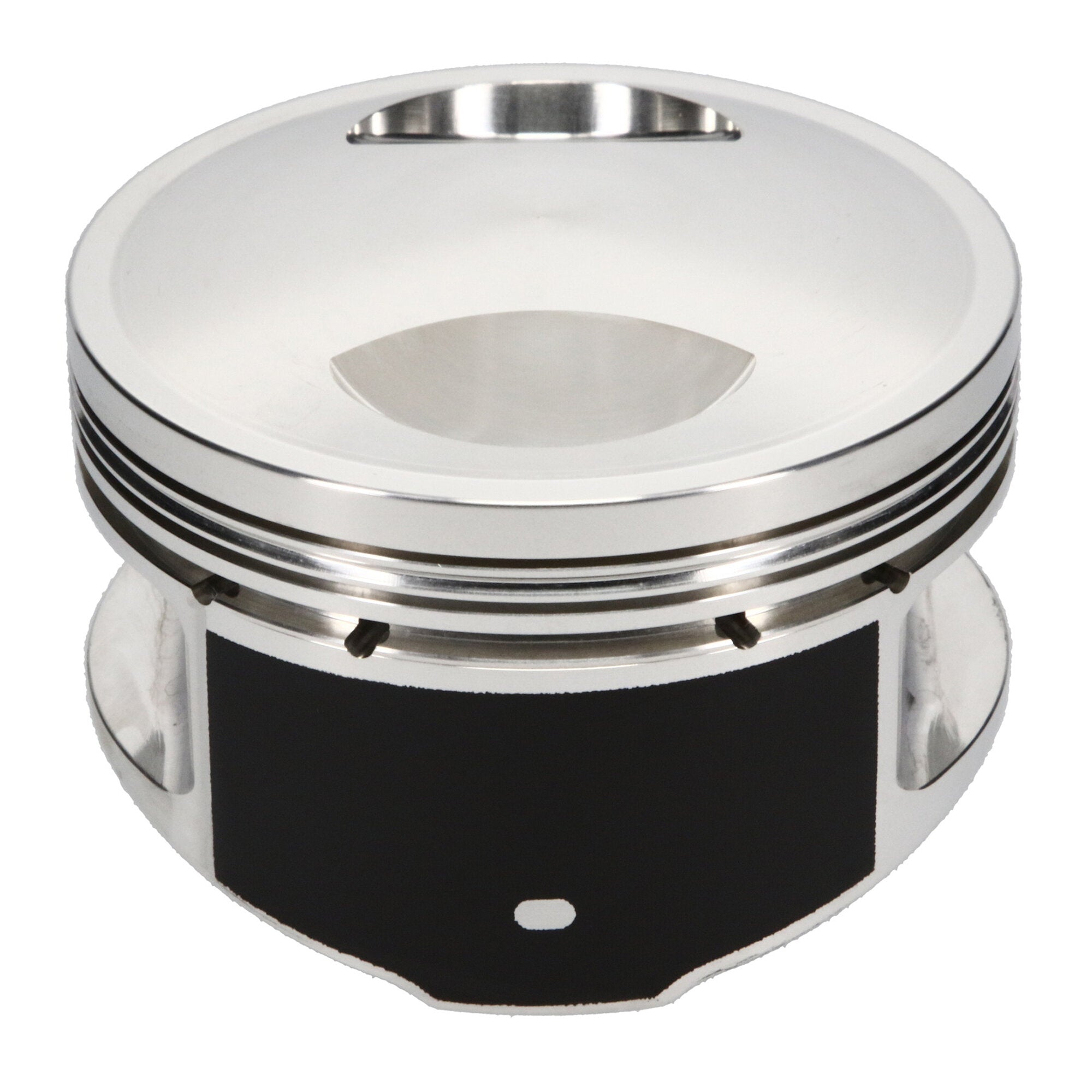

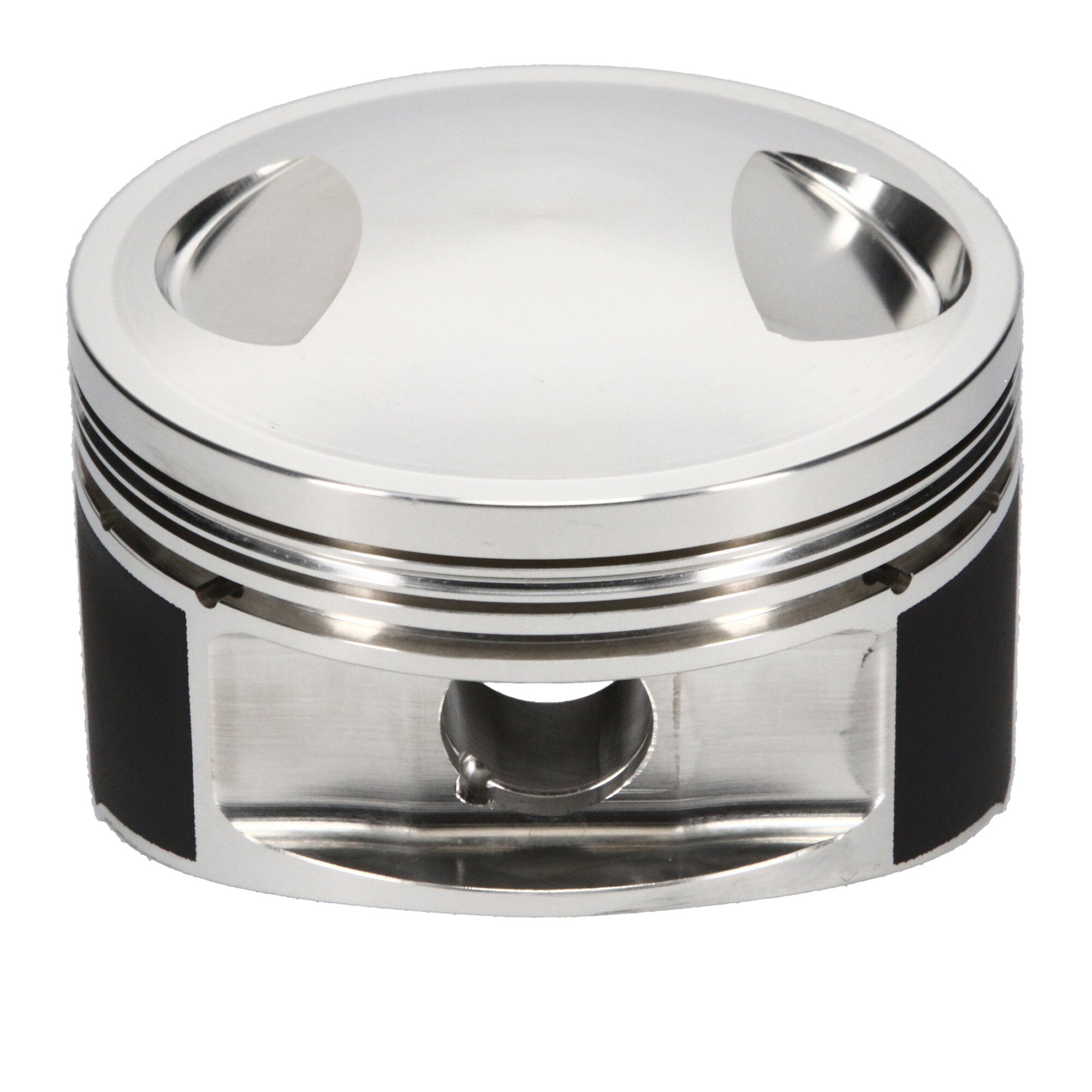

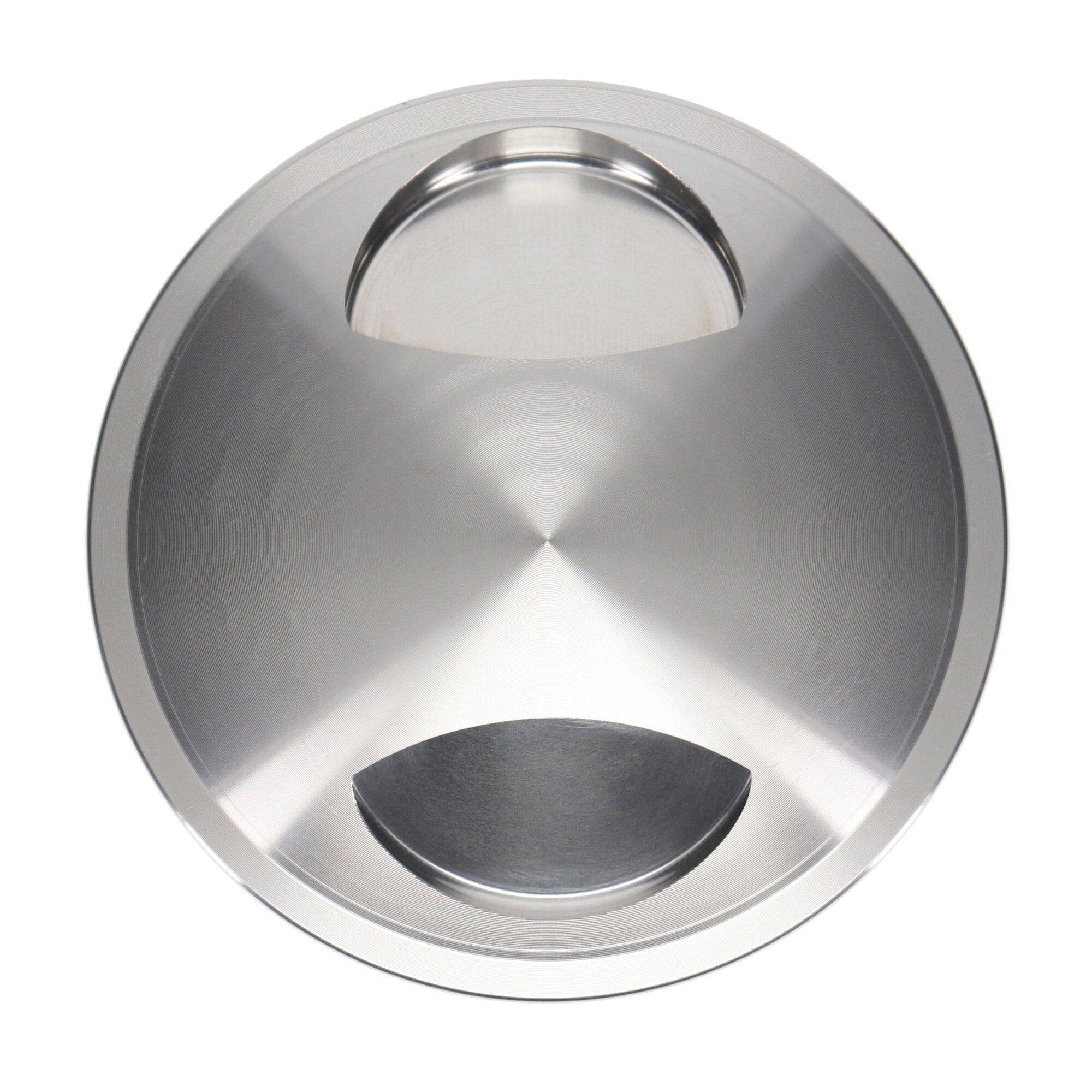

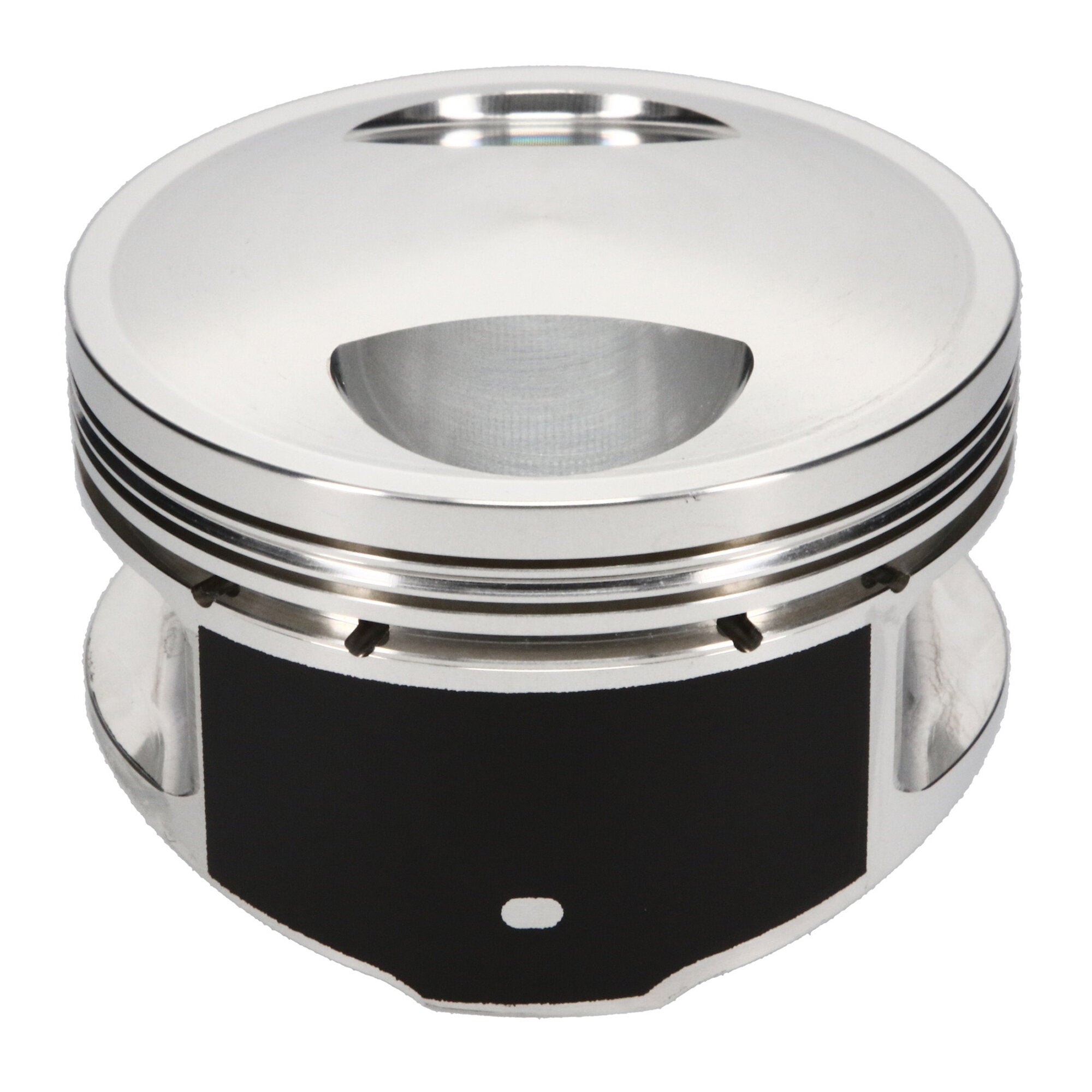

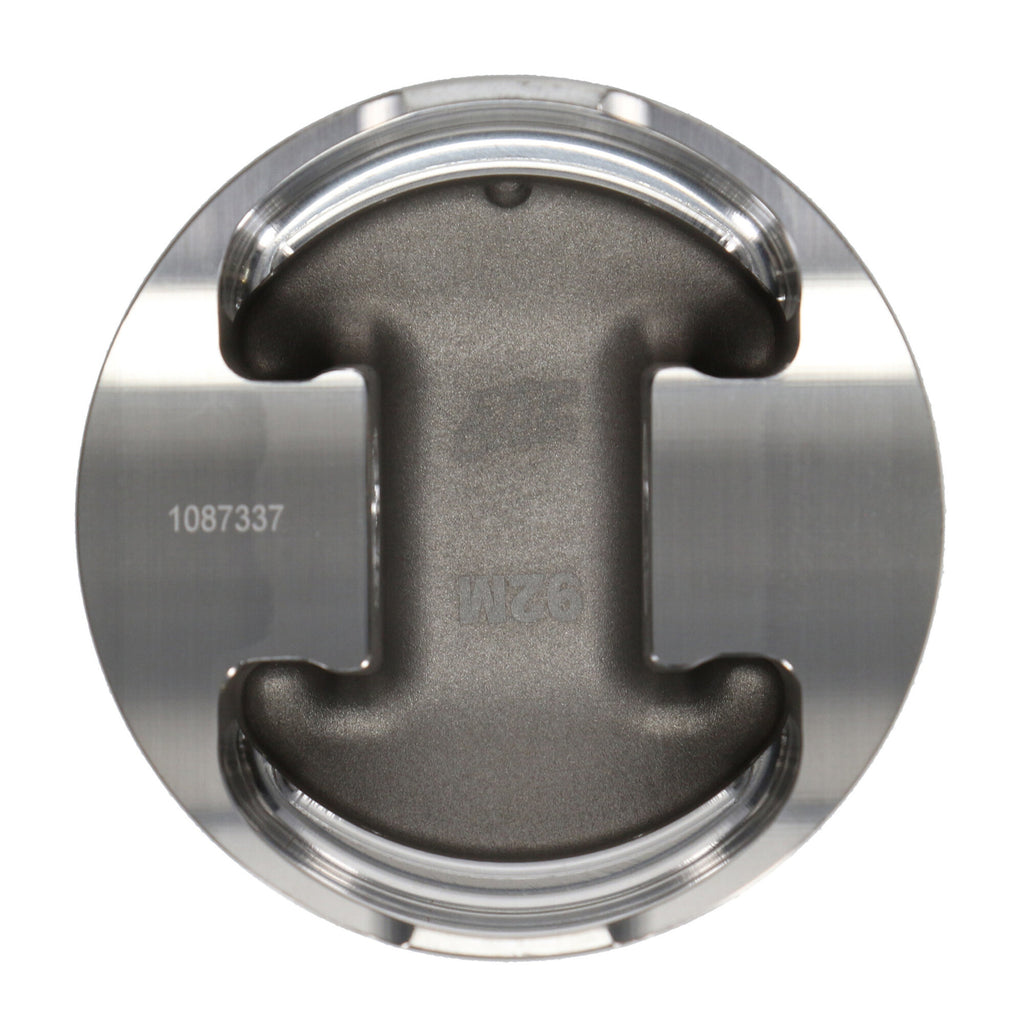

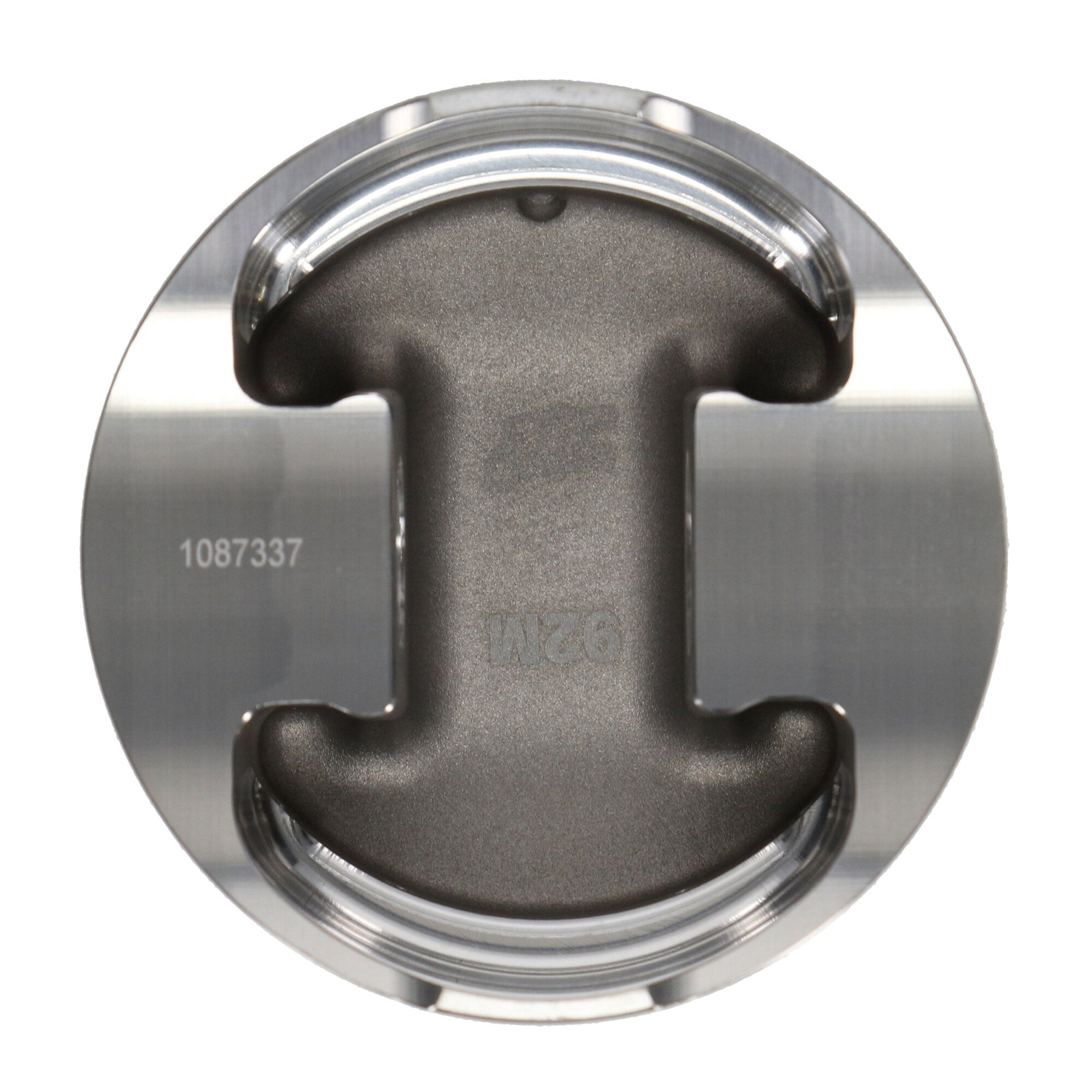

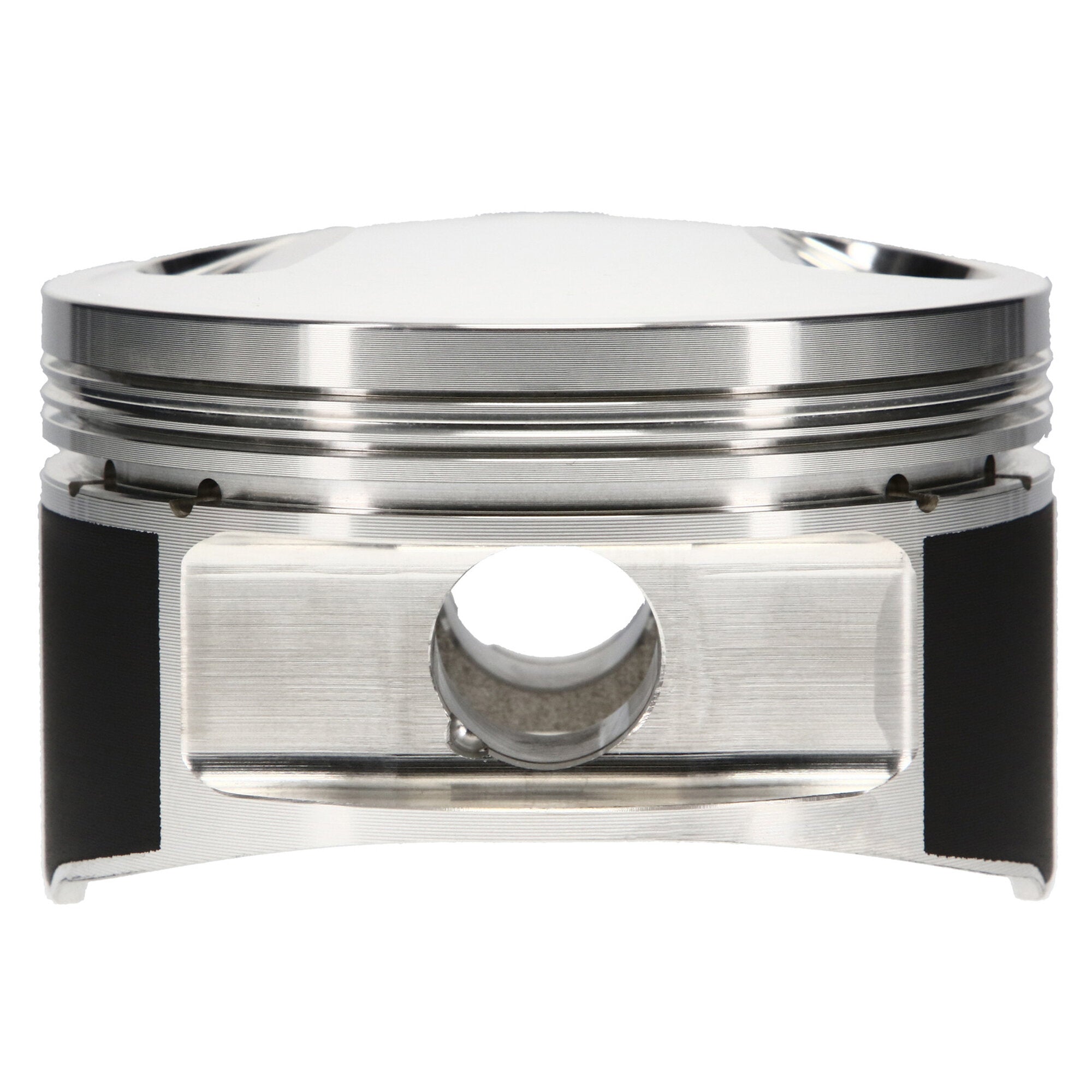

Piston Set, 2618, Dome, 3.681 Bore, 1.181 CD, 0.787 Pin, Set of 6. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ferrari, 2.4L 246 V6 2V, 3.681 in. Bore, 10.00:1, Dome, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ferrari 2.4L 246 V6 2V, 93.50 Bore, Dome, Set of 6 |
| Forging Type |
Round |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Ringset Included |
Yes |
| Product Market |
European |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Oil Ring Thickness |
0.111 |
| Bore Diameter |
93.50 |
| Make |
FERRARI |
| Piston Head Type |
Dome |
| Wrist Pin Length |
2.500 |
| Add-On |
787-2500-14-51C |
| Top Compression Ring Thickness |
0.0400 |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
6 |
| Piston Series |
JE Pistons |
| Compression Height |
1.181 |
| Prop 65 Yes/No |
Yes |
| Piston Average Weight |
414 |
| Piston Pin Wall Thickness |
0.140 |
| Piston Volume |
18.10 |
| Add-On |
JG1001-3681 |
| Title |
JE Pistons - Ferrari, 2.4L 246 V6 2V, 93.50 mm Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.787 |
| Add-On |
787-050-MW |
| Wrist Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.787 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
2.4L 246 V6 2V |
| Ring Set Included |
Yes |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Ferrari 2.4L 246 V6 2V Piston Kit - 93.50 mm Bore - 1.181 in. CH, 18.10 CC |
| Engine |
2.4L 246 V6 2V |
| Cylinder Head |
246 DINO |
| Piston Pin Length |
2.500 |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Make - Web |
Ferrari |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
10.0000 |
