As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar 6.2L Gen III Hemi Hellcat |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Mopar, Gen 3 Hemi, 4.095 in. Bore, 1.280 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_DES |

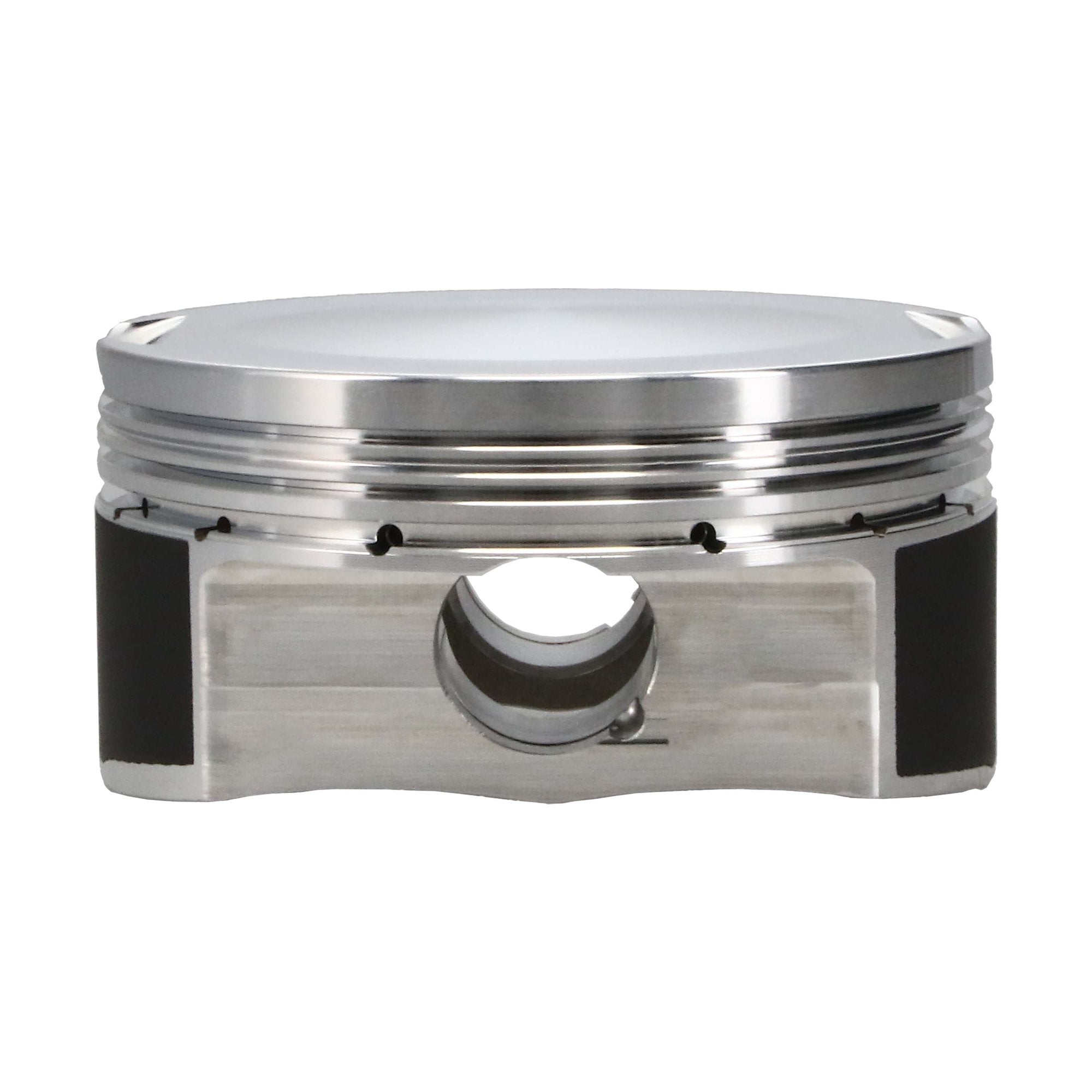

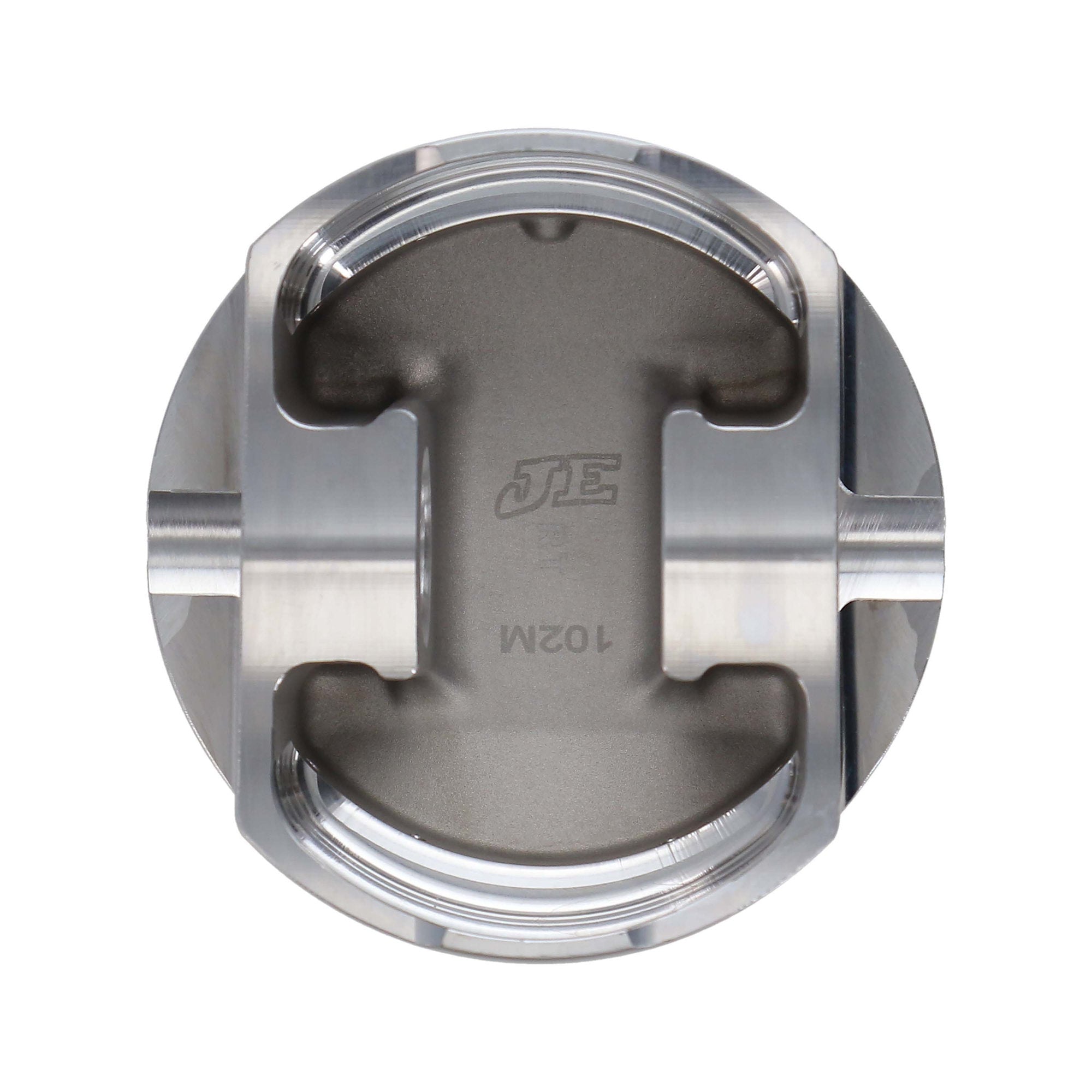

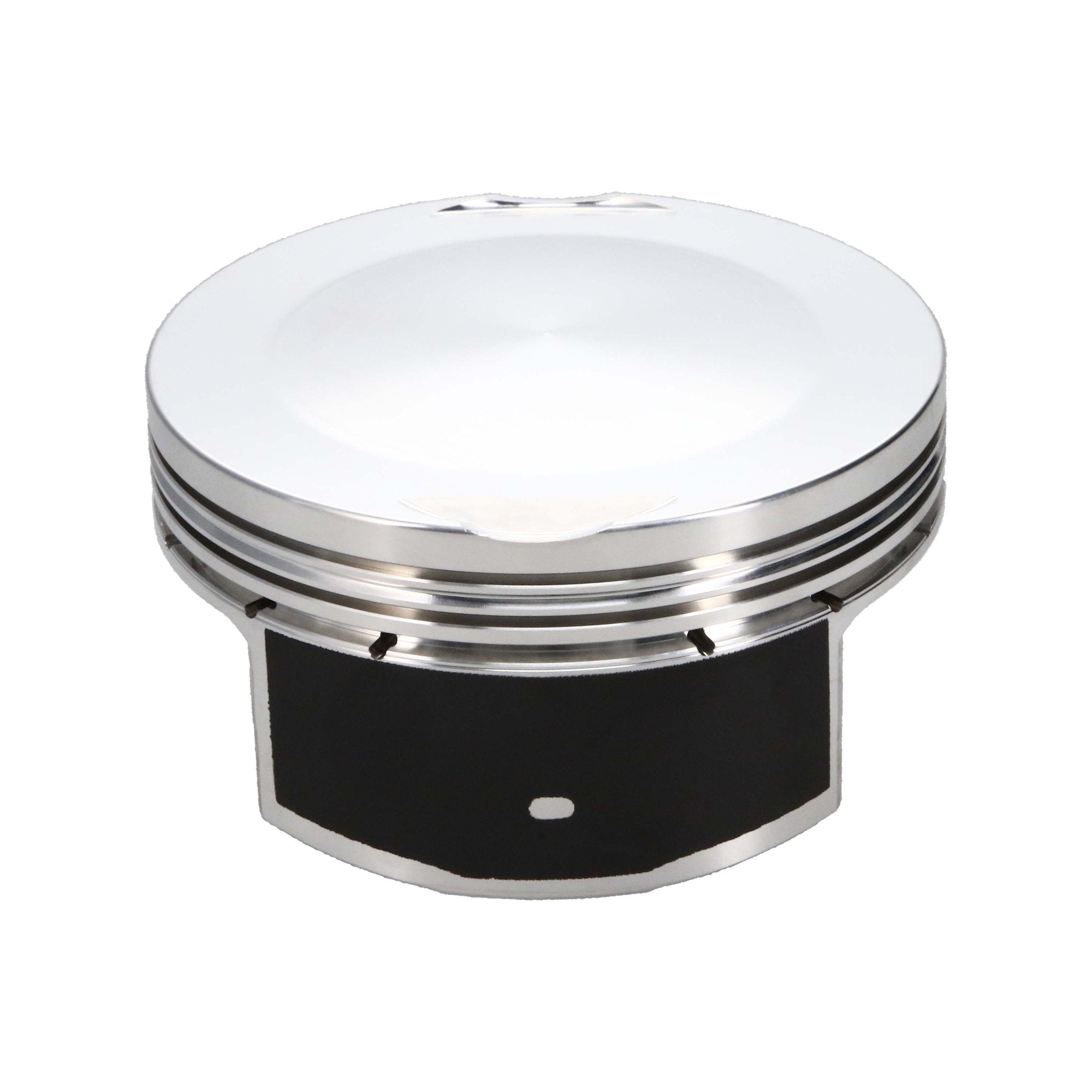

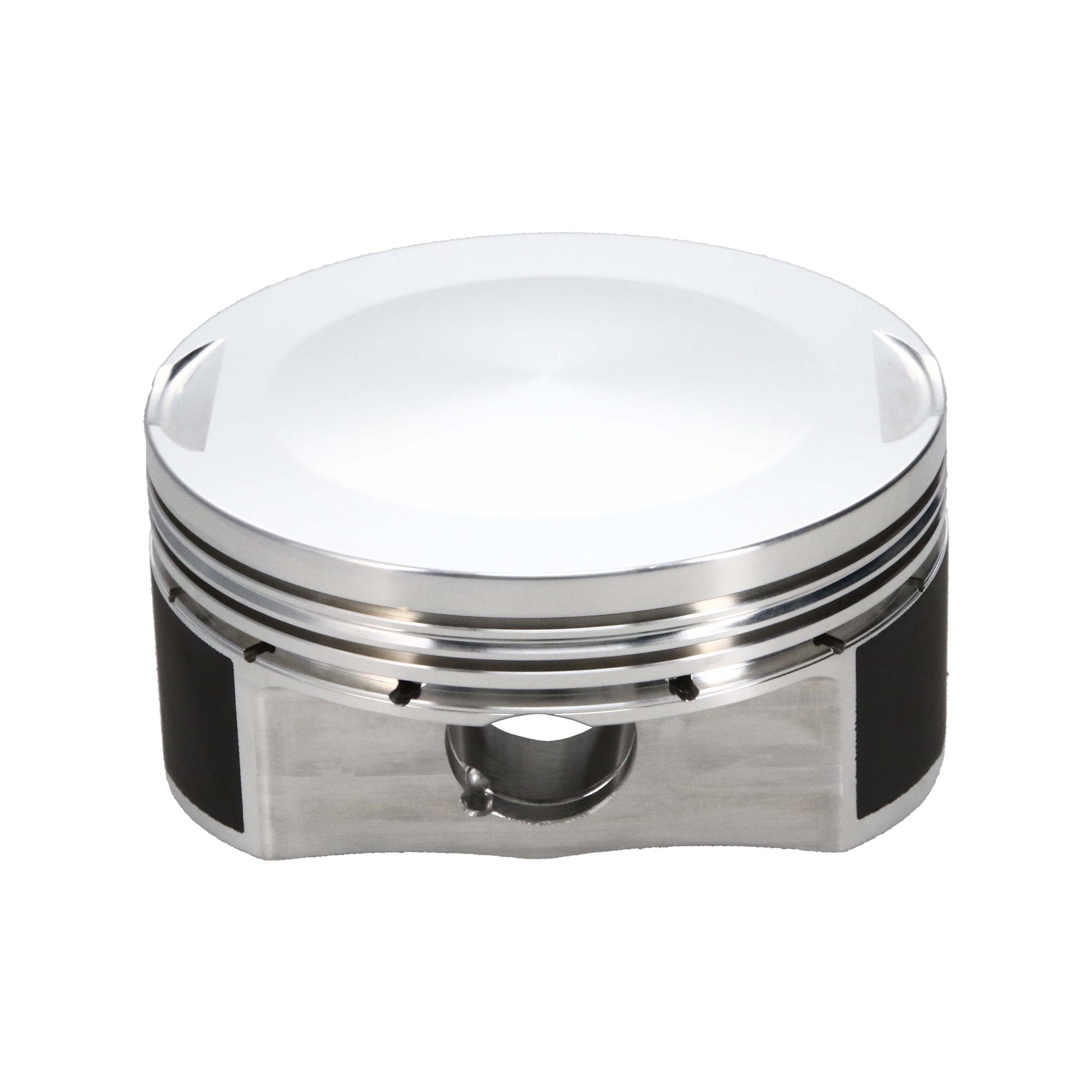

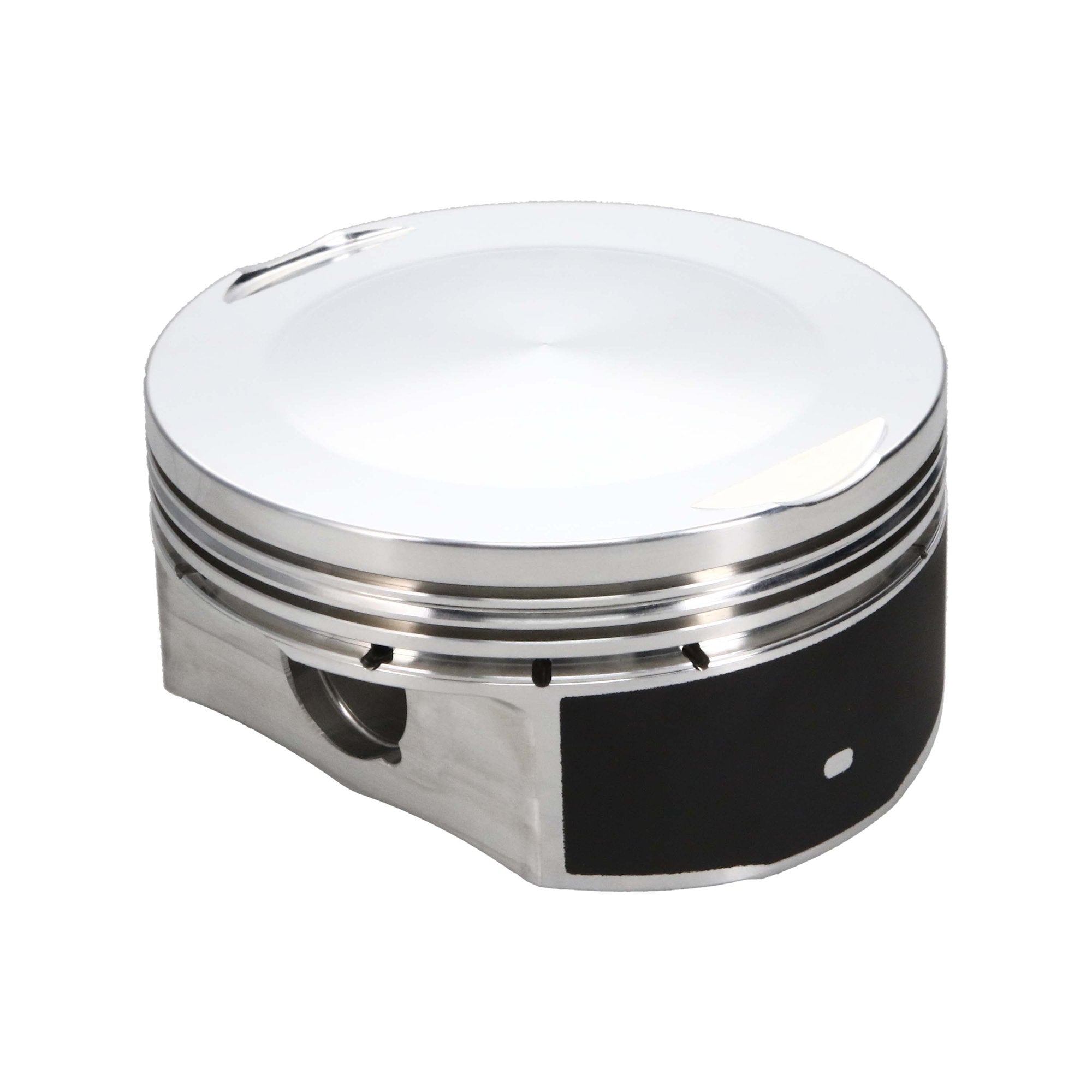

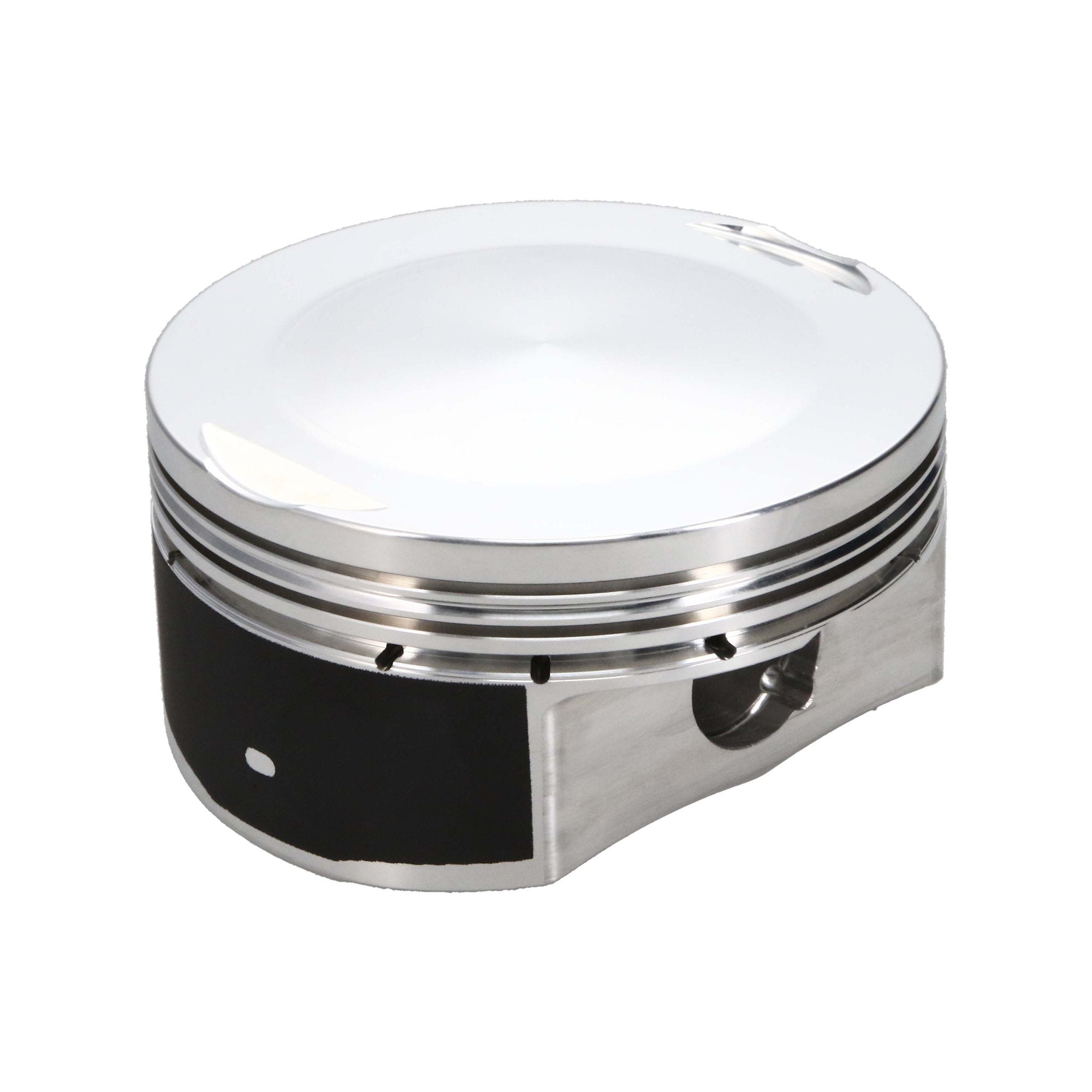

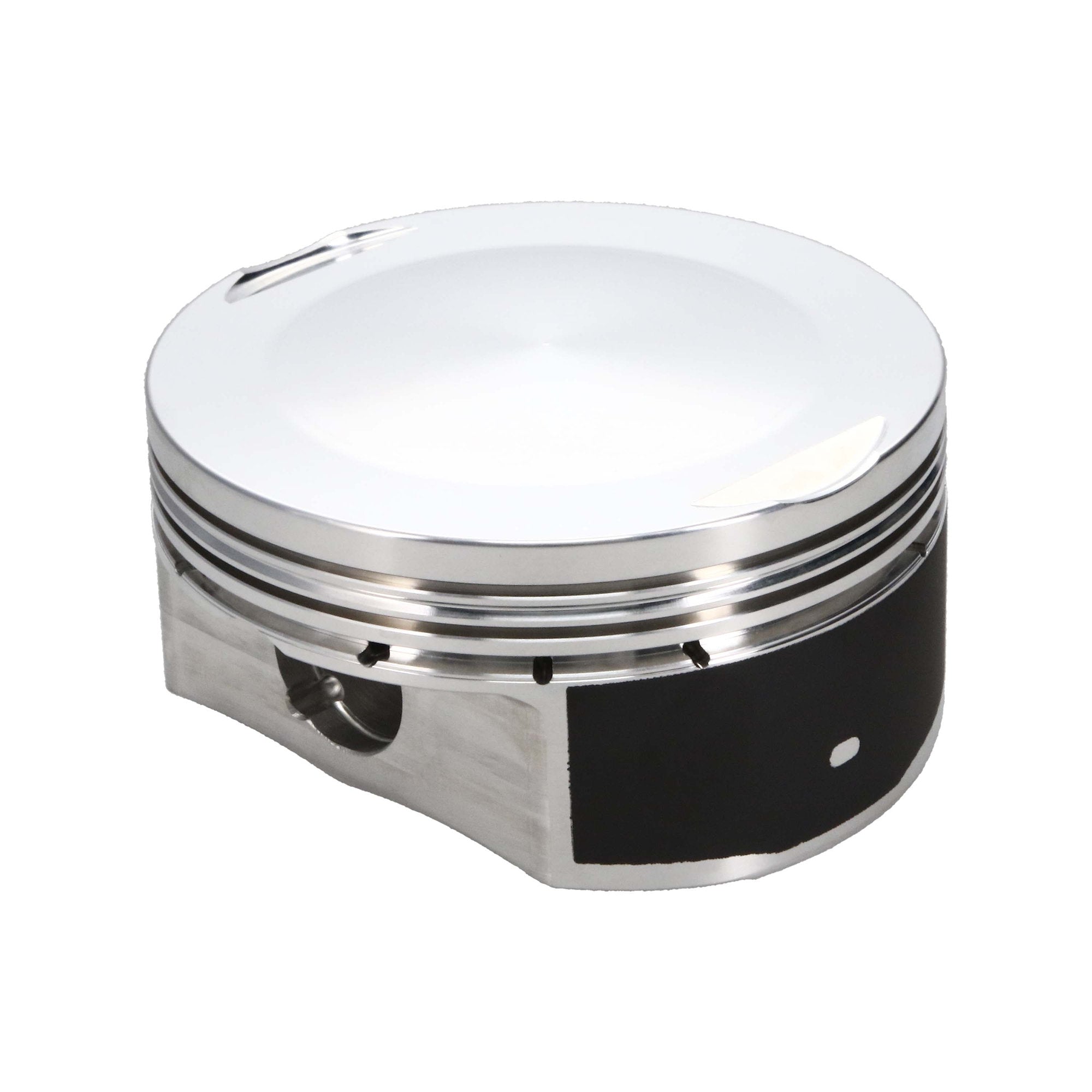

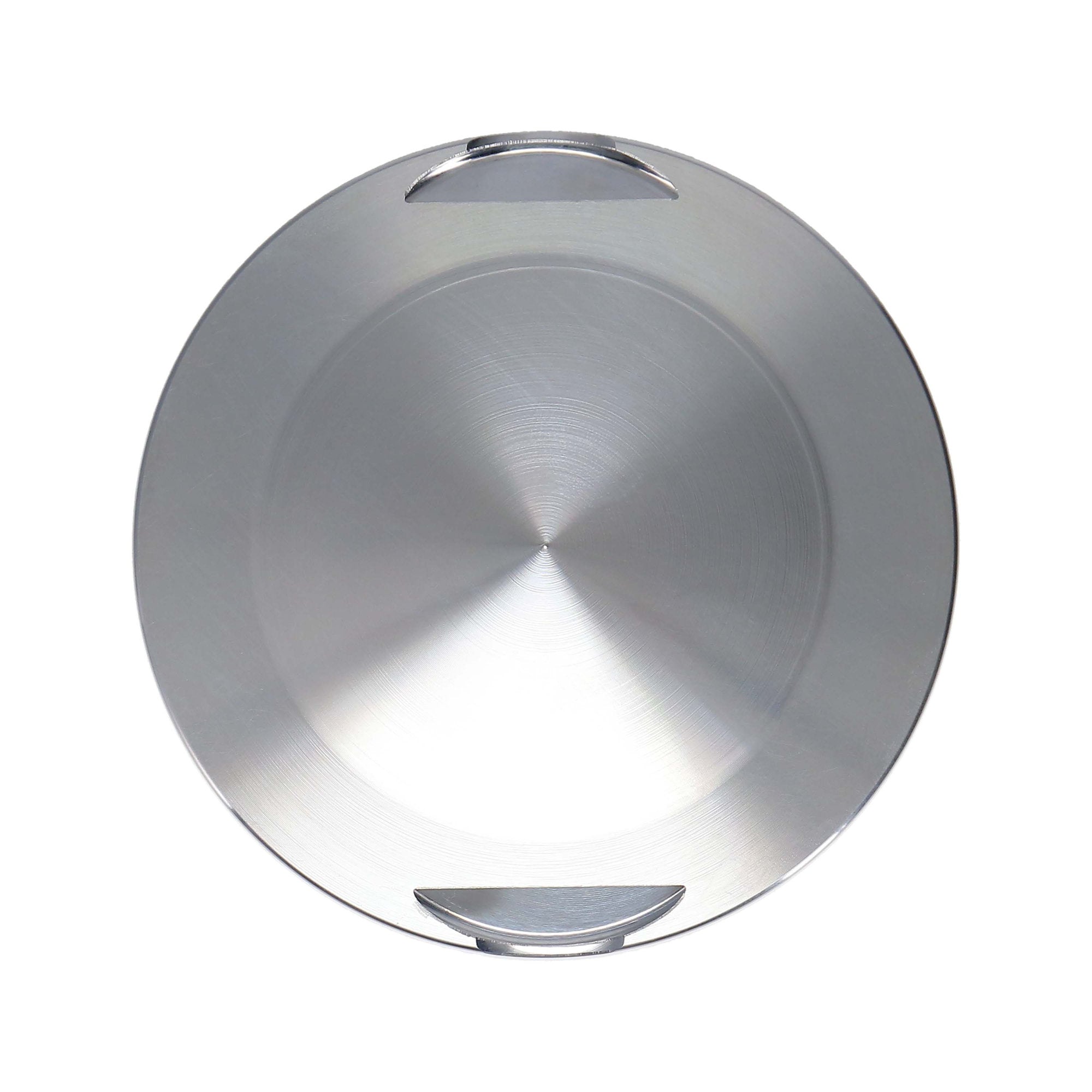

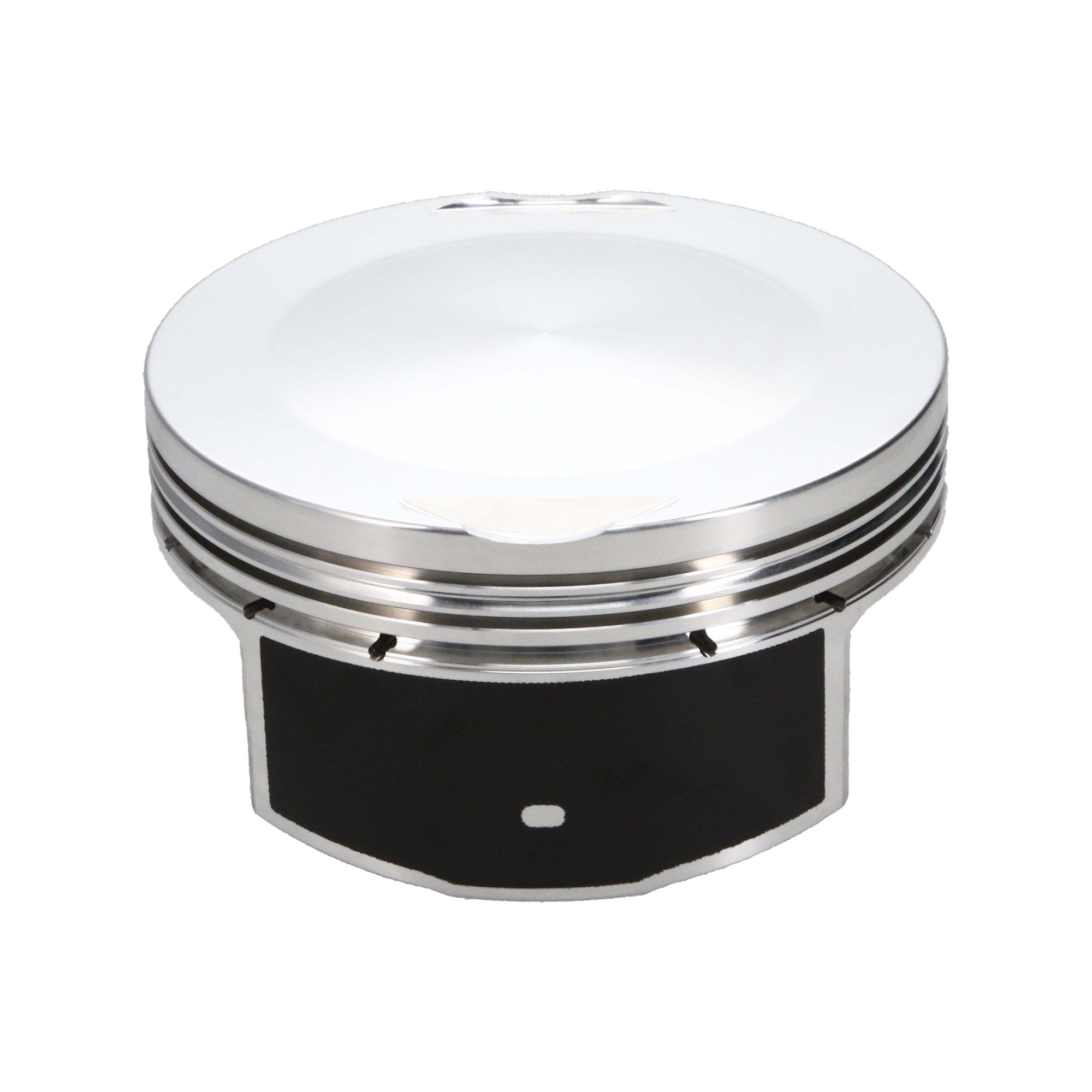

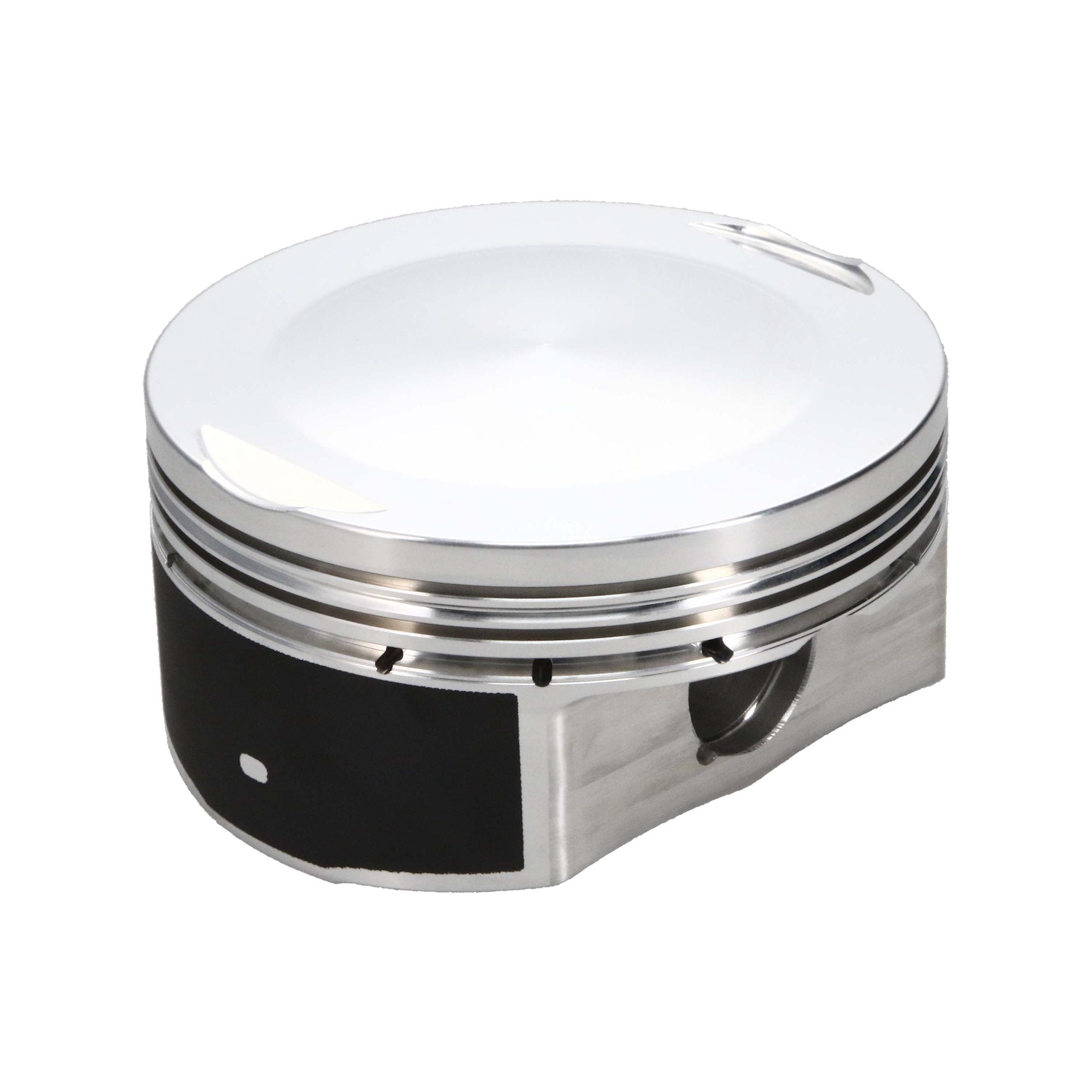

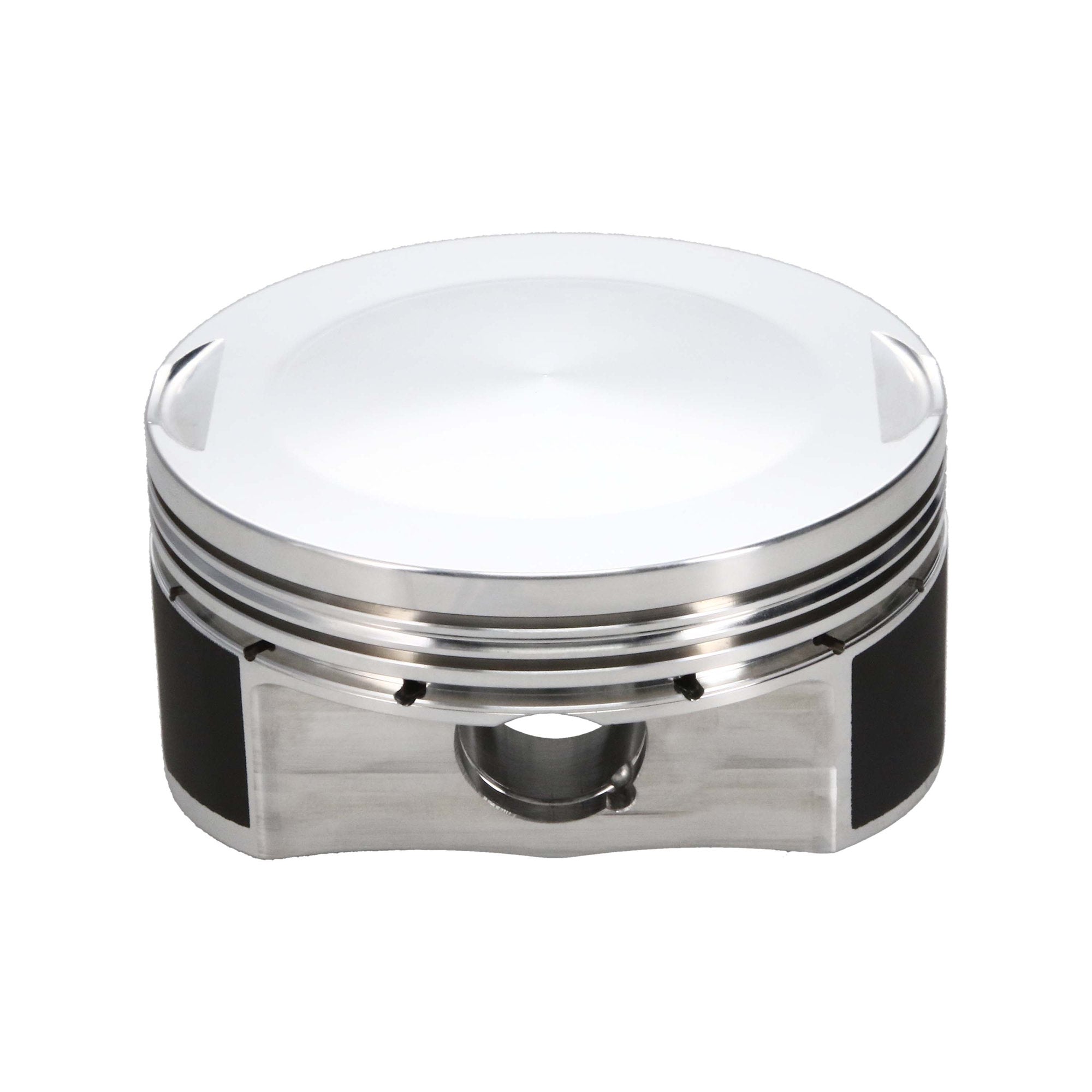

Piston Set, 2618, Inv Dome/Dish, 4.095 Bore, 1.280 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 6.2L Gen 3 Hemi Hellcat, 4.095 Bore, Dish, Set of 8 |
| Add-On |
927-073-MW |
| Add-On |
927-2500-20-93C |
| Add-On |
JG6108-4095-0 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-7.90 |
| Cylinder Head |
6.2L HELLCAT HEMI |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Mopar Gen 3 Hemi Piston Kit - 4.095 in. Bore - 1.280 in. CH, -7.90 CC |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Piston Pin Length |
2.500 |
| Second Compression Ring Thickness |
0.0600 |
| Engine |
GEN 3 HEMI |
| Oil Ring Thickness |
0.0995 |
| Forging Type |
Round |
| Make - Web |
Mopar |
| Piston Pin Material |
9310 |
| Bore Diameter |
4.095 |
| Piston Quantity |
8 |
| Ringset Included |
No |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Mopar, Gen 3 Hemi, 4.095 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.200 |
| Product Market |
Domestic |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0600 |
| Make |
MOPAR |
| Compression Height |
1.280 |
| Piston Average Weight |
459 |
| Piston Pin Outside Diameter |
0.927 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Length |
2.500 |
| Wrist Pin Wall Thickness |
0.200 |
| Ring Set Included |
No |
| Engine - Web |
Gen 3 Hemi |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
