As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan SR20VE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

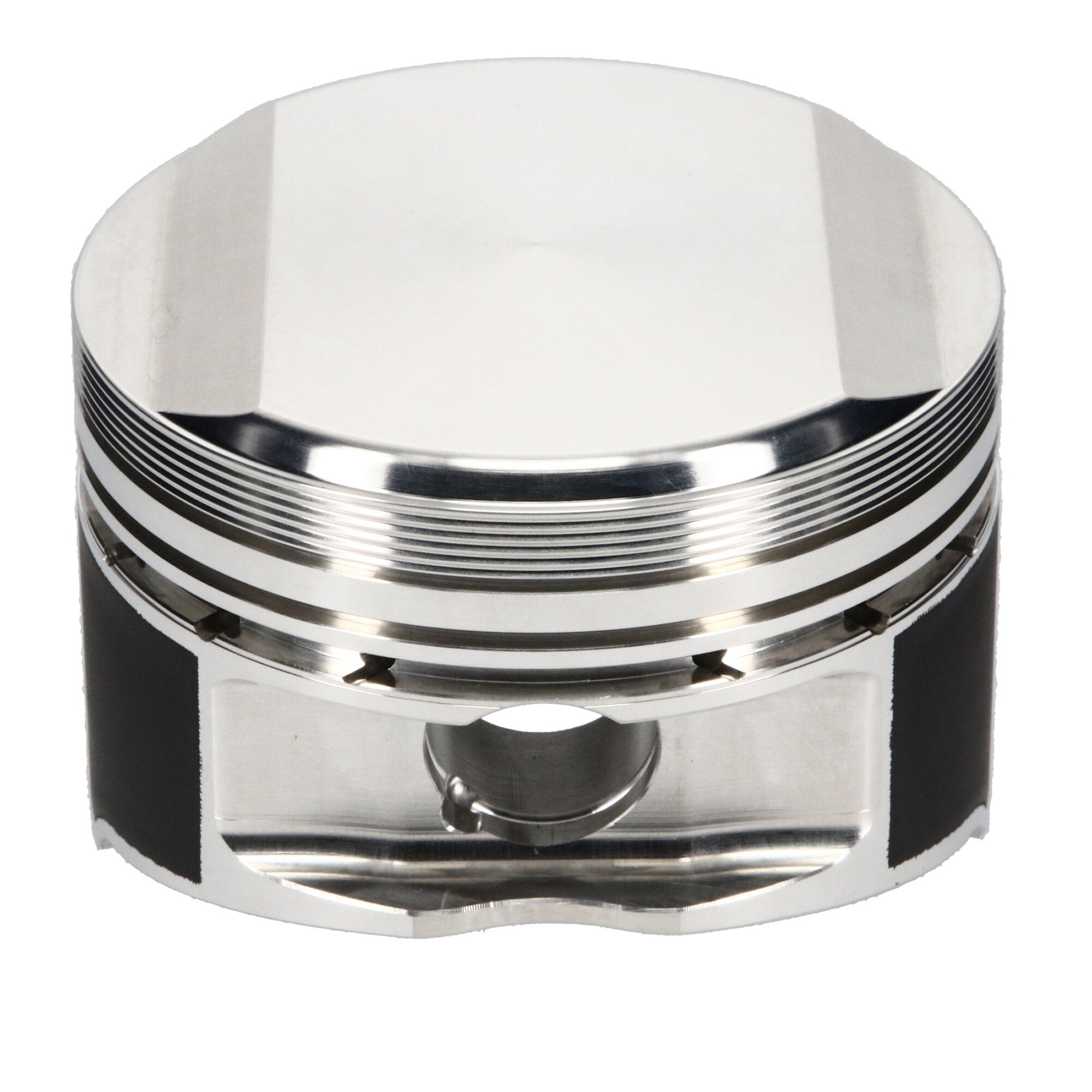

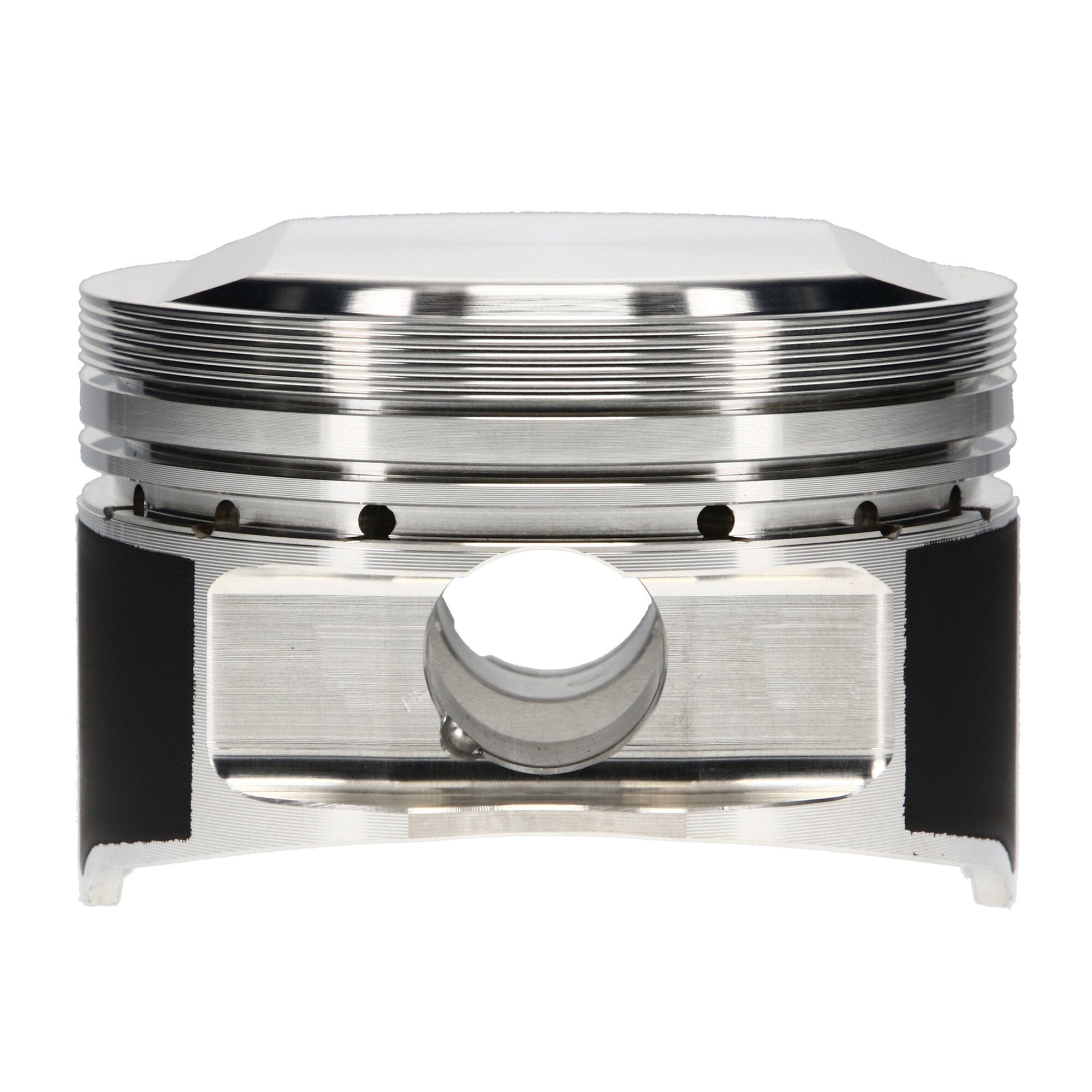

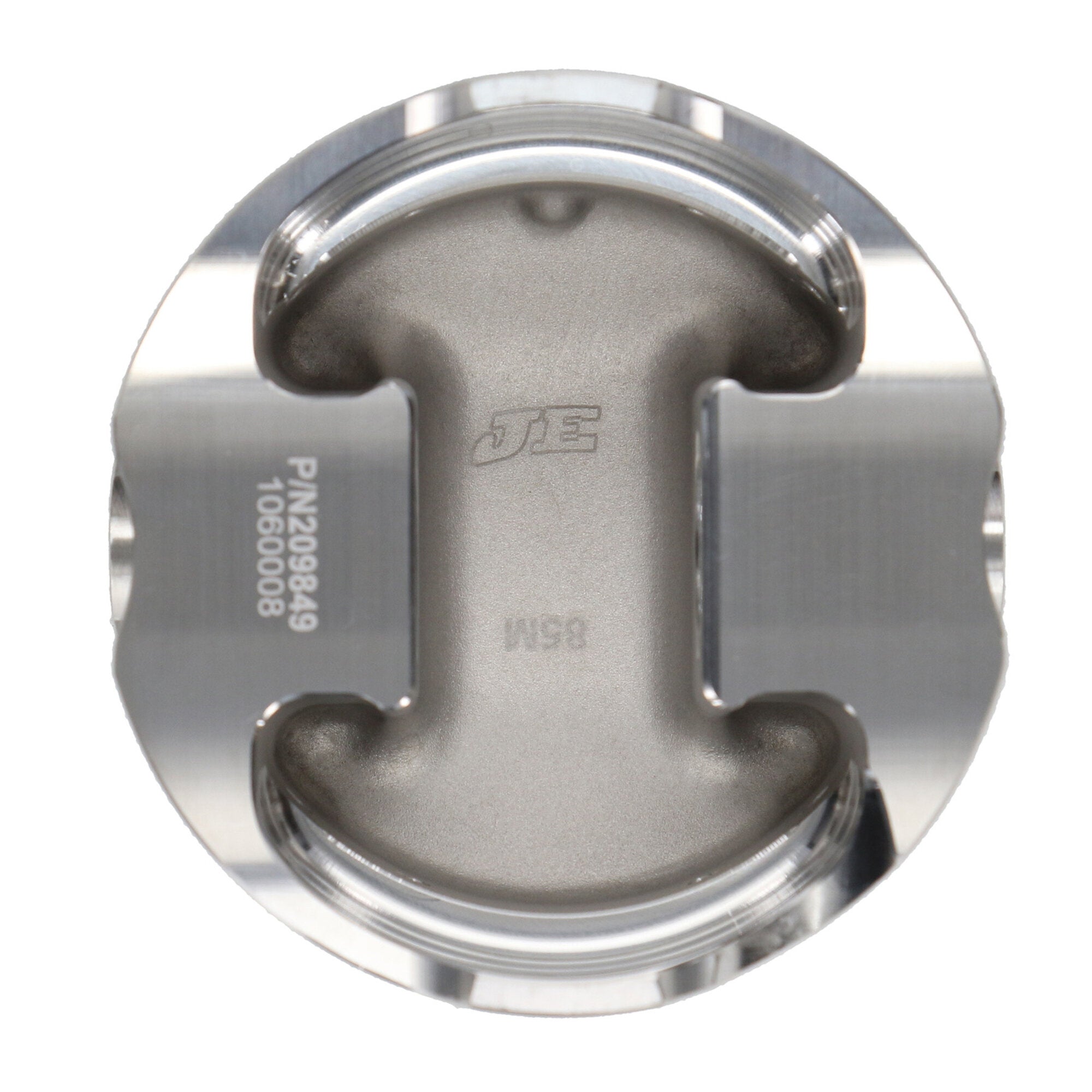

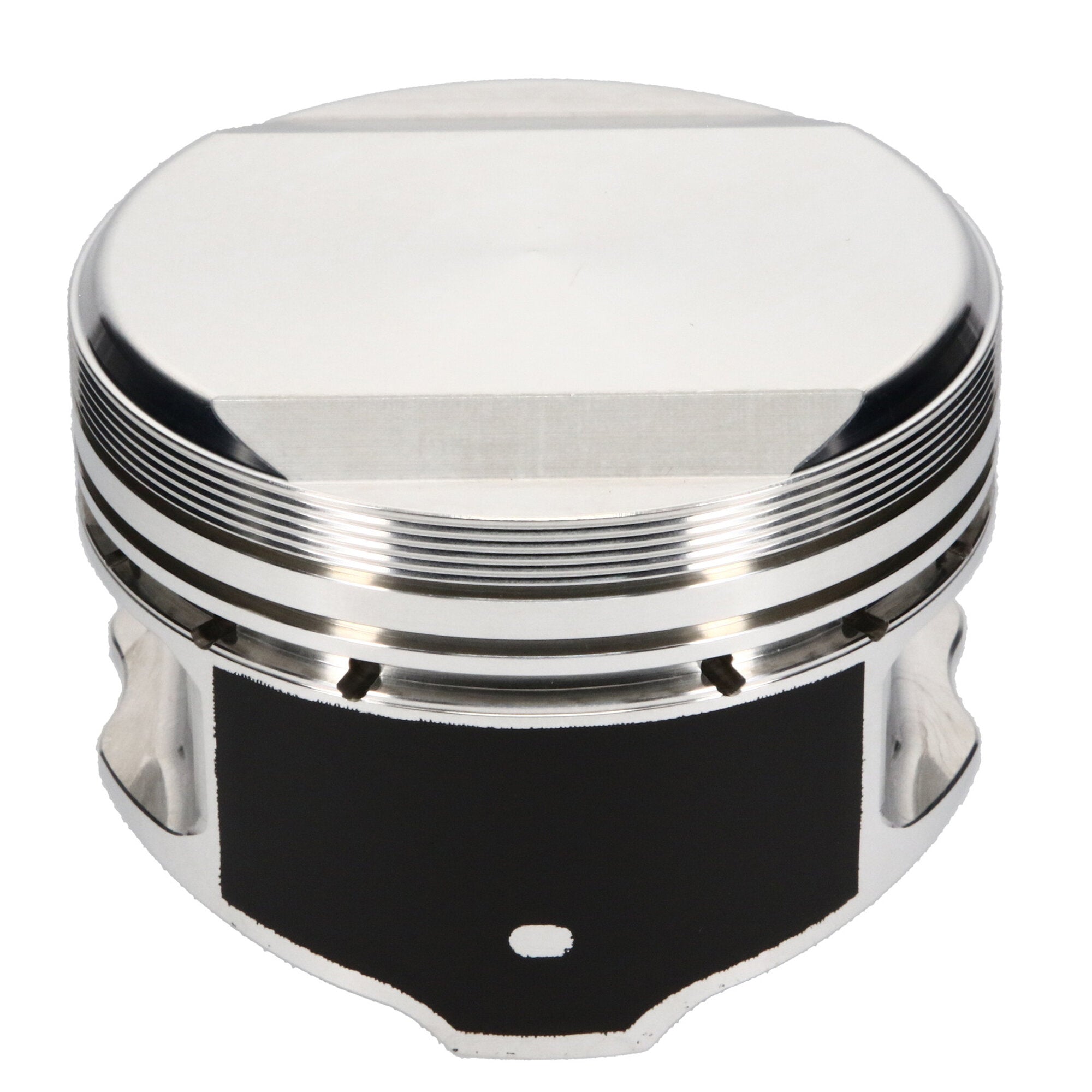

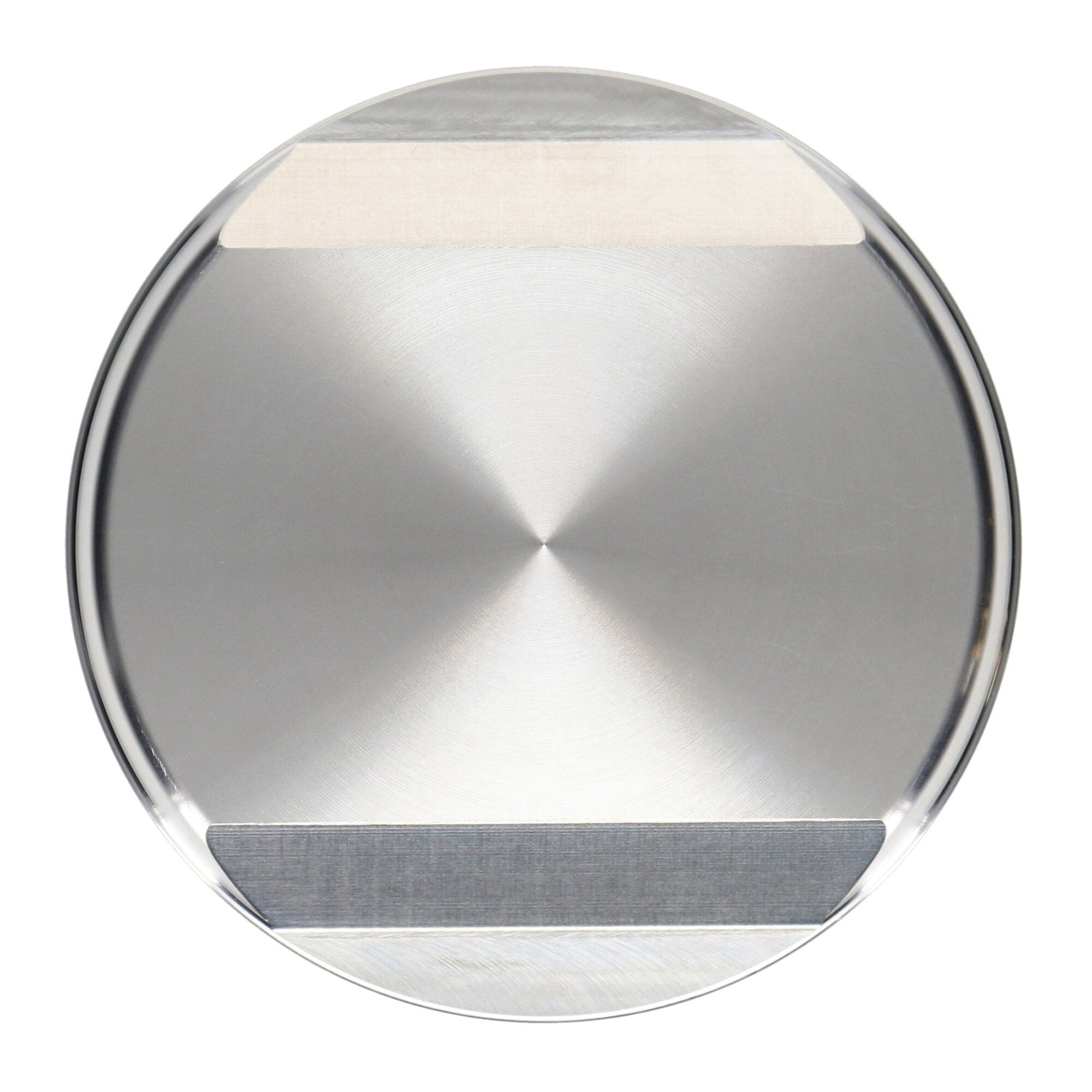

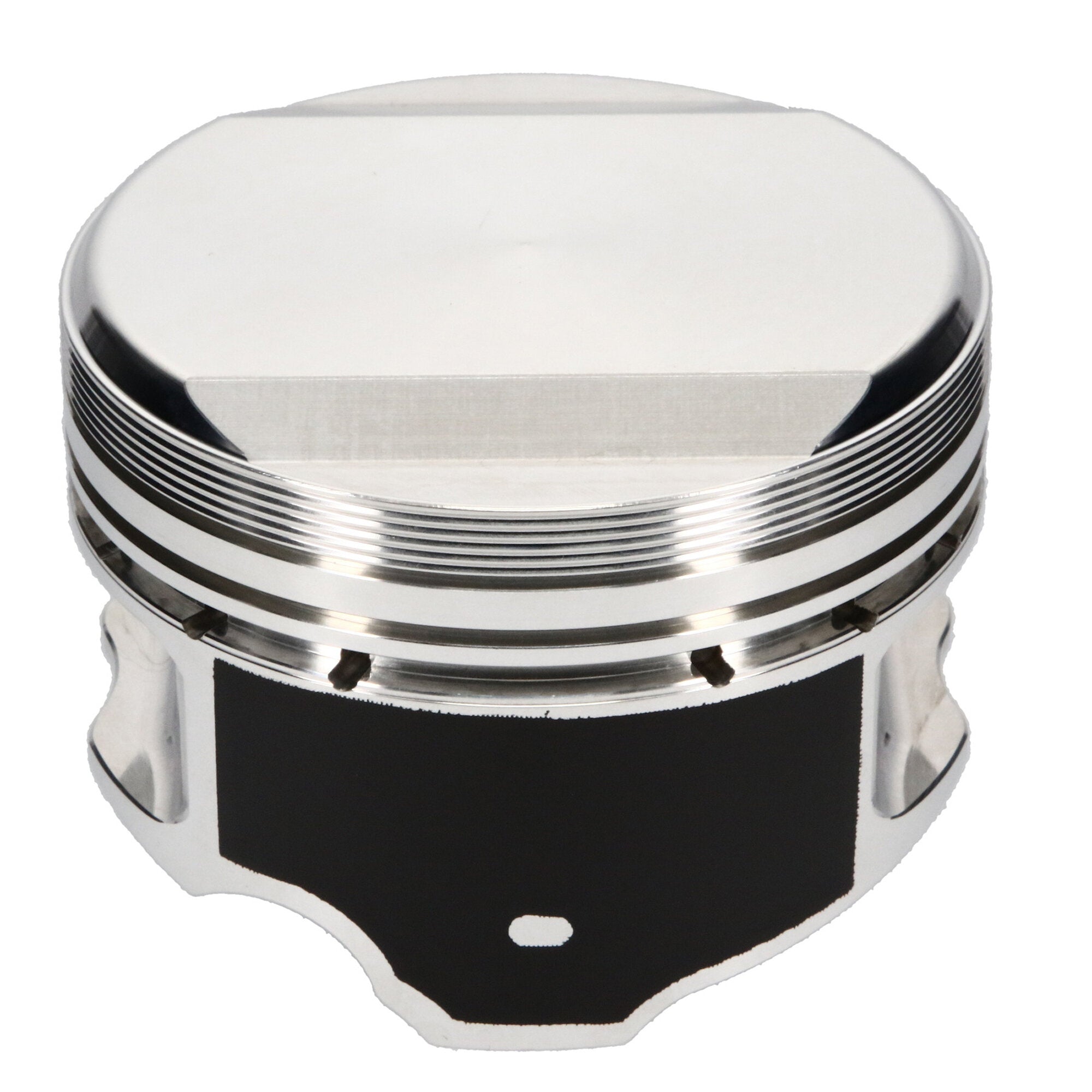

Piston Set, 2618, Dome, 3.396 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Nissan, SR Series, 3.396 in. Bore, 12.50:1, Dome, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan SR20VE, 86.25 Bore, Dome, Set of 4 |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Make |
NISSAN |
| Forging Type |
FSR |
| Title |
JE Pistons - Nissan, SR Series, 86.25 mm Bore, Piston Kit |
| Engine - Web |
SR Series |
| Piston Pin Material |
5115 |
| Compression Height |
1.260 |
| Product Market |
Sport Compact |
| Bore Diameter |
86.25 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Title - Web |
JE Pistons Nissan SR Series Piston Kit - 86.25 mm Bore - 1.260 in. CH, 5.80 CC |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Dome |
| Piston Material |
2618 |
| Piston Average Weight |
319 |
| Piston Volume |
5.80 |
| Piston Series |
JE Pistons |
| Piston Quantity |
4 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Outside Diameter |
0.866 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Wrist Pin Length |
2.250 |
| Ringset Included |
Yes |
| Add-On |
866-063-MW |
| Cylinder Head |
SR20VE VVL |
| Add-On |
866-2250-15-51C |
| Piston Pin Length |
2.250 |
| Engine |
SR SERIES |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
JG1001-3396 |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
