As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ferrari 4.0L 330 V12 2V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

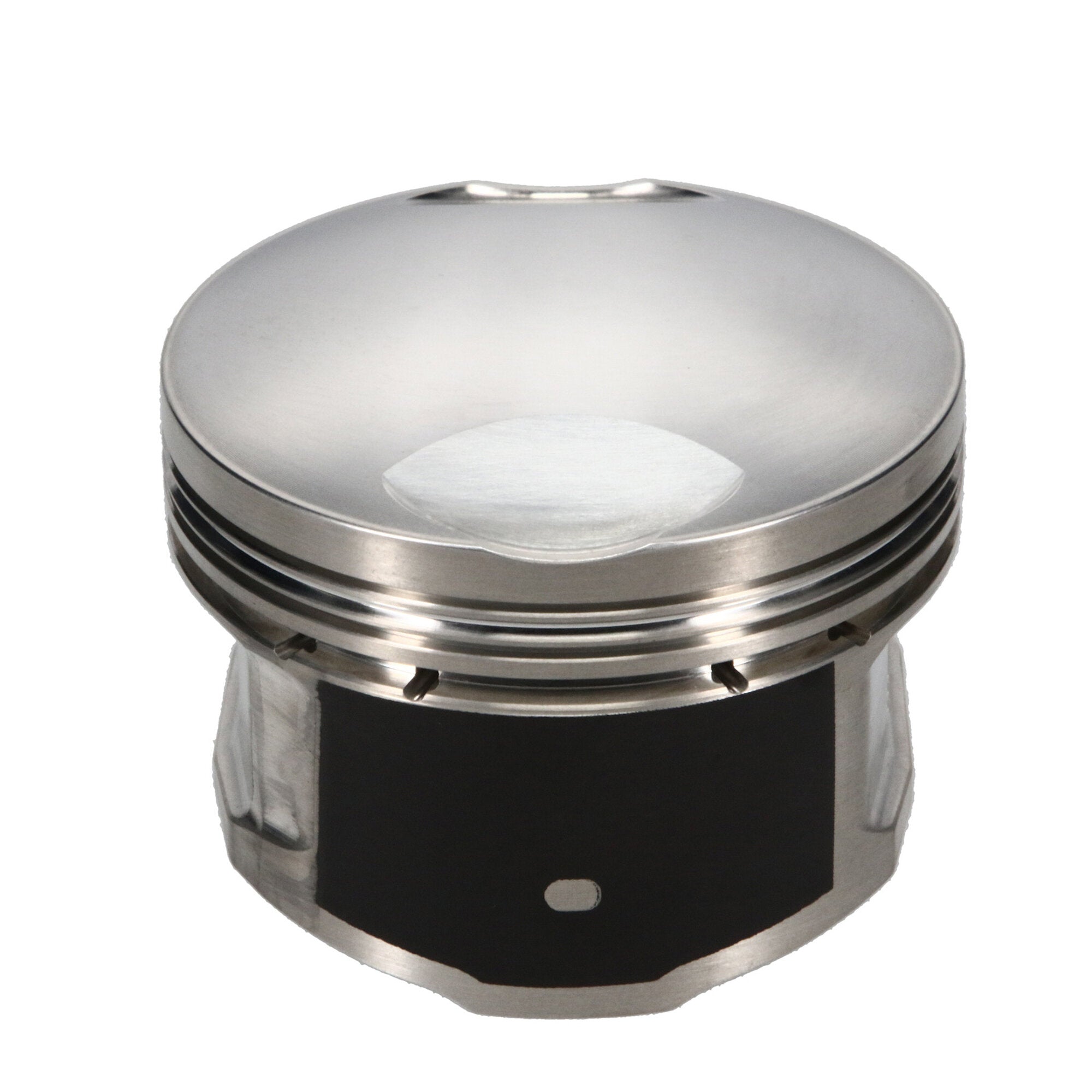

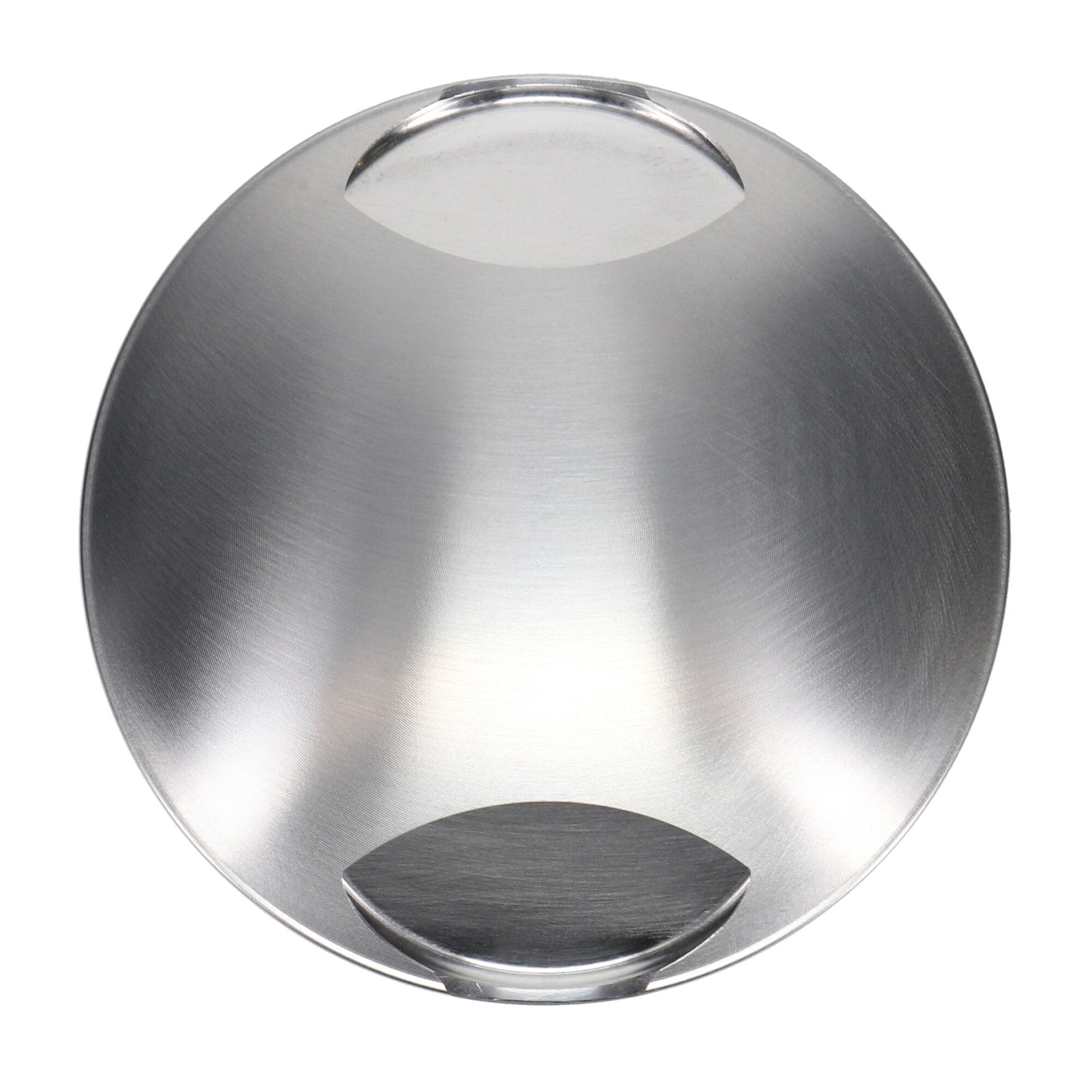

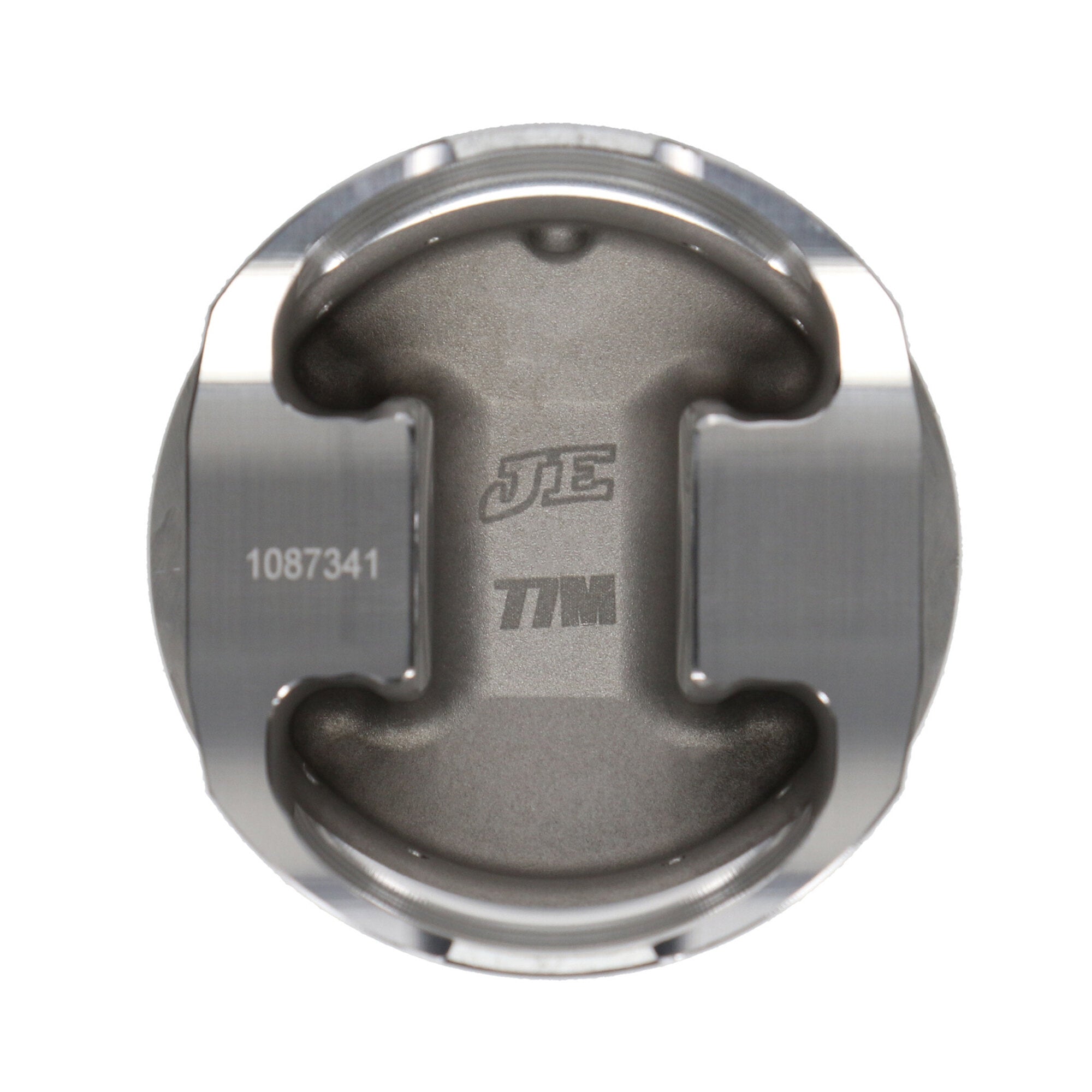

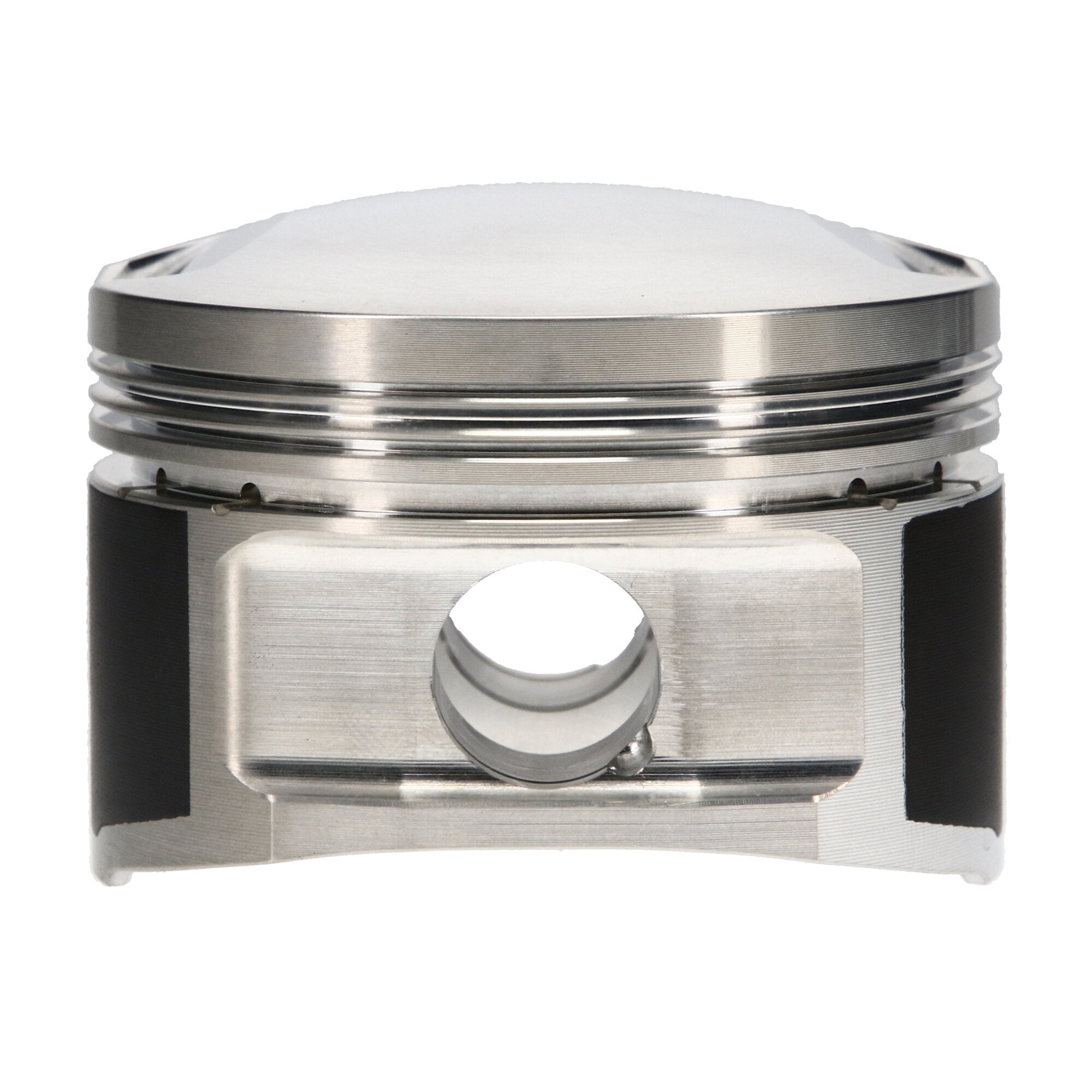

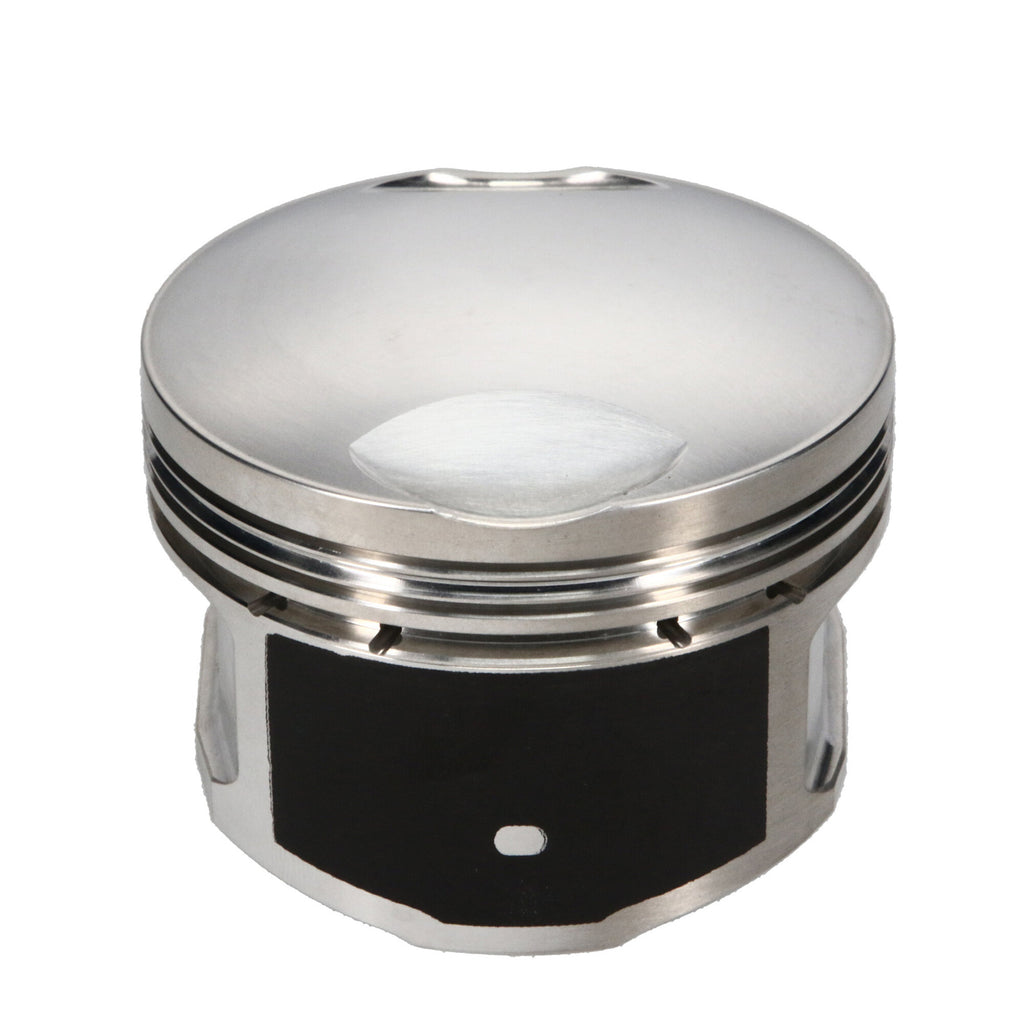

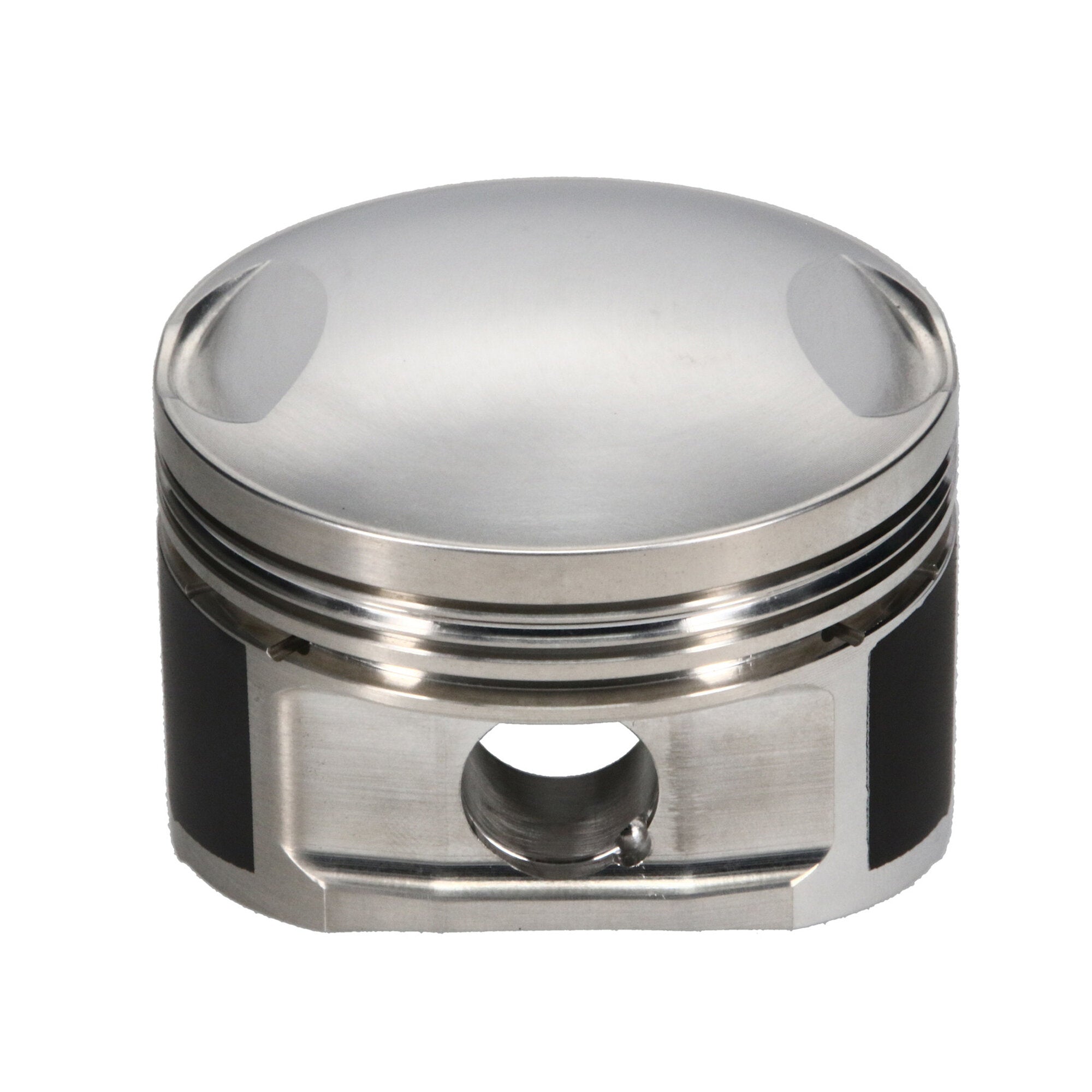

Piston Set, 2618, Dome, 3.051 Bore, 1.173 CD, 0.728 Pin, Set of 12. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ferrari, 4.0L 330 V12 2V, 3.051 in. Bore, 9.00:1, Dome, 1 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ferrari 4.0L 330 V12 2V, 77.50 Bore, Dome, Set of 12 |
| Make - Web |
Ferrari |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title - Web |
JE Pistons Ferrari 4.0L 330 V12 2V Piston Kit - 77.50 mm Bore - 1.173 in. CH, 15.40 CC |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
Yes |
| Industry |
Automotive |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Piston Head Type |
Dome |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Pin Wall Thickness |
0.120 |
| Oil Ring Thickness |
0.111 |
| Bore Diameter |
77.50 |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
European |
| Piston Quantity |
2 |
| Compression Height |
1.173 |
| Piston Average Weight |
266 |
| Engine |
4.0L 330 V12 2V |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Wrist Pin Wall Thickness |
0.120 |
| Prop 65 (C, R or CR) |
CR |
| Make |
FERRARI |
| Title |
JE Pistons - Ferrari, 4.0L 330 V12 2V, 77.50 mm Bore, Piston Kit |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.728 |
| Out of Stock Message |
Call for Availability |
| Add-On |
728-050-MW |
| Piston Volume |
15.40 |
| Product Type |
Engine Piston Kit |
| Cylinder Head |
330 GTC |
| Add-On |
JG1001-3051 |
| Prop 65 Yes/No |
Yes |
| Add-On |
728-2250-12-TSC |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.728 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
4.0L 330 V12 2V |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
12.0000 |
