As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Hyundai 2.0T Theta Genesis |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

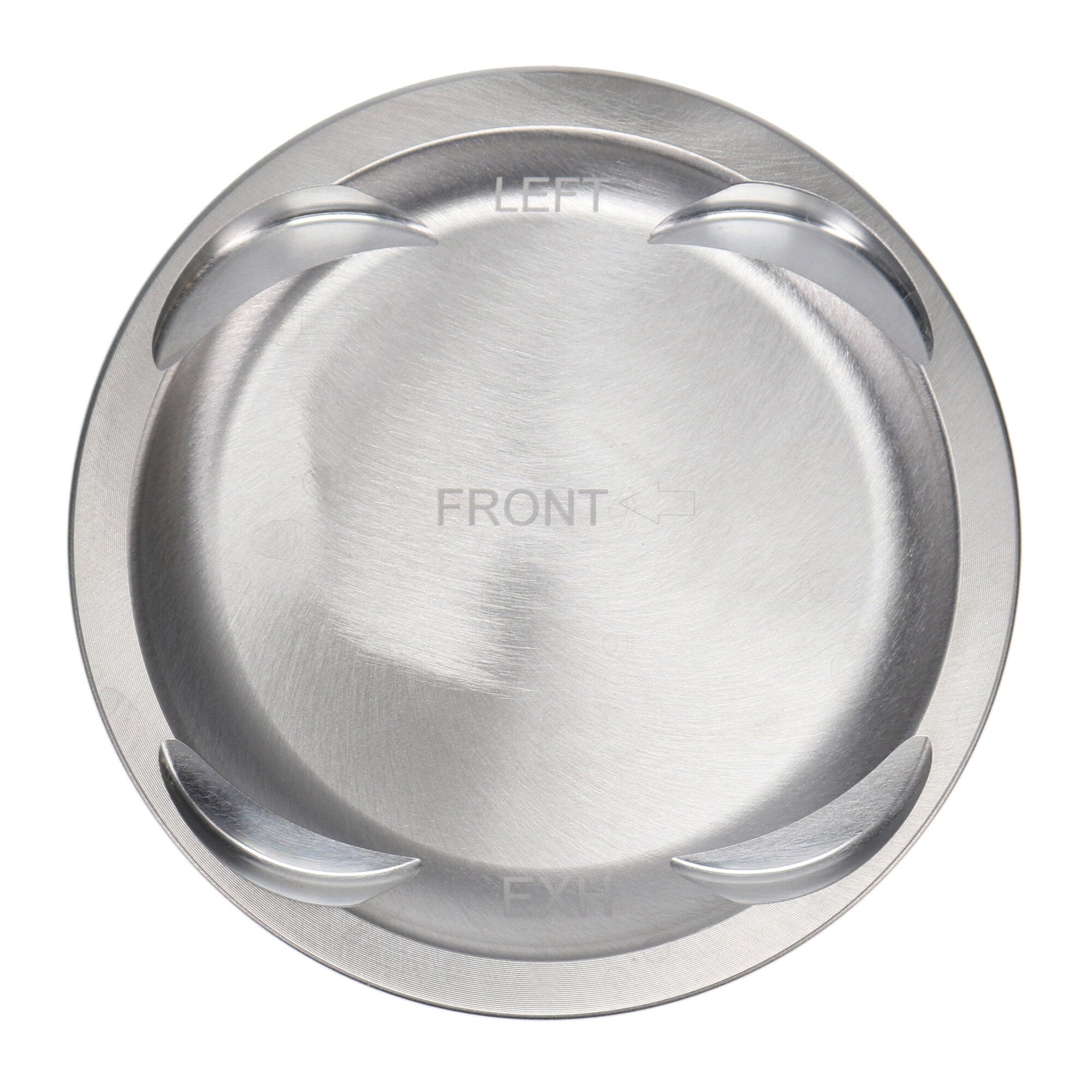

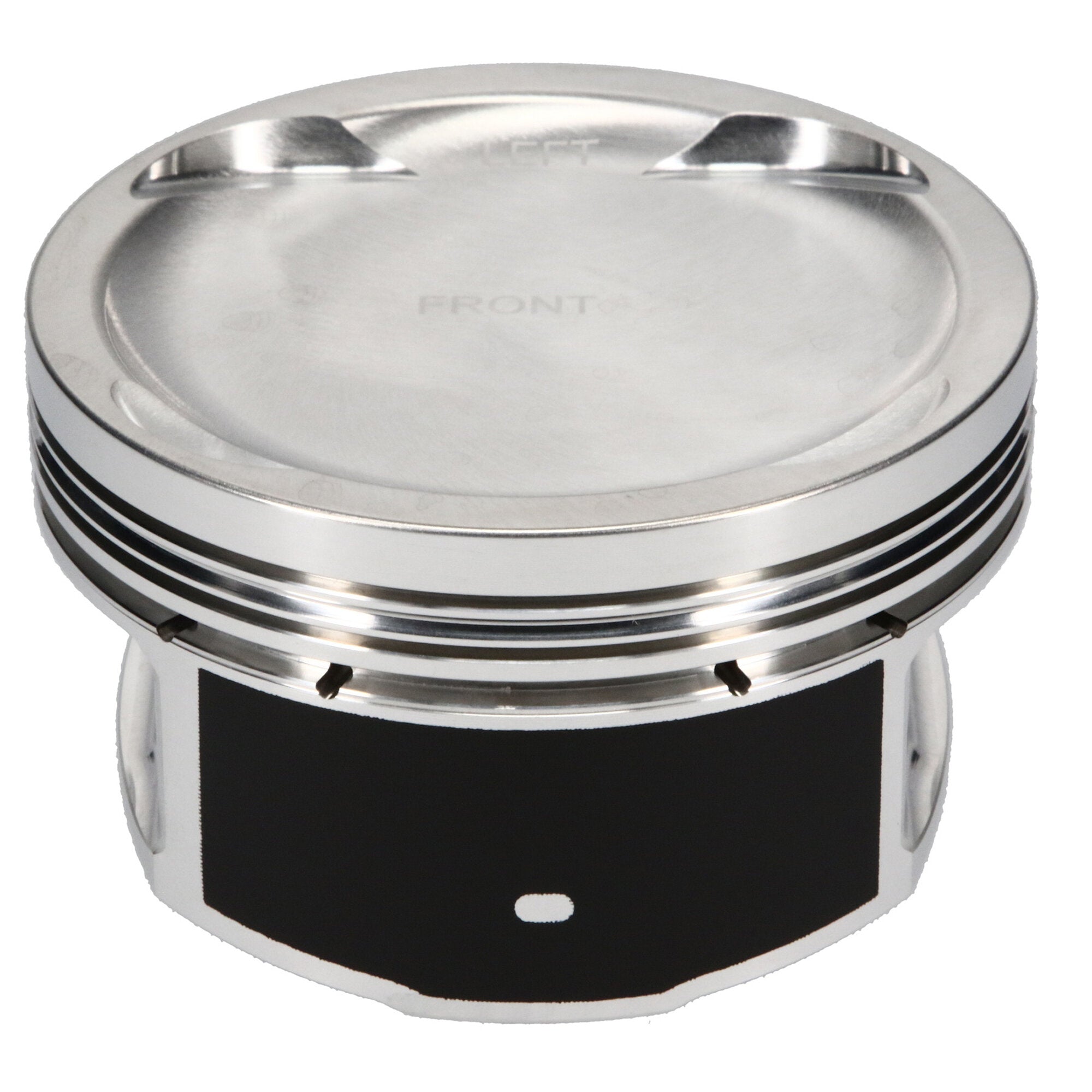

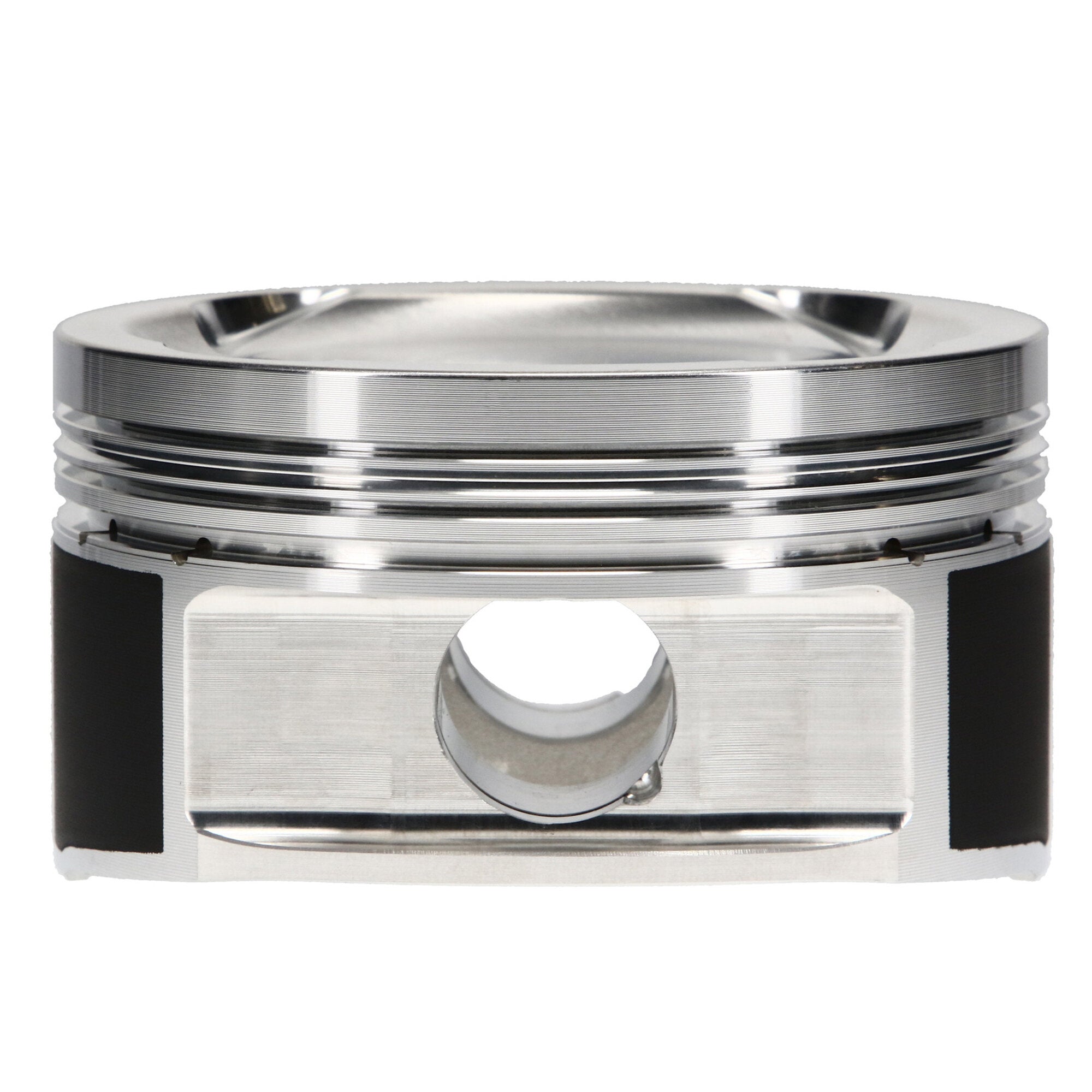

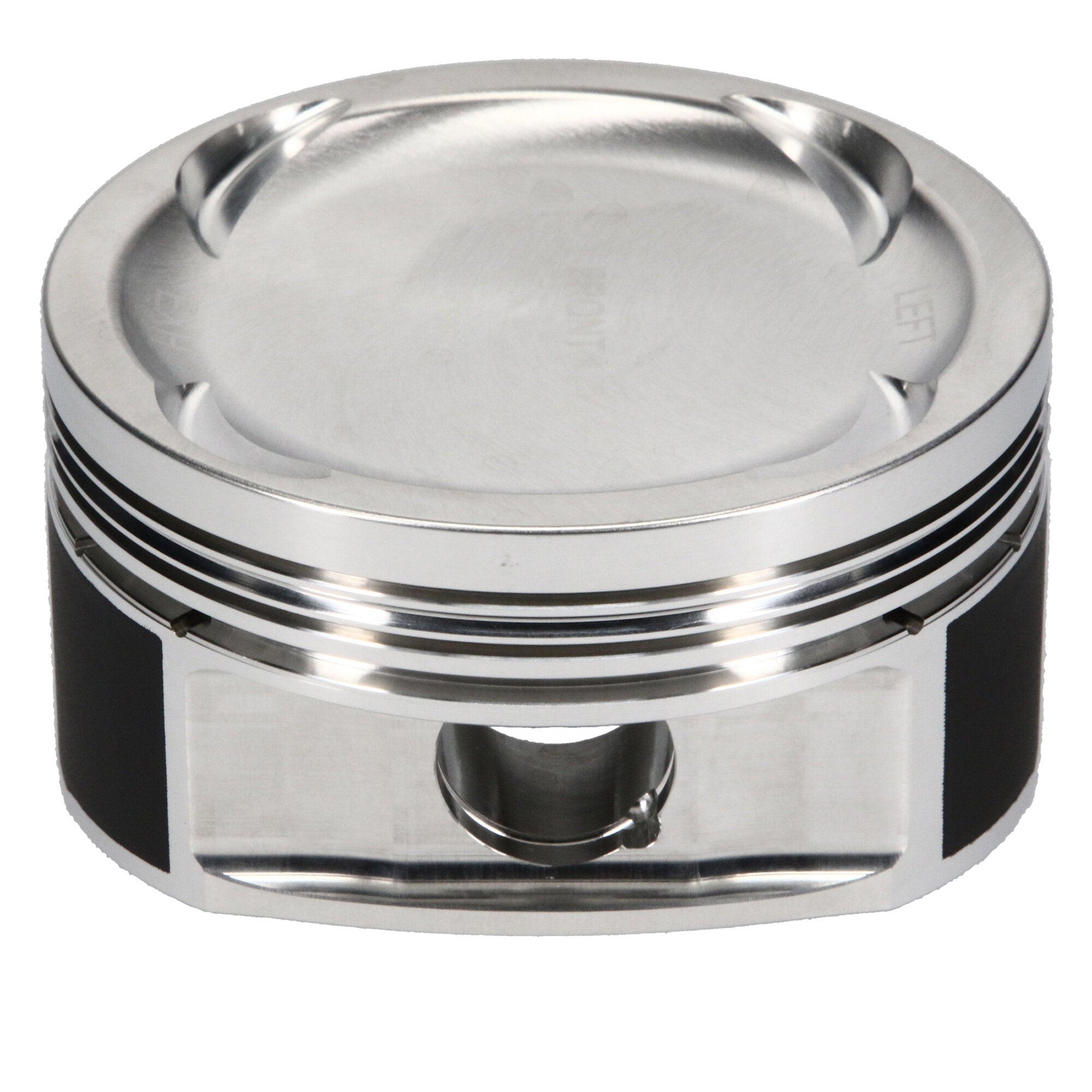

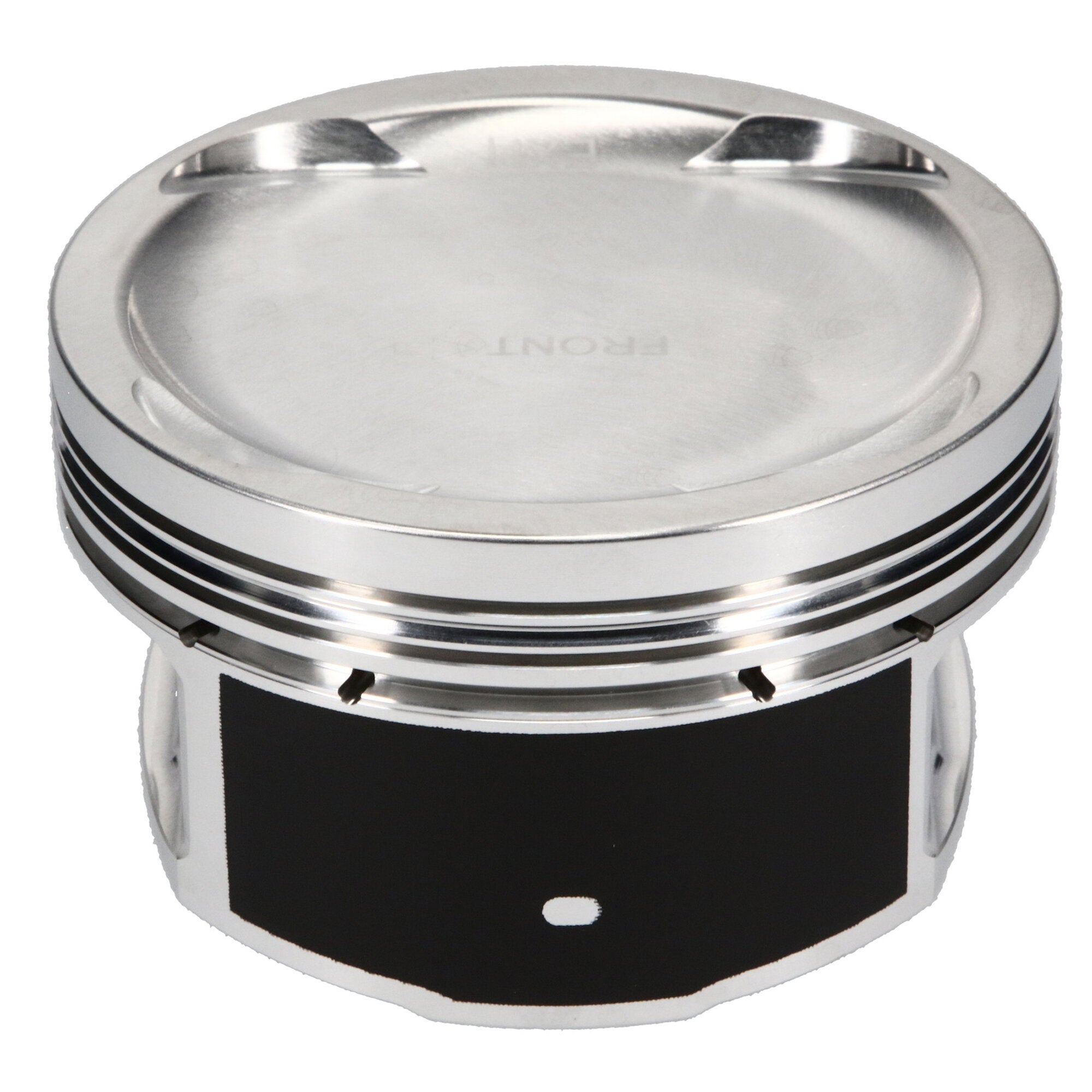

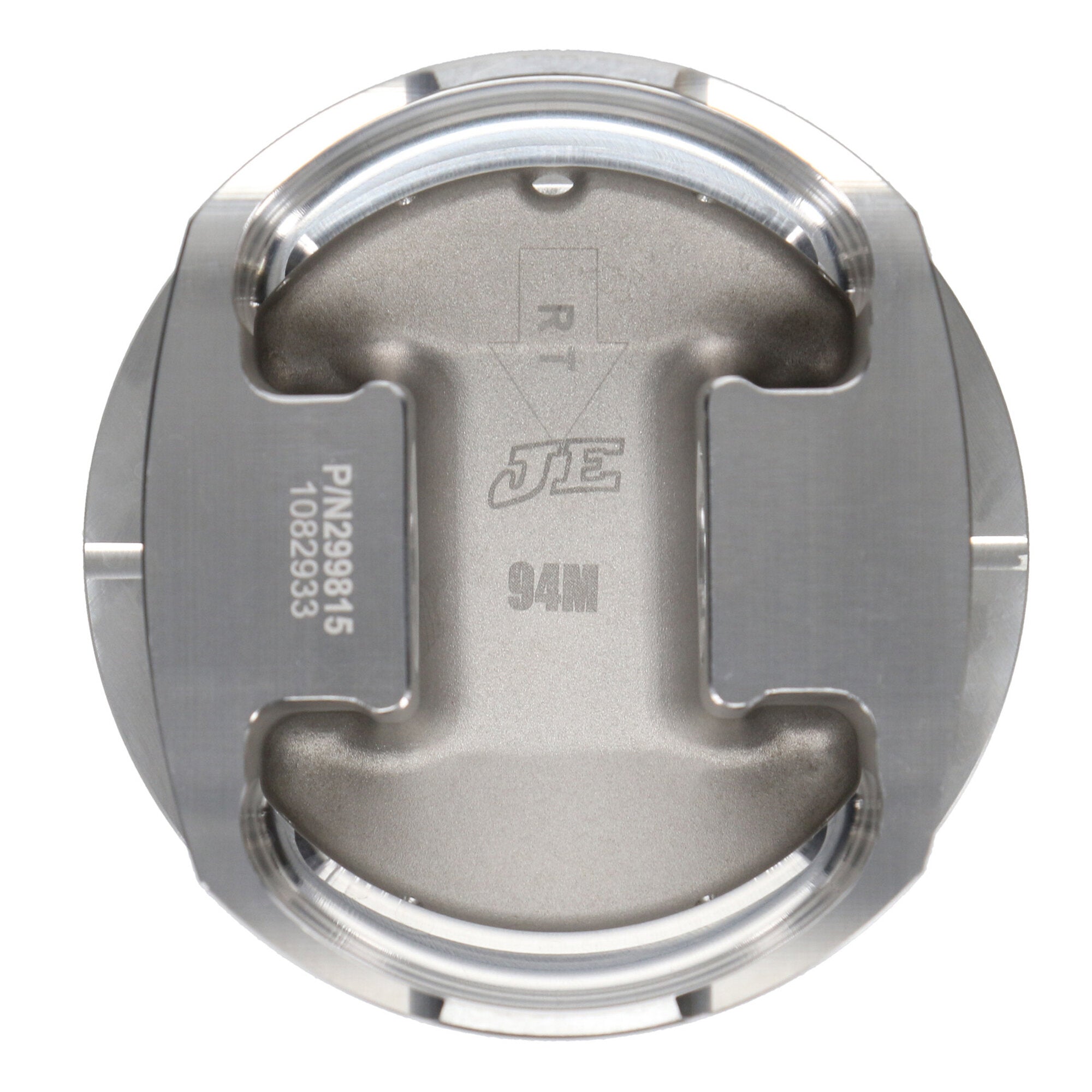

Piston Set, 2618, Inv Dome/Dish, 3.396 Bore, 1.181 CD, 0.866 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Hyundai, 2.0T Theta Genisis, 3.396 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Hyundai 2.0T Theta Genesis, 86.25 Bore, Dish, Set of 4 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Bore Diameter |
86.25 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.111 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Market |
Sport Compact |
| Piston Average Weight |
305 |
| Engine - Web |
2.0T Theta Genesis |
| Wrist Pin Outer Diameter |
0.866 |
| Make |
HYUNDAI |
| Engine Type |
ICE |
| Piston Quantity |
4 |
| Piston Pin Wall Thickness |
0.180 |
| Wrist Pin Wall Thickness |
0.180 |
| Industry |
Automotive |
| Add-On |
JG1001-3396 |
| Piston Pin Outside Diameter |
0.866 |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-18-51C |
| Product Type |
Engine Piston Kit |
| Forging Type |
FSR |
| Title |
JE Pistons - Hyundai, 2.0T Theta Genesis, 86.25 mm Bore, Piston Kit |
| Compression Height |
1.181 |
| Cylinder Head |
THETA I4 |
| Piston Volume |
-5.90 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Hyundai |
| Piston Head Type |
Dish |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Hyundai 2.0T Theta Genesis Piston Kit - 86.25 mm Bore - 1.181 in. CH, -5.90 CC |
| Engine |
2.0T THETA GENISIS |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
