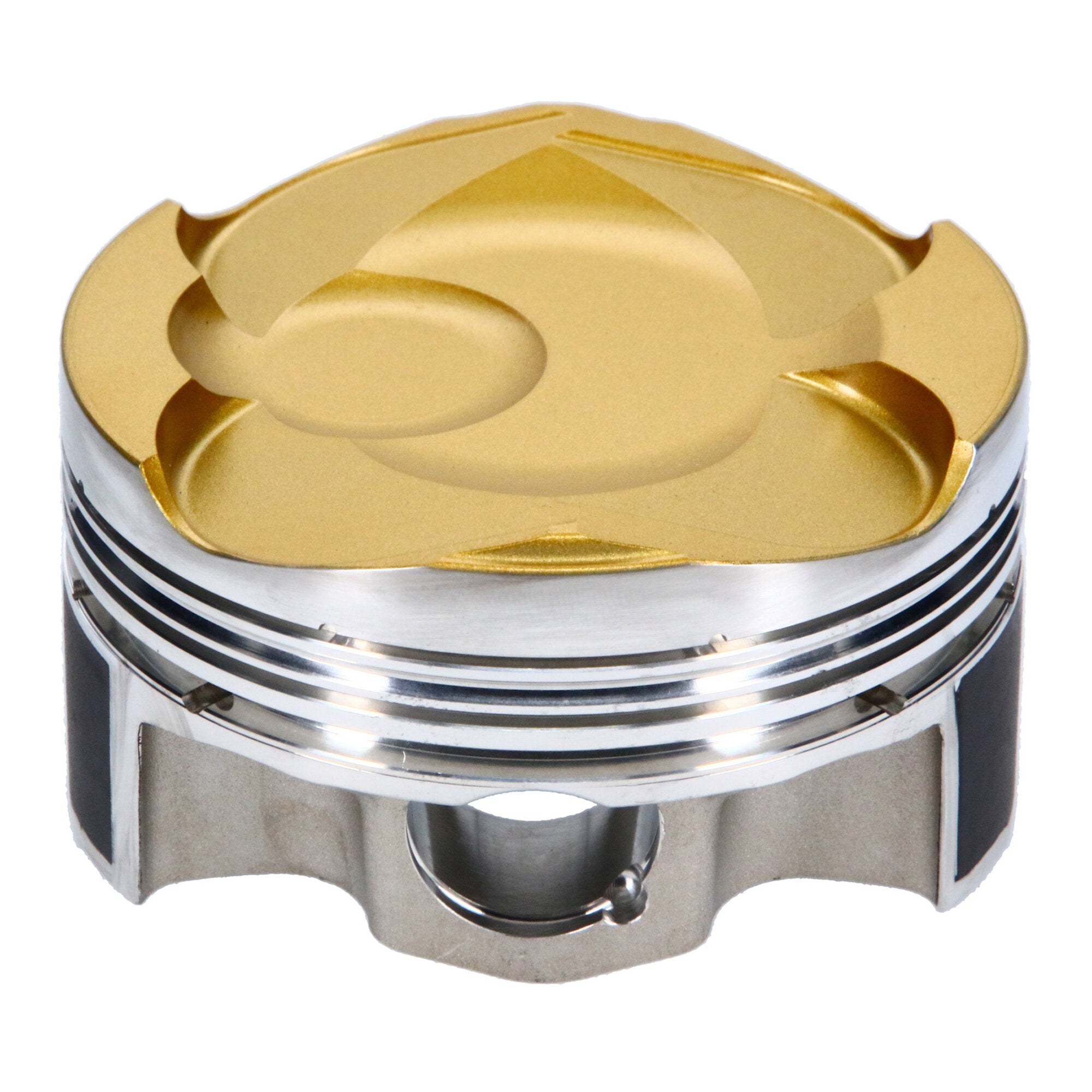

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Subaru FA20DIT/FA20E/FA20F |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE Ultra, Subaru, FA20DIT Series, 3.425 in. Bore, 10.00:1, Dome, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.425 Bore, 1.287 CD, 0.866 Pin, Set of 4. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments

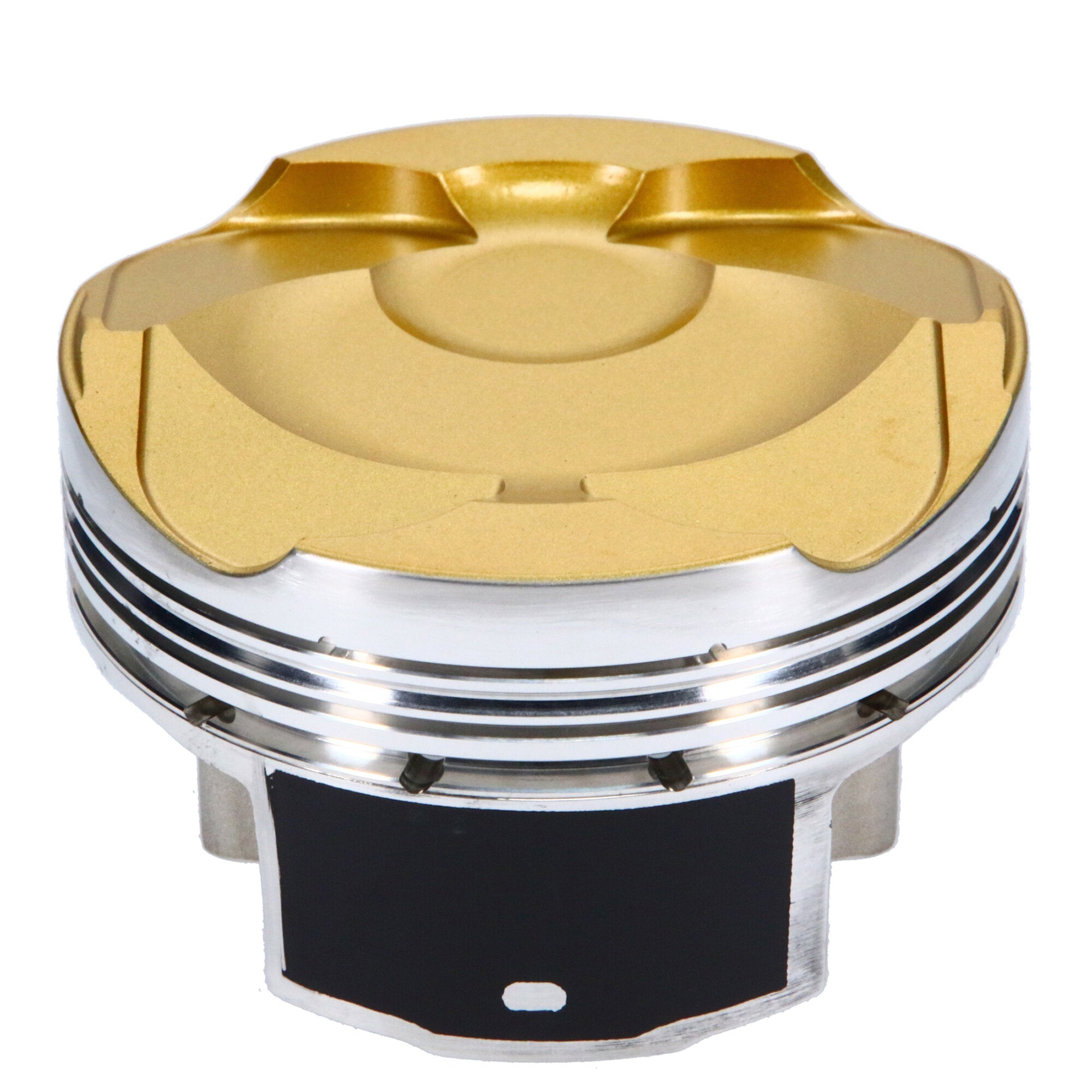

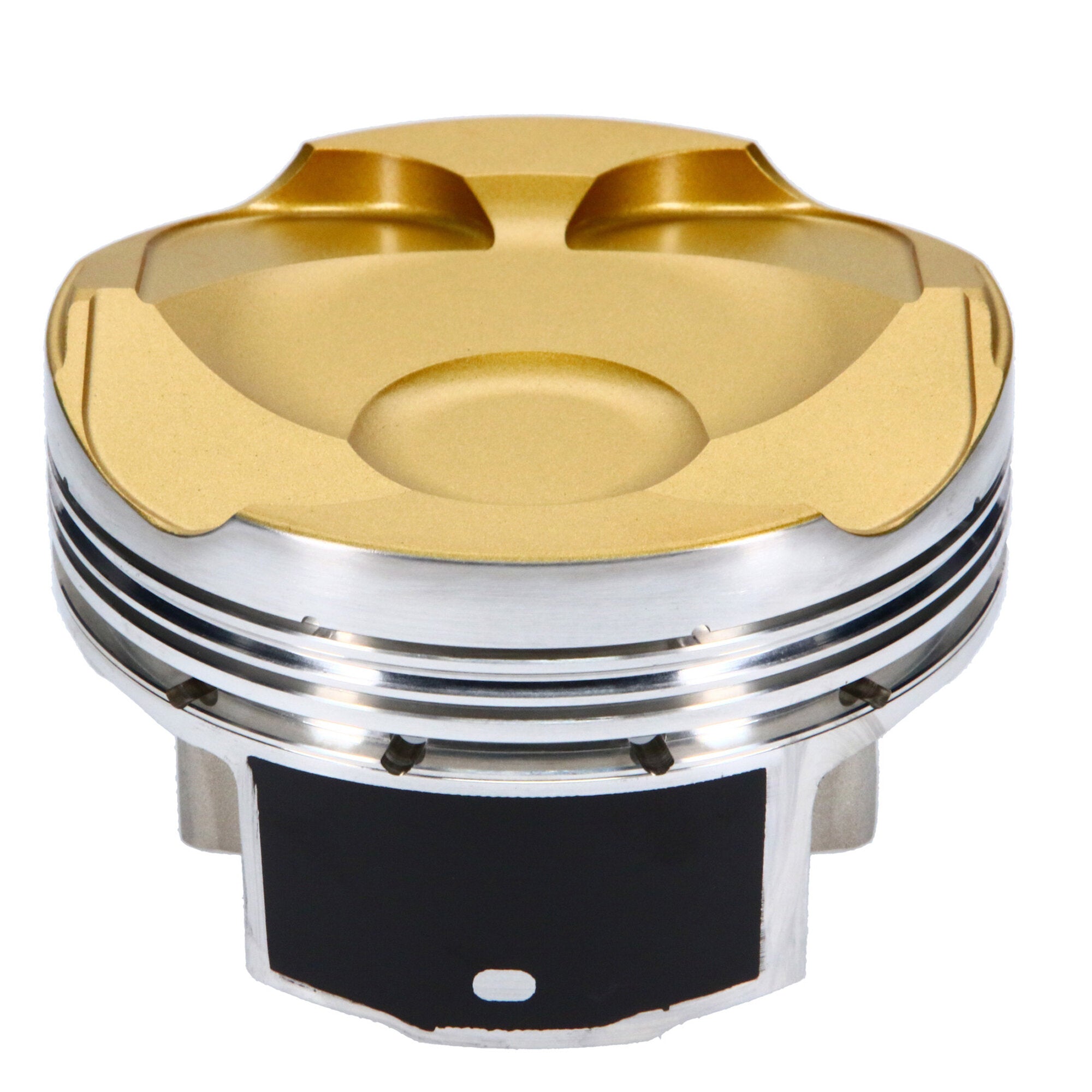

- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start

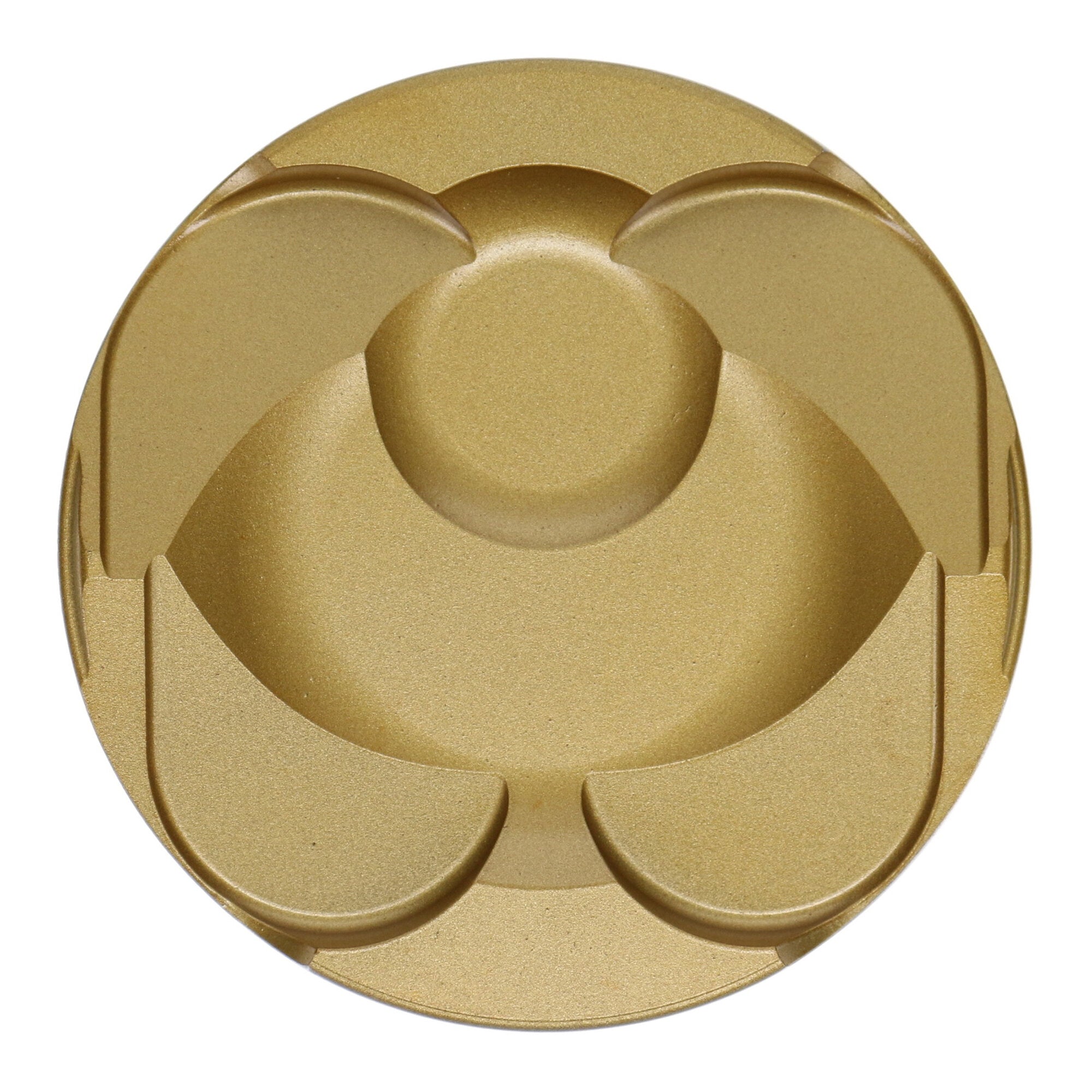

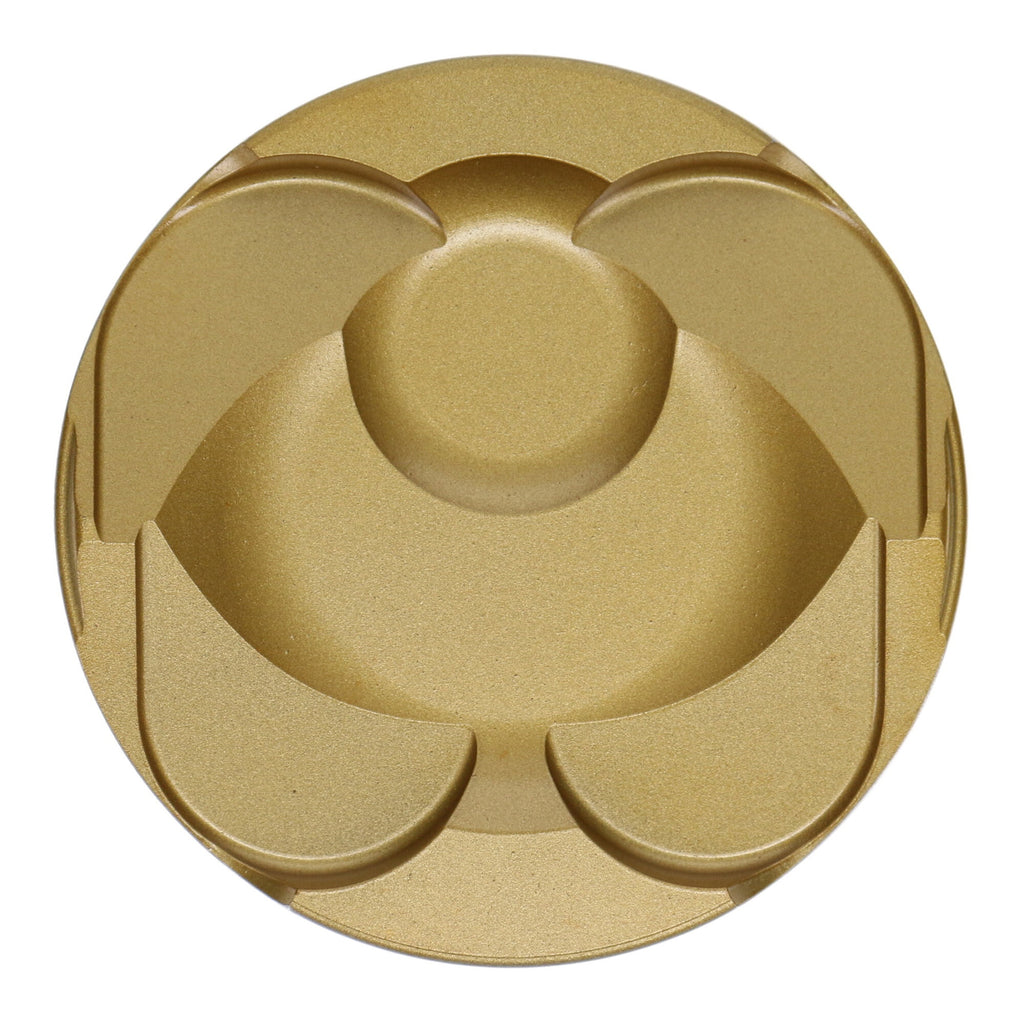

- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging

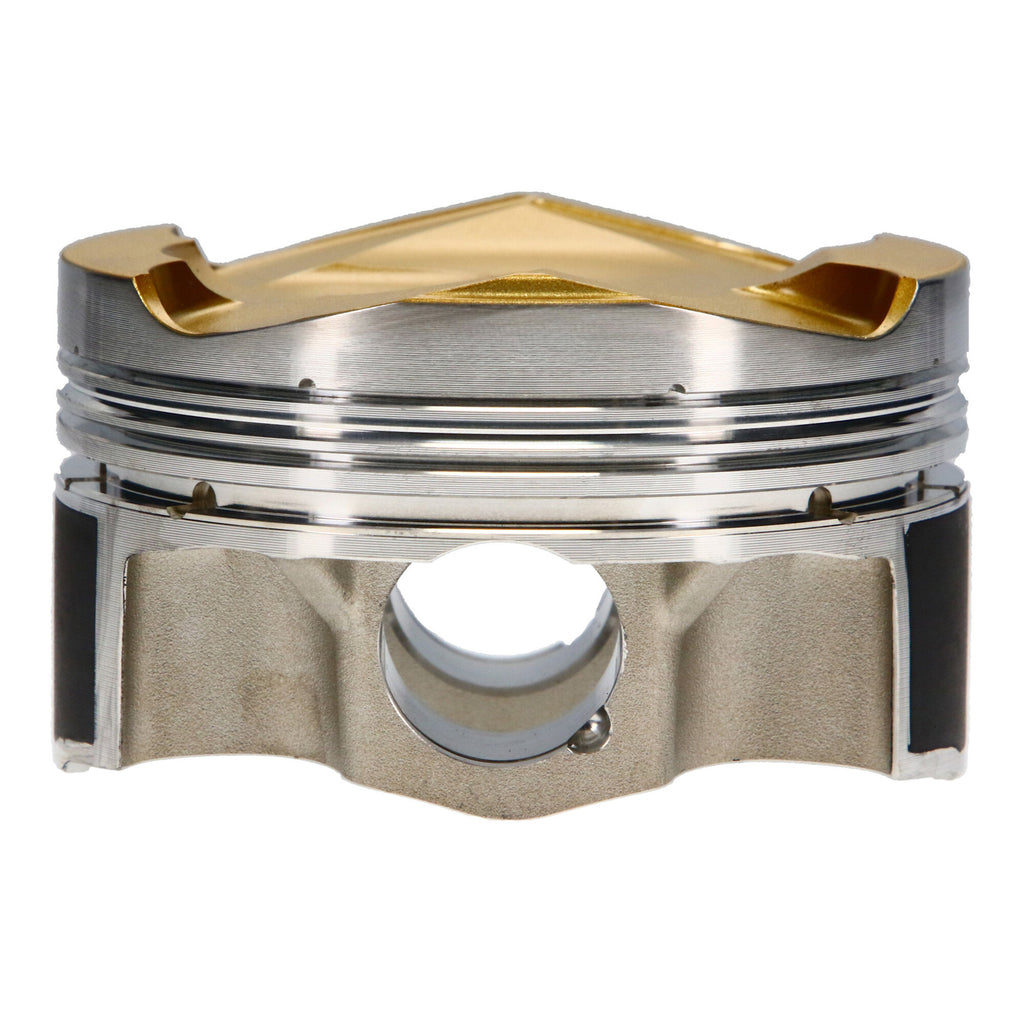

- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations

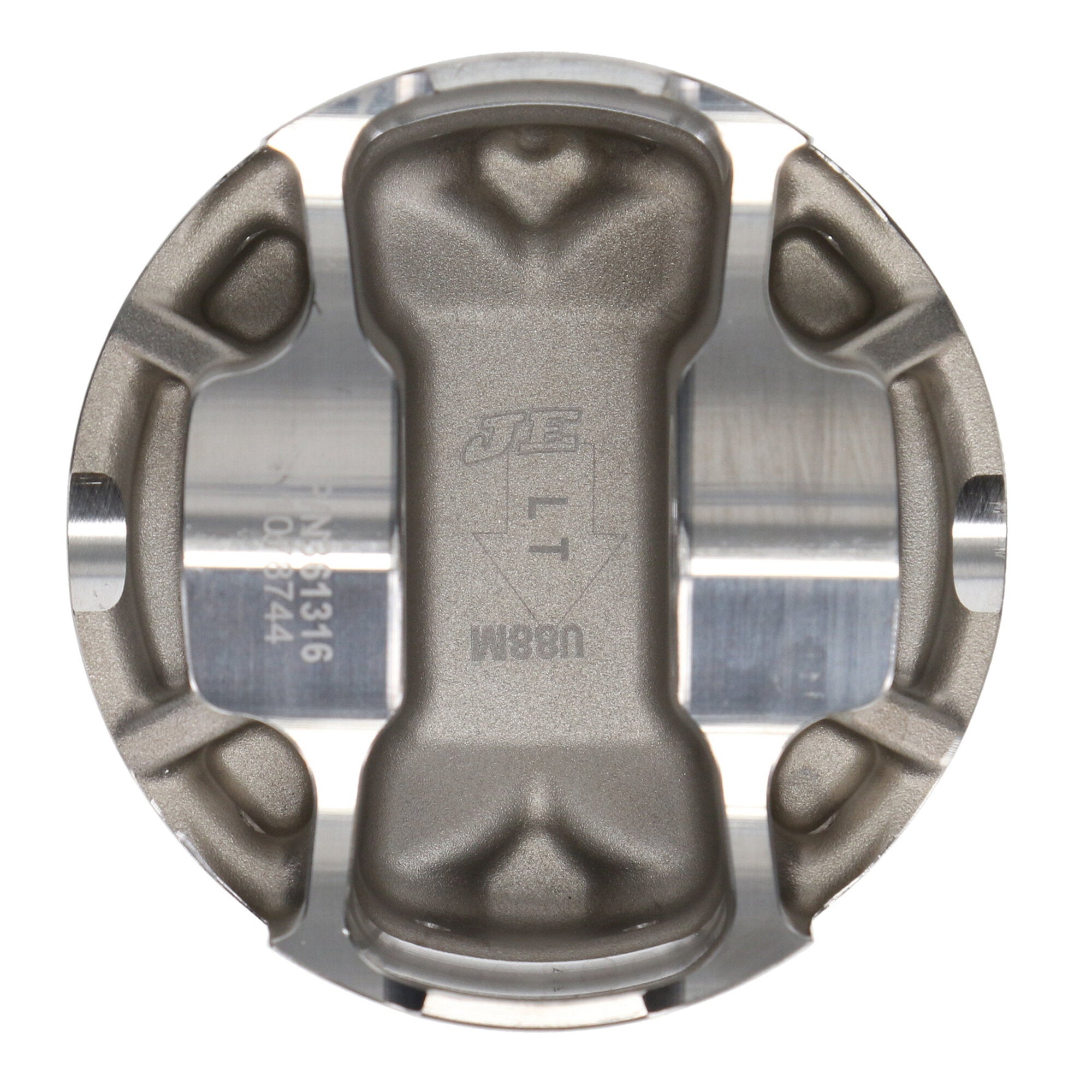

- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Subaru FA20DIT/FA20E/FA20F, 87.00 Bore, Dome, Set of 4 |
| Engine |
FA20DIT SERIES |
| Ringset Included |
Yes |
| Piston Pin Material |
9310 |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Ultra Series |
| Piston Head Type |
Dome |
| Wrist Pin Wall Thickness |
0.230 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
FSR |
| Make |
SUBARU |
| Top Compression Ring Thickness |
0.0395 |
| Product Market |
Sport Compact |
| Piston Pin Wall Thickness |
0.230 |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Sport Compact |
| Piston Average Weight |
334 |
| Engine Type |
ICE |
| Piston Volume |
-14.40 |
| Oil Ring Thickness |
0.111 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Make - Web |
Subaru |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Piston Material |
2618 |
| Add-On |
866-063-MW |
| Title - Web |
JE Ultra Series Subaru FA20DIT Series Piston Kit - 87.00 mm Bore - 1.287 in. CH, -14.40 CC |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Bore Diameter |
87.00 |
| Piston Pin Outside Diameter |
0.866 |
| Title |
JE Ultra Series - Subaru, FA20DIT Series, 87.00 mm Bore, Piston Kit |
| Add-On |
JG1004-3425 |
| Compression Height |
1.287 |
| Cylinder Head |
FA20 DIT |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-23-93C |
| Prop 65 (C, R or CR) |
CR |
| Engine - Web |
FA20DIT Series |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
