As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan RB25DET |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

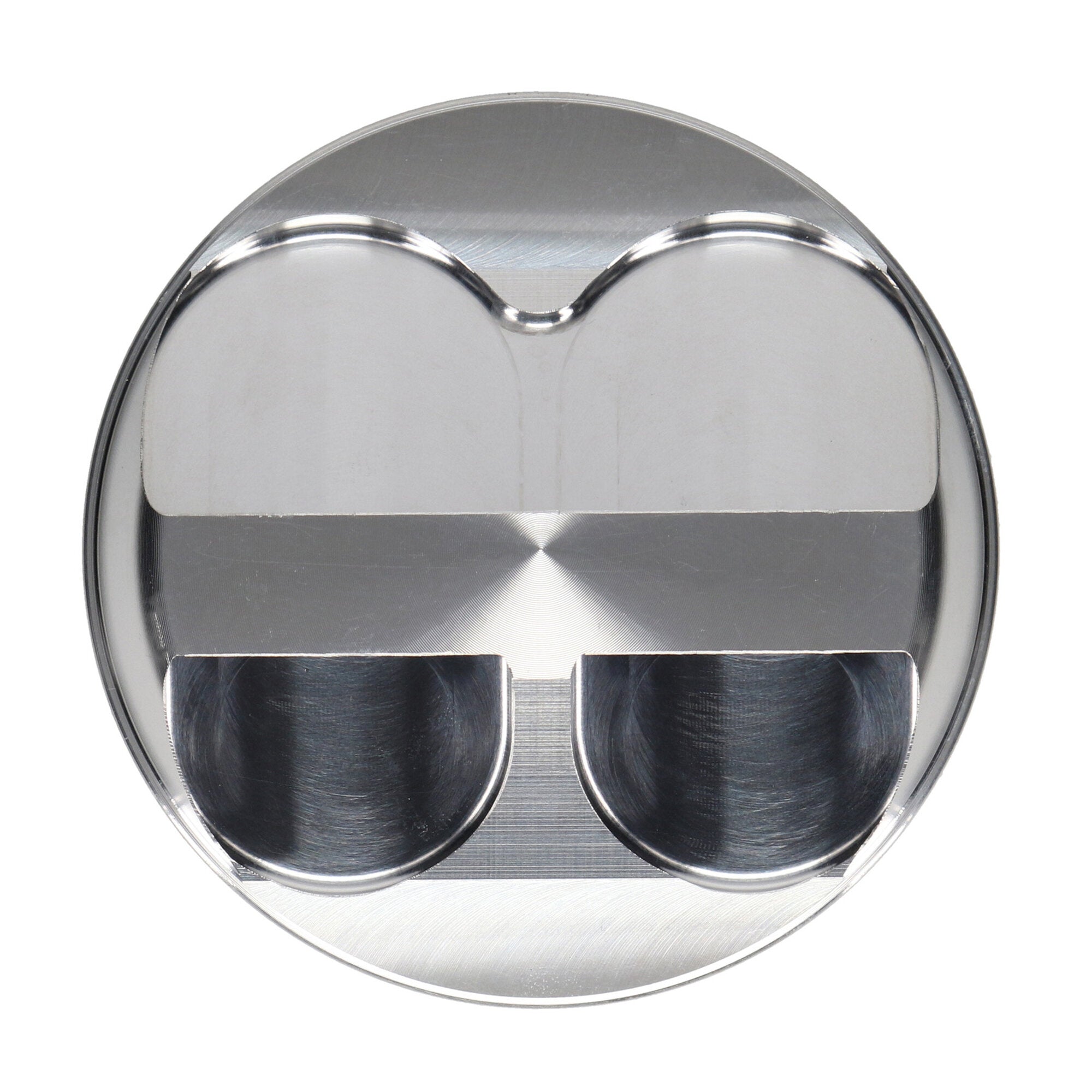

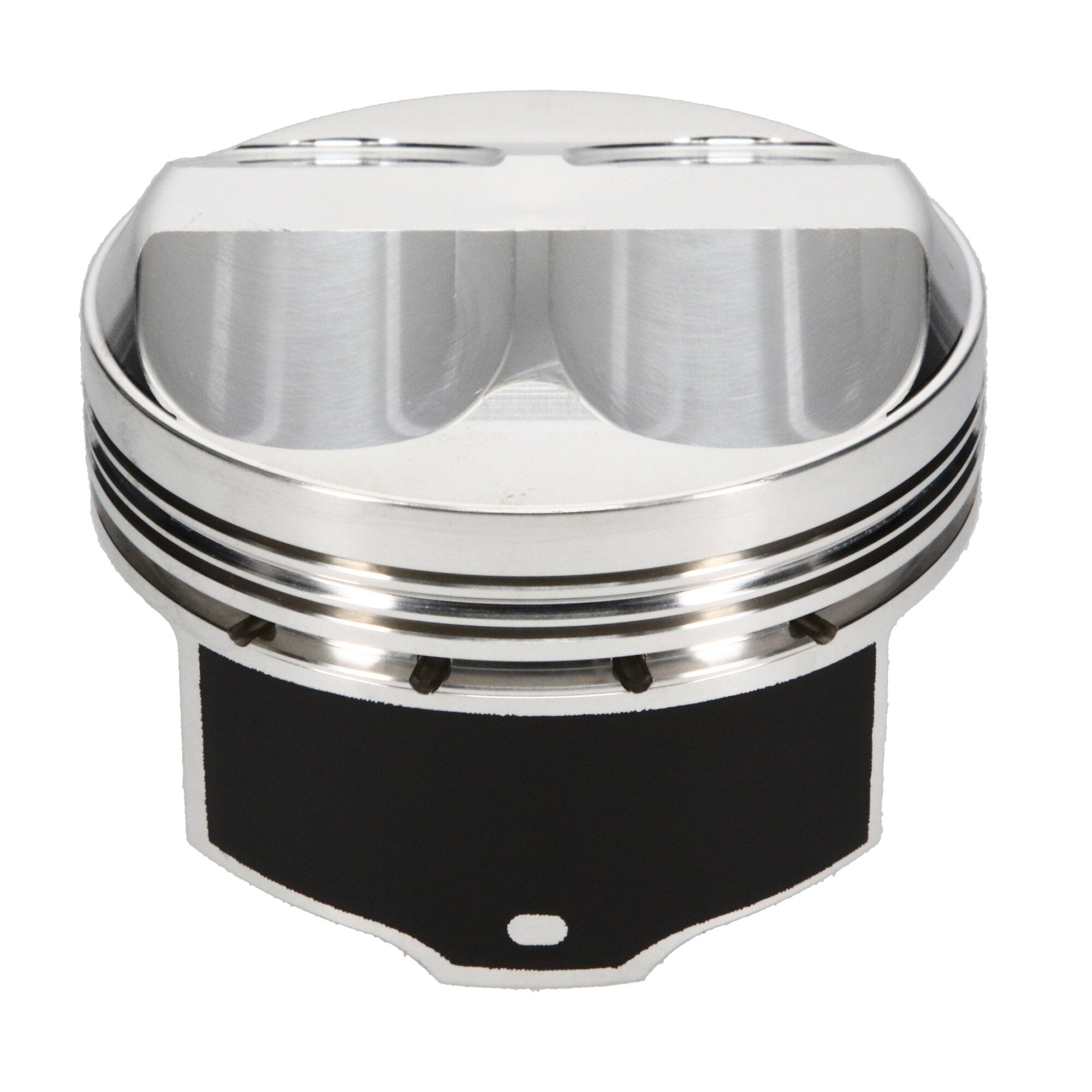

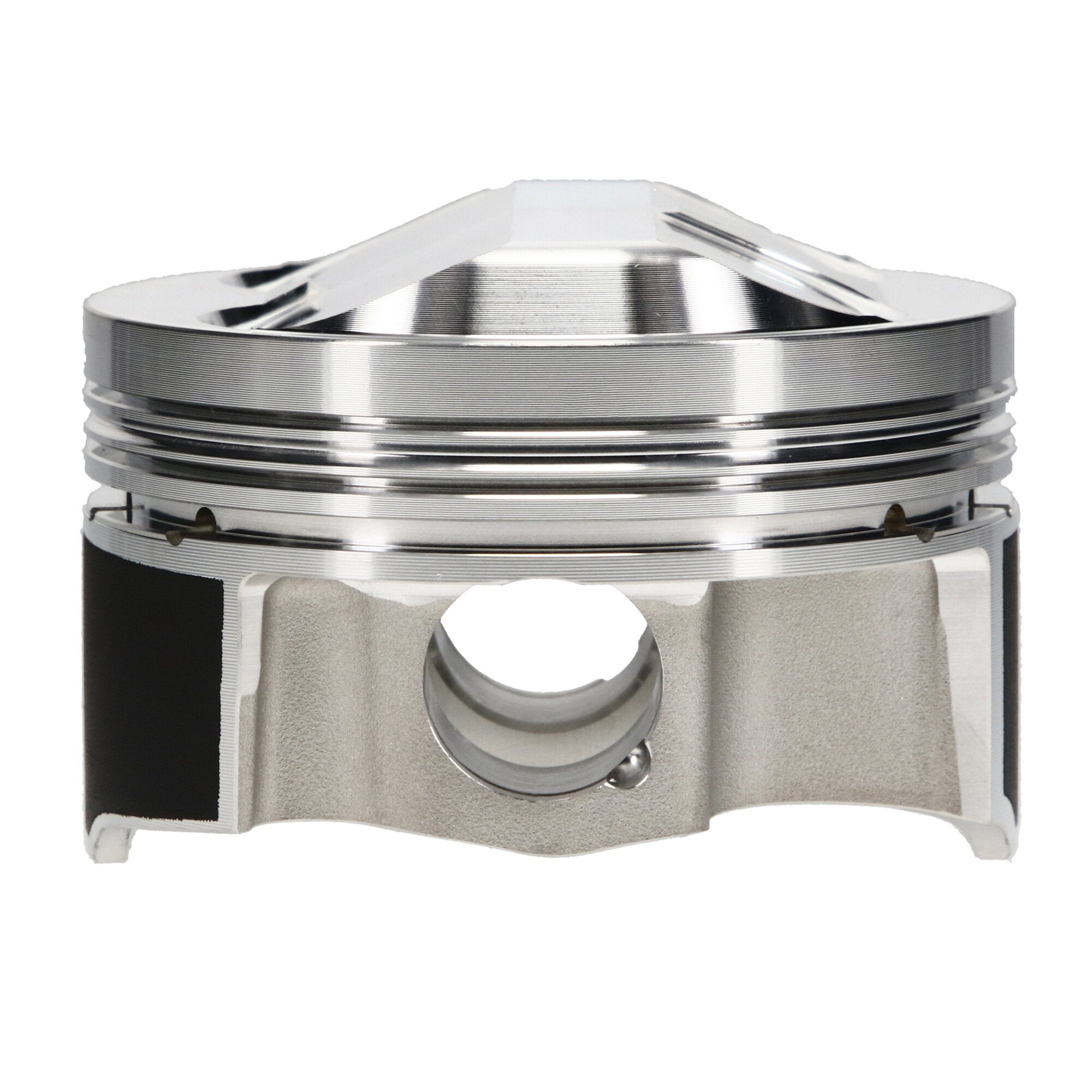

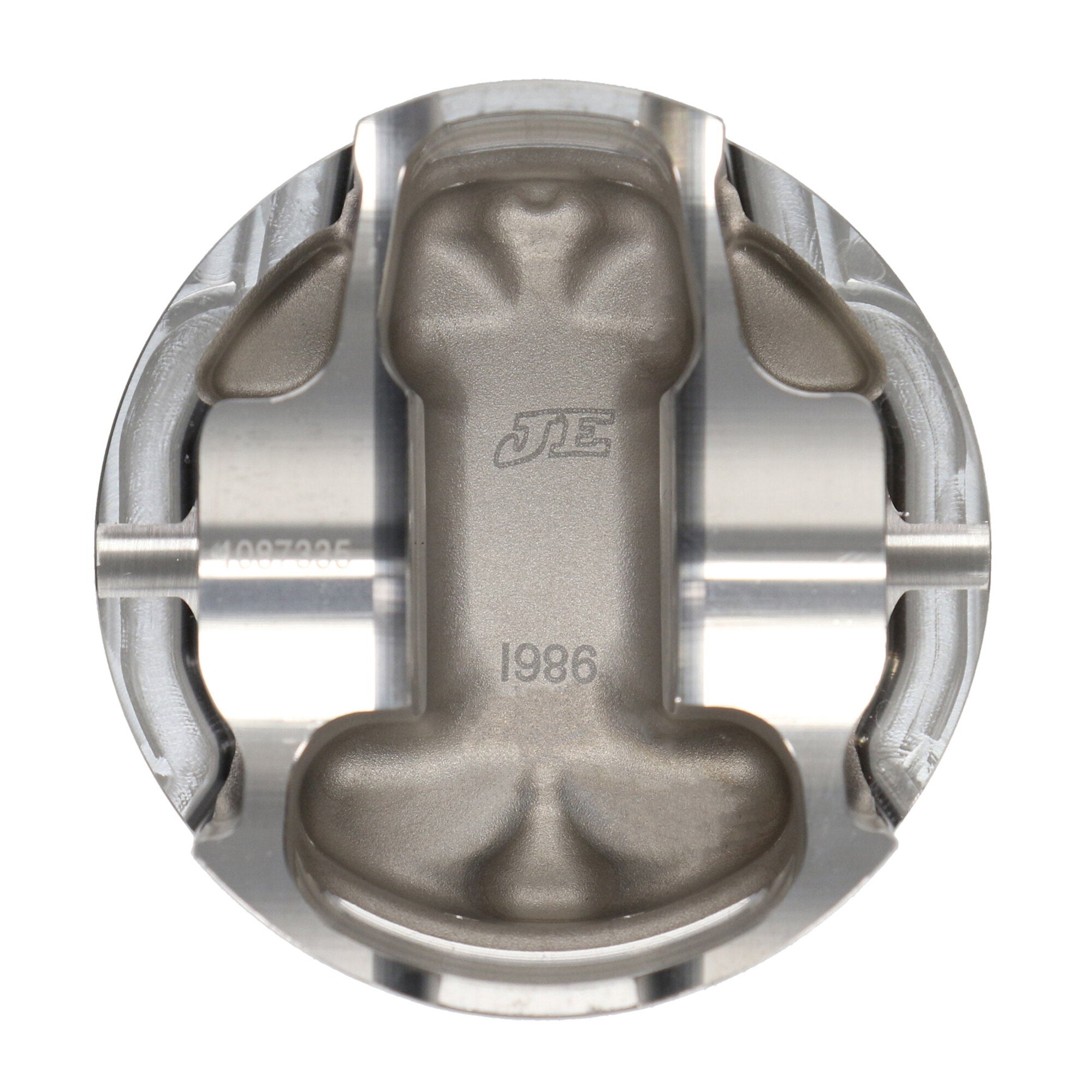

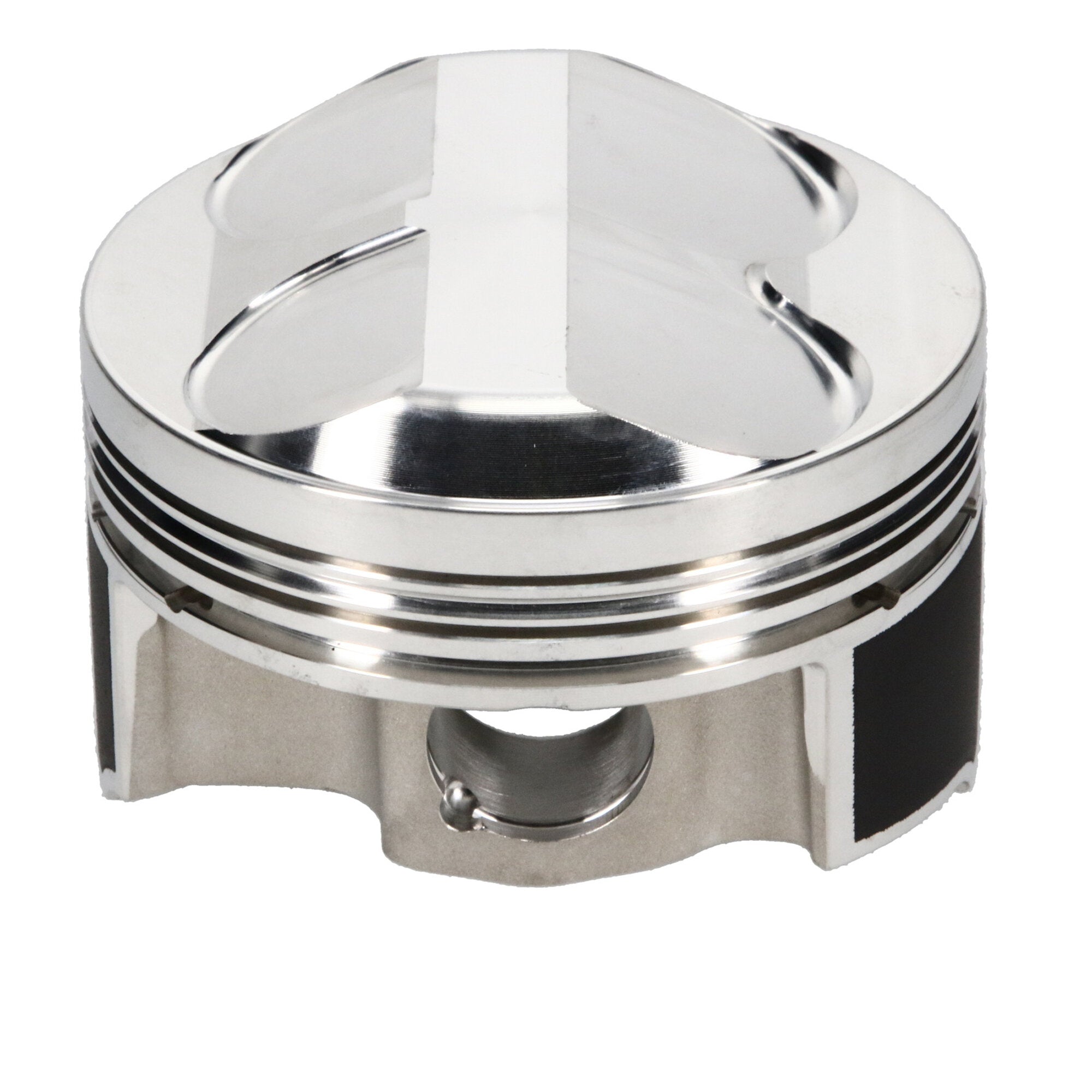

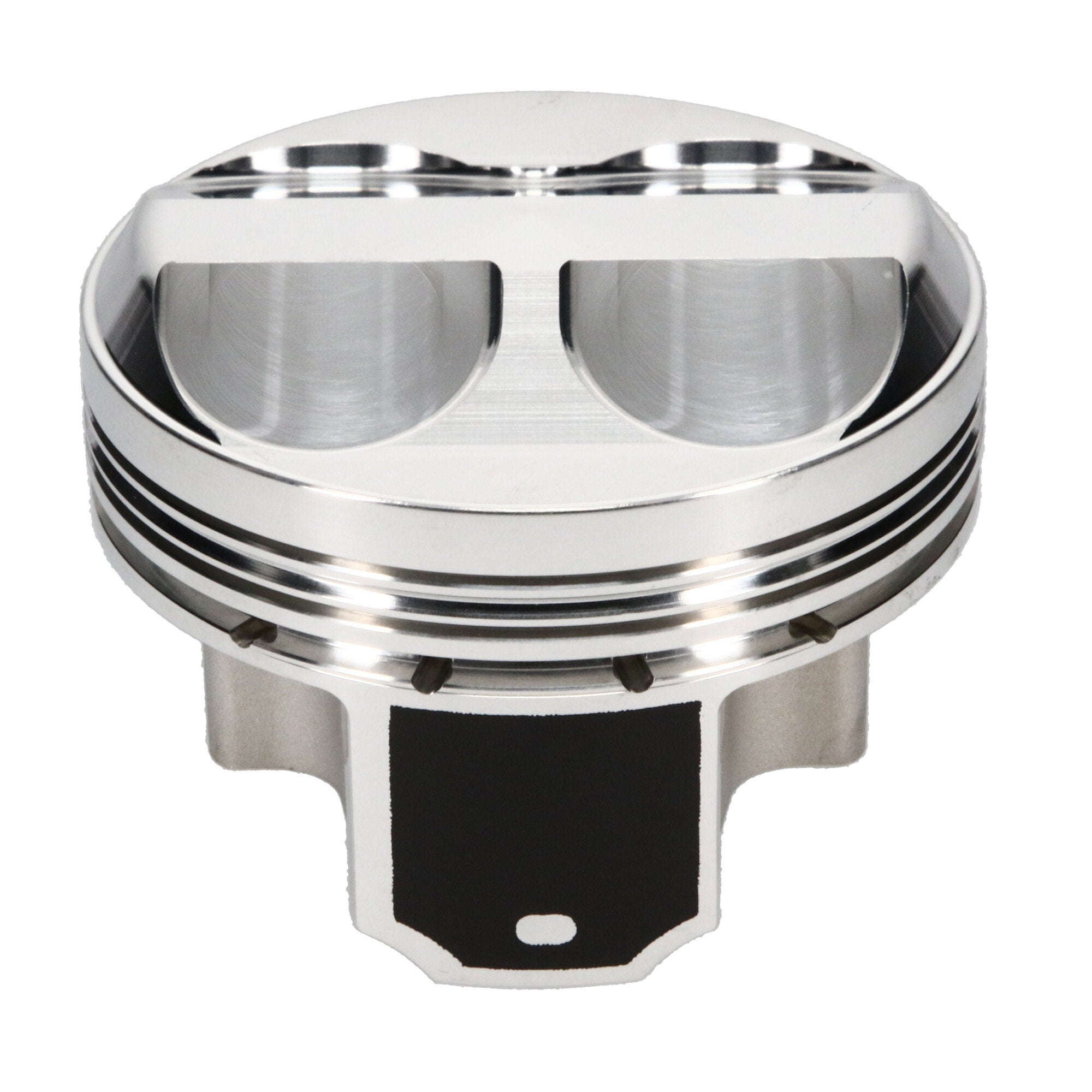

Piston Set, 2618, Dome, 3.425 Bore, 1.220 CD, 0.827 Pin, Set of 6. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Nissan, RB Series, 3.425 in. Bore, 8.50:1, Dome, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Nissan RB25DET, 87.00 Bore, Dome, Set of 6 |
| Description_SHO |
Piston Kit |
| Cylinder Head |
4-VALVE |
| Bore Diameter |
87.00 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Type |
Engine Piston Kit |
| Product Market |
Sport Compact |
| Engine - Web |
RB Series |
| Wrist Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Nissan RB Series Piston Kit - 87.00 mm Bore - 1.220 in. CH, 14.50 CC |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Piston Quantity |
6 |
| Piston Pin Outside Diameter |
0.827 |
| Top Compression Ring Thickness |
0.0400 |
| Ring Set Included |
Yes |
| Add-On |
827-063-MW |
| Piston Volume |
14.50 |
| Add-On |
827-2250-15-51C |
| Second Compression Ring Thickness |
0.0480 |
| Industry |
Automotive |
| Add-On |
JG1001-3425 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Wrist Pin Outer Diameter |
0.827 |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Compression Height |
1.220 |
| Engine |
RB SERIES |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Title |
JE Pistons - Nissan, RB Series, 87.00 mm Bore, Piston Kit |
| Make |
NISSAN |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
5.0000 |
