As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 3.2L 911 |
| Description_DEF |
Engine Piston |
| Description_DES |

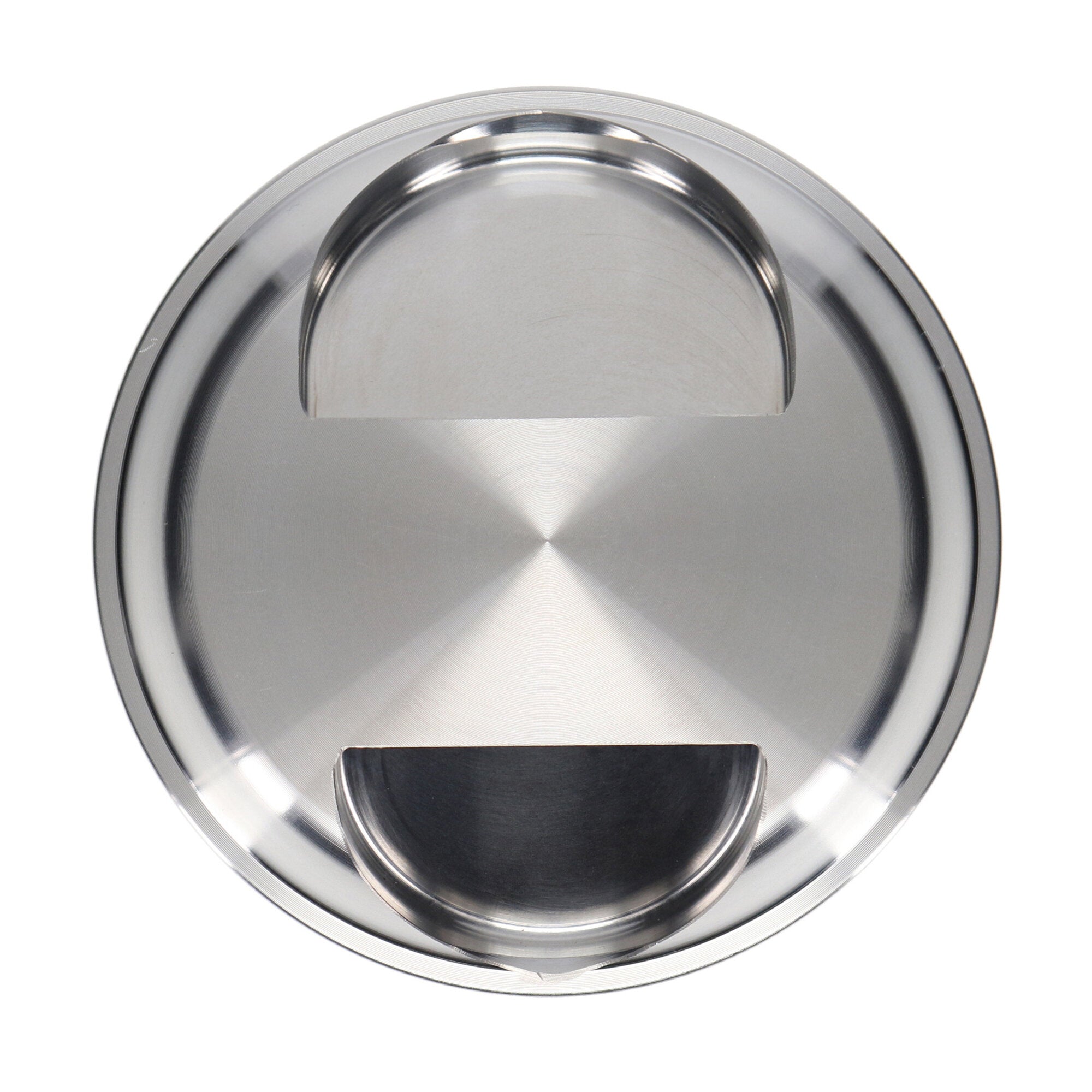

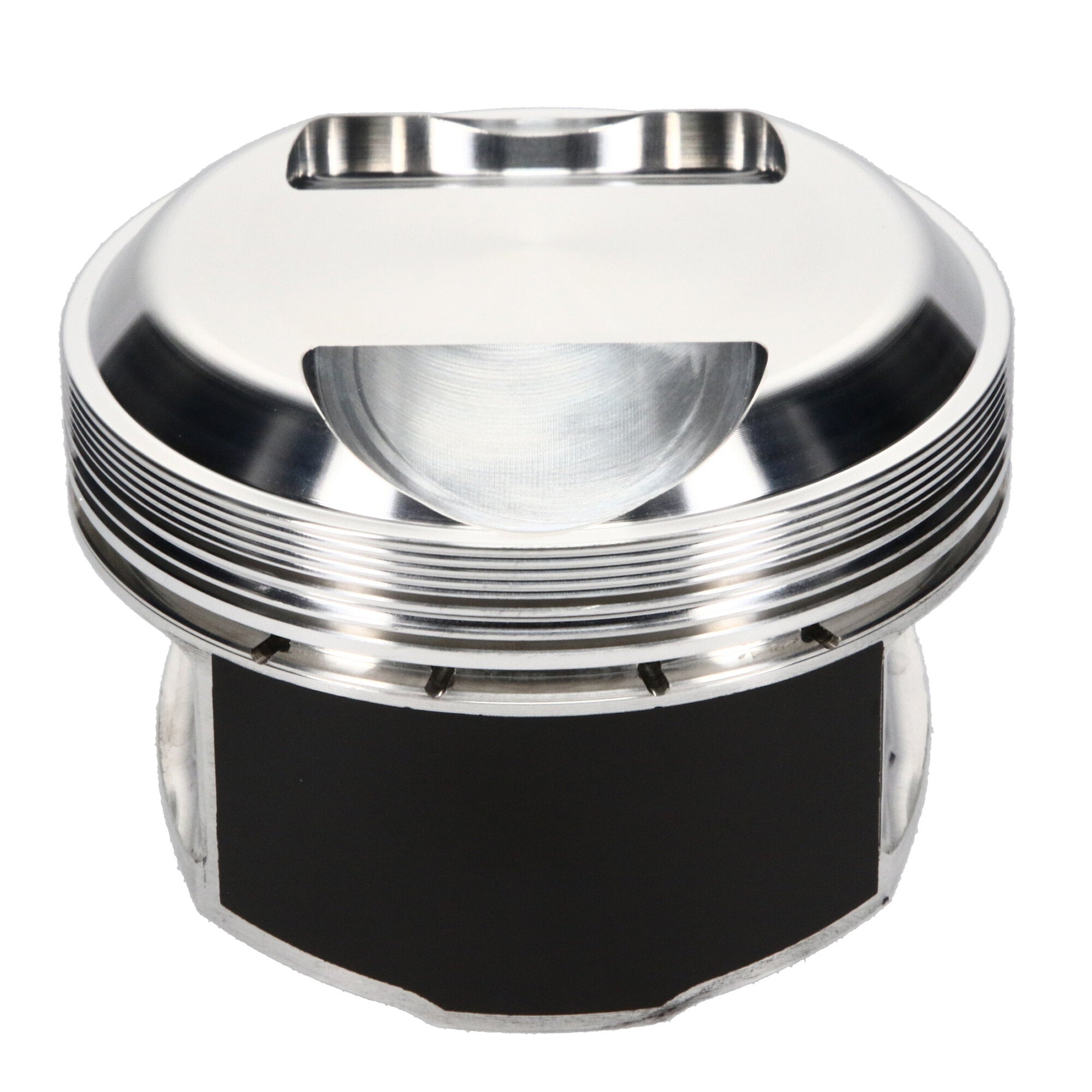

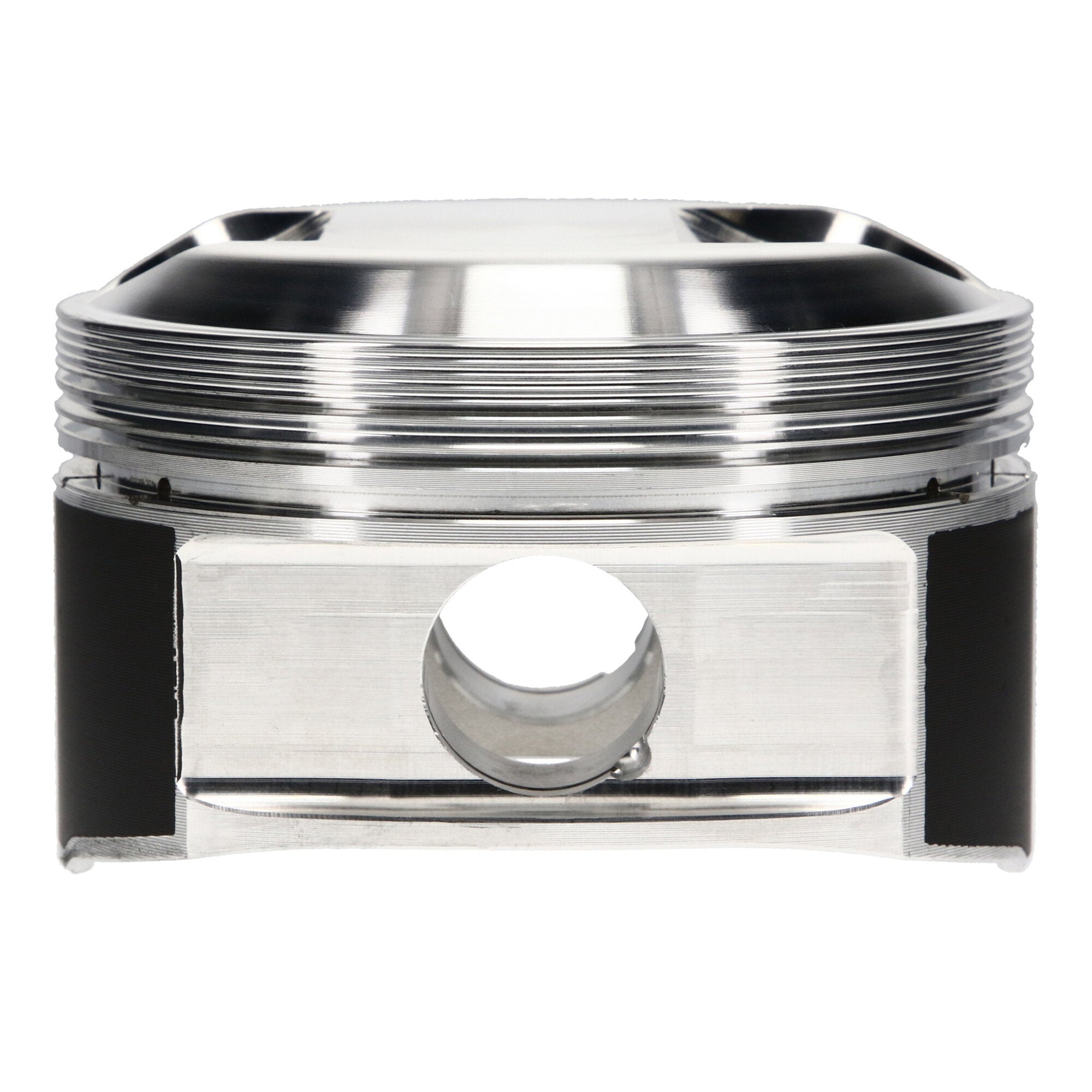

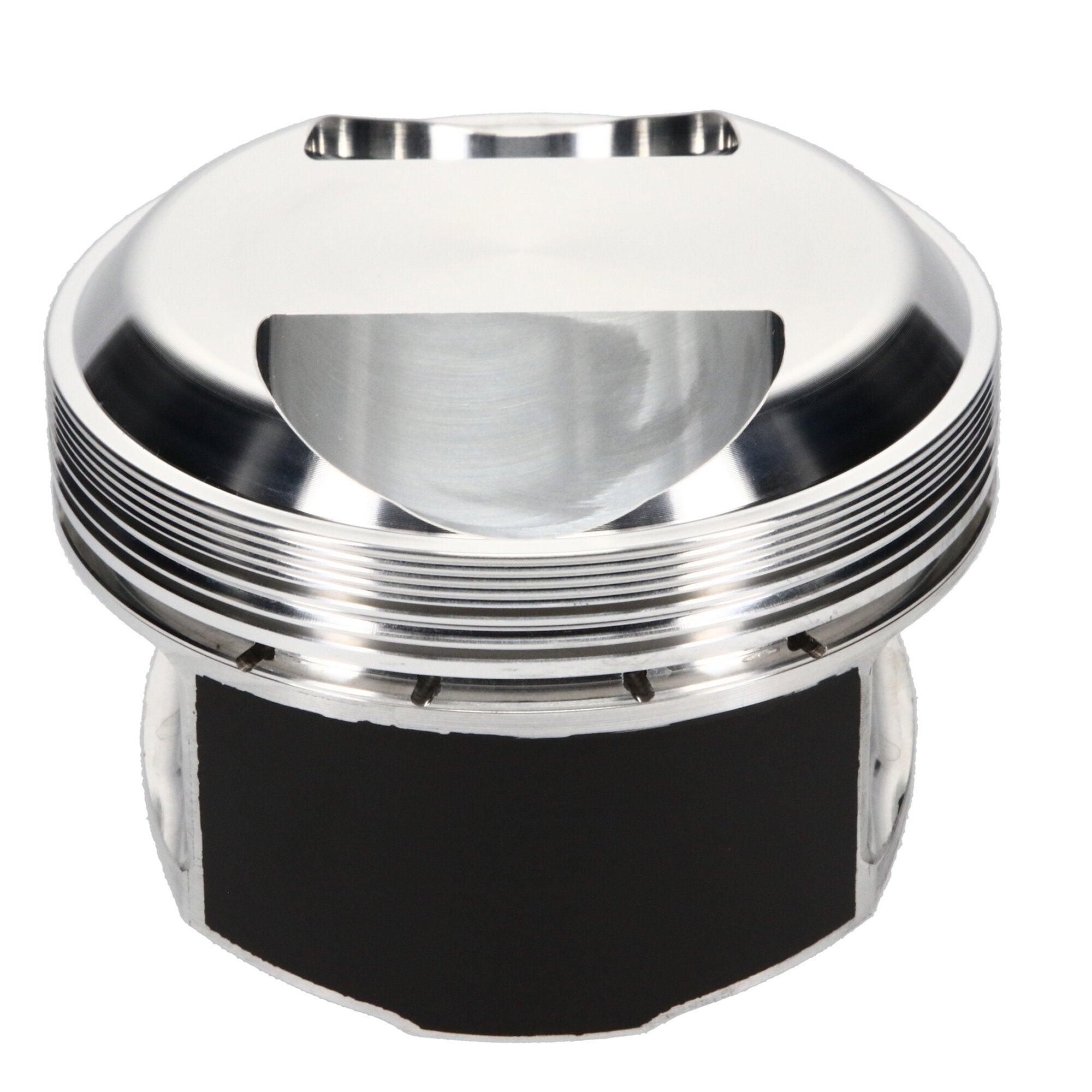

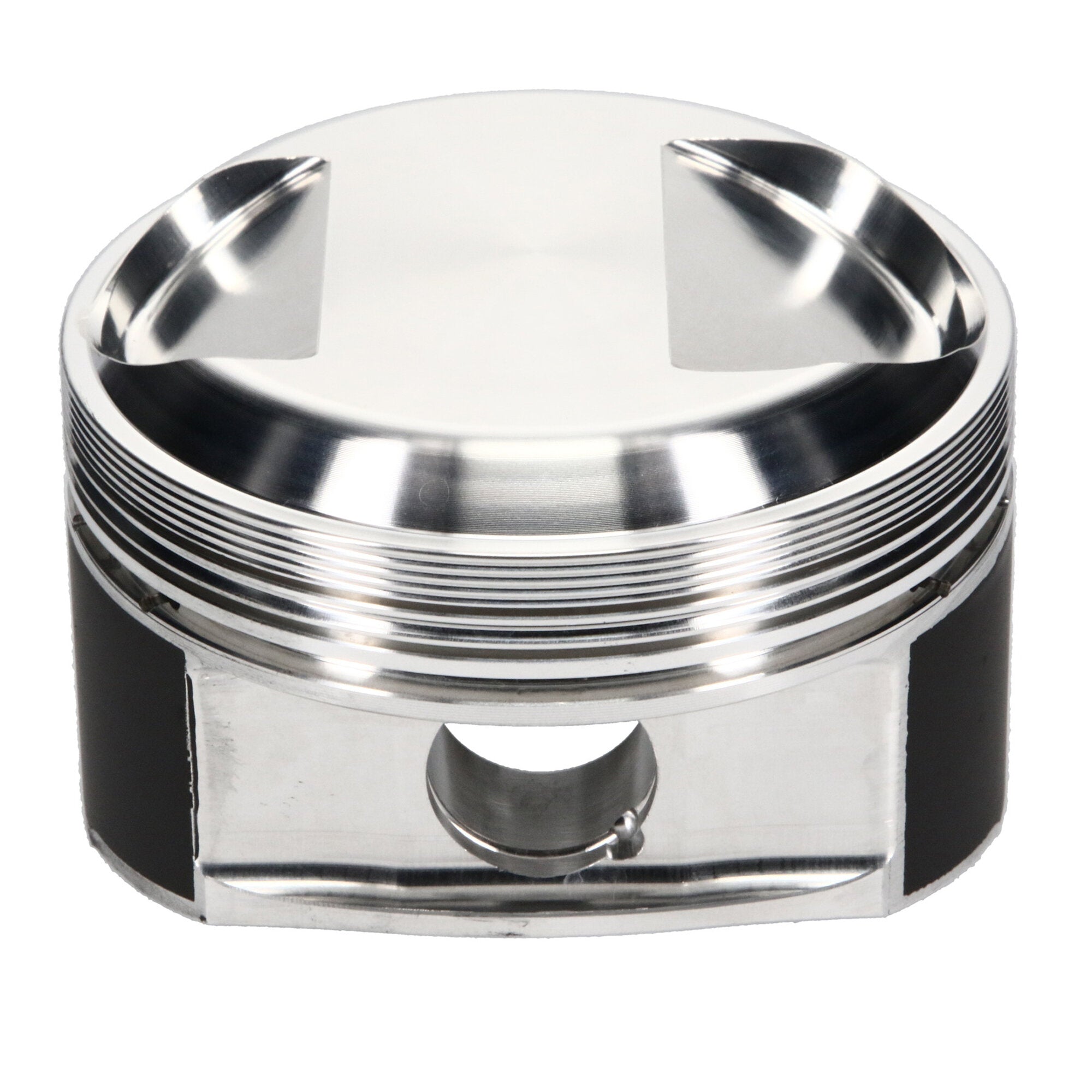

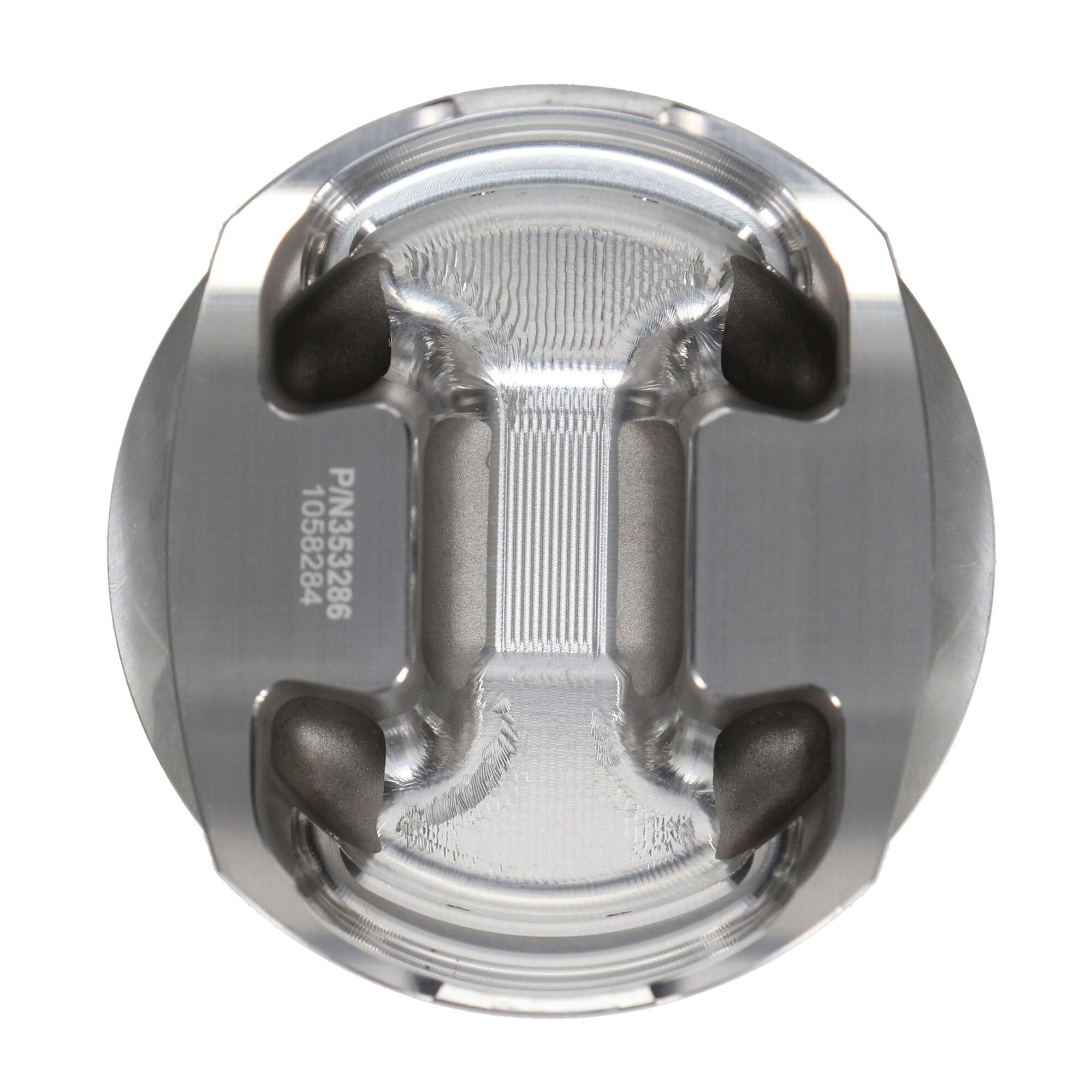

Piston Single, 2618, Dome, 4.016 Bore, 1.290 CD, 0.905 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 4.016 in. Bore, 11.50:1, Dome, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Description_TLE |
Porsche 3.2L, 102.00 Bore, Dome, Set of 1 |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
3.2L Aircooled |
| Product Market |
European |
| Piston Quantity |
1 |
| Compression Height |
1.290 |
| Wrist Pin Outer Diameter |
0.905 |
| Wrist Pin Wall Thickness |
0.150 |
| Top Compression Ring Thickness |
0.0480 |
| Title |
JE Pistons - Porsche, 3.2L Aircooled, 102.00 mm Bore, Piston |
| Cylinder Head |
3.2 Liter |
| Bore Diameter |
102.00 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.905 |
| Add-On |
905-2500-15-TSC |
| Piston Material |
2618 |
| Product Type |
Engine Piston |
| Piston Volume |
40.40 |
| Add-On |
905-073-MW |
| Add-On |
JG3101-4020-2 |
| Industry |
Automotive |
| Make |
PORSCHE |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>European |
| Wrist Pin Length |
2.500 |
| Ring Set Included |
Yes |
| Engine |
3.2L Aircooled |
| Piston Pin Length |
2.500 |
| Out of Stock Message |
Call for Availability |
| Oil Ring Thickness |
0.119 |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Dome |
| Second Compression Ring Thickness |
0.0600 |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Title - Web |
JE Pistons Porsche 3.2L Aircooled Piston - 102.00 mm Bore - 1.290 in. CH, 40.40 CC |
| Make - Web |
Porsche |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ringset Included |
Yes |
| Forging Type |
Round |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
