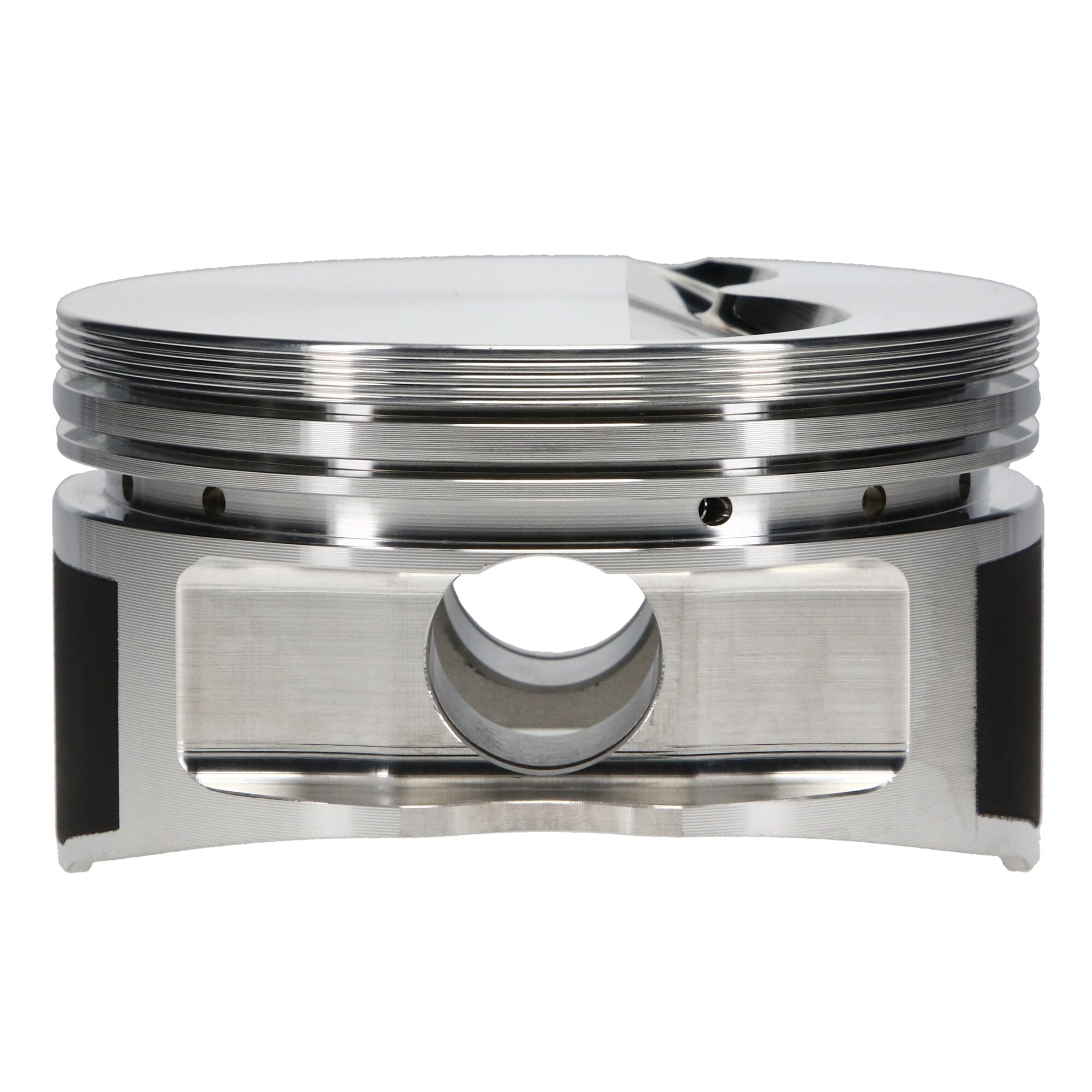

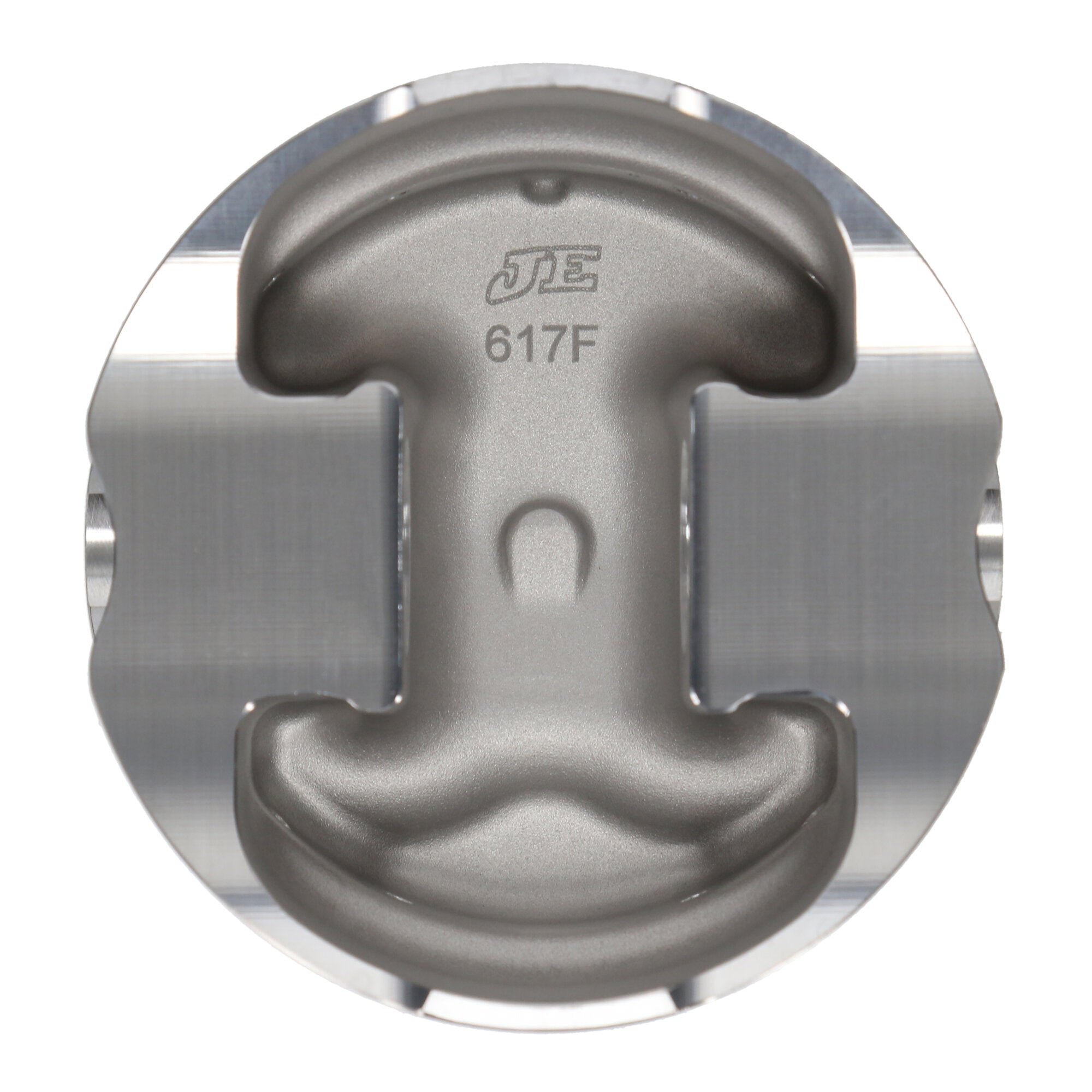

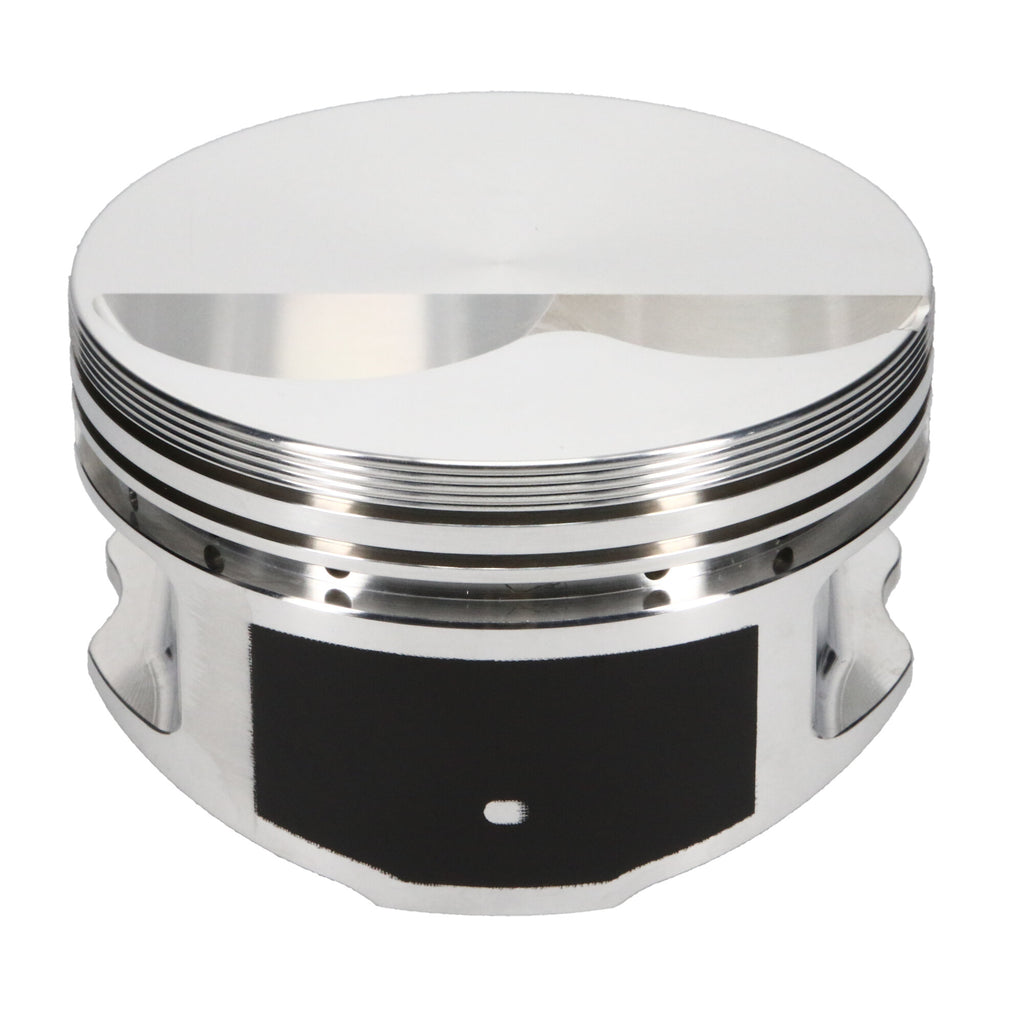

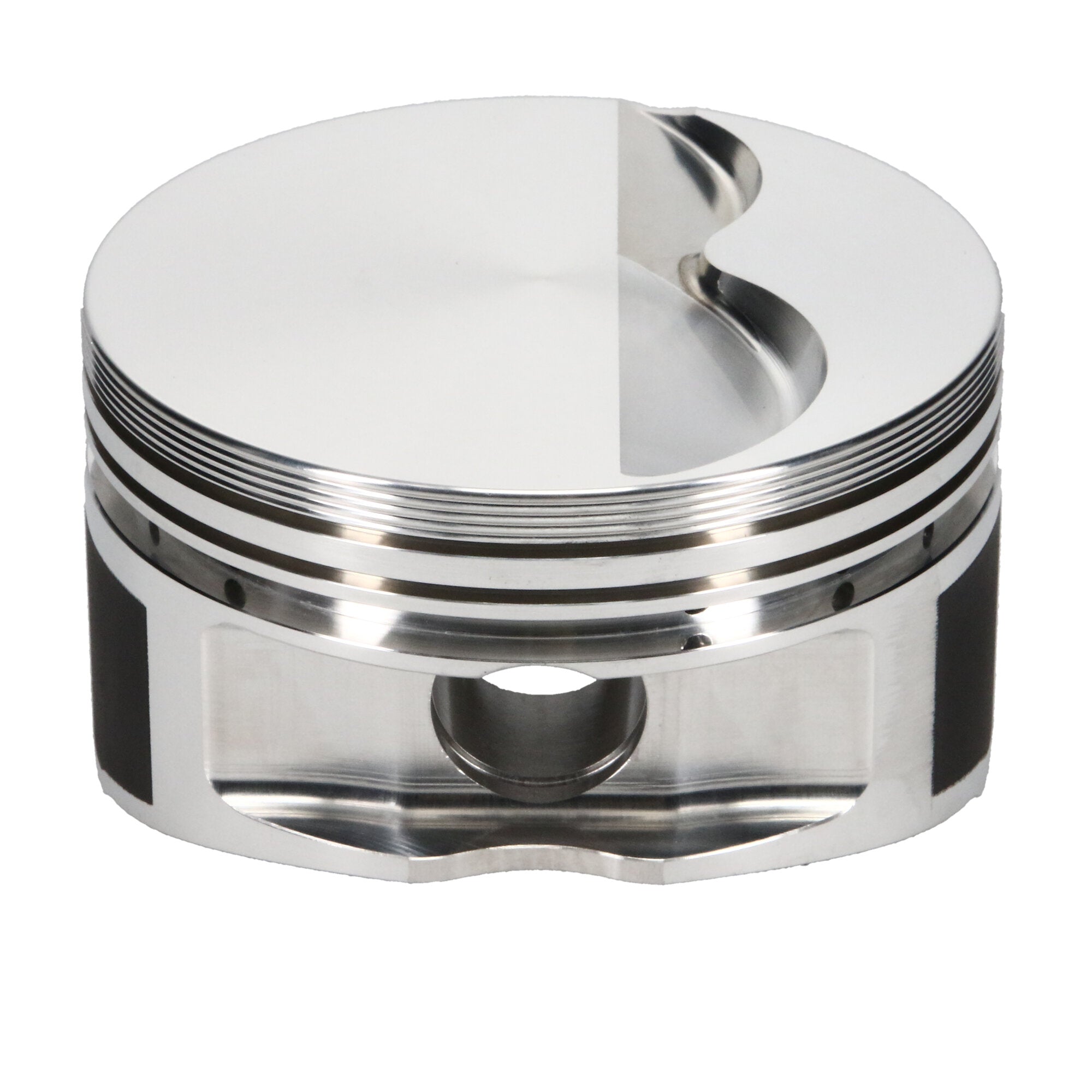

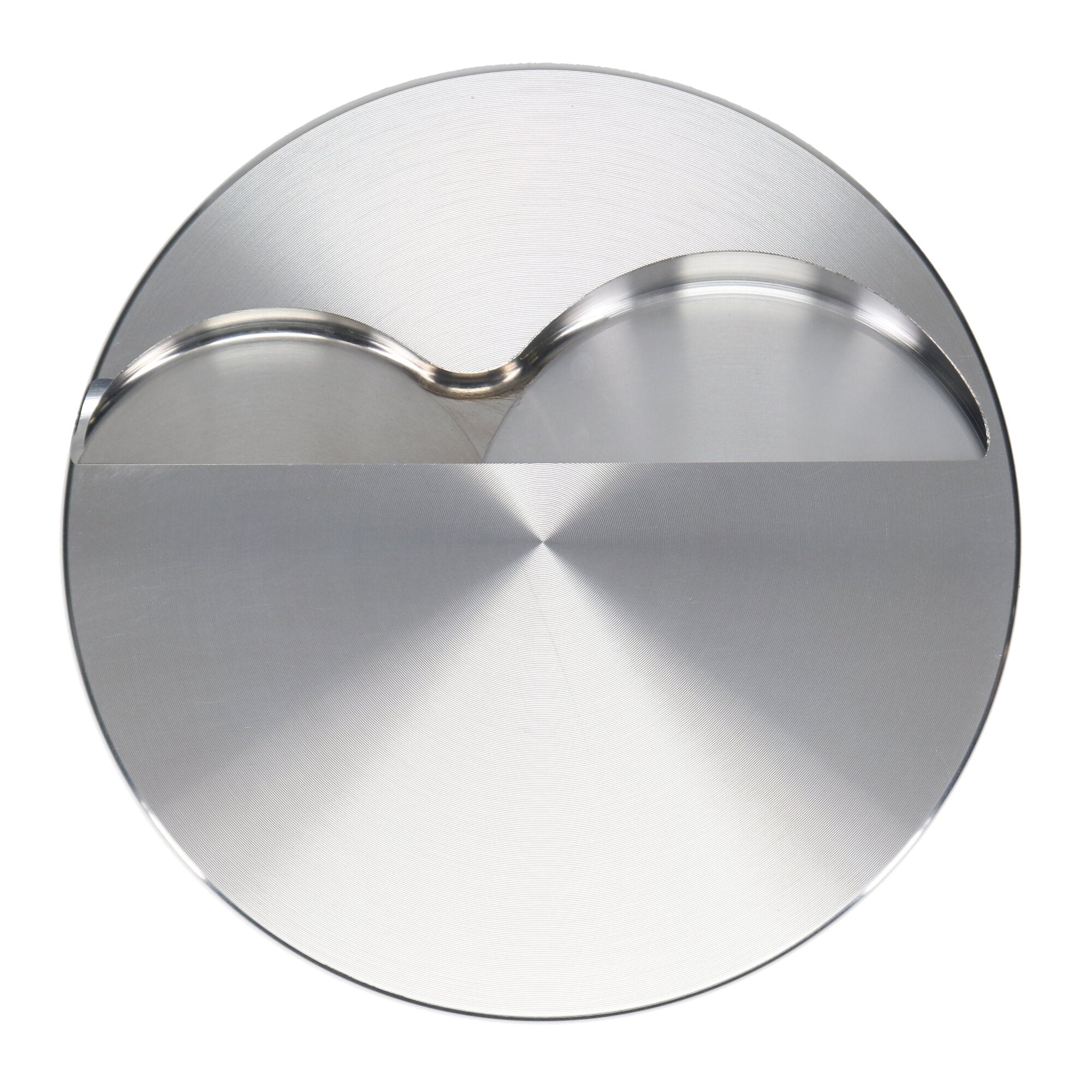

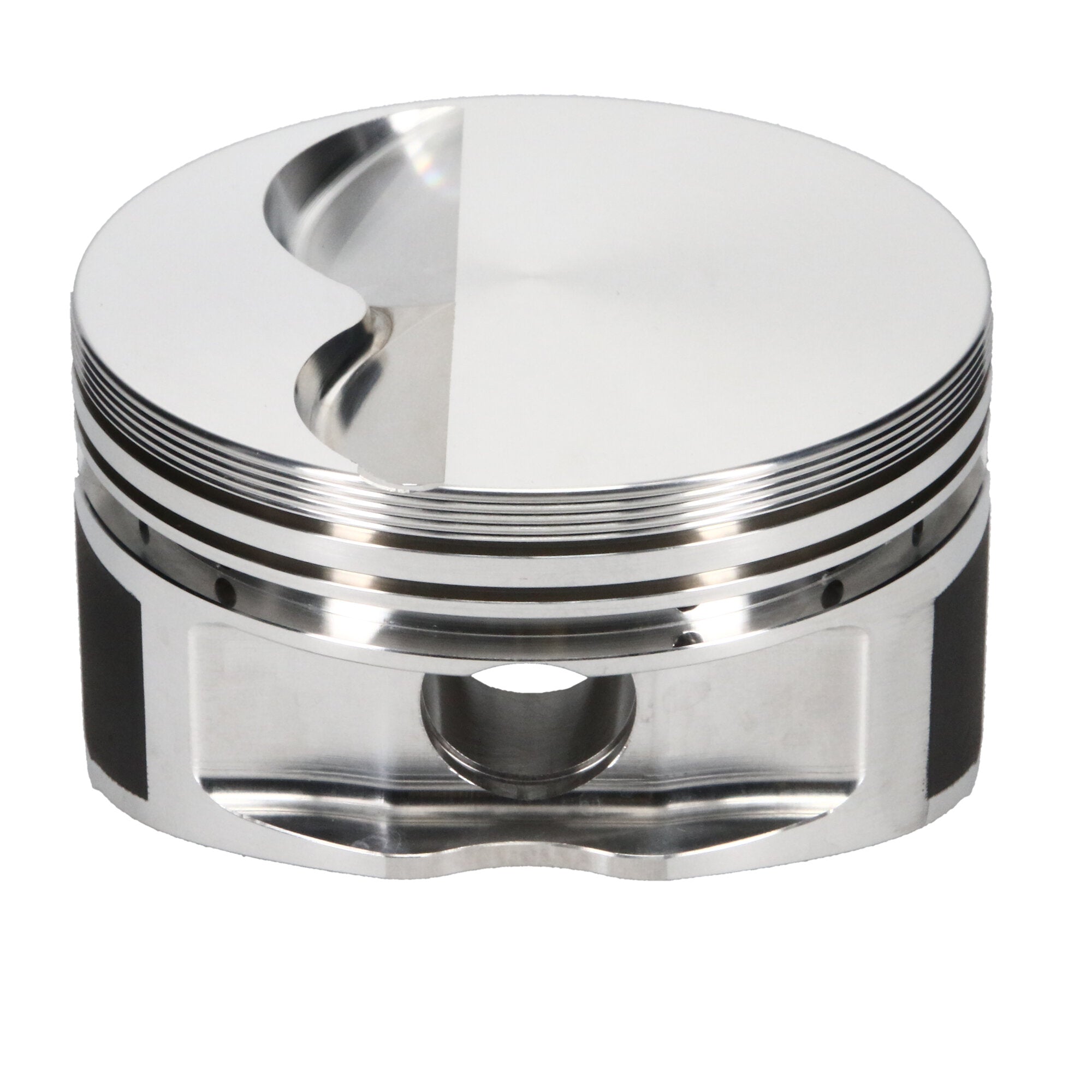

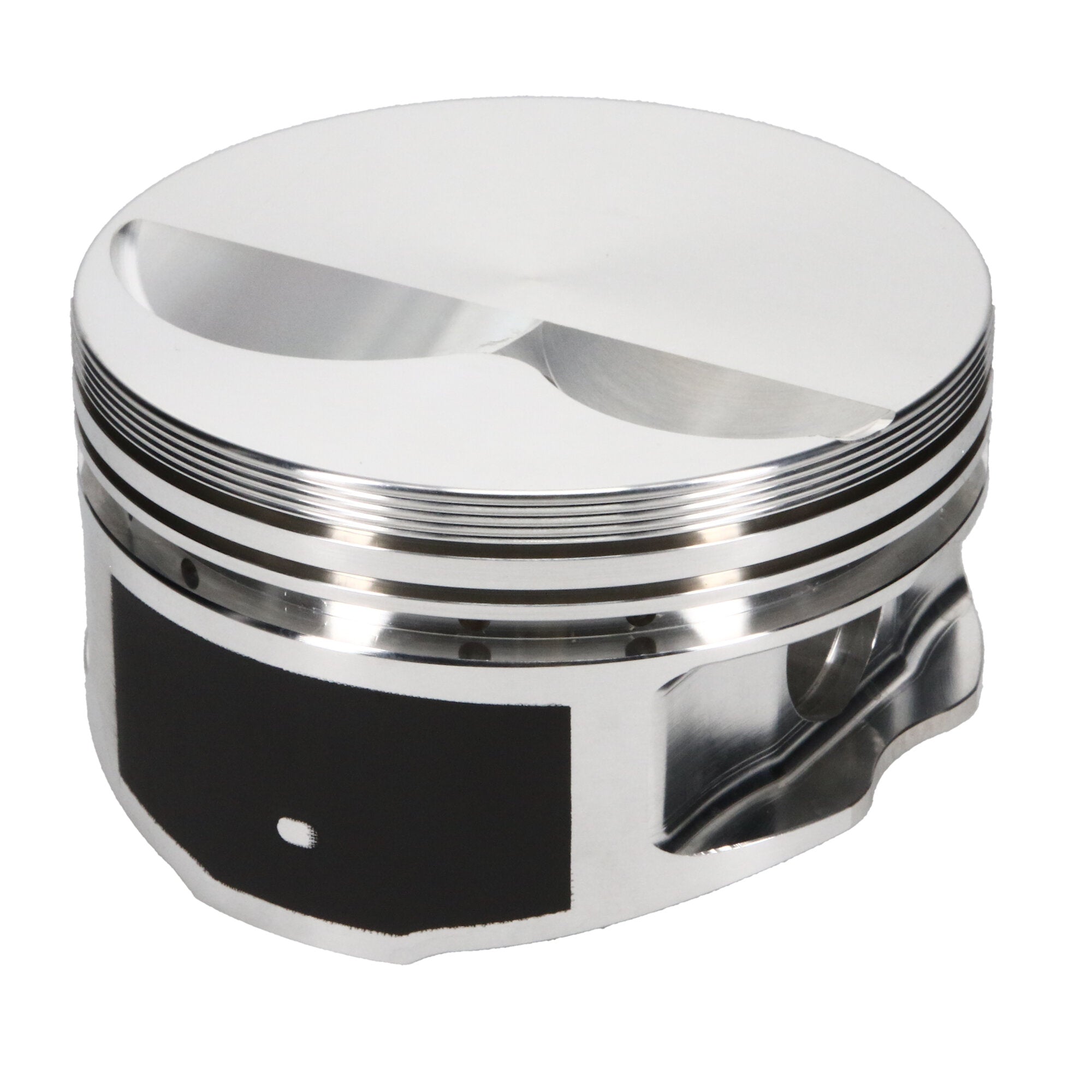

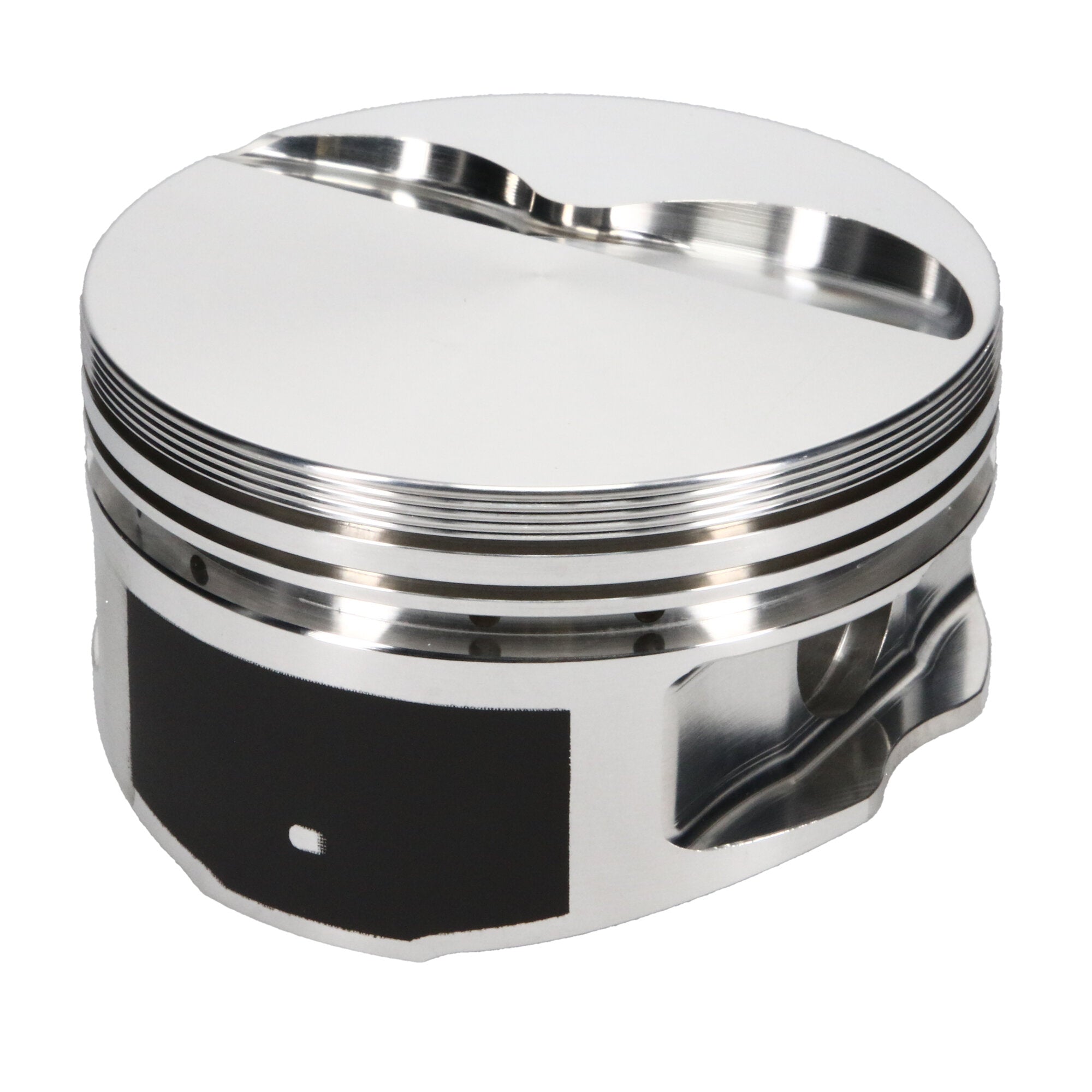

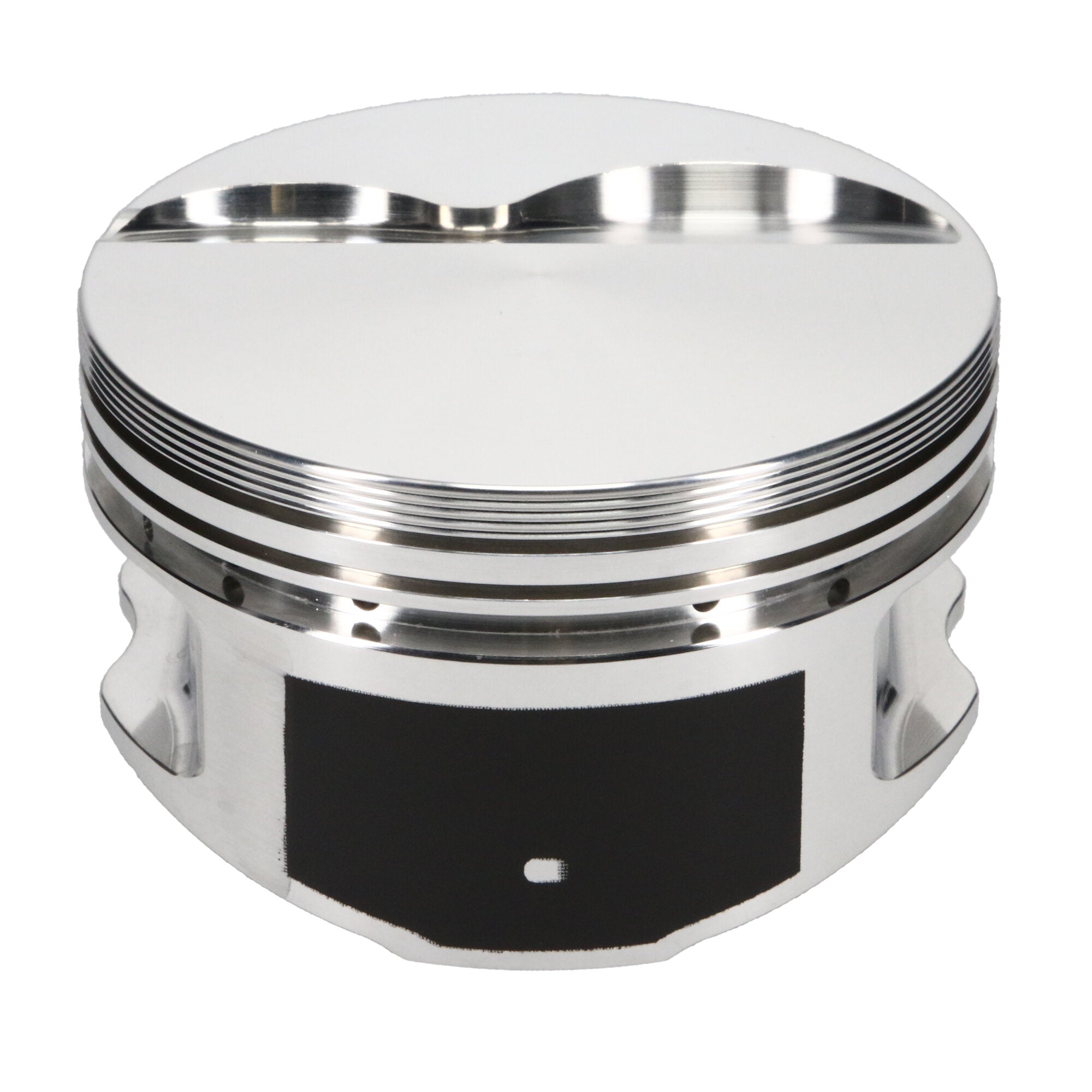

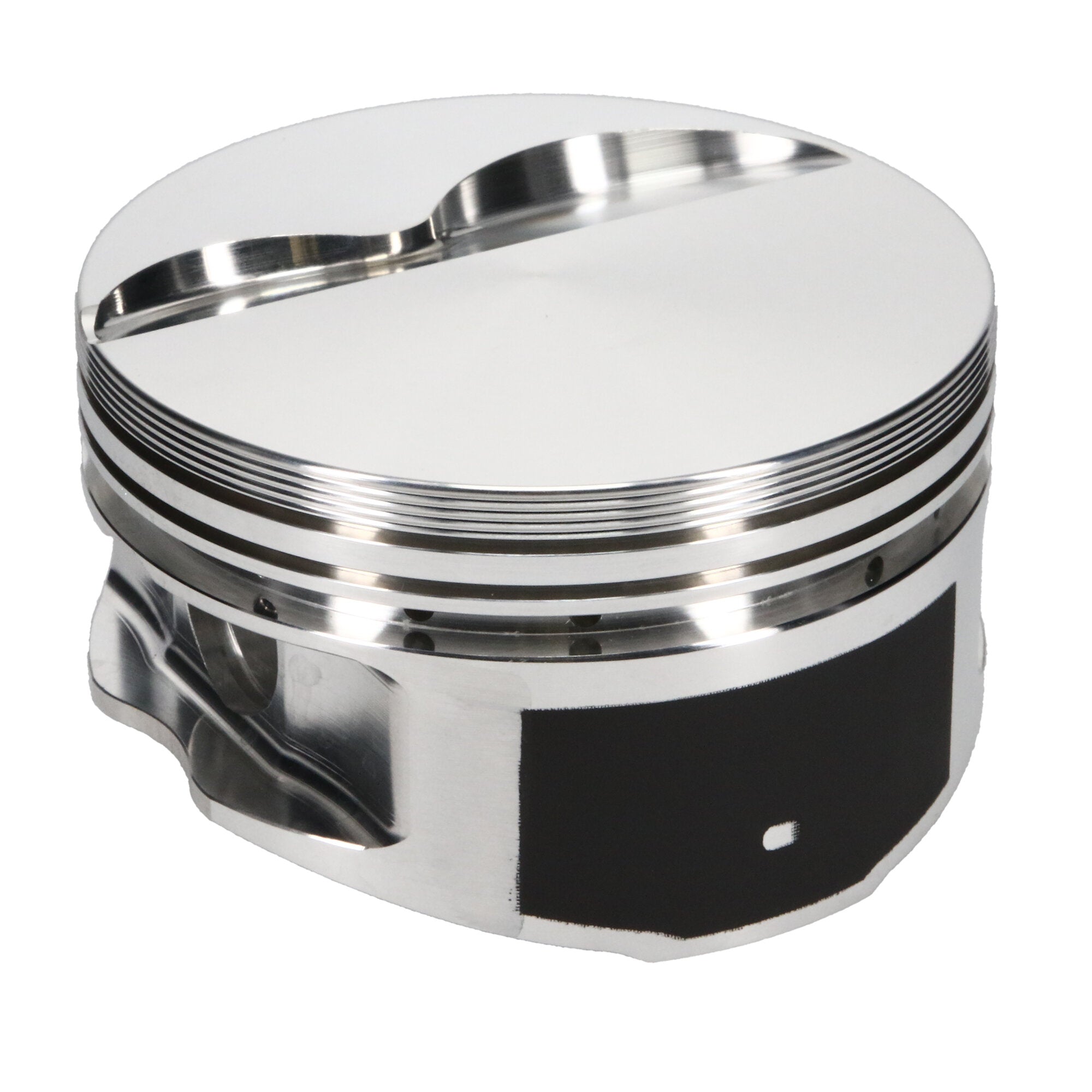

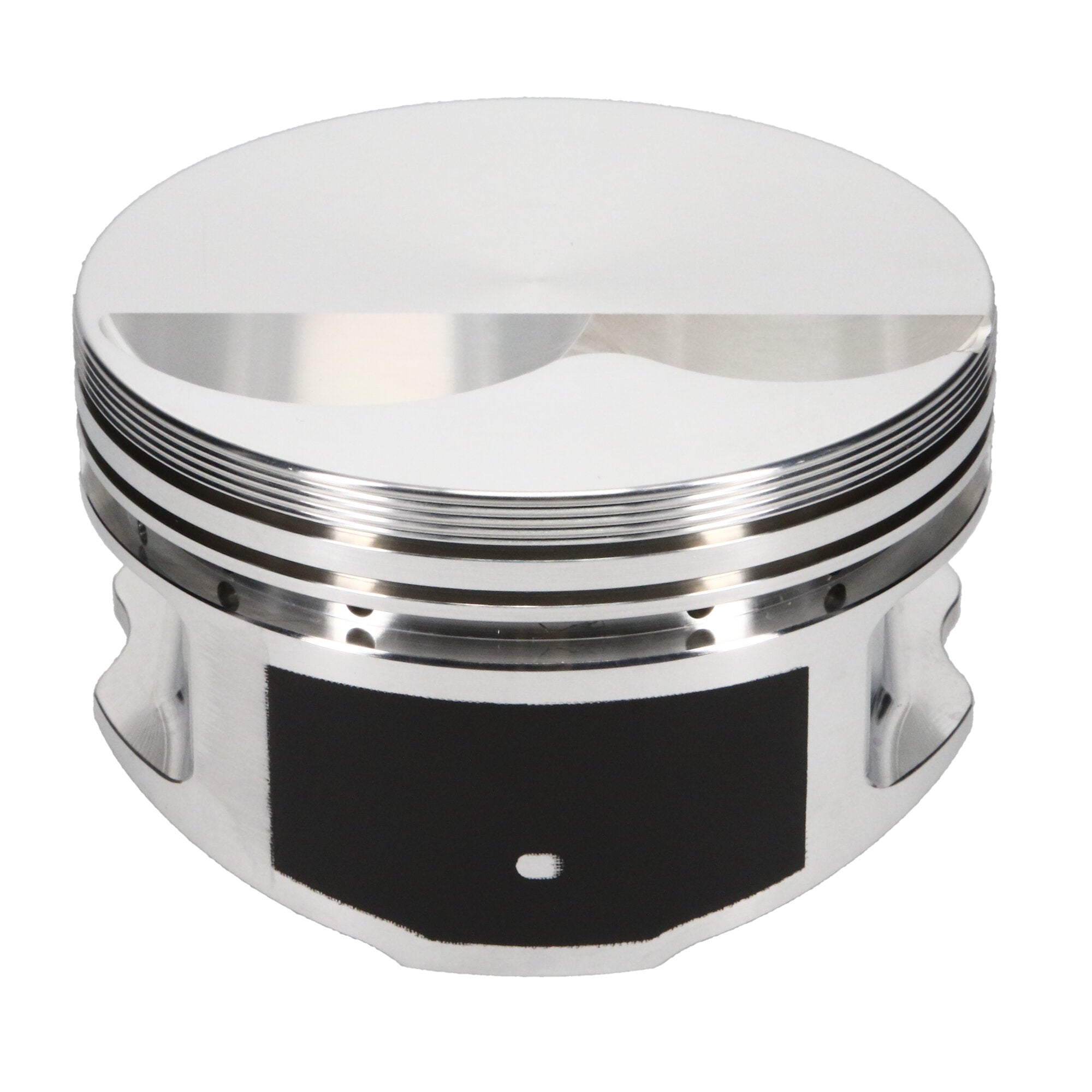

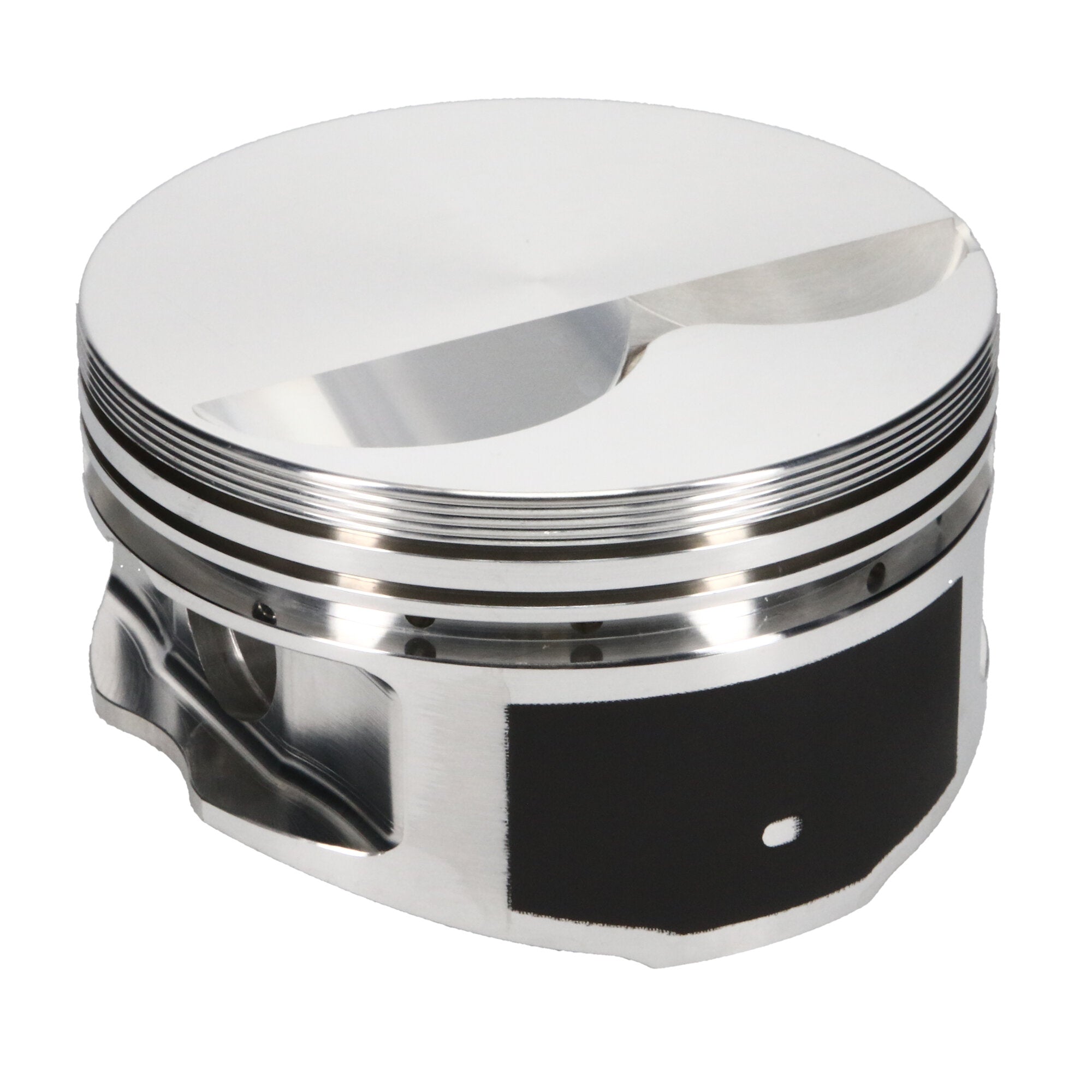

JE Pistons 170855S Piston Single, 2618, Flat Top, 4.030 Bore, 1.175 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_170855S
Engine Piston
$321.46
customers are viewing this product
JE Pistons 353831S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.286 CD, 0.787 Pin, Set of 1.
JE Pistons 353831S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.286 CD, 0.787 Pin, Set of 1.
$451.87
JE Pistons 353293S Piston Single, 2618, Dome, 4.016 Bore, 1.290 CD, 0.905 Pin, Set of 1.
JE Pistons 353293S Piston Single, 2618, Dome, 4.016 Bore, 1.290 CD, 0.905 Pin, Set of 1.
$653.61
JE Pistons 170855S Piston Single, 2618, Flat Top, 4.030 Bore, 1.175 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Ford Small Block 302/351 Windsor
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.175 CD, 0.927 Pin, Set of 1.
Description_EXT JE, Ford, Small Block Ford, 4.030 in. Bore, 1.175 CD, Flat Top, Single Piston
Description_SHO Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_INV JE Pistons, Piston
Description_TLE Ford 302/351 Windsor, 4.030 Bore, Flat, Set of 1
Piston Head Type Flat
Wrist Pin Outer Diameter 0.927
Engine Type ICE
Make FORD
Piston Pin Wall Thickness 0.150
Engine Small Block
Ringset Included No
Title JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston
Engine - Web Small Block
Compression Height 1.175
Cylinder Head SMALL BLOCK FORD 20 DEG
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Piston Pin Material 5115
Industry Automotive
Piston Material 2618
Oil Ring Thickness 0.218
Piston Series JE Pistons
Top Compression Ring Thickness 0.0640
Product Market Domestic
Piston Quantity 1
Piston Pin Length 2.750
Piston Average Weight 451
Forging Type Round
Wrist Pin Wall Thickness 0.150
Piston Volume -5.00
Bore Diameter 4.030
Title - Web JE Pistons Ford Small Block Piston - 4.030 in. Bore - 1.175 in. CH, -5.00 CC
Prop 65 Yes/No Yes
Add-On J10008-4030-5
Piston Pin Outside Diameter 0.927
Add-On 927-2750-15-51S
Out of Stock Message Call for Availability
Product Type Engine Piston
Second Compression Ring Thickness 0.0640
Prop 65 (C, R or CR) CR
Add-On 927-042-CS
Ring Set Included No
Make - Web Ford
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Length 2.750
Prop 65 - Short Label Prop 65 Warning Label.JPG
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
