As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 3.2L 911 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

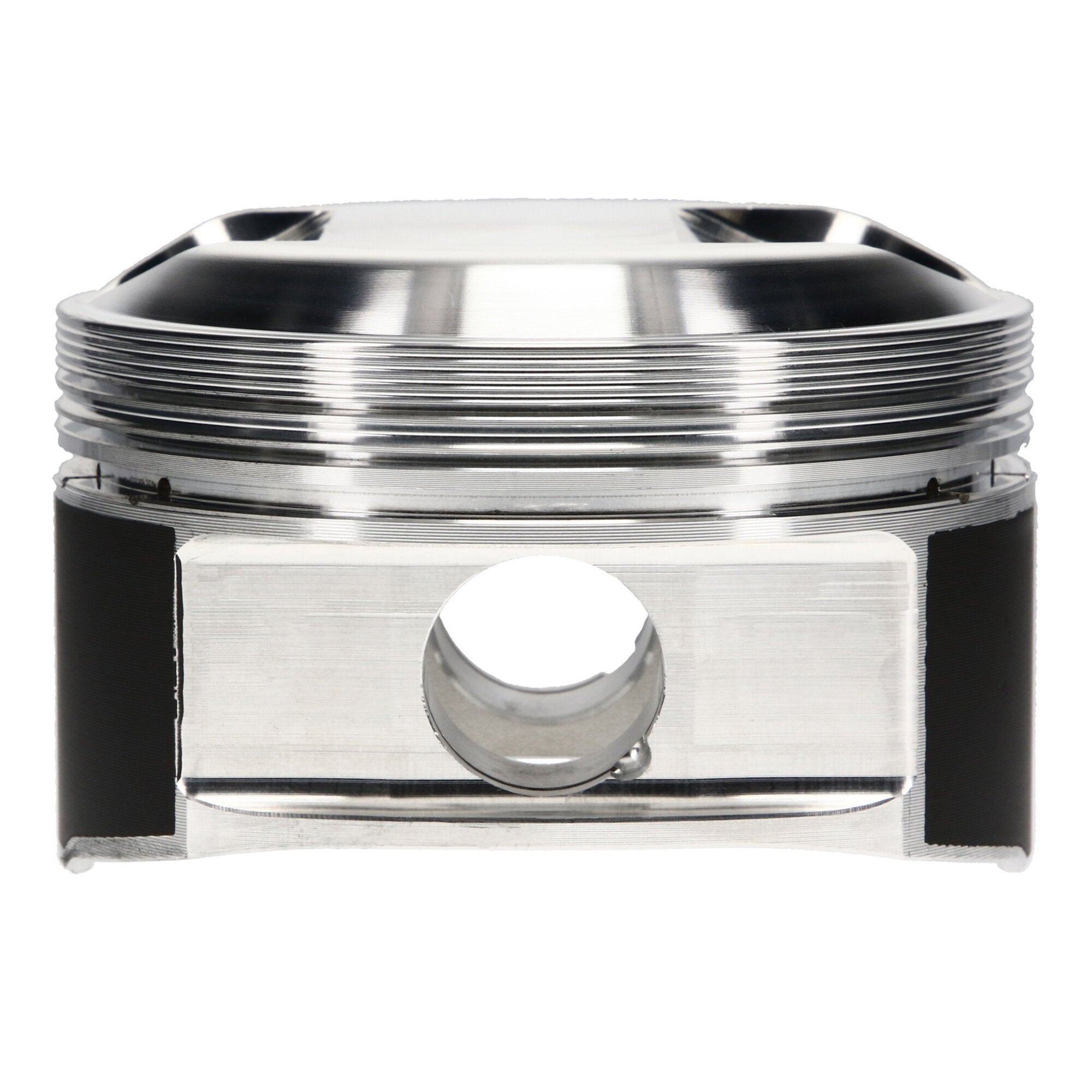

Piston Set, 2618, Dome, 3.937 Bore, 1.290 CD, 0.905 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 3.937 in. Bore, 10.50:1, Dome, 6 Cyl. Piston Kit |
| Description_TLE |
Porsche 3.2L, 100.00 Bore, Dome, Set of 6 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Engine - Web |
3.2L Aircooled |
| Piston Quantity |
6 |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Market |
European |
| Title |
JE Pistons - Porsche, 3.2L Aircooled, 100.00 mm Bore, Piston Kit |
| Piston Material |
2618 |
| Bore Diameter |
100.00 |
| Compression Height |
1.290 |
| Industry |
Automotive |
| Cylinder Head |
3.2 Liter |
| Piston Pin Outside Diameter |
0.905 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Piston Volume |
36.50 |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Add-On |
JG1001-3937 |
| Add-On |
905-073-MW |
| Add-On |
905-2500-15-TSC |
| Title - Web |
JE Pistons Porsche 3.2L Aircooled Piston Kit - 100.00 mm Bore - 1.290 in. CH, 36.50 CC |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Length |
2.500 |
| Ring Set Included |
Yes |
| Make - Web |
Porsche |
| Engine |
3.2L Aircooled |
| Ringset Included |
Yes |
| Piston Pin Length |
2.500 |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Make |
PORSCHE |
| Forging Type |
Round |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.905 |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Head Type |
Dome |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
