As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 3.0L 911 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

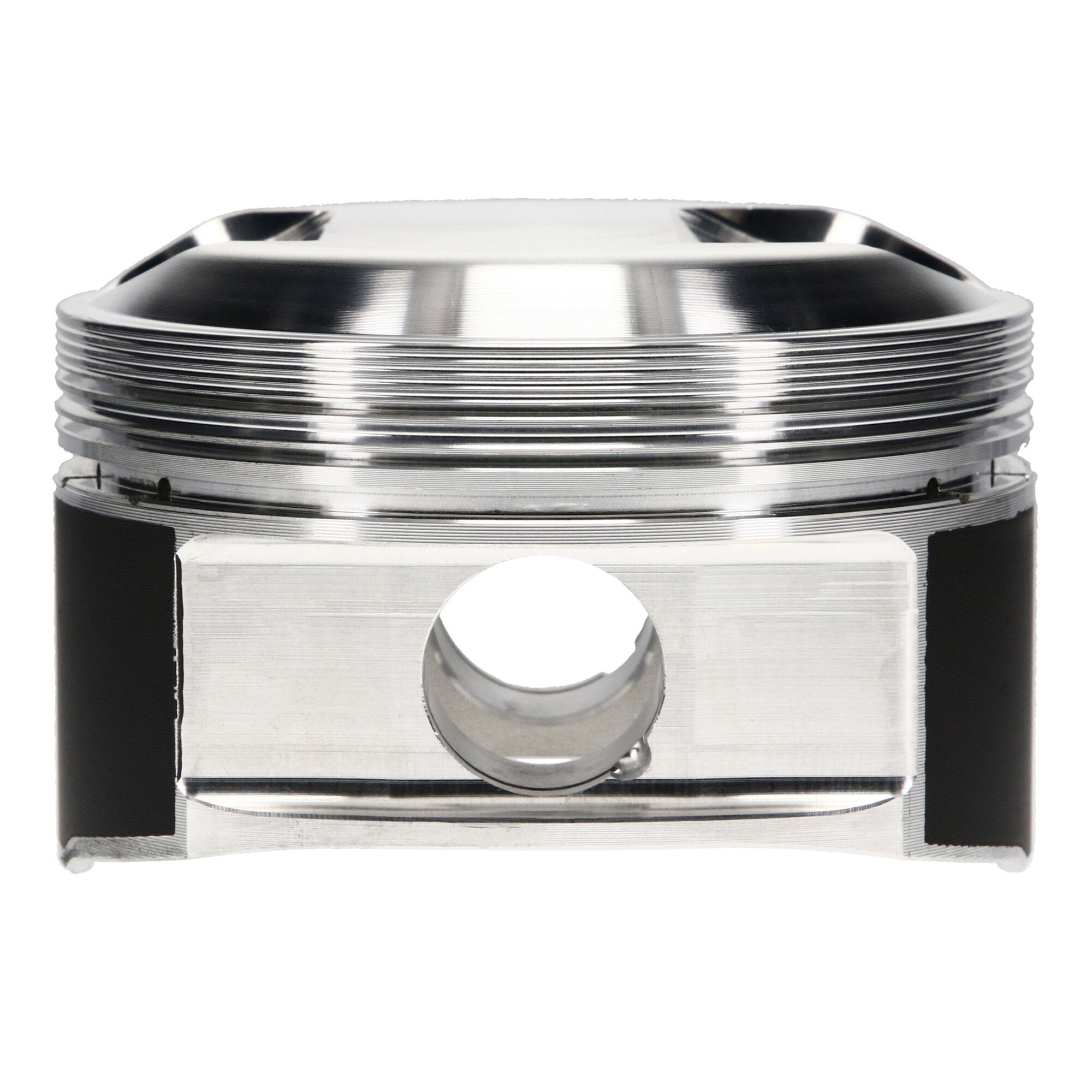

Piston Set, 2618, Dome, 3.740 Bore, 1.335 CD, 0.866 Pin, Set of 6. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Porsche, Aircooled - 6 Cyl, 3.740 in. Bore, 10.50:1, Dome, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Porsche 3.0L, 95.00 Bore, Dome, Set of 6 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Industry |
Automotive |
| Piston Material |
2618 |
| Piston Quantity |
6 |
| Piston Volume |
44.70 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Porsche |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Top Compression Ring Thickness |
0.0400 |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.500 |
| Add-On |
866-063-MW |
| Piston Pin Length |
2.500 |
| Prop 65 Yes/No |
Yes |
| Add-On |
JG1001-3740 |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Add-On |
866-2500-15-93C |
| Bore Diameter |
95.00 |
| Cylinder Head |
3.0 Liter |
| Title - Web |
JE Pistons Porsche 3.0L Aircooled Piston Kit - 95.00 mm Bore - 1.335 in. CH, 44.70 CC |
| Piston Series |
JE Pistons |
| Engine |
3.0L Aircooled |
| Title |
JE Pistons - Porsche, 3.0L Aircooled, 95.00 mm Bore, Piston Kit |
| Ringset Included |
Yes |
| Piston Pin Outside Diameter |
0.866 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Material |
9310 |
| Forging Type |
Round |
| Wrist Pin Outer Diameter |
0.866 |
| Oil Ring Thickness |
0.111 |
| Piston Head Type |
Dome |
| Compression Height |
1.335 |
| Make |
PORSCHE |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
European |
| Engine - Web |
3.0L Aircooled |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
8.0000 |
