As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Porsche 2.0L |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

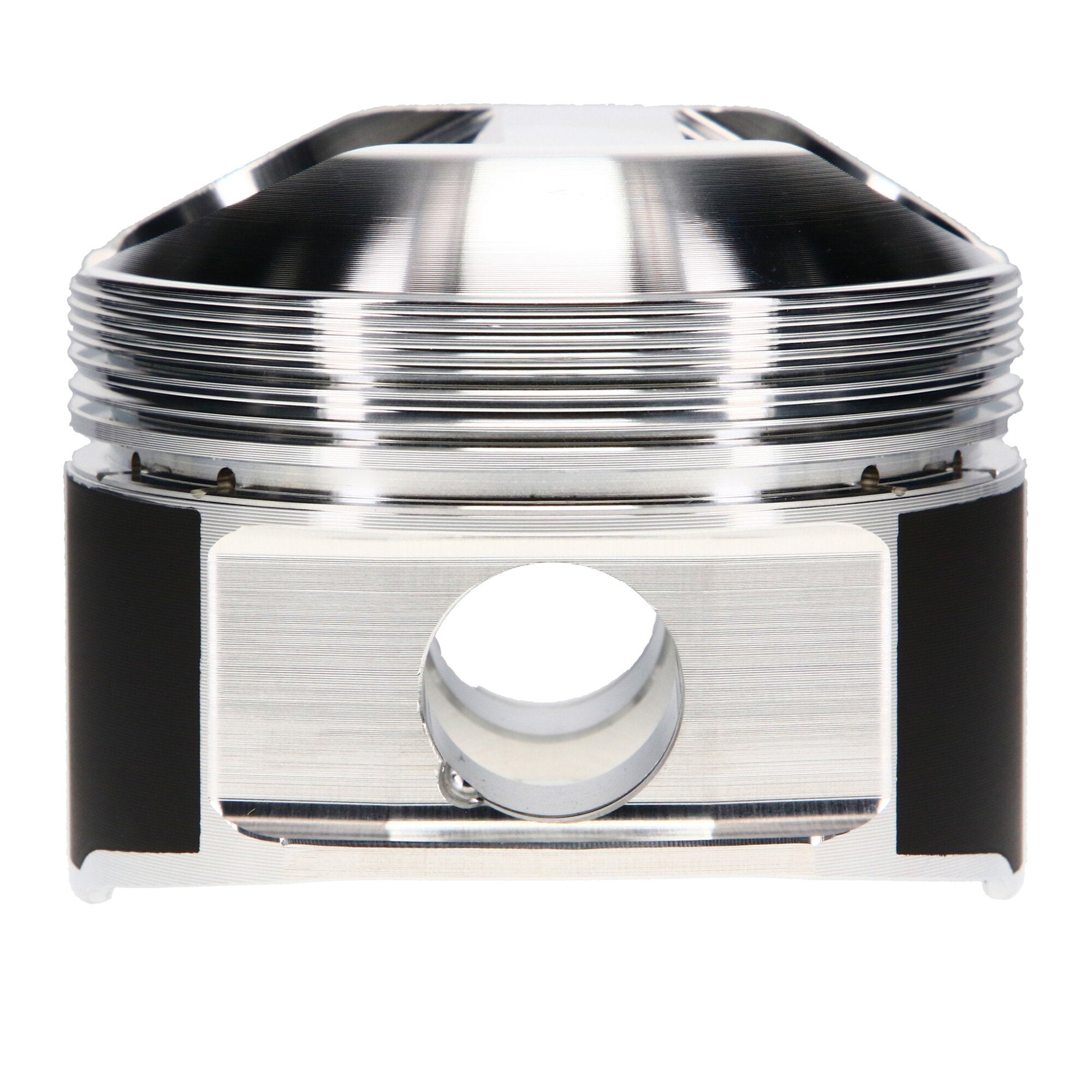

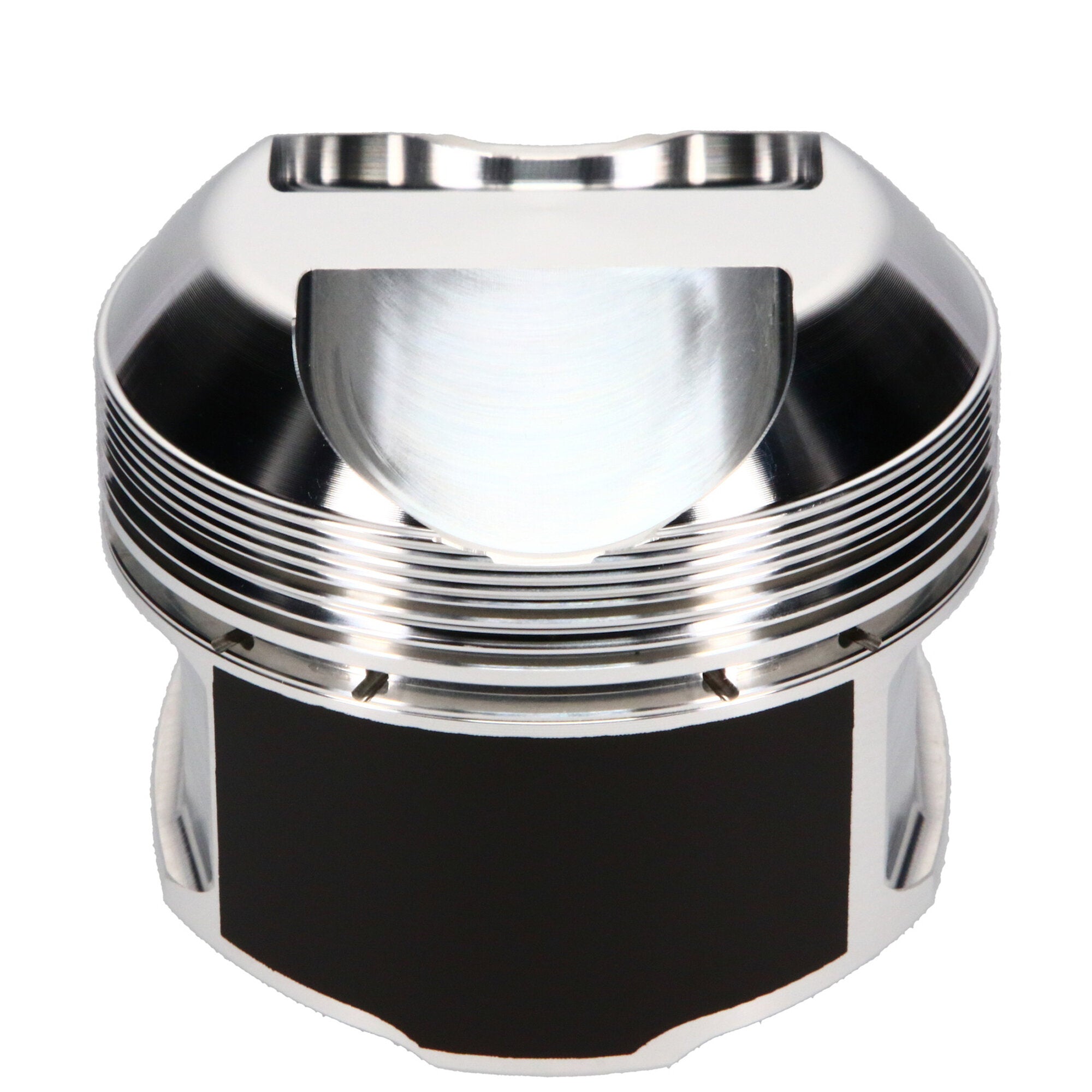

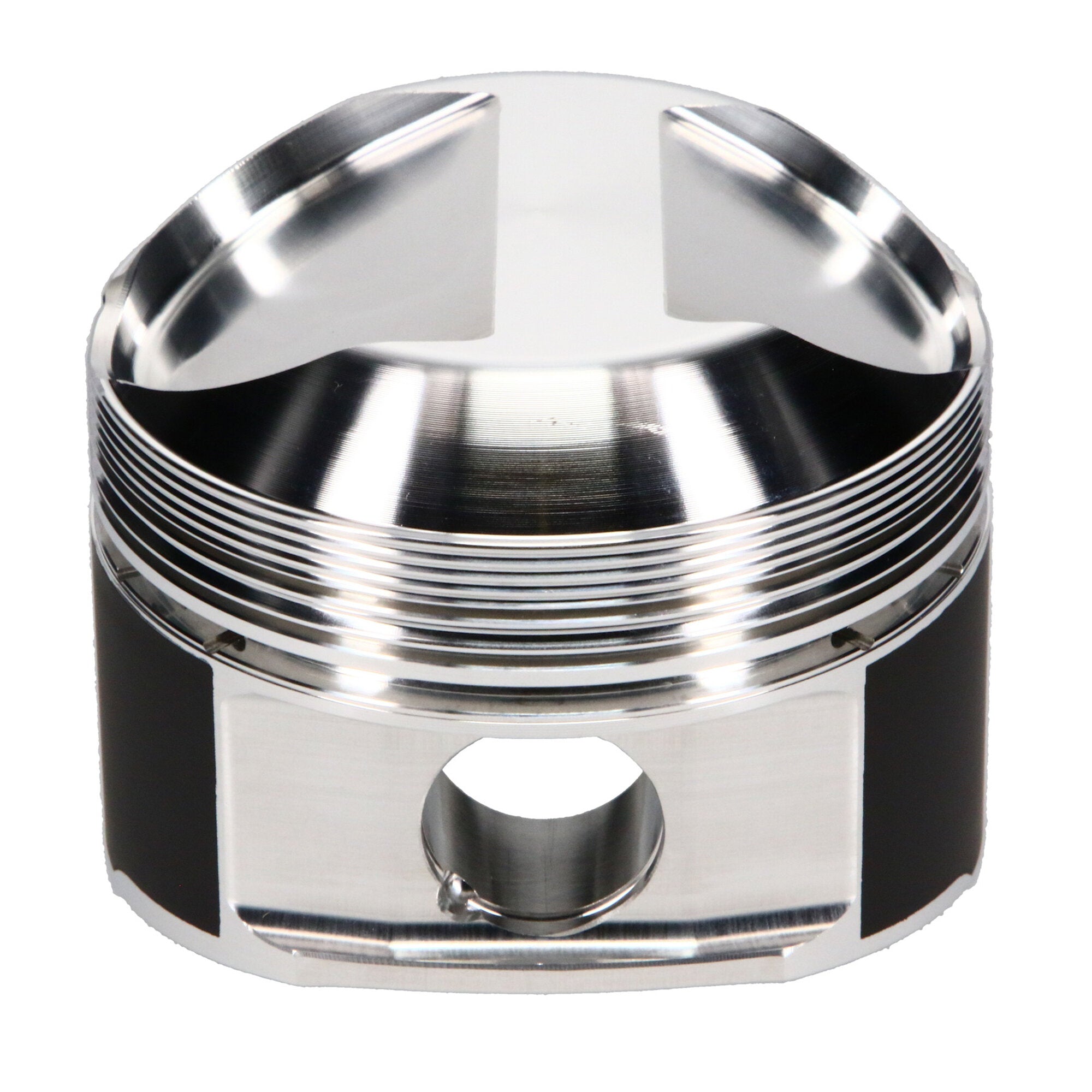

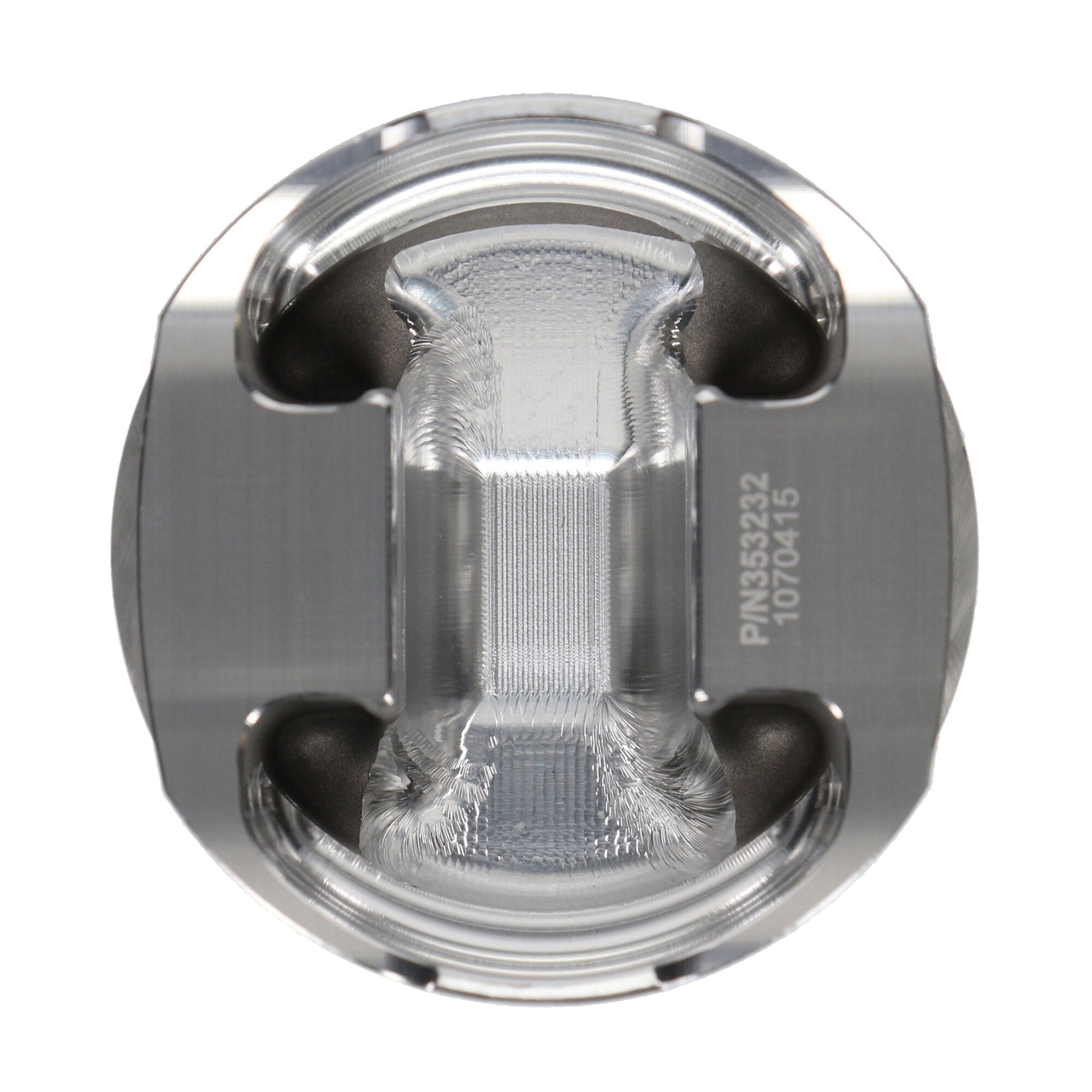

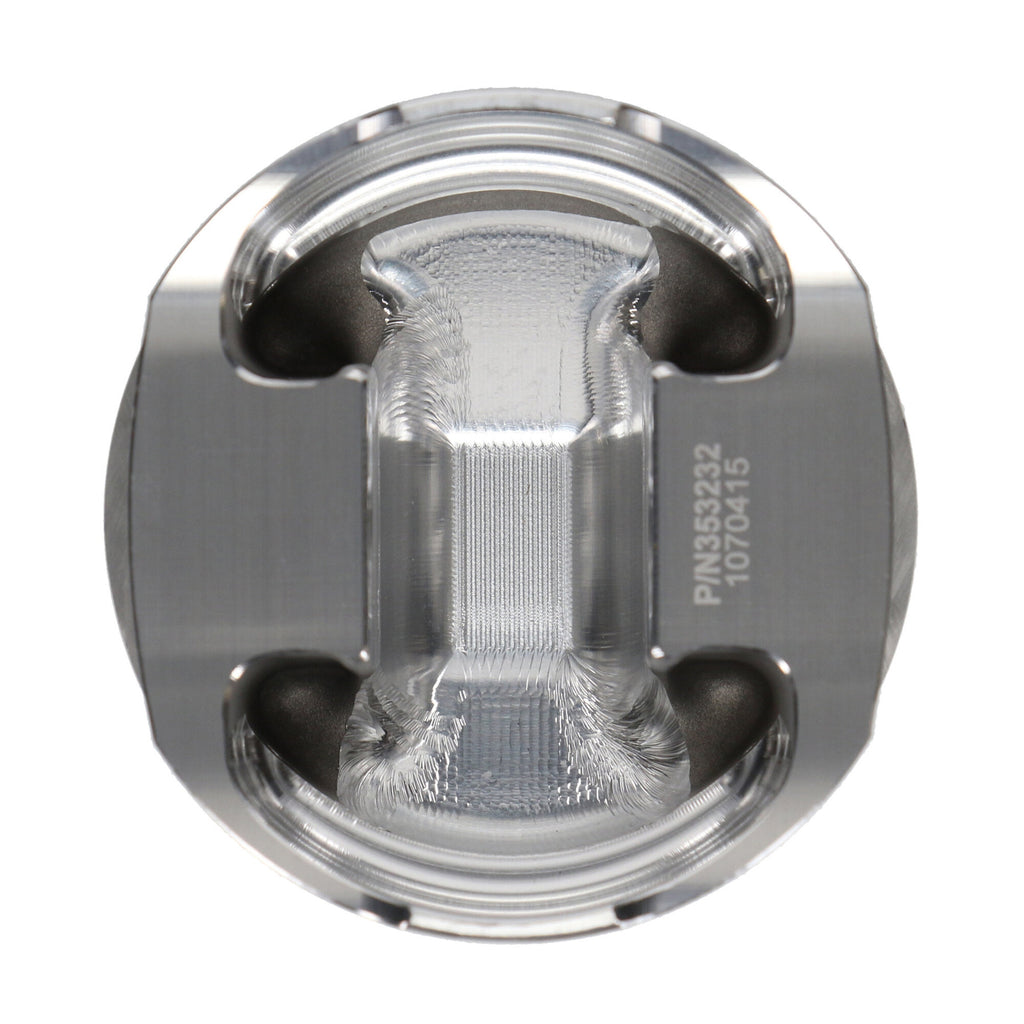

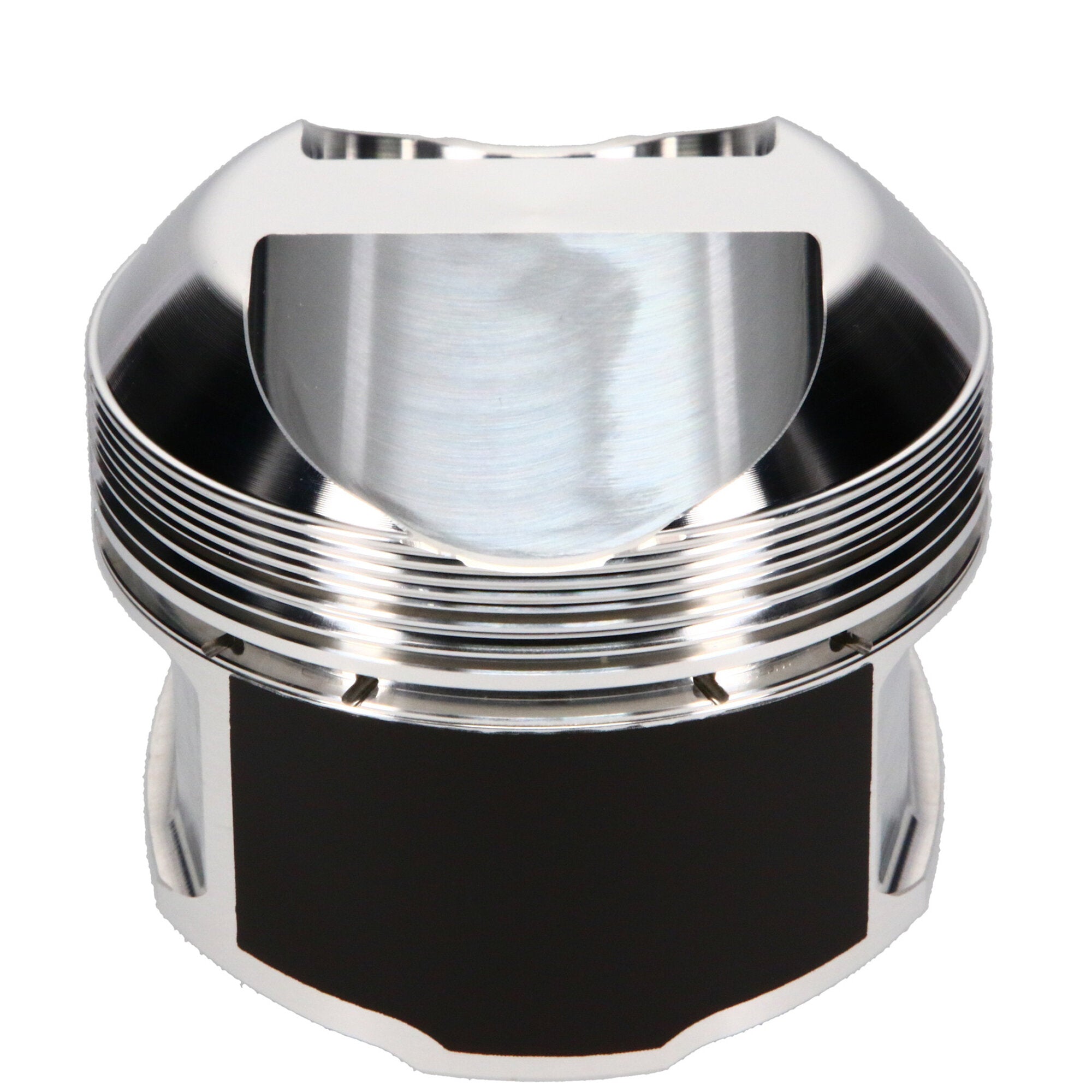

Piston Set, 2618, Dome, 3.189 Bore, 1.335 CD, 0.866 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Porsche, LTG, 3.189 in. Bore, 10.50:1, Dome, 6 Cyl. Piston Kit |
| Description_TLE |
Porsche 2.0L, 81.00 Bore, Dome, Set of 6 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Pin Material |
9310 |
| Ringset Included |
Yes |
| Engine |
2.0L |
| Piston Series |
JE Pistons |
| Compression Height |
1.335 |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dome |
| Title |
JE Pistons - Porsche, 2.0L Aircooled, 81.00 mm Bore, Piston Kit |
| Make |
PORSCHE |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Quantity |
6 |
| Piston Pin Length |
2.500 |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Piston Volume |
37.40 |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
81.00 |
| Product Market |
European |
| Cylinder Head |
2.0 Liter |
| Ring Set Included |
Yes |
| Engine - Web |
2.0L Aircooled |
| Make - Web |
Porsche |
| Wrist Pin Length |
2.500 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
JG1001-3189 |
| Industry |
Automotive |
| Title - Web |
JE Pistons Porsche 2.0L Aircooled Piston Kit - 81.00 mm Bore - 1.335 in. CH, 37.40 CC |
| Add-On |
866-2500-15-93C |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
7.0000 |
