As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Cadillac 2.0L |
| Description_DEF |
Engine Piston |
| Description_DES |

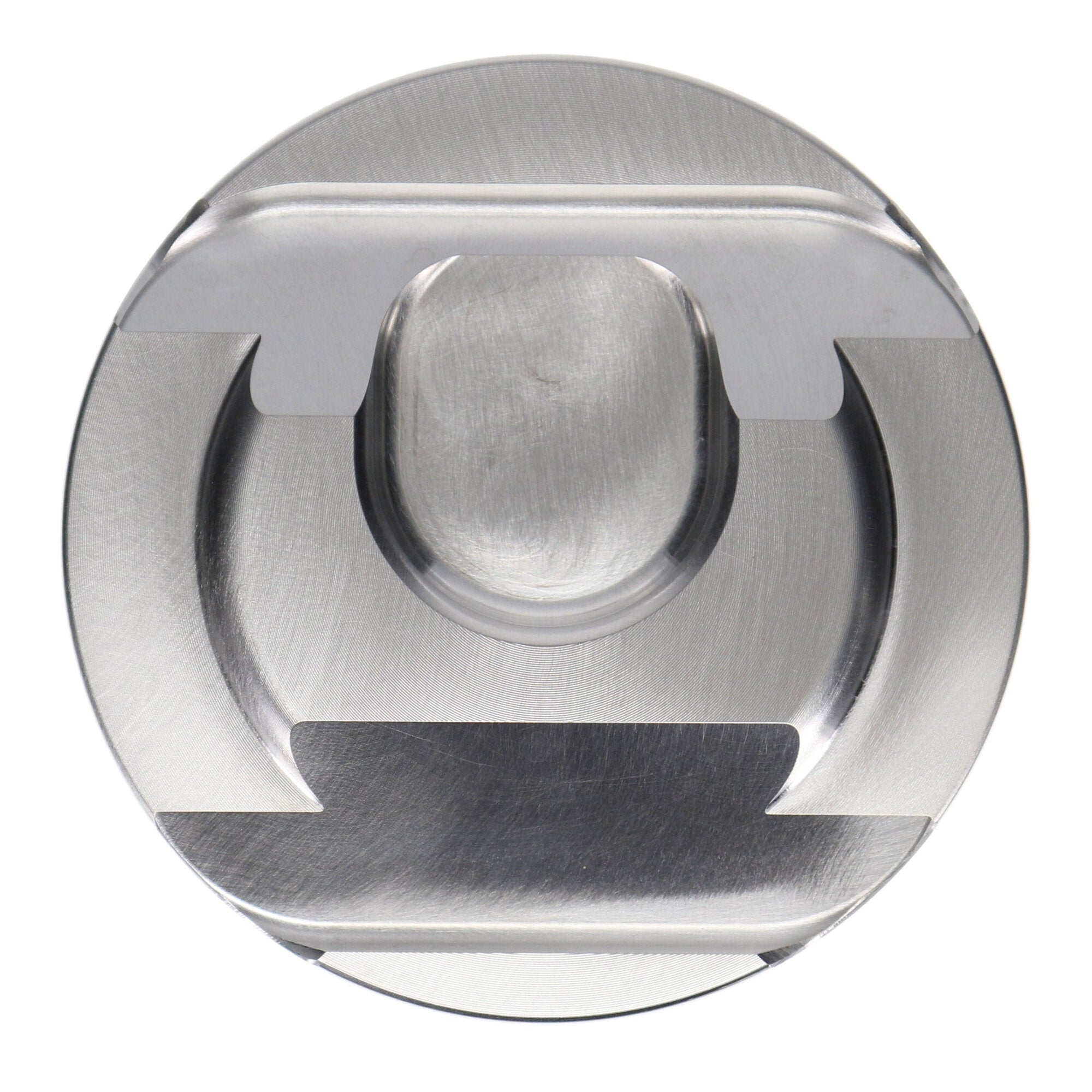

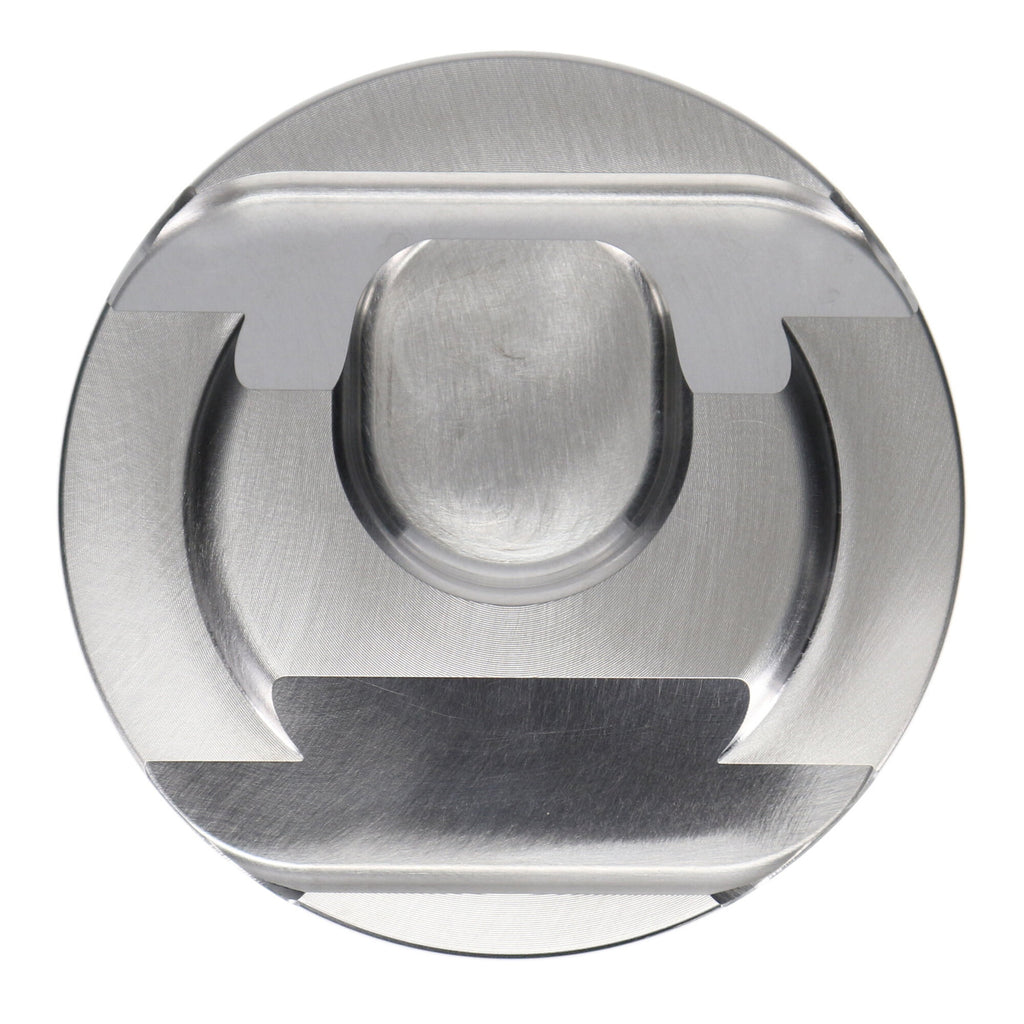

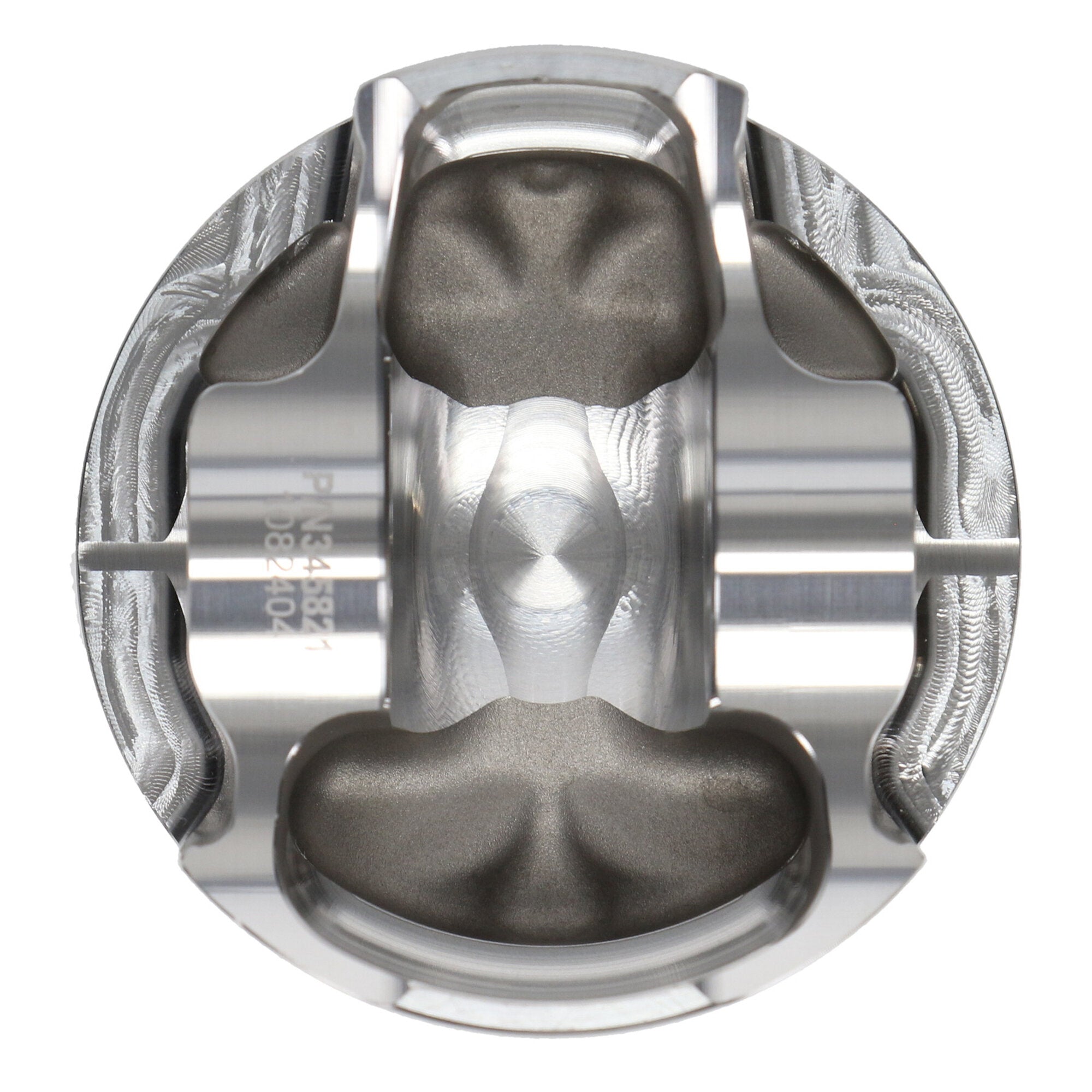

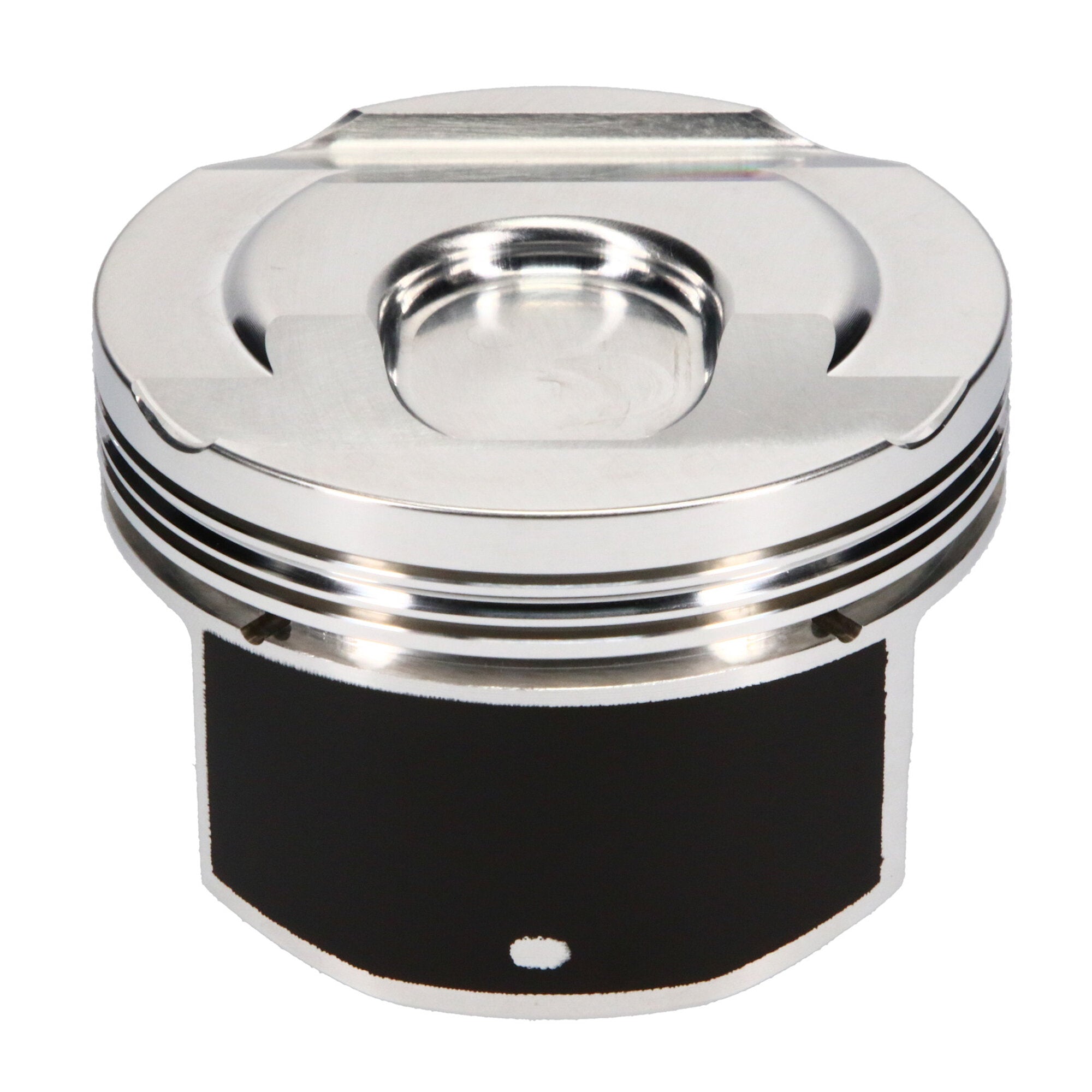

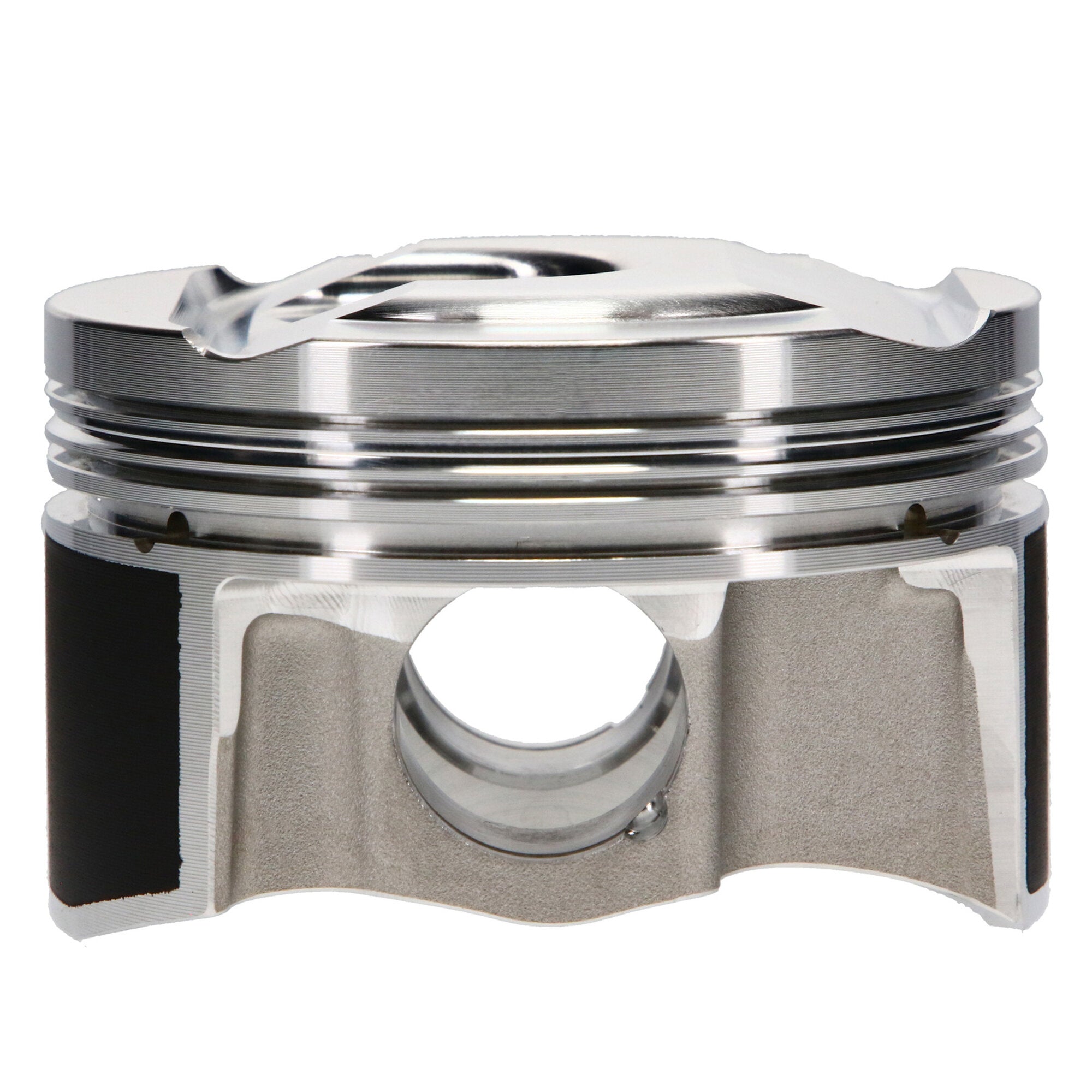

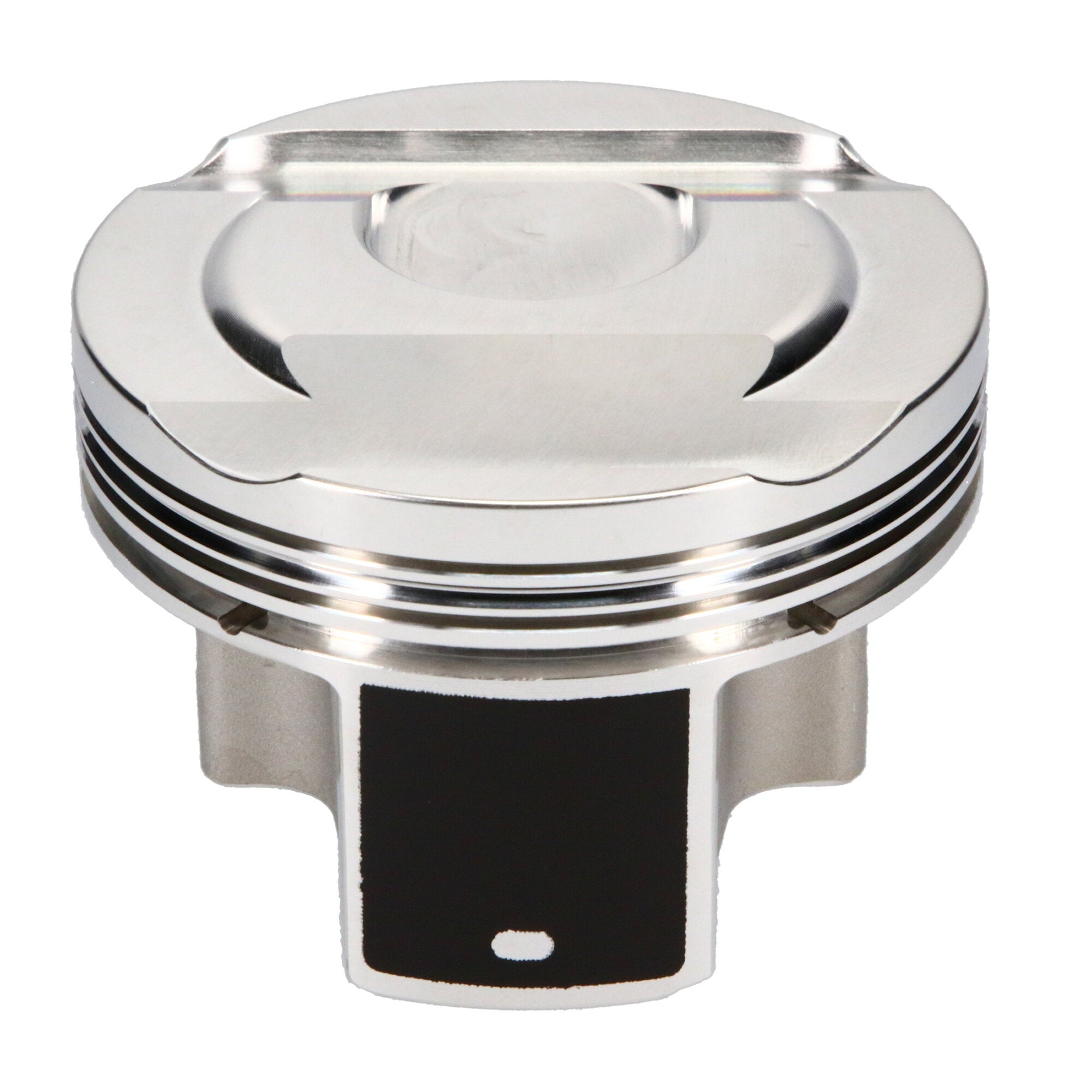

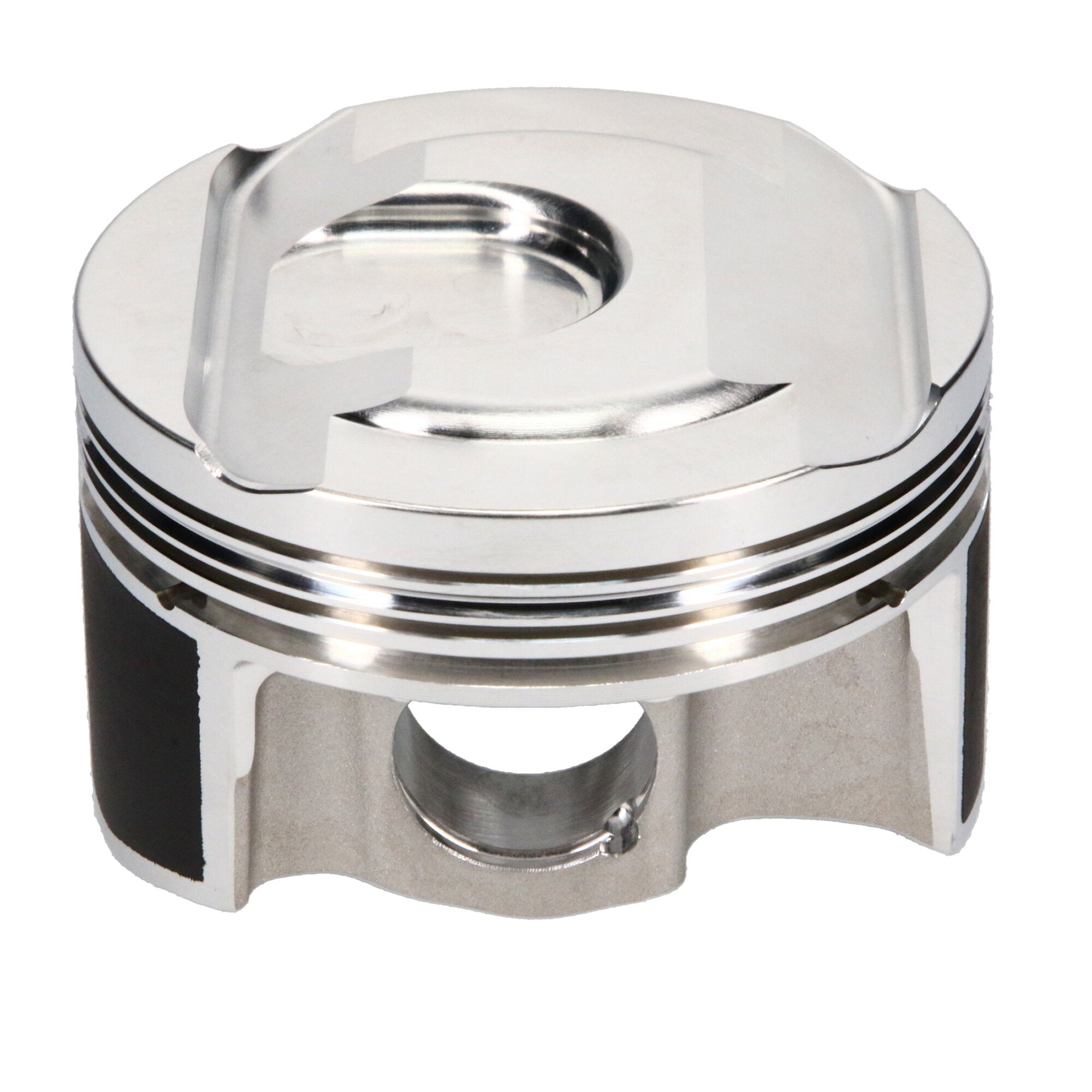

Piston Single, 2618, Dome, 3.405 Bore, 1.261 CD, 0.945 Pin, Set of 1. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Cadillac, LTG, 3.405 in. Bore, 9.50:1, Dome, Single Piston |
| Description_TLE |
Cadillac 2.0L, 86.50 Bore, Dome, Set of 1 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Make |
CADILLAC |
| Piston Pin Outside Diameter |
0.945 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.945 |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Product Market |
Sport Compact |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.261 |
| Engine |
LTG |
| Oil Ring Thickness |
0.111 |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
LTG |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Product Type |
Engine Piston |
| Add-On |
945-073-MW |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Cadillac LTG Piston - 86.50 mm Bore - 1.261 in. CH, -1.50 CC |
| Add-On |
JG1001-3405 |
| Add-On |
945-2250-15-51C |
| Bore Diameter |
86.50 |
| Title |
JE Pistons - Cadillac, LTG, 86.50 mm Bore, Piston |
| Piston Quantity |
1 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Cylinder Head |
LTG |
| Make - Web |
Cadillac |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Second Compression Ring Thickness |
0.0480 |
| Industry |
Automotive |
| Piston Volume |
-1.50 |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
