As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Cadillac 2.0L |
| Description_DEF |
Engine Piston |
| Description_DES |

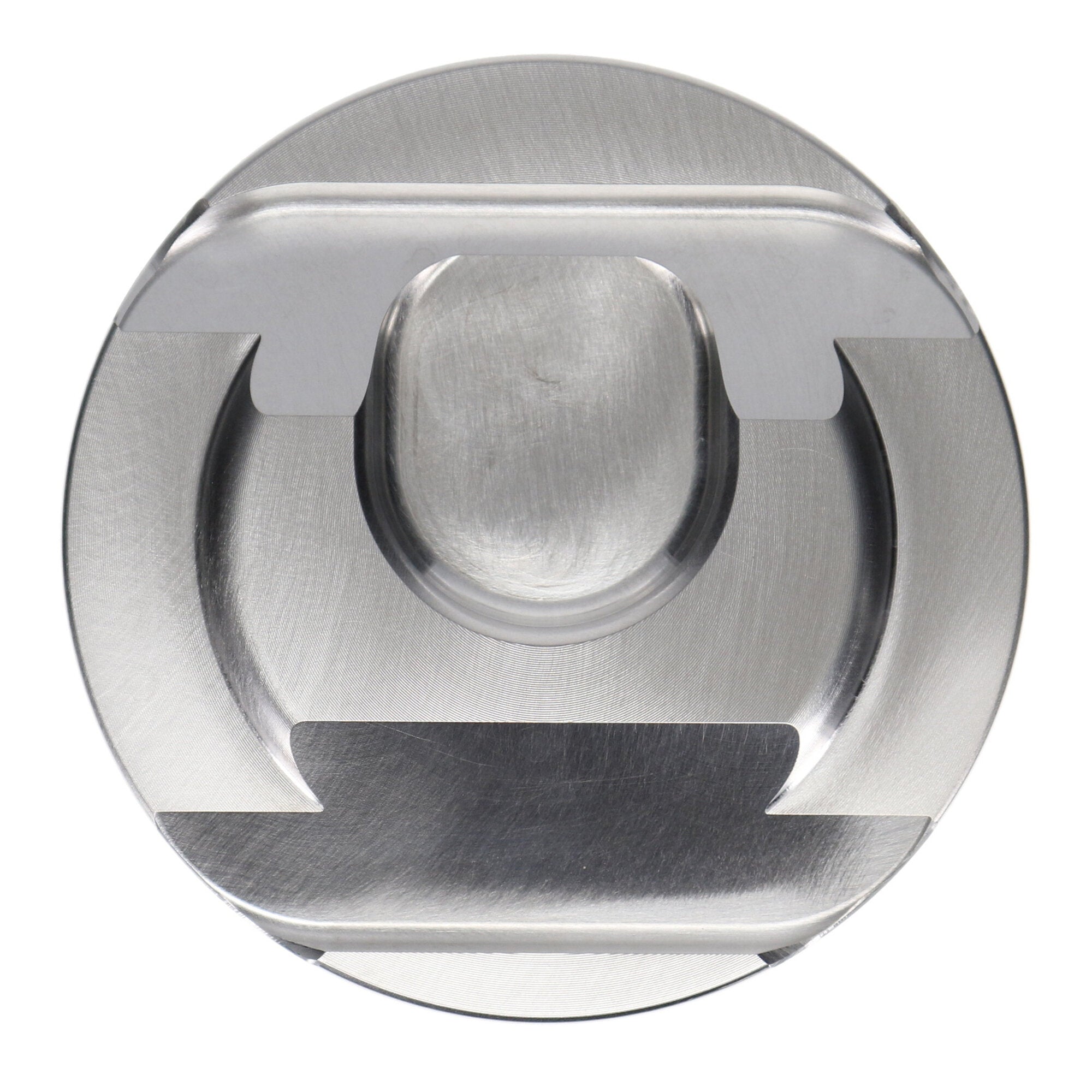

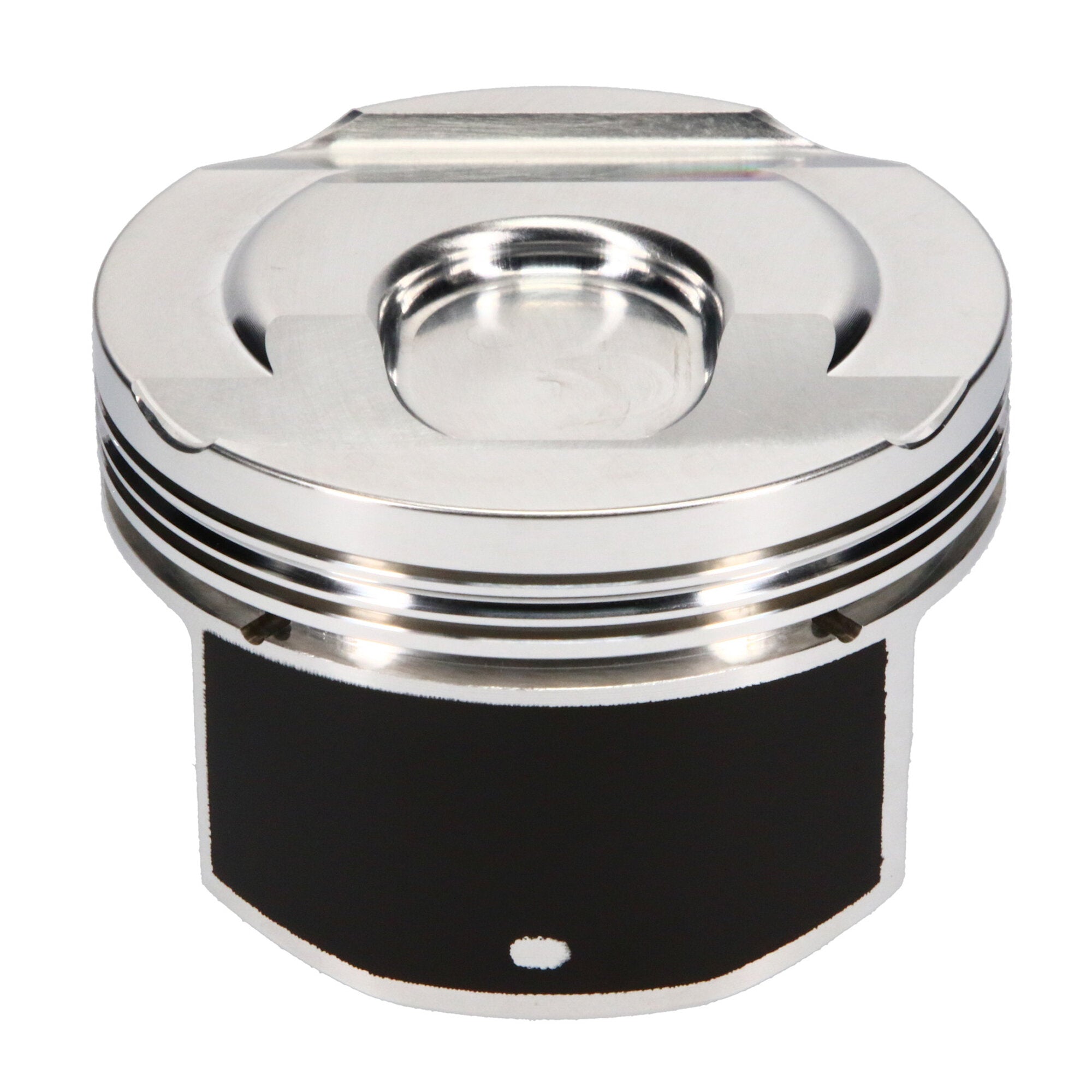

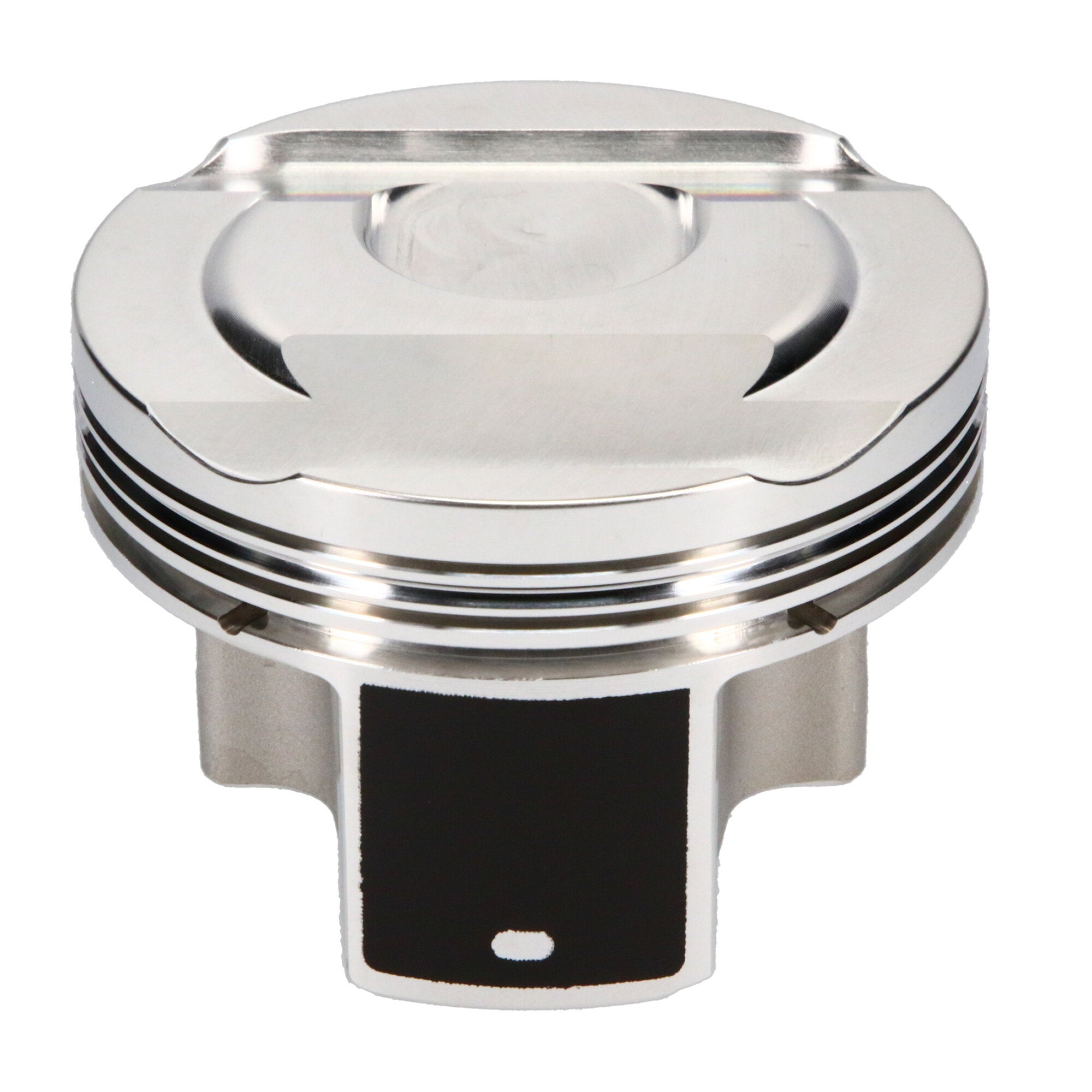

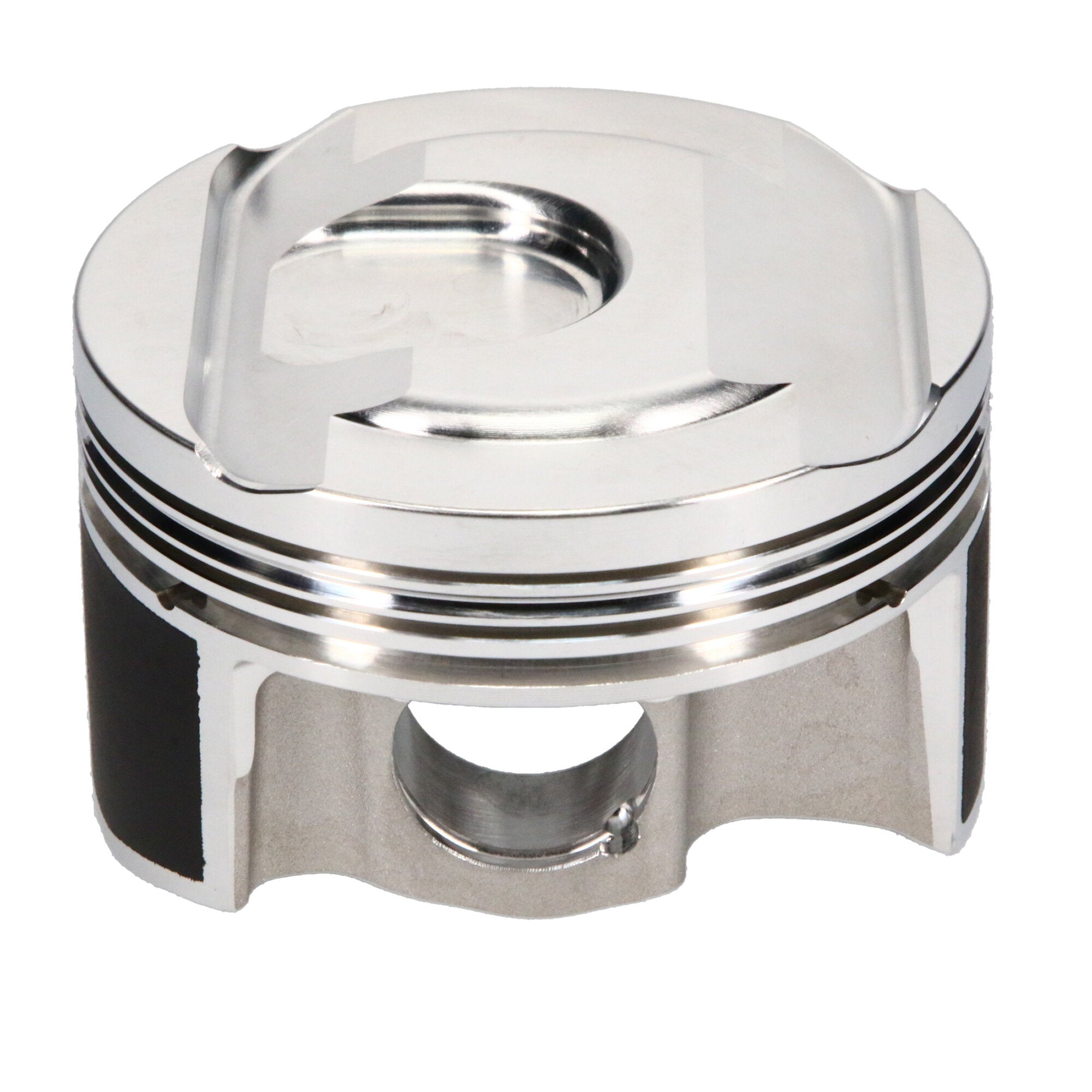

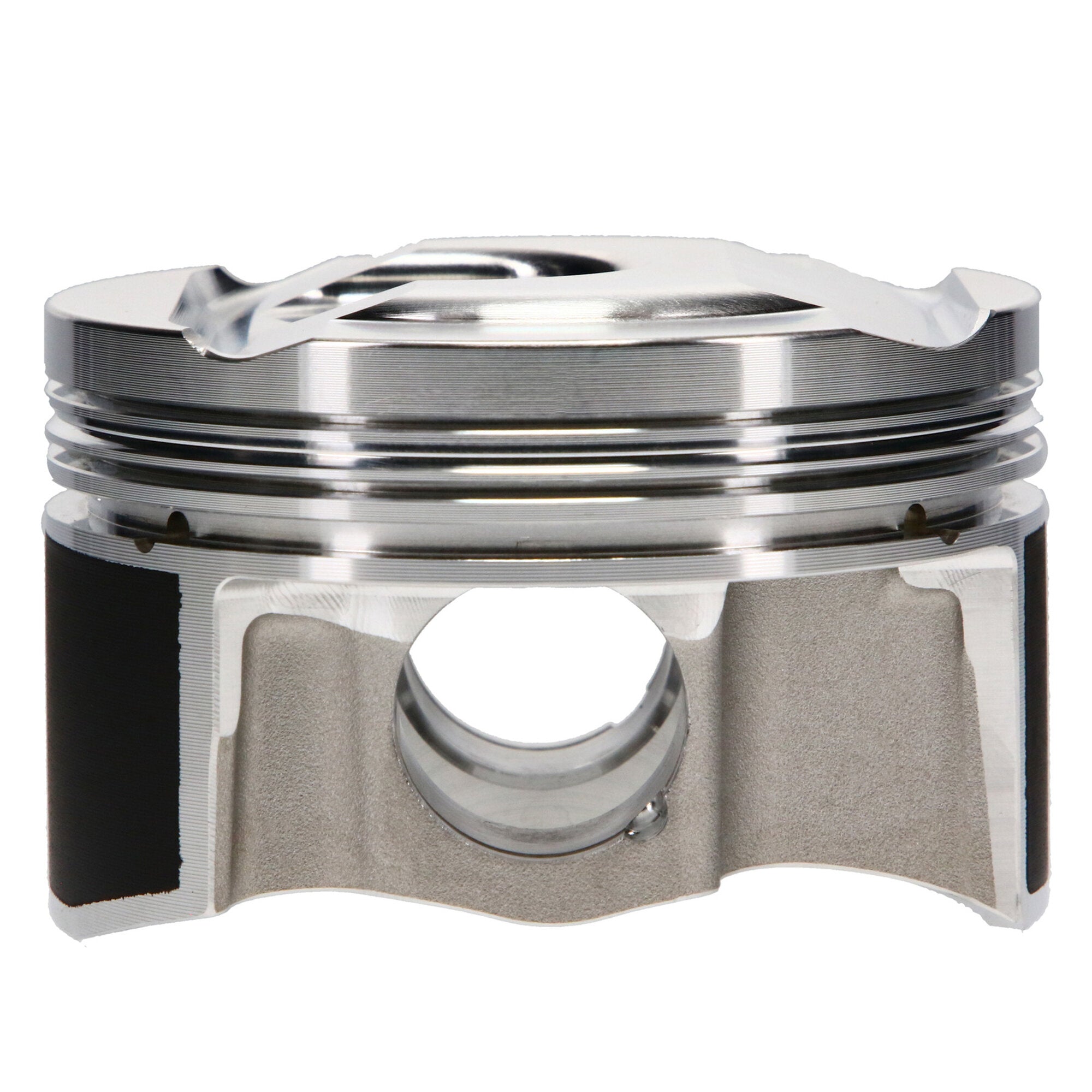

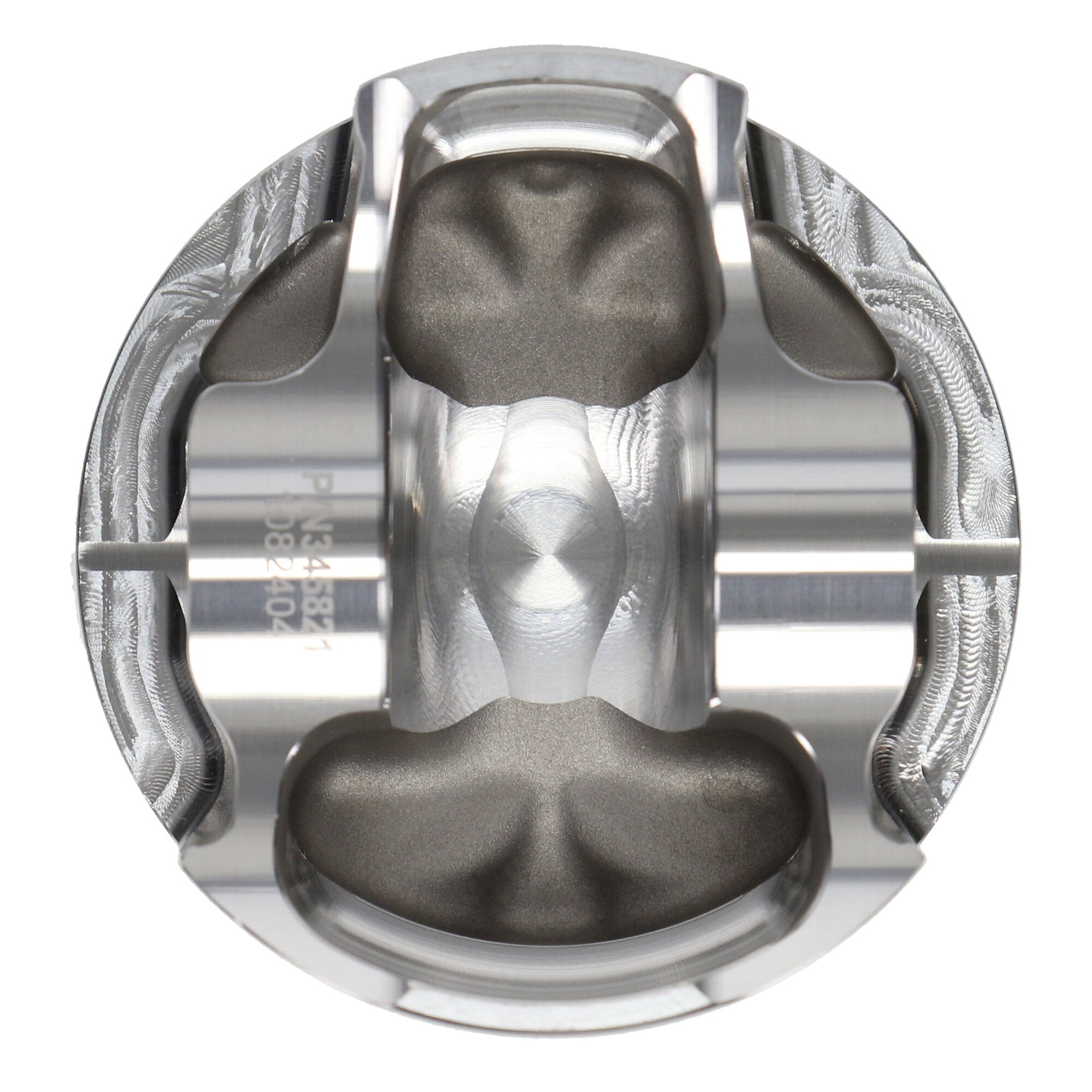

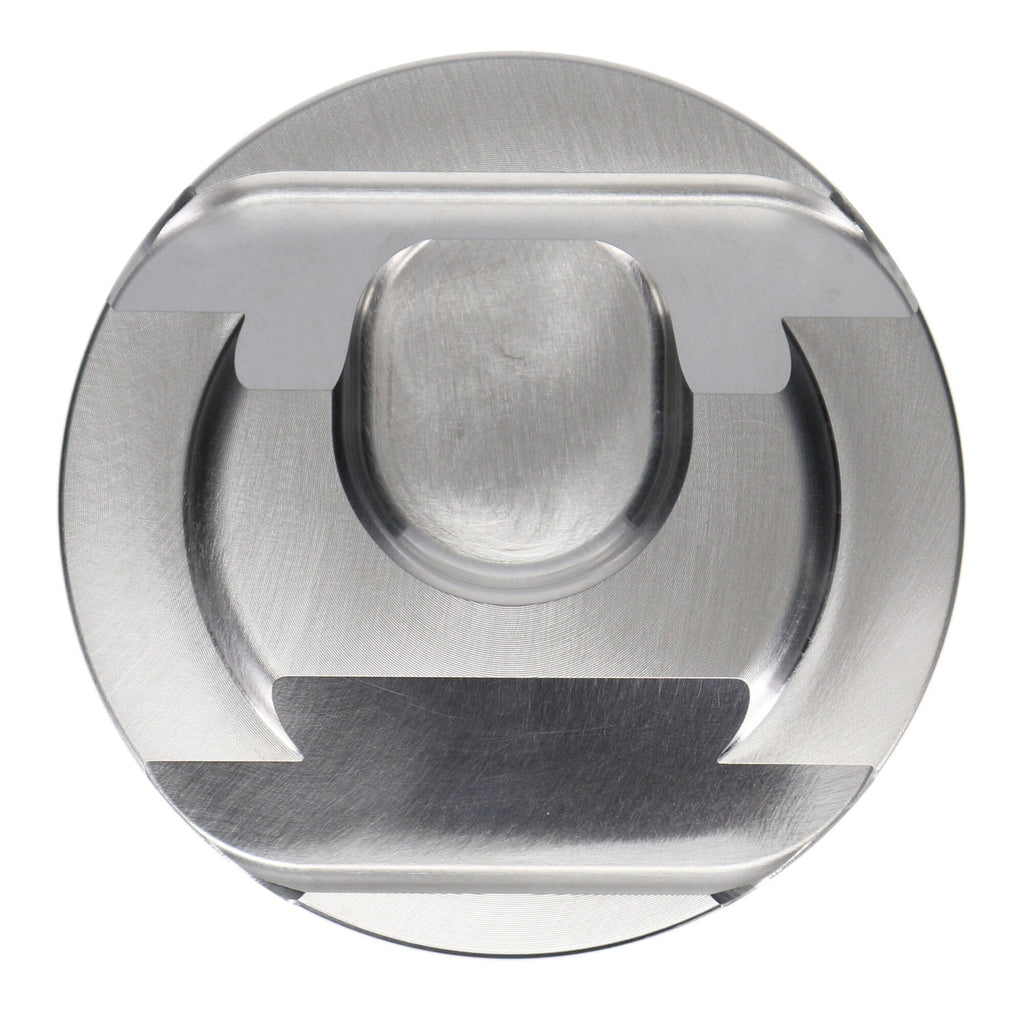

Piston Single, 2618, Dome, 3.386 Bore, 1.261 CD, 0.945 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Cadillac, LTG, 3.386 in. Bore, 9.50:1, Dome, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Cadillac 2.0L, 86.00 Bore, Dome, Set of 1 |
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Add-On |
945-2250-15-51C |
| Add-On |
JG1001-3386 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
945-073-MW |
| Title - Web |
JE Pistons Cadillac LTG Piston - 86.00 mm Bore - 1.261 in. CH, -1.30 CC |
| Ringset Included |
Yes |
| Engine |
LTG |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Cadillac |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Cylinder Head |
LTG |
| Piston Material |
2618 |
| Compression Height |
1.261 |
| Piston Pin Material |
5115 |
| Bore Diameter |
86.00 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Make |
CADILLAC |
| Piston Pin Outside Diameter |
0.945 |
| Product Type |
Engine Piston |
| Forging Type |
FSR |
| Product Market |
Sport Compact |
| Piston Volume |
-1.30 |
| Title |
JE Pistons - Cadillac, LTG, 86.00 mm Bore, Piston |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
LTG |
| Piston Quantity |
1 |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.945 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
