Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

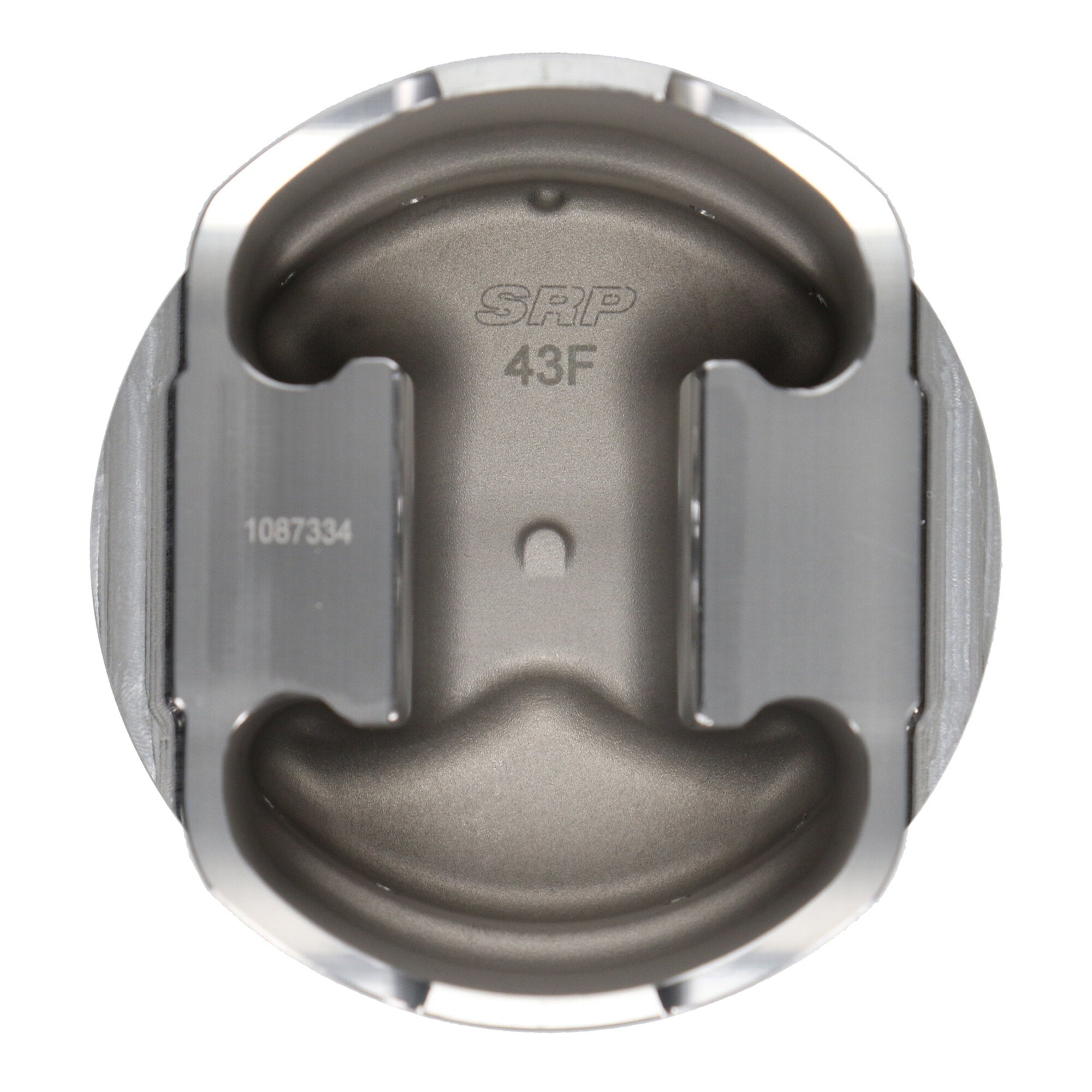

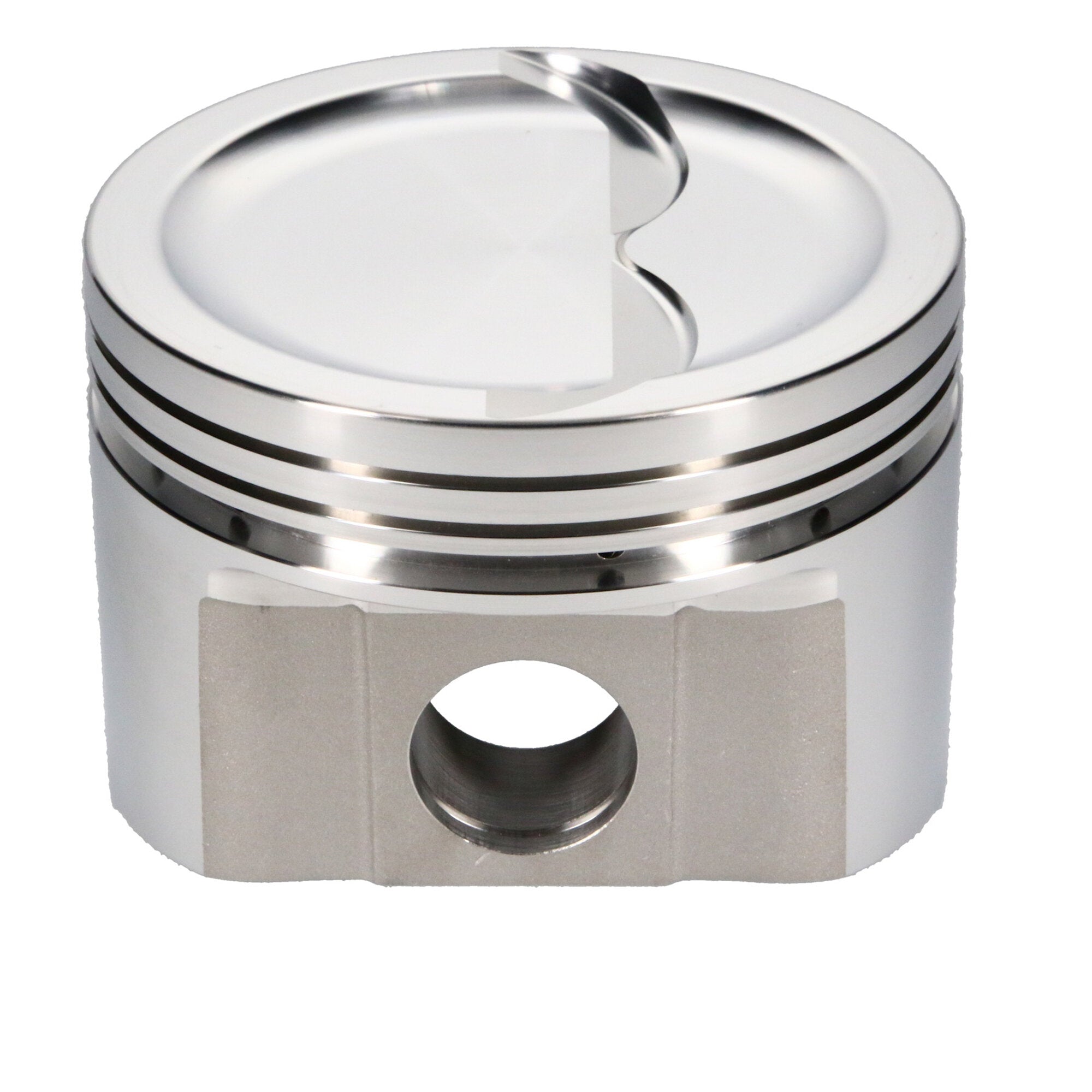

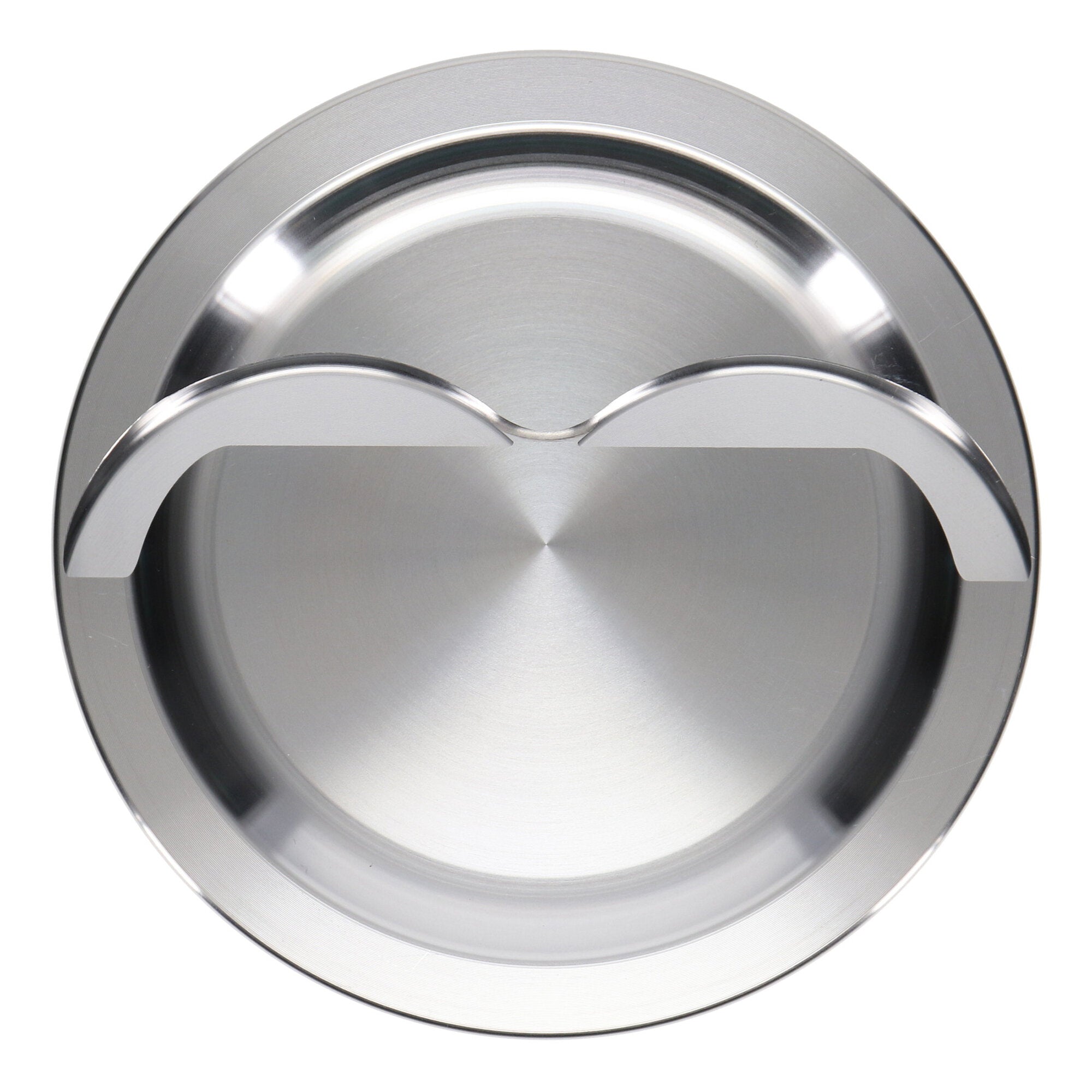

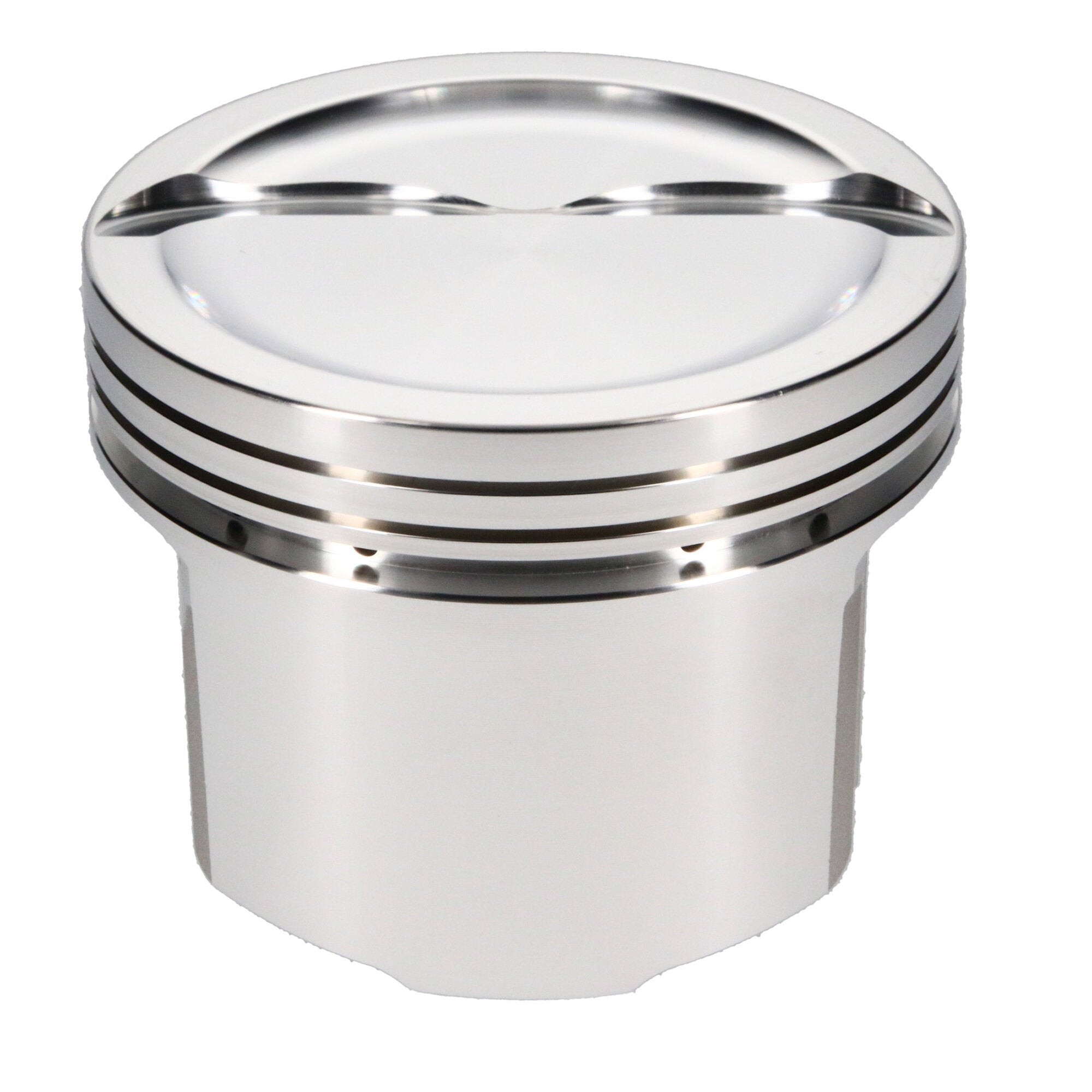

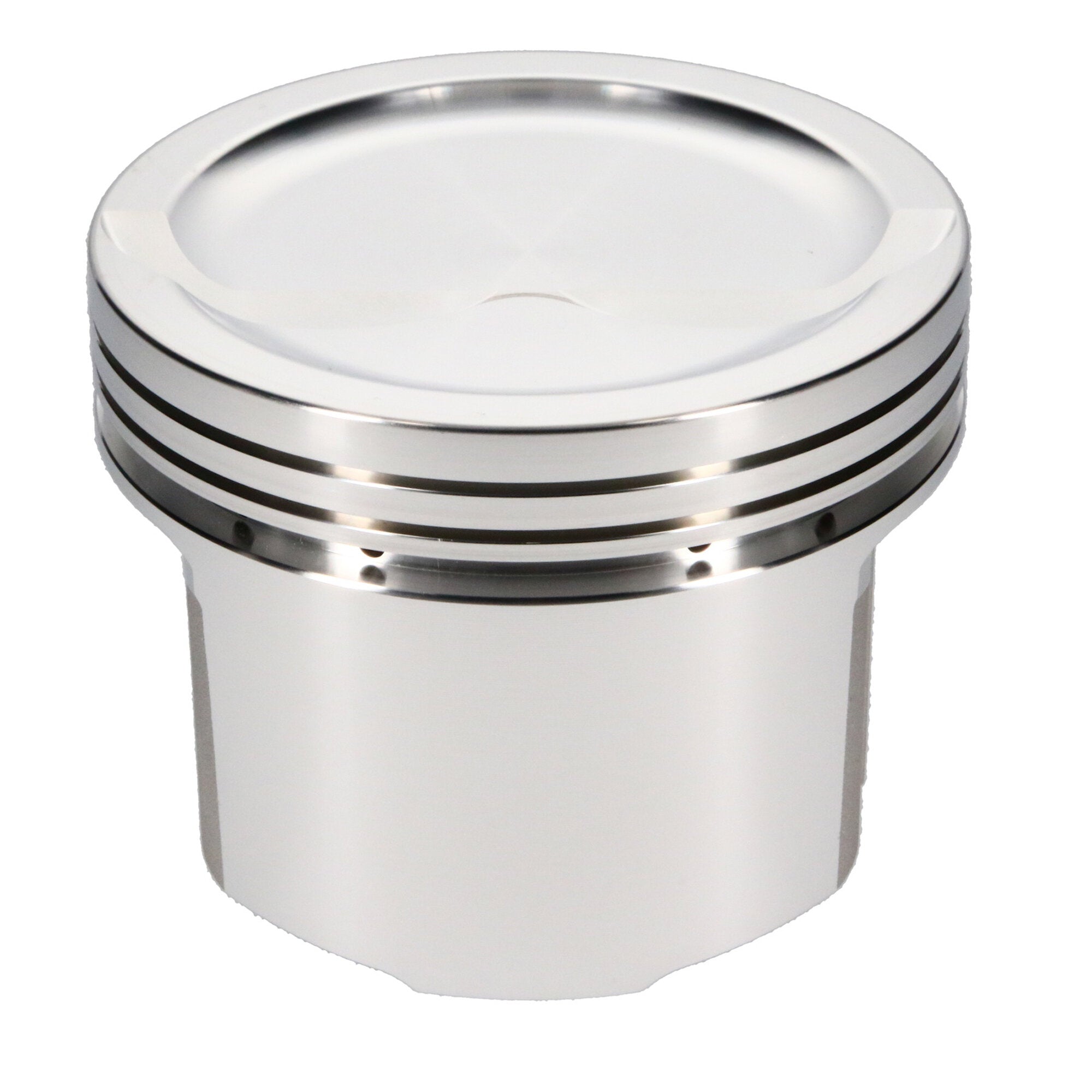

Piston Set, 4032, Inv Dome/Dish, 4.375 Bore, 2.062 CD, 1.094 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chrysler, Big Block Chrysler, 4.375 in. Bore, 2.062 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chrysler 440, 4.375 Bore, Dish, Set of 8 |
| Description_SHO |
Piston Kit |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
4032 |
| Ringset Included |
No |
| Second Compression Ring Thickness |
0.0640 |
| Cylinder Head |
440 WEDGE |
| Title - Web |
SRP Chrysler Big Block Piston Kit - 4.375 in. Bore - 2.062 in. CH, -24.00 CC |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Add-On |
S100S8-4375-5 |
| Add-On |
094-2930-19-51S |
| Engine |
Big Block |
| Add-On |
094-037-CS |
| Industry |
Automotive |
| Piston Pin Material |
5115 |
| Piston Average Weight |
727 |
| Make |
CHRYSLER |
| Oil Ring Thickness |
0.188 |
| Piston Volume |
-24.00 |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.930 |
| Product Type |
Engine Piston Kit |
| Title |
SRP - Chrysler, Big Block, 4.375 in. Bore, Piston Kit |
| Piston Series |
SRP |
| Forging Type |
FSR |
| Engine - Web |
Big Block |
| Make - Web |
Chrysler |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.190 |
| Wrist Pin Outer Diameter |
1.094 |
| Piston Pin Outside Diameter |
1.094 |
| Compression Height |
2.062 |
| Piston Pin Wall Thickness |
0.190 |
| Product Market |
Domestic |
| Bore Diameter |
4.375 |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
