As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 351 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

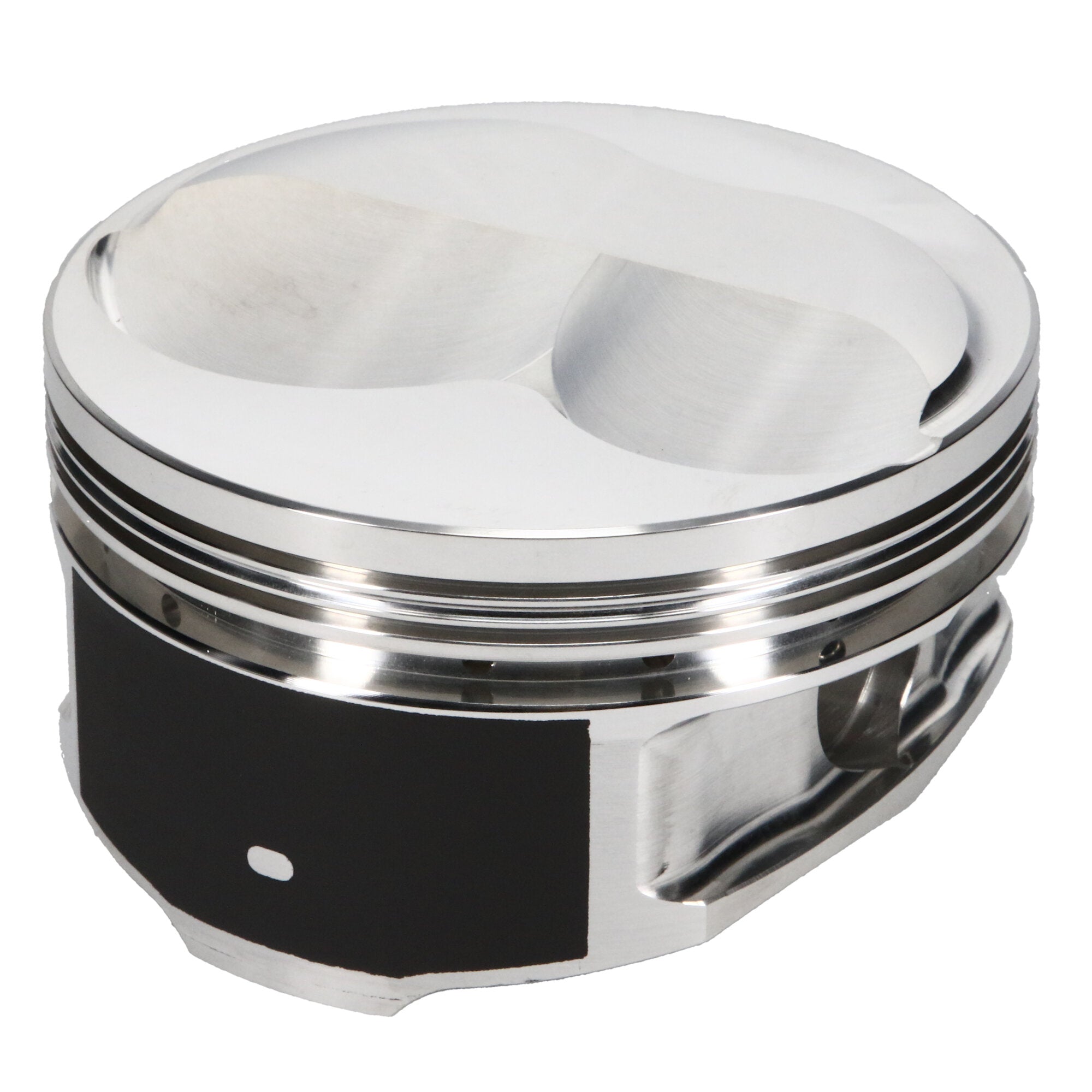

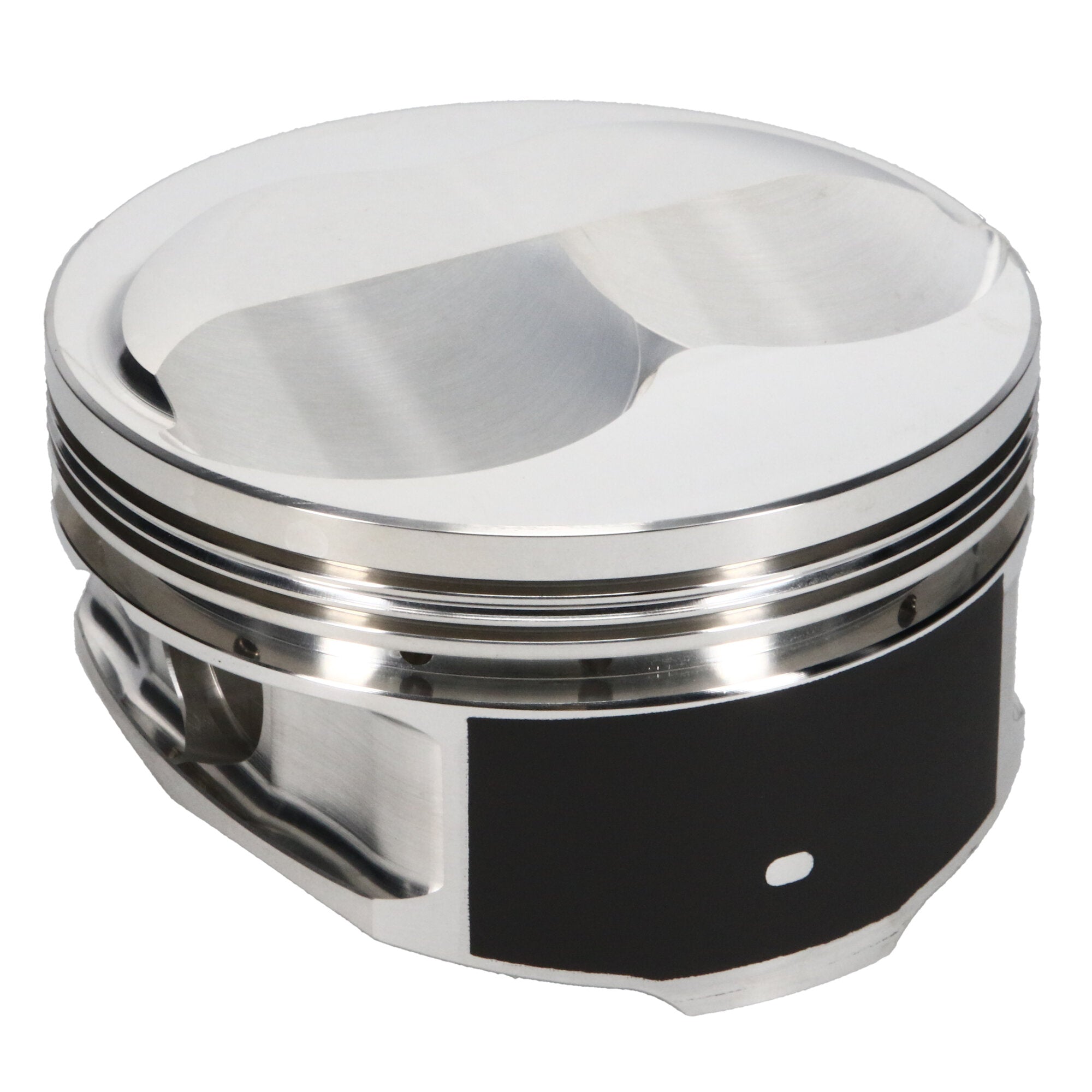

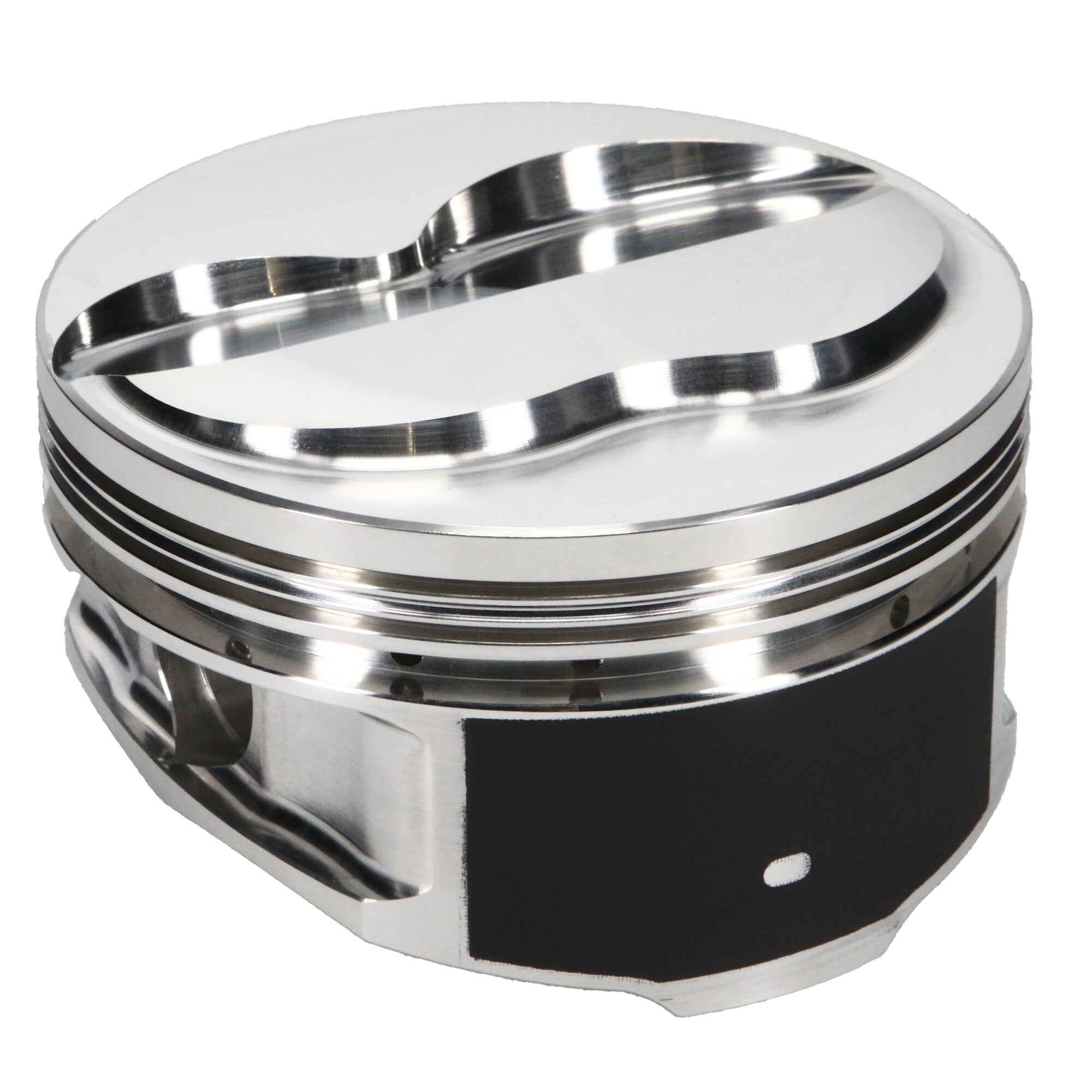

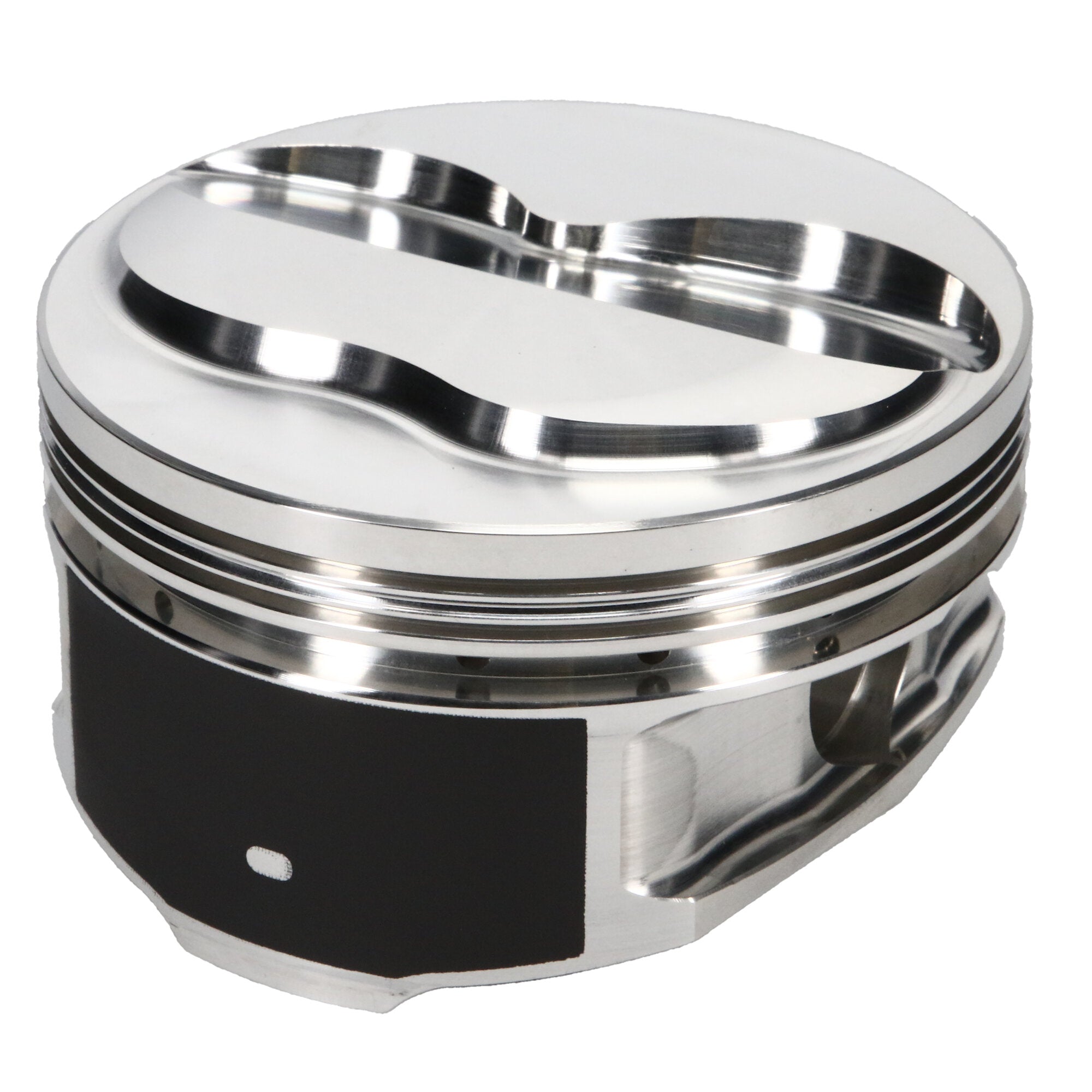

Piston Set, 2618, Dome, 4.145 Bore, 1.230 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.145 in. Bore, 1.280 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 351, 4.145 Bore, Dome, Set of 8 |
| Ringset Included |
No |
| Oil Ring Thickness |
0.188 |
| Title |
JE Pistons - Ford, Small Block, 4.145 in. Bore, Piston Kit |
| Compression Height |
1.230 |
| Piston Average Weight |
458 |
| Piston Head Type |
Dome |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0640 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Forging Type |
Round |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 |
| Bore Diameter |
4.145 |
| Make |
FORD |
| Wrist Pin Length |
2.750 |
| Add-On |
927-2750-15-51S |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Engine Type |
ICE |
| Piston Volume |
6.50 |
| Industry |
Automotive |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Add-On |
927-042-CS |
| Second Compression Ring Thickness |
0.0640 |
| Out of Stock Message |
Call for Availability |
| Add-On |
J100F8-4145-5 |
| Piston Material |
2618 |
| Ring Set Included |
No |
| Make - Web |
Ford |
| Wrist Pin Outer Diameter |
0.927 |
| Engine |
Small Block |
| Piston Pin Length |
2.750 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.145 in. Bore - 1.230 in. CH, 6.50 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
