As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 351W Windsor Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

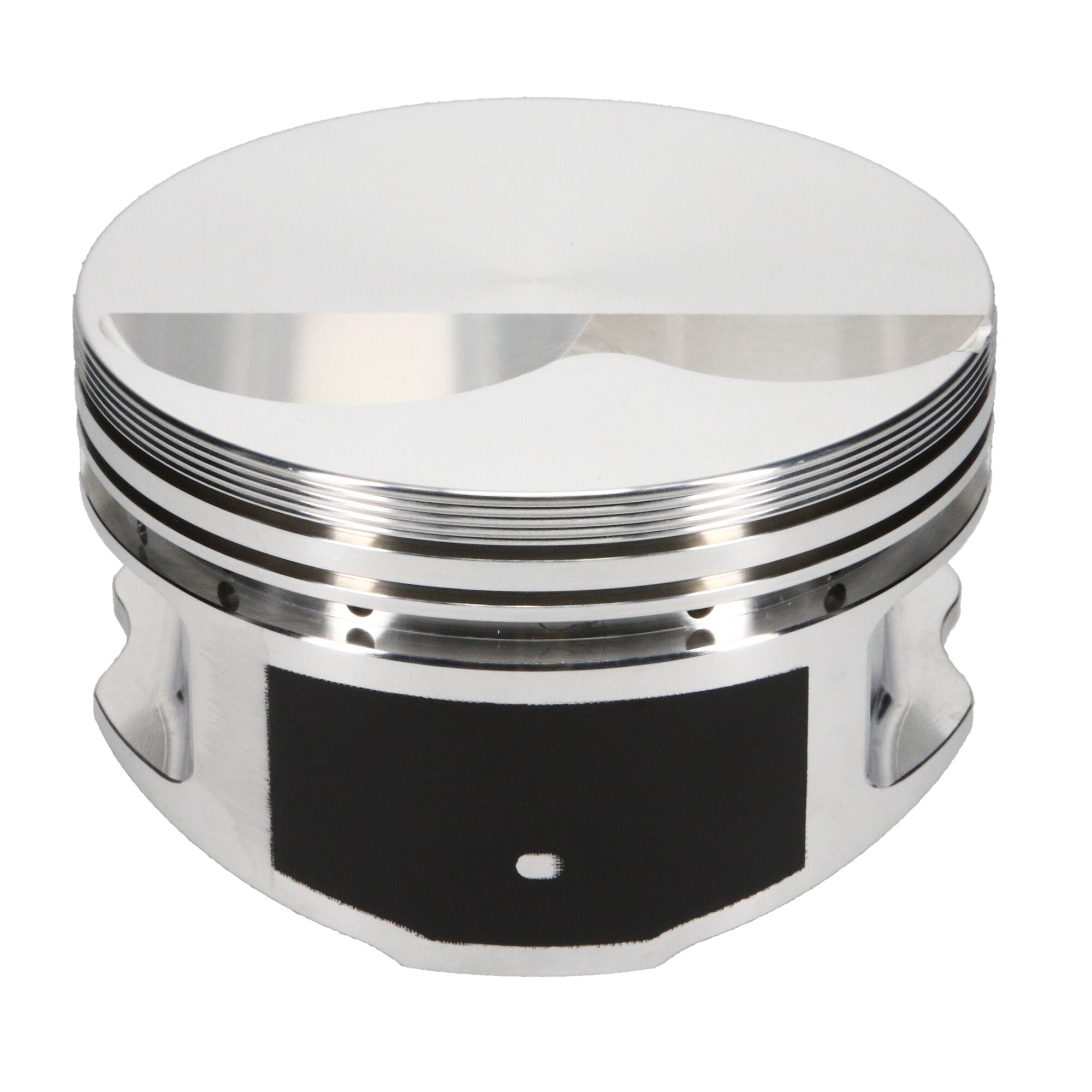

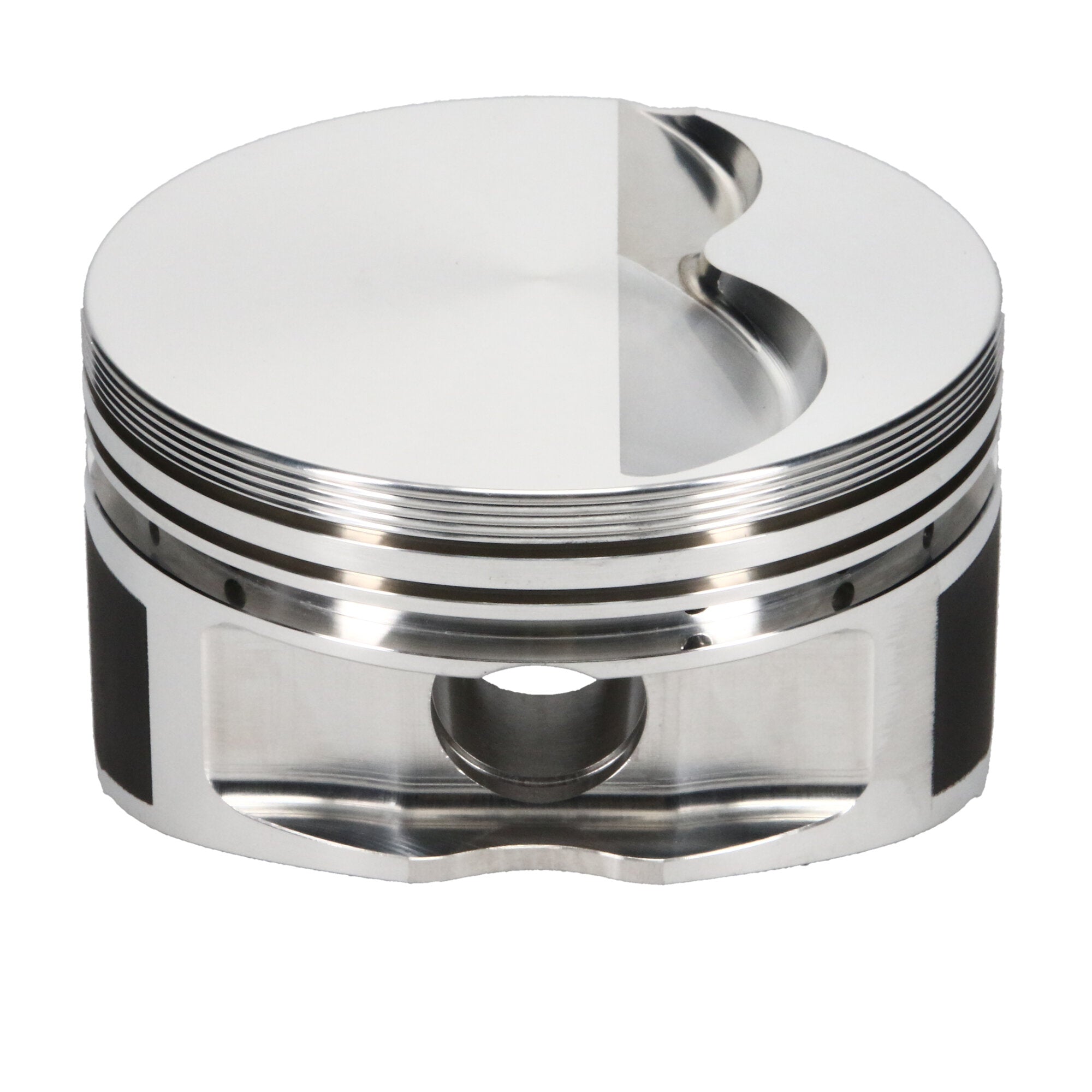

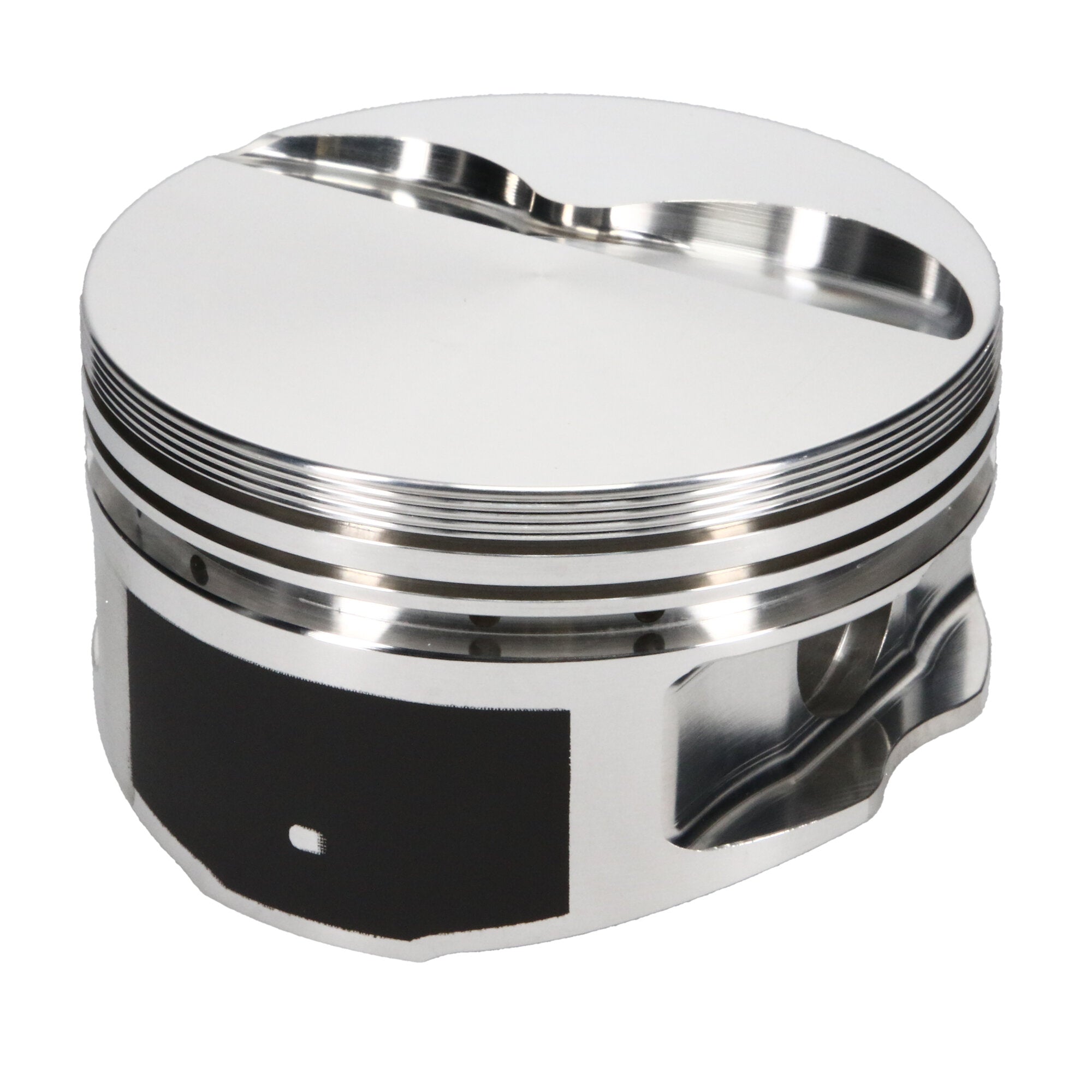

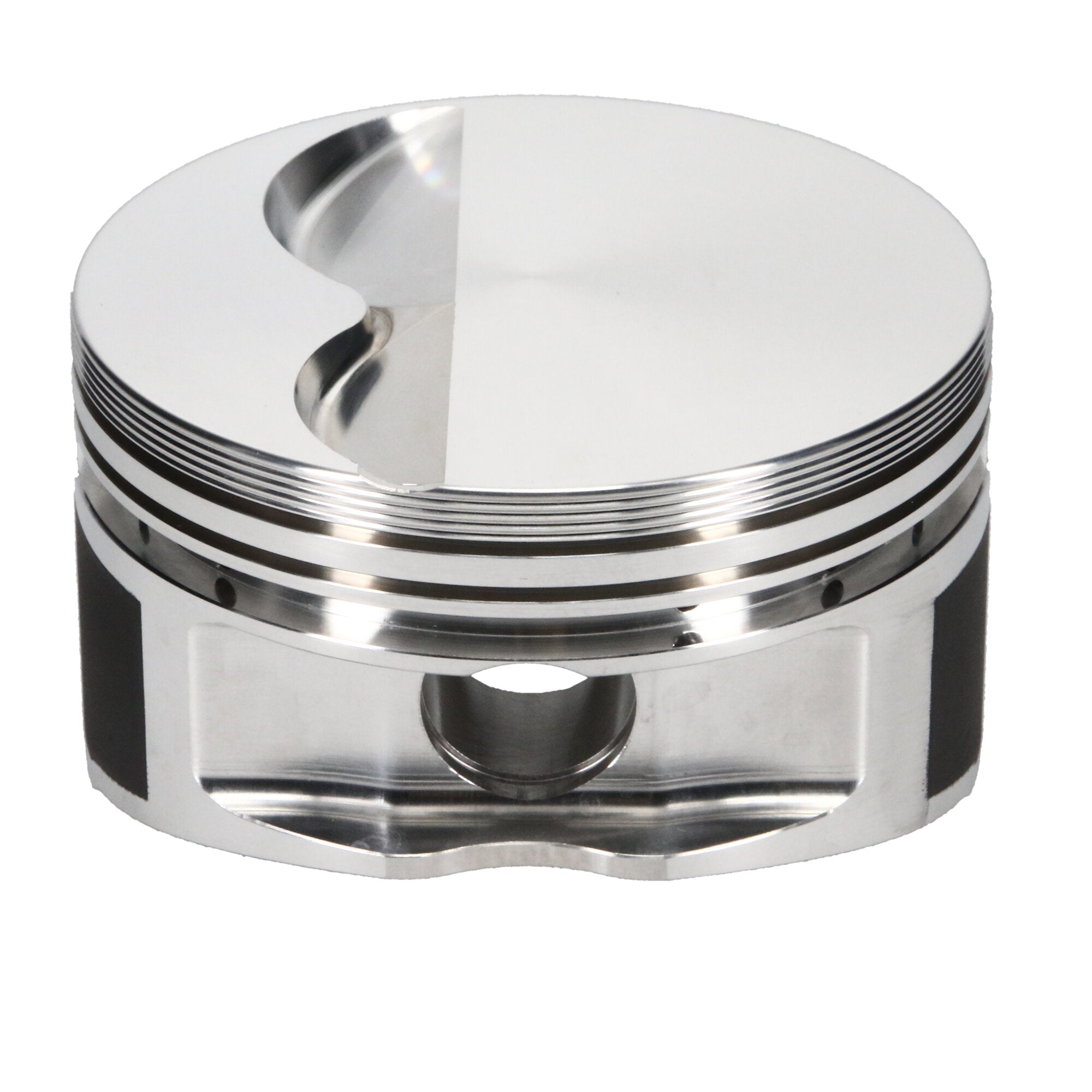

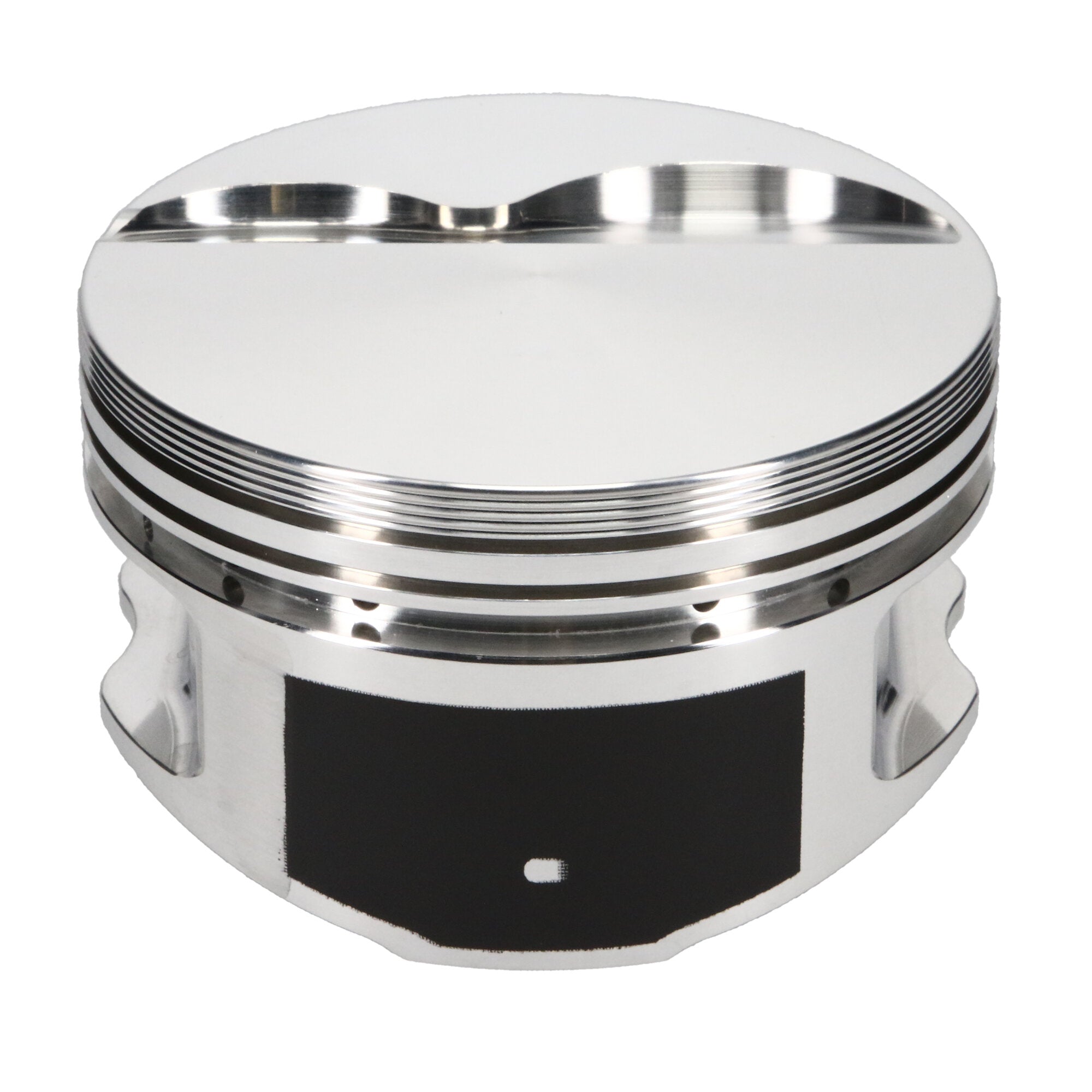

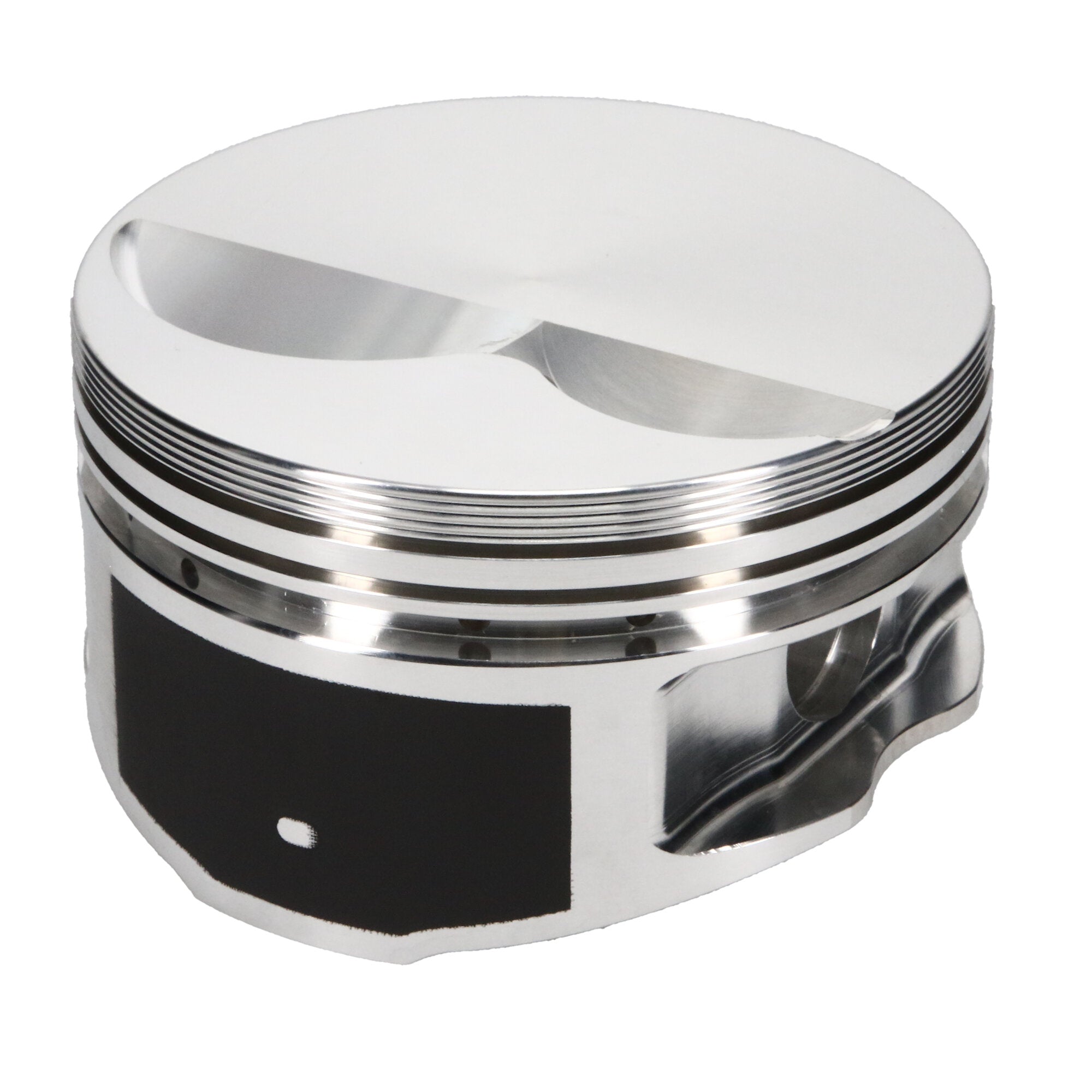

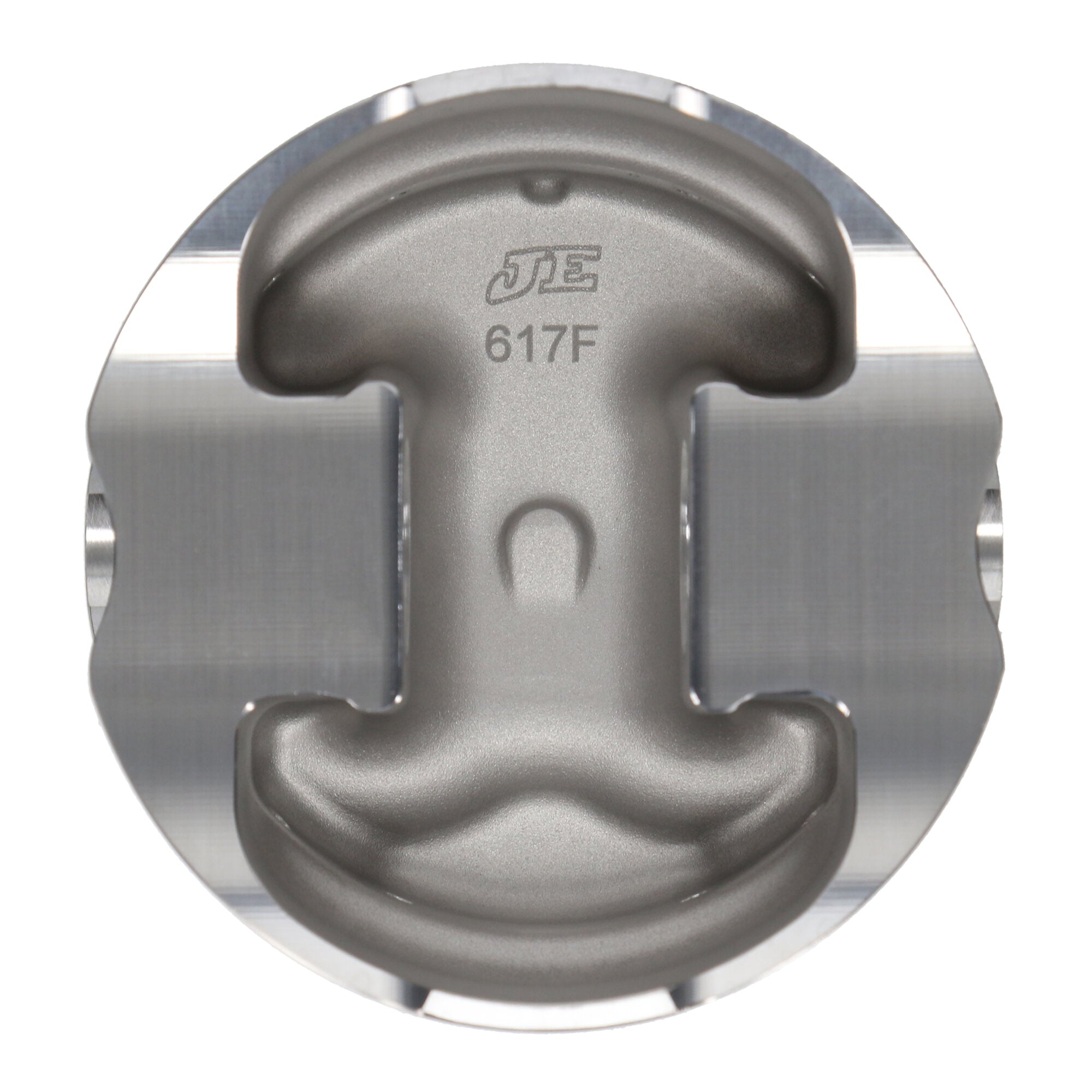

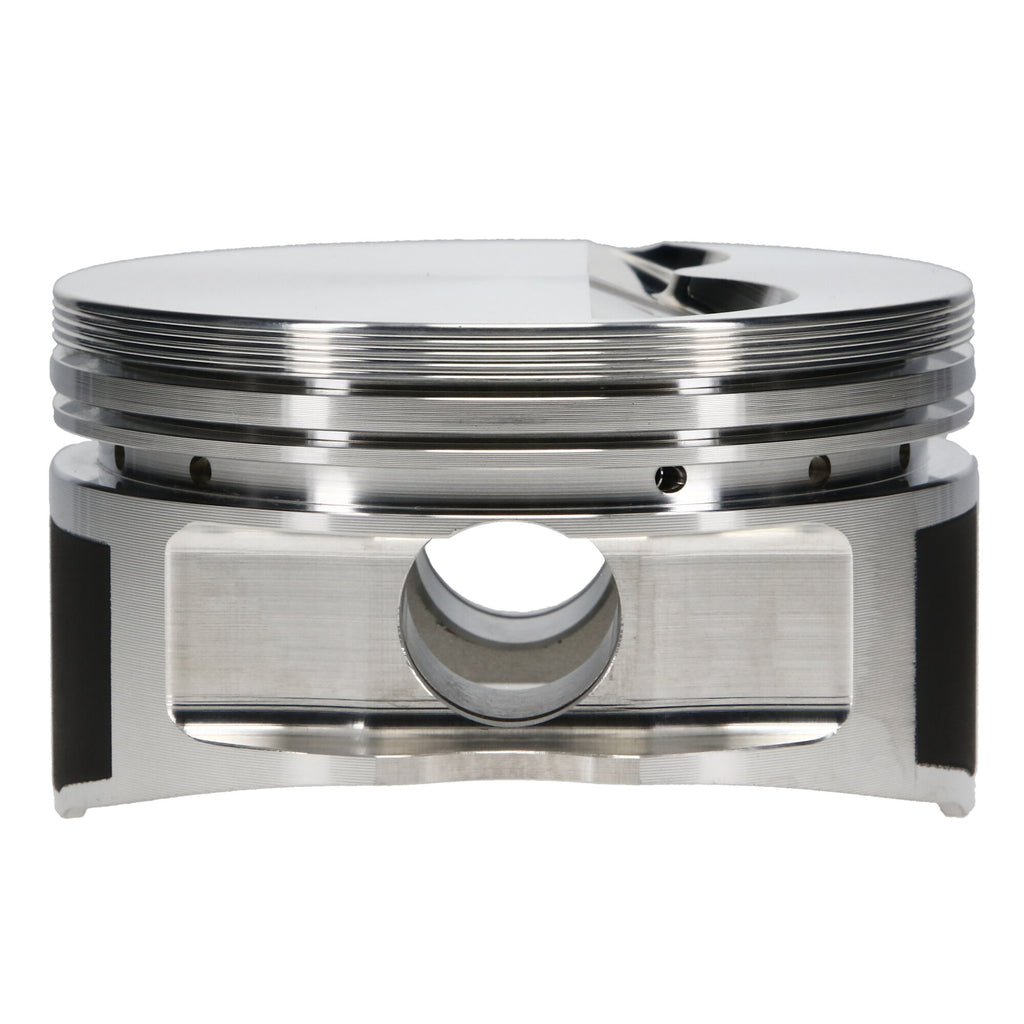

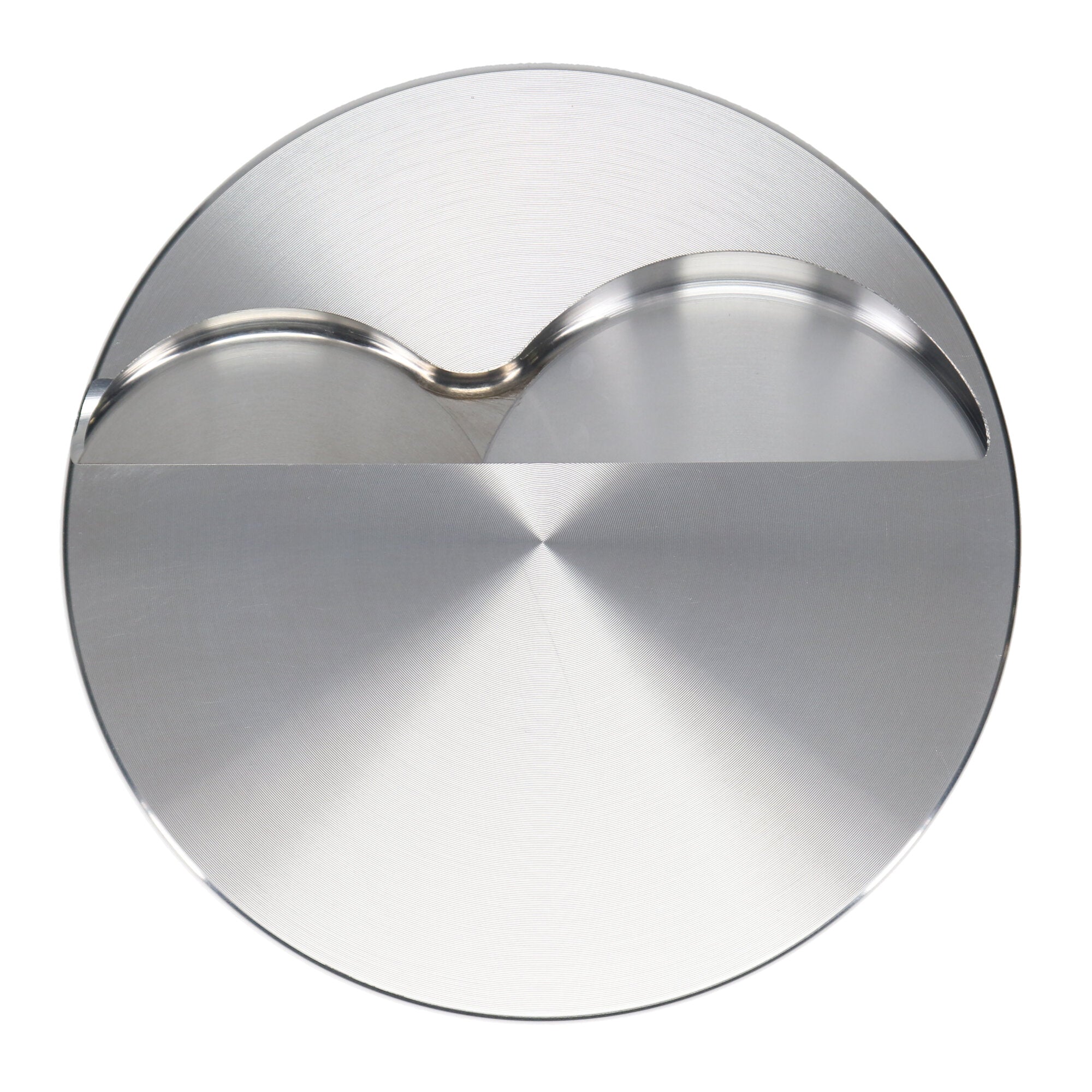

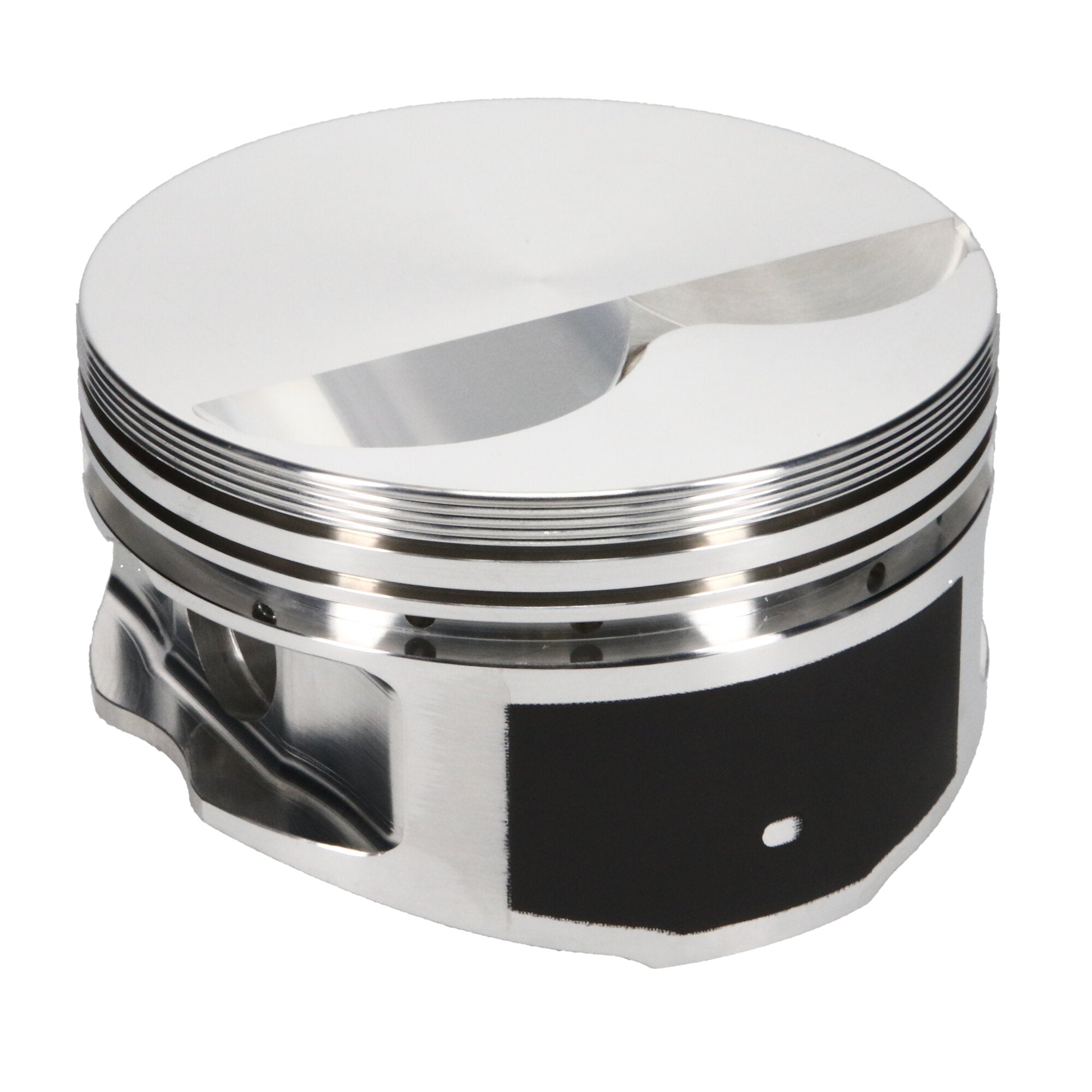

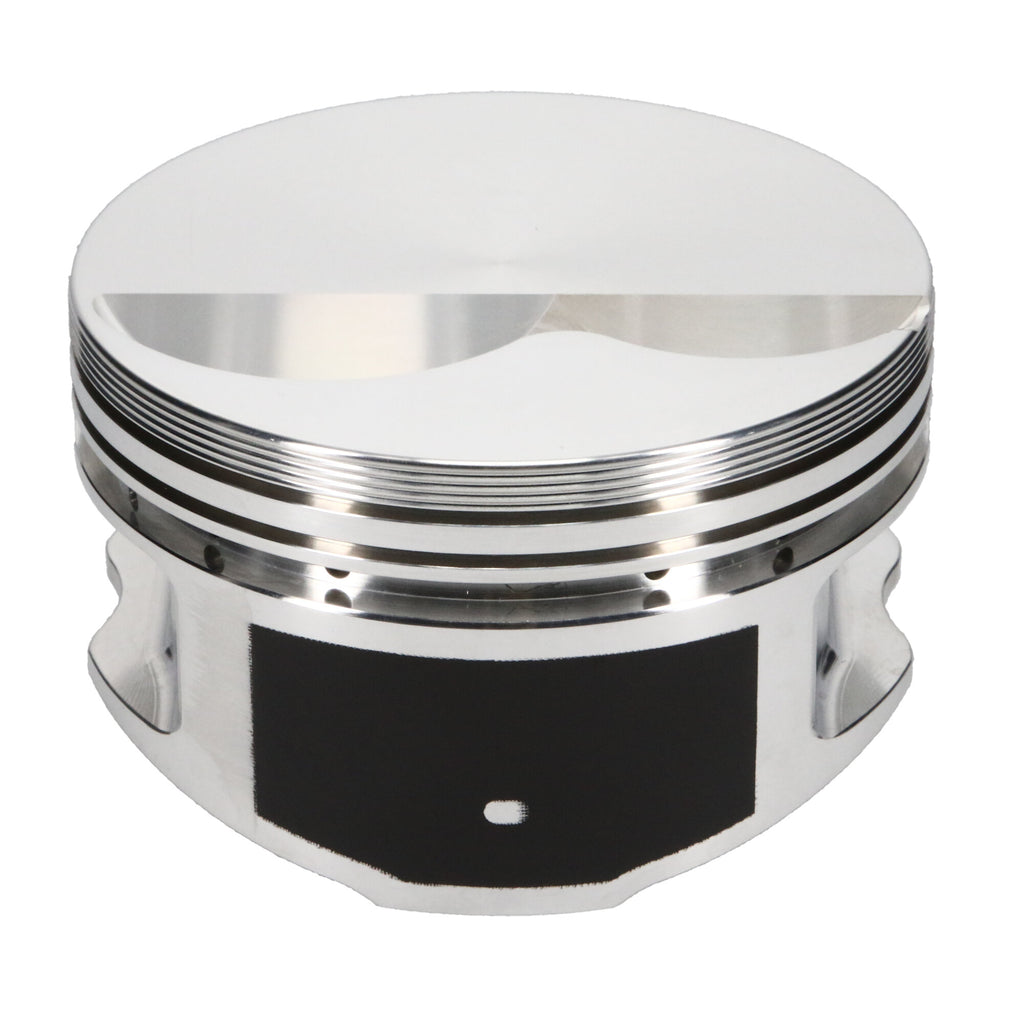

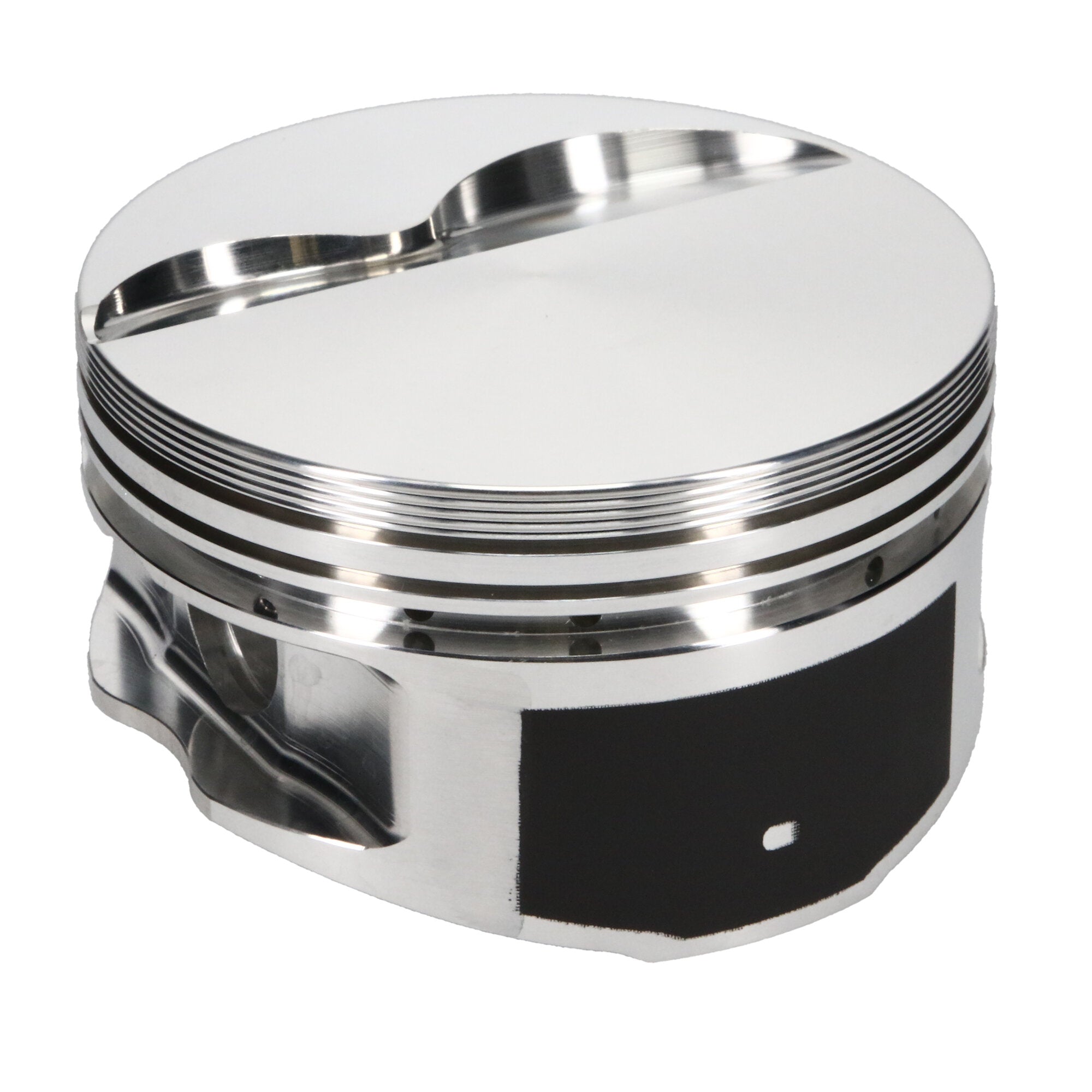

Piston Set, 2618, Flat Top, 4.145 Bore, 1.280 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Ford, Small Block Ford, 4.145 in. Bore, 1.280 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 351 Windsor, 4.145 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Volume |
-5.00 |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
4.145 |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.145 in. Bore - 1.280 in. CH, -5.00 CC |
| Wrist Pin Length |
2.750 |
| Ring Set Included |
No |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
927-2750-15-51S |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Piston Average Weight |
501 |
| Add-On |
927-042-CS |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Piston Quantity |
8 |
| Add-On |
J100F8-4145-5 |
| Industry |
Automotive |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Forging Type |
Round |
| Ringset Included |
No |
| Compression Height |
1.280 |
| Piston Pin Length |
2.750 |
| Piston Head Type |
Flat |
| Title |
JE Pistons - Ford, Small Block, 4.145 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Small Block |
| Oil Ring Thickness |
0.188 |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Make |
FORD |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
