As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

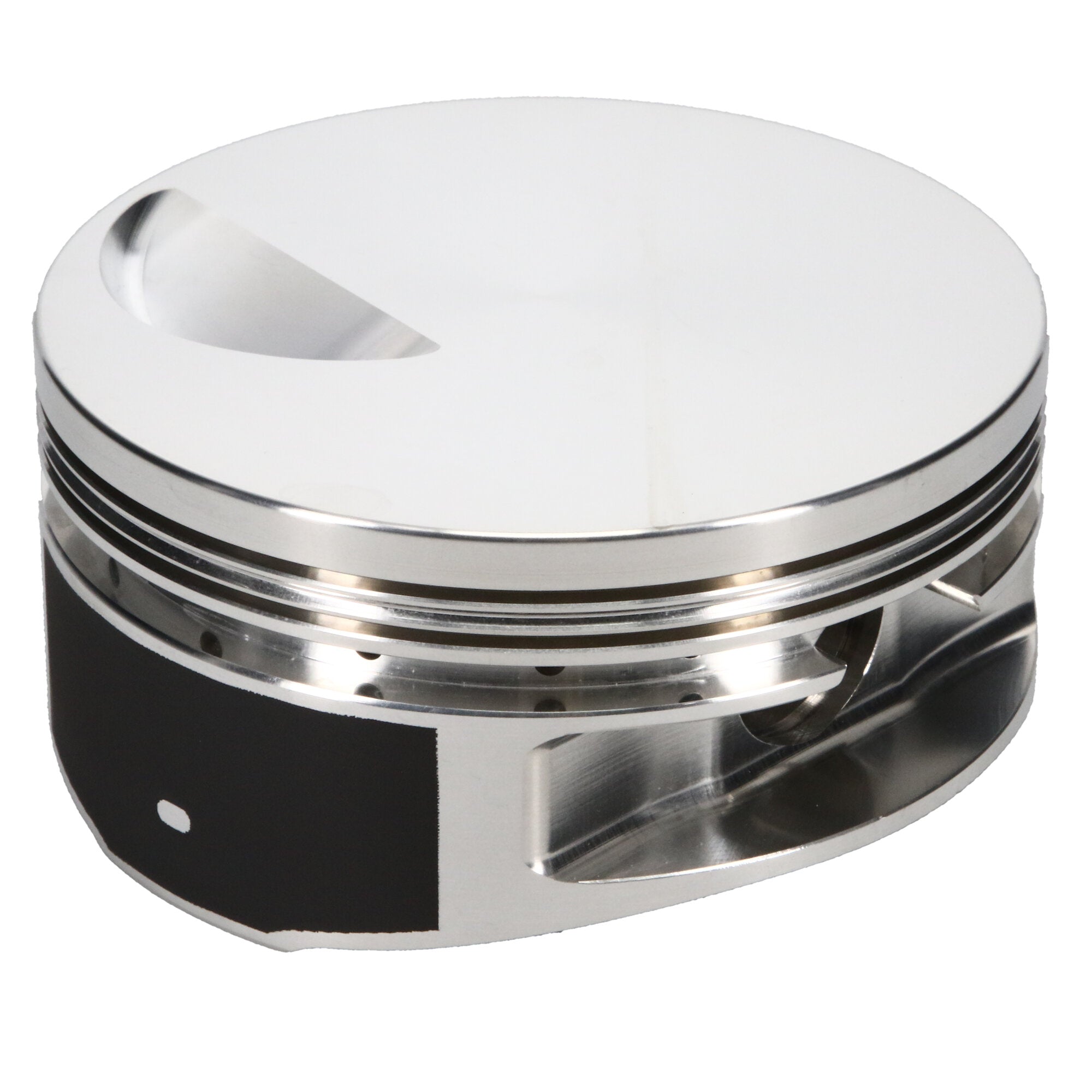

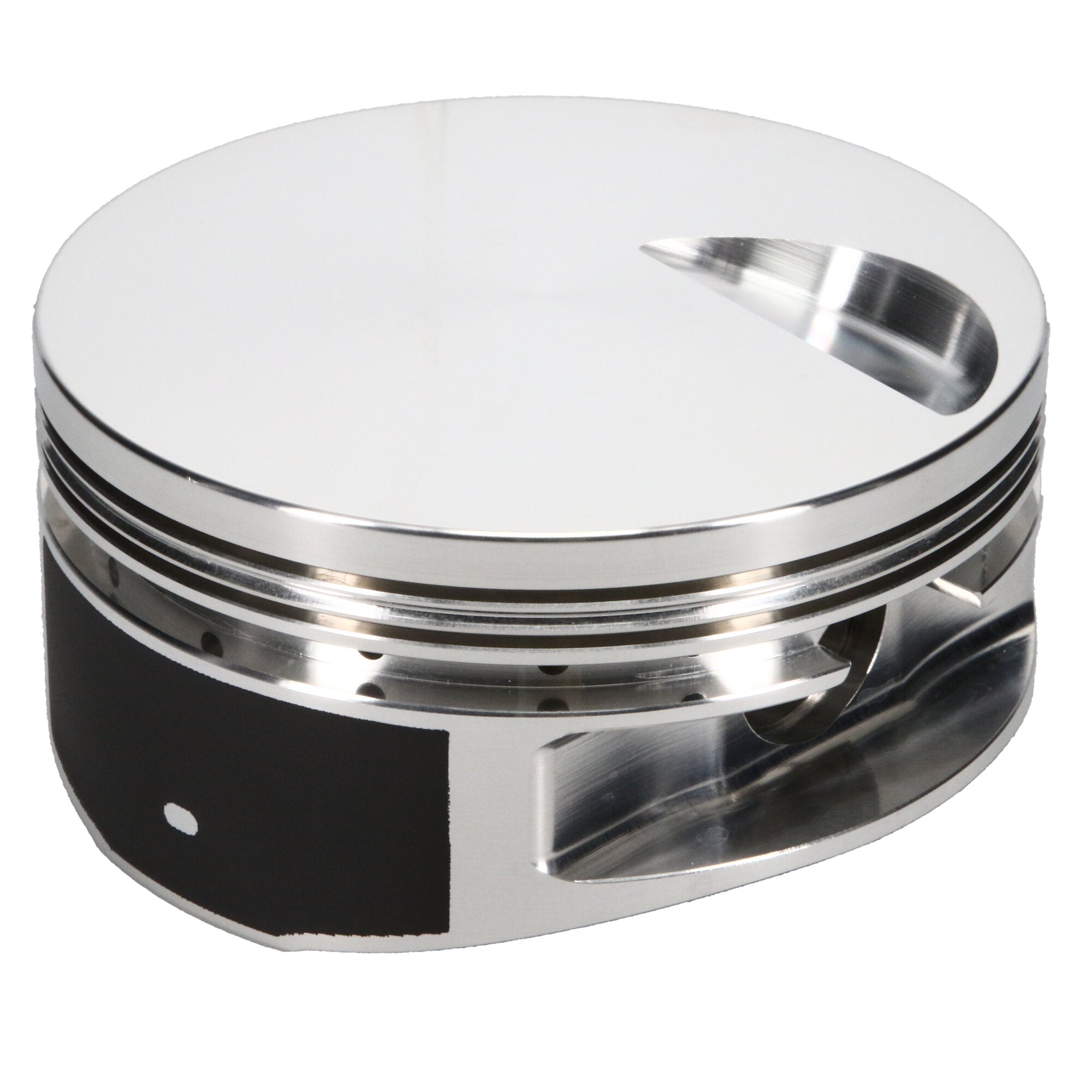

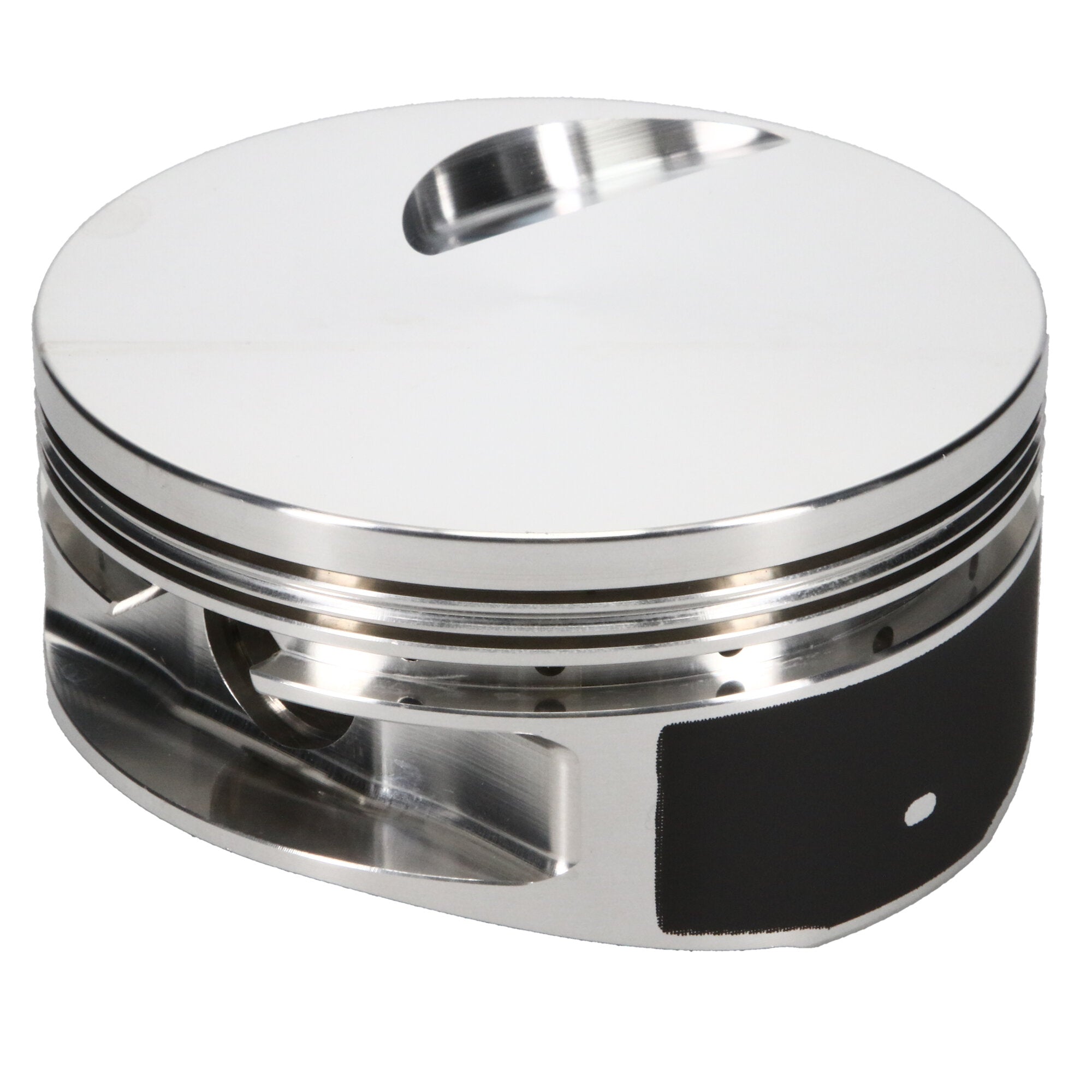

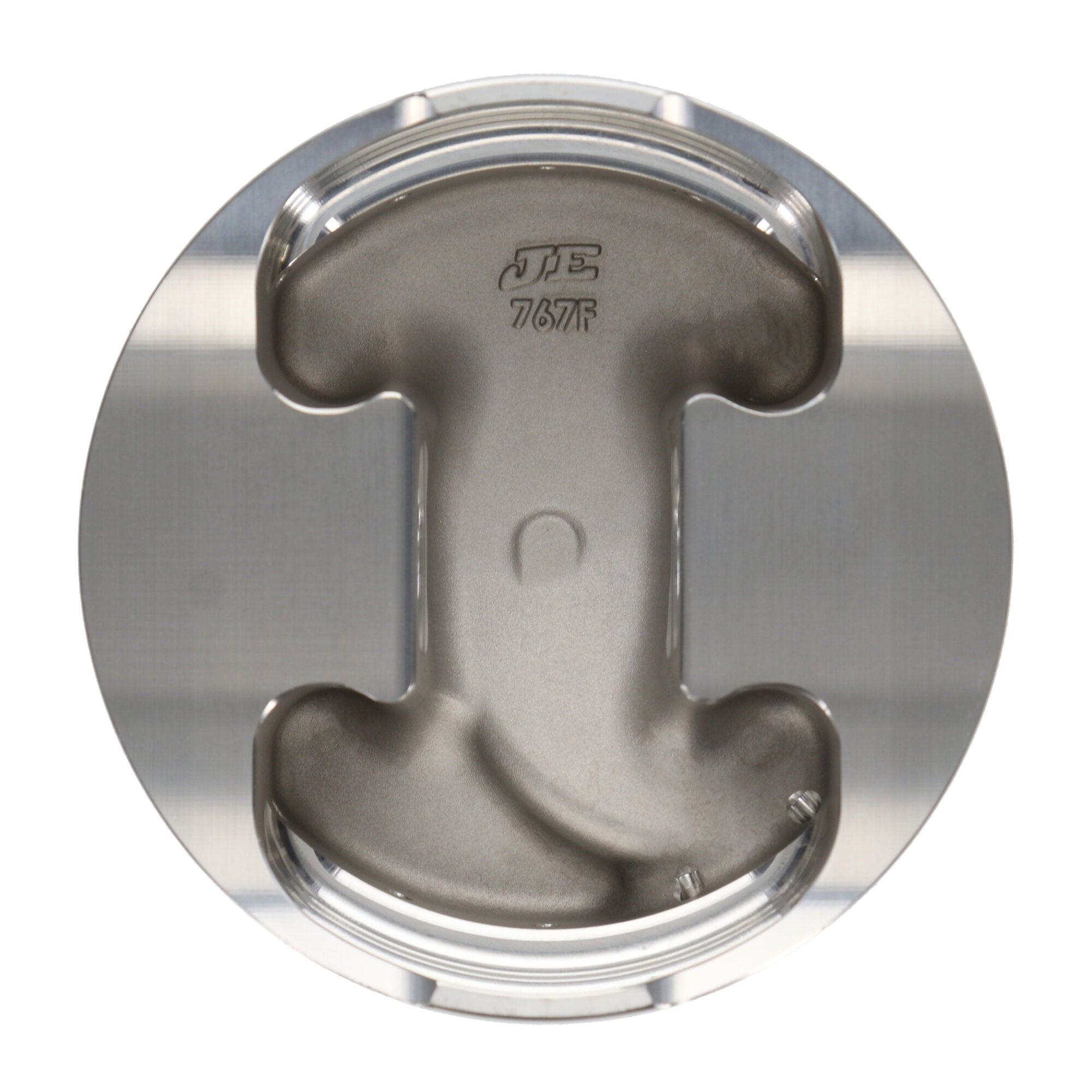

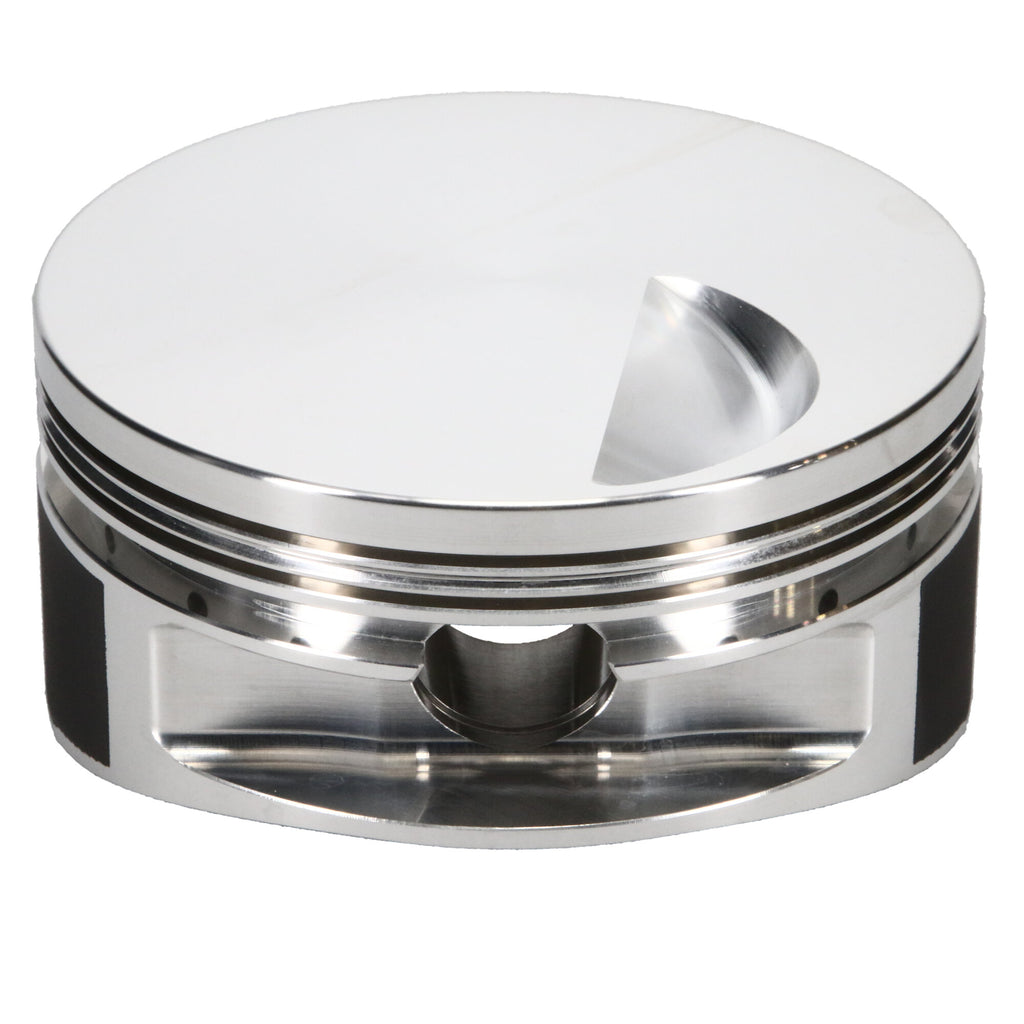

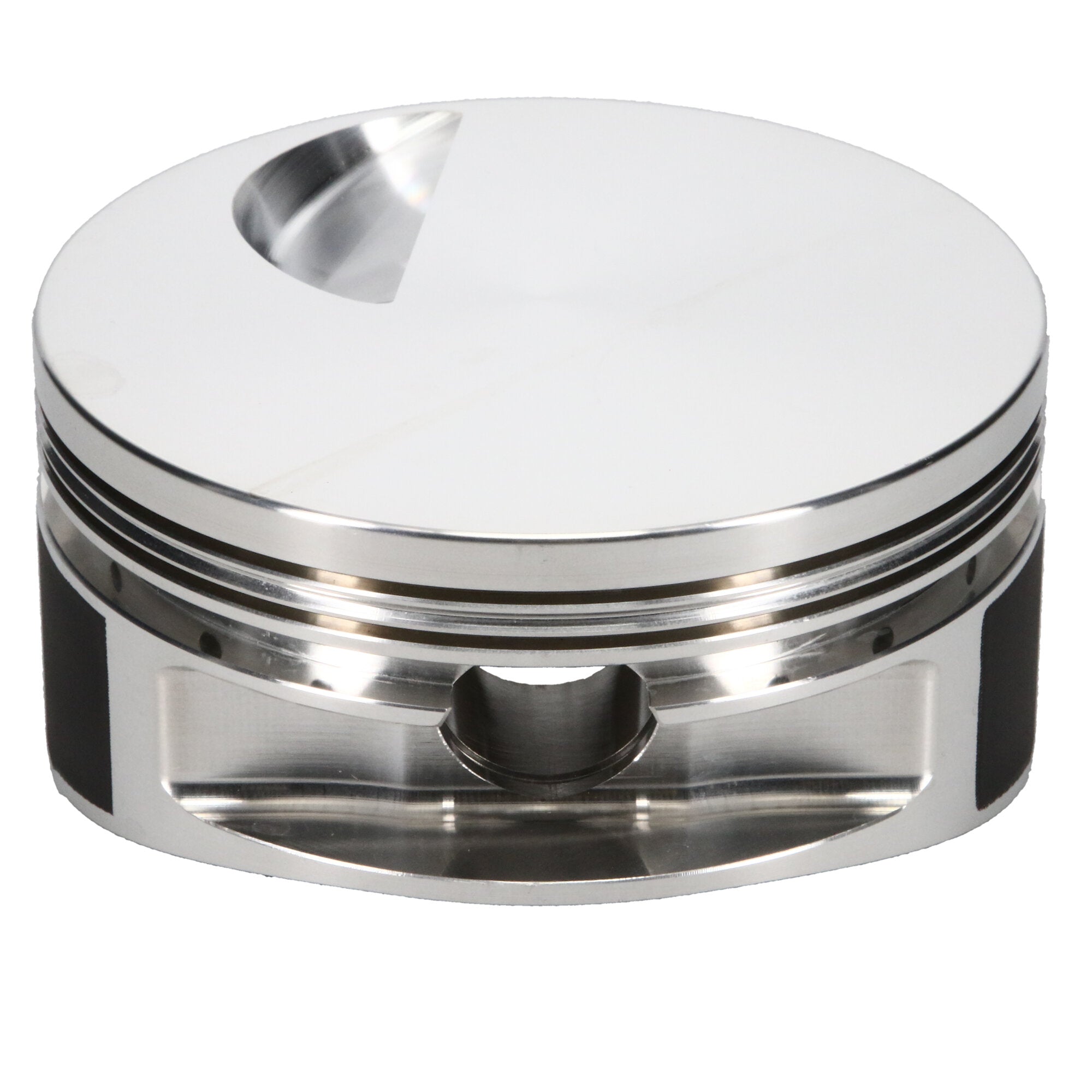

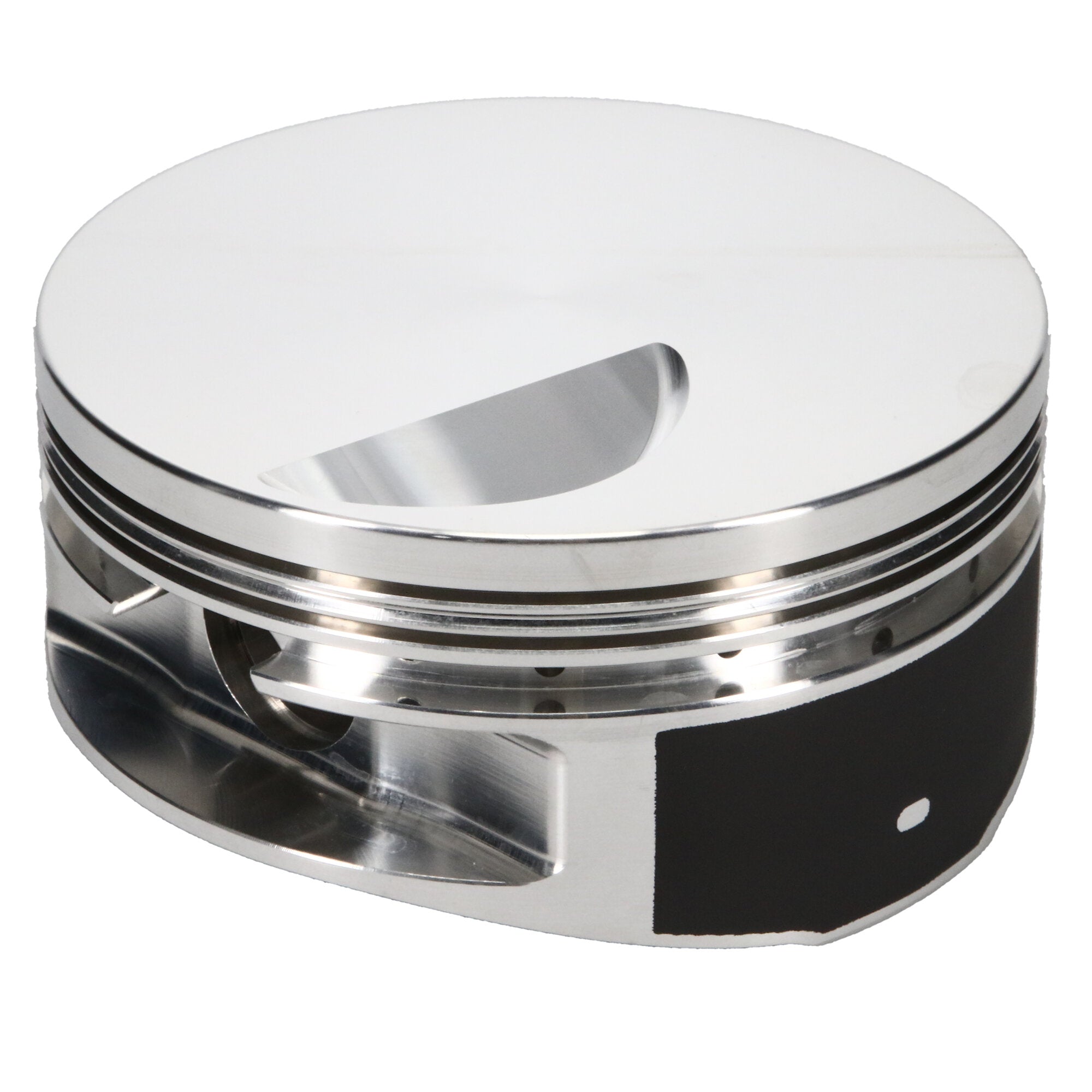

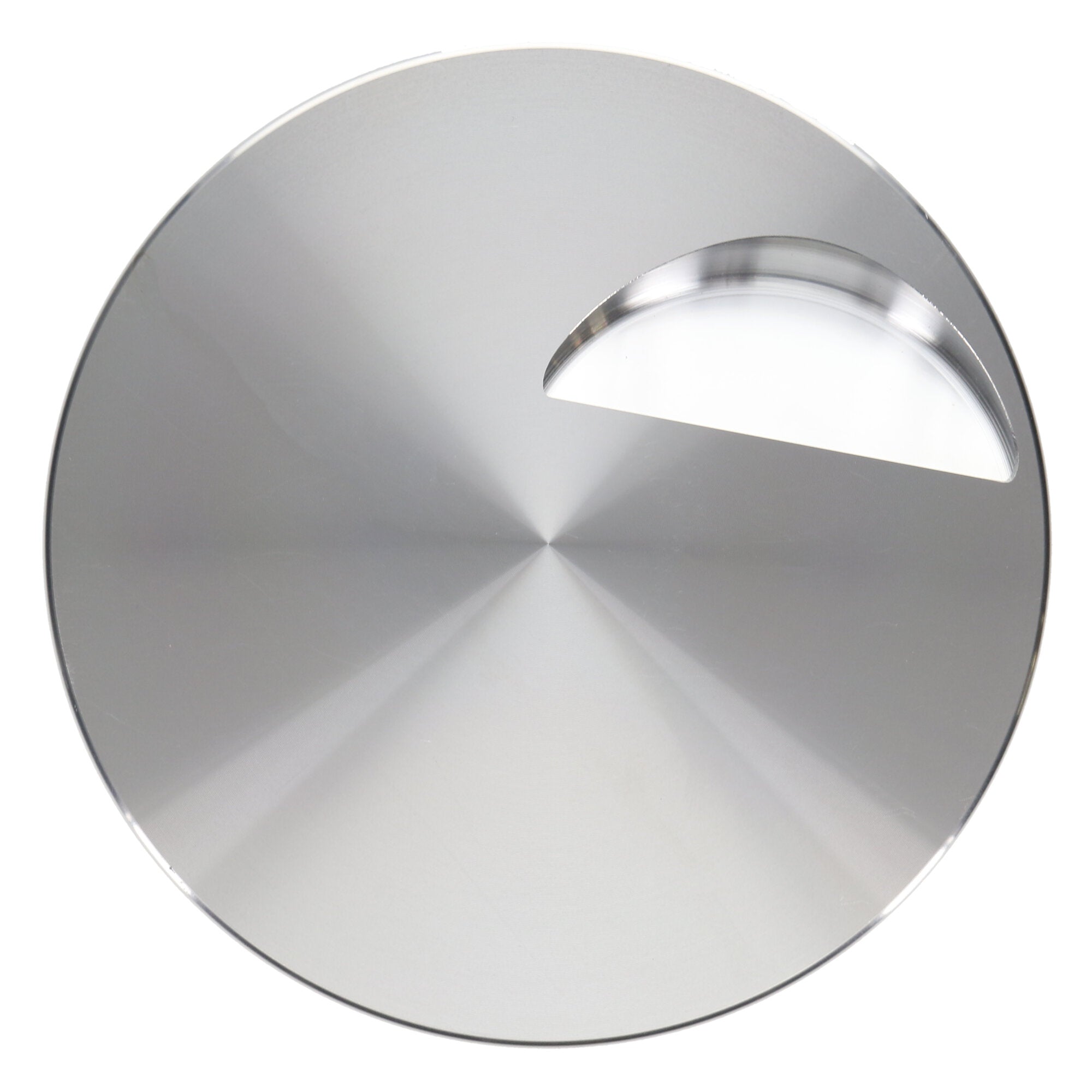

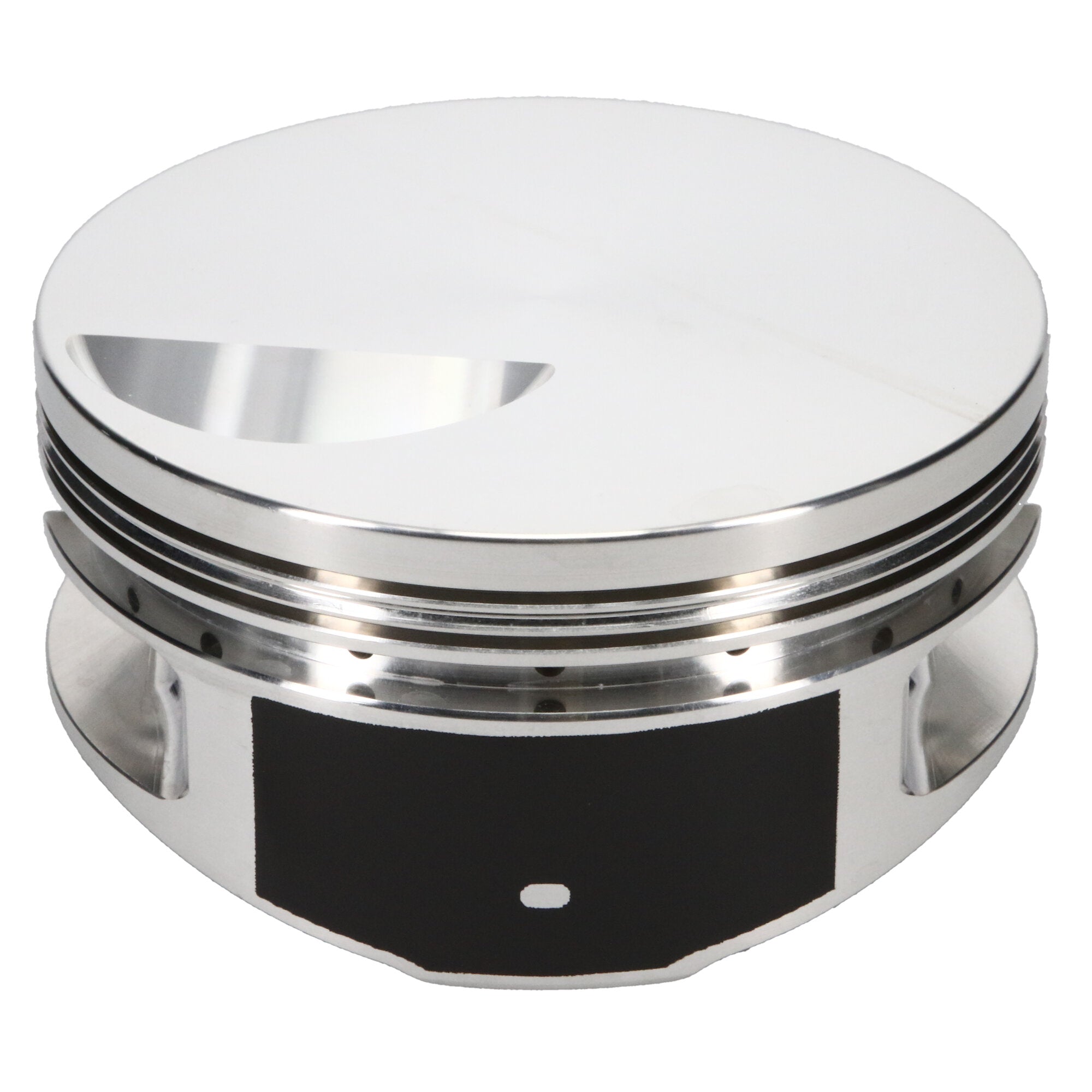

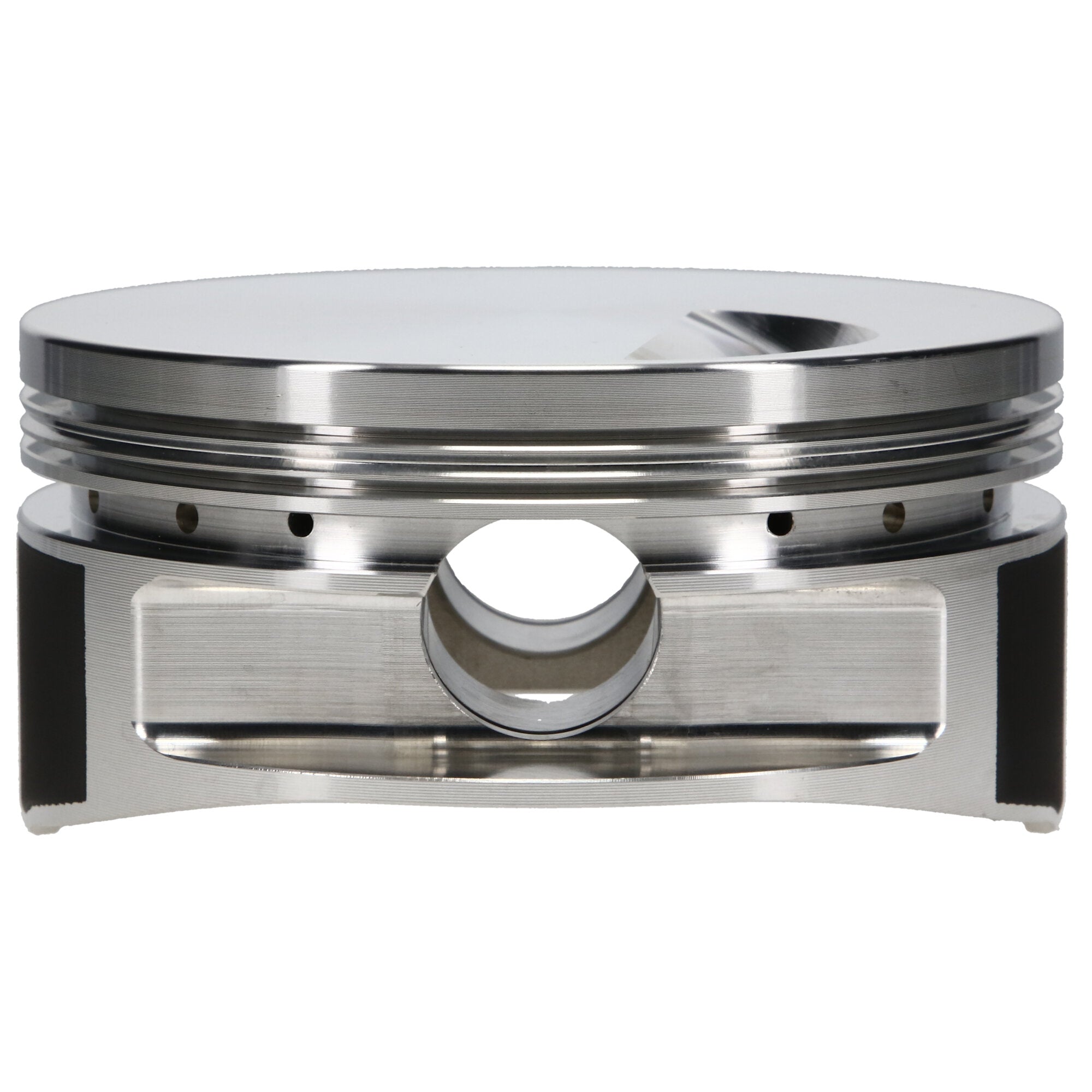

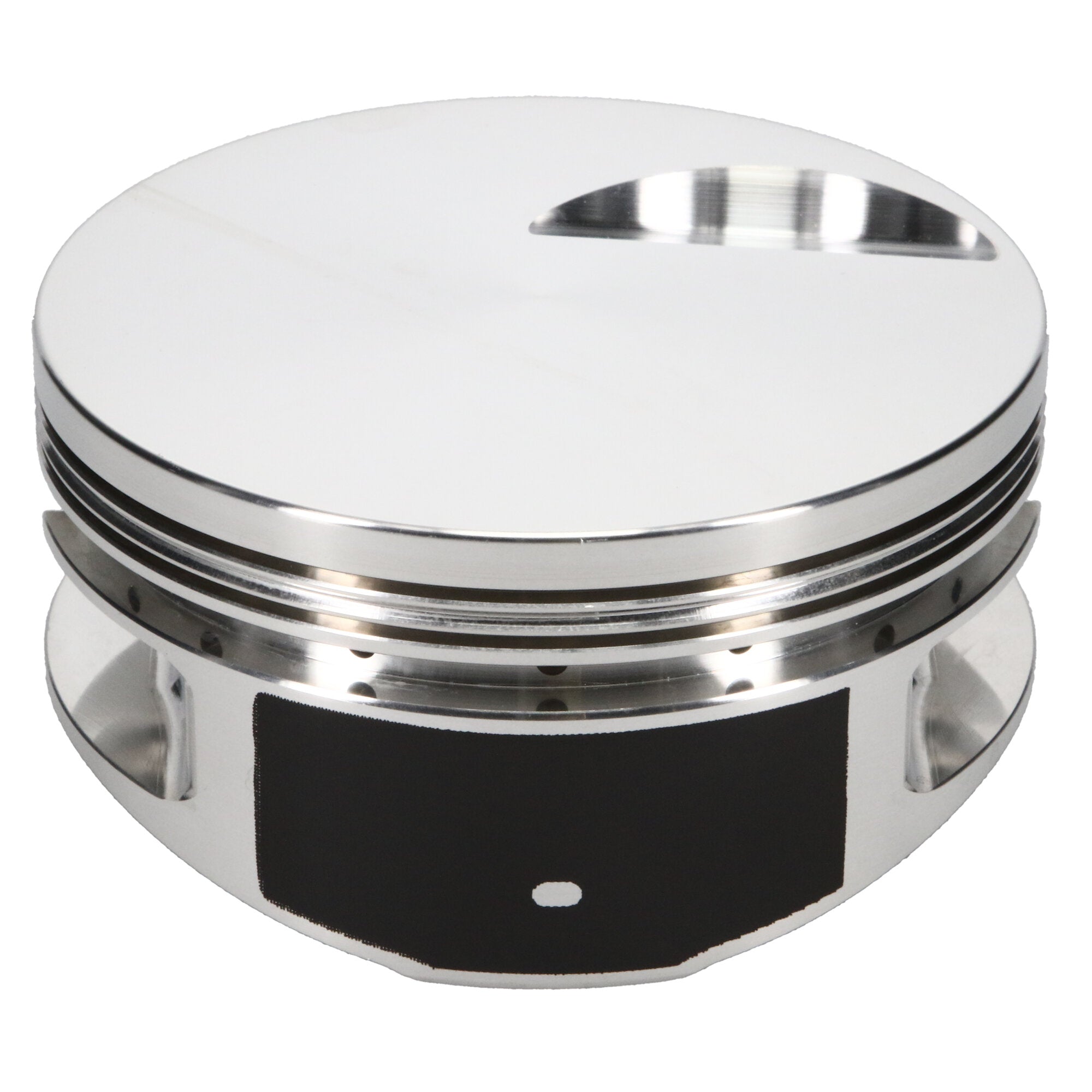

Piston Set, 2618, Flat Top, 4.560 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.560 in. Bore, 1.120 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.560 Bore, Flat, Set of 8 |
| Bore Diameter |
4.560 |
| Piston Series |
JE Pistons |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Outer Diameter |
0.990 |
| Compression Height |
1.120 |
| Top Compression Ring Thickness |
0.0640 |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.218 |
| Piston Average Weight |
592 |
| Piston Volume |
-3.00 |
| Piston Pin Material |
5115 |
| Piston Quantity |
8 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Head Type |
Flat |
| Make |
CHEVROLET |
| Title |
JE Pistons - Chevrolet, Big Block, 4.560 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.180 |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.560 in. Bore - 1.120 in. CH, -3.00 CC |
| Forging Type |
Round |
| Engine Type |
ICE |
| Piston Material |
2618 |
| Industry |
Automotive |
| Engine - Web |
Big Block |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.180 |
| Second Compression Ring Thickness |
0.0640 |
| Cylinder Head |
OPEN CHAMBER |
| Piston Pin Length |
2.930 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
990-042-CS |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
No |
| Engine |
Big Block |
| Add-On |
J100S8-4560-5 |
| Add-On |
990-2930-18-51S |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
