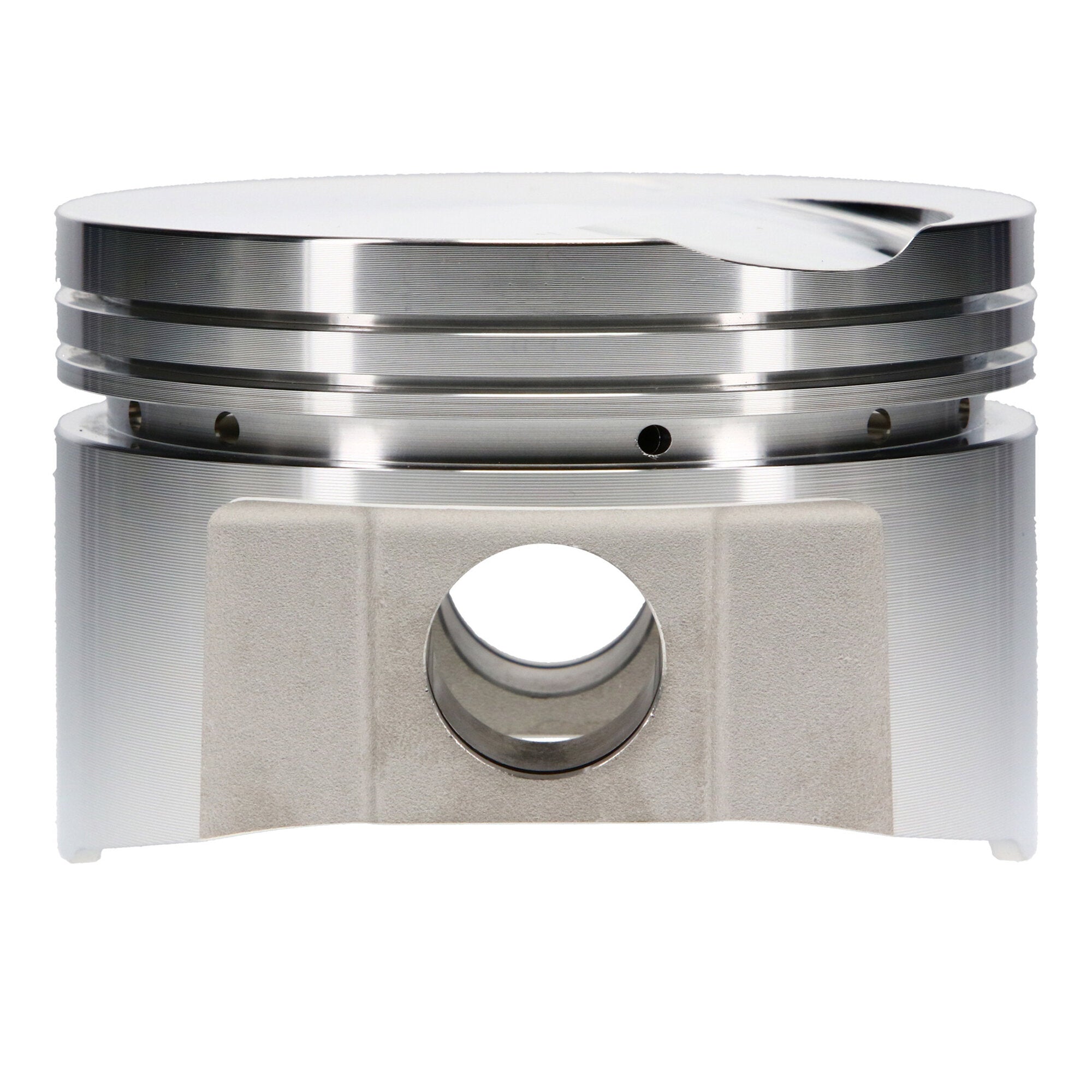

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 351C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.000 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_EXT |
SRP, Ford, Small Block Ford, 4.000 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Ford 351 Cleveland, 4.000 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Ringset Included |
No |
| Forging Type |
FSR |
| Engine |
Small Block |
| Engine Type |
ICE |
| Title - Web |
SRP Ford Small Block Piston Kit - 4.000 in. Bore - 1.250 in. CH, -3.00 CC |
| Piston Pin Length |
2.750 |
| Piston Head Type |
Flat |
| Make |
FORD |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.218 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.927 |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
454 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Material |
5115 |
| Piston Volume |
-3.00 |
| Piston Series |
SRP |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Ring Set Included |
No |
| Piston Material |
4032 |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-042-CS |
| Bore Diameter |
4.000 |
| Compression Height |
1.250 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Industry |
Automotive |
| Add-On |
S100S8-4000-5 |
| Add-On |
927-2750-15-51S |
| Title |
SRP - Ford, Small Block, 4.000 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Cylinder Head |
CLEVELAND |
| Top Compression Ring Thickness |
0.0640 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
