As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 2.3L Ecoboost |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

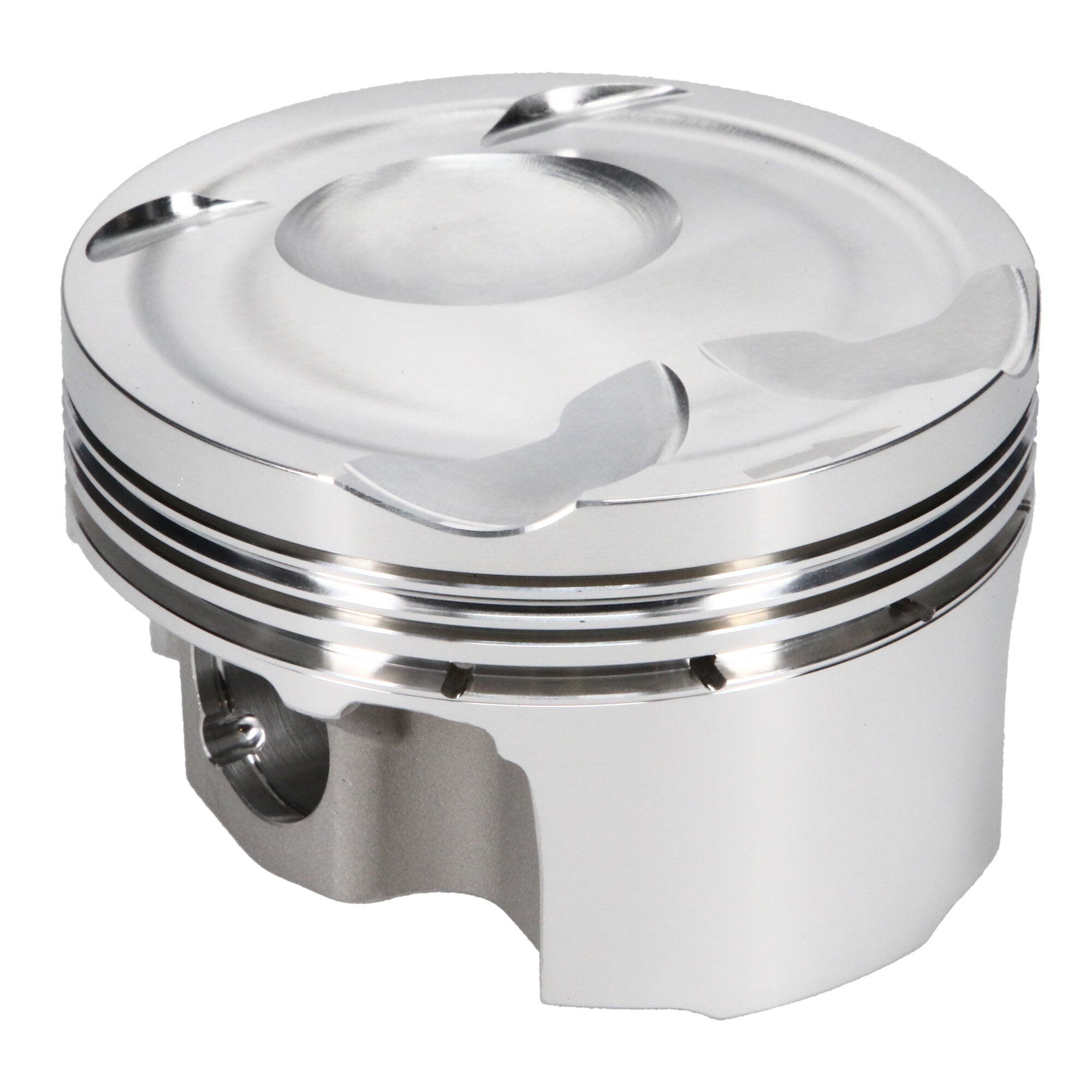

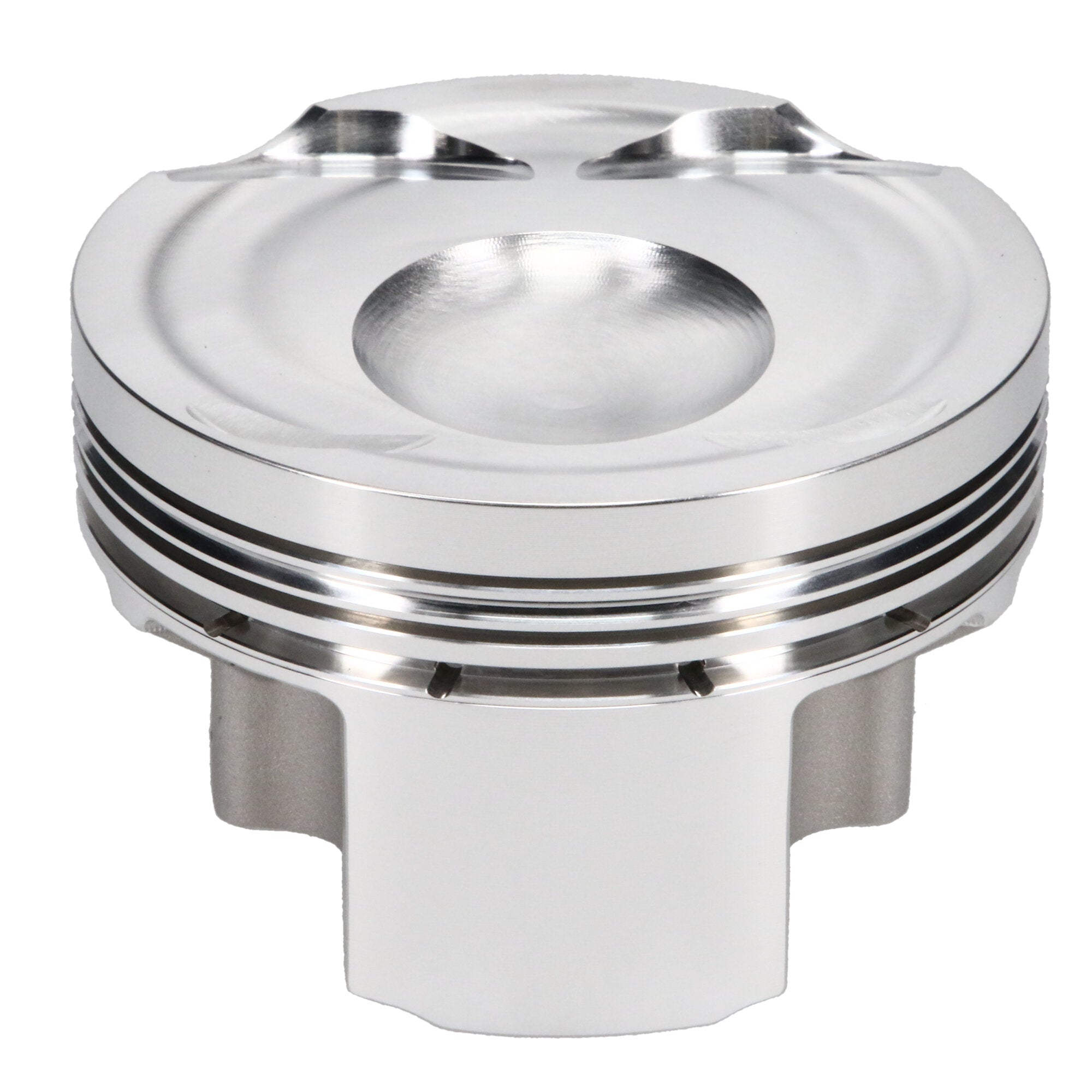

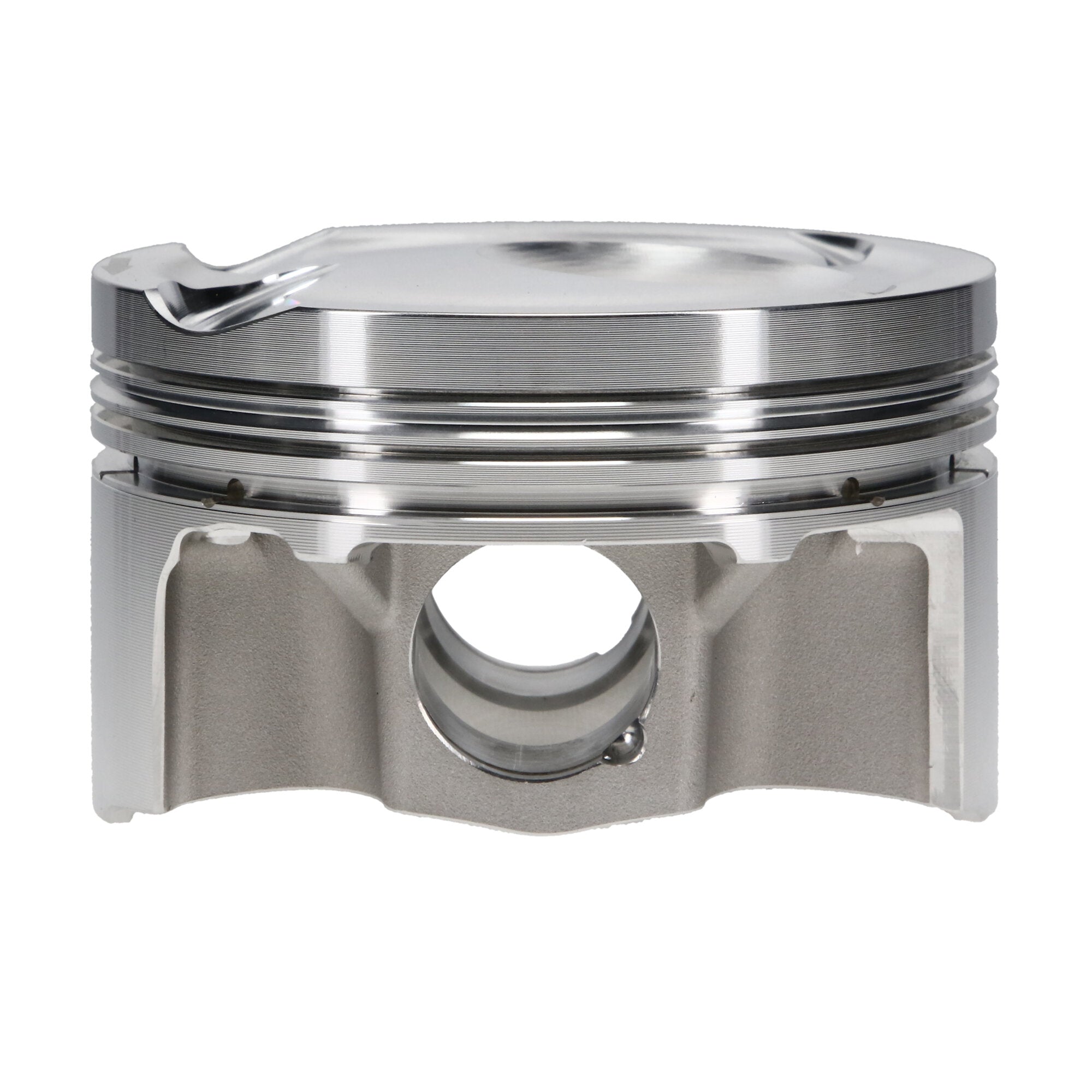

JE, Ford, 2.3L EcoBoost, 3.484 in. Bore, 9.50:1, Dome, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.484 Bore, 1.299 CD, 0.886 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 2.3L Ecoboost, 88.50 Bore, Dome, Set of 4 |
| Title |
JE Pistons - Ford, 2.3L EcoBoost, 88.50 mm Bore, Piston Kit |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Forging Type |
FSR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Wall Thickness |
0.180 |
| Oil Ring Thickness |
0.111 |
| Product Market |
Sport Compact |
| Top Compression Ring Thickness |
0.0400 |
| Make |
FORD |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Piston Average Weight |
363 |
| Bore Diameter |
88.50 |
| Piston Pin Material |
5115 |
| Compression Height |
1.299 |
| Engine - Web |
2.3L EcoBoost |
| Wrist Pin Wall Thickness |
0.180 |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3484 |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.886 |
| Add-On |
866-063-MW |
| Product Type |
Engine Piston Kit |
| Add-On |
886-2250-18-51C |
| Piston Quantity |
4 |
| Piston Volume |
-8.20 |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Cylinder Head |
2.3 ECOBOOST |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.886 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Ford 2.3L EcoBoost Piston Kit - 88.50 mm Bore - 1.299 in. CH, -8.20 CC |
| Engine |
2.3L ECOBOOST |
| Piston Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
