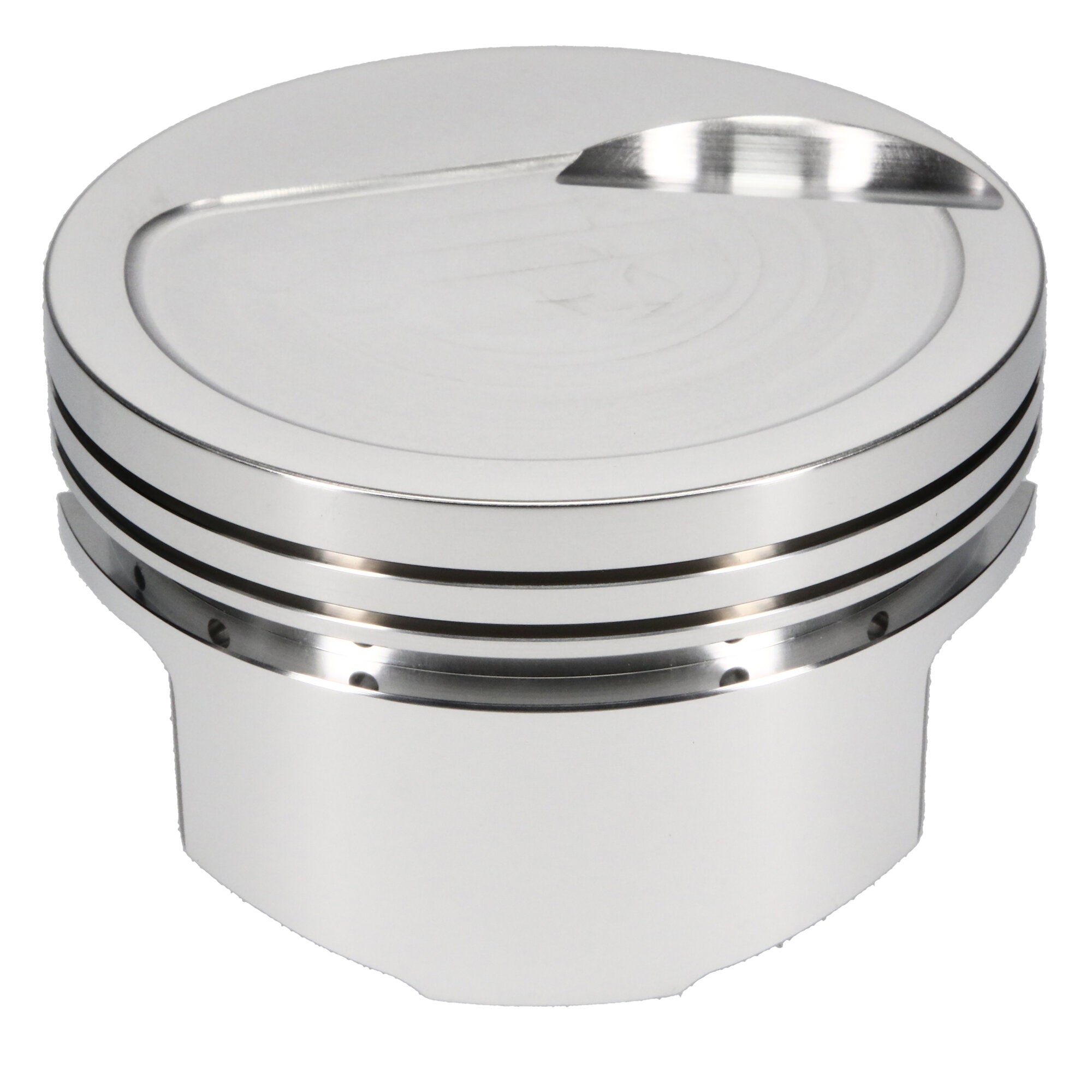

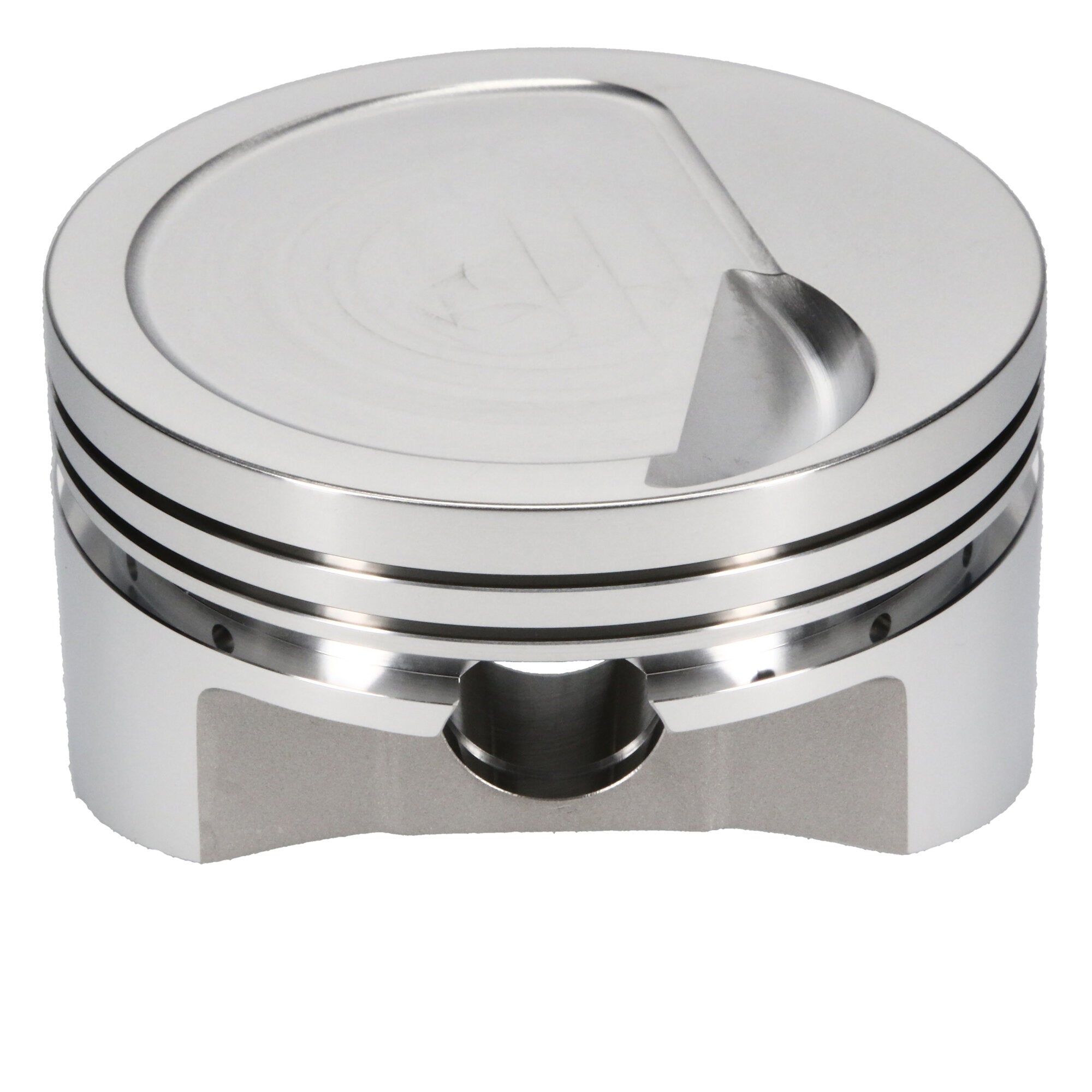

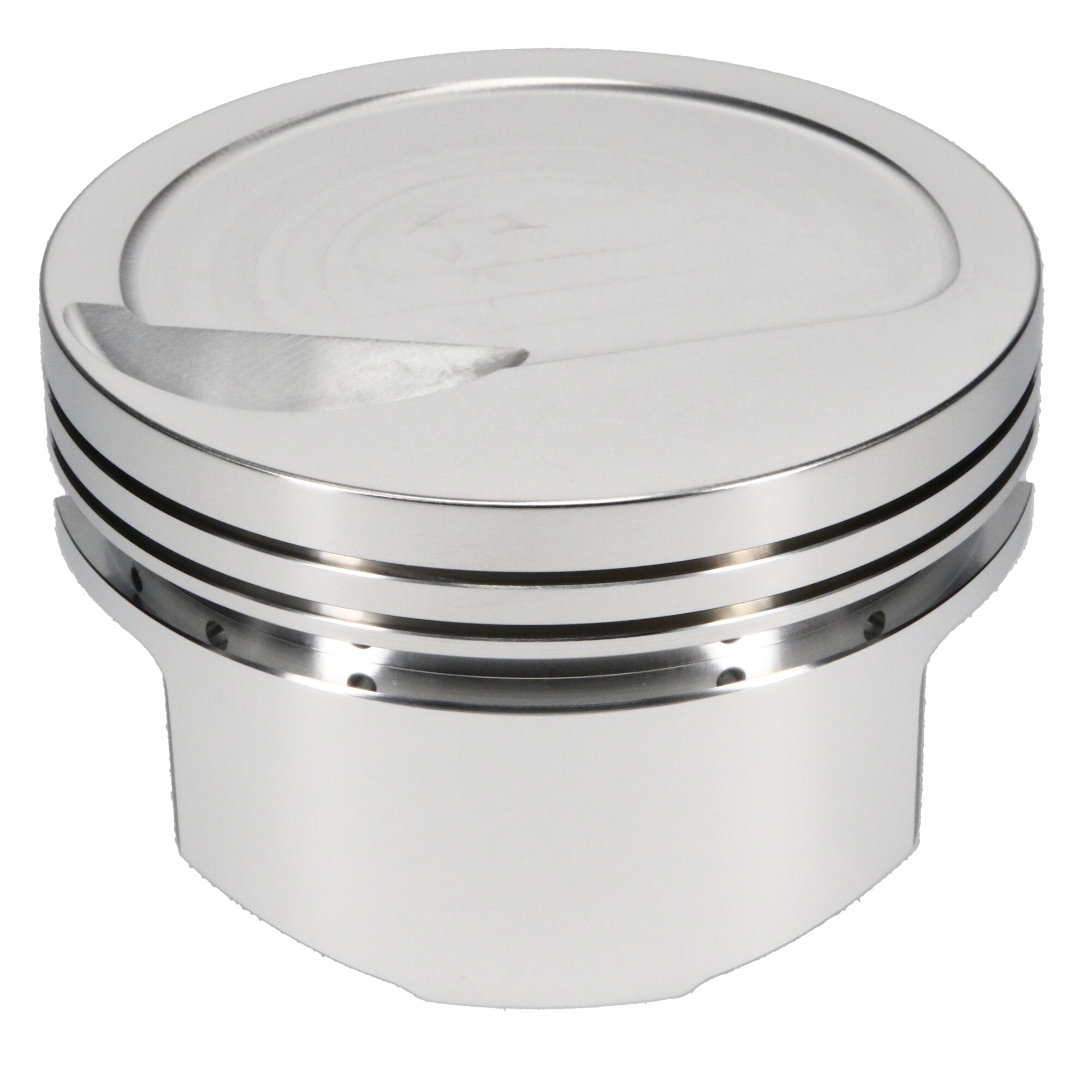

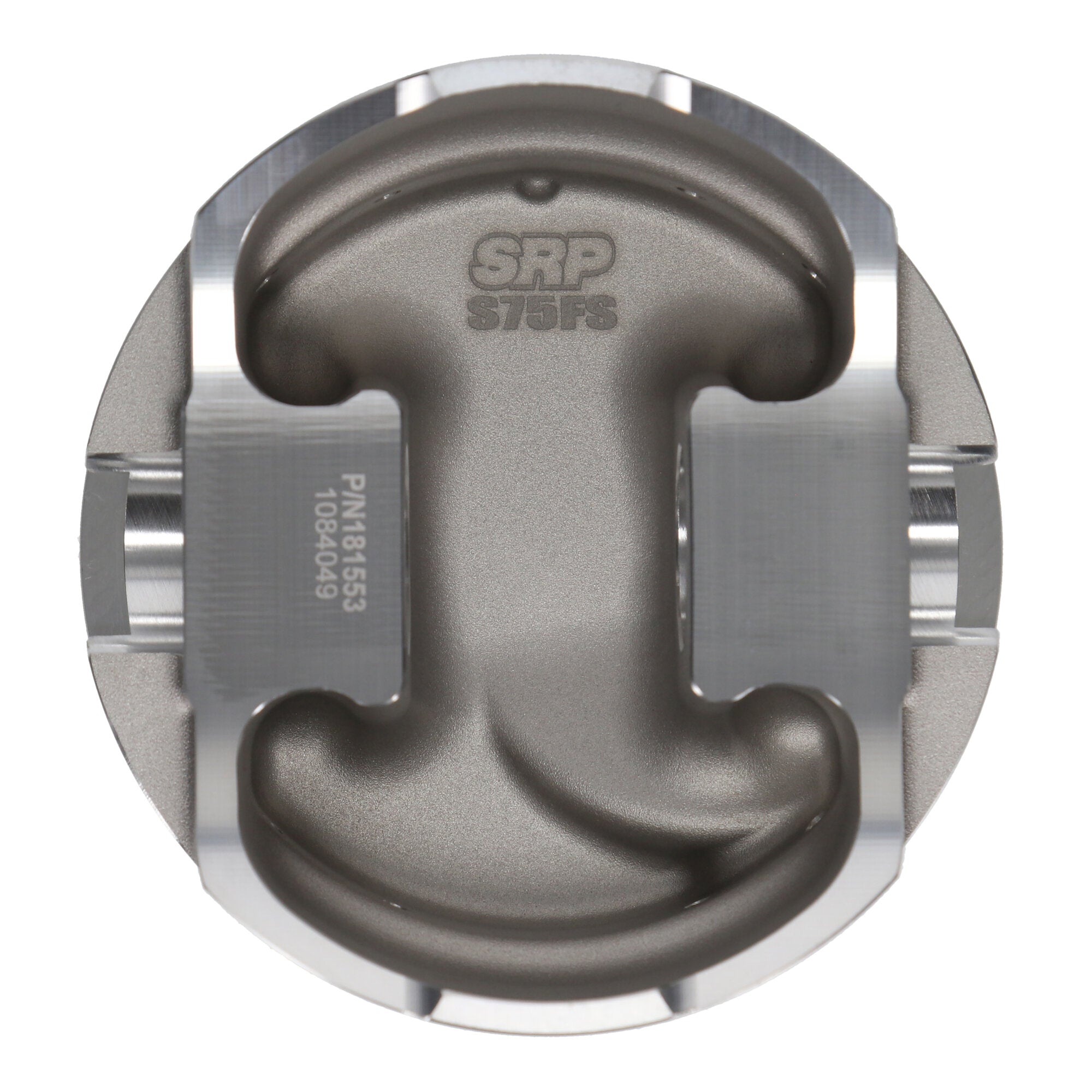

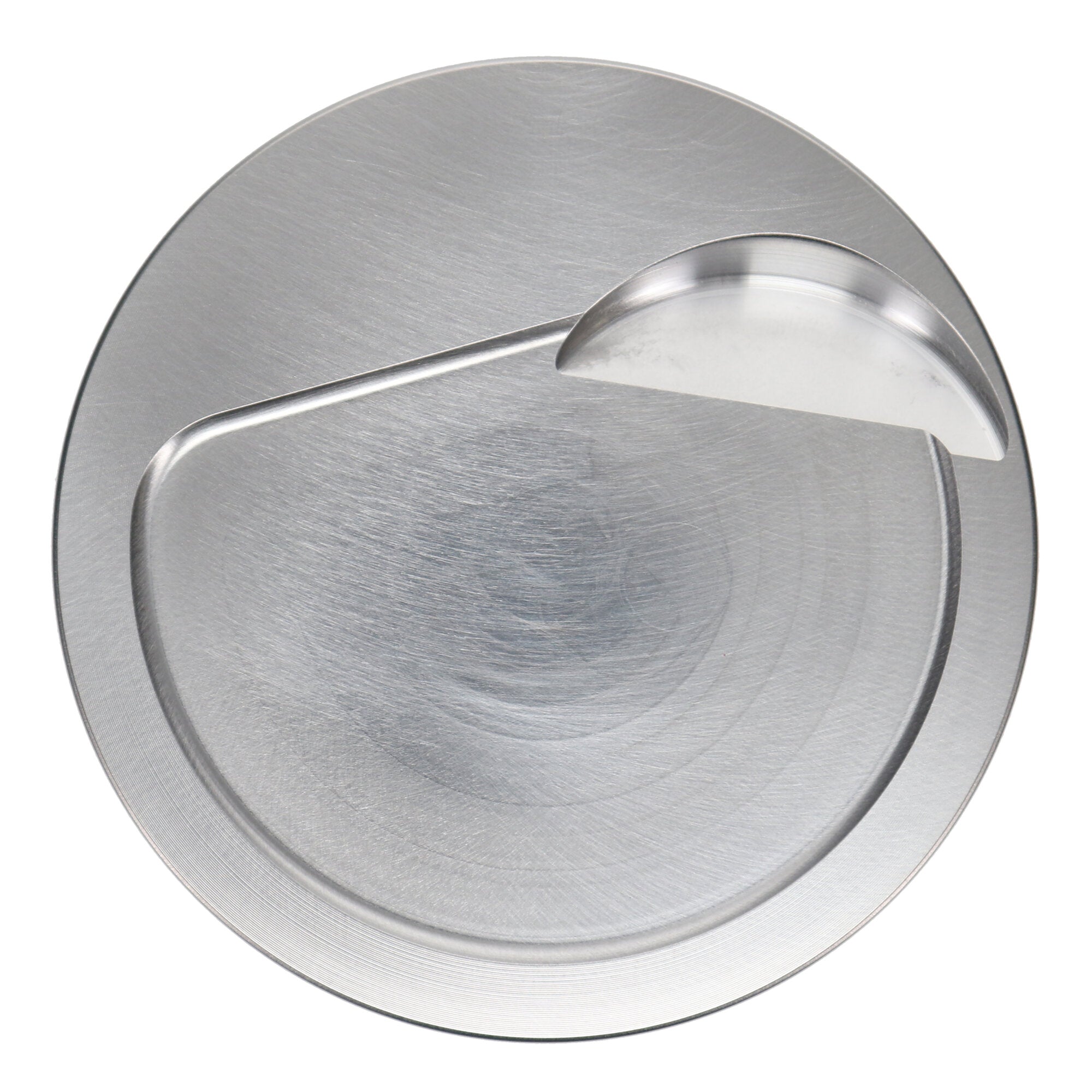

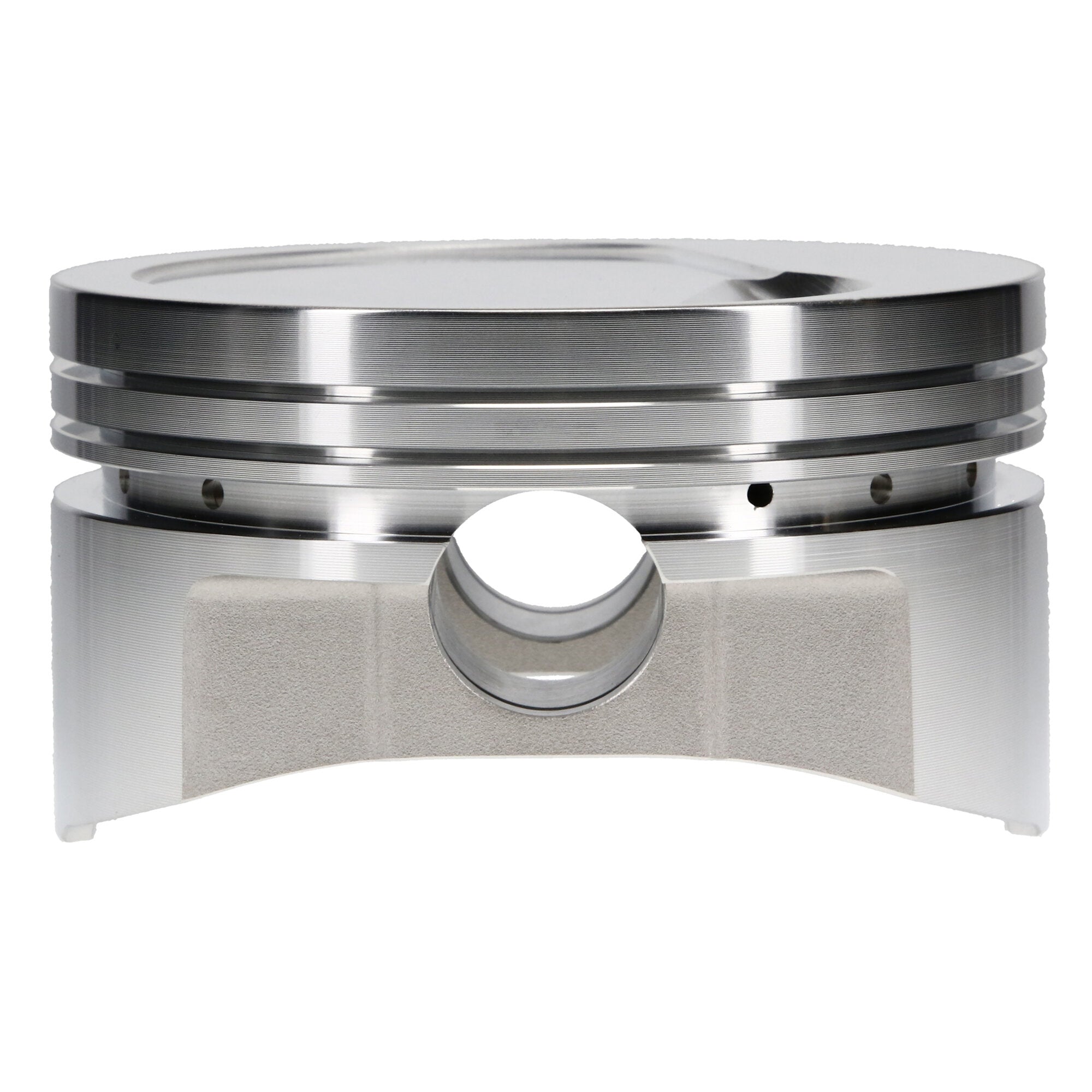

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.560 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.560 in. Bore, 1.270 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.560 Bore, Dish, Set of 8 |
| Wrist Pin Outer Diameter |
0.990 |
| Ring Set Included |
No |
| Product Type |
Engine Piston Kit |
| Piston Series |
SRP |
| Wrist Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Product Market |
Domestic |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.218 |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Make |
CHEVROLET |
| Bore Diameter |
4.560 |
| Second Compression Ring Thickness |
0.0640 |
| Title |
SRP - Chevrolet, Big Block, 4.560 in. Bore, Piston Kit |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.560 in. Bore - 1.270 in. CH, -9.00 CC |
| Compression Height |
1.270 |
| Piston Material |
4032 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Volume |
-9.00 |
| Cylinder Head |
OPEN CHAMBER |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Add-On |
990-2930-15-51S |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.930 |
| Ringset Included |
No |
| Add-On |
S100S8-4560-5 |
| Engine |
Big Block |
| Add-On |
990-042-CS |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
