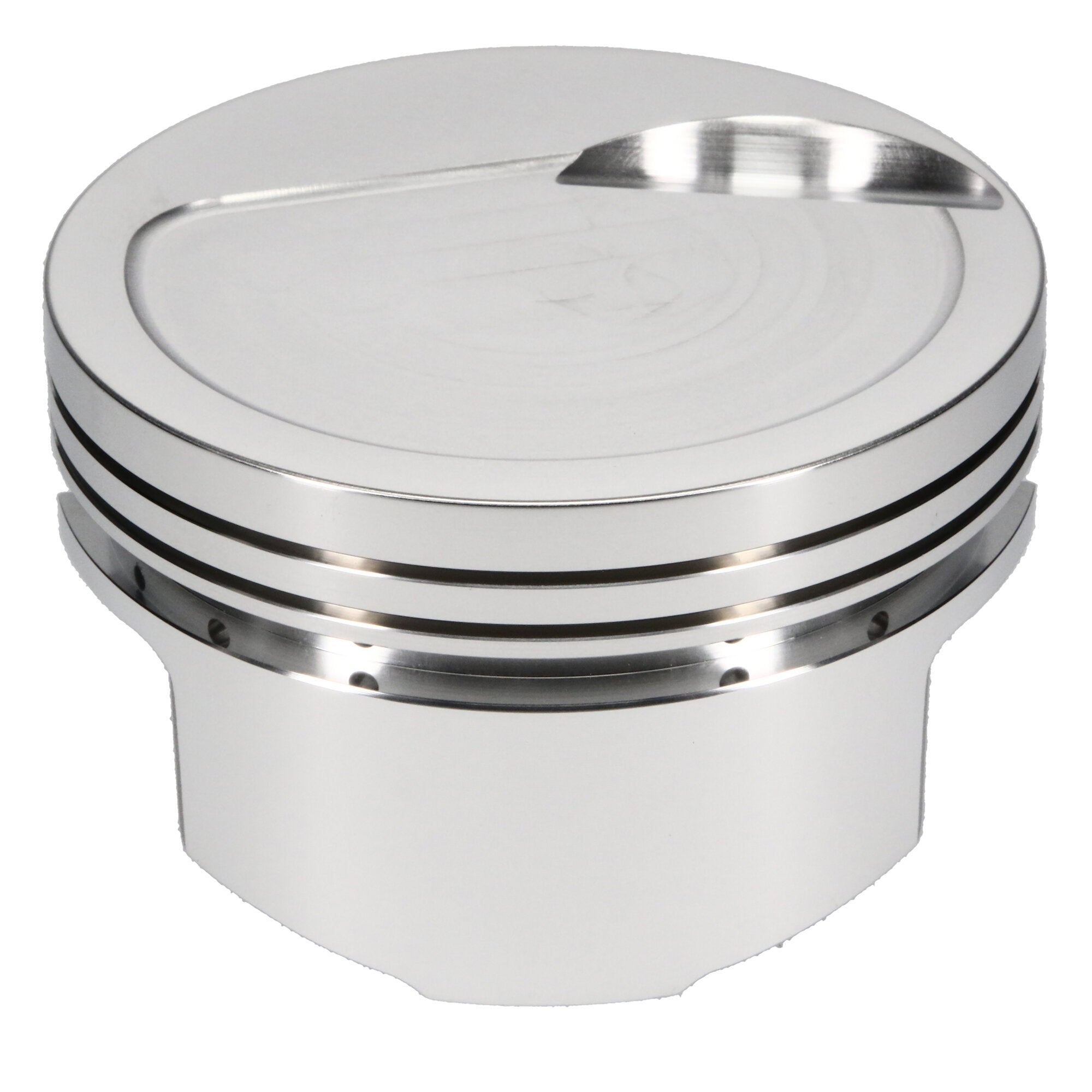

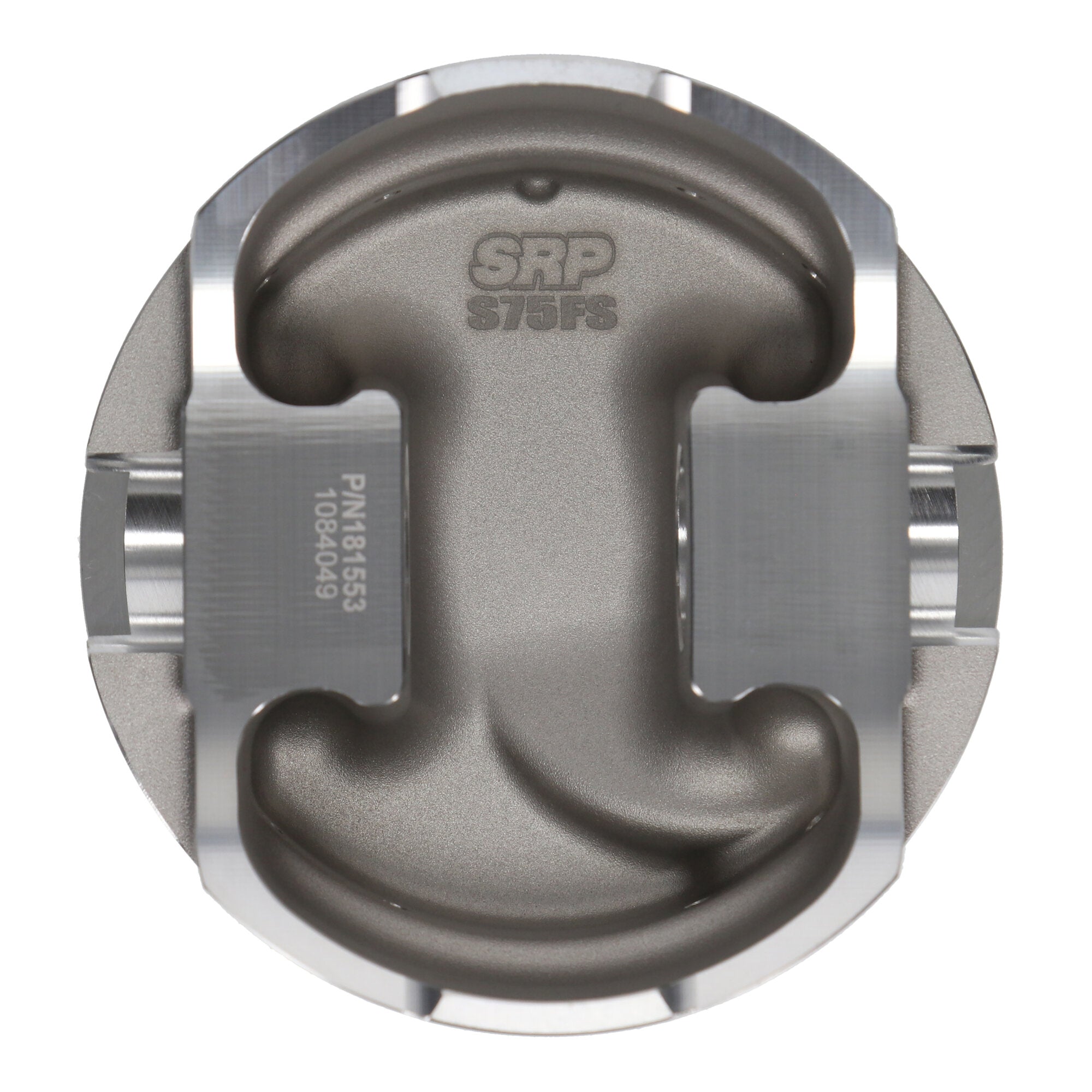

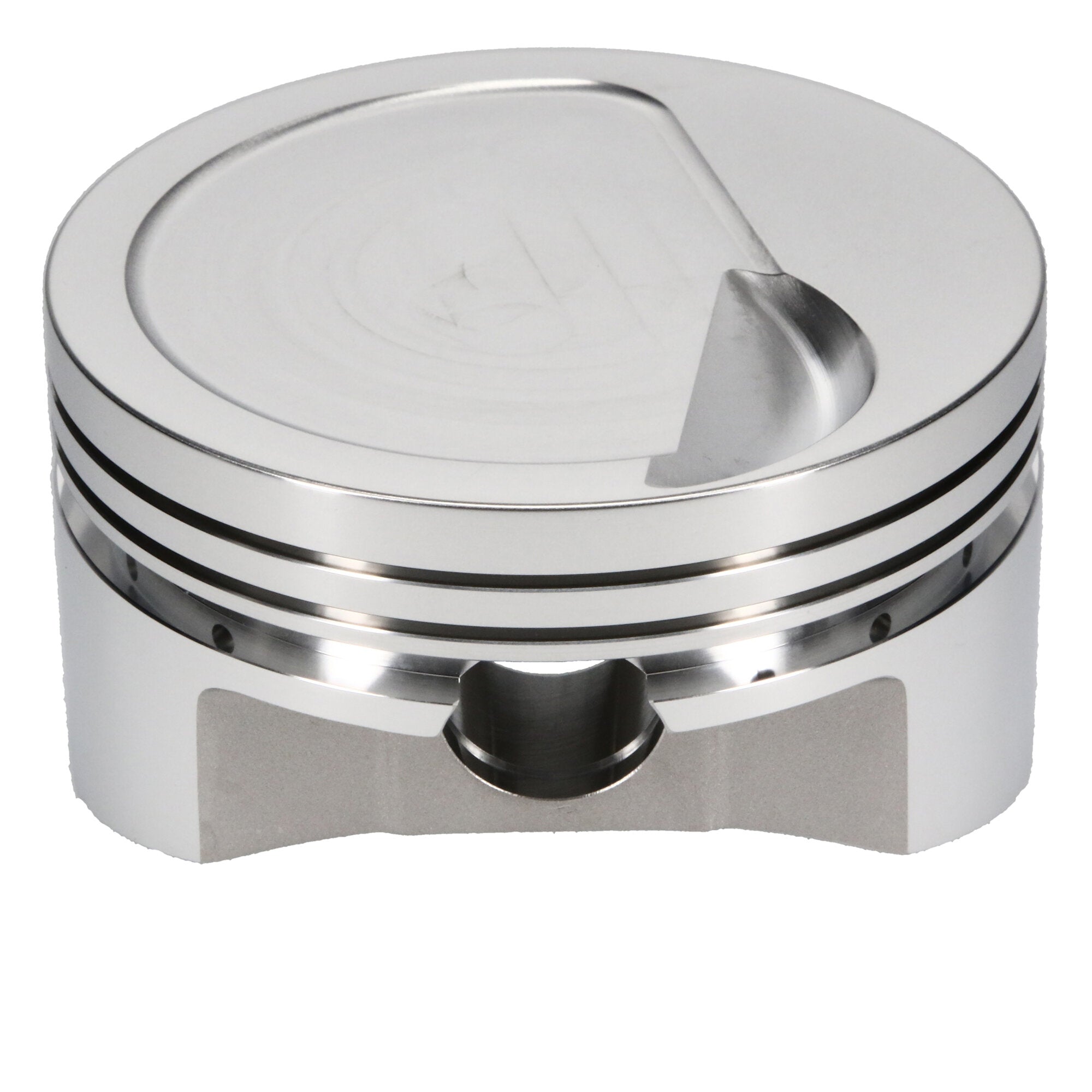

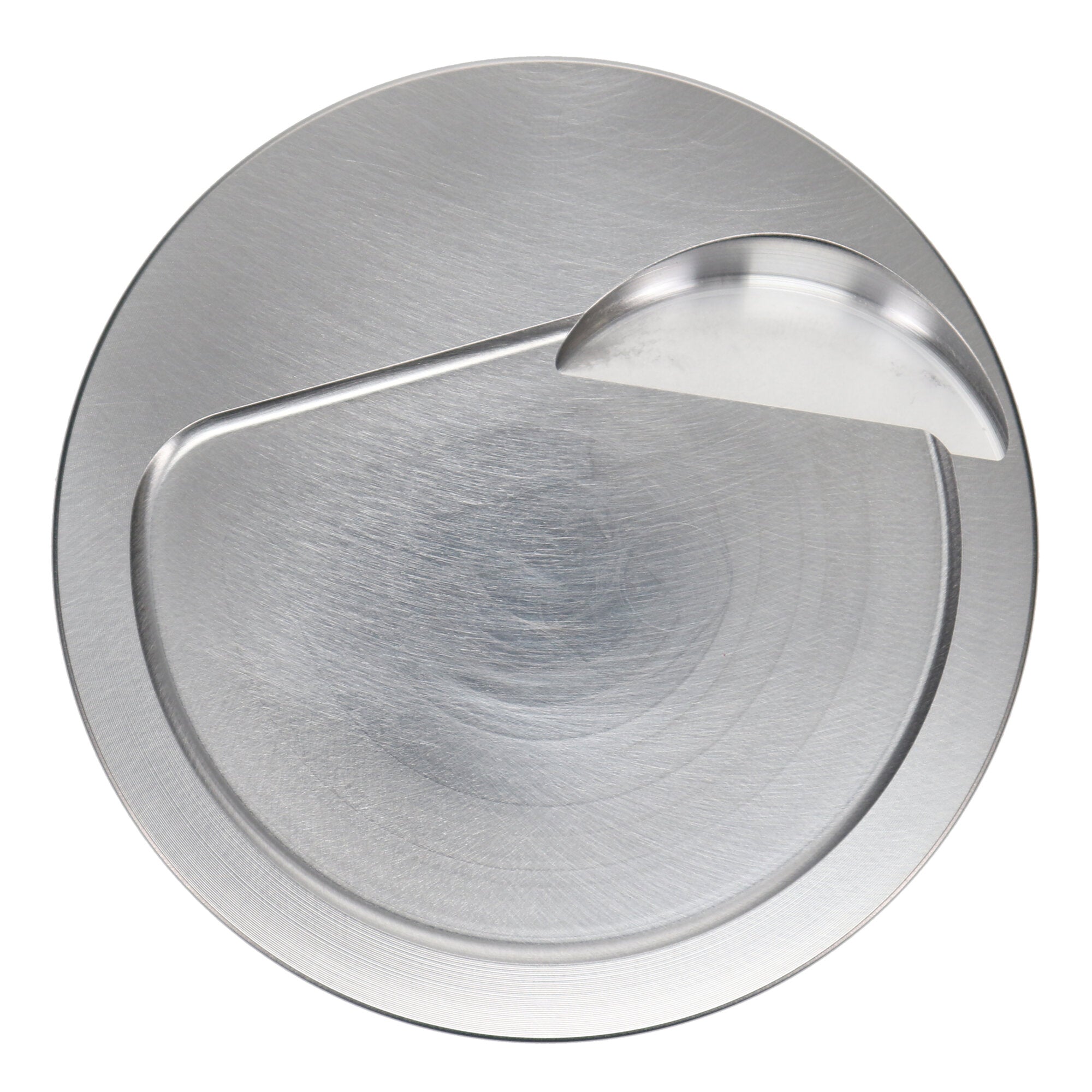

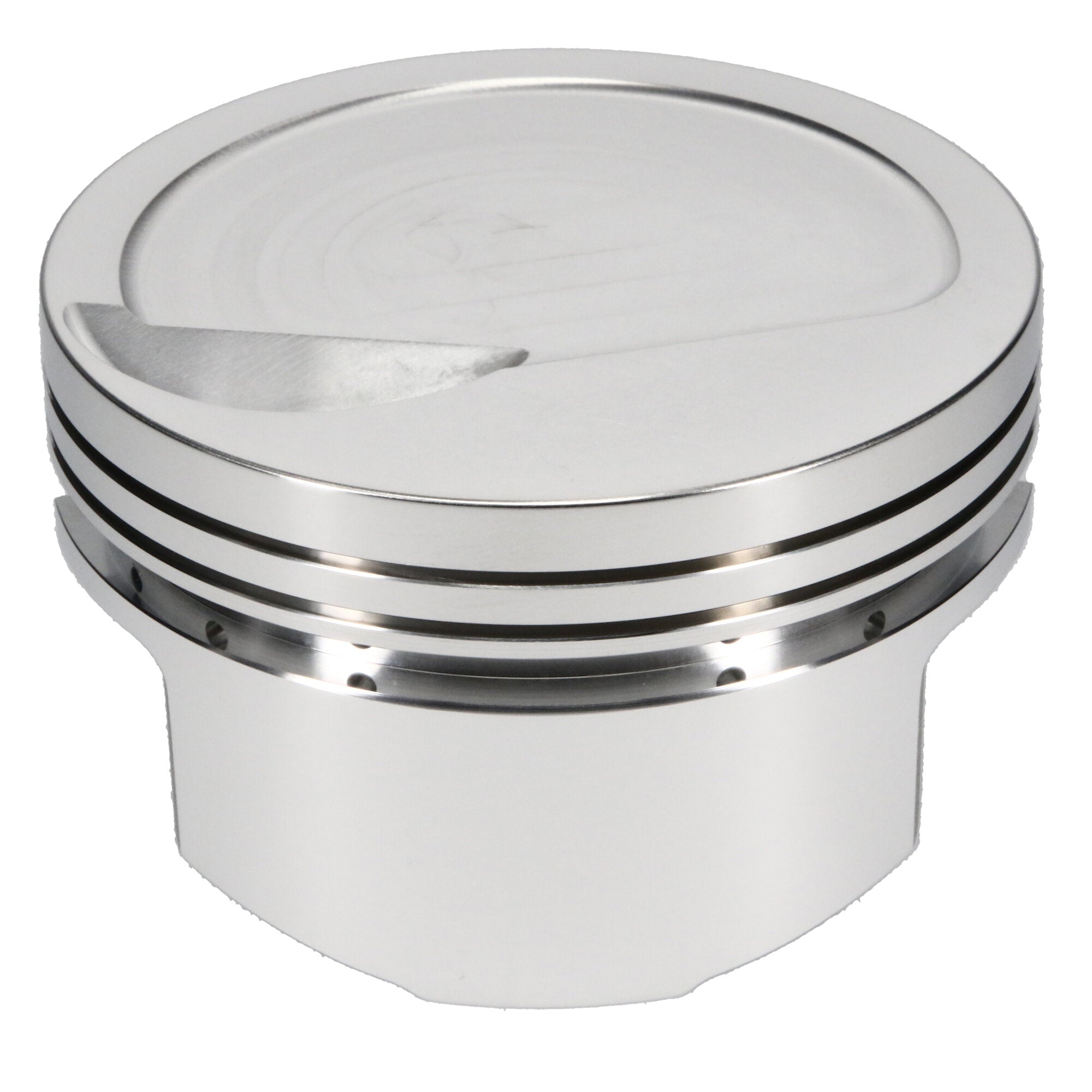

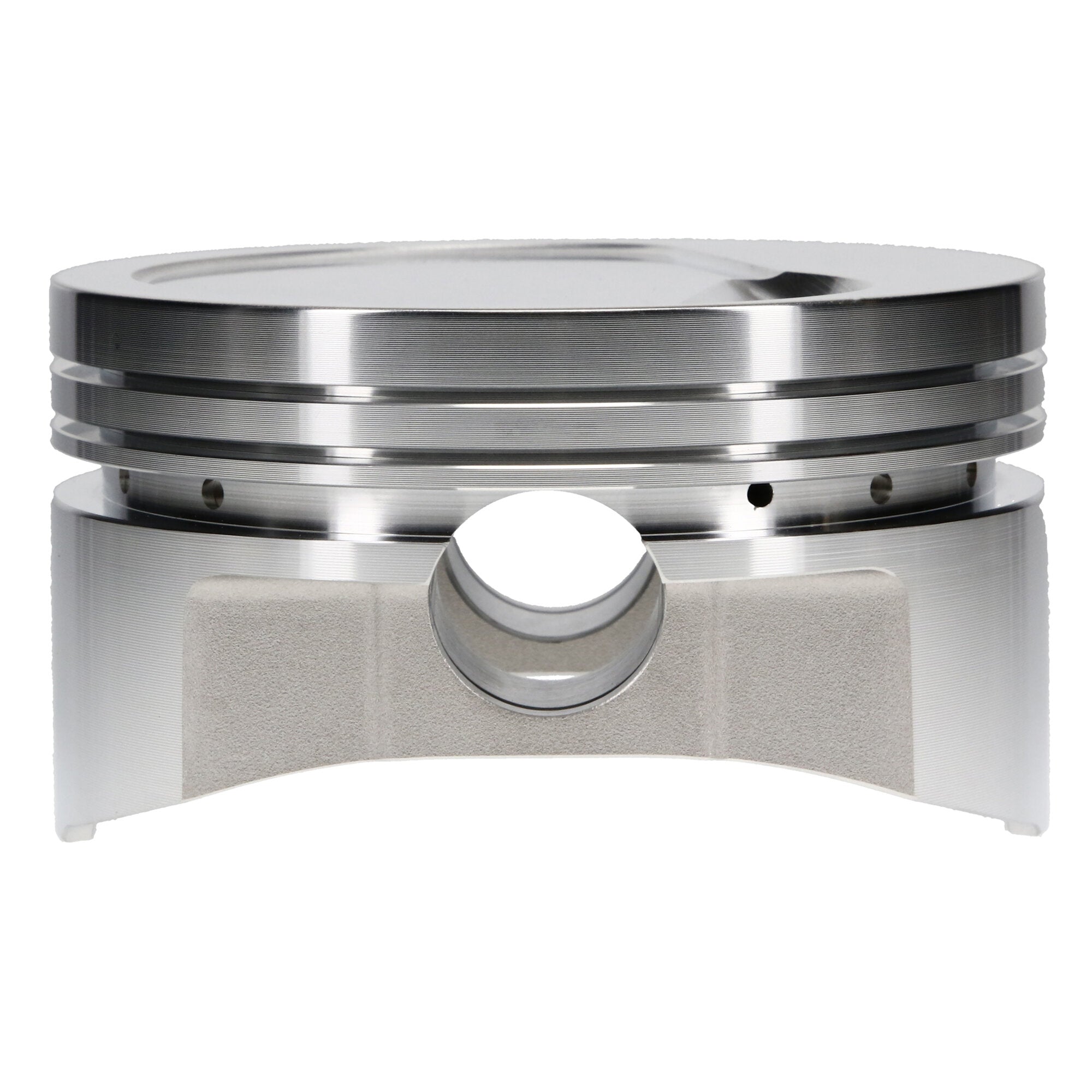

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.470 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.470 in. Bore, 1.270 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 454, 4.470 Bore, Dish, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Wrist Pin Outer Diameter |
0.990 |
| Piston Series |
SRP |
| Piston Pin Outside Diameter |
0.990 |
| Piston Head Type |
Dish |
| Make |
CHEVROLET |
| Compression Height |
1.270 |
| Forging Type |
FSR |
| Title |
SRP - Chevrolet, Big Block, 4.470 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.218 |
| Piston Pin Material |
5115 |
| Engine |
Big Block |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Product Market |
Domestic |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
990-2930-15-51S |
| Industry |
Automotive |
| Add-On |
990-042-CS |
| Top Compression Ring Thickness |
0.0640 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
OPEN CHAMBER |
| Piston Volume |
-9.00 |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.470 |
| Out of Stock Message |
Call for Availability |
| Piston Material |
4032 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Add-On |
S100S8-4470-5 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.470 in. Bore - 1.270 in. CH, -9.00 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.930 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
