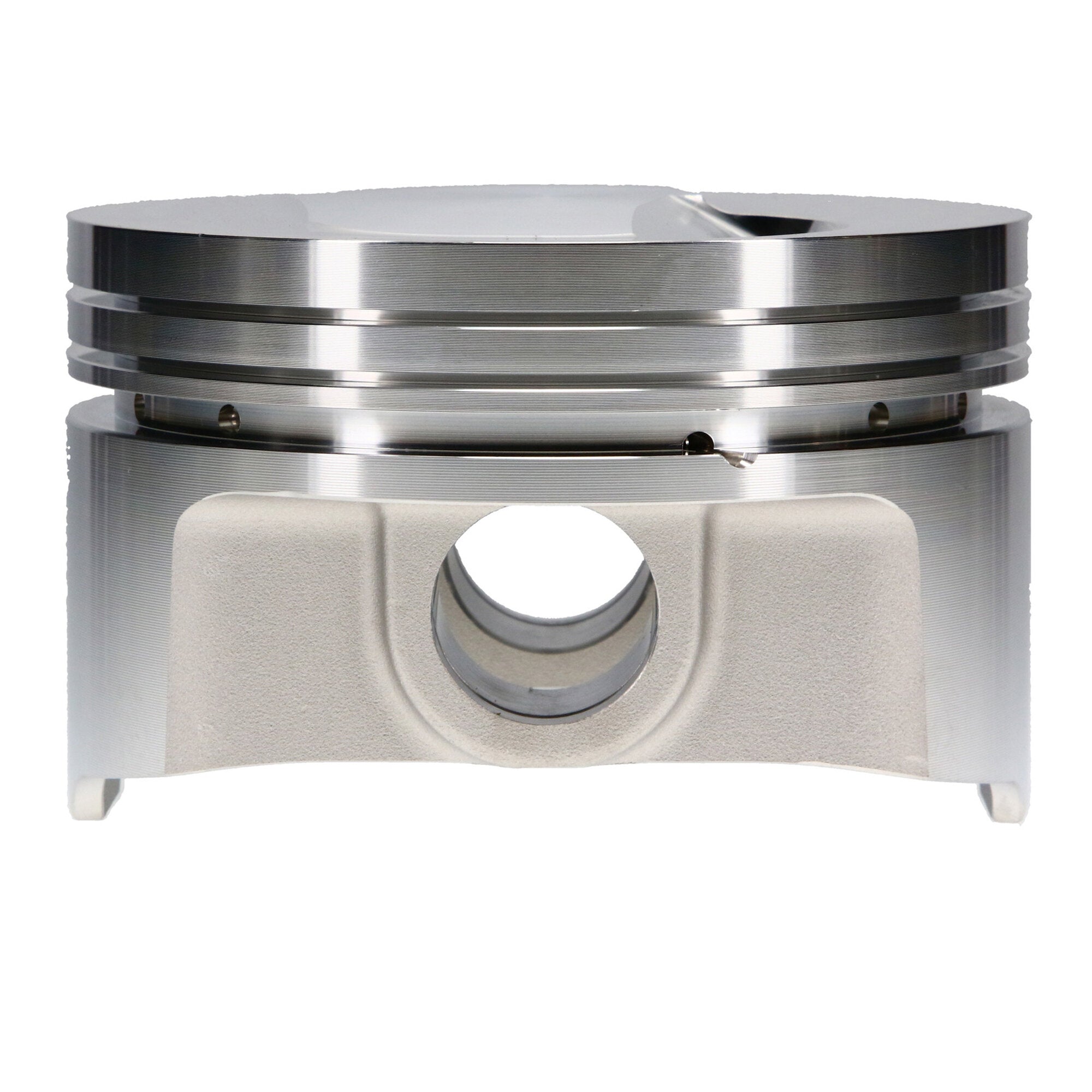

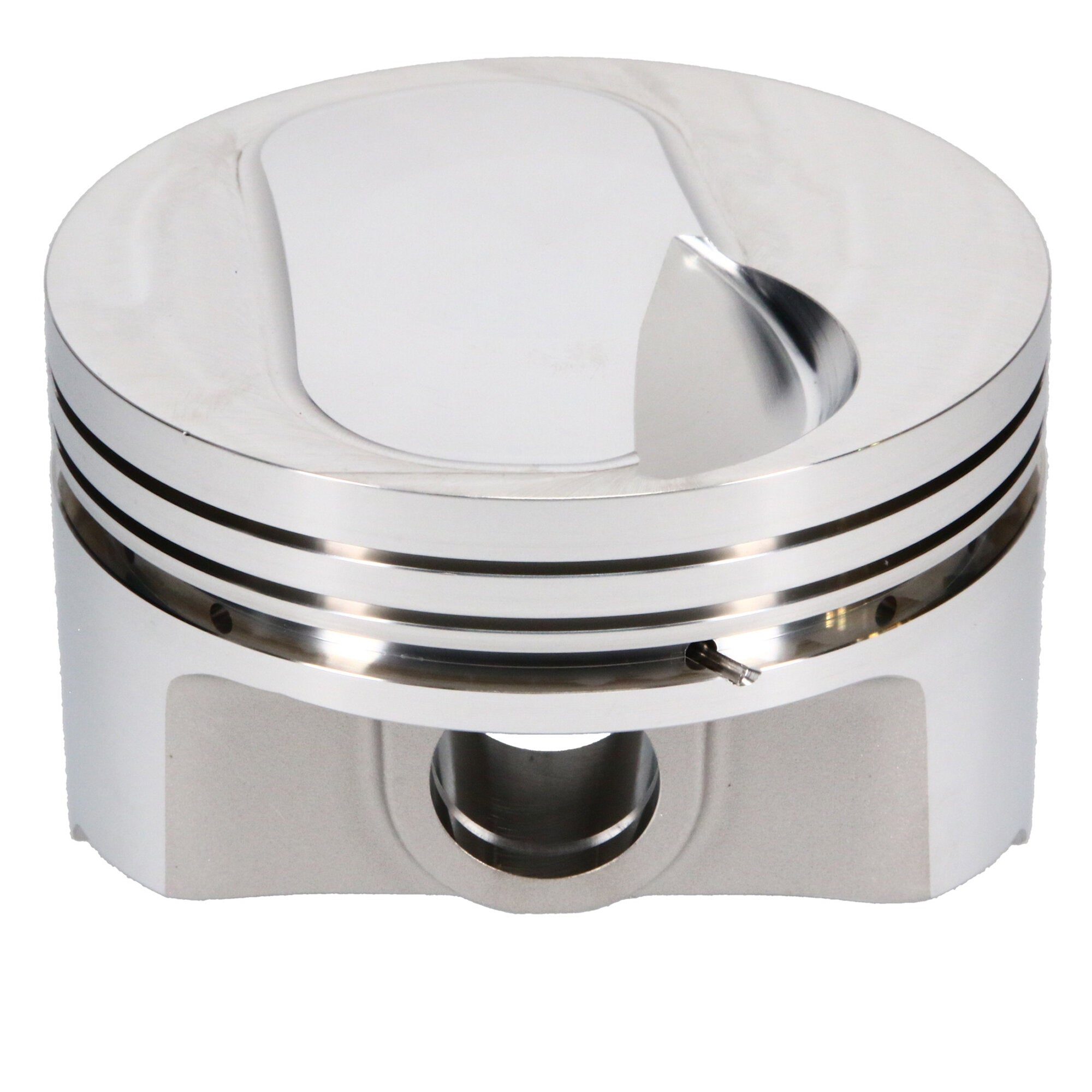

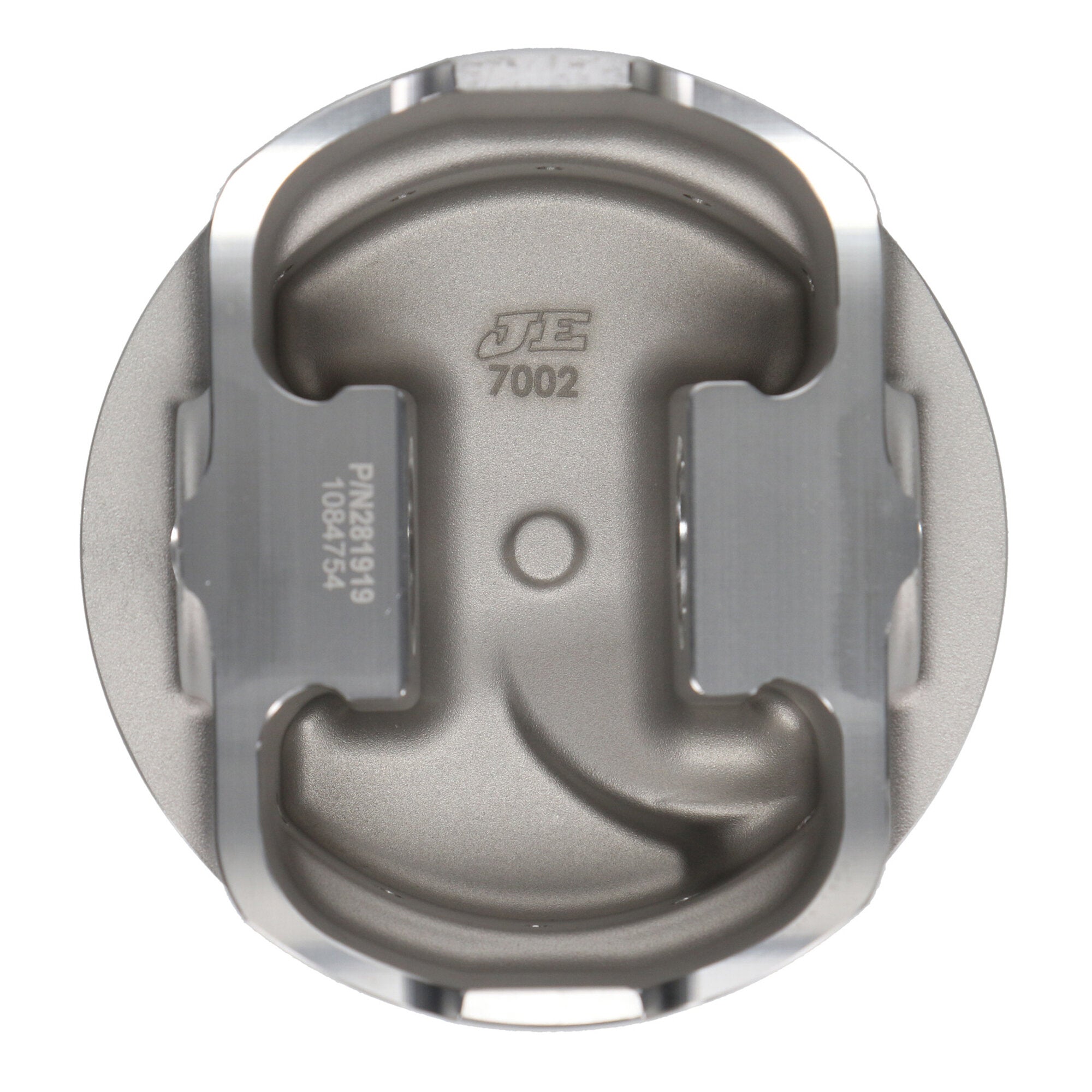

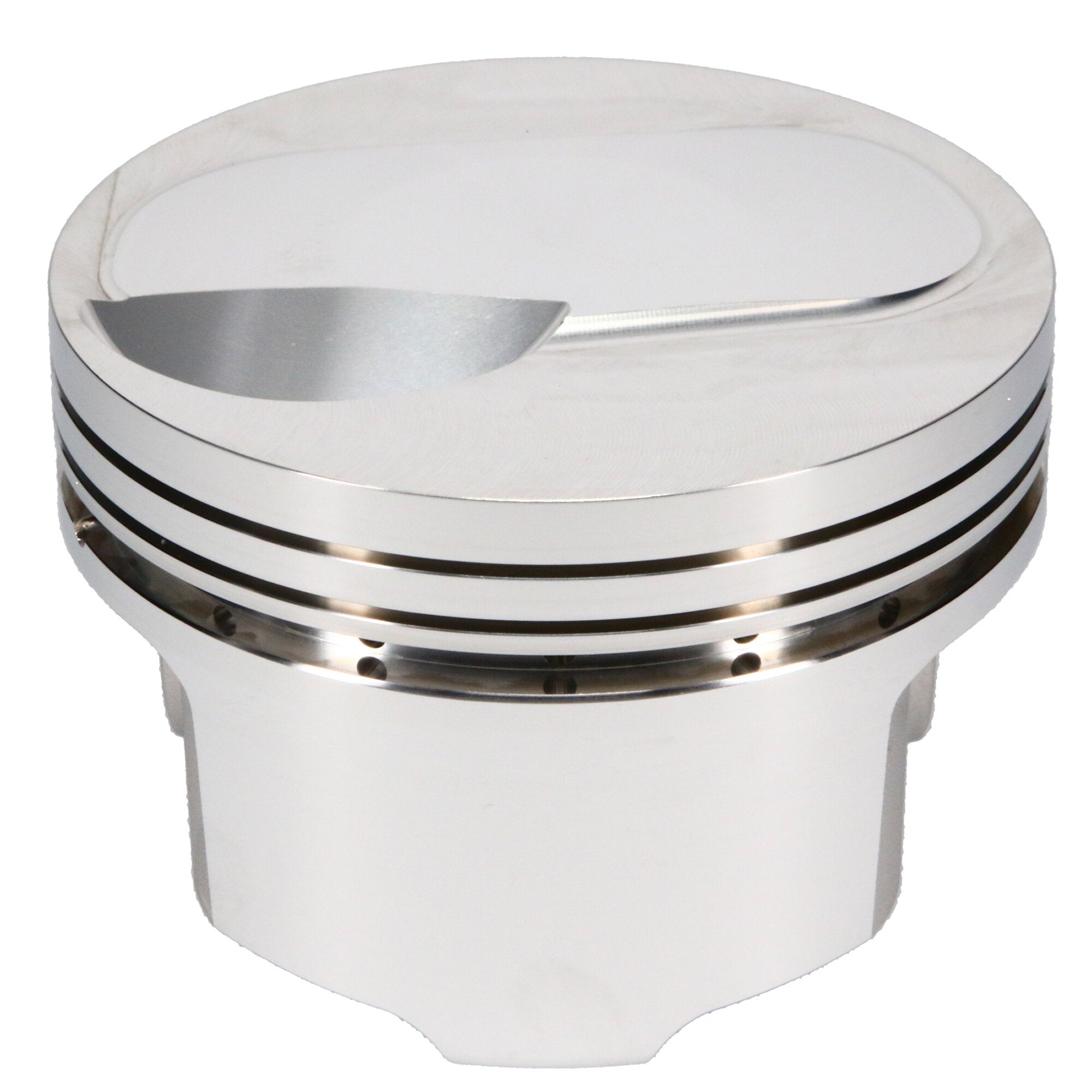

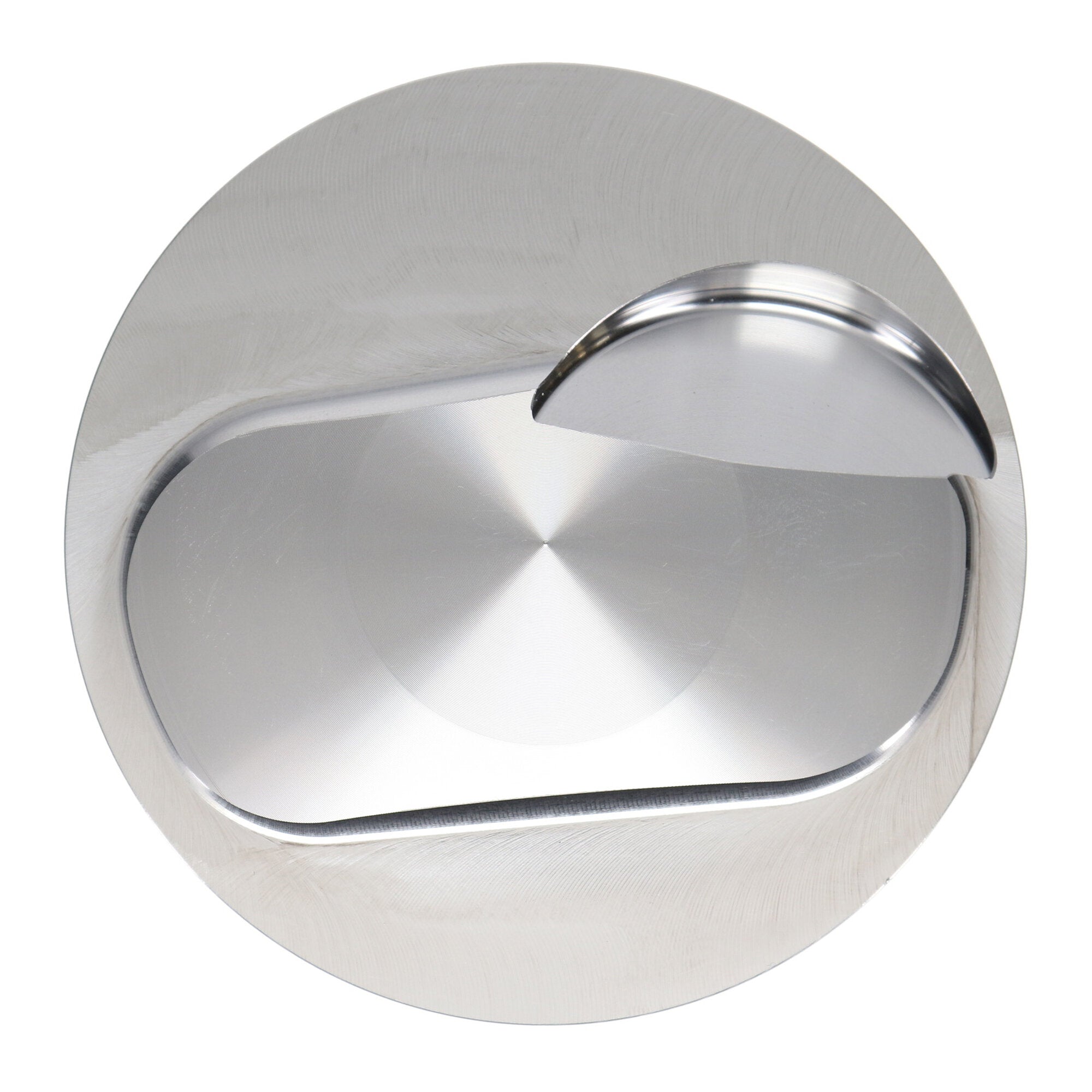

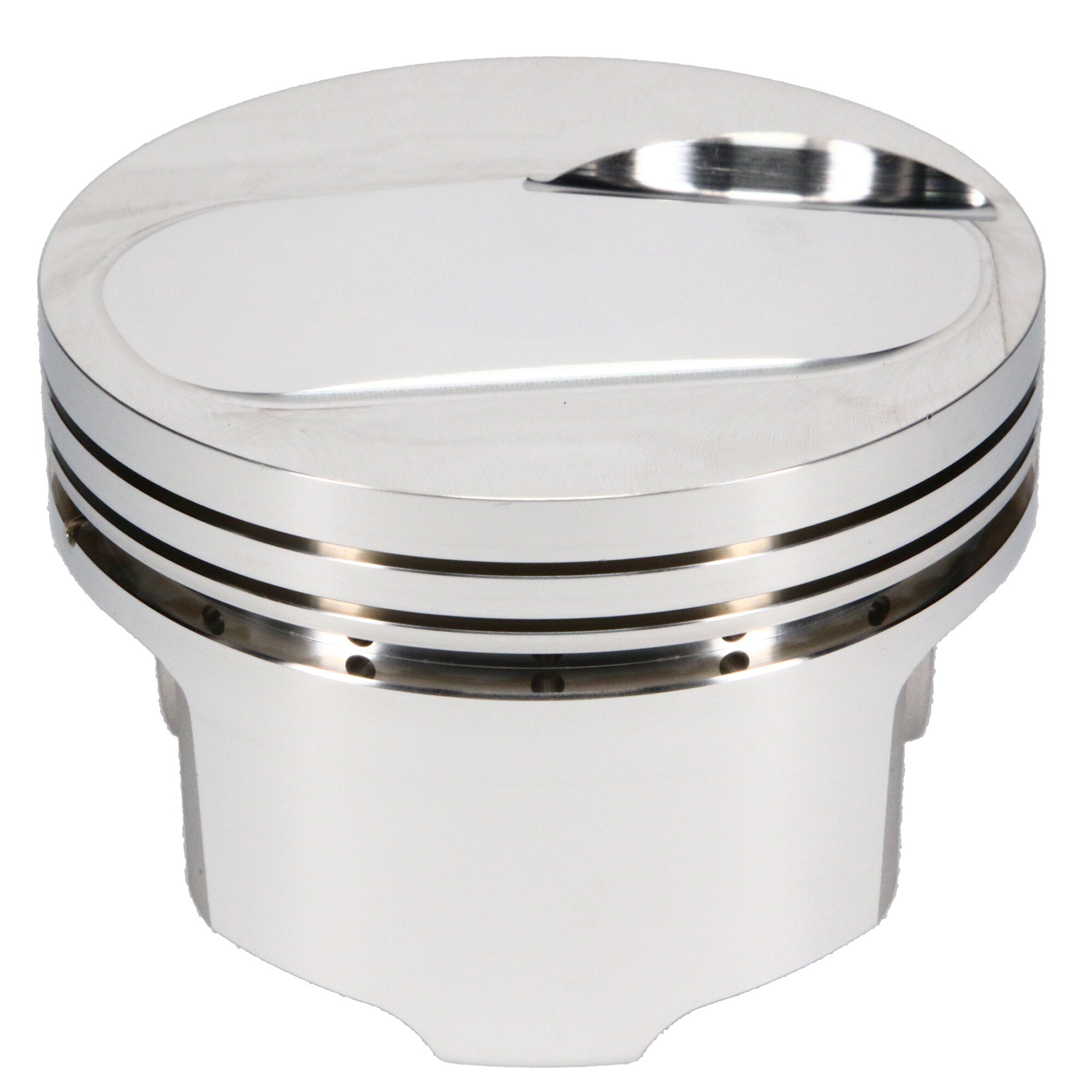

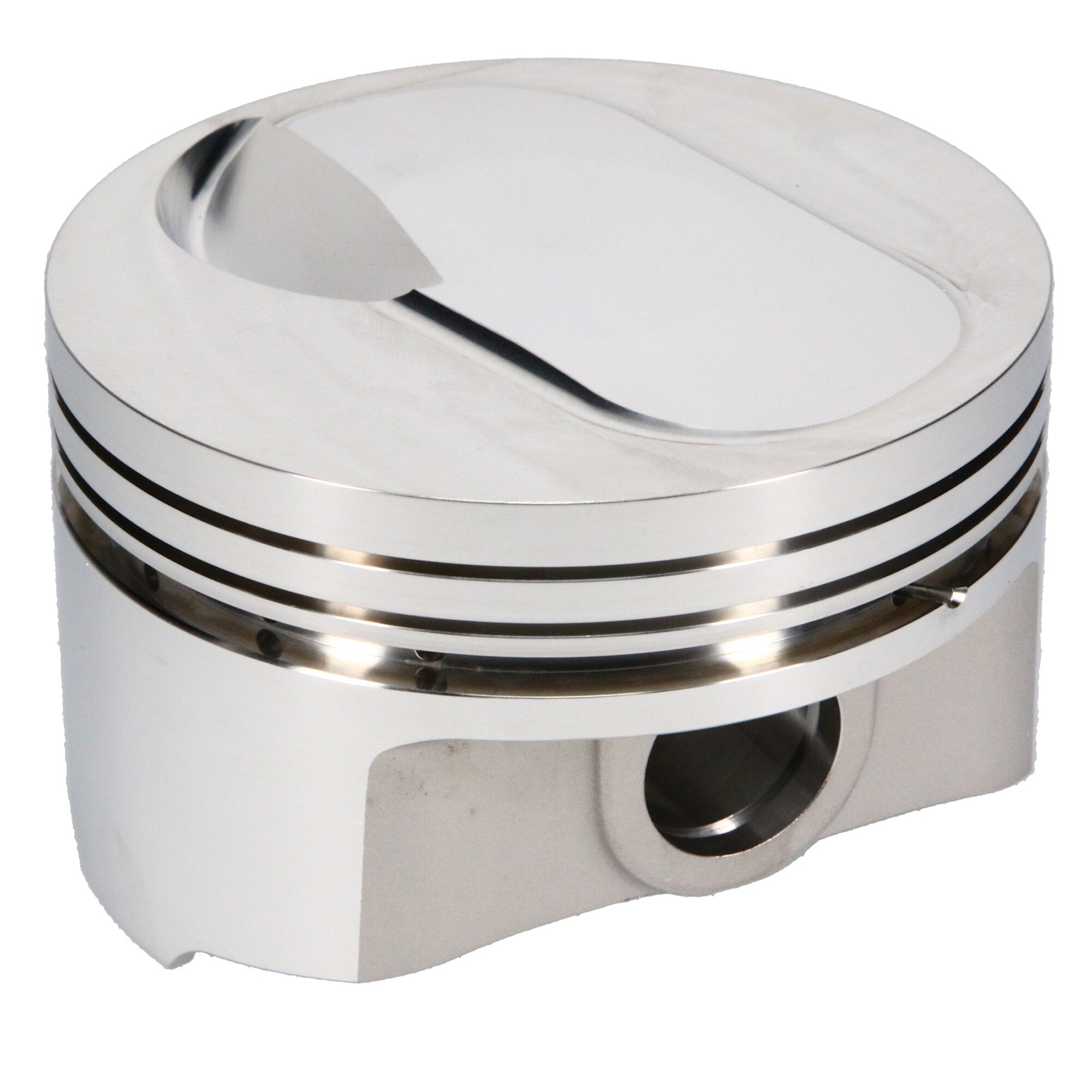

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Dome, 4.530 Bore, 1.645 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 502, 4.530 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
990-042-CS |
| Piston Volume |
1.00 |
| Add-On |
990-2930-15-51S |
| Industry |
Automotive |
| Add-On |
S100S8-4530-5 |
| Prop 65 Yes/No |
Yes |
| Piston Material |
4032 |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.645 in. CH, 1.00 CC |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Big Block |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.930 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Big Block |
| Engine Type |
ICE |
| Title |
SRP - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.188 |
| Piston Head Type |
Dome |
| Piston Pin Outside Diameter |
0.990 |
| Bore Diameter |
4.530 |
| Piston Series |
SRP |
| Ringset Included |
No |
| Compression Height |
1.645 |
| Forging Type |
Round |
| Make |
CHEVROLET |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
