As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda B Series |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

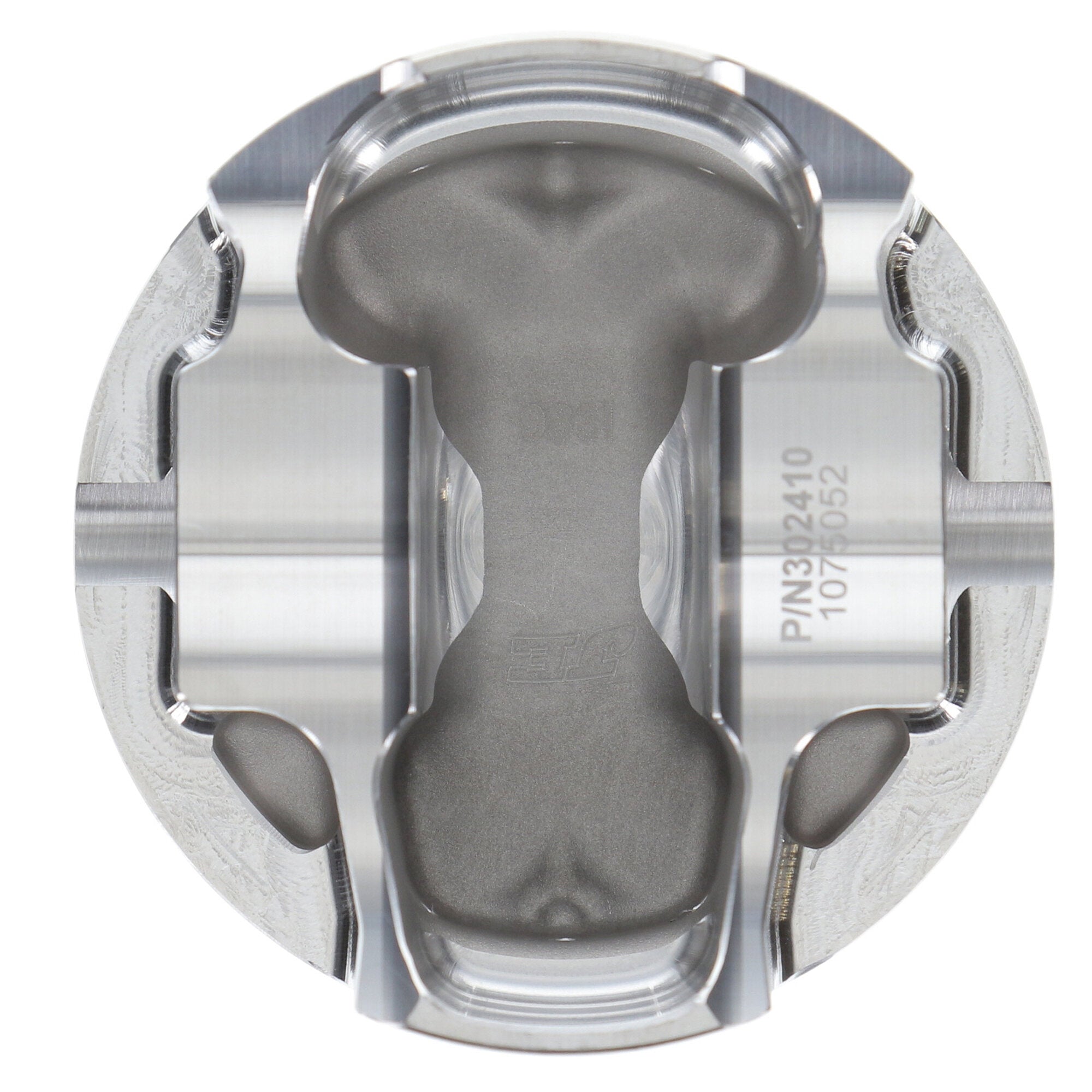

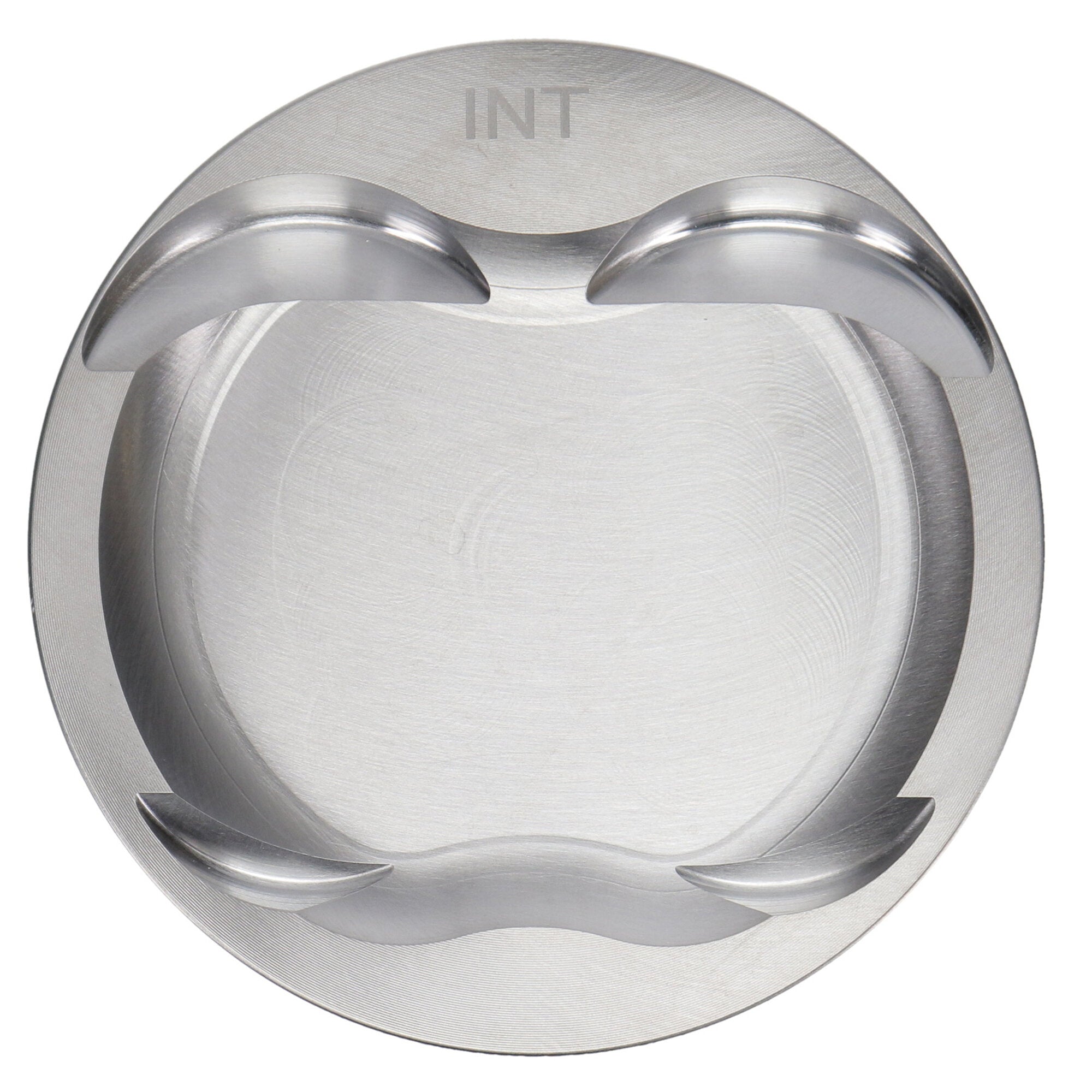

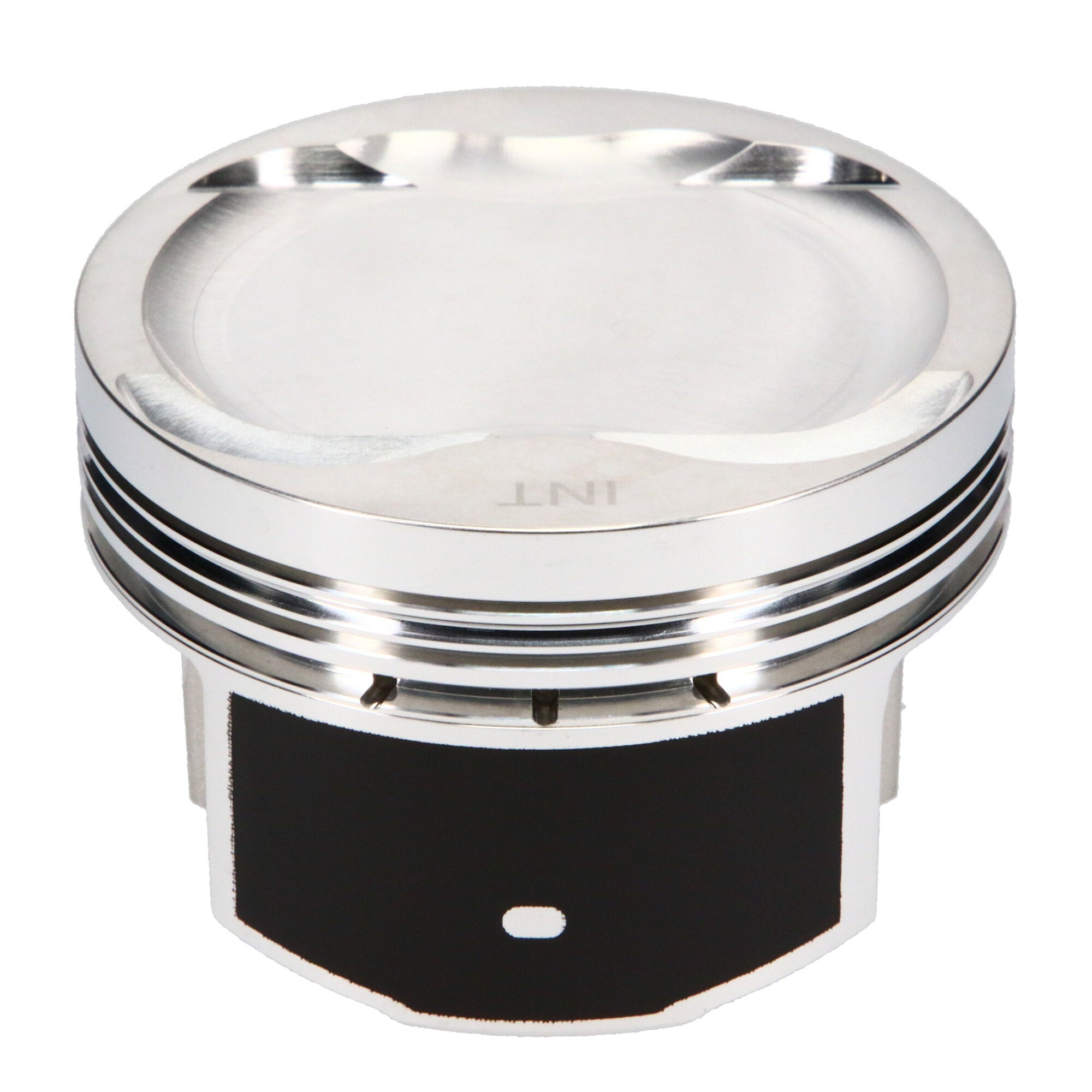

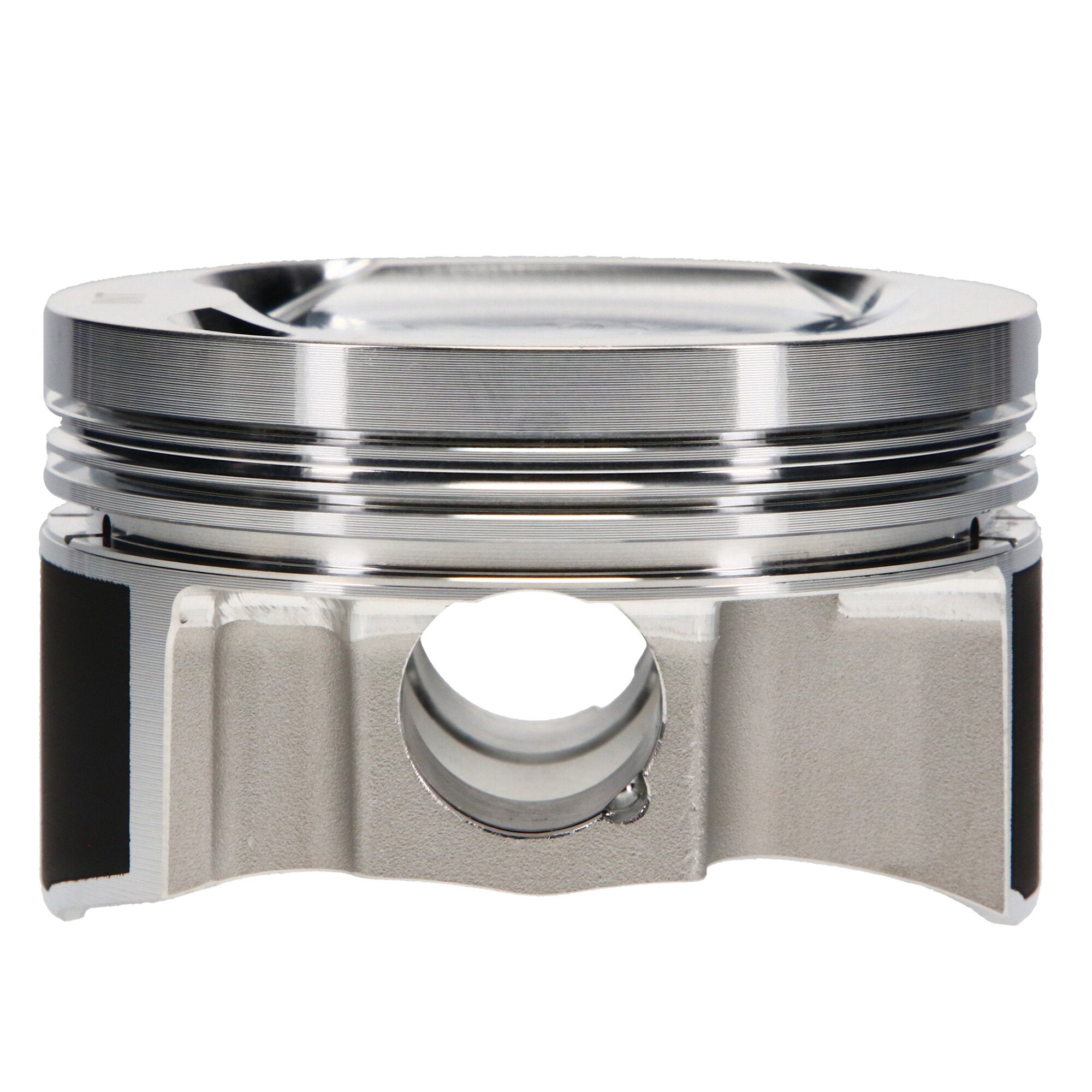

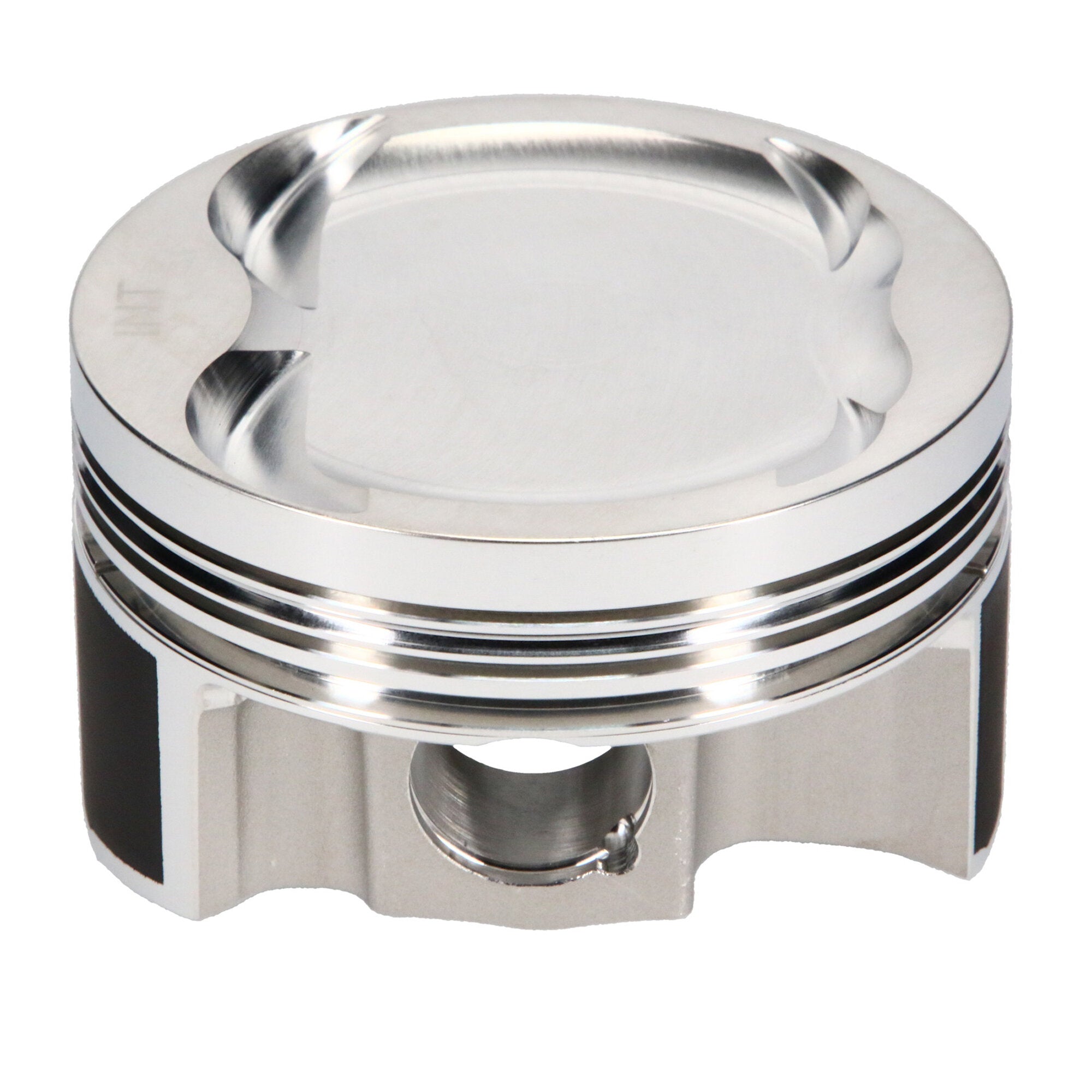

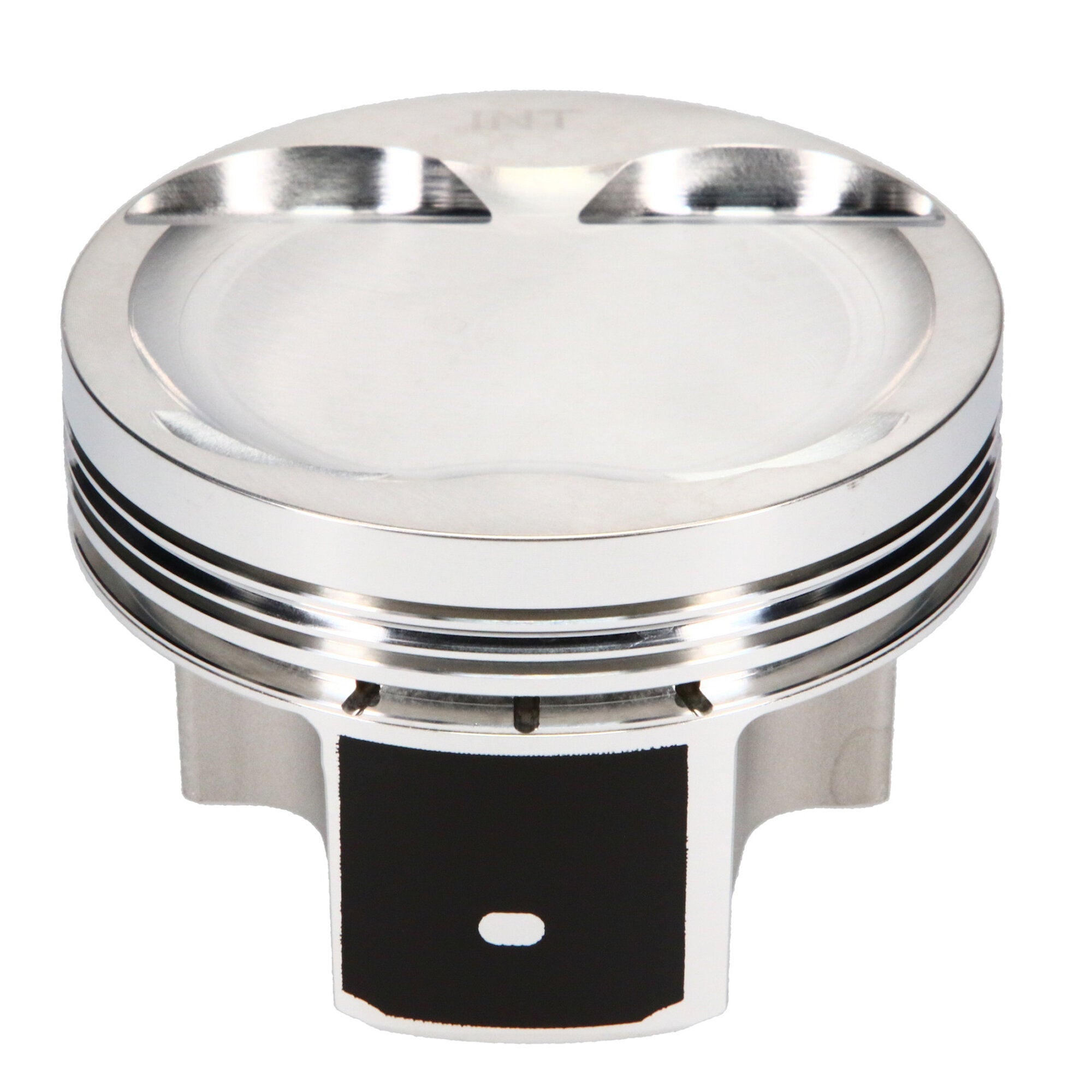

JE, Honda, B Series, 3.228 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.228 Bore, 1.181 CD, 0.827 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda B Series, 82.00 Bore, Dish, Set of 4 |
| Description_SHO |
Piston Kit |
| Make |
HONDA |
| Wrist Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0480 |
| Ring Set Included |
Yes |
| Piston Quantity |
4 |
| Piston Pin Outside Diameter |
0.827 |
| Top Compression Ring Thickness |
0.0400 |
| Compression Height |
1.181 |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title |
JE Pistons - Honda, B Series, 82.00 mm Bore, Piston Kit |
| Piston Volume |
-9.50 |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Engine - Web |
B Series |
| Piston Head Type |
Dish |
| Industry |
Automotive |
| Bore Diameter |
82.00 |
| Product Market |
Sport Compact |
| Add-On |
JG1001-3228 |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Cylinder Head |
B18C |
| Add-On |
827-2250-15-51C |
| Add-On |
827-063-MW |
| Out of Stock Message |
Call for Availability |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Engine |
B SERIES |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.111 |
| Piston Pin Length |
2.250 |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Honda B Series Piston Kit - 82.00 mm Bore - 1.181 in. CH, -9.50 CC |
| Piston Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Honda |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
