As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Audi 2.5L TFSI 20V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

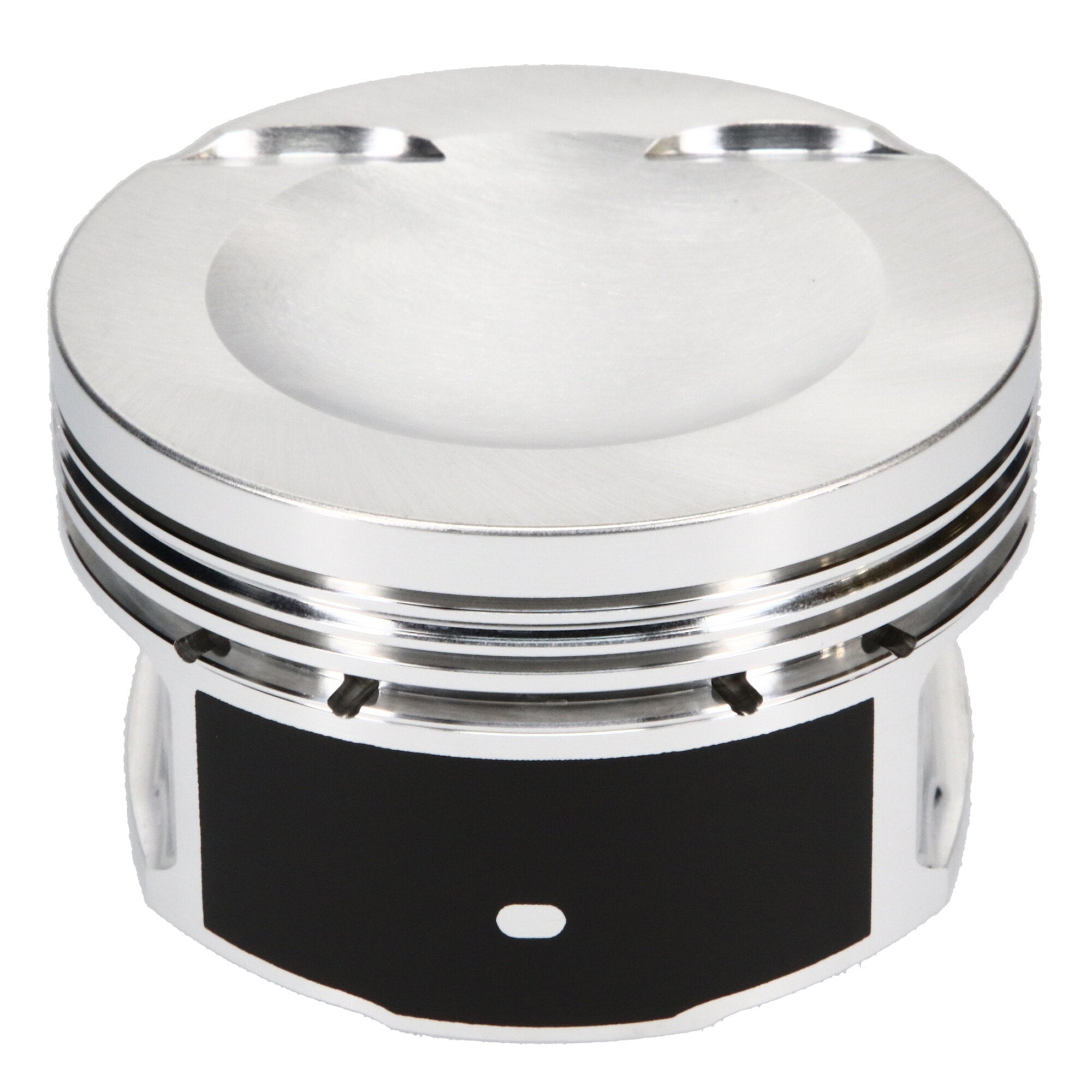

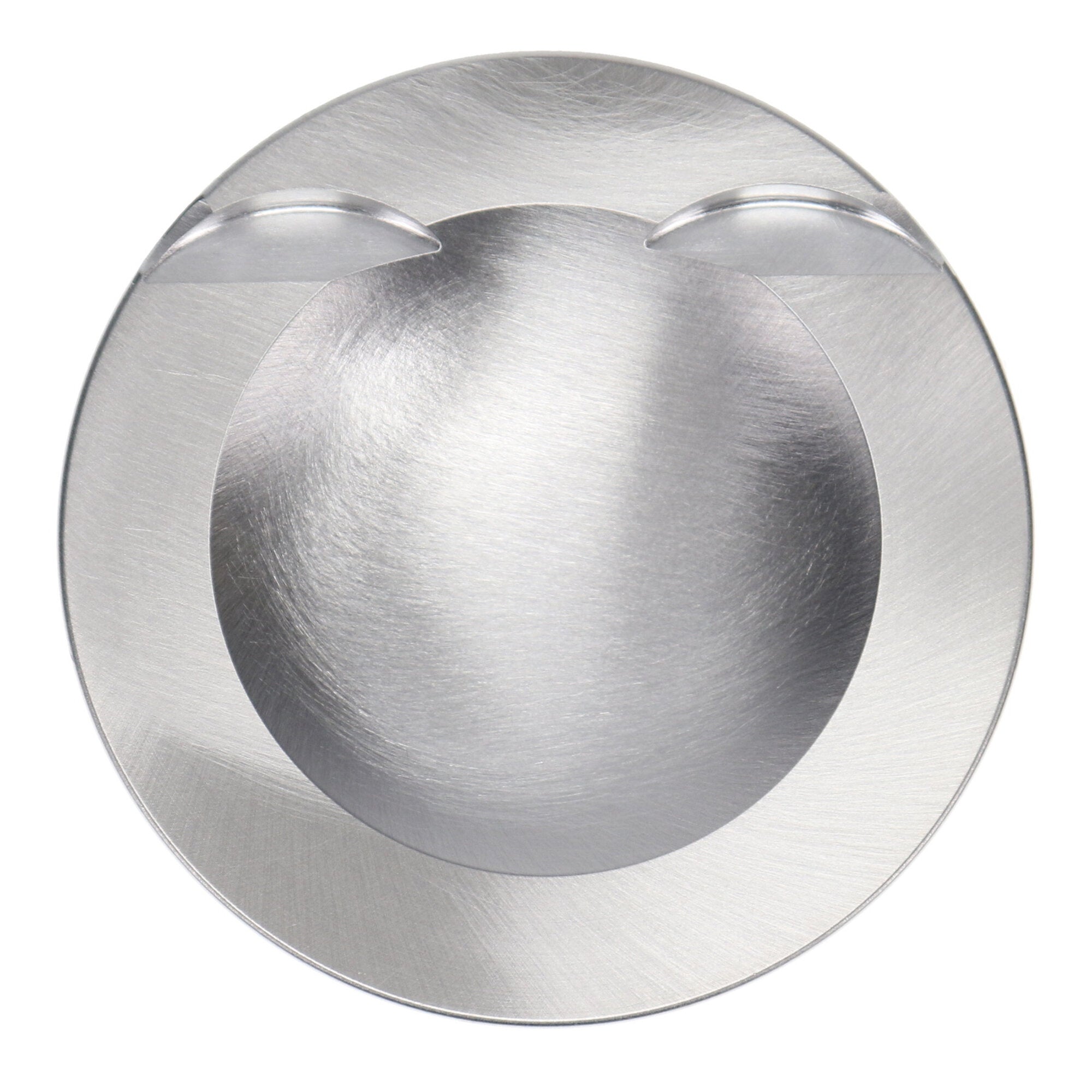

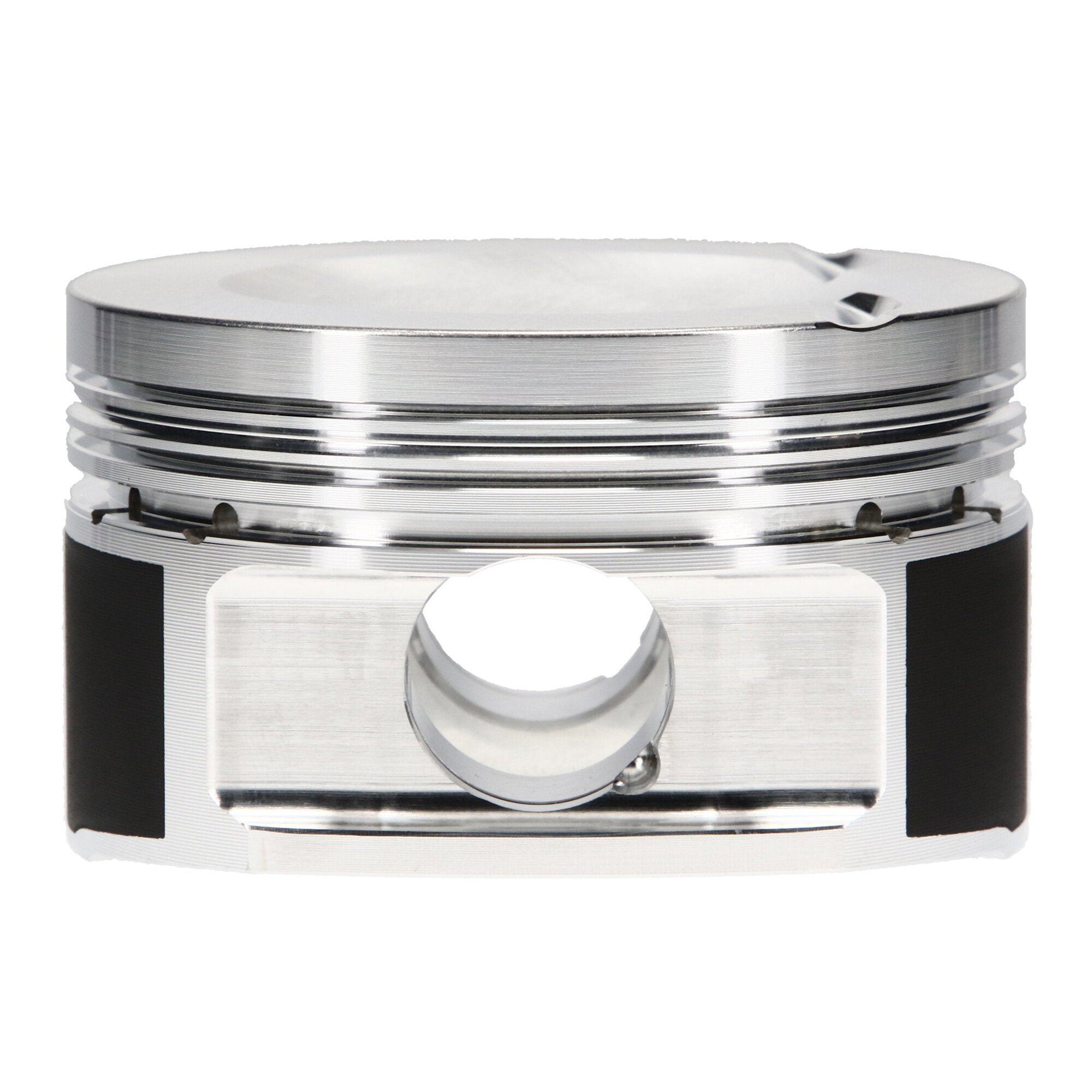

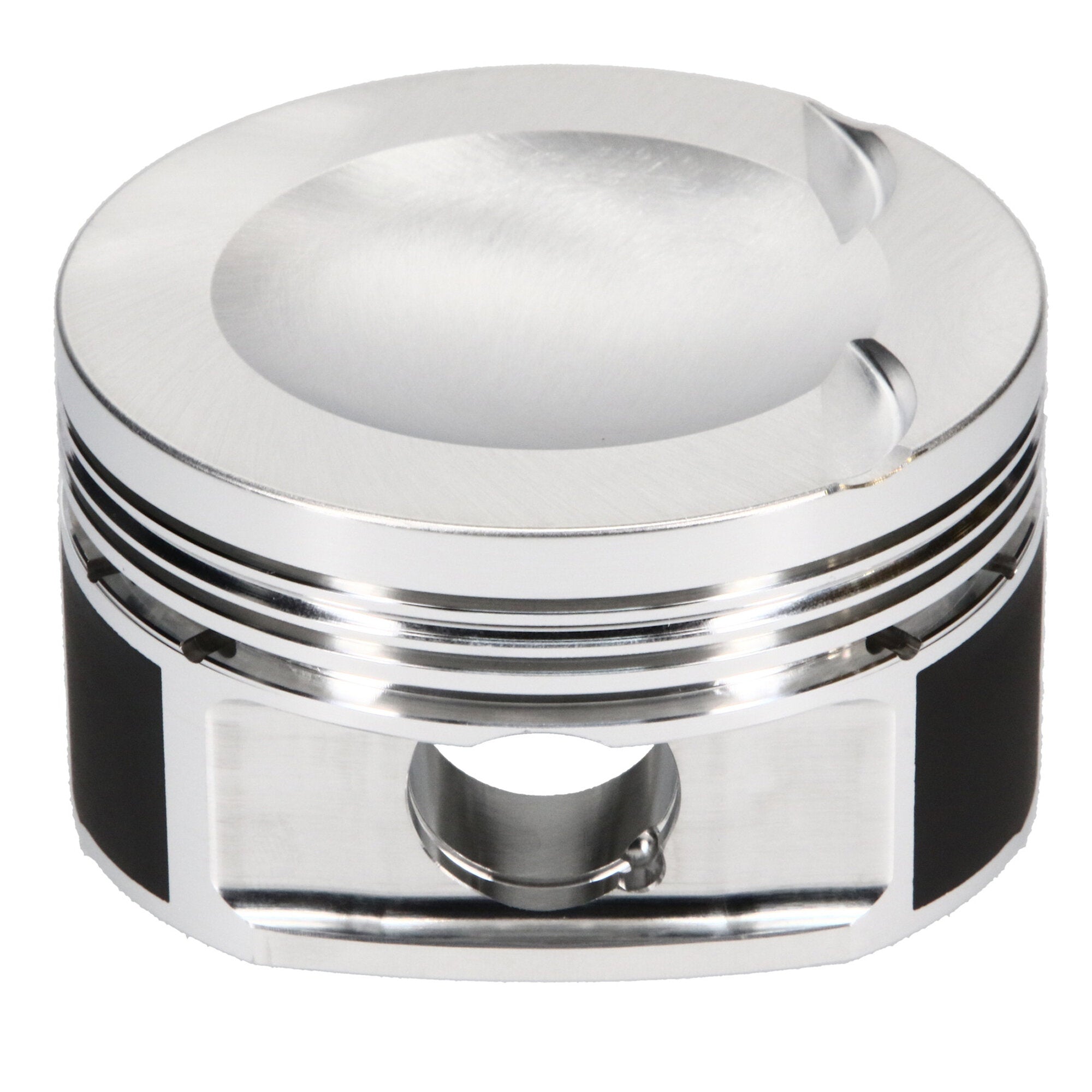

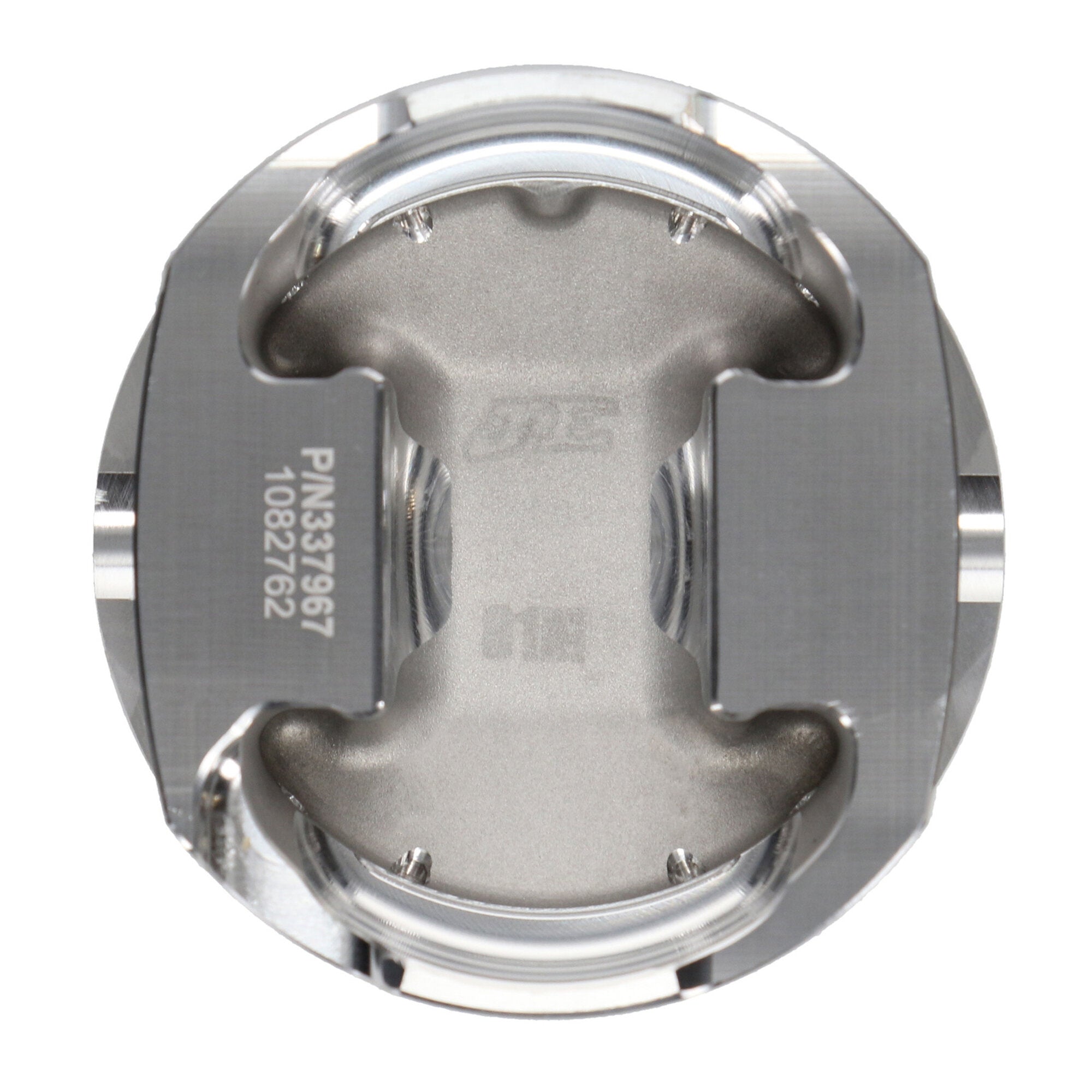

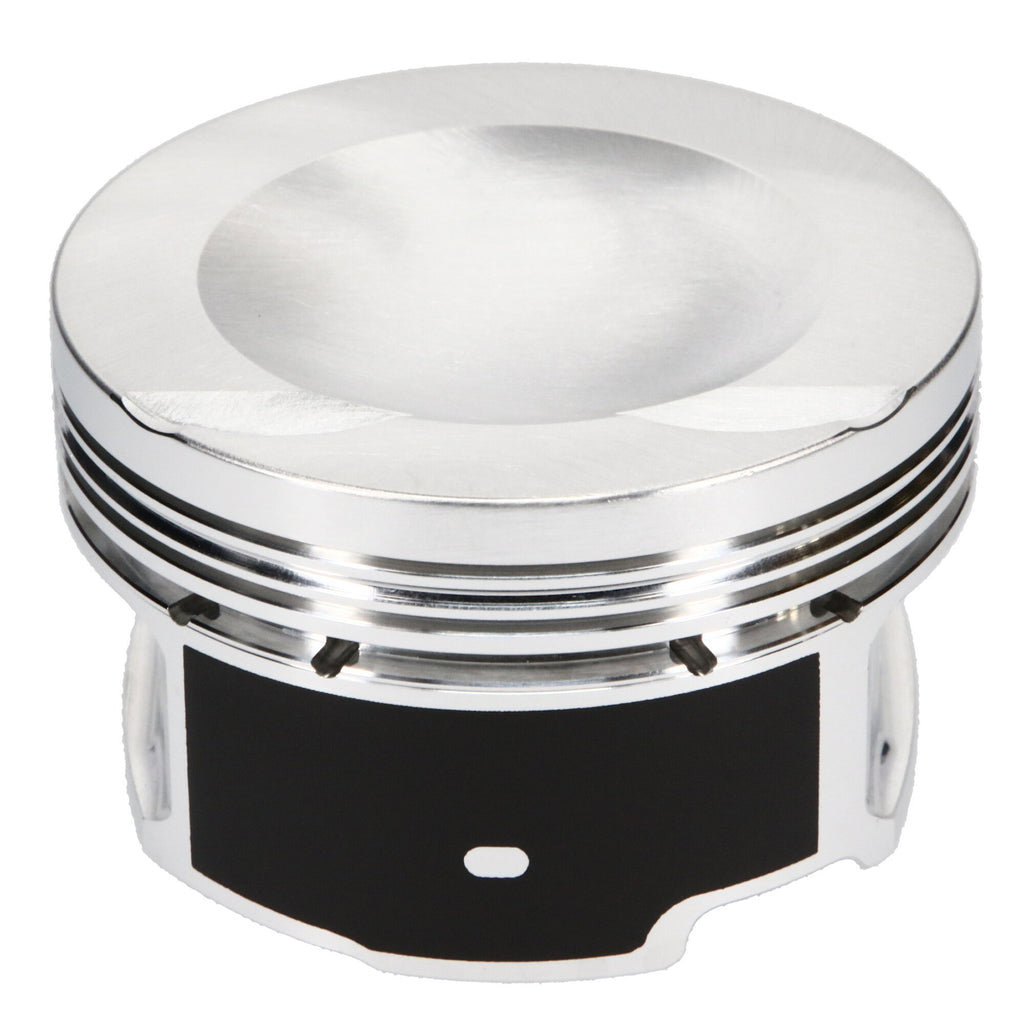

Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.165 CD, 0.866 Pin, Set of 5. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Audi, TT RS 5 CYL, 3.287 in. Bore, 9.50:1, Inverted Dome/Dish, 5 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Audi 2.5L TFSI 20V, 83.50 Bore, Dish, Set of 5 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Audi |
| Engine |
TT RS 5 CYL |
| Oil Ring Thickness |
0.111 |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Head Type |
Dish |
| Engine Type |
ICE |
| Forging Type |
Round |
| Piston Pin Material |
5115 |
| Title - Web |
JE Pistons Audi TT RS 5 Cyl Piston Kit - 83.50 mm Bore - 1.165 in. CH, -8.80 CC |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Title |
JE Pistons - Audi, TT RS 5 Cyl, 83.50 mm Bore, Piston Kit |
| Piston Material |
2618 |
| Make |
AUDI |
| Add-On |
JG1001-3287 |
| Add-On |
866-2250-15-51C |
| Cylinder Head |
R5 TFSI 20V |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
83.50 |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.165 |
| Piston Pin Wall Thickness |
0.150 |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
866-063-MW |
| Piston Quantity |
5 |
| Product Market |
European |
| Piston Volume |
-8.80 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
TT RS 5 Cyl |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
