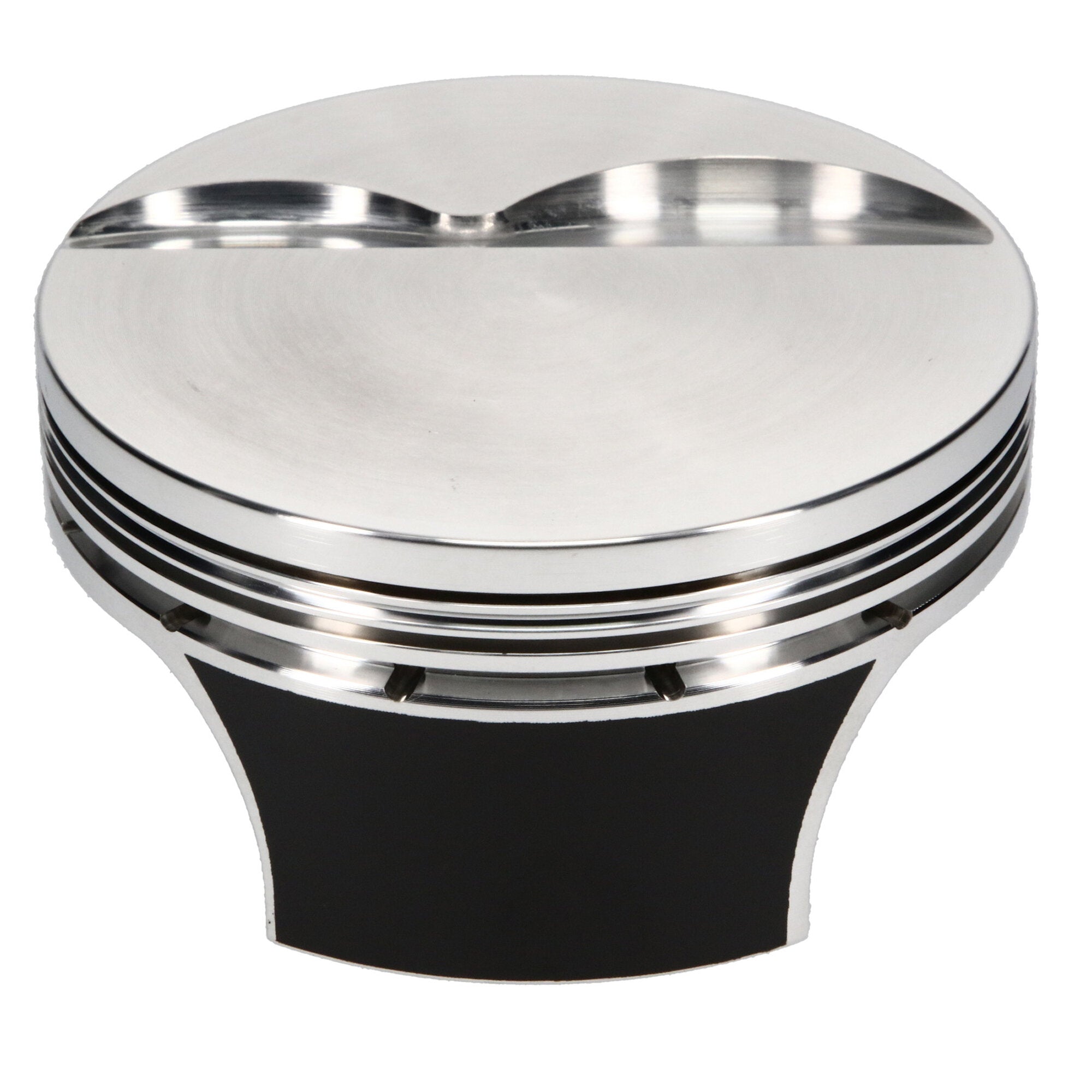

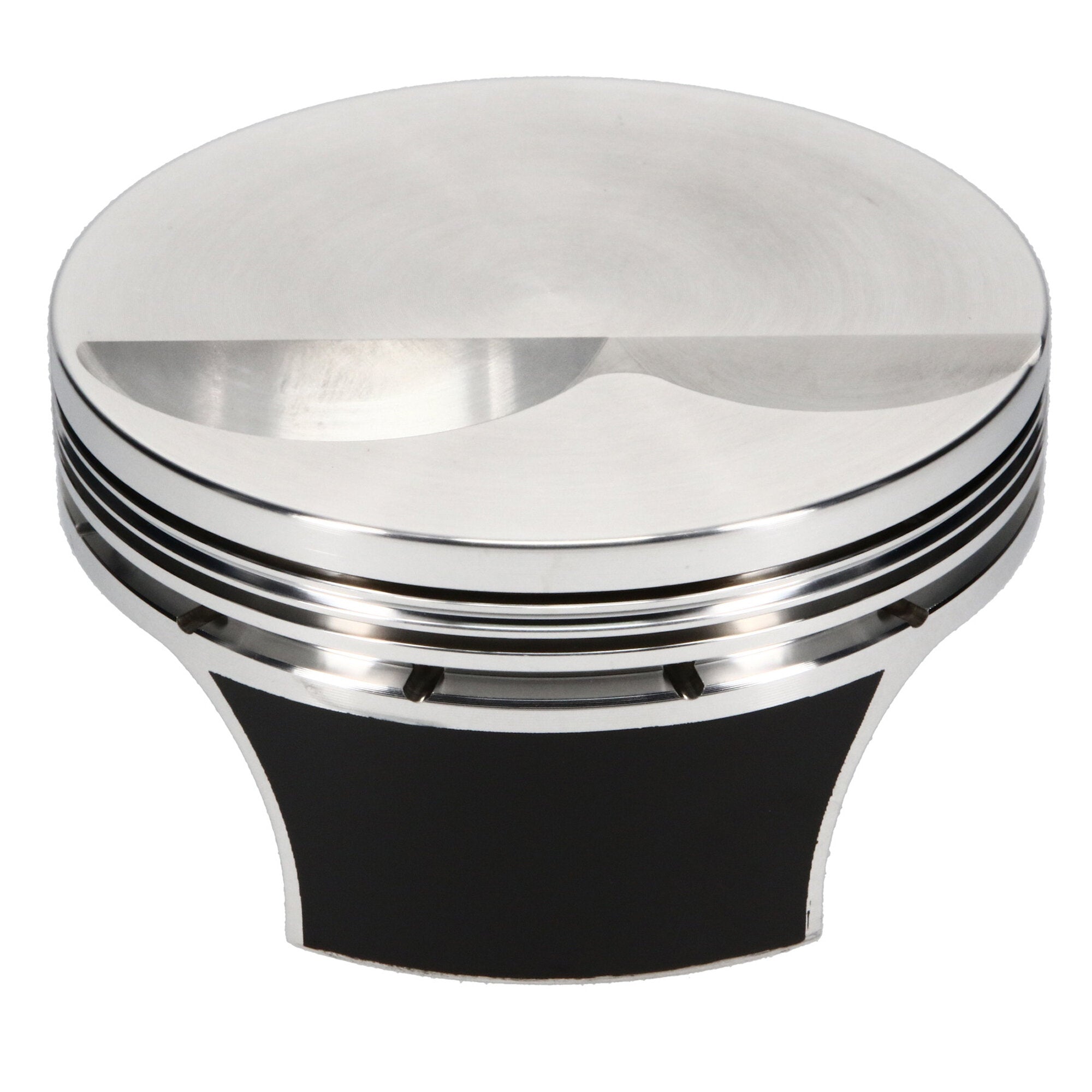

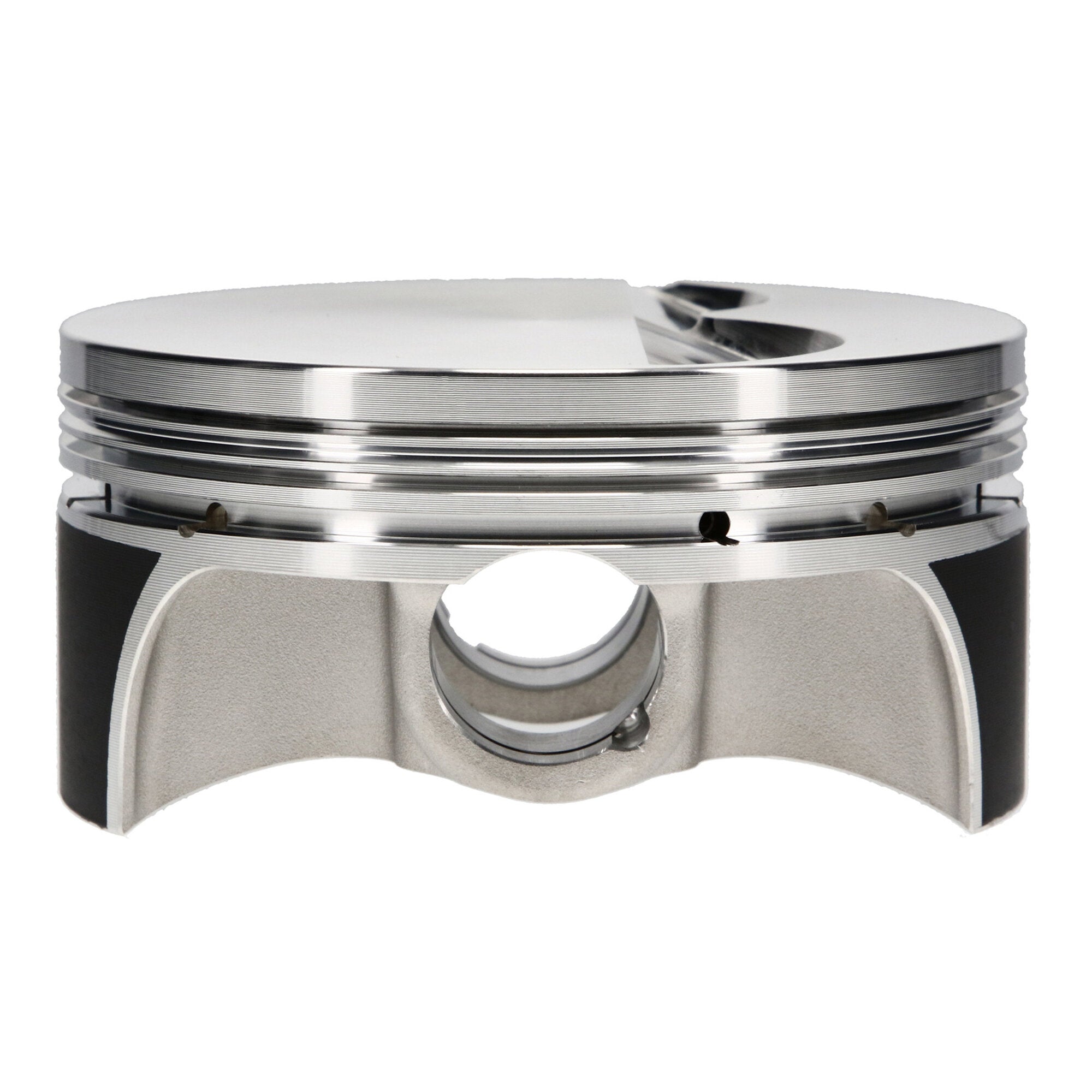

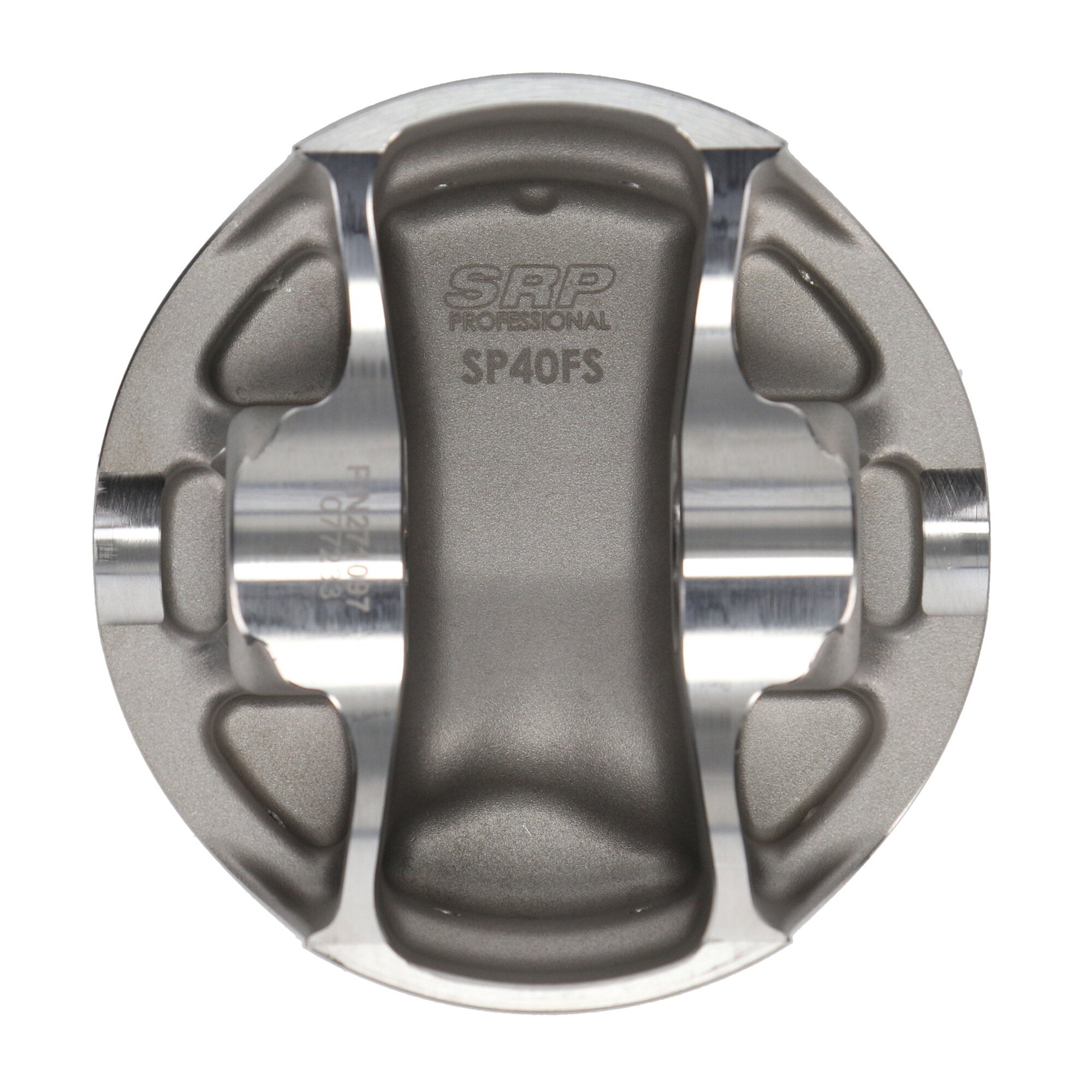

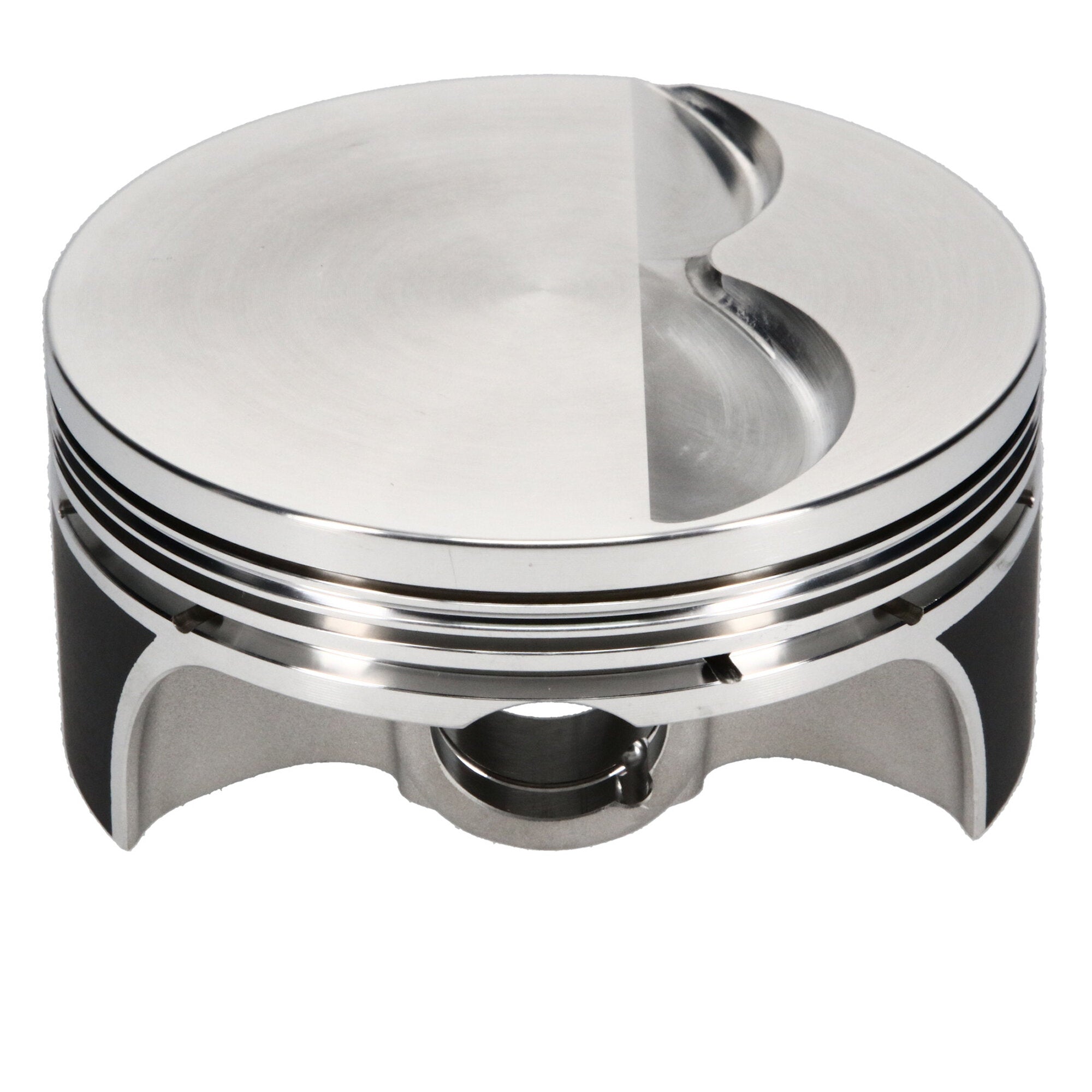

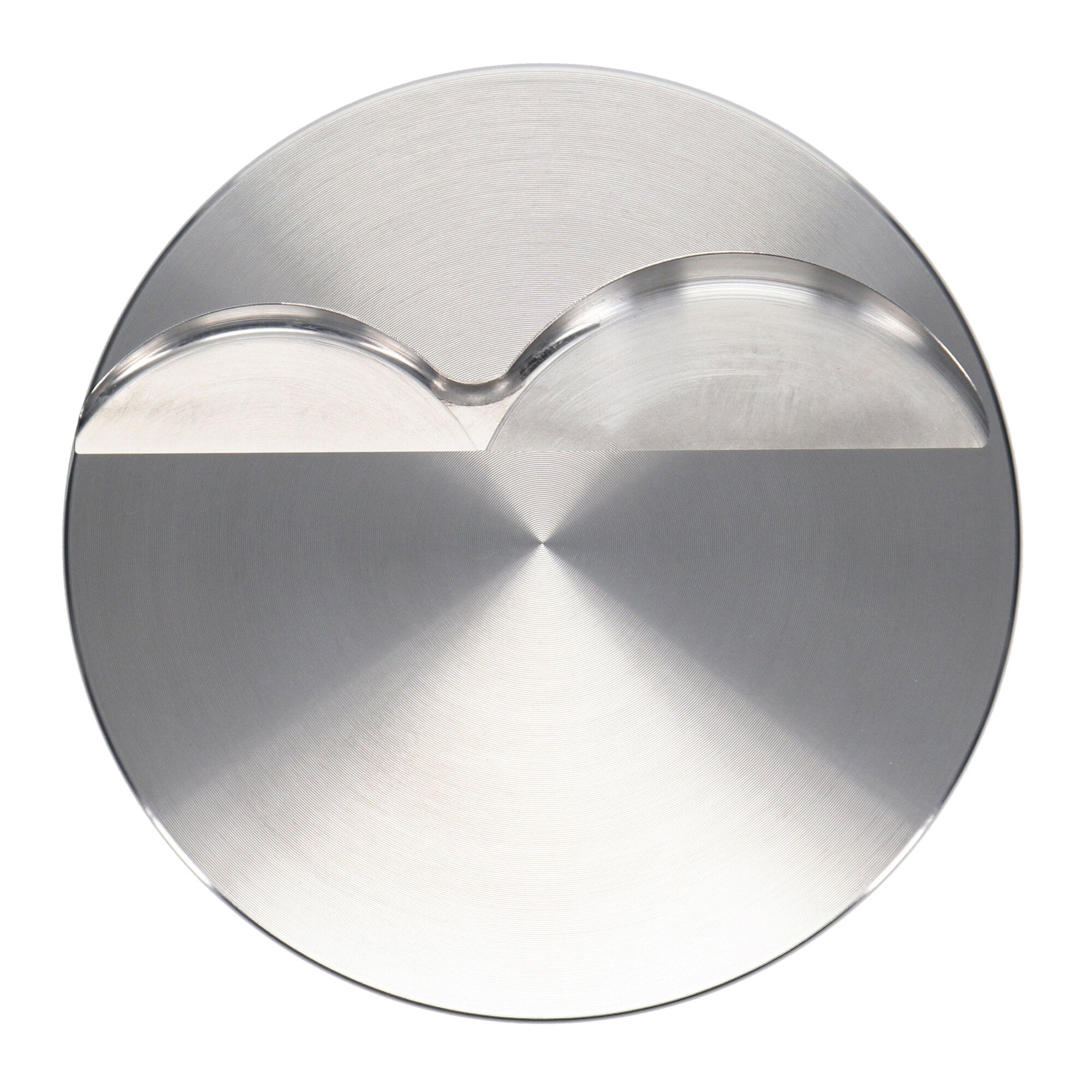

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 351W Windsor |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.020 Bore, 1.300 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Ford, Small Block Ford, 4.020 in. Bore, 1.300 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 351 Windsor, 4.020 Bore, Flat, Set of 8 |
| Piston Pin Outside Diameter |
0.927 |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Material |
4032 |
| Product Market |
Domestic |
| Title |
SRP Pro 4032 - Ford, Small Block, 4.020 in. Bore, Piston Kit |
| Wrist Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.119 |
| Compression Height |
1.300 |
| Industry |
Automotive |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Bore Diameter |
4.020 |
| Top Compression Ring Thickness |
0.0480 |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-2250-15-51C |
| Add-On |
JG3101-4020-2 |
| Add-On |
927-073-MW |
| Product Type |
Engine Piston Kit |
| Make |
FORD |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-5.00 |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Ringset Included |
Yes |
| Title - Web |
SRP Pro 4032 Ford Small Block Piston Kit - 4.020 in. Bore - 1.300 in. CH, -5.00 CC |
| Piston Head Type |
Flat |
| Piston Series |
SRP Pro 4032 |
| Engine Type |
ICE |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Second Compression Ring Thickness |
0.0600 |
| Piston Pin Length |
2.250 |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
