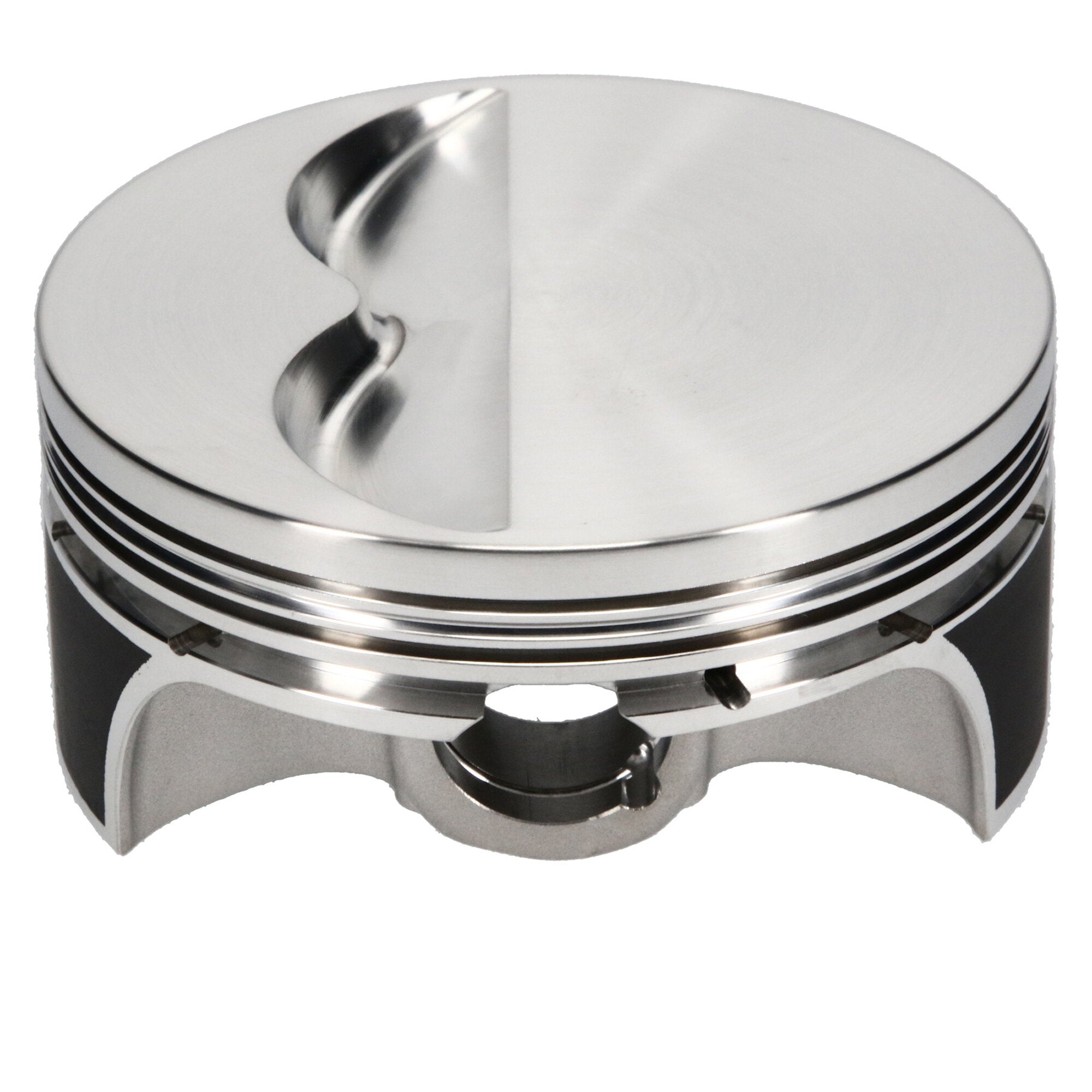

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.135 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Flat, Set of 8 |
| Make |
CHEVROLET |
| Piston Head Type |
Flat |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Oil Ring Thickness |
0.119 |
| Forging Type |
FSR |
| Piston Material |
4032 |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Piston Series |
SRP Pro 4032 |
| Compression Height |
1.250 |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Top Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0600 |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.135 in. Bore - 1.250 in. CH, -5.00 CC |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.135 in. Bore, Piston Kit |
| Add-On |
927-073-MW |
| Prop 65 Yes/No |
Yes |
| Bore Diameter |
4.135 |
| Piston Pin Outside Diameter |
0.927 |
| Out of Stock Message |
Call for Availability |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Product Type |
Engine Piston Kit |
| Add-On |
927-2250-15-51C |
| Add-On |
JG31F1-4135-2 |
| Piston Average Weight |
420 |
| Piston Volume |
-5.00 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Product Market |
Domestic |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
