As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan TB48DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

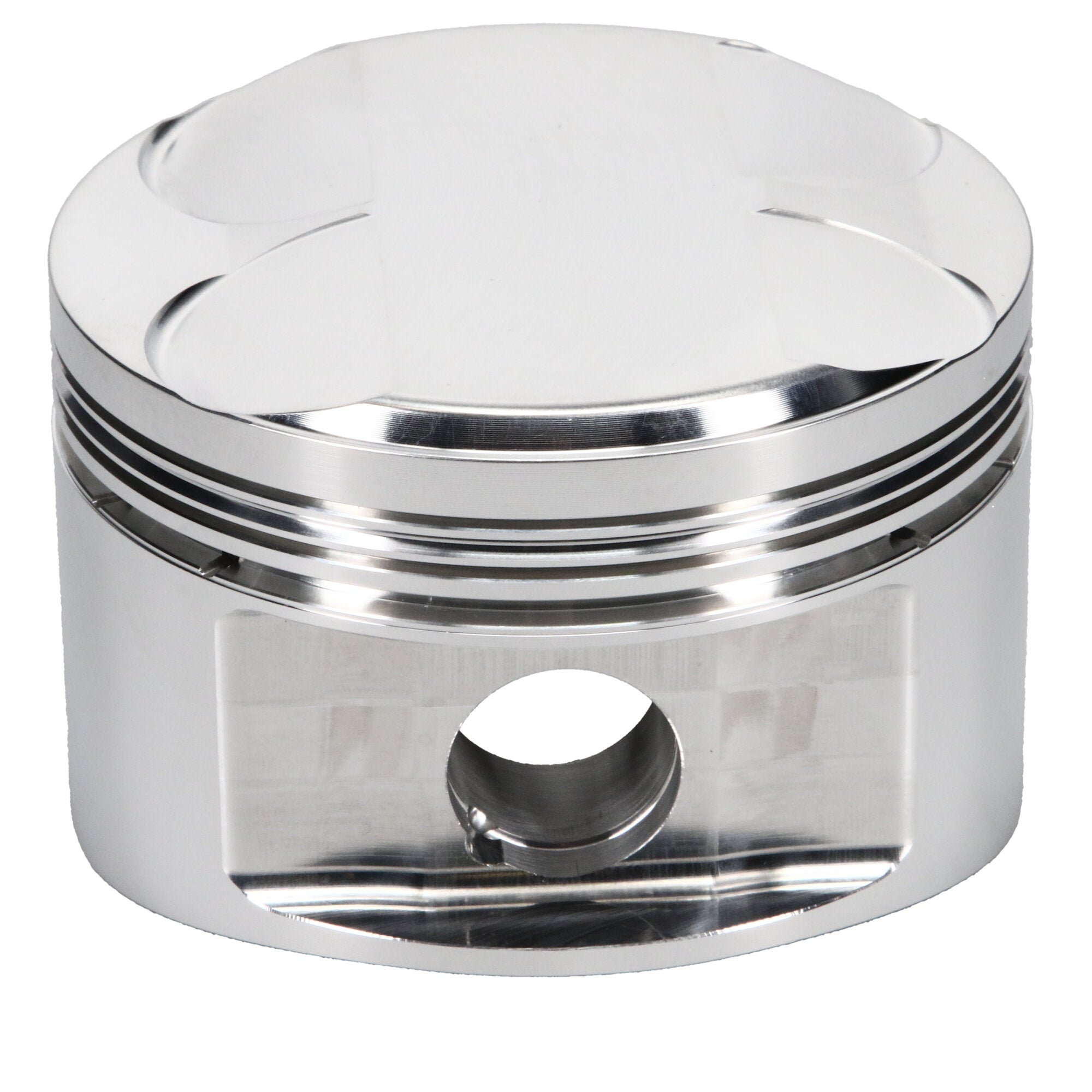

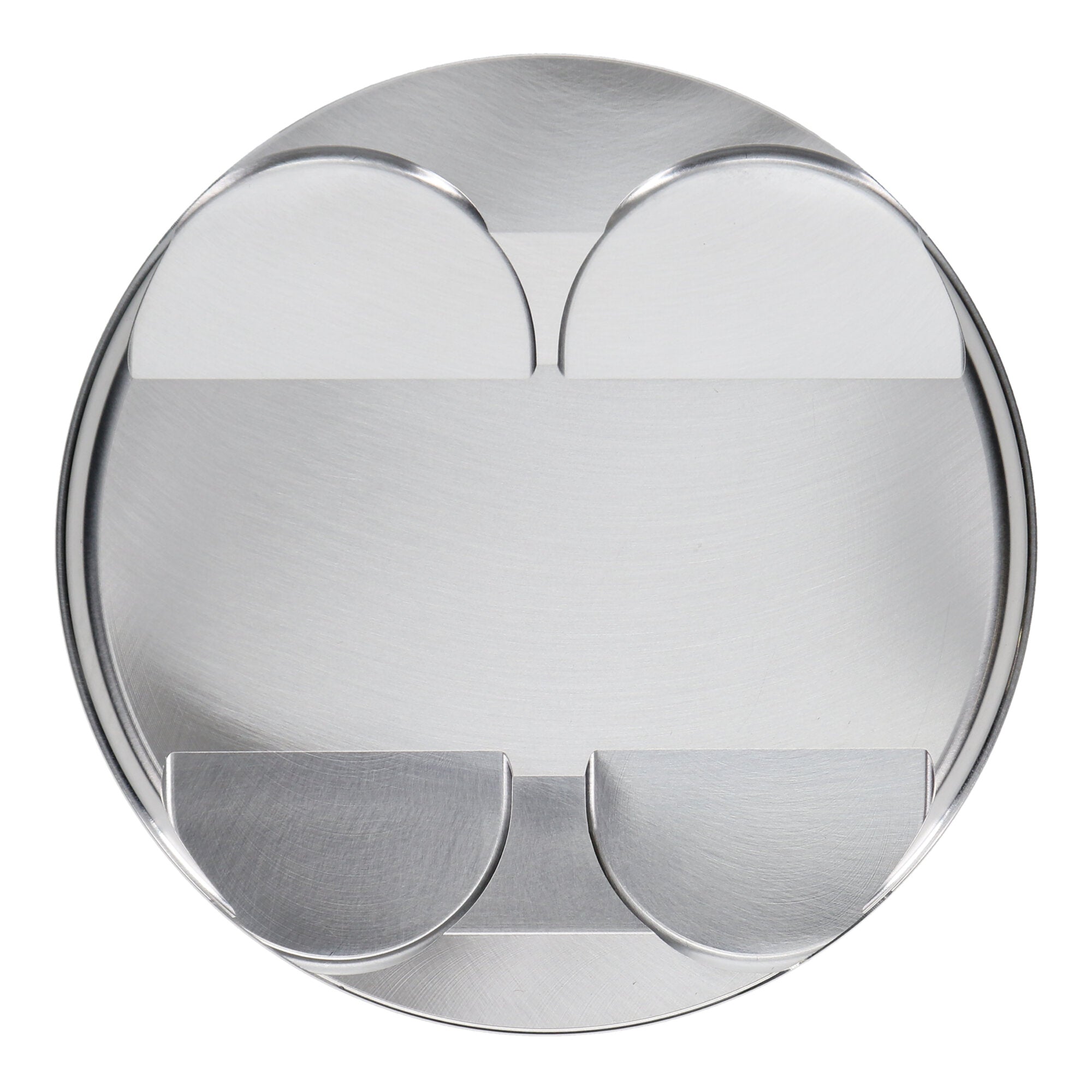

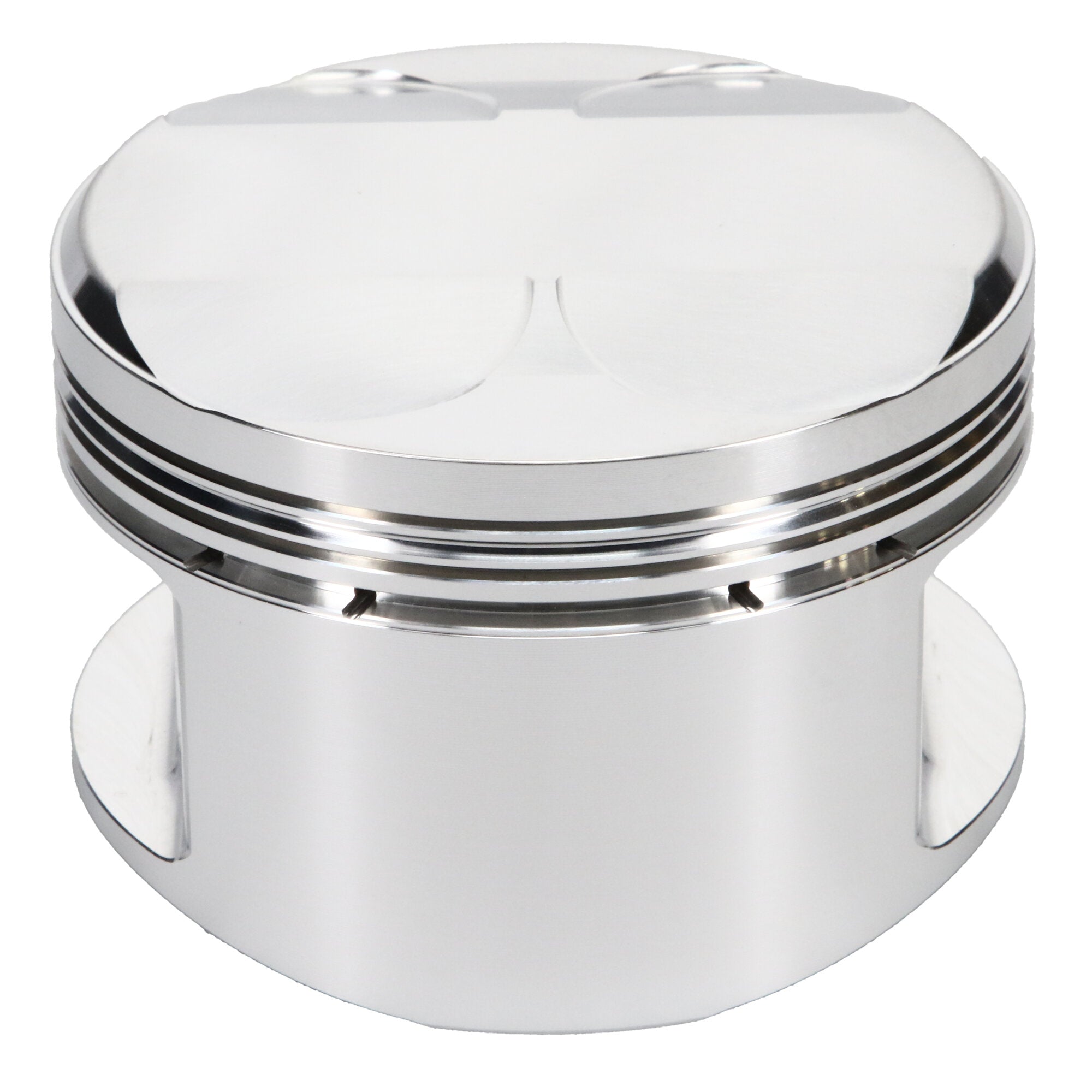

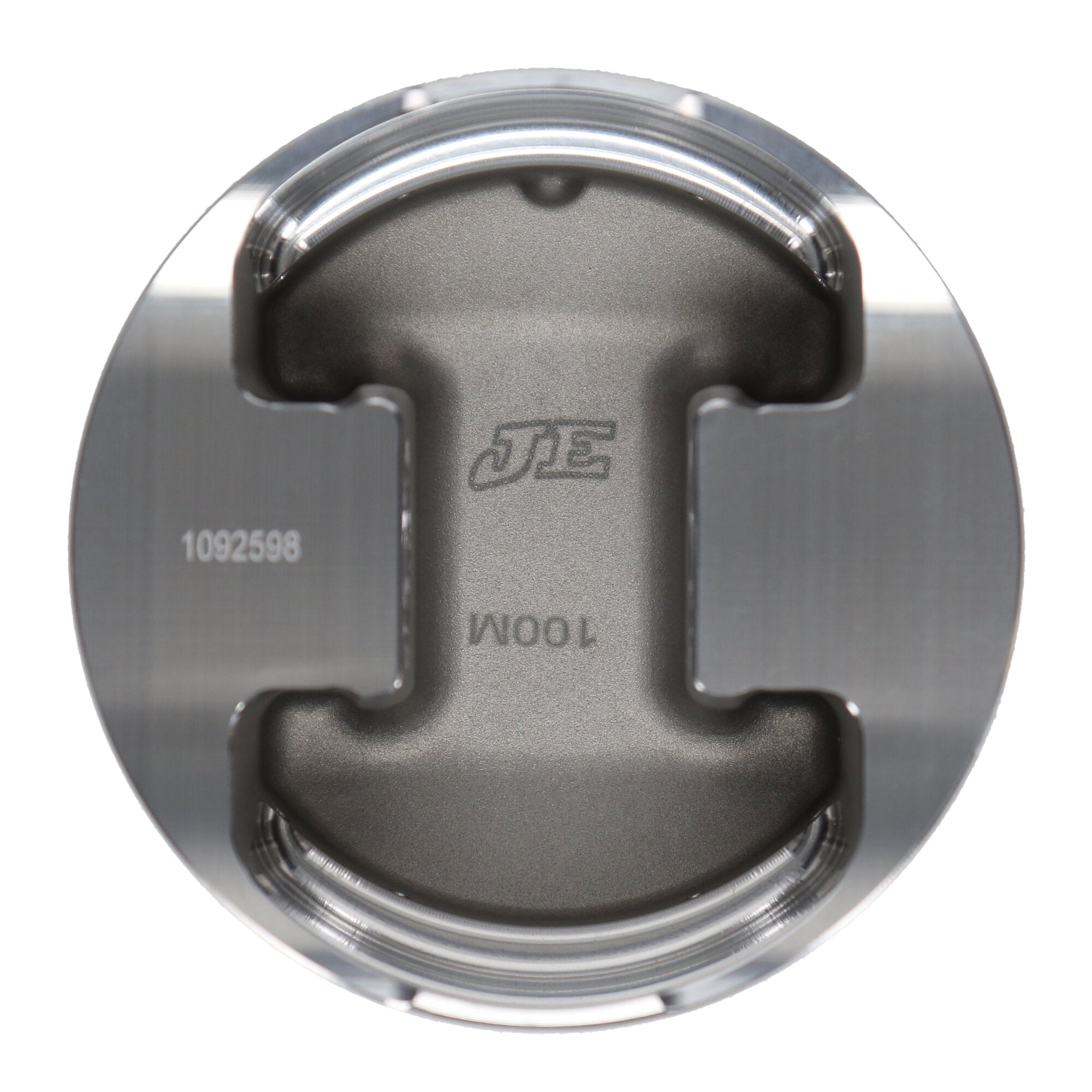

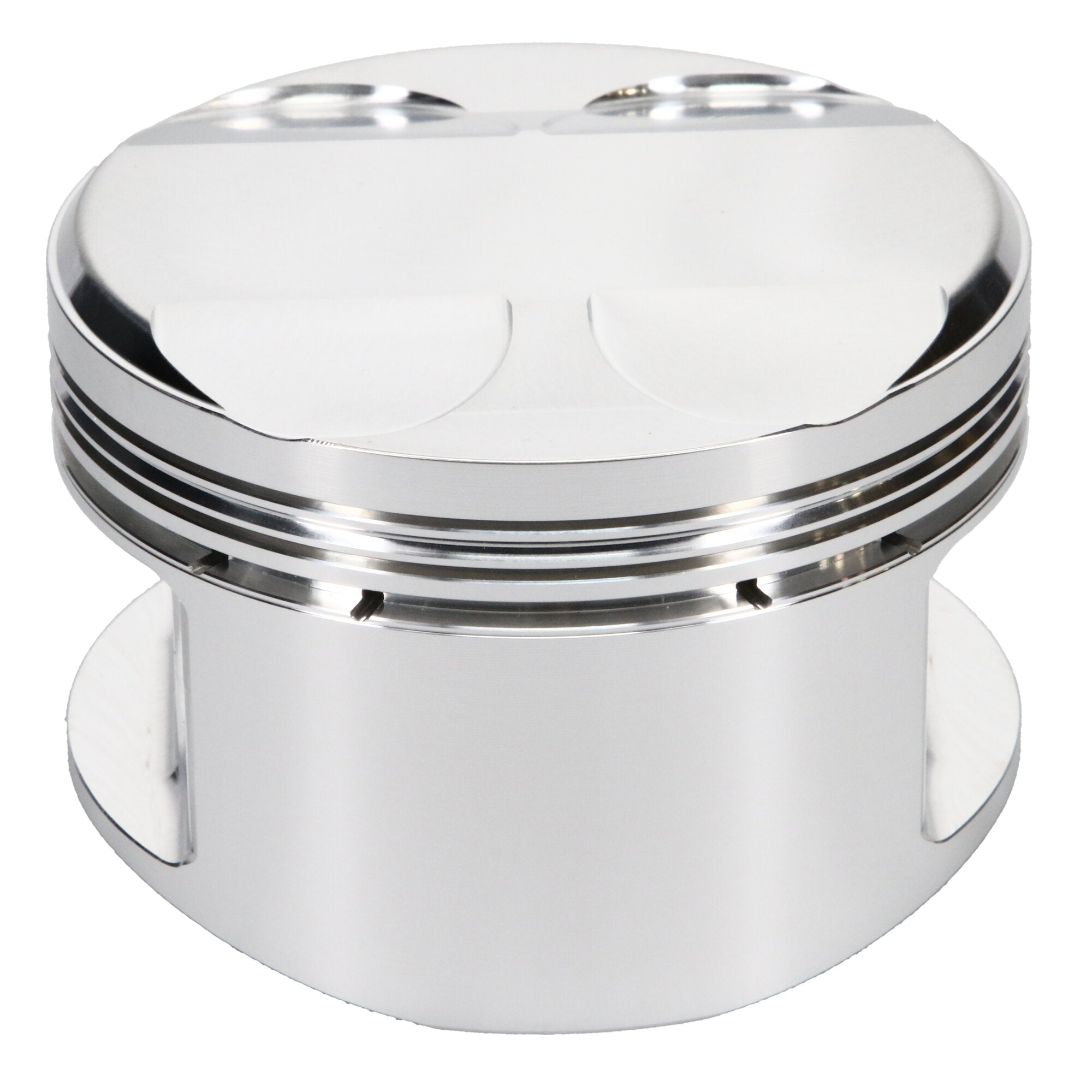

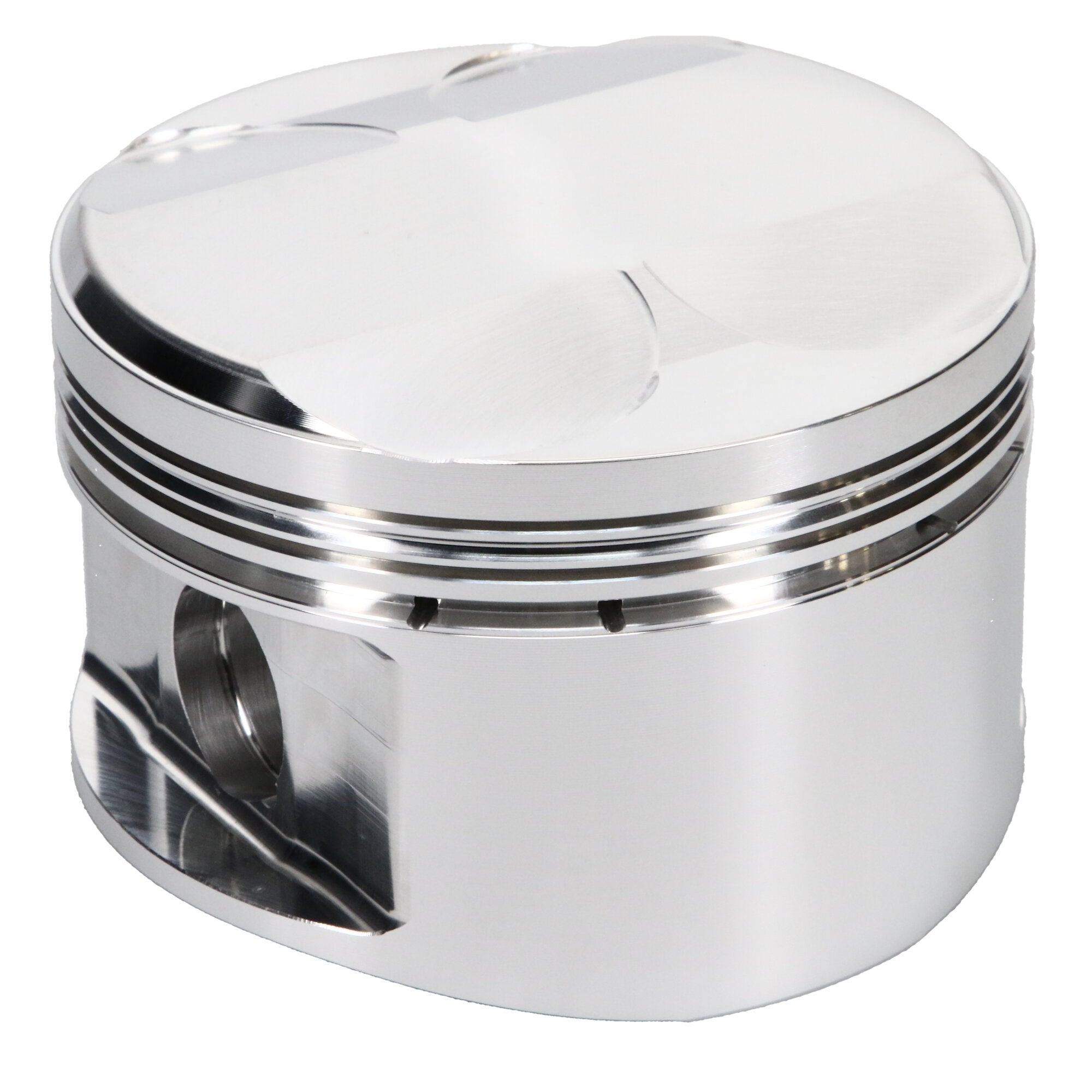

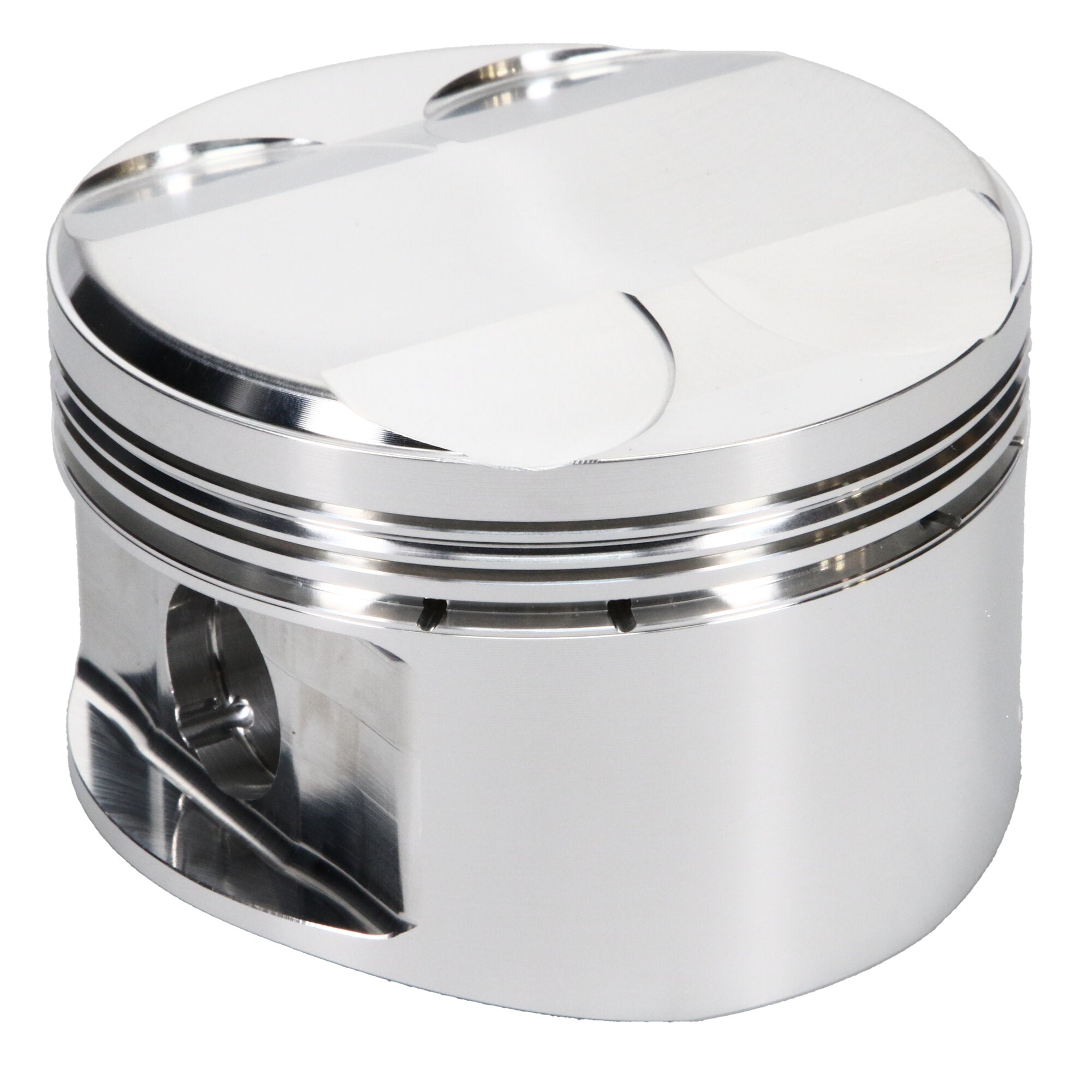

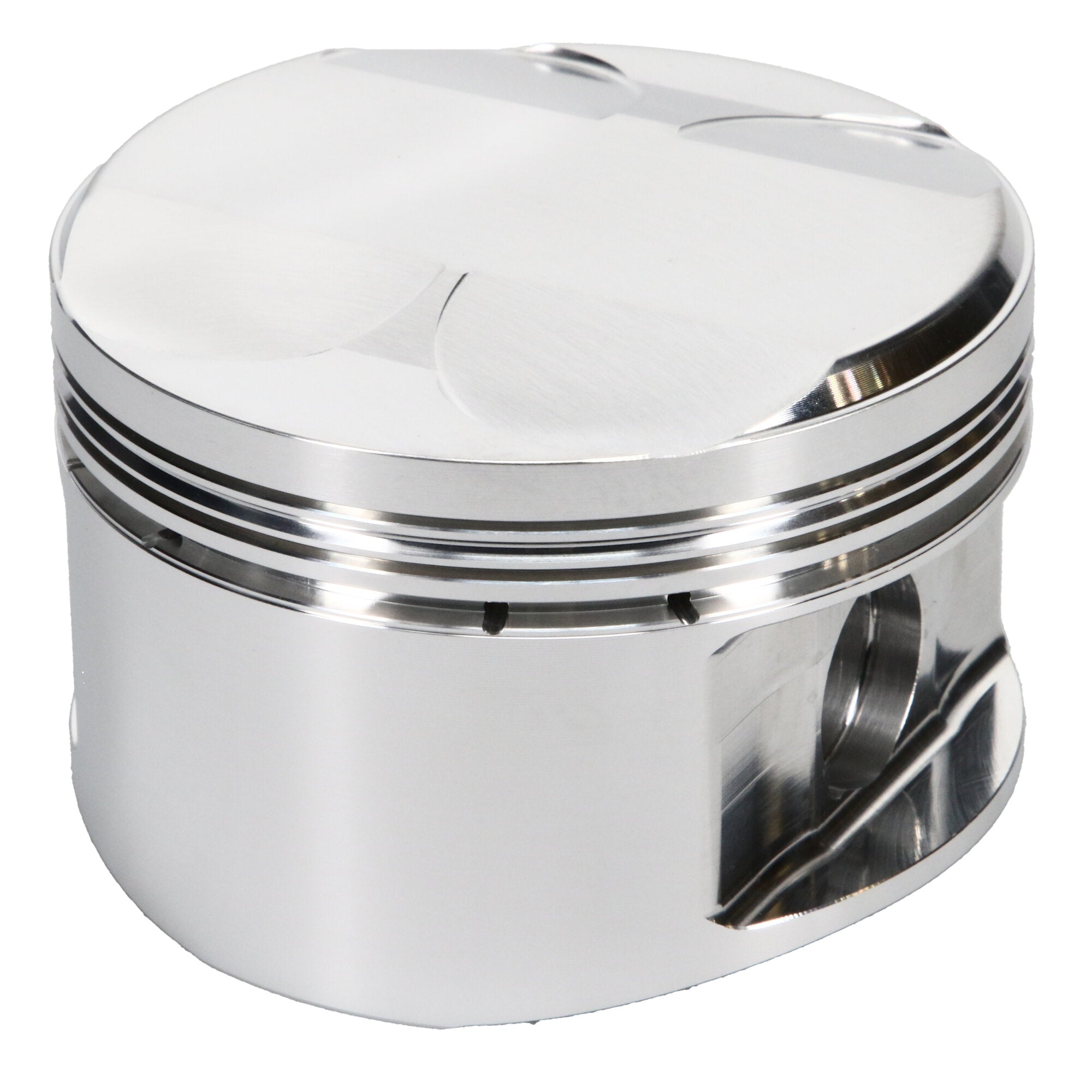

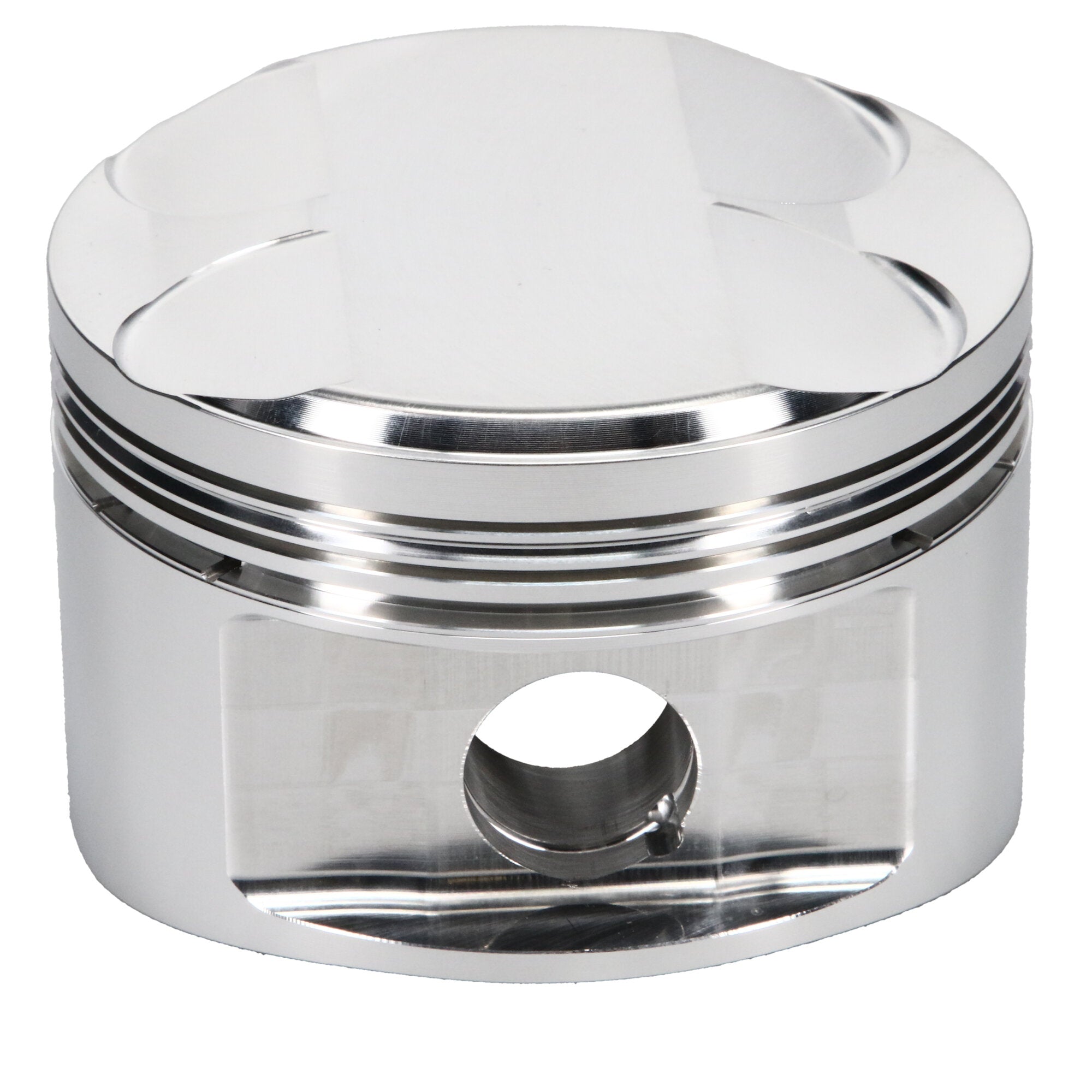

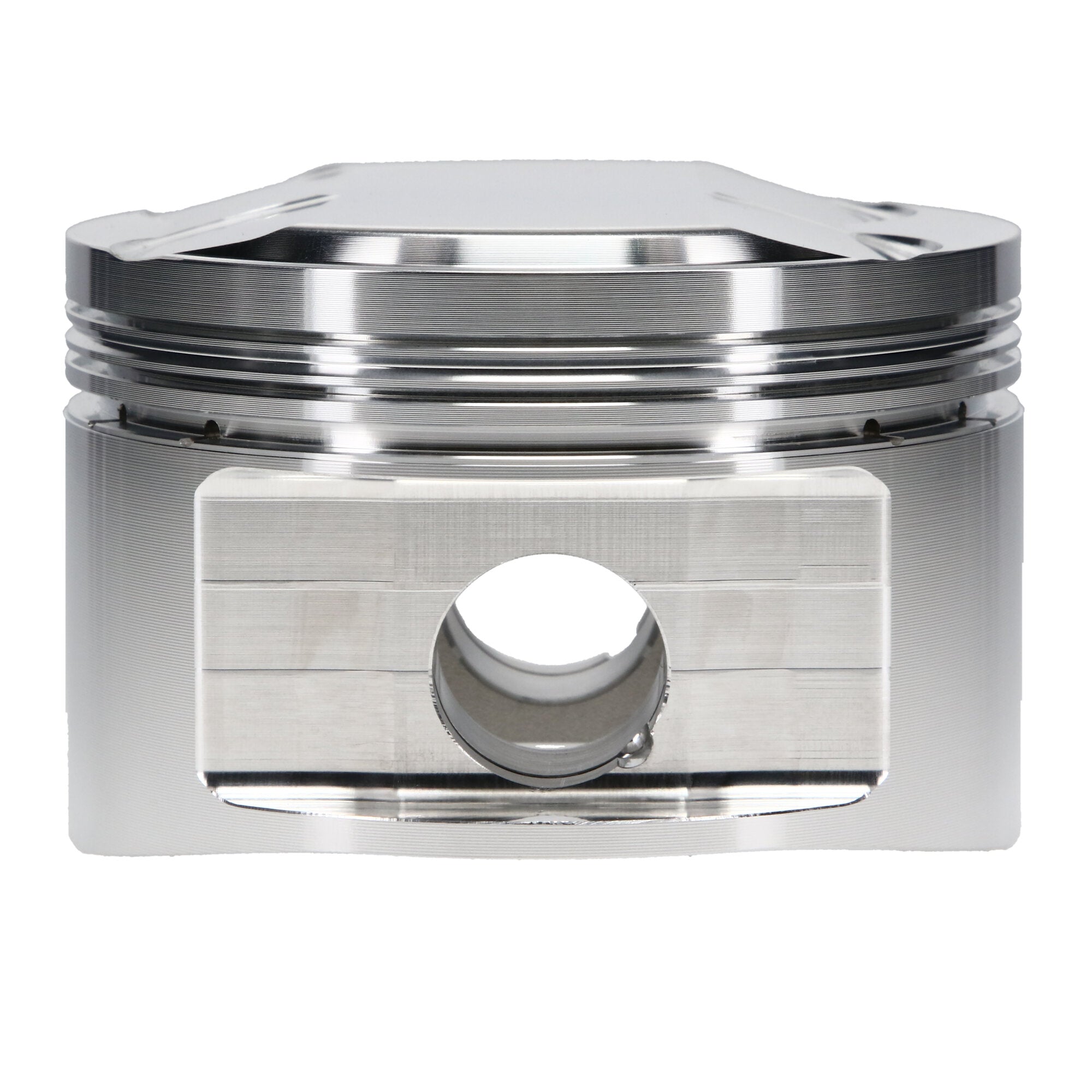

Piston Set, 2618, Dome, 3.937 Bore, 1.605 CD, 0.905 Pin, Set of 6. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_EXT |
JE, Nissan, TB48DE, 3.937 in. Bore, 11.30:1, Dome, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan TB48DE, 100.00 Bore, Dome, Set of 6 |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Nissan TB48DE Piston Kit - 100.00 mm Bore - 1.605 in. CH, 23.80 CC |
| Piston Series |
JE Pistons |
| Engine |
TB48DE |
| Make - Web |
Nissan |
| Piston Pin Length |
2.500 |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Make |
NISSAN |
| Forging Type |
Round |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Average Weight |
502 |
| Product Type |
Engine Piston Kit |
| Add-On |
JG1001-3937 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
905-2500-15-51C |
| Piston Quantity |
6 |
| Compression Height |
1.605 |
| Product Market |
Sport Compact |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
23.80 |
| Bore Diameter |
100.00 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Cylinder Head |
TB48DE |
| Industry |
Automotive |
| Piston Material |
2618 |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
905-073-MW |
| Title |
JE Pistons - Nissan, TB48DE, 100.00 mm Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Outside Diameter |
0.905 |
| Engine - Web |
TB48DE |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.500 |
| Wrist Pin Outer Diameter |
0.905 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
10.0000 |
