As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan TB48DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

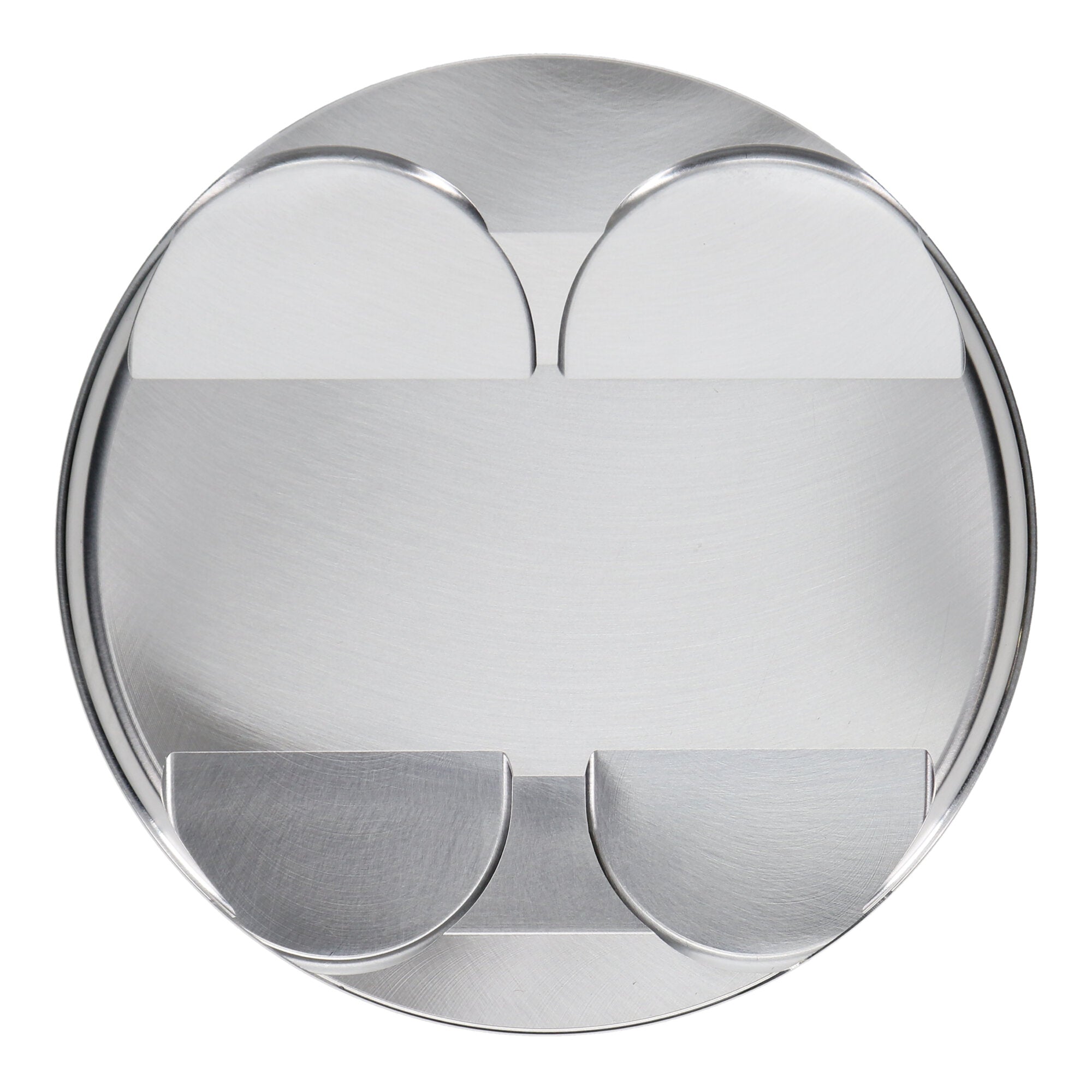

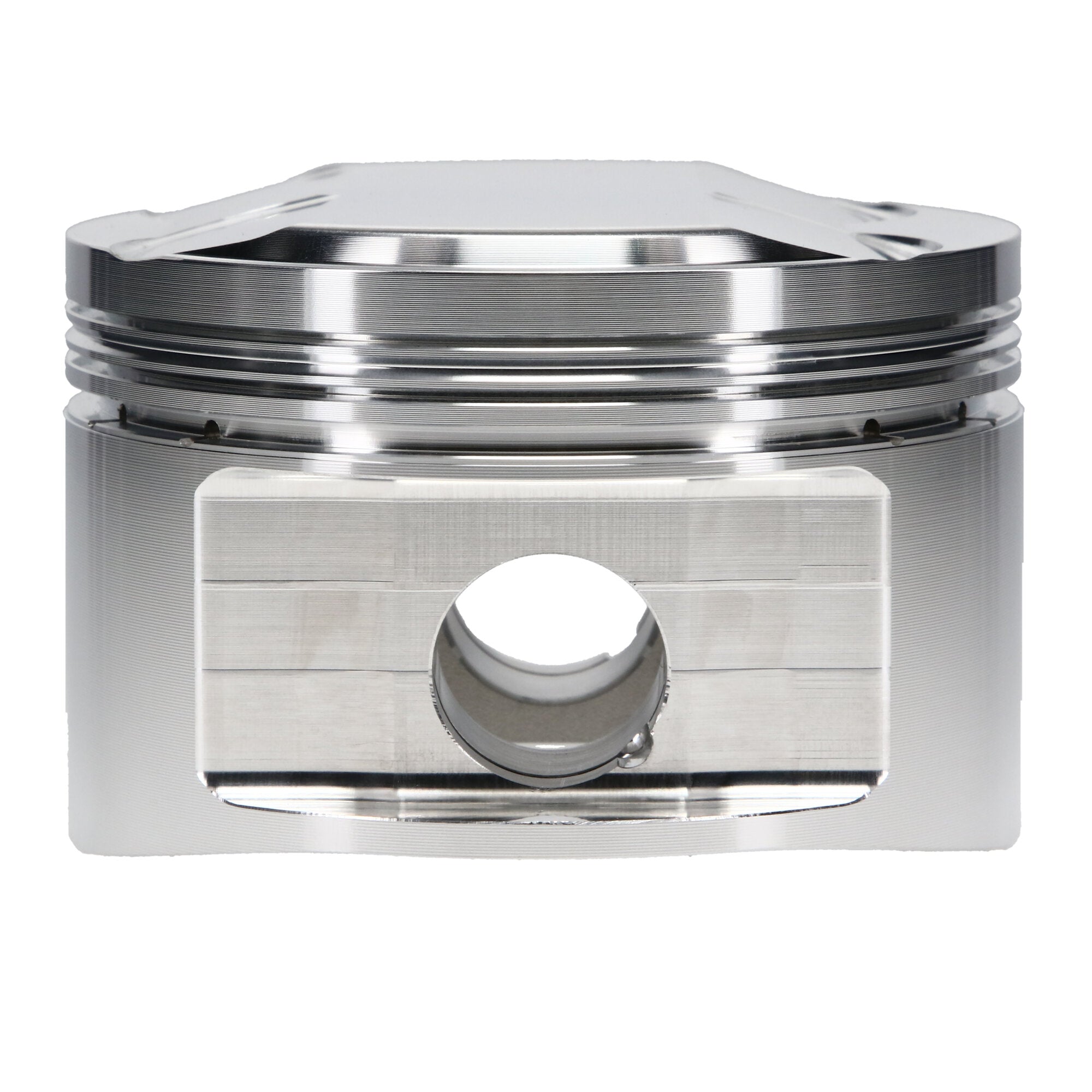

Piston Set, 2618, Inv Dome/Dish, 3.957 Bore, 1.585 CD, 0.905 Pin, Set of 6. |
| Description_EXT |
JE, Nissan, TB48DE, 3.957 in. Bore, 8.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan TB48DE, 100.50 Bore, Dish, Set of 6 |
| Piston Pin Length |
2.500 |
| Piston Head Type |
Dish |
| Engine Type |
ICE |
| Forging Type |
Round |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Engine |
TB48DE |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.111 |
| Make |
NISSAN |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.905 |
| Out of Stock Message |
Call for Availability |
| Add-On |
905-2500-15-51C |
| Add-On |
JG1001-3957 |
| Piston Volume |
-2.70 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Nissan, TB48DE, 100.50 mm Bore, Piston Kit |
| Product Market |
Sport Compact |
| Piston Average Weight |
482 |
| Piston Pin Outside Diameter |
0.905 |
| Piston Quantity |
6 |
| Add-On |
905-073-MW |
| Prop 65 Yes/No |
Yes |
| Top Compression Ring Thickness |
0.0400 |
| Title - Web |
JE Pistons Nissan TB48DE Piston Kit - 100.50 mm Bore - 1.585 in. CH, -2.70 CC |
| Compression Height |
1.585 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.500 |
| Make - Web |
Nissan |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
TB48DE |
| Bore Diameter |
100.50 |
| Cylinder Head |
TB48DE |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
10.0000 |
