As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS1 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

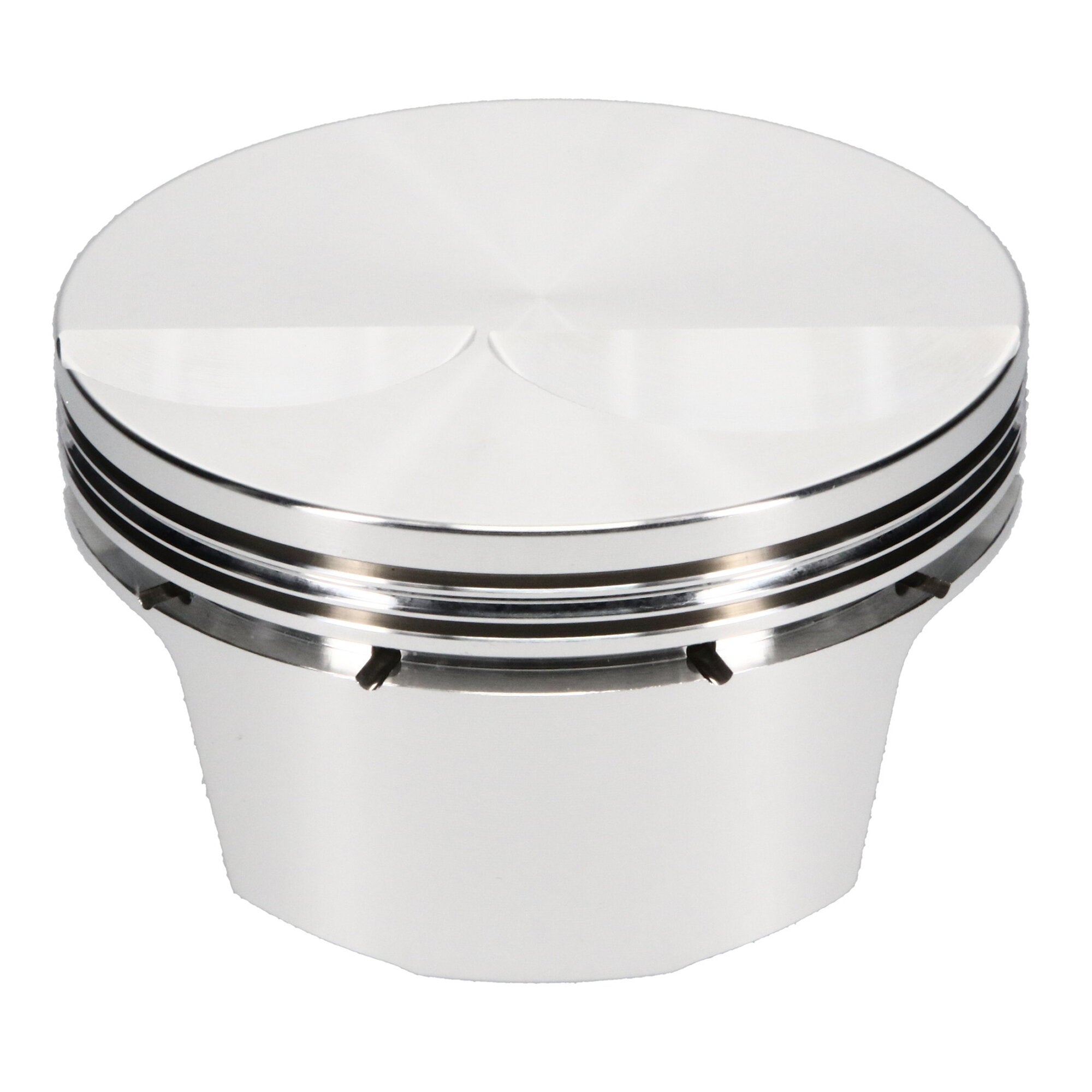

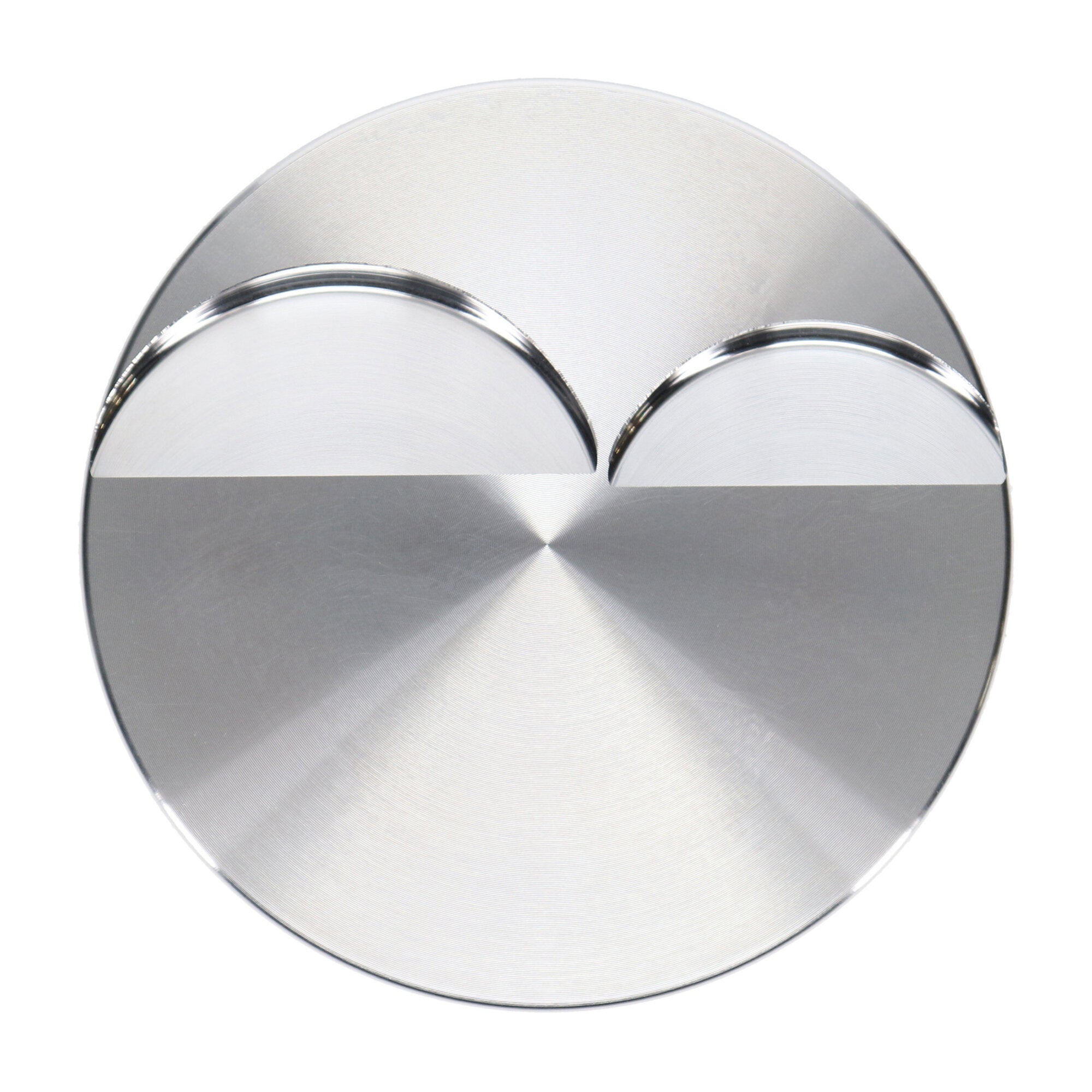

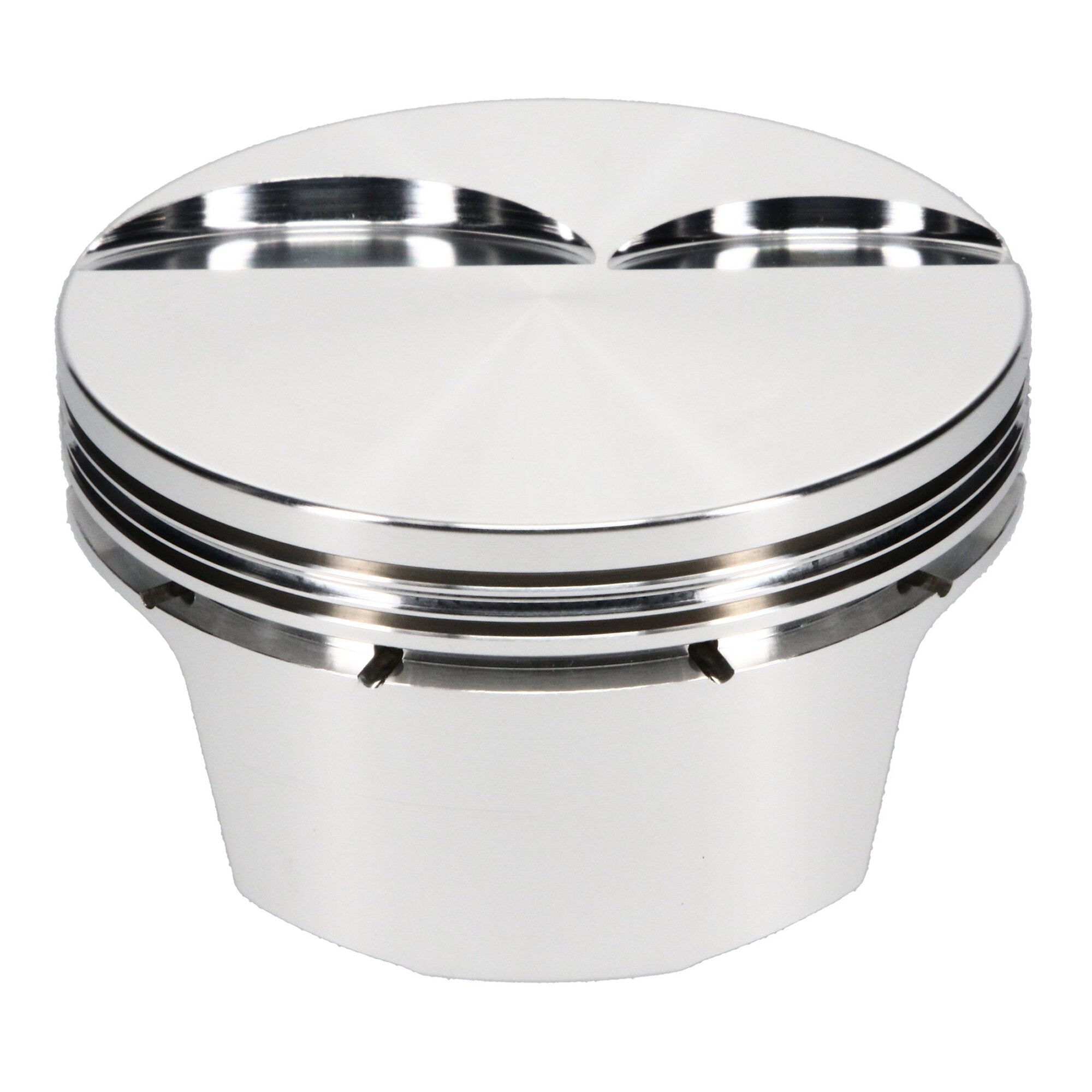

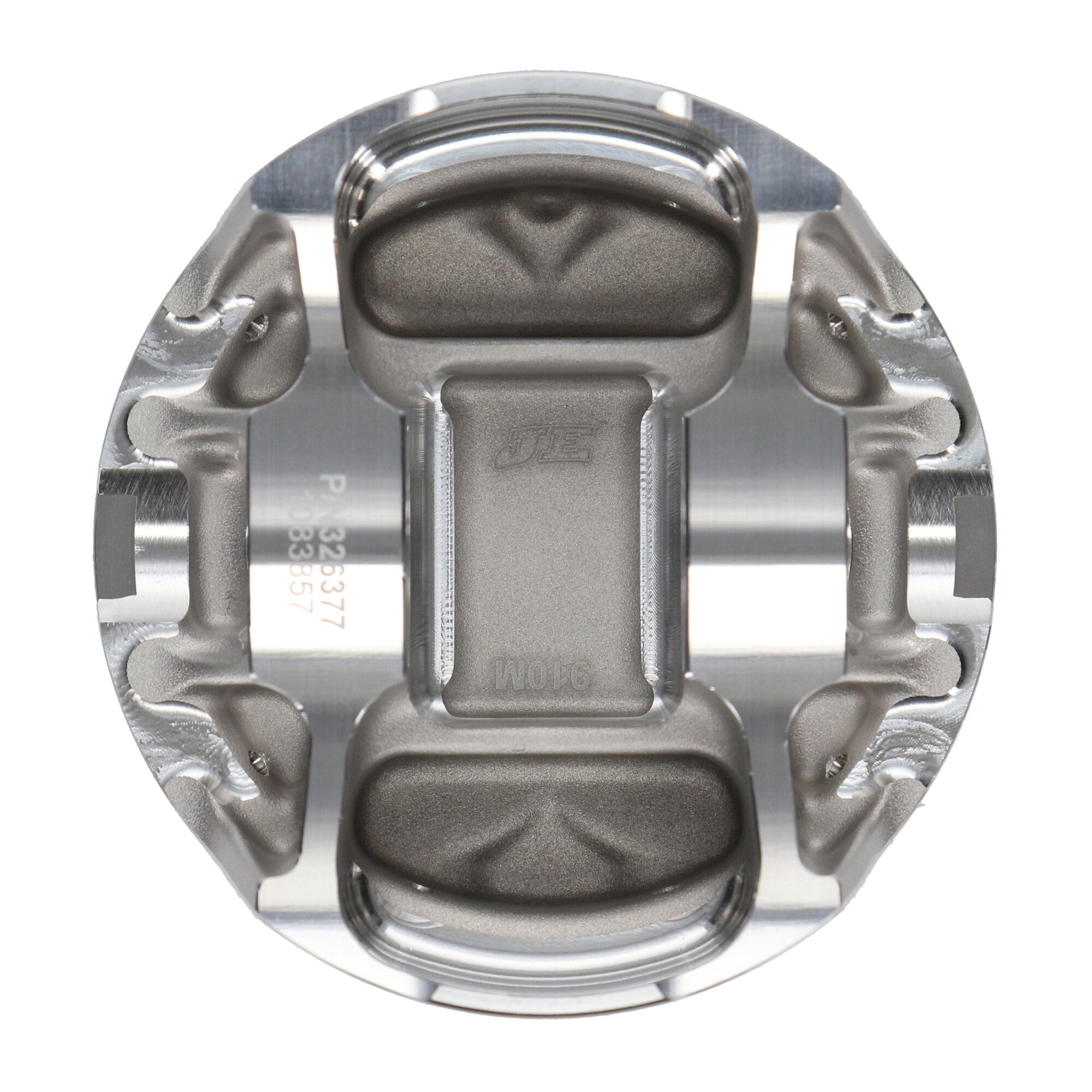

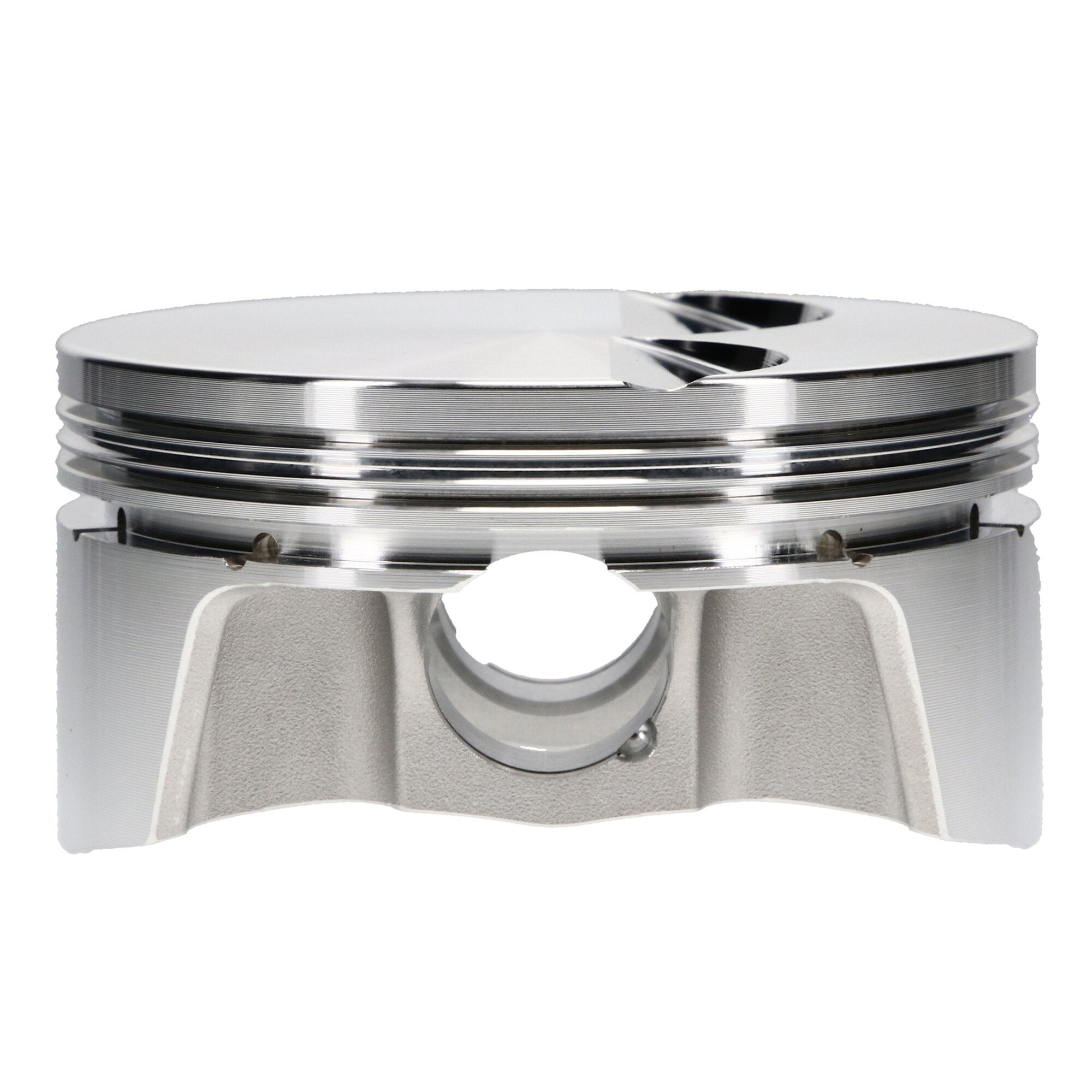

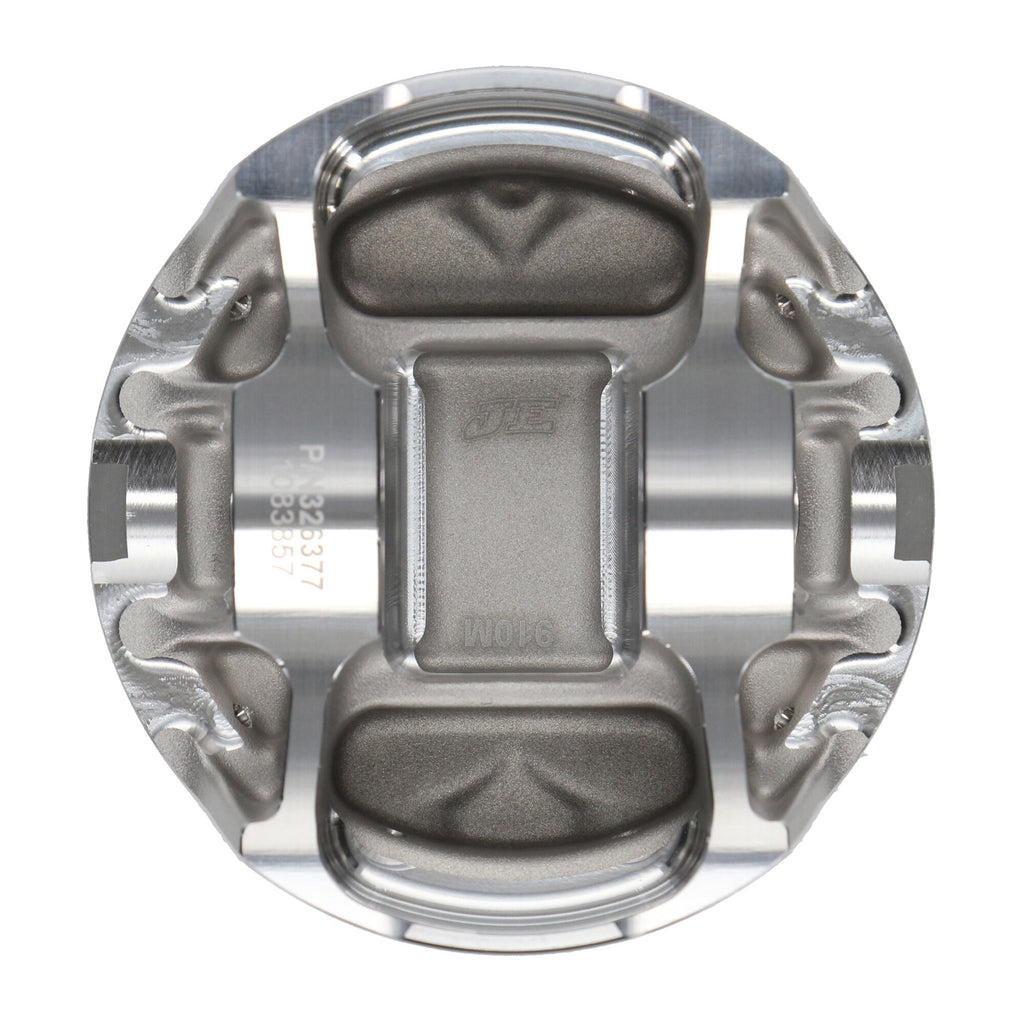

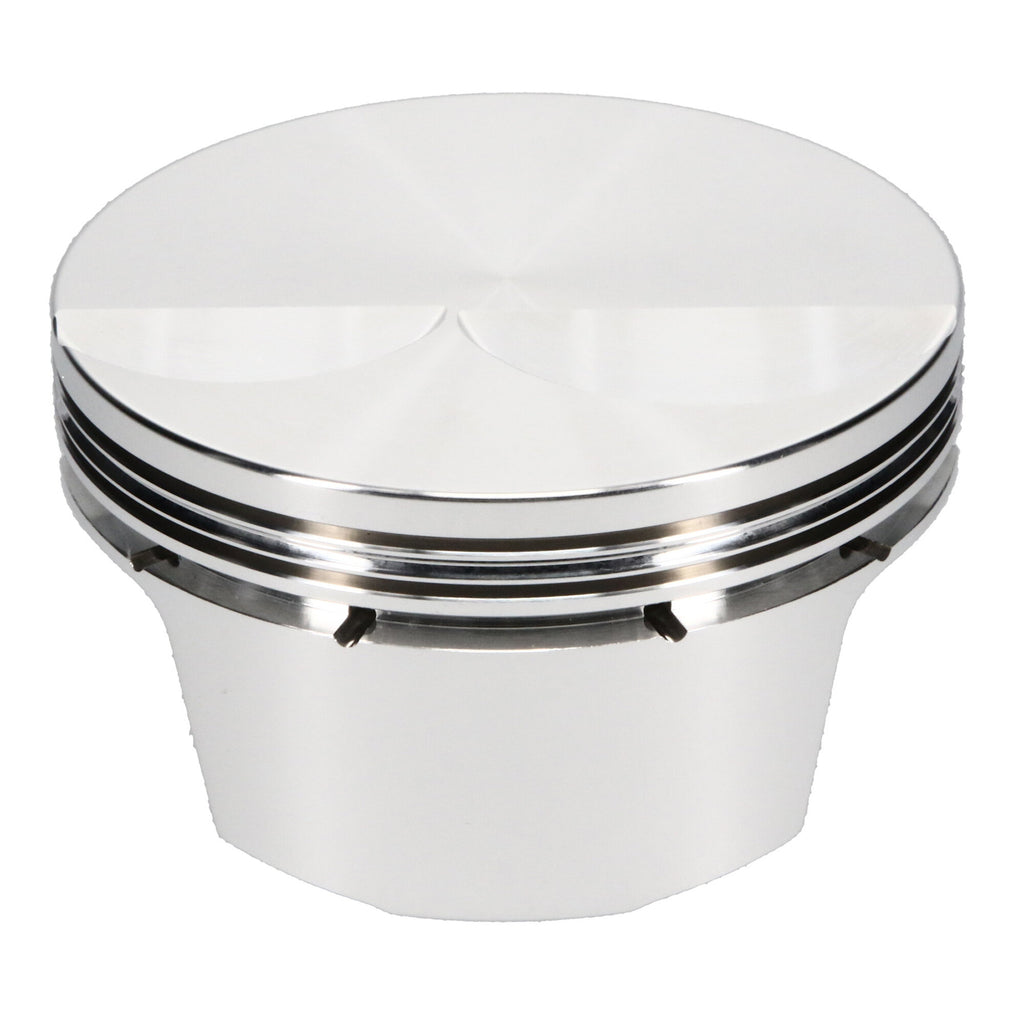

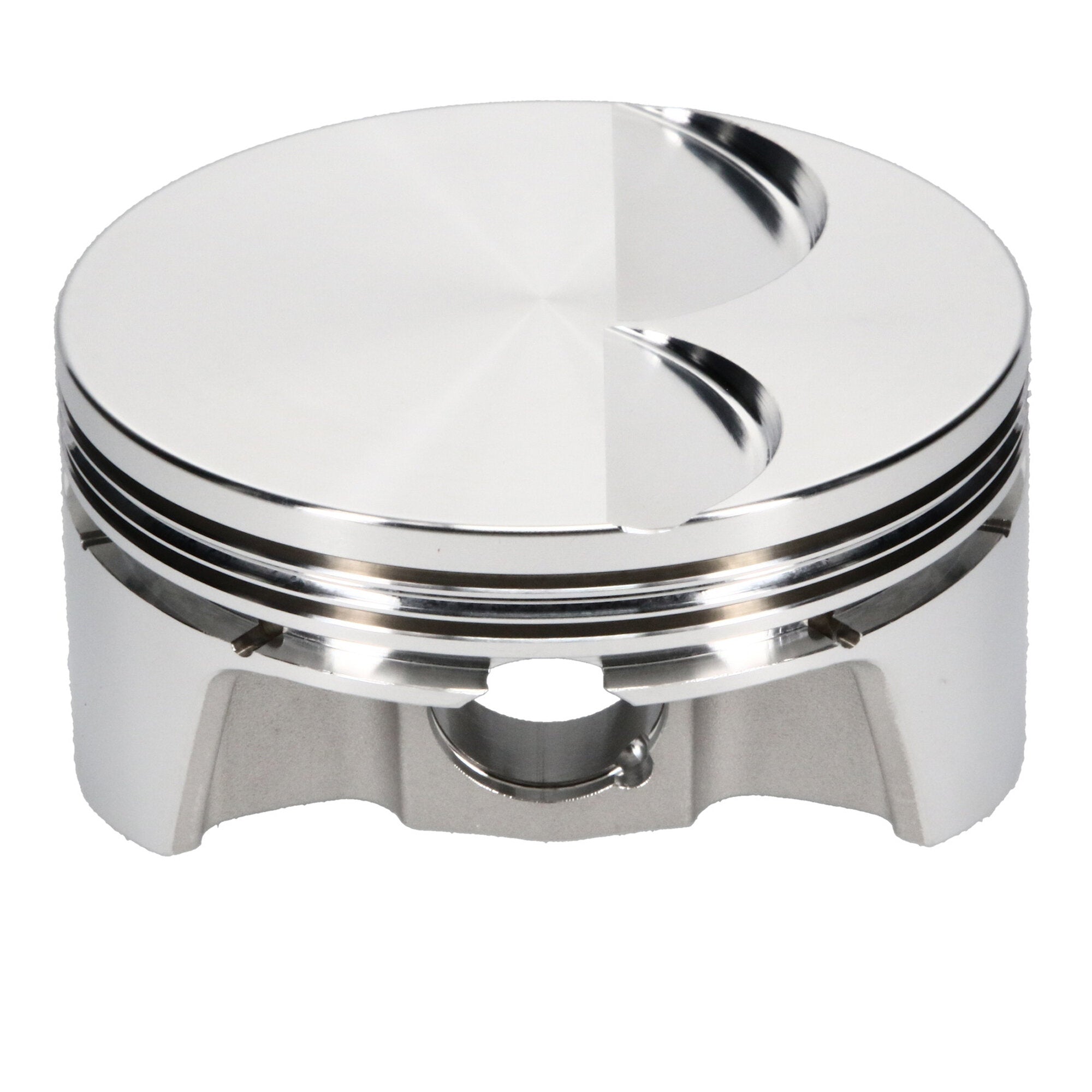

Piston Set, 2618, Flat Top, 3.898 Bore, 1.115 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 3.898 in. Bore, 1.115 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet LS1, 3.898 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
J68008-3900-3 |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston Kit - 3.898 in. Bore - 1.115 in. CH, -2.00 CC |
| Add-On |
927-2250-15-51C |
| Add-On |
927-073-MW |
| Cylinder Head |
LSX/L92 12 DEG |
| Out of Stock Message |
Call for Availability |
| Engine |
LS Gen III/IV |
| Industry |
Automotive |
| Piston Material |
2618 |
| Piston Head Type |
Flat |
| Second Compression Ring Thickness |
0.0600 |
| Piston Pin Length |
2.250 |
| Ringset Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Pin Material |
5115 |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.927 |
| Bore Diameter |
3.898 |
| Piston Average Weight |
412 |
| Engine Type |
ICE |
| Compression Height |
1.115 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Piston Series |
JE Pistons |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 3.898 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.149 |
| Top Compression Ring Thickness |
0.0600 |
| Forging Type |
FSR |
| Piston Volume |
-2.00 |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
LS Gen III/IV |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
13.0000 |
