As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda L15A |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

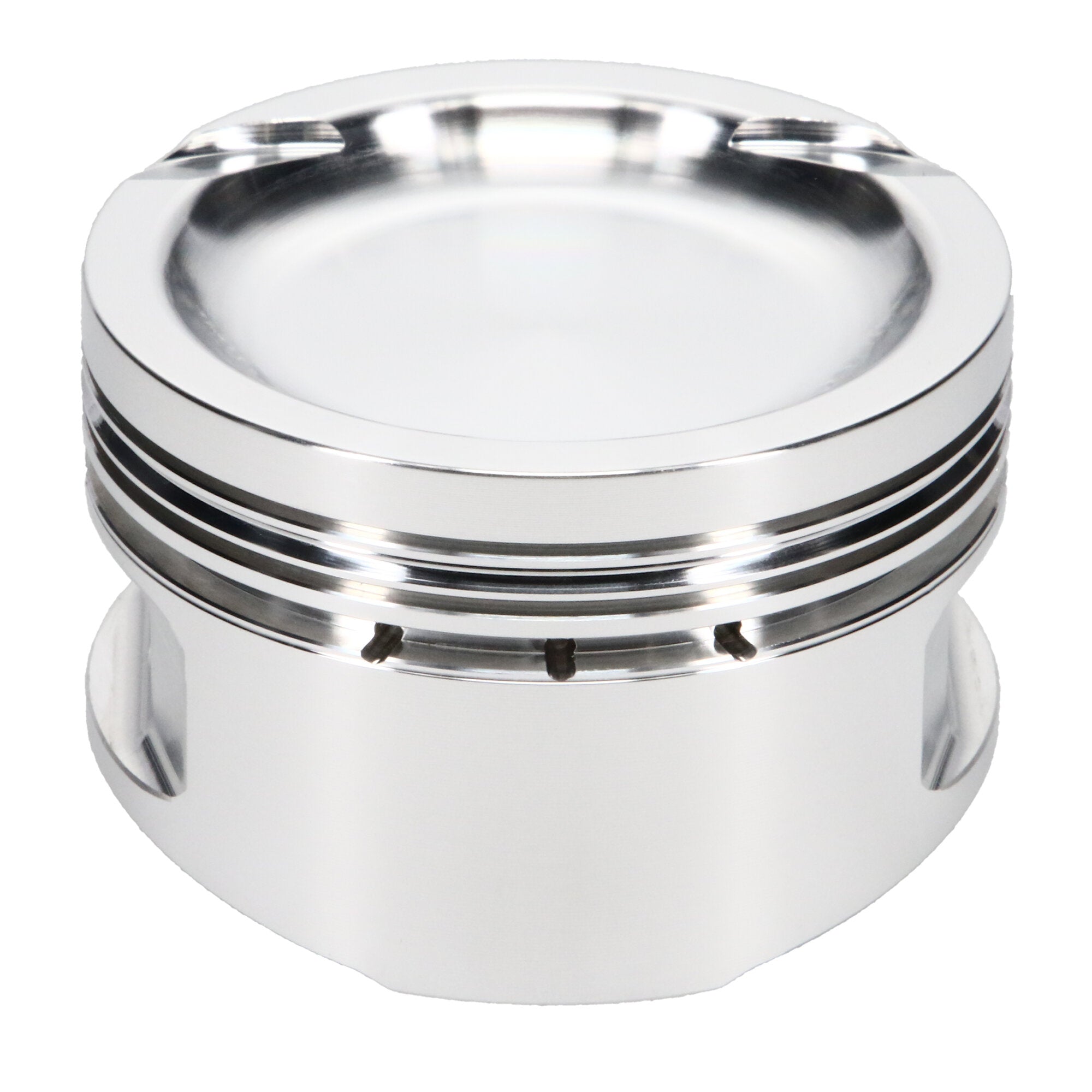

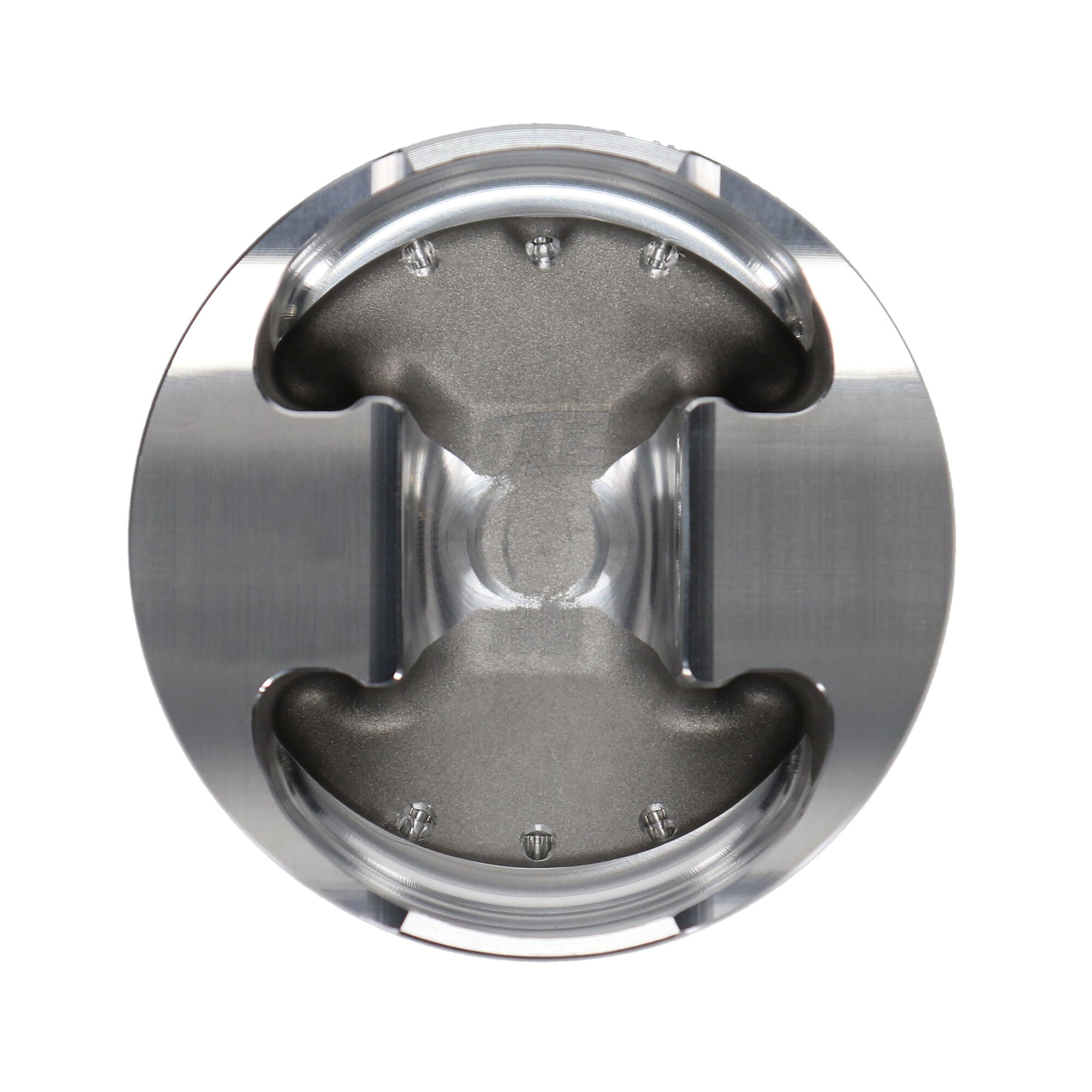

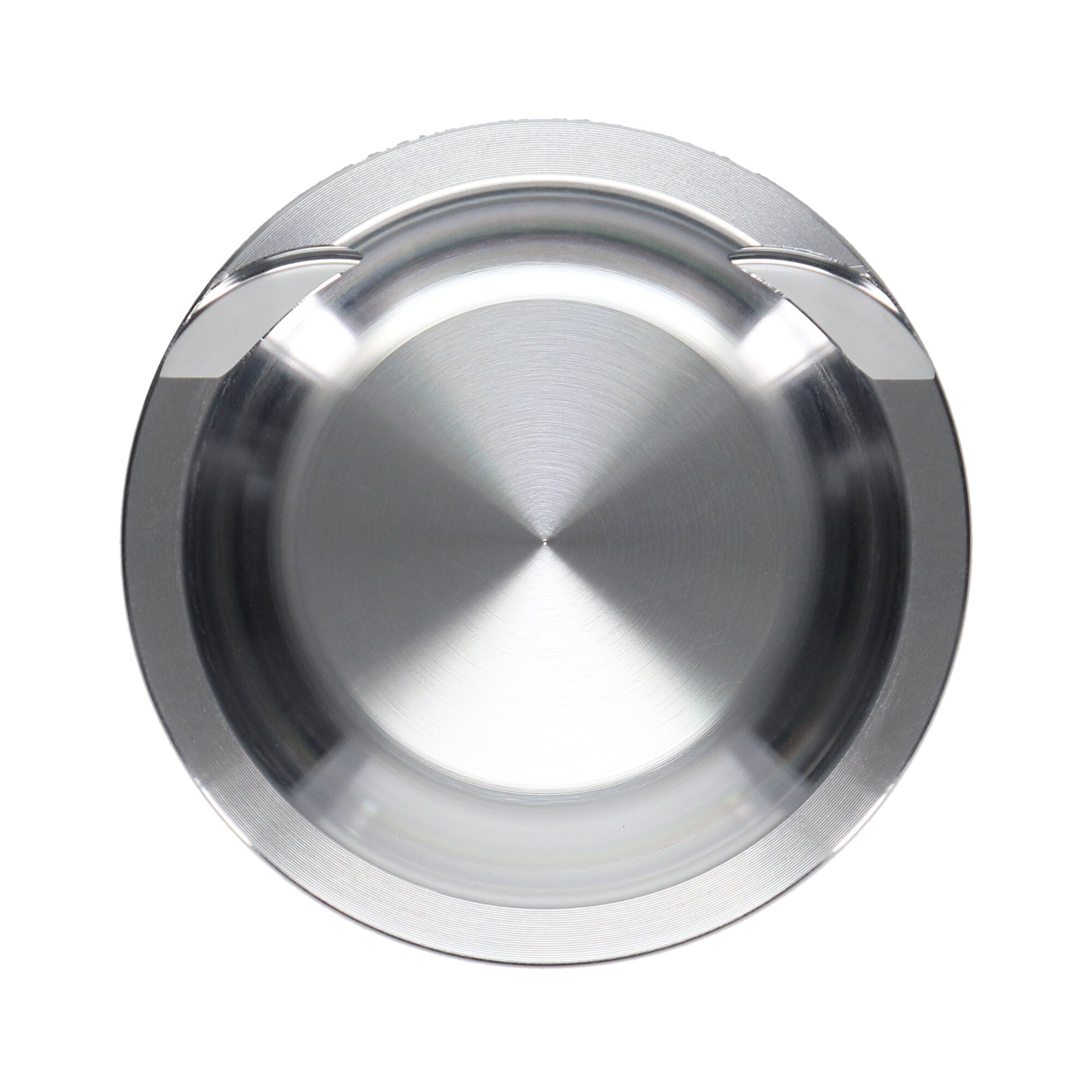

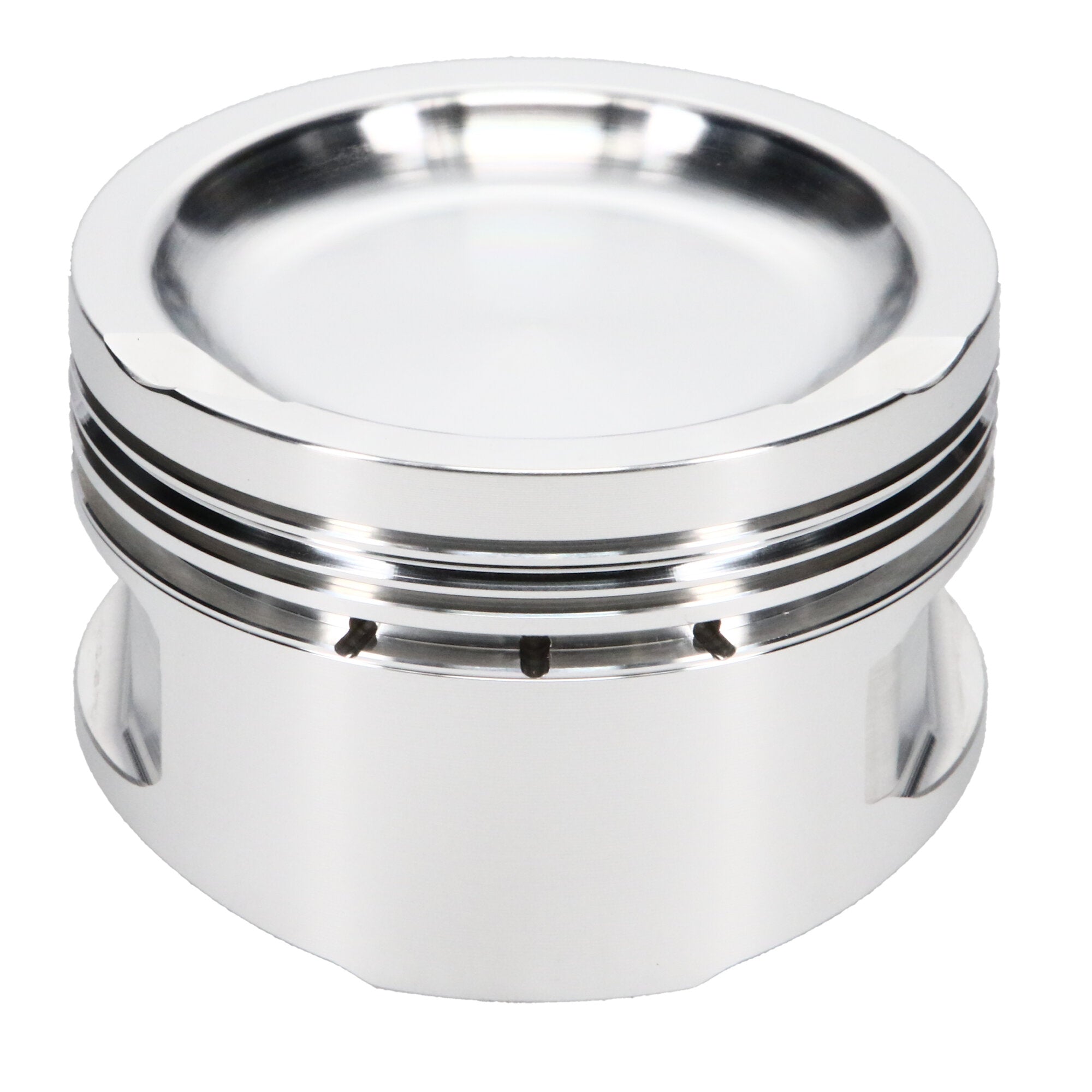

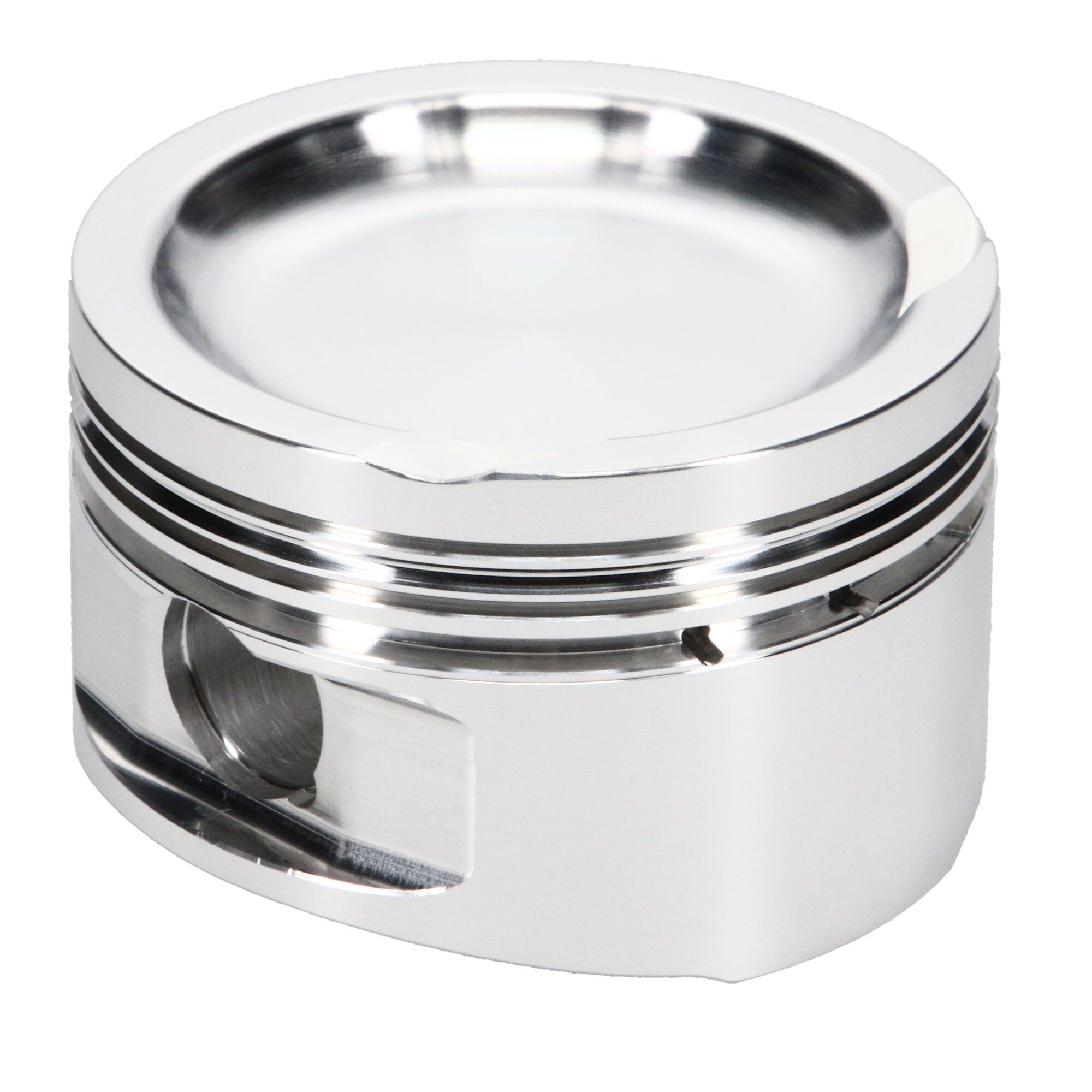

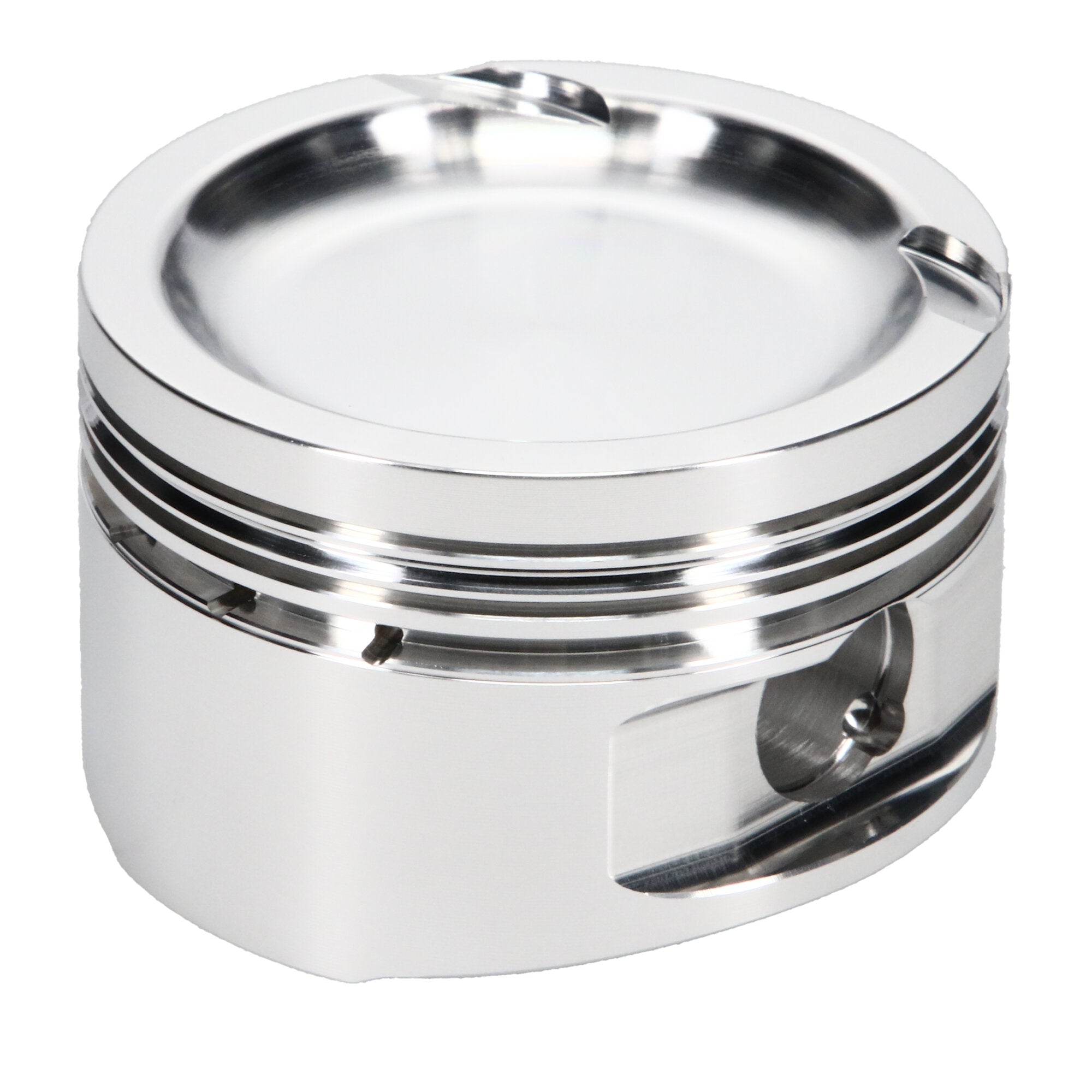

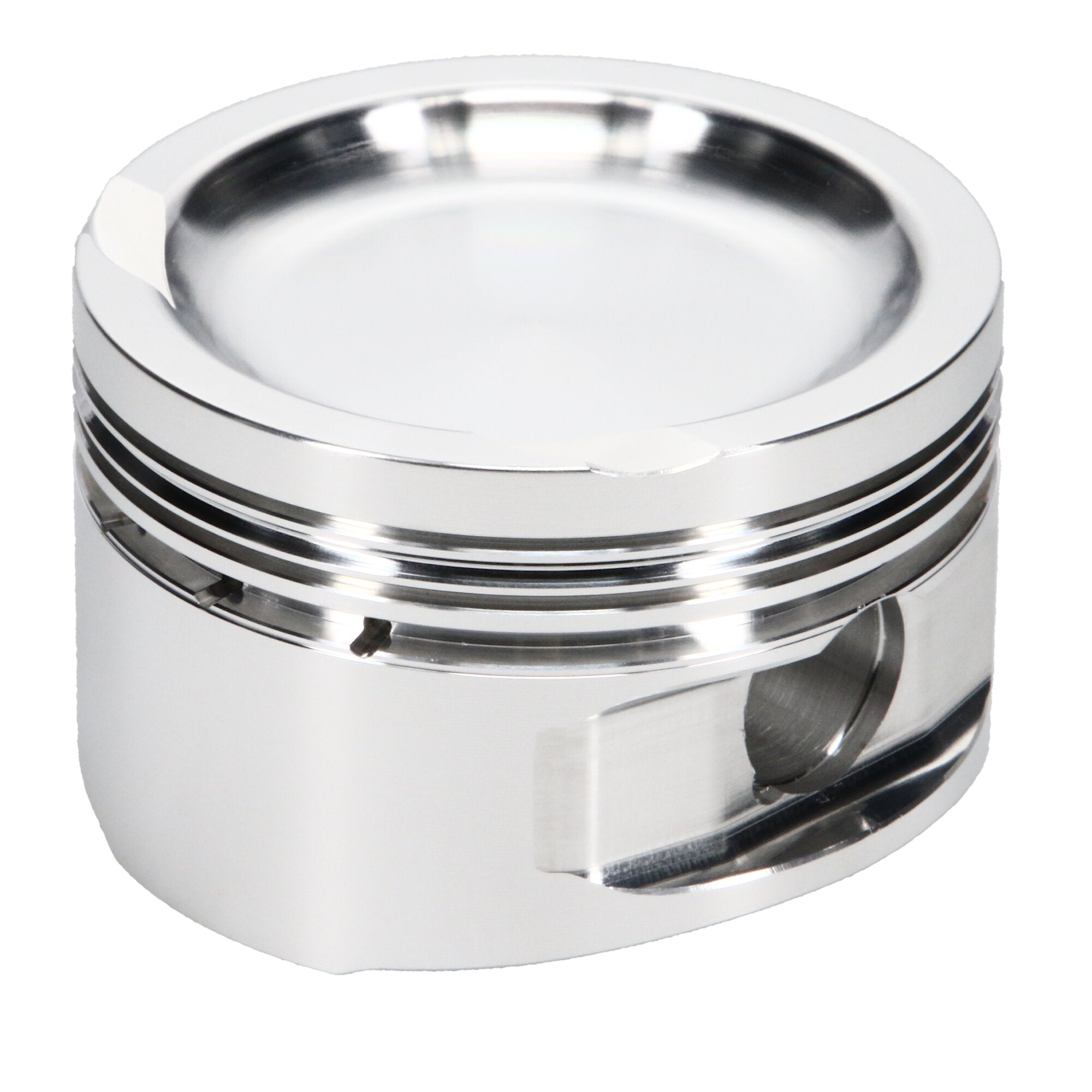

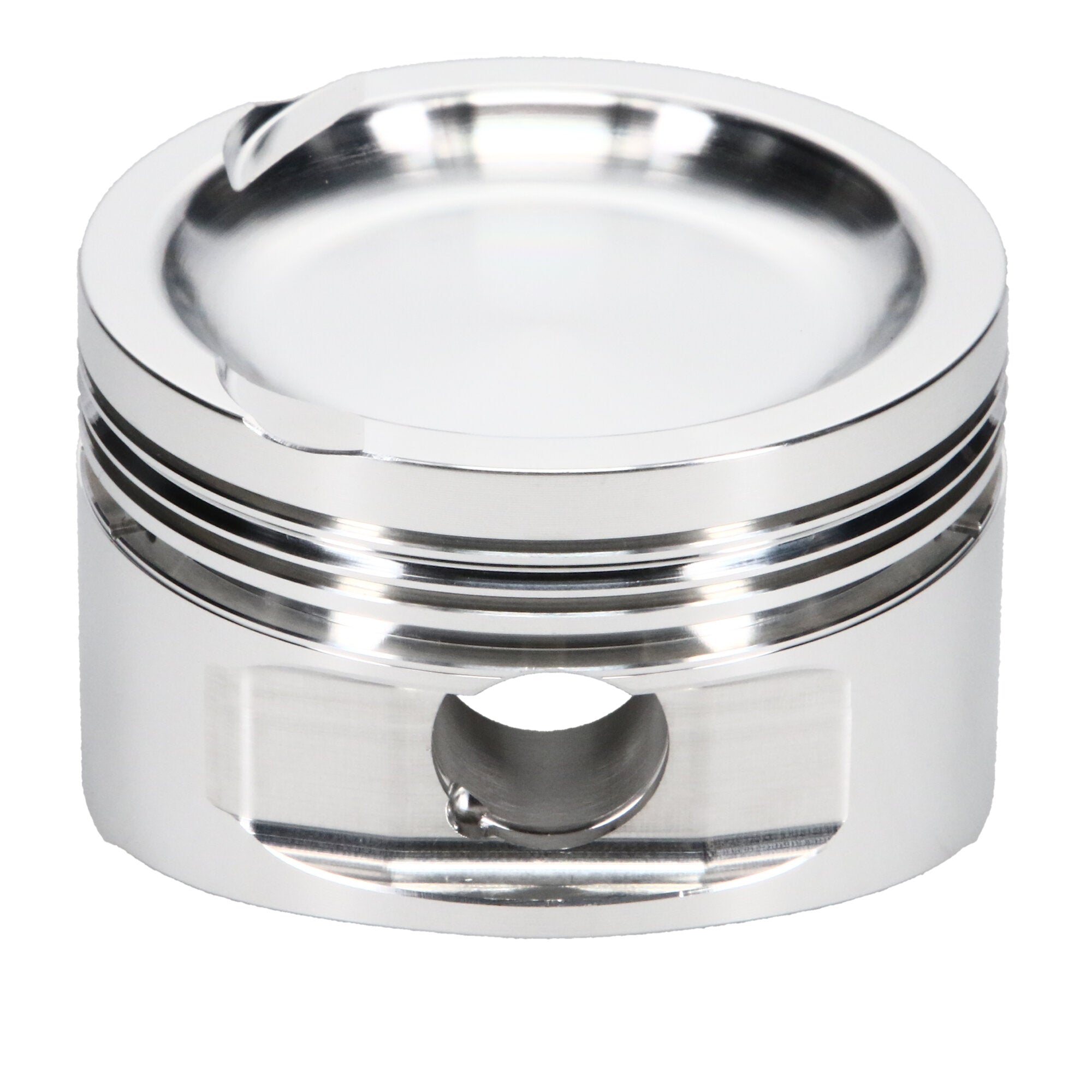

JE, Honda, L15A, 2.894 in. Bore, 12.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 2.894 Bore, 1.028 CD, 0.708 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Honda L15A, 73.50 Bore, Dish, Set of 4 |
| Description_SHO |
Piston Kit |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Pistons |
| Make - Web |
Honda |
| Add-On |
JG1001-2894 |
| Engine |
L15A |
| Add-On |
708-2250-12-51C |
| Top Compression Ring Thickness |
0.0400 |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Title - Web |
JE Pistons Honda L15A Piston Kit - 73.50 mm Bore - 1.028 in. CH, -1.70 CC |
| Out of Stock Message |
Call for Availability |
| Add-On |
708-050-MW |
| Make |
HONDA |
| Piston Pin Wall Thickness |
0.120 |
| Piston Quantity |
4 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Market |
Sport Compact |
| Bore Diameter |
73.50 |
| Piston Volume |
-1.70 |
| Compression Height |
1.028 |
| Piston Pin Material |
5115 |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Forging Type |
Round |
| Piston Average Weight |
211 |
| Piston Pin Outside Diameter |
0.708 |
| Title |
JE Pistons - Honda, L15A, 73.50 mm Bore, Piston Kit |
| Cylinder Head |
L15A |
| Industry |
Automotive |
| Engine - Web |
L15A |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.120 |
| Wrist Pin Outer Diameter |
0.708 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
