As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda L15A |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Honda, L15A, 2.874 in. Bore, 11.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |

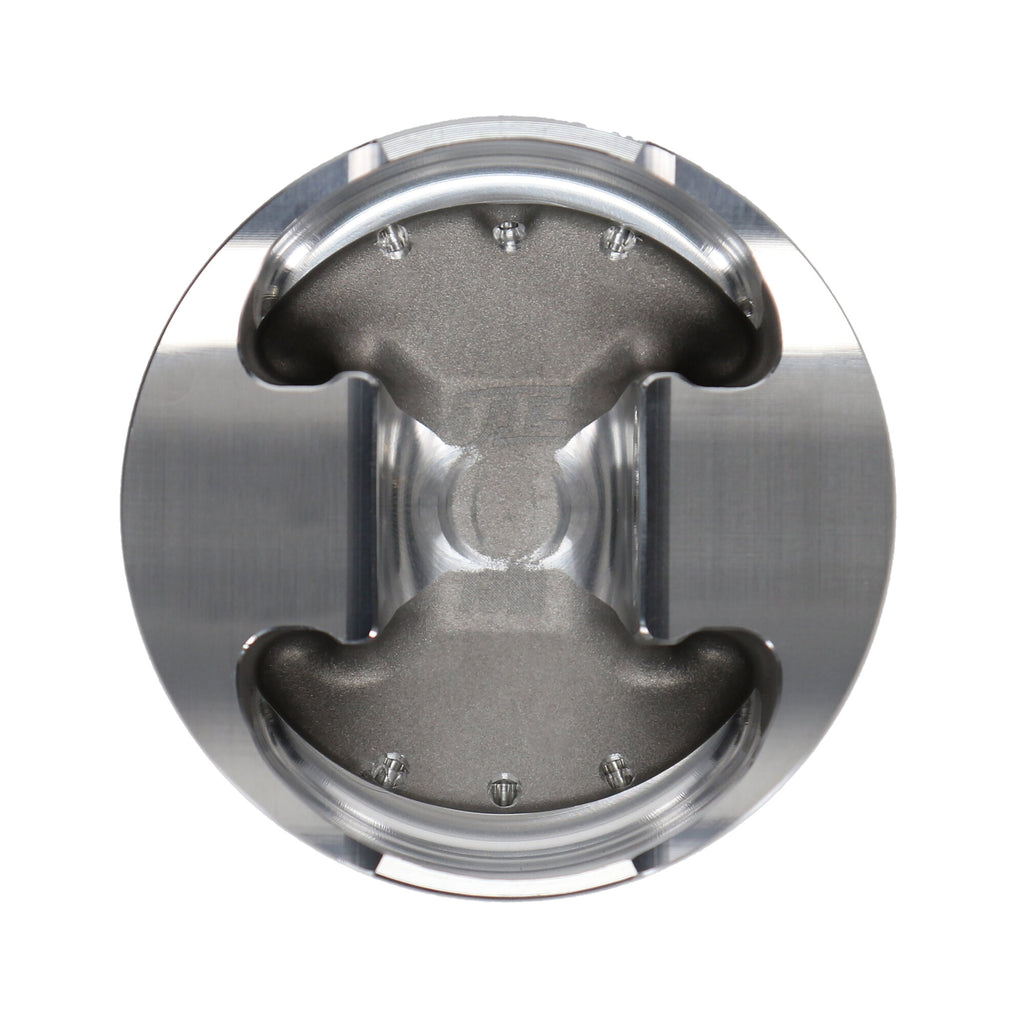

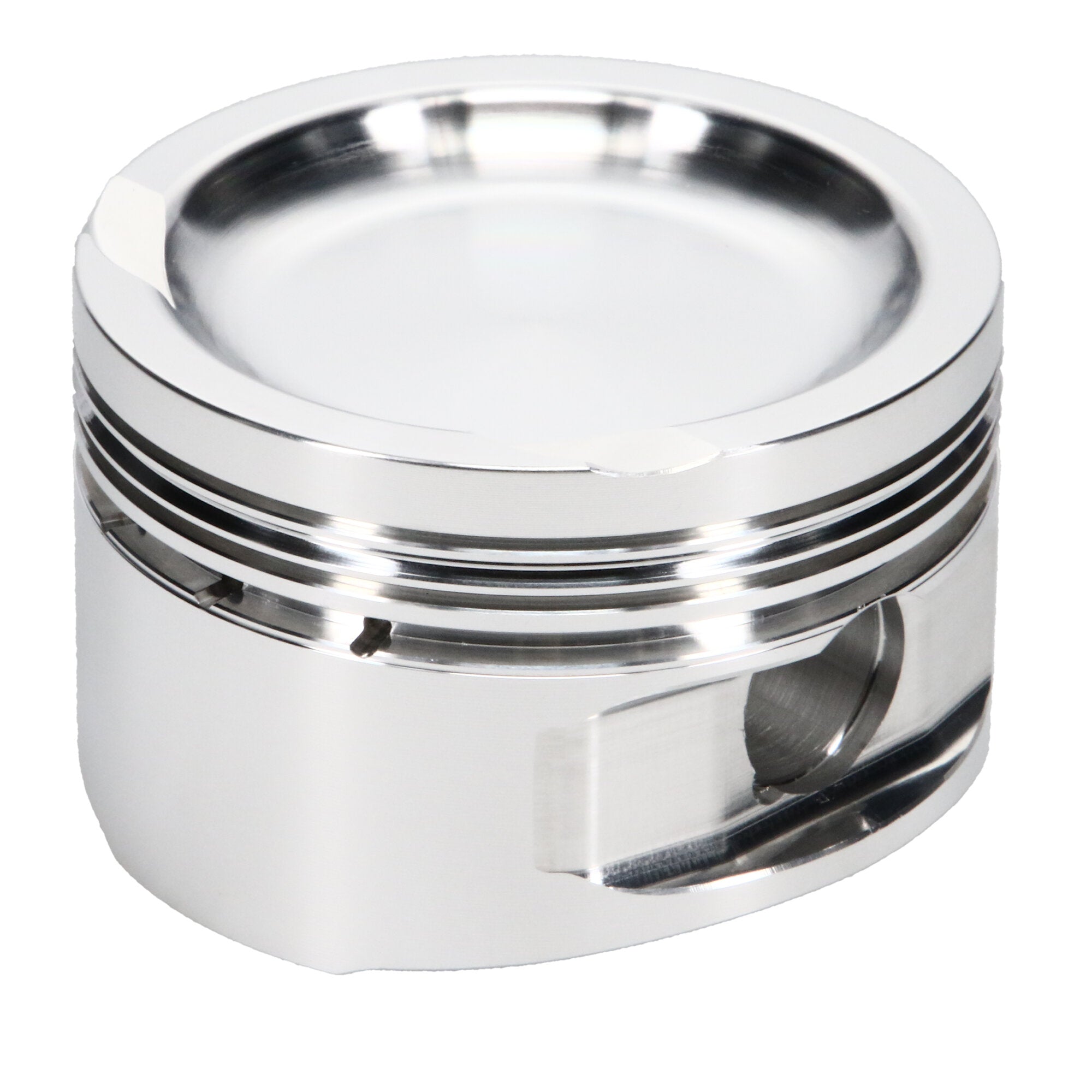

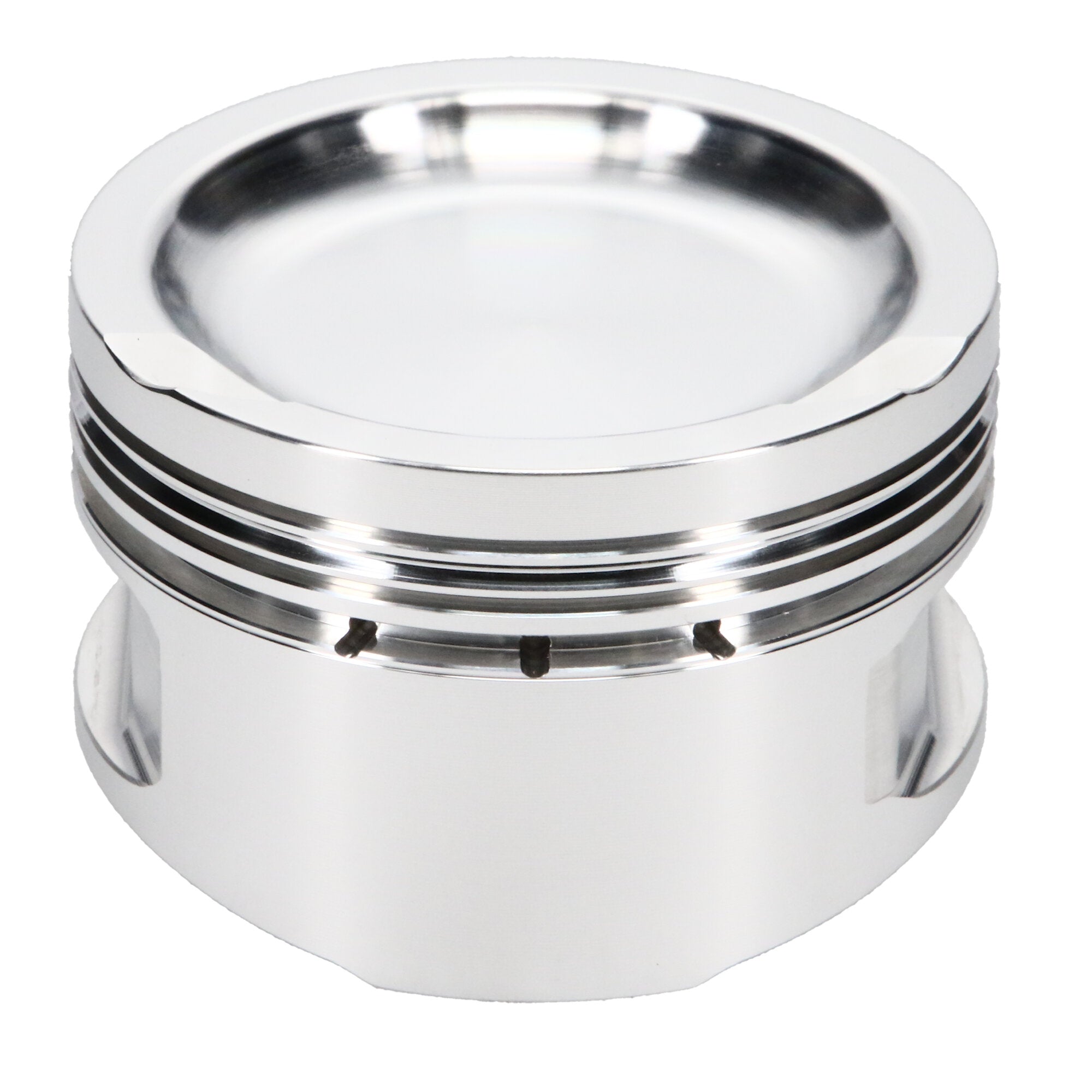

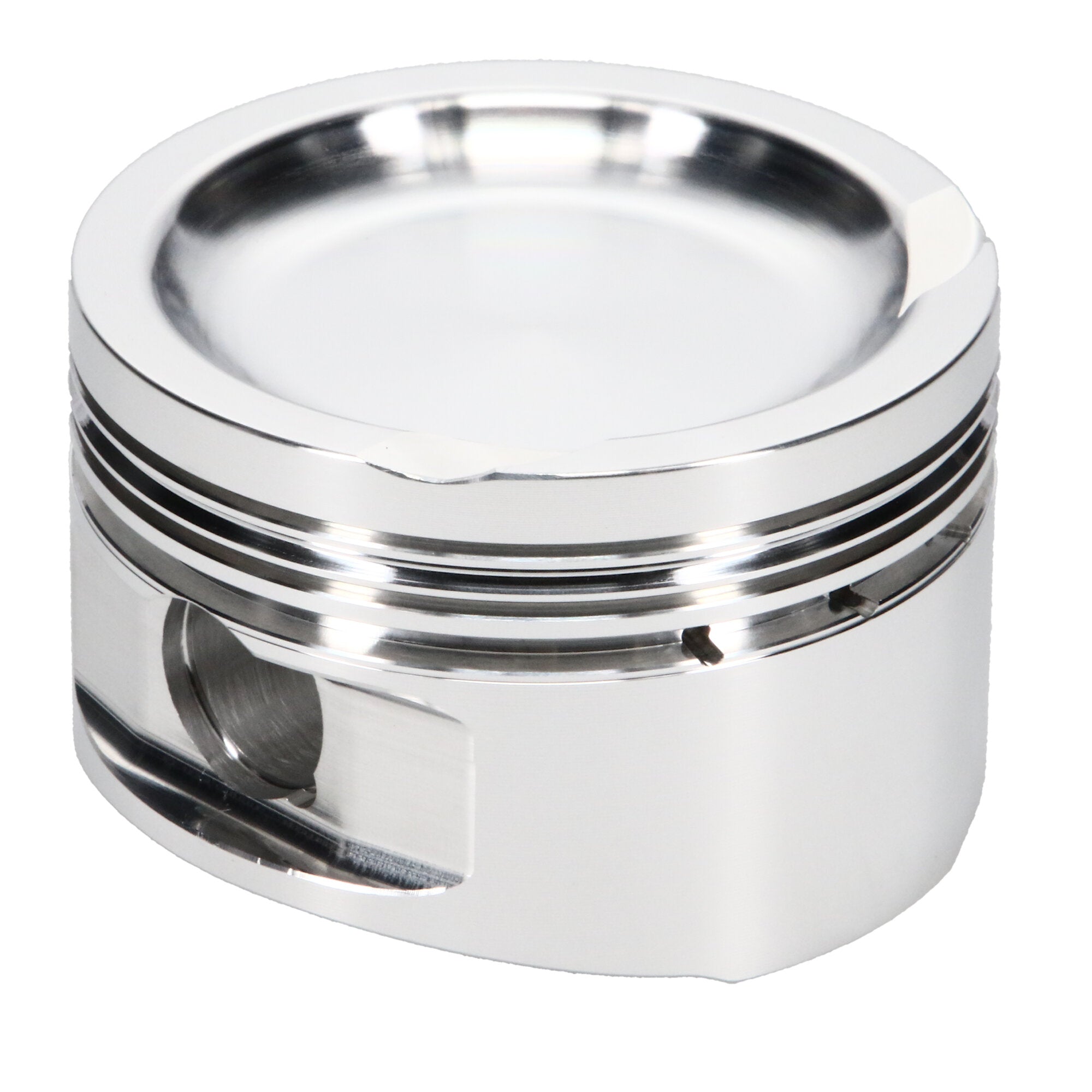

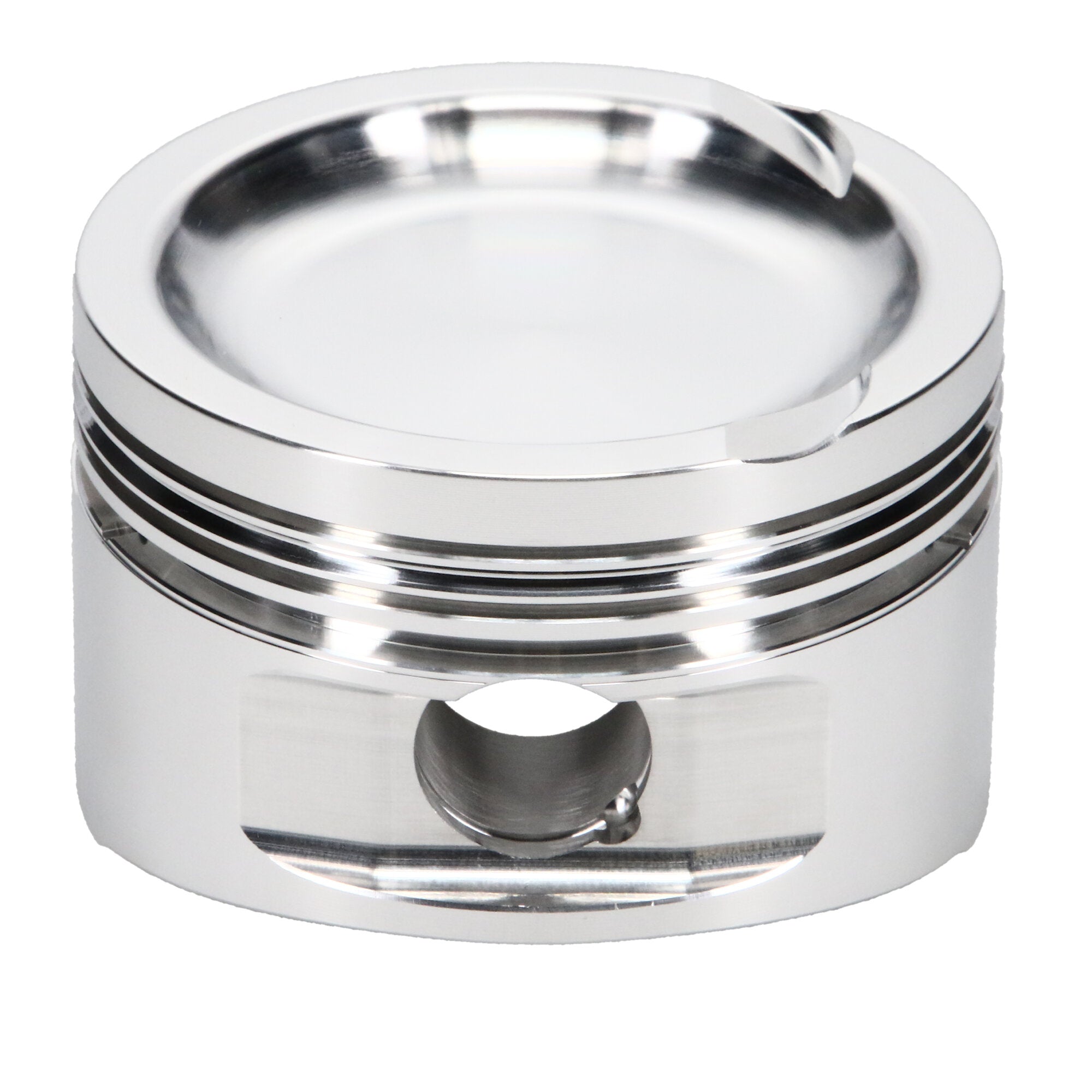

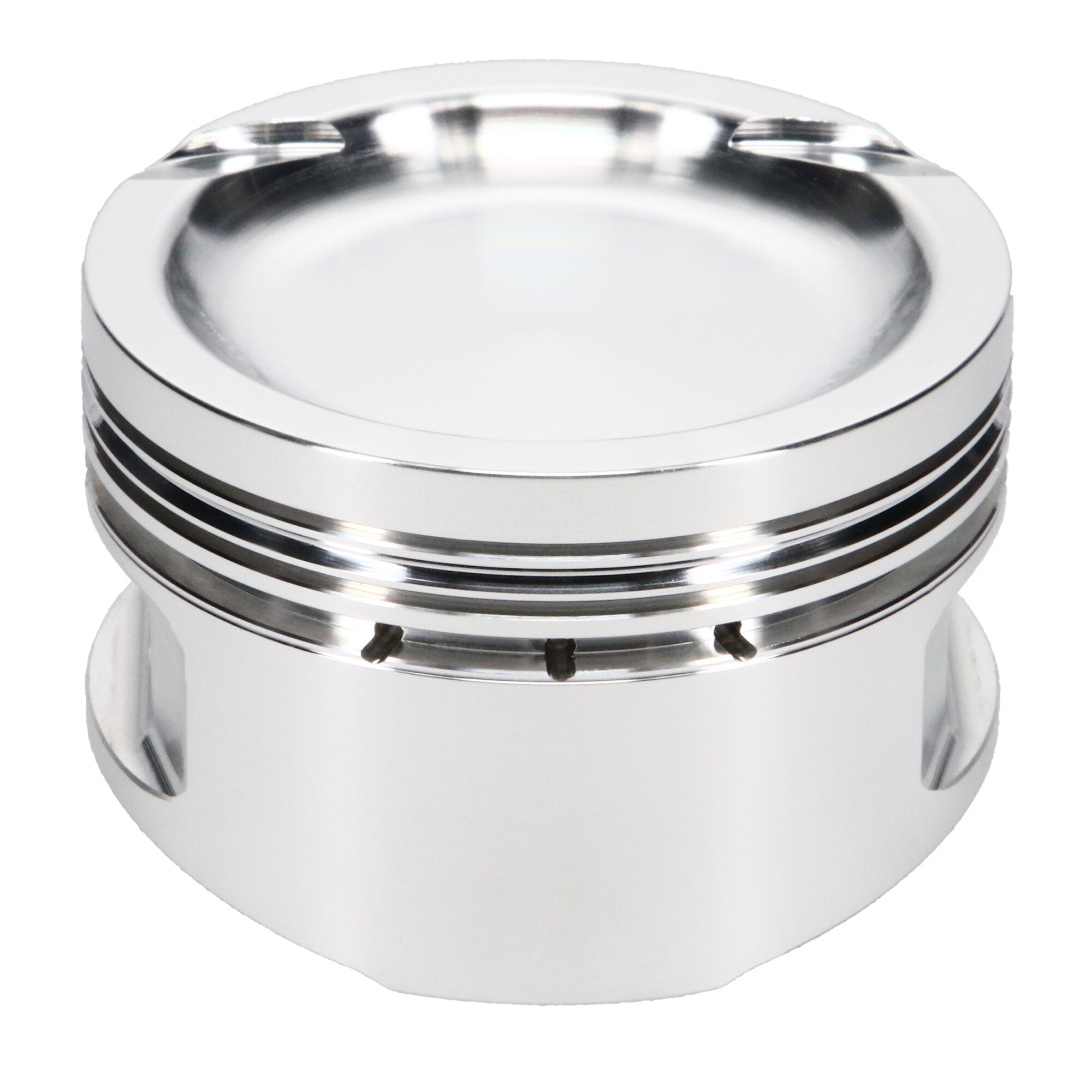

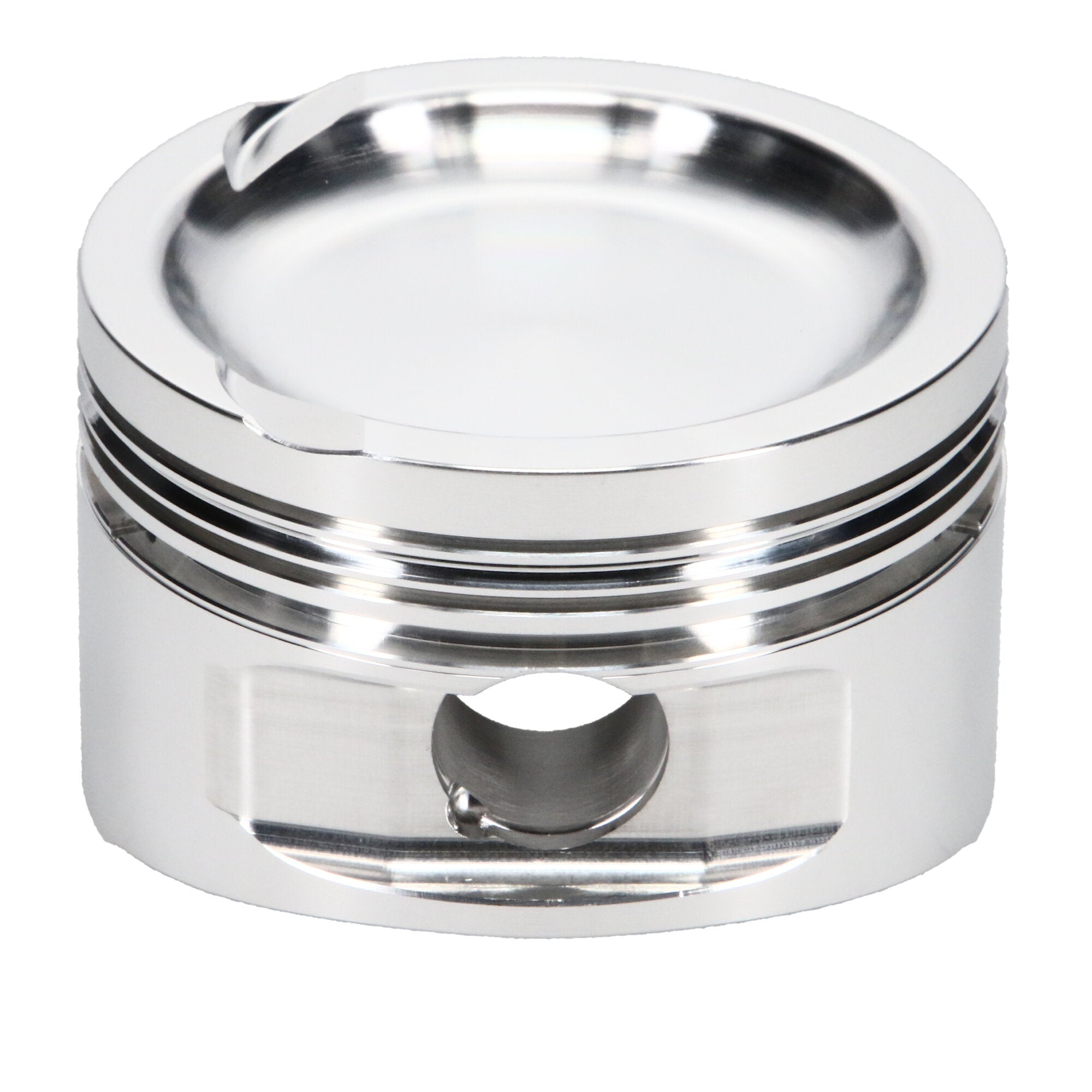

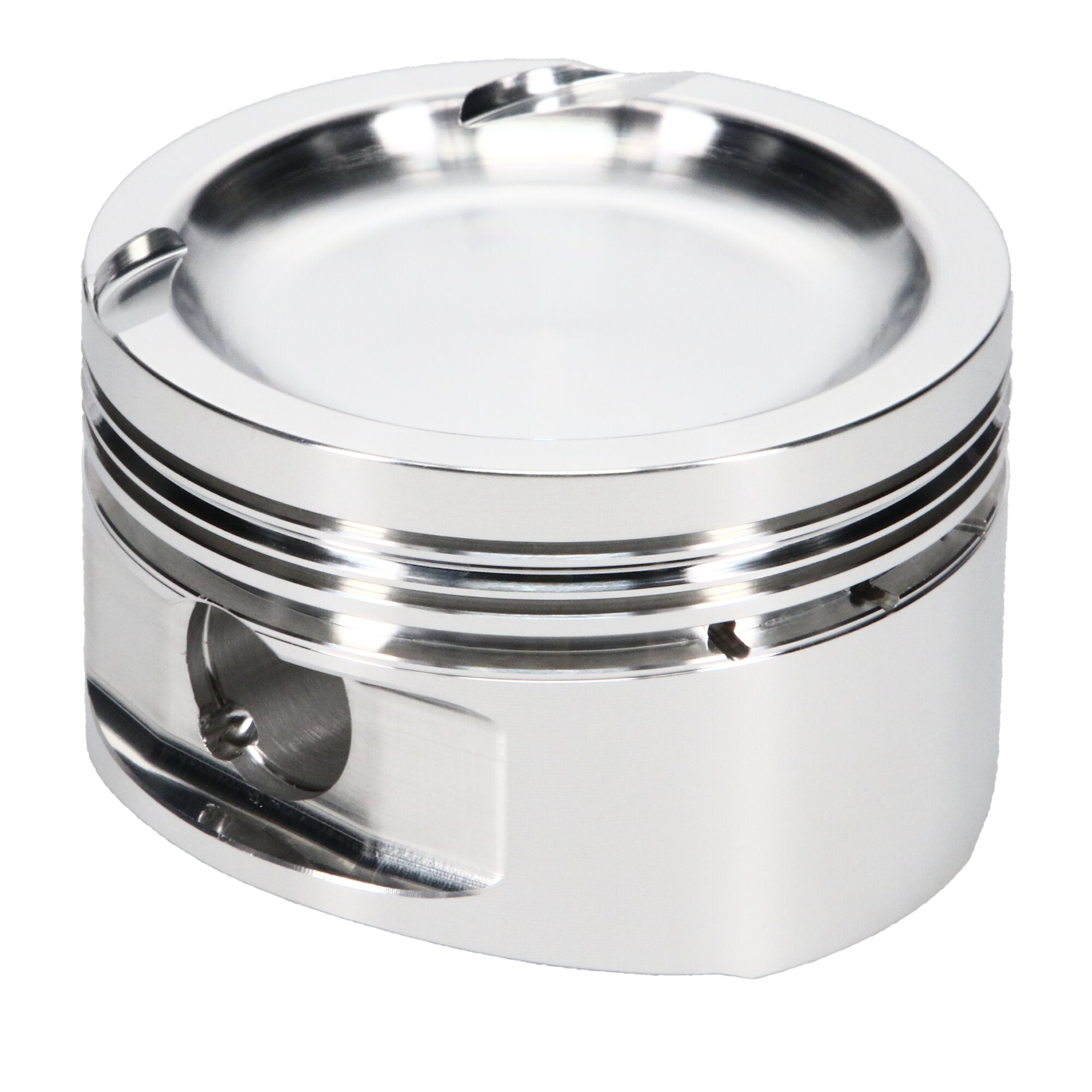

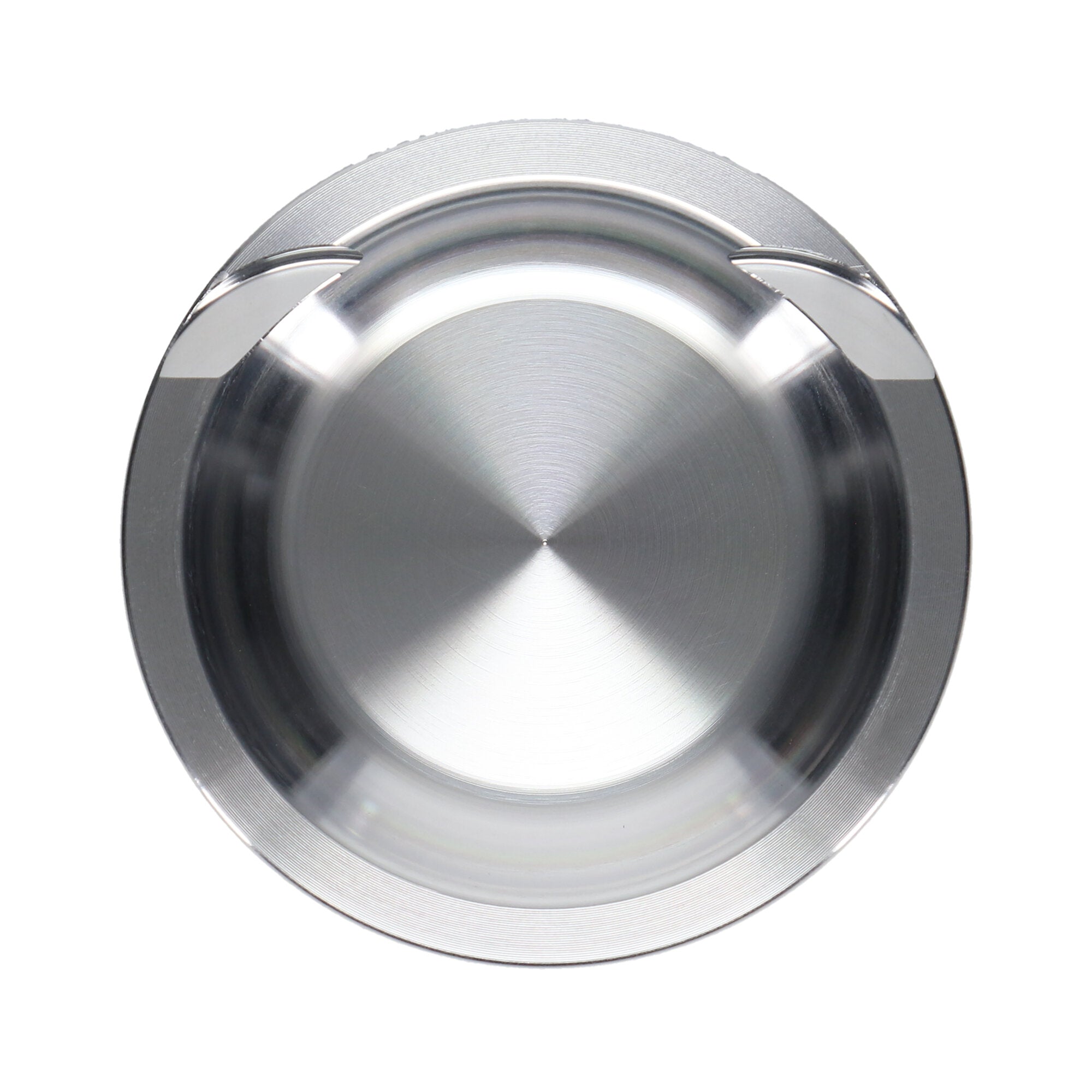

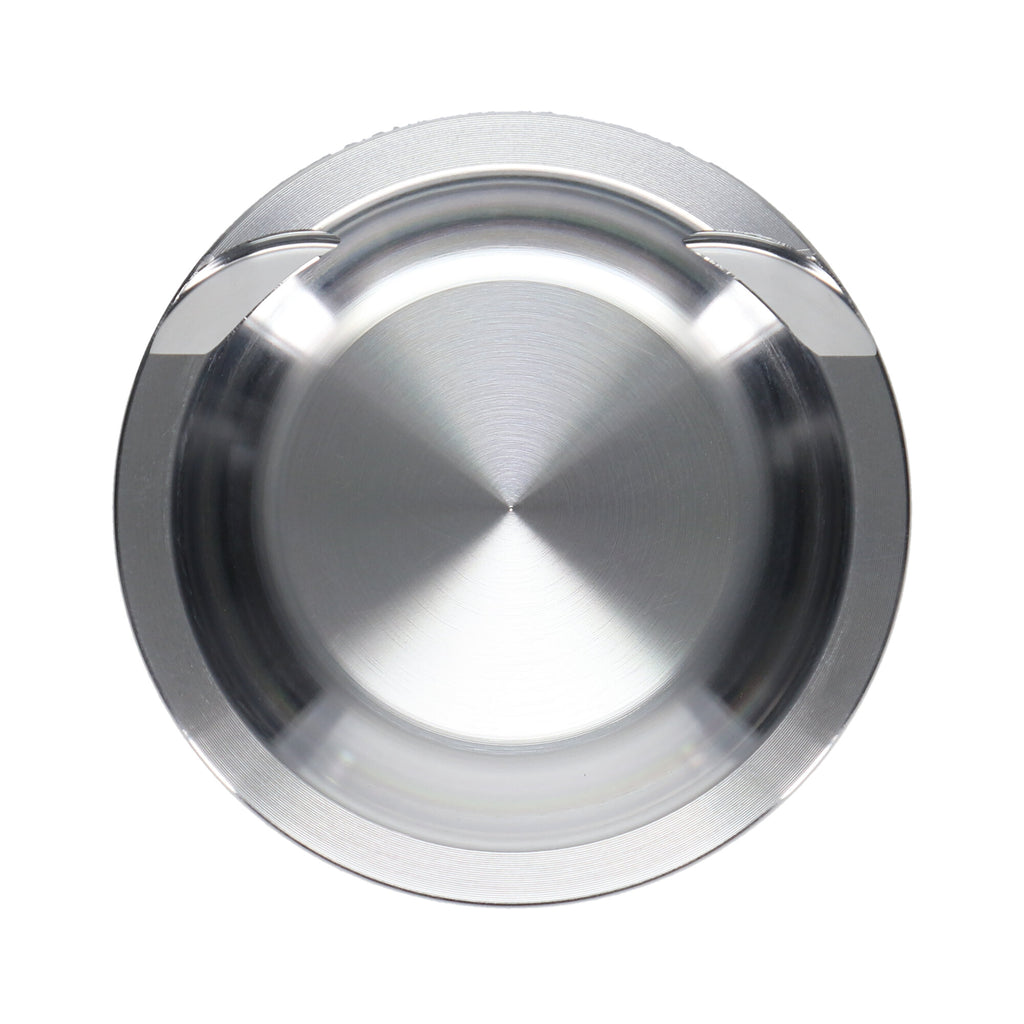

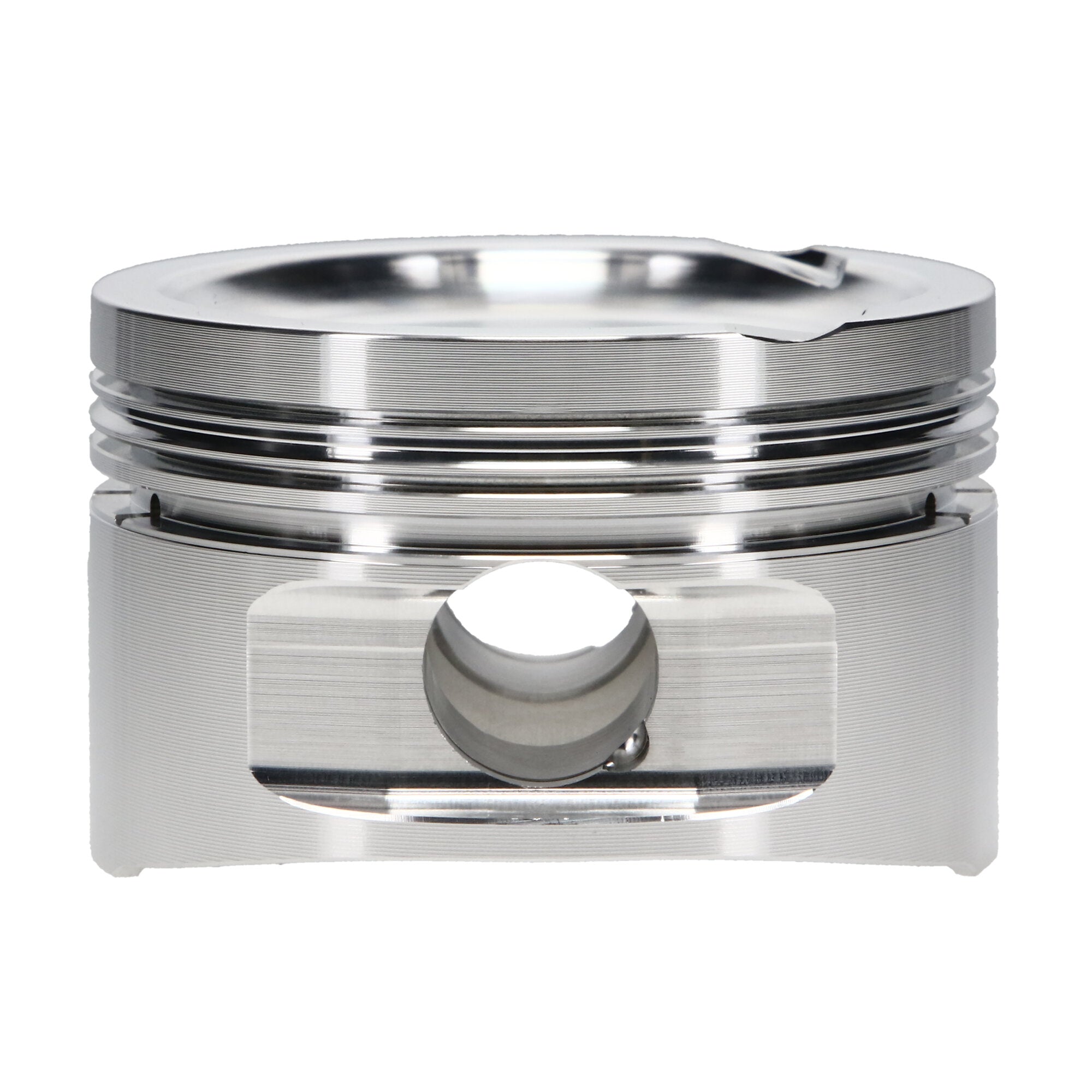

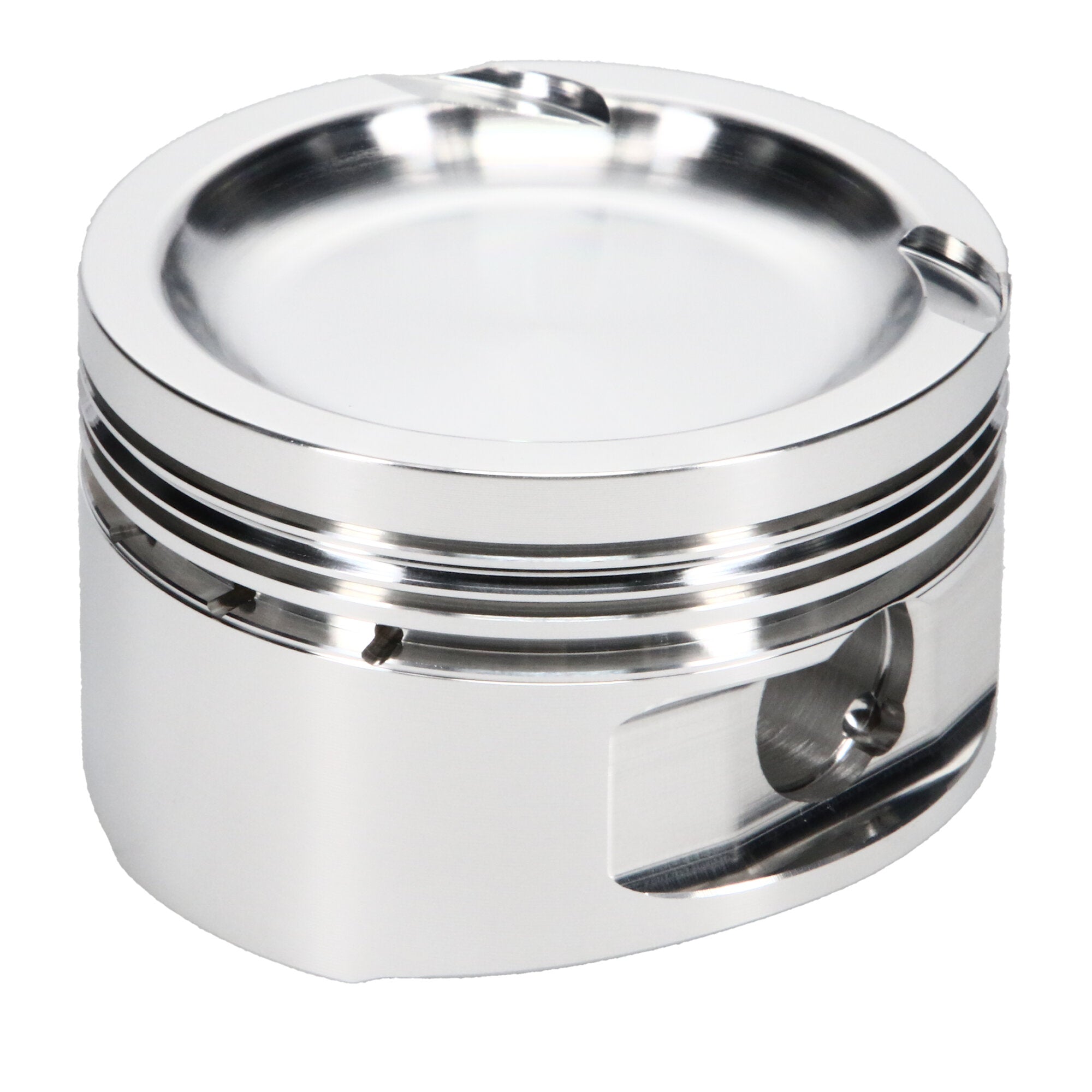

Piston Set, 2618, Inv Dome/Dish, 2.874 Bore, 1.028 CD, 0.708 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda L15A, 73.00 Bore, Dish, Set of 4 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
708-050-MW |
| Add-On |
JG1001-2874 |
| Add-On |
708-2250-12-51C |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.250 |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Industry |
Automotive |
| Engine |
L15A |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Honda |
| Ring Set Included |
Yes |
| Piston Volume |
-4.40 |
| Second Compression Ring Thickness |
0.0480 |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Honda L15A Piston Kit - 73.00 mm Bore - 1.028 in. CH, -4.40 CC |
| Piston Head Type |
Dish |
| Engine Type |
ICE |
| Cylinder Head |
L15A |
| Piston Pin Outside Diameter |
0.708 |
| Wrist Pin Outer Diameter |
0.708 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Quantity |
4 |
| Ringset Included |
Yes |
| Product Market |
Sport Compact |
| Compression Height |
1.028 |
| Bore Diameter |
73.00 |
| Forging Type |
Round |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Material |
5115 |
| Piston Average Weight |
210 |
| Make |
HONDA |
| Title |
JE Pistons - Honda, L15A, 73.00 mm Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Wall Thickness |
0.120 |
| Wrist Pin Wall Thickness |
0.120 |
| Engine - Web |
L15A |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
